Pocket Embroidery on a Brother PR1055X Without Sewing the Pocket Shut: Durkee EZ Frames, Sticky Stabilizer, and the Clearance Checks That Save Your Needles

Pocket embroidery is one of those deceptively complex jobs in a commercial shop. It looks simple—until you realize a standard hoop wants to grab both layers of the pocket, turning a functional feature into a sealed pouch. If you’ve ever stared at a tiny 3.5-inch pocket opening and felt that familiar tightening in your chest thinking, “There is no way my plastic hoop fits in here,” you are not alone.

In this masterclass analysis, we break down how Shirley navigates this challenge using a Brother PR1055X and a specialized sticky frame system (often referred to generically as Durkee or Fast Frames). We will dissect the physics, the safety margins, and the specific material combinations required to embroider the pocket face while keeping the pocket functional.

Why Standard Brother PR1055X Hoops Fail on Shirt Pockets (and How a Sticky Frame Keeps the Pocket Open)

A shirt pocket is mechanically a "double-layer trap." Standard hoops rely on friction between an inner and outer ring. To hoop a pocket conventionally, you would need to fit the inner ring inside the pocket—which is physically impossible for most standard 4x4 or 5x7 hoops. If you hoop over the top, you stitch the pocket shut.

Shirley’s solution is a Sticky Frame system (specifically a Durkee-style metal frame).

The Engineering Logic: Instead of clamping fabric, this frame slides inside the pocket components. It uses a pressure-sensitive adhesive stabilizer on the underside of the frame arm to grip the inside of the pocket face. This isolates the front layer (the "face") from the back layer (the "bag").

If you’re currently researching a pocket hoop for embroidery machine, realize that you are looking for "window frame" or "clamping" systems, not standard hoop rings. These allow the garment to hang free while securing a specific, small surface area.

Pro tip from the comment section (Single-Needle Reality Check): A viewer asked about doing this on a flatbed single-needle machine. The hard truth from our 20 years of experience: Don't risk it. Unless you rip the pocket off, stitch it flat, and sew it back on, a flatbed machine cannot isolate the pocket layers easily. This is a primary trigger for upgrading to a tubular free-arm machine (like the Brother PR series or our SEWTECH multi-needle line).

The “Hidden” Prep That Makes Pocket Embroidery Wearable: Fusible Poly Mesh Inside the Pocket

The difference between "amateur" and "pro" embroidery isn't just how it looks—it's how it feels. Pocket embroidery sits directly over the chest. If you use a stiff tear-away stabilizer, the wearer will feel like they have a crumpled piece of paper or a scratchy badge rubbing against their skin all day.

Shirley applies the Golden Rule of Wearables: “If you wear it, you can’t tear it.” She uses a dual-layer stabilization strategy that balances Machine Stability with Skin Comfort.

The Formula:

1. Structural Layer (Inside Pocket): Fusible Poly Mesh (No-Show Mesh). This provides permanent support for the stitches without adding bulk or scratchiness.
2. Adhesive Layer (On Frame): Sticky Tear-Away. Note: This is used only to hold the fabric to the metal frame, not to stabilize the stitches themselves.

This is a classic example of hooping for embroidery machine best practices: separating the "holding" mechanism from the "stabilizing" mechanism.

Stabilizer Preparation (Sensory Check)

Shirley cuts the fusible poly mesh to match the pocket's internal dimensions.

• The Tactile Test: Run your finger over the mesh. The rough/shiny side is the heat-activated glue.
• Placement: The shiny side must face UP (towards the pocket front fabric), because that is where the embroidery will land.

Fusing Stabilizer to the Pocket

Because you cannot turn a pocket inside out, you must fuse "blind." Insert the mesh. Use your fingers to sweep the inside.

• The "Lump" Check: If you feel any ridge, bump, or fold, pull it out and start over. A fold here will become permanent once ironed.
• The Fuse: Press the iron on the outside of the pocket. The heat travels through the cotton to activate the mesh glue inside.


Warning: Burn Hazard. When positioning stabilizer inside a pocket with an iron or near a hot machine, your fingers are working in a blind zone. Use a heat-resistant tool or chopstick for final adjustments inside the pocket safe from steam burns.

Prep Checklist: The "No-Go" Criteria

Before you even touch the machine, pass these checks:

• Pocket Width: Does the pocket mouth open at least 4.5 inches? (Must clear the frame width).
• Tactile Check: Rub the fused pocket area. Is the mesh fused smoothly with zero wrinkles?
• Material Check: Is the shirt 100% Cotton or a Blend? (If high stretch, you may need a second layer of mesh).
• Hidden Consumable: Do you have your Adhesive Remover spray ready? (Essential for cleaning frames later).

Durkee EZ Frames on a Brother PR1055X: Choosing the 2.5" x 4" Frame and Setting Up the Correct Arm Bracket

Durkee/Fast Frames are aftermarket accessories. They do not snap on like OEM hoops; they require a specific "Arm" or "Driver" that screws onto your machine's pantograph.

Shirley selects the 2.5" x 4" frame. Why this specific size for a pocket?

• Clearance: It fits inside standard pockets.
• stability: It maximizes the adhesive surface area. A smaller frame (2" x 4") might wobble; a larger one won't fit.

If you are shopping for fast frames for brother embroidery machine, verify the bracket compatibility first. The frame is useless without the specific arm designed for your machine's model (e.g., PR600 vs PR1000 brackets often differ).

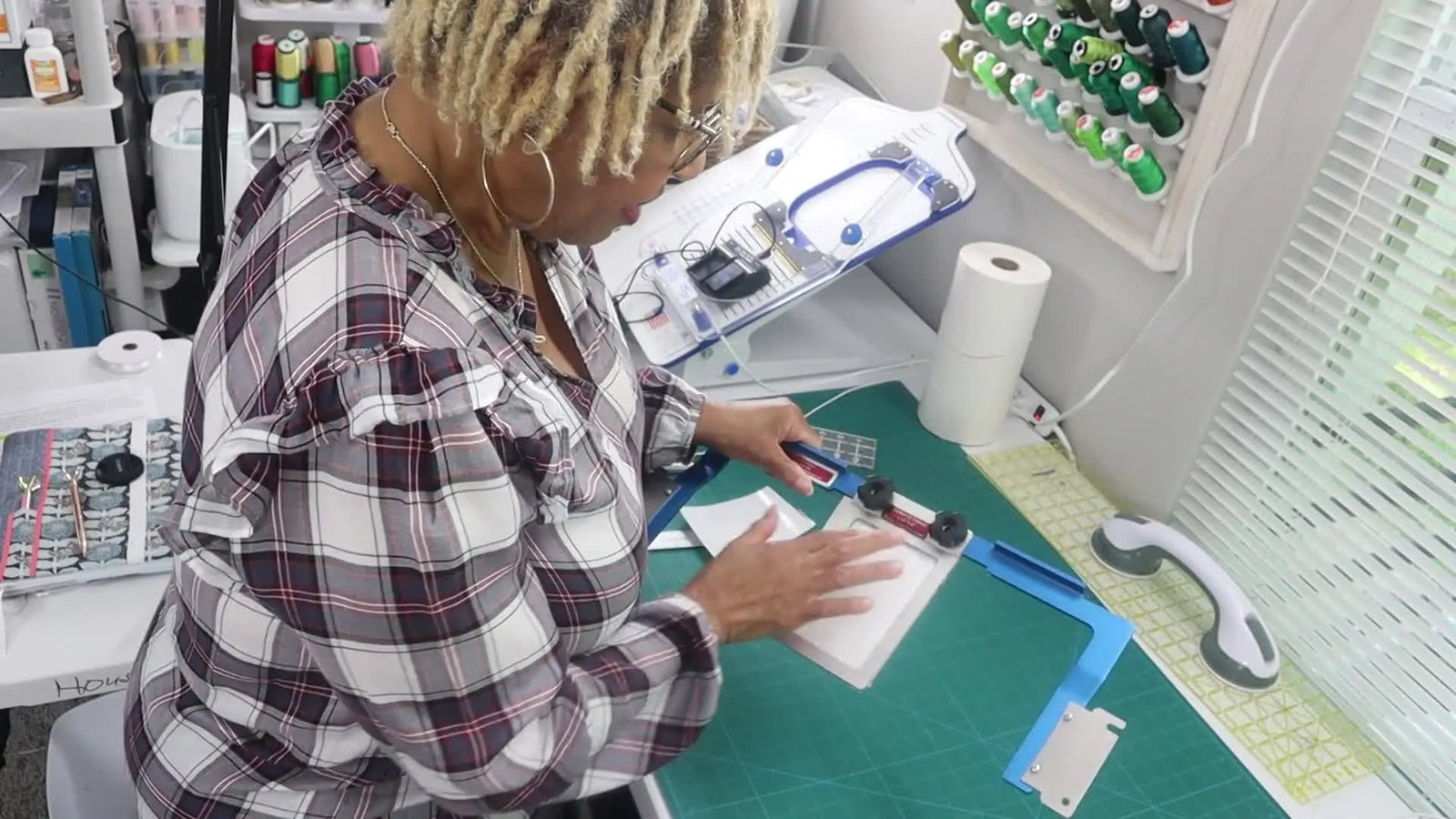

Applying Sticky Backing to the Frame

Here is the physics of the "Sticky Frame": You apply adhesive stabilizer to the underside of the metal window.

1. Cut the sticky stabilizer larger than the frame.
2. Stick it to the bottom.
3. Score the paper with a pin (don't slice the backing!) and peel the release paper to expose the glue inside the window.


Expert Maintenance Insight: Shirley mentions cleaning off residue. This is critical.

• The Symptom: If your design outlines don't line up (registration errors), check your frame.
• The Cause: Old glue build-up creates an uneven surface, causing the fabric to rock or shift 0.5mm during high-speed stitching.
• The Fix: Use citrus-based adhesive remover after every 5-10 shirts.

Hidden Consumable Alert

If you are using durkee ez frames, you must budget for Citrus Adhesive Remover and Isopropyl Alcohol. The remover dissolves the glue; the alcohol cleans the oily remover so the new backing sticks.

The Pocket “Hooping” Move: Sliding the Metal Frame Inside the Pocket Without Distorting the Fabric

This step requires "hands of a surgeon." You are sliding a rigid metal frame inside a flexible pocket and asking them to bond instantly.

Physics of Distortion: When you press fabric onto a sticky surface, you apply shear force. If you push across stripe lines, the stripes will curve. Once stitched, they stay curved forever.

The "Drop and Pat" Technique:

1. Slide the frame in. Ensure it is deep enough so the top bar clears the pocket hem.
2. Do NOT smooth from one side to the other (this stretches the fabric).
3. Tap the center of the pocket to tack it down.
4. Gently press from the center outward to the edges.
5. Sensory Check: The fabric should look relaxed, not taut like a drum. Sticky frames rely on adhesion, not tension.

Strategic Upgrade Path: Sticky frames are the only way to do pockets. However, they are slow (peeling paper, cleaning glue).

• Scenario: You need to do 50 polos with a Left Chest logo (not on the pocket).
• The Bottleneck: Peeling sticky paper and aligning shirts takes 45-60 seconds per shirt.
• The Upgrade: A Magnetic Hoop. You can hoop a left chest in 10 seconds.
• Differentiation: Use sticky frames for "impossible" spots (pockets, collars) and magnetic embroidery hoop systems for standard placements to maximize production speed.

The Clearance Ritual on a Brother PR1055X: Trace Multiple Times to Avoid Needle Strikes on Aftermarket Frames

Using aftermarket metal frames turns off some of your machine's built-in safety sensors. If you hit the frame, you don't just break a needle—you can shatter the rotary hook or bend the needle bar ($500+ repair).

Shirley demonstrates the only acceptable safety protocol: The Obsessive Trace.

1. Reduce Size First: She scales the design to 2.37" x 2.14".
2. Visual Trace: Run the built-in trace function.
3. The "Pinky Check": As the machine traces, can you fit your pinky finger between the needle bar and the metal frame edge? If not, you are too close.




If you operate a brother pr1055x, treat the Trace button as your "Save Game" feature. Never skip it.

Warning: Mechanical Hazard / Eye Safety. Metal-on-metal strikes (needle hitting frame) can cause the needle to shatter into shrapnel. Always maximize the "Emergency Stop" visibility and wear safety glasses when testing new frame boundaries.

Setup Checklist (The "Pre-Flight" Safety)

• Bracket Security: Is the Durkee arm screwed tightly to the machine? (Wiggle it to check).
• Clearance: Did you trace at least twice?
• Pocket Bag Check: Reach under the frame. is the back of the pocket pouch pushed completely away from the sewing arm?
• Fabric Slack: Is the rest of the shirt draped so its weight isn't pulling on the pocket? (Use clips if necessary).

Stitching the Pocket Design at 400 SPM: Slow Speed, High Control, Better Results

Modern machines can run at 1000 stitches per minute (SPM). Shirley runs this job at 400 SPM.

Why slow down?

1. Adhesion vs. Impact: At 1000 sticky frames can vibrate. If the vibration breaks the adhesive bond, the pocket shifts. 400 SPM keeps the physics calm.
2. Reaction Time: If the fabric starts to lift, you have 0.5 seconds to hit stop at 400 SPM. At 1000 SPM, the damage is done before your brain processes it.

While comparing sticky hoop for embroidery machine options, remember that "sticky" is a temporary bond. High speed generates heat and friction, which can weaken adhesives. For best quality on metal frames, keep it under 600 SPM.

Operation Checklist (Active Monitoring)

• Speed Limit: Set max speed to 400-600 SPM.
• Auditory Check: Listen for the rhythmic thump-thump. A sharp clack or grinding noise means stop immediately (needle layout or frame hit).
• Visual Check: Watch the perimeter. Is the outline laying down exactly where the underlay stitching was?

Small Text, Wrong Needle/Thread, and Off-Center Designs: The Pocket Embroidery Problems People Don’t Warn You About

Shirley encounters three real-world obstacles that every embroiderer faces.

1. The Physics of Small Text

• The Issue: The design had tiny Disney lettering.
• The Constraint: Small text (under 5mm) usually requires 60wt thread and a 65/9 or 60/8 needle. Shirley had standard 40wt thread and a large 75/11 needle.
• The Fix: She wisely deleted the text.
• The Lesson: Don't force standard tools to do micro-work. It will just look like a blurry blob.

2. The Needle Strike Anxiety

• The Issue: The design was perfectly centered on screen, but physically too close to the top metal bar.
• The Fix: She manually moved the center point down.
• Pro Tip: Always prioritize physical safety over screen centering.

3. The "Hidden Center" Trap

• The Issue: When she deleted the text, the software recalculated the "center" of the design based on the bounding box of the remaining mouse ears.
• The Consequence: The design stitched slightly lower than visually expected.
• The Fix: When researching brother pr1055x hoops and editing onscreen, be aware that "Center" is mathematical, not visual. Use the trace function to verify the actual stitch location, not just the screen location.

Stabilizer Decision Tree for Wearable Pockets: When to Fuse Poly Mesh, When to Use Sticky Tear-Away, and When to Upgrade Tools

Beginners often guess at stabilizers. Pros use a logic flow. Use this chart for pockets.

Decision Tree: The Pocket Strategy

1. Is the garment for a Human or Decor?
   • Human (Wearable): MUST use Fusible Poly Mesh inside (Contact with skin = soft).
   • Decor (Tote Bag): Can use standard Tear-Away.
2. Is the fabric stretchy (Knits/Polos) or Stable (Woven/Denim)?
   • Stretchy: Add a layer of Cut-Away mesh under the hoop (floating) if possible, or ensure the Fusible Mesh is heavy-duty.
   • Stable: Fusible Mesh + Sticky Frame is sufficient.
3. What is the Volume?
   • < 5 Shirts: Use the Sticky Frame / Durkee method detailed here.
   • > 50 Shirts: Investigate SEWTECH Magnetic Hoops (if the pocket size allows) or structure your workflow to prep multiple frames at once. Adhesive residue creates downtime; magnetic force does not.

Warning: Magnet Safety. If you upgrade to Magnetic Hoops for production efficiency, be aware they carry extreme pinch force. Keep them away from pacemakers, credit cards, and computerized machine screens. Never let two magnets snap together without a buffer layer.

The Finished Pocket Result: Clean Stitch-Out, Pocket Still Works, and a Smart Upgrade Path for Production

Shirley’s final result proves the method works:

• The Disney characters are crisp.
• Crucially: You can slide your hand into the pocket. It is not sewn shut.
• No hoop burn marks on the fragile cotton stripes.








The Commercial Reality Check

This method is perfect for the "occasional" pocket job. However, if your business starts getting orders for 100 corporate polos with pocket logos, the "Sticky Frame" method will become a bottleneck due to the prep time (cutting, peeling, cleaning glue).

When to Level Up:

• Pain Point: Wrist pain from hooping or excessive downtime cleaning sticky frames.
• Solution Level 1: Magnetic Hoops. For standard locations (Left Chest/Back), these cut hooping time by 40% and eliminate hoop burn.
• Solution Level 2: SEWTECH Multi-Needle Machines. If you are doing this on a single-needle machine and sweating over every thread change, a 10-needle or 15-needle machine isn't just a luxury—it's the only way to make the job profitable.

If you have already mastered fast frames embroidery for these tricky spots, you have the skills. The next step is simply matching the tool to the volume of your orders.

FAQ

• Q: Why do standard Brother PR1055X hoops fail for shirt pocket embroidery, and how does a Durkee-style sticky frame keep the pocket open?
  A: Standard Brother PR1055X ring hoops usually clamp both pocket layers, so the pocket gets stitched shut; a Durkee-style sticky frame grips only the pocket face so the pocket bag stays free.
  • Slide the metal window frame into the pocket so the top bar clears the pocket hem.
  • Keep the pocket bag pushed completely away from the sewing arm before stitching.
  • Use the sticky backing as a holding method, not as the main stitch stabilizer.
  • Success check: You can still slide fingers into the pocket after stitching, with no seam line catching the back pocket layer.
  • If it still fails: Stop and re-check pocket bag position and run a trace again before restarting.
• Q: How do I fuse fusible poly mesh (no-show mesh) inside a shirt pocket for wearable embroidery without wrinkles?
  A: Fuse fusible poly mesh inside the pocket first for comfort, and only iron once the mesh is perfectly flat because any fold becomes permanent.
  • Cut the poly mesh to match the pocket’s internal size before inserting it.
  • Identify the glue side by touch (often the rough/shiny side) and place that glue side facing up toward the pocket front fabric.
  • Sweep the mesh flat with fingers (or a tool) and remove/reinsert if you feel any ridge.
  • Success check: A fingertip rub inside/outside the pocket finds zero bumps or wrinkles where the design will stitch.
  • If it still fails: Reduce the mesh size slightly and repeat the “lump check” before pressing again.
• Q: What consumables are required to maintain Durkee EZ Frames (sticky frames) for pocket embroidery, and what symptom shows the frame needs cleaning?
  A: Plan on citrus adhesive remover plus isopropyl alcohol, because glue buildup can cause shifting and registration problems on Durkee EZ Frames.
  • Clean the frame when outlines stop lining up or the fabric feels like it “rocks” on the frame surface.
  • Use citrus-based adhesive remover to dissolve residue, then wipe with isopropyl alcohol so the next sticky backing adheres well.
  • Build cleaning into your routine (commonly every 5–10 shirts, depending on residue).
  • Success check: Fabric sits flat with no rocking, and the outline lands exactly where the underlay indicates.
  • If it still fails: Re-apply fresh sticky backing and re-seat the pocket using the “drop and pat” technique.
• Q: How do I load sticky backing onto a Durkee-style pocket frame without contaminating the adhesive inside the window?
  A: Apply the sticky stabilizer to the underside, then peel only the inner window area so the adhesive is exposed exactly where the pocket face will bond.
  • Cut sticky stabilizer larger than the frame and press it firmly onto the bottom side.
  • Score the paper with a pin (avoid slicing through the backing) to create a clean peel line.
  • Peel the release paper only inside the window opening to expose glue in the stitch area.
  • Success check: The adhesive is exposed only in the window area, and the backing stays tight with no lifted edges.
  • If it still fails: Replace the backing and avoid touching the exposed adhesive (oil from fingers can reduce grip).
• Q: How do I prevent fabric distortion (curved stripes or skewed pocket fronts) when using a sticky pocket frame on a Brother PR1055X?
  A: Use a “drop and pat” placement—tack the center first and press outward—because smoothing sideways can shear the fabric and permanently curve stripes.
  • Insert the frame to the correct depth, then lower the pocket face onto the adhesive without dragging.
  • Tap the center to anchor, then press gently from center outward to the edges.
  • Keep the fabric relaxed; sticky frames rely on adhesion, not drum-tight tension.
  • Success check: Stripes stay straight and the pocket face looks relaxed (not stretched) before you stitch.
  • If it still fails: Remove and re-seat the pocket face; don’t try to “stretch it back” once it’s stuck.
• Q: What is the safest way to avoid needle strikes when using aftermarket metal pocket frames on a Brother PR1055X?
  A: Trace obsessively and confirm physical clearance, because a needle hitting a metal frame can shatter the needle and cause expensive internal damage.
  • Reduce the design size first if needed so it stays well inside the frame window.
  • Run the built-in trace function at least twice before stitching.
  • Use the “pinky check” during trace: confirm you can fit a pinky between the needle path/needle bar area and the metal frame edge.
  • Success check: Trace completes with obvious clearance on all sides and no “near-miss” spots at the top bar.
  • If it still fails: Move the design center down and re-trace; prioritize physical safety over on-screen centering.
• Q: What stitch speed should be used for sticky frame pocket embroidery on a Brother PR1055X, and what sounds mean I should stop?
  A: Keep sticky-frame pocket jobs slow (often 400–600 SPM) to prevent vibration from breaking the adhesive bond and shifting the pocket.
  • Set the machine max speed to 400–600 SPM for this operation.
  • Watch the pocket perimeter during the first outlines to catch any lift early.
  • Stop immediately if you hear a sharp clack or grinding noise (possible frame contact or mechanical interference).
  • Success check: The outline stitches land exactly on top of the underlay path with no creeping shift.
  • If it still fails: Re-clean the frame, re-seat the fabric, and re-run trace before restarting.
• Q: When should a shop upgrade from sticky pocket frames to magnetic hoops or a multi-needle machine for production efficiency?
  A: Use sticky frames for “impossible” placements like pockets, but consider magnetic hoops for standard placements and a multi-needle machine when volume and labor time become the bottleneck.
  • Diagnose the bottleneck: If peeling paper, aligning, and cleaning glue dominates cycle time, sticky frames are limiting throughput.
  • Optimize first: Batch prep frames and keep pocket jobs under controlled speed to reduce rework.
  • Upgrade tools next: Use magnetic hoops for standard placements (like left chest) to reduce hooping time and hoop burn.
  • Upgrade capacity last: If single-needle thread changes are killing profit, a multi-needle platform is often the practical next step.
  • Success check: Hooping time and downtime drop noticeably without increasing misalignment or rework.
  • If it still fails: Re-evaluate which placements truly require sticky frames versus which can move to magnetic hoop workflows.
