Plaid Sweatpants on a Ricoma MT-1501: The 4.5-Inch Placement Method + Magnetic Hoop Tricks That Prevent Crooked Logos

The Sweatpants Survival Guide: How to Conquer Tubular Legs Without Ruining the Garment

Embroidering sweatpants looks deceptively simple—until you are staring at a thick, tubular pant leg, a bulky elastic waistband, pockets that seem to have a mind of their own, and a logo that must land perfectly on the wearer’s left thigh.

If you have ever felt that cold spike of panic right before hitting the green "Start" button—thoughts racing like "What if the needle hits the hoop? What if the logo comes out crooked? What if the stitches sink and look cheap?"—congratulations. That fear is your quality control mechanism kicking in. It means you care.

In my 20 years of running embroidery floors, I’ve learned that garment embroidery isn’t about luck; it’s about mechanical certainty. In this masterclass, I am deconstructing a real-world workflow (featuring Megan and a ricoma mt-1501 embroidery machine) into an industry-standard protocol. I will guide you through the tactile "feels," the safety numbers, and the tool upgrades that turn a nightmare job into a profitable one.

The "Safety Net": Why Tracing is Non-Negotiable

When you are operating a commercial workstation like the ricoma mt-1501 embroidery machine, the 'Trace' function is the only "Rewind" button you get. Once the needle penetrates, there is no going back so don't rush this step.

Megan’s process illustrates a golden rule: Placement is not a guess; it involves a verification loop.

Here is the mindset shift to keep you calm:

1. Ruler Measurement gets you into the ballpark.
2. Paper Template gets you visually centered.
3. Machine Trace gets you mechanically correct.

If your trace shows the design boundary sitting too low (as seen in the case study), do not "hope it works out." Stop. Adjust the Y-axis on your control panel. Trace again. Listen for the machine to move through the boundaries without hitting the plastic hoop edge.

The "Hidden" Prep: Stabilizer Physics & The Safety Sandwich

Sweatpants fabric—especially textured flannel or heavy cotton/poly blends—is notorious for shifting, compressing, and "tunneling" (puckering). The battle is won or lost at the stabilizer station.

The "Safety Sandwich" Strategy Megan utilizes a specific stack that I call the "Safety Sandwich." It combines the best of two worlds:

• Layer 1 (Bottom): Tearaway stabilizer (pre-cut).
• Layer 2 (Top): Cutaway stabilizer (from a roll).
• The Glue: Odif 505 Temporary Adhesive Spray.

Why this works (The Physics):

• Cutaway provides the permanent structural integrity needed for knit fabrics so the design doesn't stretch and distort over time.
• Tearaway provides extra rigidity during the actual stitching process but tears away cleanly afterward to reduce bulk next to the skin.
• 505 Spray is the critical friction agent. It prevents the two stabilizer layers from sliding against the pant fabric.

Hidden Consumables You Need:

• Odif 505 Spray: Essential for laminating your stabilizer.
• Rotary Cutter/Mat: For clean, straight edges.
• Ballpoint Needles (75/11): Crucial Update—If you are doing knits, ensure your machine is equipped with Ballpoint (BP) needles to push fibers aside rather than cutting them.


Phase 1 Checklist: Preparation (Do This Before Touching the Garment)

• Cut Stabilizer: Ensure your Cutaway is large enough (approx. 8" x 8") to cover the entire hoop area plus margin.
• Build the Sandwich: Tearaway on bottom, Cutaway on top. Lightly mist with 505 and smooth them together. They should feel like one solid piece.
• Trim to Fit: Ensure the width of your stabilizer stack is narrow enough to slide inside the pant leg without bunching up.
• Print Template: Print your design at 100% scale (Actual Size) and have scotch tape ready.
• Blade Safety: Retract your rotary cutter immediately after use.

Warning: Physical Safety
Rotary cutters are razor-sharp. Always cut on a self-healing mat away from your garment to avoid accidental slices. Never leave an open blade on your embroidery table.

The 4.5-Inch Standard: Precision Placement

Placement anxiety is real. To cure it, specialized shops use standard anchor points. Megan’s placement method is clean, repeatable, and industry-accepted:

1. The Vertical Anchor: Measure 4.5 inches down from the bottom stitching of the elastic waistband (the waistband seam).
   • Expert Tip: Never measure from the very top edge of the pants. Waistbands roll and vary in height. The seam is your structural constant.
2. The Visual Center: Tape the printed paper template at that 4.5" mark, visually centering it on the leg width.
3. The Pocket Trap: Explicitly pull the pocket lining out of the hoop area. Tape it down if necessary.


Sensory Check: Run your hands down the side seams of the pant leg. Your template center line should act as the equator between those two seams. On plaid fabrics, do not trust the lines of the pattern—they are often sewn crooked. Trust the physical seams and your ruler.

The Tool Upgrade: Magnetic Hooping for Tubular Legs

This is the part of the process where beginners usually quit. Hooping a thick, tubular leg with a traditional plastic "friction" hoop requires immense hand strength and often leaves "hoop burn" (shiny rings on the fabric).

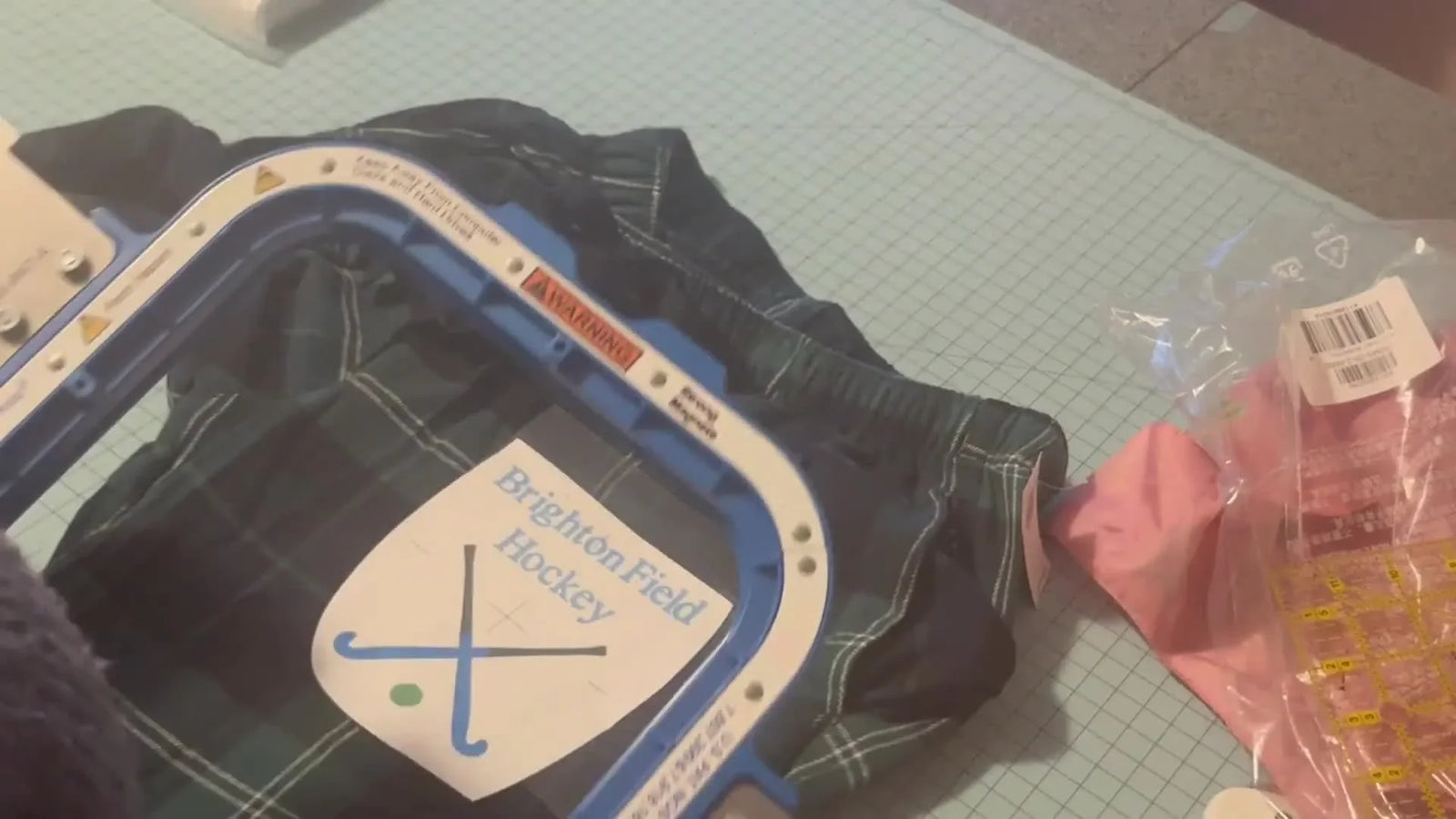

Megan uses a 7.25" x 7.25" Magnetic Hoop. This is not just a luxury; for tubular garments, it is an operational necessity.

The Magnetic Workflow:

1. Slide the Stabilizer Sandwich inside the pant leg.
2. Slide the Bottom Magnetic Ring inside the leg, underneath the stabilizer.
3. Tactile Alignment: Use your fingers to feel the edges of the bottom ring through the thick fabric. Adjust it until it sits centered under your paper template.
4. The Snap: Place the top frame over the garment, align it with the paper template, and let it snap down.






Why "Magnetic" is the Solution for Sweatpants: Traditional hoops rely on friction (forcing an inner ring into an outer ring). Thick fleece fights this, leading to popping out or distorted grain lines. magnetic embroidery hoops clamp vertically. They don't distort the fabric grain, and they hold thick seams without effort.

The Business Trigger: When do you upgrade?

• Pain Point: If you are spending 5+ minutes wrestling a single pant leg, or if your wrists hurt after a job.
• Pain Point: If you see "Hoop Burn" that requires aggressive steaming to remove.
• Solutions:
  • Level 1: SEWTECH Magnetic Hoops (Compatible with Brother/Babylock/Janome single needles).
  • Level 2: Mighty Hoops (Standard for Ricoma/Tajima/Barudan multi-needles).
  • Level 3: If you are doing volume (50+ pairs), upgrading to a SEWTECH Multi-Needle Machine allows you to leave hoops setup for continuous production.

Warning: Magnet Safety
Industrial magnetic hoops are powerful. They can pinch fingers severely. Keep your fingers on the outside handles, never under the rim.
Crucially: Keep strong magnets away from pacemakers, insulin pumps, and sensitive electronics.

Phase 2 Checklist: Setup (The Pre-Load Check)

• Stabilizer Check: Feel inside the leg. Is the stabilizer flat? No folded corners?
• Pocket Check: Is the pocket bag pushed completely up and away from the hoop area?
• Square Check: Look at your paper template relative to the hoop frame. Is it parallel?
• Tape Tab: Fold a little tab on your tape so you can easily rip the template off later.
• Seating: Press firmly around the perimeter of the specific 7.25 mighty hoop (or your specific brand) to ensure the magnets are fully engaged.

Loading: The Art of Clearance

Megan loads the pant leg onto the machine arm with the waistband facing up/towards the machine body.

The "Death Zone" Check: When embroidering tubes, the biggest risk is sewing the leg shut (sewing the back of the leg to the front).

• The Check: Slide your hand under the hoop after loading it adjacent to the needle plate. You should feel only the single layer of the fabric front + stabilizer. If you feel the back leg, stop.

Trace, Nudge, Verify: The Digital Safety Loop

Megan pulls up the design, centers the needle, and hits Trace.

In the video, her first trace reveals a problem: the needle path is too low.

• The Symptom: She sees the laser/needle dropping below her desired area on the paper template.
• The Fix: She does not re-hoop. She simply goes to the control panel and nudges the Y-axis (vertical) up.


Expert Protocol:

1. Trace 1: Watch the bottom boundary. Does it hit the plastic? Does it hit the waistband?
2. Adjust: Move design via screen.
3. Trace 2: Watch the center alignment. Does the needle hover over the center crosshair of your paper template?
4. Remove Template: Only peel off the paper once you are 100% satisfied.

The Secret Ingredient: Water-Soluble Topping

If you have ever seen embroidery on fleece where the stitches look "sunken" or "fuzzy," it is because the thread has disappeared into the fabric pile.

Megan uses Water-Soluble Topping (Solvy).

• Action: Cut a piece larger than the design.
• Application: "Float" it. Just lay it gently on top of the hoop right before stitching.


The result: The stitches sit proudly on top of the film, not buried in the fluff. It creates that crisp, high-end retail look.

Stitching: The Critical First 20 Seconds

Megan starts the machine but doesn't walk away. She keeps her hands near the hoop (safely away from the needle bar) to manage the topping.

Expert Data: Speed Settings While a ricoma mt-1501 embroidery machine can run at 1000+ stitches per minute (SPM), tubular sweatpants are unstable.

• Recommended Speed: 600 - 750 SPM.
• Why? Slower speeds reduce the push/pull distortion on stretchy fabrics and reduce the risk of thread breaks on thick seams.

Phase 3 Checklist: Operation (Launch Sequence)

• Under-Hoop Clearance: Final check—is the back of the leg free?
• Topping: Is the water-soluble film covering the entire design area?
• Pocket: Still clear?
• Speed: Reduced to ~700 SPM?
• Start: Watch the first 100 stitches like a hawk. If the fabric resembles a "twisting towel," stop immediately.

Finishing: The Retail Reveal

Once the machine sings its finish song:

1. Tear: Gently tear away the excess water-soluble topping. Ideally, most of it comes off in one piece.
2. Trim: Snip the jump threads.
3. Dissolve: Use a water spray bottle or a damp cloth to dab away the remaining bits of topping.


Pro Tip: Do not iron directly on the embroidery immediately. If you need to press the garment, turn it inside out or use a pressing cloth to avoid crushing the stitches.

Troubleshooting: When Good Plans Go Bad

Even with the best prep, things happen. Here is how to handle the most common issues:

The "Stop Guessing" Decision Tree: Stabilizer

Confused about what to use? Follow this logic path for sweatpants:

Step 1: Is the fabric stretchy (Knits/Fleece)?

• YES: You MUST use Cutaway Stabilizer. (Tearaway alone will cause the design to distort after one wash).

Step 2: Is the fabric thick/fluffy?

• YES: You MUST use Water-Soluble Topping on top to prevent sinking stitches.

Step 3: Is it a tubular hoop job?

• YES: Use the Sandwich Method (Stick Tearaway to Cutaway) to give the hoop something firm to grip, preventing the fabric from slipping.

The Path to Production: Scaling Up

Megan's workflow is perfect for small batches. But if you have just accepted an order for 50 pairs of team joggers, you will quickly find bottlenecks.

1. The Hooping Bottleneck: If standard hoops are slowing you down, terms like mighty hoop for ricoma or SEWTECH Magnetic Frames are your gateways to understanding efficient production. These tools pay for themselves in labor savings within the first large job.
2. The Machine Bottleneck: Single-needle machines require a thread change for every color. If your logo has 3 colors, that is 2 manual stops per pant leg. SEWTECH Multi-Needle Machines eliminate this, allowing you to hit "Start" and walk away to hoop the next pair.

Final Thoughts & Materials Recap

Embroidering sweatpants doesn't have to be a gamble. By controlling the variables—stabilizer, placement, and hooping pressure—you create a predictable environment for your needle.

Megan’s Toolkit (Recap):

• Machine: Ricoma MT-1501 (Multi-Needle).
• Hoop: 7.25" x 7.25" Magnetic Hoop (Ideal size for pant legs).
• Stabilizer: Cutaway (Roll) + Tearaway (Sheet) sandwich.
• Adhesive: Odif 505 Temporary Spray.
• Topping: Water-Soluble Film.
• Placement: 4.5" down from the waistband seam.

If you are currently researching hooping solutions, you will often find people searching for hooping for embroidery machine specifically regarding tubular items. The truth demonstrated here is that magnetic hoop embroidery is the industry standard for a reason: it turns a wrestling match into a simple "click."

Master the sandwich, trust the trace, and let the magnets do the heavy lifting. Happy stitching.

FAQ

• Q: How do I prevent sewing a sweatpant leg shut when loading a tubular sweatpants leg on a Ricoma MT-1501 multi-needle embroidery machine?
  A: Do an under-hoop clearance check every time before pressing Start—this is the fastest way to avoid stitching the back leg to the front.
  • Slide the hooped pant leg onto the machine arm with the waistband facing up/towards the machine body.
  • Insert a hand under the hoop near the needle plate area and feel for only one fabric layer (front) plus stabilizer.
  • Stop immediately and re-position the garment on the arm if any back-leg layer is trapped under the hoop path.
  • Success check: Your hand can move freely under the hoop and you can feel only a single layer under the design area.
  • If it still fails: Reduce bulk by trimming stabilizer width so it does not bunch inside the tube before hooping.
• Q: What stabilizer stack works best for sweatpants embroidery on knit/fleece tubular legs to reduce shifting and tunneling (puckering)?
  A: Use a “stabilizer sandwich”: tearaway on the bottom + cutaway on top, bonded with Odif 505 temporary adhesive spray.
  • Cut cutaway large enough to cover the hoop area plus margin (about 8" x 8" is a common target in this workflow).
  • Mist lightly with Odif 505 and smooth tearaway (bottom) to cutaway (top) so the layers behave like one sheet.
  • Trim the sandwich narrow enough to slide inside the pant leg without bunching.
  • Success check: The stack feels like one solid piece and lies flat inside the leg with no folded corners.
  • If it still fails: Use a denser cutaway stabilizer to add structure, especially if outlines show registration gaps.
• Q: How do I stop embroidery stitches from sinking into sweatpants fleece and looking fuzzy on thick/fluffy fabric?
  A: Add water-soluble topping (Solvy) on top right before stitching to keep stitches sitting on the surface.
  • Cut the topping larger than the design area.
  • Float the film on top of the hooped garment just before starting the run.
  • Tear away most of the film after stitching, then dab remaining bits away with water (spray bottle or damp cloth).
  • Success check: Satin edges and small details look crisp instead of buried in the pile.
  • If it still fails: Slow the machine down and confirm the stabilizer sandwich is firm and flat to reduce push/pull distortion.
• Q: How do I verify design placement on sweatpants before stitching using the Trace function on a Ricoma MT-1501 to avoid hoop strikes and misplacement?
  A: Use a three-step verification loop—ruler measurement, paper template, then machine Trace—and do not stitch until Trace is mechanically correct.
  • Measure 4.5 inches down from the waistband seam (not the top edge) and tape the paper template at that anchor point.
  • Run Trace and watch the full boundary for clearance from hoop edges and the waistband area.
  • Nudge the design on the control panel (for example, adjust Y-axis up/down) and Trace again until it centers over the template crosshair.
  • Success check: The traced needle/laser path stays fully inside the safe area and aligns with the template center without contacting hoop edges.
  • If it still fails: Re-check that the pocket bag is pulled completely out of the hoop zone and taped away if needed.
• Q: How do I prevent hoop burn (shiny rings) when embroidering sweatpants with traditional plastic friction hoops versus magnetic embroidery hoops?
  A: Reduce excessive hoop pressure and consider switching to a magnetic hoop for thick tubular legs to clamp without distorting fabric grain.
  • Avoid over-tightening traditional hoops, especially on velvet-like or pressure-sensitive fabrics.
  • Steam using a hover iron technique to relax fibers if a shiny ring appears.
  • Switch to a magnetic hoop when thick fleece fights friction hoops or when hooping takes several minutes per leg.
  • Success check: After hooping, the fabric shows minimal shiny compression marks and the grain is not pulled off-line.
  • If it still fails: Review stabilizer thickness and hooping method—fabric that shifts or stretches during hooping can worsen shine and distortion.
• Q: What magnet safety rules should I follow when using industrial magnetic embroidery hoops on tubular sweatpants legs?
  A: Treat magnetic hoops as pinch hazards and keep hands and medical devices safe—strong magnets can injure fingers and affect sensitive equipment.
  • Keep fingers on the outside handles and never place fingers under the rim during the “snap” closure.
  • Seat the frame by pressing around the perimeter so magnets fully engage without forcing.
  • Keep magnetic hoops away from pacemakers, insulin pumps, and sensitive electronics.
  • Success check: The frame closes flush and evenly with no gaps, and fingers never enter the pinch zone.
  • If it still fails: Stop and re-align the bottom ring by feel through the fabric before attempting to close again.
• Q: What is a safe stitch speed for embroidering tubular sweatpants on a Ricoma MT-1501 multi-needle embroidery machine to reduce distortion and thread breaks?
  A: Use a reduced speed of about 600–750 SPM for tubular sweatpants to improve control on unstable, thick garments.
  • Set the machine speed to the recommended range before starting the design.
  • Watch the first 100 stitches closely and stop if the fabric begins twisting like a towel.
  • Keep hands near the hoop (away from the needle bar) to manage water-soluble topping during the first seconds.
  • Success check: The garment stays stable with no twisting/pulling and stitches form cleanly without repeated thread breaks.
  • If it still fails: Re-run Trace for clearance (to avoid needle/hoop contact) and consider switching to a ballpoint needle for knits as a safer starting point per machine guidance.
