PK50002 ITH Candy Heart Bunting: A Clean, Double-Sided Finish (Without Warping Your Hearts)

If you’ve ever finished an in-the-hoop (ITH) project and thought, “Why does it look cute… but also a little wavy and homemade?”—you are not alone. Freestanding ITH pieces are unforgiving physics experiments. One sloppy hooping moment, one rushed trim, or a 10% deviation in stabilizer tension, and the whole heart can twist, ripple, or tunnel.

In a professional studio, we call this "structural failure." The PK50002 project is absolutely doable on a home embroidery machine, but it requires a shift in mindset from "crafting" to "engineering." This project is an excellent skill-builder because it teaches three non-negotiable skills for paid work: clean appliqué trimming (tolerance < 1mm), double-sided finishing, and absolute stabilizer control.

The Supply Laydown for PK50002 Candy Heart Bunting (So You Don’t Stop Mid-Stitch)

The video provides a visual layout, but let's break this down by function. In ITH embroidery, you cannot pause to hunt for scissors once the machine is running—interruptions lead to fabric shifting.

You need a "surgical tray" setup with exactly these items:

• Stabilizers (The Foundation): OESD Aquamesh (Washaway) AND OESD Badgemaster (Heavyweight Water Soluble). Why both? The mesh provides the grid structure; the film provides rigidity.
• Insert (The Skeleton): OESD Fiberform. This acts as the stiffener.
• Adhesive: OESD Applique Fuse and Fix.
• Securing: OESD Expert Embroidery Tape (Tearaway). Do not use standard office tape; it leaves residue on the needle.
• Hoop: Oval embroidery hoop (ensure it is clean and the screw is lubricated).
• Cutting: Curved embroidery scissors (for trimming) and standard scissors (for paper/stabilizer).
• Assembly: Satin ribbon and alligator clamps.
• Hardware: OESD Perfect Punch Tool + self-healing cutting mat.
• Consumables: Embroidery thread (40wt rayon or polyester) and matching bobbin thread.

Hidden Consumables & Tools (The Pro Additions):

• Fresh Needle: Size 75/11 Sharp or Embroidery needle. Ballpoint needles can cause sloppy edges on satin stitches.
• Tweezers: For placing small fabric pieces without risking your fingers.

If you are building a repeatable workflow, investing in a hooping station for embroidery can be the difference between "one cute bunting" and "I can make fifty of these for a craft fair without fatigue." A station holds the outer ring static, ensuring your stabilizer tension is uniform every single time—something human hands struggle to repeat manually.

Prep Checklist (Pre-Flight Protocol):

• Inventory Check: Confirm existence of both Washaway mesh and Badgemaster film.
• Material Prep: Pre-cut front and back fabric squares (add 1 inch margin on all sides).
• Workspace: Plug in the iron; clear a flat surface for pressing.
• Tool Safety: Place curved scissors and tape within the "Triangle of Reach" (dominant hand side).
• Bobbin Prep: Wind a bobbin that matches your top thread color. (Crucial for Step 10).


The “Drum-Tight” Hoop Test: Hooping Aquamesh + Badgemaster Without Ripples

In the video, two layers are hooped together: OESD Aquamesh Washaway and OESD Badgemaster. The instruction is to make it "drum-tight."

The Sensory Test:

1. Loosen the hoop screw significantly.
2. Layer the Badgemaster on top of the Aquamesh.
3. Press the inner hoop down.
4. Tighten the screw smoothly.
5. The Tap Test: Tap the stabilizer with your fingernail. Listen.
   • Thud/Rustle: Too loose. The needle will push the stabilizer down, causing registration errors.
   • Sharp "Ping": Correct. It should sound like a snare drum.

Start with the screw loose enough that you don't have to force the inner ring, then tighten the screw while gently pulling the stabilizer edges to remove slack. Do not distort the weave of the mesh.

Fiberform + Fuse and Fix: The Insert Prep That Makes the Heart Hold Its Shape

This bunting works because the heart has a stiff core (Fiberform). Without this, the satin stitching would collapse the fabric.

The Thermal Physics of Fusing:

1. Map: Iron the printed template onto the paper side of the Applique Fuse and Fix.
2. fuse: Iron the adhesive side onto the Fiberform. Use medium heat, no steam.
3. Cool: Wait until it is cold to the touch.
4. Cut: Cut exactly on the line.
5. Peel: Remove the paper backing.

Why "Cool Completely" Matters: Adhesives are liquid when hot. If you cut while warm, the Fiberform will slide 1-2mm off-center. By waiting for it to cool, the bond solidifies, ensuring your cut is geometrically perfect.

The Placement Stitch Color Stop: Your Only Chance to Get the Heart Centered

Load the design and run Color Stop 1. This stitches the placement outline directly onto the stabilizer.

Action: Observe the tension.

• The thread should lie flat.
• If the stabilizer puckers immediately, your hoop tension is too low. Stop and re-hoop now.

Expected outcome: A clean, visible heart outline that serves as your sterile field boundary.

The Clean Stack: Place Fiberform Inside the Line, Then Tape the Front Fabric Like a Pro

Now we build the "sandwich."

1. Insert: Place the pre-cut Fiberform heart inside the stitched placement line. The Fuse and Fix side should be tacky enough to prevent sliding.
2. Cover: Lay your colored fabric square over the Fiberform.
3. Secure: Tape the edges of the fabric to the stabilizer.


This technique effectively turns your setup into a floating embroidery hoop scenario where the fabric rides on top of the stable base. This is standard for ITH, but it introduces a risk: fabric movement.

The "Taut but Relaxed" Principle:

• Do: Tape the fabric flat so there are no wrinkles.
• Do Not: Stretch the fabric elastic-tight. If you stretch it, it will snap back (retract) after you un-hoop, causing the infamous "pucker halo" around the heart.

Warning: Mechanical Safety
Keep fingers, tape dispensers, and scissors completely clear of the needle bar travel zone. When taping, ensure long tails of tape do not stick to the machine bed or throat plate, which can drag the hoop and ruin the embroidery alignment motor.

The Front Tackdown + Trim: How Close Is “Close Enough” Without Cutting Stitches?

Run the tackdown stitch. This locks the fabric to the Fiberform and stabilizer.

The Trimming Technique: Use curved embroidery scissors (double-curved are best).

1. Lift the excess fabric slightly with your non-dominant hand.
2. Rest the blade of the scissors flat against the stabilizer.
3. Glide the cut. Do not "comp" (open/close) the scissors aggressively; try to slice.

The Goal: Trim within 1mm to 2mm of the stitch line.

• Too far: White fabric tufts will poke through the final satin stitch.
• Too close: You risk cutting the structural tackdown thread.

Expected outcome: A raw-edged fabric heart that essentially matches the Fiberform shape underneath.

Lettering (“CUTIE PIE”) That Stays Crisp: Stitch the Text Before You Close the Back

Next, stitch the lettering (e.g., “CUTIE PIE”).

Expert Speed Setting: If your machine allows speed control, drop the speed to 600 SPM (Stitches Per Minute) for small lettering. High speeds on small satin columns can cause thread breakage and "messy" definition.

Expected outcome: Centered text with crisp edges and no loops.

The Backing Fabric Flip: Tape the Corners So the Back Looks Intentional, Not Accidental

Remove the hoop from the machine (Do not un-hoop the material). Flip the hoop over to expose the back.

1. Cover: Place the backing fabric square over the design area.
2. Secure: Tape all four corners firmly.


This is the failure point for 40% of beginners. As the hoop moves, the back fabric drags against the machine bed. If the tape gives way, the fabric folds under, and you stitch it permanently into a crumpled mess.

The Commercial Solution: If you do this daily, magnetic embroidery hoops are a massive workflow upgrade. Unlike screw hoops, magnetic systems often have a flatter profile and grip fabric more securely without "hoop burn" (the ring marks left on delicate velvet or napped fabrics). They also allow for faster flipping and inspection without destabilizing the tension.

Setup Checklist (Mid-Stream Check):

• Inversion: Verify the hoop is flipped and backing completely covers the stitch field.
• Adhesion: Press tape firmly. Is the fabric "drum tight" but unstretched?
• Clearance: Ensure tape is outside the path of the needle.
• Bobbin: STOP. Check the next step instructions.

The Double-Sided Trick: Match Bobbin Thread to Top Thread Before the Satin Edge

The video instructs you to change the bobbin to match the top thread. This is not a suggestion; it is a requirement for ITH projects.

The Mechanics of Tension: On a standard stitch, the machine pulls the top thread to the back (~1/3 visible on the underside). On a freestanding object, you see the back.

• If you leave white bobbin thread in, you will see white ticks on the edge of your red heart.
• By matching the color, the inevitable "fight" between top and bottom tension becomes invisible.

Pro Tip: If you are running a production batch, wind 10 bobbins of your satin border color before you start.

Back Tackdown + Trim: The Moment That Determines Whether the Edge Will Look Thick and Even

Stitch the back tackdown line. Remove the hoop (optional, if you have steady hands) and trim the backing fabric.

Crucial Warning: This trim must be clean. Any loose threads here will not be hidden, because there is no "inside" to this project. Trim flush.

Expected outcome: A neat fabric sandwich, trimmed close to the line on both front and back.

The Final Satin Cover Stitch + Eyelets: Let the Machine Do the Heavy Lifting

The machine will now execute the dense satin border and the eyelets.

Sensory Monitor:

• Listen: A rhythmic, solid thrum-thrum-thrum.
• Correction: If you hear a high-pitched slap or grandinding noise, the needle may be struggling to penetrate the triple layer + Fiberform. Change your needle immediately if you hear this.


Why Edges Tunnel (The "Hourglass" Effect): If the heart edges pull inward (tunneling), it means the pull compensation settings in the digitizing were not enough for your specific setup, OR your stabilizer was not tight enough. You cannot fix tunneling mid-stitch, but looser hooping is usually the culprit.

Punching the Eyelets with the OESD Perfect Punch Tool (Clean Holes, No Fraying)

Transfer the project to a self-healing cutting mat. Use the punch tool or a sharp buttonhole chisel.

Technique: Push straight down and twist slightly. Do not saw. You want a clean bore hole so the ribbon feeds without snagging.

Rinse, Dry, Press: Dissolving Aquamesh/Badgemaster Without Losing Shape

Rinse the heart under warm running water. Warm water dissolves the Badgemaster film faster than cold.

1. Rinse: Until the slimy feel is gone.
2. Blot: Between paper towels.
3. Dry: Air dry completely.
4. Press: Use a pressing cloth and iron to set the final crisp shape.


Note on Stiffness: If the heart is too floppy, you rinsed it too much. You can leave a little stabilizer residue in the fiber to act as a starch.

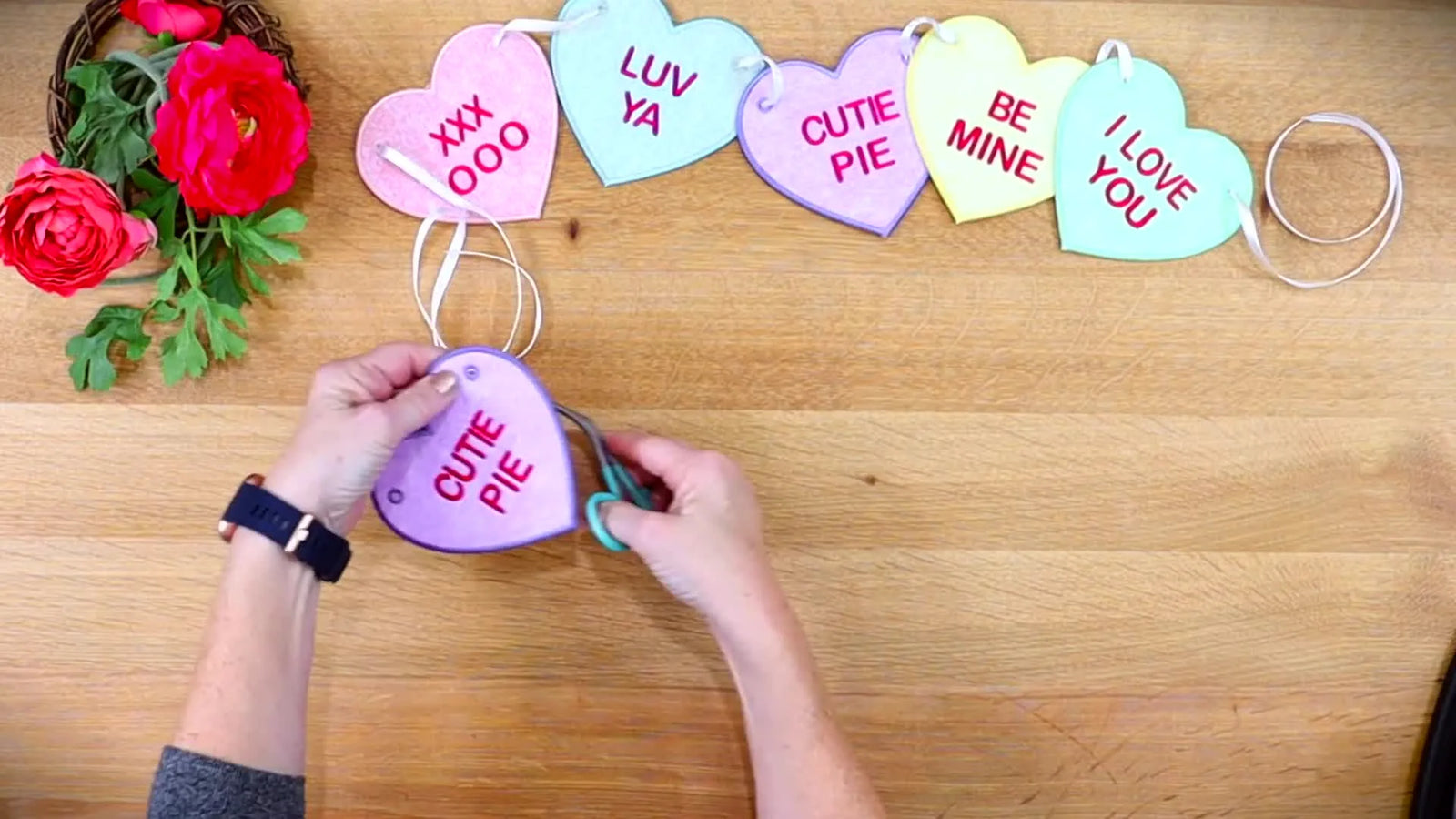

Ribbon Assembly with Alligator Clamps: The Fast Way to String Multiple Hearts

Use alligator clamps (or a bodkin) to feed the ribbon.

This tool hack saves minutes per bunting. The clamp grips the ribbon flat, allowing it to slide through the eyelet without fraying the ribbon end.

Operation Checklist (Final Quality Control):

• Structure: Is the Fiberform centered? (Hold up to light).
• Edge: Is the satin stitch dense and uniform? No fabric "whiskers" poking through?
• Color: Is the bobbin thread invisible on the front and back edge?
• Finish: Are the eyelets punched clean with no loose threads impeding the ribbon?
• Form: Is the heart flat (pressed) and not wobbly?

“I Wish You Had This for a 4x4 Hoop”: What That Comment Really Means (And Your Options)

Constraints drive creativity, but they also cause frustration. Many entry-level machines are limited to a 4"x4" (100mm x 100mm) field.

The Reality: This specific design requires an oval hoop larger than 4x4 due to the bunting connectors.

• Option 1 (Software): You can rarely resize ITH designs more than 10% without ruining the joinery/eyelets.
• Option 2 (Hardware): If you are hitting the limit of a brother 4x4 embroidery hoop setup, recognize that this is a hardware ceiling. You cannot "trick" the machine into sewing a 5-inch heart.

This is often the moment hobbyists realize they need a larger stitch field—not for complex jackets, but just to make standard home control items.

Stabilizer Decision Tree for ITH Hearts: Pick the Stack Based on the Finish You Want

Beginners often guess at stabilizers. Pros use distinct logic. Use this tree for freestanding projects:

Question 1: Will this item be washed frequently?

• YES: Stop. Do not use Fiberform (cardboard/paper based). Use a stiff polyester felt or wash-permanent woven interfacing.
• NO (Decor only): Proceed with Fiberform + Fuse and Fix.

Question 2: How dense is the edge stitching?

• HEAVY SATIN (Like this project): Requires Mesh (Aquamesh) for structure + Film (Badgemaster) for loft/support.
• LIGHT RUNNING STITCH: Heavy water-soluble film alone may suffice.

Question 3: How do you value your time vs. convenience?

• Speed is Priority: Use embroidery hoops magnetic to speed up the framing process.
• Budget is Priority: Use standard hoops and spend extra time ensuring the "drum-tight" tension manually.

Warning: Magnetic Hoop Safety
If you upgrade to a magnetic hooping station or use industrial-strength magnetic hoops, serve strictly: Keep away from pacemakers. The magnets are incredibly powerful (often N52 grade) and can pinch skin severely. Never slide your fingers between the magnets.

The “Why It Warps” Section: Physics of Hooping, Tape Tension, and Satin Density

Troubleshoot your results using this Symptom/Cause/Fix logic:

The Upgrade Path: When This Project Turns from “Cute Craft” into Repeatable Output

Making one heart is a craft. Making 50 for a Valentine's Day sale is manufacturing. The friction points you feel now (sore wrists, re-threading, hoop burns) are signs that your tools are limiting your talent.

Level 1: The Frustrated Hobbyist

• Trigger: "I hate screwing and unscrewing this hoop, and my back fabric slipped again."
• Solution: Magnetic Hoops. They clamp instantly, hold thick sandwiches (like Fabric+Fiberform+Stabilizer) securely, and eliminate hoop burn.

Level 2: The Batch Producer

• Trigger: "It takes me 4 hours to make 5 hearts because of the color changes/bobbin swaps."
• Solution: Hooping Stations (like the hoopmaster system) ensure every heart is perfectly centered without measuring.

Level 3: The Business Owner

• Trigger: "I have orders for 100 buntings and I can't sit here babysitting the single-needle machine."
• Solution: Multi-Needle Machines (SEWTECH). A multi-needle machine allows you to set up all thread colors at once. It runs faster, handles thicker ITH sandwiches with ease, and gives you back your time to market your business while the machine works.

When you master the physics of the hoop—making stabilizer taut, tape tension neutral, and cuts clean—you stop fighting the machine and start producing professional-grade output.

FAQ

• Q: Which needle type and size should be used for the PK50002 ITH Candy Heart bunting satin border to avoid sloppy edges and needle struggle?
  A: Use a fresh 75/11 Sharp or Embroidery needle as the reliable baseline, and change it immediately if penetration sounds strained.
  • Replace: Install a new 75/11 Sharp/Embroidery needle before starting (avoid ballpoint for this satin-edge project).
  • Listen: During the final dense satin border, stop if a high-pitched “slap” or grinding sound appears and change the needle.
  • Slow down: Reduce speed to about 600 SPM for small lettering to reduce deflection and thread issues.
  • Success check: The machine sounds like a steady, rhythmic “thrum,” and satin columns look crisp rather than fuzzy.
  • If it still fails: Re-check hoop tightness and stabilizer stack rigidity before blaming thread tension.
• Q: How do you hoop OESD Aquamesh Washaway + OESD Badgemaster for PK50002 so the stabilizer is truly “drum-tight” and does not ripple?
  A: Hoop both layers together and use the tap-sound test—aim for a sharp “ping,” not a thud.
  • Loosen: Back off the hoop screw enough so the inner ring presses in without forcing.
  • Layer: Place Badgemaster on top of Aquamesh, then seat the inner ring.
  • Tighten: Tighten smoothly while gently pulling stabilizer edges to remove slack (do not distort the mesh weave).
  • Success check: Fingernail tap produces a sharp “ping” like a snare drum and the surface looks ripple-free.
  • If it still fails: Re-hoop from scratch; do not “chase wrinkles” by over-tightening after the fact.
• Q: What is the fastest way to confirm PK50002 stabilizer tension is correct at Color Stop 1 (placement stitch) before wasting fabric and Fiberform?
  A: Use Color Stop 1 as a tension audit—stop and re-hoop at the first sign of puckering.
  • Stitch: Run the placement outline on the hooped Aquamesh + Badgemaster only.
  • Observe: Watch for immediate stabilizer puckering or distortion around the outline.
  • Decide: If puckering appears, stop right there and re-hoop tighter instead of continuing.
  • Success check: The placement outline lies flat and clean with no ripples pulling into the stitch line.
  • If it still fails: Check that the hoop is clean and tightening is smooth (a sticky/dirty hoop can prevent even tension).
• Q: How close should fabric be trimmed after the PK50002 front tackdown stitch to prevent fabric tufts showing under the final satin stitch?
  A: Trim to within 1–2 mm of the tackdown stitch line using curved scissors, without cutting the tackdown thread.
  • Lift: Slightly lift excess fabric with the non-dominant hand to see the edge clearly.
  • Glide: Rest curved scissors against the stabilizer and slice smoothly rather than “chopping” with aggressive open/close motions.
  • Control: Aim for 1–2 mm clearance—too far leaves whiskers; too close risks cutting the tackdown.
  • Success check: The raw edge mirrors the heart shape cleanly and no fabric fuzz peeks past the tackdown line.
  • If it still fails: Re-check scissor type (curved helps) and slow down—most overcuts happen when rushing corners.
• Q: Why does the PK50002 ITH heart backing fabric fold or stitch into a crumpled mess when the hoop moves, and how can the backing be secured reliably?
  A: Secure the backing with firm corner taping after flipping the hoop, and ensure nothing drags on the machine bed.
  • Flip: Remove the hoop from the machine without un-hooping, then flip to the back side.
  • Cover: Place the backing fabric square fully over the stitch field and tape all four corners firmly.
  • Clear: Keep tape outside the needle path and prevent tape tails from sticking to the machine bed/throat plate.
  • Success check: Before stitching, the backing stays flat when the hoop is moved by hand and does not “grab” the bed.
  • If it still fails: Improve grip with a lower-profile clamping method (often magnetic hoops) or re-tape using fresh embroidery tape—not office tape.
• Q: Why must the bobbin thread color be matched to the top thread for the PK50002 freestanding satin edge, and what is the quick fix if the backside looks messy?
  A: Match bobbin thread to the satin border color before the final edge, because the underside will be visible on freestanding ITH pieces.
  • Swap: Change to a bobbin wound with the same color as the satin border before the cover stitch step.
  • Batch: Pre-wind multiple matching bobbins if producing several hearts.
  • Adjust (carefully): If top thread is being pulled to the underside, a small bobbin tension tweak (often a tiny turn) may help—follow the machine manual.
  • Success check: The edge shows no contrasting “ticks” on either side, and the border looks even front and back.
  • If it still fails: Verify threading path and re-check that hooping is drum-tight; poor stabilization can mimic tension problems.
• Q: What safety rules prevent needle strikes, alignment damage, or finger injuries during PK50002 taping and in-the-hoop trimming near the needle bar?
  A: Keep hands, tools, and tape tails out of the needle bar travel zone and away from anything that can drag the hoop.
  • Stop: Power down or use needle-stop controls before placing tape or trimming close to the stitch field.
  • Clear: Keep scissors, tweezers, and tape dispensers out of the needle path and do not leave long tape tails hanging.
  • Inspect: Confirm tape is not stuck to the machine bed or throat plate where it can pull the hoop and ruin alignment.
  • Success check: The hoop moves freely across the full design area with no snagging, and hands never cross under the needle bar.
  • If it still fails: Re-tape farther from the stitch field and shorten tape tails so nothing can catch during fast hoop travel.
• Q: What magnetic hoop safety precautions are required when using industrial-strength magnetic embroidery hoops for ITH heart projects?
  A: Treat magnetic hoops as pinch-and-medical-hazard tools—keep them away from pacemakers and keep fingers out of the clamp zone.
  • Keep away: Do not use near pacemakers or sensitive medical devices.
  • Protect hands: Never slide fingers between magnetic plates; separate and place magnets deliberately.
  • Control: Set the hoop down flat before bringing magnets together to avoid sudden snapping.
  • Success check: The hoop clamps evenly without finger pinches, and fabric is held securely without screw-hoop “hoop burn” marks.
  • If it still fails: Step back to standard hoops and focus on drum-tight stabilizer tension and taping technique before reintroducing magnets.
