Pfaff 4D Configure Wizard, Done Right: Real-Size Calibration, VP3 Output, Hoops, and the Two “Send” Paths That Save Your Sanity

If you’ve ever opened Pfaff 4D, clicked around for an hour, and still felt like the software was “almost working,” you’re not alone. This particular wizard is one of those quiet make-or-break moments: when it’s configured cleanly, everything downstream (design sizing, hoop selection, thread palettes, and file transfer) becomes calmer and more predictable.

A viewer in the comments said this lesson solved a problem they fought for nearly a year—and that tracks with what I see in real shops: most “mystery issues” in older embroidery ecosystems are not one big failure, but three small mis-matches (scale, hoop list, and transfer method) stacking on top of each other.

Calm the Panic: What the 4D Configure Wizard Actually Controls (and What It Doesn’t)

The 4D Configure Wizard is not digitizing your design and it’s not repairing corrupted files. What it does control is the environment your whole workflow sits on: how the screen looks, whether the on-screen ruler is truthful, which file format you export, which thread library loads by default, which machine model you’re targeting, which hoops appear in your lists, and how designs get transferred.

If you own pfaff embroidery machines, this is the “foundation layer” that prevents a lot of expensive frustration—like thinking your design is the wrong size, only to discover your screen scale was never calibrated.

Start Where the Video Starts: Launching 4D Configure Wizard from the Utility Tab

Open your Pfaff 4D system and go into 4D Configure. On the main screen, find the 4D Configure Wizard icon and left-click it. You’ll see the “Welcome to the 4D Configure Wizard” window.

This wizard is meant to be linear. Don’t skip around on your first pass—get a clean baseline first, then refine later.

Make the Screen Easy on Your Eyes: Background Texture, Grid Color, Theme, and “Realistic” Thread View

The video walks through a set of visual preferences:

• Background color/texture: the instructor selects a Woven texture.
• Grid color: left at the default dark blue (you can change it).
• Theme: set to Office 2007 Luna.
• Color worksheet style: choose Realistic if you want a more thread-like 3D rendering; Classic shows flatter color blocks.

These choices won’t change stitch quality, but they do change how quickly you catch mistakes. In production, the fastest operators are the ones who can visually verify scale, orientation, and hoop boundaries without squinting.

The “shop-floor” reason this matters

When your grid and worksheet style are readable, you reduce two common errors:

1. Accidentally rotating/mirroring a design and not noticing until it’s stitched.
2. Misjudging how close lettering is to the hoop edge.

That second one becomes especially important when you’re using alternative hooping methods (thicker stabilizers, adhesive backing, or magnetic frames) because your usable sewing field can feel different than a standard snap hoop.

The Non-Negotiable Step: Real Size Calibration (21 mm Example) So Your Screen Stops Lying

This is the critical step in the video, and the instructor says it plainly: “This setting has to be accurate.”

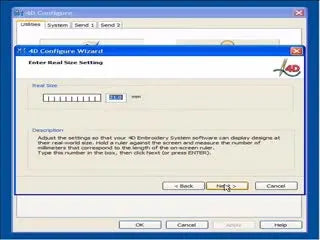

On the Real Size screen, you’ll see a digital ruler graphic. Use a physical ruler to measure the distance shown on-screen (the video example measures 21 mm) and type that number into the box.

Expected outcome: after you enter the correct value, your on-screen measurements match real-world measurements at 1:1 scale.

Checkpoints (don’t skip these)

• If the wizard shows millimeters, measure in millimeters.
• Measure carefully from the exact endpoints shown on the screen.
• Re-check once—this is a 10-second verification that can save you hours.

Why this prevents expensive mistakes (expert insight)

Real Size calibration is a “truth anchor.” If it’s wrong, you may:

• Think a 100 mm logo is 100 mm on-screen when it isn’t.
• Choose a hoop that looks like it fits, then discover it doesn’t.
• Misread spacing on monograms or small lettering.

And here’s the business reality: when sizing is uncertain, people compensate by test-stitching more often. Test-stitching is not free—it burns stabilizer, thread, and time.

Lock the Basics: Millimeters, VP3 Output Format, and a Thread Range You Actually Own

Next, the wizard asks for measurement units. The instructor chooses Millimeters.

Then you select the Output Format. For a Pfaff Creative Vision, the video selects:

• Husqvarna Viking / Pfaff (*.vp3)


Finally, you choose an Import Thread Range. The instructor recommends a simple rule: pick the brand you have the most of. In the video, they choose:

• Robison-Anton Poly 40


Pro tip pulled from real shops

Thread libraries are about speed and consistency, not brand loyalty. If your software defaults to a thread range you don’t stock, you’ll waste time translating colors every job.

If you’re building a small production workflow, keep your “default” thread range aligned with your most-used cones. That’s how you reduce rework.

Warning: Keep fingers, hair, and loose sleeves away from moving needles and trimmers when you proceed to test-stitch after changing software settings—software fixes often lead to “just one quick sew-out,” and that’s when people get careless.

Build a Clean Inventory: Add “Pfaff Creative Vision” in MyMachines, Then Auto-Populate MyHoops

In the MyMachines section, click Add, choose the Brand: Pfaff, then select the Model: Creative Vision.

Expected outcome: your machine appears in the list (the video shows “creative vision”).

Next, the wizard offers a checkbox to Include all hoops for installed machines (wording may vary by screen, but the video’s meaning is clear): leaving it checked will automatically add the hoops for the machines you selected.

Then you’ll see MyHoops, showing the hoop sizes that were added.

Why hoop lists matter more than people think

Hoop selection is not just “what fits.” It’s also how you prevent:

• Designs being placed too close to the edge.
• Unnecessary re-hooping.
• Wasted stabilizer from oversized hooping.

If you’re exploring hoops for embroidery machines beyond the standard plastic ones that shipped with your machine, your software hoop list becomes your planning tool. You want it accurate and complete.

Decision Tree: Which hooping approach should you plan for?

Use this to decide what you’re optimizing for before you commit to a hoop list and workflow.

1. Is the item hard to clamp without shifting (thick seams, bags, layered blanks)?
   • Yes: Consider a magnetic frame workflow.
   • No: Standard plastic hooping is usually fine.
2. Is hoop burn / fabric marking a recurring complaint?
   • Yes: Magnetic frames often reduce pressure marks because you’re not forcing an inner ring into the fabric grain.
   • No: Standard hoops remain cost-effective.
3. Are you doing repeat orders where hooping time is the bottleneck?
   • Yes: Magnetic frames and a consistent hooping station can cut setup time dramatically.
   • No: Optimize your current hoops first.

If you decide to upgrade to a pfaff magnetic embroidery hoop, remember to select the closest corresponding size in your software list to ensure the machine knows the safe embroidery area.

Warning: Magnetic frames use strong industrial magnets. Keep them away from pacemakers/implanted medical devices, and never let magnets snap together near fingertips—pinch injuries are real and painful.

The Two “Send” Paths: Configure Send 1 (Direct USB Cable) and Send 2 (USB Embroidery Stick)

The video sets up two separate sending options. This is smart because it gives you redundancy.

Send 1: Direct USB Connection (cable)

In the Send 1 setup:

• Assign the machine (the video selects Pfaff Creative Vision).
• Choose Direct USB Connection as the transfer method.
• In the communication settings, select Start Automatically.

Expected outcome: the Send 1 summary shows your machine and “Direct connection USB.”

Send 2: USB Embroidery Stick

When prompted, choose to configure Send 2.

• Select the machine again (the video uses Pfaff Creative Vision).
• Choose USB Embroidery Stick.

Expected outcome: the Send 2 summary shows your machine and “USB embroidery stick.”

Why I like having both (expert insight)

In real production environments, “sending” fails for boring reasons: a cable gets flaky, a port gets loose, a driver update breaks something, or a stick is formatted incorrectly. Having both Send 1 and Send 2 configured means you can keep orders moving.

If you’re running a small shop, downtime is the silent profit killer. Redundancy is not overkill—it’s professionalism.

Finish the Wizard, Then Use the Tabs Like a Control Panel (System / Send 1 / Send 2)

After you click Finish, the main utility window shows tabs that mirror what you configured:

• System (summary of your choices)
• Send 1
• Send 2

The instructor notes you can return to these tabs anytime to change settings. When you do, simply click Apply and then OK.

The “Hidden” Prep That Prevents Rework: Before You Touch the Wizard Again

This is the part most tutorials don’t say out loud: configuration is easiest when you decide your standards first.

If you’re building a workflow that includes specialized tools like magnetic embroidery hoops, decide what “normal” looks like in your shop:

• Which thread brand is your default?
• Which units do you quote and measure in?
• Which hoops do you actually use weekly?
• Which send method is your primary, and which is your backup?

Prep Checklist (do this once, then your wizard choices become obvious)

• Machine ID: Confirm your specific model name (e.g., Pfaff Creative Vision).
• Units: Decide whether you’ll work in millimeters or inches (video uses Millimeters).
• Inventory: Identify the thread brand you stock most (e.g., Robison-Anton).
• Tools: Gather a physical ruler for calibration and a set of digital calipers if measuring custom hoops.
• Transfer: Decide your primary method (Cable vs. Stick).

Setup Checklist: The Exact Wizard Choices Shown in the Video

• Launch: Open 4D Configure Wizard.
• Background: Select Woven.
• Grid: Default dark blue.
• Theme: Office 2007 Luna.
• Worksheet: Realistic.
• Calibration: Measure screen with ruler (video: 21 mm).
• Units: Millimeters.
• Format: Husqvarna Viking / Pfaff (*.vp3).
• Thread: Robison-Anton Poly 40.
• MyMachines: Add Pfaff → Creative Vision.
• Hoops: Enable auto-add hoops.
• Send 1: Direct USB Connection (Start Automatically).
• Send 2: USB Embroidery Stick.

Operation Checklist: After Configuration, How to Work Without Second-Guessing

• Truth Check: Open a known design and verify the on-screen ruler matches a physical ruler.
• Hoop Check: Confirm the hoop list shows the specific hoop you intend to stitch in.
• Export: Save in .vp3 format.
• Transfer: Use Send 1 as primary; keep Send 2 (Stick) as fallback.
• Update: If settings change, click Apply then OK.

Comment-Driven “Watch Outs”: Scarce Tutorials, Missing Modules, and the ‘File Assistant’ Surprise

A couple of themes show up in the comments that are worth addressing directly.

Watch out: “There are hardly any 4D videos” is a real problem—so document your own setup

One commenter asked if this was the only 4D video, and the creator replied it was, explaining they lost older material. That scarcity is exactly why you should write down your own baseline settings once you get them right.

Practical move: Keep a one-page “4D Configure Baseline” note in your shop binder (or a text file) listing your Real Size value, output format, thread range, and Send choices.

Pro tip: If you see “File Assistant” instead of “Download Manager,” treat it as a module/version mismatch

A commenter mentioned their 4D shows a “File Assistant” instead of the Download Manager. The video doesn’t cover this, so I won’t pretend there’s a single guaranteed fix.

What you can do safely is narrow the problem:

1. Verify you’re opening the same utility area the instructor is using (4D Configure).
2. Look for similarly named functions; naming conventions often shift between sub-versions.
3. If your workflow depends on reliable transfers, keep the USB stick path configured so you’re not blocked by one software module acting up.

The Upgrade Path (No Hard Sell): When Hooping and Throughput Become the Bottleneck

Once your software is stable, the next bottleneck is rarely “settings”—it’s physical handling time.

If you’re doing repeat jobs, a hooping station for machine embroidery can be the difference between enjoying embroidery and resenting it. The goal is consistent fabric tension and faster loading, not brute force.

And if your pain point is slow clamping, fabric marking, or wrist fatigue, that’s where magnetic frames earn their keep. For home single-needle users, magnetic hoops can make hooping less fussy; for production environments, they turn hooping into a faster, repeatable motion.

If you’re comparing options like embroidery hoops for husqvarna viking alongside Pfaff-compatible choices, use a simple standard: pick the system that gives you consistent placement, minimal marking, and the least re-hooping for the jobs you actually sell.

Finally, if you’re scaling beyond hobby volume, that’s the moment to evaluate whether a multi-needle platform (like our SEWTECH machines) or industrial magnetic frames make sense—because the real ROI is measured in minutes saved per hooping cycle, multiplied by every order.

FAQ

• Q: Why does Pfaff 4D Configure Wizard show the wrong design size on screen, making Pfaff hoop selection feel “off”?
  A: Calibrate the Pfaff 4D “Real Size” screen with a physical ruler so the on-screen ruler becomes 1:1.
  • Measure: Use a physical ruler to measure the on-screen ruler distance (the video example uses 21 mm) and type the measured value into the Real Size box.
  • Match units: Measure in millimeters if the wizard is showing millimeters.
  • Re-check: Repeat the measurement once to confirm the number is consistent.
  • Success check: A known design dimension (for example, 100 mm in software) matches the same distance on a physical ruler at the screen.
  • If it still fails: Re-run the wizard and verify the Real Size entry was applied correctly before changing hoops or resizing designs.
• Q: Which Pfaff 4D output format should be selected in 4D Configure Wizard for a Pfaff Creative Vision embroidery machine?
  A: Select the Husqvarna Viking / Pfaff (*.vp3) output format when the target machine is Pfaff Creative Vision.
  • Set format: Choose “Husqvarna Viking / Pfaff (*.vp3)” in the Output Format step.
  • Keep consistent: Export designs in .vp3 after configuration to avoid format confusion later.
  • Success check: The saved design file ends with “.vp3” and is recognized by the Pfaff Creative Vision workflow you use (Send or USB stick).
  • If it still fails: Confirm the correct machine model was added under MyMachines (Pfaff → Creative Vision) and then re-check the output format step.
• Q: How do I make Pfaff 4D automatically populate the correct hoop list for Pfaff Creative Vision in MyHoops?
  A: Add “Pfaff → Creative Vision” in MyMachines, then keep the “include all hoops for installed machines” option enabled to auto-fill MyHoops.
  • Add machine: Click Add in MyMachines, choose Brand “Pfaff,” then Model “Creative Vision.”
  • Auto-add hoops: Leave the checkbox enabled to include all hoops for installed machines (wording can vary by screen).
  • Verify list: Open MyHoops and confirm hoop sizes appear for the installed machine.
  • Success check: The hoop list shows multiple hoops without manually entering each hoop.
  • If it still fails: Remove and re-add the machine in MyMachines, then re-run the hoop inclusion step to rebuild the hoop inventory cleanly.
• Q: How should Pfaff 4D Configure Wizard be set up for both “Direct USB Connection” and “USB Embroidery Stick” sending to Pfaff Creative Vision?
  A: Configure Send 1 as Direct USB Connection and Send 2 as USB Embroidery Stick so Pfaff Creative Vision has a primary path and a backup.
  • Configure Send 1: Assign Pfaff Creative Vision, choose Direct USB Connection, and set communication to Start Automatically.
  • Configure Send 2: Assign Pfaff Creative Vision again and choose USB Embroidery Stick.
  • Use redundancy: Treat Send 1 as primary and keep Send 2 ready for days when the cable/driver/port acts up.
  • Success check: The Send 1 summary shows “Direct connection USB,” and the Send 2 summary shows “USB embroidery stick.”
  • If it still fails: Use the USB embroidery stick path as a workaround while you confirm you are in the same 4D Configure utility area used for sending setup.
• Q: Why does Pfaff 4D show “File Assistant” instead of “Download Manager” when trying to send designs for Pfaff embroidery workflows?
  A: Treat “File Assistant” vs “Download Manager” as a module/version mismatch and keep a working transfer path (like USB stick) configured.
  • Verify location: Open the same utility area used for configuration (4D Configure) and look for similarly named send/transfer functions.
  • Compare functions: Focus on what the tool does (send/transfer) rather than the exact name, because naming can change between sub-versions.
  • Keep production moving: Configure USB Embroidery Stick sending so one missing module doesn’t stop orders.
  • Success check: You can consistently transfer a .vp3 file using at least one configured method (Send 1 or Send 2).
  • If it still fails: Re-check that Pfaff Creative Vision is selected as the target machine in the Send setup summaries before troubleshooting anything else.
• Q: What safety rules should be followed when test-stitching after changing Pfaff 4D Configure Wizard settings on an embroidery machine?
  A: Treat “just one quick sew-out” as a real production run and keep hands, hair, and sleeves away from moving needles and trimmers.
  • Stop reaching: Do not reach near the needle area while the machine is running or trimming.
  • Secure hazards: Tie back hair and avoid loose sleeves before starting the test-stitch.
  • Pause first: Use the machine’s stop/pause before making any adjustment near moving parts.
  • Success check: The test-stitch completes with no interruptions and no need to touch the needle/trimmer area while in motion.
  • If it still fails: Stop the machine fully and restart the test only after the area is clear and the design/hoop selection has been re-verified in software.
• Q: When Pfaff hooping becomes slow or causes hoop burn, how should a shop choose between technique optimization, magnetic embroidery hoops, and upgrading to a multi-needle machine?
  A: Use a tiered approach: optimize planning first, then upgrade hooping tools (magnetic frames), then consider multi-needle capacity when throughput is the bottleneck.
  • Level 1 (optimize): Standardize units, default thread range, hoop list, and a primary/backup send method so jobs run predictably.
  • Level 2 (tool upgrade): If items are hard to clamp, hoop burn is recurring, or repeat orders are slowed by hooping time, consider a magnetic frame workflow and plan using the closest hoop size in the software.
  • Level 3 (capacity): If volume growth means handling time and changeovers dominate the day, evaluate moving to a multi-needle platform for throughput.
  • Success check: You see fewer re-hoops, less fabric marking, and faster setup per order after each upgrade step.
  • If it still fails: Document a single “baseline” configuration (Real Size value, format, thread range, Send choices) and rebuild the workflow from that known-good standard before investing further.
