Perfectly Pieced In-the-Hoop Quilting on a Bernina 790 PLUS: The Flip-and-Stitch Block That Actually Comes Out Square

If you’ve ever pulled an in-the-hoop (ITH) quilt block out of the frame and thought, “Why is it almost square… but a millimeter off?”, you are facing the classic battle between digital precision and analog fabric shifting.

The method in this guide—centering on the Kimberbell/M.E. Time “Perfectly Pieced” style—removes human measuring errors by letting the machine digitize the seam allowance. However, the machine cannot feel the fabric. That is your job.

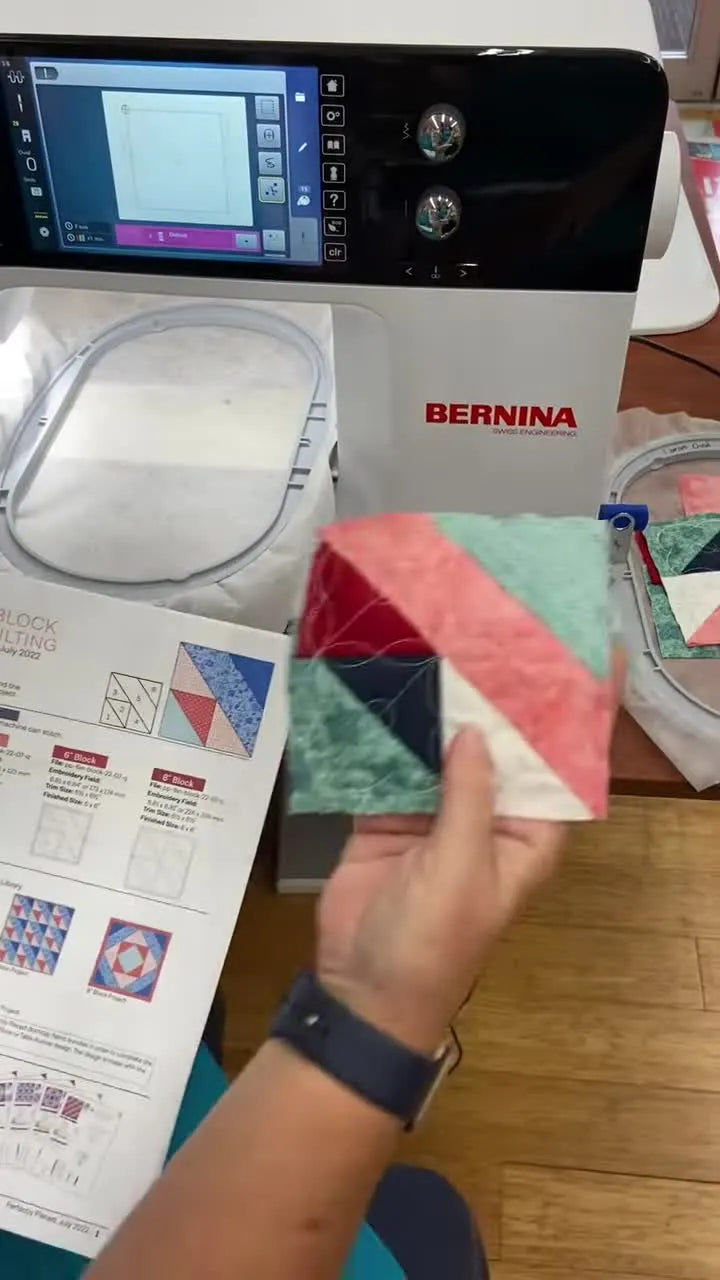

This walkthrough follows the workflow shown on a Bernina B 790 PLUS, but I have overlaid it with the tactile checks, safety protocols, and production habits required to move from “hoping it works” to “knowing it will work.”

The Cognitive Shift: Understanding “Perfectly Pieced” Architecture

Before we touch the screen, understand the physics of what we are building. This project creates a single quilt block entirely inside the embroidery hoop. The machine acts as both your ruler and your seamstress.

What the machine controls (The Constants):

• The Geometry: It stitches a template map that is mathematically perfect.
• The Seam Allowance: It sets the exact 1/4-inch spacing.
• The Quilting: It executes the final decorative texture.

What you control (The Variables):

• Tension: How tight the stabilizer sits (the foundation).
• Placement: Covering the lines completely.
• Flatness: Finger-pressing seams so they don't bulk up.

If your hoop tension slips, the square becomes a rhombus. If you struggle with standard hoops loosing tension on thick batting, this is where a bernina magnetic embroidery hoop becomes a functional upgrade—not for flash, but because it clamps the "sandwich" (stabilizer + batting) vertically without distorting the weave, eliminating the "hoop creep" that ruins geometric squares.

Phase 1: The "Hidden" Prep (Mise-en-place)

In professional kitchens and embroidery studios alike, success is determined before the machine turns on. The video demonstrates a "cut once, sew many" approach.

The "Sweet Spot" Consumables List

Do not guess. Use these proven pairings for ITH quilting:

• Needle: Size 90/14 Topstitch. You are piercing stabilizer, batting, and multiple cotton layers. A standard 75/11 embroidery needle will deflect, causing wobbly lines.
• Thread: 50wt cotton or matte polyester (white/neutral) for construction.
• Stabilizer: No-Show Mesh (Poly Mesh). It is stable but soft enough to stay inside the quilt block without making it stiff.
• Hidden Consumable: Temporary Spray Adhesive (e.g., KK100) or generic painters tape. You will need to hold batting in place while your fingers are safely out of the way.

The Pre-Flight Cut

• Batting: Pre-cut to 5.5 x 5.5 inches (for a 4-inch block). Give yourself a safety margin.
• Fabrics: Cut according to instructions and stack them in reverse order (last piece at the bottom, first piece on top).
• Tools: Double-curved scissors (appliques shears) are non-negotiable here.


Phase 2: Hooping Physics & The "Drum Skin" Test

This is the single most critical step for geometric accuracy.

The Mechanism: We are hooping only the stabilizer (Poly Mesh). The fabric functions as a "float" on top.

The Sensory Check:

1. Place the inner ring into the outer ring.
2. Tighten the screw.
3. Audit (Sound & Touch): Tap the stabilizer. It should sound like a dull drum—taut, but not stretched to the point of deformation. If you pull on the grid lines of the mesh, they should remain square, not bowed.

The Pain Point: If you are doing a production run of 20+ blocks, standard screw-hoops induce hand fatigue. As your hand creates less torque, the hoops get looser, and Block #20 will be different from Block #1. This consistency gap is why professionals often search for a magnetic hooping station or magnetic frames to standardize tension without relying on grip strength.

Phase 3: The Foundation Set (Placement & Anchor)

Step 3.1: Batting Placement

Action: Run the first color stop. This stitches a rectangle directly onto the stabilizer. Action: Spray the back of your batting lightly with adhesive and place it inside the stitched box.

Warning: Pinch Hazard. When smoothing the batting down, keep your fingers outside the hoop area. Do not attempt to "adjust" a wrinkle while the machine is moving. The embroidery foot has no sensor to stop it from crushing a finger.

Action: Run the Tack-Down stitch.

Step 3.2: The Batting Trim (The "Lift" Technique)

Video Context: The instructor removes the hoop to trim the excess batting. Expert Refinement:

1. Do not un-hoop material. Remove the hoop from the machine, but leave the material in the hoop.
2. The Lift: Use your left hand to gently lift the excess batting up and away from the stabilizer.
3. The Cut: Slide your curved scissors flat against the stitch line. The tension created by lifting allows the scissors to slice cleanly rather than hack.


Success Metric: You should see a clean batting island. If the edges are slightly jagged, it is acceptable—the fabric will hide it. If you nicked the stabilizer, patch it immediately with a piece of tape or start over.

Phase 4: The Construction (Flip-and-Stitch)

The machine will now stitch the "Map" template onto the batting. This is your visual verification. If this rectangle looks skewed, your stabilizer is loose (see Phase 2).

Piece #1: The Anchor

Action: Place Fabric #1 Right Side Up over section #1. Critical Check: Ensure the fabric extends at least 1/4 inch past the internal line where Piece #2 will join. If you are short here, you will have a gap later. Action: Stitch the tack-down.

Piece #1: The Trim

Action: Trim the excess fabric along the placement line (not the seam line). Sensory Check: Run your finger along the cut edge. It should be flush with the stitched line.

Piece #2: The "Blind" Placement

This is where novices fail. Action: Place Piece #2 Right Side Down (raw edge to raw edge) against Piece #1. Speed Limit: Lower your machine speed to 600 SPM (Stitches Per Minute). Precision > Speed for joining seams. Action: Run the seam stitch.

The Iron Rule: Finger Pressing

Action: Flip Piece #2 open. Tactile Mandate: Do not just "pat" it down. Use a bone folder or your fingernail to crease the seam hard. Why? If the fold is "puffy" or loose, the fabric will finish slightly shorter than intended. Multiply that by 10 seams, and your block will be distorted.

Production Tip: If you struggle to get a crisp crease, use a "seam roller" tool. It applies pressure without heat.

The "Ear" Tab Nuance

Video Context: When trimming Piece #2, the instructor leaves a small tab of fabric at the corner. Explanation: Do not cut this off! This "dog ear" creates stability in the seam allowance. If you trim it flush, the corner may unravel when you eventually sew this block to its neighbor.

Phase 5: Repetition & Stabilization

Repeat the Flip-Stitch-Press-Trim cycle for all remaining pieces.

Process Control: If you are using a standard hoop, check the screw tightener every 3 blocks. Vibration loosens screws. If you are using a bernina snap hoop or similar magnetic system, verify that the magnets haven't shifted if you hit a thick seam.

The "Hoop Burn" Reality: Standard hoops require friction to hold. This friction crushes the batting and fabric fibers, leaving a permanent "ring" (hoop burn) on the finished block. This is the primary trigger for users upgrading to a bernina magnetic hoop. The magnetic force holds vertically, leaving zero friction marks on your white background fabric.

Phase 6: Quilting & Finishing

Once piecing is complete, the machine performs a final perimeter tack-down and then the decorative quilting.

Action: Change thread if desired (e.g., to a monofilament or contrasting color). Observation: Watch the perimeter tack-down closely. If the fabric pushes or "waves" in front of the foot, your stabilizer was too loose. Stop the machine and use a stiletto tool to hold the fabric flat as it approaches the needle.

Phase 7: The Master Trim

Action: Remove the project from the hoop. Action: Use a rotary cutter and acrylic ruler. The Rule: Trim 1/4 inch OUTSIDE the perimeter stitch line. The perimeter stitch is NOT the cut line; it is the safety line.

Interactive Logic: Troubleshooting & Upgrades

Pre-Flight Checklist (Do Before Every Block)

• Needle Check: Is the tip sharp? (Rub it on a nylon stocking; if it snags, replace it).
• Bobbin: Do you have enough thread for the full quilting pass? (Running out mid-block is a nightmare).
• Stabilizer: Is it "Drum Tight" without warping the hoop?
• Sequence: Are fabric pieces stacked in Step 1, Step 2, Step 3 order?

Troubleshooting Matrix (Symptom → Diagnosis → Fix)

Decision Tree: When to Upgrade Your Toolkit?

Embroidery is expensive; spend money only where it solves a pain point.

• Scenario A: The Weekend Hobbyist
  • Volume: 1-5 blocks per month.
  • Pain: Minor.
  • Plan: Stick with standard hoops. Use temporary spray adhesive to help stability.
• Scenario B: The "Gift Giver" / Perfectionist
  • Volume: 20+ blocks (a full quilt).
  • Pain: Hand cramps from hooping; visible "hoop burn" marks on white fabric.
  • Plan: Upgrade to a magnetic embroidery hoops system.
  • Why: It eliminates hoop burn instantly and reduces hooping time by 50%. It turns the chore into a rhythm.
• Scenario C: The Small Business / Etsy Seller
  • Volume: 50+ blocks/week.
  • Pain: Machine downtime (single needle requires constant thread changes for multi-color blocks).
  • Plan: This is the ceiling of a domestic machine. Consider a SEWTECH multi-needle embroidery machine.
  • Why: You can set up all colors at once and let the machine run the entire block while you cut fabric for the next one. This is how you unlock profit. Also, utilize a hooping station for machine embroidery to ensure every single product is identical.

Warning: Magnetic Safety
If you choose to upgrade to magnetic hoops, be aware they use industrial-grade neodymium magnets.
* Pinch Hazard: They snap together with enough force to bruise skin. Handle by the edges.
* Medical Devices: Keep at least 6 inches away from pacemakers and insulin pumps.

Final Thoughts: The Rhythm of Precision

"Perfectly Pieced" quilting is not about magic; it is about process adherence. The machine provides the map, but your hands provide the stability.

By treating the stabilizer tension as your foundation and the finger press as your construction method, you eliminate the variables that cause distortion. Adopt the checklists above, respect the physics of the hoop, and you will find that "almost perfect" turns into "dead on," block after block.

FAQ

• Q: What needle, thread, stabilizer, and cutting tools are the safest starting setup for a Bernina B 790 PLUS ITH “Perfectly Pieced” quilt block?
  A: Use a 90/14 Topstitch needle with 50wt cotton (or matte poly), No-Show Mesh (Poly Mesh) stabilizer, and double-curved appliqué scissors for clean trims.
  • Replace: Install a fresh 90/14 Topstitch needle before starting thick “sandwich” projects.
  • Load: Use neutral construction thread for piecing; change thread later only for the final quilting if desired.
  • Hoop: Hoop Poly Mesh only; float batting and fabrics on top using light temporary spray adhesive or tape.
  • Cut: Use double-curved scissors to trim close without nicking the stabilizer.
  • Success check: Stitch lines look crisp and straight with no needle deflection and no chewed-up stabilizer edge.
  • If it still fails: Re-check needle size/type and re-hoop stabilizer to “drum tight” without distortion.
• Q: How can a Bernina B 790 PLUS user test stabilizer hoop tension correctly for ITH quilting using the “drum skin” test?
  A: Hoop only the Poly Mesh stabilizer and tighten until the stabilizer taps like a dull drum—taut but not stretched out of shape.
  • Tap: Tap the hooped mesh; aim for a firm, dull “drum” sound rather than a floppy thud.
  • Inspect: Look at the mesh grid; keep squares square (no bowing or warped lines).
  • Tighten: Re-tighten the hoop screw before stitching if vibration has loosened it.
  • Success check: The template/“map” rectangle stitches out square (not skewed) before any fabric pieces are joined.
  • If it still fails: Stop and re-hoop—skew at the map stage usually means stabilizer shift from loose hooping.
• Q: Why does a Bernina B 790 PLUS ITH quilt block turn into a rhomboid (skewed block) even when the design file is perfectly square?
  A: A skewed block is usually stabilizer shift or loose hooping, not a design problem.
  • Confirm: Look at the stitched template/map rectangle early; if it is already skewed, the foundation is moving.
  • Re-hoop: Re-hoop Poly Mesh to “drum tight” without stretching the mesh out of square.
  • Stabilize: Keep fabrics and batting controlled with light temporary spray adhesive/tape so layers do not creep.
  • Success check: The stitched map rectangle and subsequent seam lines stay square and parallel across the block.
  • If it still fails: Consider a magnetic hoop system to standardize clamping pressure, especially on thicker batting assemblies.
• Q: How can a Bernina B 790 PLUS user prevent gaps between seams on “Perfectly Pieced” flip-and-stitch ITH quilt blocks?
  A: Gaps usually come from puffy folds—finger press hard after every flip so the fabric finishes to the intended size.
  • Slow down: Reduce machine speed to about 600 SPM for seam joins to improve placement control.
  • Press: Crease the fold firmly with a fingernail or a bone folder (a seam roller often helps).
  • Verify: Ensure each fabric piece extends at least 1/4 inch past the next join line before stitching.
  • Success check: After flipping, the folded edge lies flat and the cover fabric fully crosses the next seam line with margin.
  • If it still fails: Rip only the affected seam and re-sew after re-pressing—continuing forward usually compounds distortion.
• Q: How do Bernina B 790 PLUS users stop “bird’s nests” under the fabric during ITH quilting?
  A: Re-thread both top and bobbin, and thread with the presser foot UP so the tension discs engage correctly.
  • Re-thread: Completely unthread and rethread the top path with presser foot up.
  • Reset: Reinsert or re-wind the bobbin if needed and ensure it is seated correctly.
  • Test: Stitch a short test segment before committing to the next color stop.
  • Success check: The underside shows clean, even stitches (no thread pile-up or looping).
  • If it still fails: Pause the project and inspect for snagged thread path or needle issues; replace the needle if the tip is suspect.
• Q: What safety rules should a Bernina B 790 PLUS user follow when placing batting with spray adhesive during ITH quilting (pinch hazard near the embroidery foot)?
  A: Keep fingers out of the hoop area and never adjust wrinkles while the machine is moving—pause first, then smooth safely.
  • Pause: Stop the machine before touching batting or fabric in the hoop.
  • Place: Use light spray adhesive on batting and position it inside the stitched placement box without reaching under the foot path.
  • Assist: Use a stiletto tool to hold fabric flat near the needle approach during perimeter tack-down if fabric starts to wave.
  • Success check: Batting lays flat inside the box with no shifting during tack-down and no “waves” pushing ahead of the foot.
  • If it still fails: Remove the hoop from the machine (do not un-hoop) and re-smooth/re-secure layers before continuing.
• Q: When should a Bernina B 790 PLUS user upgrade from a standard screw hoop to a magnetic hoop or upgrade to a SEWTECH multi-needle embroidery machine for ITH quilt-block production?
  A: Upgrade based on the specific pain point: standardize tension and eliminate hoop burn with magnetic hoops, and upgrade to a multi-needle machine when thread-change downtime limits output.
  • Level 1 (technique): Tighten hooping discipline, re-check hoop screw every few blocks, and use light spray adhesive/tape to prevent layer creep.
  • Level 2 (tool): Move to a magnetic hoop system if hand fatigue, hoop creep, hoop burn rings, or hoop pop-offs happen on thicker assemblies.
  • Level 3 (capacity): Consider a SEWTECH multi-needle embroidery machine if running 50+ blocks/week and domestic single-needle thread changes are the main bottleneck.
  • Success check: Blocks match from #1 to #20 with consistent geometry and no visible hoop burn on light fabrics.
  • If it still fails: Add a hooping station workflow to standardize setup and reduce variability across batches.
• Q: What magnetic hoop safety precautions should Bernina B 790 PLUS users follow with industrial neodymium magnetic embroidery hoops?
  A: Handle magnets by the edges to avoid pinch injuries, and keep magnetic hoops at least 6 inches away from pacemakers and insulin pumps.
  • Grip: Separate and join magnets slowly, holding the frame by the sides—do not place fingers between magnets.
  • Clear: Keep magnets away from medical devices and follow the device manufacturer’s guidance.
  • Control: Verify magnets have not shifted after stitching over thick seam intersections.
  • Success check: The hoop clamps evenly without snapping onto skin, and the fabric surface shows no friction rings (“hoop burn”).
  • If it still fails: Switch back to standard hooping for high-risk users or re-train handling before production use.
