Perfect Stitch Viewer on Windows: Install It Once, Then See PES/DST Designs as Real Thumbnails (No More Mystery File Names)

The Invisible Productivity Killer: How to Master Your Embroidery File Library (and Why You Need Perfect Stitch Viewer)

If you have ever stared at a computer folder filled with files named 54992_v2.pes or flower_03.dst and felt a wave of anxiety, you are experiencing "blind production."

In my 20 years in the embroidery industry, I have seen shop owners invest thousands in multi-needle machines, only to bleed efficiency because they spend 20 minutes a day just opening files to see what they are. That is 20 minutes of lost needle-down time.

Machine embroidery is an empirical science. It requires visual confirmation. If you cannot see it, you cannot trust it. This guide is your "White Paper" for solving the digital chaos using Perfect Stitch Viewer, a software tool that forces Windows to render embroidery files as visual thumbnails.

But we won’t stop at software. A streamlined digital library often reveals the next bottleneck in your shop: your physical hooping process. We will address how to fix both.

The Cognitive Shift: From "Reading Names" to "Seeing Stitches"

Perfect Stitch Viewer is a shell extension. In plain English, it is a translator that teaches Windows File Explorer how to read the binary code of a .PES or .DST file and display it as an image.

Why does this matter for your bottom line?

• Visual Verification: You stop sending the "draft" version to the machine.
• Pattern Recognition: You can visually group designs by density or size without opening them.
• Reduced Cognitive Load: Your brain processes images 60,000 times faster than text.

Note that this is a Windows-centric solution. Mac users rely on a different architecture (Finder), so the method below is strictly for the Windows ecosystem.

The Installation Protocol: Stability Over Customization

When acquiring the software, you generally have two paths: a physical CD or a digital download.

Since CD-ROM drives are becoming obsolete in modern workshops, the Download Version is the industry standard. It ensures you have the latest build, patching any recent Windows compatibility issues. If you do use a CD, you must immediately check for updates post-installation.

Critical Installation Rule

When the installation wizard runs, you will be tempted to change the file path. Do not do this.

In a production environment, stability beats cleverness. Let the software install to its default directory. If you ever need technical support, having the software in a non-standard location is the first thing that will delay a fix.

The "Activation Trap": Where 90% of Users Fail

This is the most critical section of this guide. The registration interface for this software contains a UI (User Interface) trap that has caused countless support tickets.

The registration form asks for your Serial Number and has a field for an Activation Code.

The Rule: You generate the activation code by clicking Register. You do not type it in yourself.

The Proper Registration Sequence

Jeff, our demonstrator, highlights the correct path. Follow this exactly to avoid a "Software Activation Failed" error:

1. Fill Mandatory Fields: Only simple text fields marked with an asterisk (*) are required (Name, Address, Email).
2. Enter Serial Number: Type this exactly as found on your card or email, including dashes and capital letters.
3. IGNORE the Activation Code Field: Leave this completely blank.

If you type anything into the Activation Code box, the software thinks you are trying to bypass the server check and will lock you out.

Warning: Do not attempt to "guess" or "pre-fill" the Activation Code. This is a read-only field that the server populates after you click Register. Filling it manually guarantees failure.

Licensing Constraints

Be aware of your "seat count." The license typically covers two computers.

• Primary: Your digitizing/office PC.
• Secondary: Your shop floor laptop connected to the machine.

Choose wisely. Moving licenses later involves contacting support, which costs you time.

Pre-Flight Prep: The "Clean Room" Approach

Before you activate the thumbnails, you need to clean your digital environment. Installing a viewer on a messy hard drive just lets you see your mess more clearly.

Prep Checklist: Digital Hygiene

• Segregate Formats: Create a folder specifically for Machine Files (.PES, .DST, .JEF) and a separate one for Sourcing Files (.EMB, .C2S).
• Isolate Documentation: Move PDFs, color charts, and TXT instructions into a subfolder named "Docs" so they don't break the visual grid of icons.
• Close Background Apps: Ensure no other embroidery software is running during installation to prevent "File Association" conflicts.
• Verify Serial Number: Have your code ready physically or in a text file to copy-paste.

The Download & Install Procedure

Jeff demonstrates properly navigating to the DIME Inspiration download center. This is standard procedure, but ensure you are downloading Perfect Stitch Viewer and not a different utility with a similar name.

Setup Checklist: The "Zero-Error" Install

• Download the installer (or insert CD).
• Run as Administrator (recommended for Windows 10/11).
• Accept all default file paths.
• Launch the software once to trigger the registration window.
• Perform the "Blank Field" Protocol: Enter Serial Number, leave Activation Code blank, Click Register.
• Restart your computer (this forces Windows Explorer to refresh its icon cache).

The "Light Switch" Moment: Configuring Windows View

The software is installed, but your folder might still look like a list of text names. You must manually toggle the Windows View mode.

1. Open File Explorer.
2. Navigate to the View tab in the top ribbon.
3. Select Large Icons or Extra Large Icons.

The "List" and "Details" views do not support thumbnail rendering. You must be in an Icon mode.

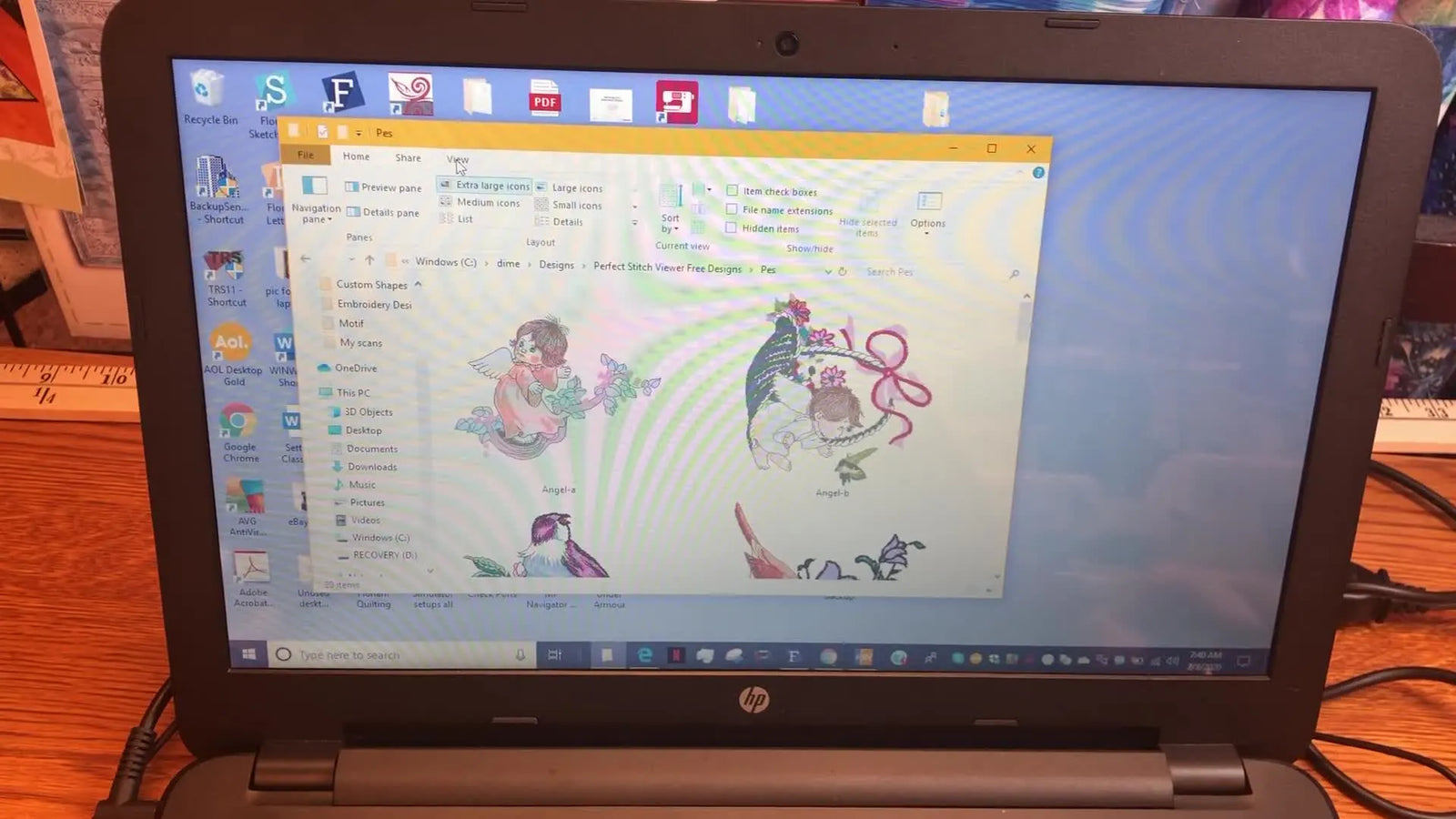

Sensory Check: When you switch to Extra Large Icons, you should see a brief "ripple" effect as the icons populate. If the images appear instantly, the software is working. If you see generic whitespace or document icons, the renderer is not active.

Troubleshooting: The "Gear Icon" Phenomenon

You will eventually encounter a folder where some files look like beautiful stitch previews, and others look like generic gears or broken pages.

Jeff explains this clearly: Perfect Stitch Viewer only renders Stitch Files.

• Supported: .PES, .DST, .VIP, .EXP (The files the machine reads).
• Unsupported: .C2S, .EDR, or Quilting Path files (The files the software edits).


Decision Tree: Why Is My Icon Broken?

Use this logic flow to diagnose display issues without calling support.

• Step 1: Is the view set to "Extra Large Icons"?
  • No: Change the view setting.
  • Yes: Proceed to Step 2.
• Step 2: Is the file extension a machine format (e.g., .DST, .PES)?
  • No (It is .PDF, .TXT, .C2S): This is normal behavior. The viewer ignores these.
  • Yes: Proceed to Step 3.
• Step 3: Did you type in the Activation Code field manually?
  • Yes: You broke the activation. Uninstall and reinstall.
  • No: Proceed to Step 4.
• Step 4: Is the file corrupted?
  • Action: Try opening the file in your digitizing software. If it fails to open there, the file itself is damaged, not the viewer.

Workflow Integration: The "Right-Click" Accelerator

Once your thumbnails are visible, your workflow changes. Jeff demonstrates a crucial efficiency hack: Open With.

Instead of opening your heavy digitizing software (like Floriani or Hatch) and then searching for the file, you simply:

1. Look at the thumbnail in Windows.
2. Right-click the image.
3. Select Open With -> [Your Software].








This saves approximately 30-45 seconds per design. If you run 20 designs a day, you just saved 15 minutes of non-billable time.

Commercial Pivot: From Digital Speed to Physical Speed

Now that your digital library is optimized, you will notice a new problem. You can select files instantly, but your machine is sitting idle while you struggle to hoop a thick hoodie or a slippery performance polo.

The "Bottleneck Shift" Principle: In manufacturing, when you fix one bottleneck (file selection), the constraint moves to the next slowest step. In embroidery, that step is almost always Hooping.

The Trigger: Hooping Fatigue & "Burn"

If you are wrestling with traditional screw-tightened hoops, you are risking:

1. Hoop Burn: Permanent rings left on delicate fabrics.
2. Wrist Strain: Carpal tunnel is a real risk for high-volume embroiderers.
3. Pop-outs: Thick jackets popping out of the hoop mid-stitch.

The Solution Hierarchy

When you are ready to upgrade your physical workflow to match your new digital speed, consider these tiers:

Level 1: Stability Upgrades Ensure you have the right consumables hidden in your drawer:

• Temporary Spray Adhesive (ODIF 505) for float-hooping.
• Water Soluble Pen for marking centers without fear.
• Cutaway Stabilizer for knits (never tearaway on stretchy fabrics!).

Level 2: Tool Upgrade (Magnetic Hooping) This is where the industry is moving. Magnetic frames use powerful magnets to clamp fabric instantly without the "unscrew-adjust-rescrew" dance.

• For Home Machines: Users often search for terms like dime magnetic hoop for brother or dime hoops for bernina depending on their machine ecosystem. These hoops allow you to float material easily and adjust without unhooping.
• For Fit & Finish: If you struggle with positioning on high-end machines, checking compatibility with terms like dime snap hoop for brother luminaire can guide you to precision tools.
• The SEWTECH Advantage: For both home and industrial use, SEWTECH Magnetic Hoops offer a robust, high-grip solution compatible with most major brands. We engineer frames that handle the clamping force required for high-speed production runs.

Level 3: Capacity Upgrade (The Multi-Needle Leap) If you are organizing thousands of files because you have thousands of orders, a single-needle machine is your cap.

• SEWTECH Multi-Needle Machines allow you to queue colors without manual thread changes.
• Combined with magnetic hooping, one operator can run continuous production.

Warning: Magnetic Force Safety
Magnetic hoops (whether SEWTECH or other brands) use industrial-grade neodymium magnets.
* Pinch Hazard: They snap together with enough force to bruise fingers. Handle with respect.
* Medical Devices: Maintain a 6-inch safe distance from pacemakers or insulin pumps.

If you are sourcing globally, you might see varying availability. For example, UK-based embroiderers often search for dime magnetic hoops uk to find local distributors, but the principle reinforces that magnetic technology is the global standard for efficiency.

Similarly, the dime snap hoop concept has popularized the idea of "snap and go," which aligns perfectly with the SEWTECH philosophy of reducing friction in the creative process.

Final Operation Checklist: The Daily Driver

Embed this routine into your shop culture:

Operation Checklist

• Morning Boot: Open Windows Explorer and confirm thumbnails are rendering (Windows Update sometimes resets view settings).
• Visual Scan: Check file previews for density issues (very dark images = high stitch count) before loading to the machine.
• File Hygiene: Immediately move downloaded zip files to a sorting folder; do not unzip them into your main library.
• Physical Prep: While the computer starts, verify you have the correct magnetic hoop size for the day's primary garment (e.g., 5x5 for left chest logos).
• Safety Check: Ensure your needle count matches the design (don't run a 10-color design on a machine threaded with 6 colors without a stop command).

Conclusion: Stop Fighting Your Tools

Perfect Stitch Viewer removes the blindfold. Magnetic hoops remove the handcuffs.

By solving the "blind file" problem, you have taken the first step toward a professional workflow. But remember: Software Time is Safe; Machine Time is Money. Don't spend hours organizing files only to let your machine sit idle.

Use your new visual clarity to queue up jobs faster, and invest in the hardware—like SEWTECH magnetic frames and multi-needle workhorses—that keeps the needle moving. That is how you turn a hobby into a production line.

FAQ

• Q: Why does Perfect Stitch Viewer show no embroidery thumbnails in Windows File Explorer for PES or DST files on Windows 10/11?
  A: Switch Windows File Explorer to an Icon view—thumbnails will not render in List or Details views.
  • Set View to Large Icons or Extra Large Icons in File Explorer.
  • Restart the computer to force Windows to refresh the icon cache after installation.
  • Close other embroidery software and reopen File Explorer to avoid file-association conflicts.
  • Success check: thumbnails “populate” after a brief ripple/refresh instead of staying as generic document icons.
  • If it still fails: confirm Perfect Stitch Viewer is installed and launched once so the registration step can complete.
• Q: How do I fix “Software Activation Failed” in Perfect Stitch Viewer when registering with a Serial Number?
  A: Leave the Activation Code field completely blank and click Register—do not type anything into that box.
  • Enter only the required fields marked with an asterisk (*) plus the Serial Number exactly (including dashes and capital letters).
  • Ignore the Activation Code field; the server populates it after you click Register.
  • Reinstall if you previously typed anything into the Activation Code field, because that commonly triggers a lockout.
  • Success check: registration completes without an activation error and thumbnails begin rendering after a restart.
  • If it still fails: verify the Serial Number is correct and consider that the license may already be used on the allowed computers.
• Q: Should Perfect Stitch Viewer be installed to a custom folder path on Windows, or the default directory?
  A: Use the default install path for stability—custom paths often slow down troubleshooting and can cause support delays.
  • Accept all default file paths in the installer wizard.
  • Run the installer as Administrator (commonly helpful on Windows 10/11).
  • Launch Perfect Stitch Viewer once after installation to trigger the registration window.
  • Success check: after restart, Windows Explorer shows machine-file thumbnails in Icon view without extra configuration.
  • If it still fails: uninstall and reinstall using default settings and ensure no other embroidery programs are running during install.
• Q: Why do some files show as a gear icon or broken page in Perfect Stitch Viewer instead of stitch thumbnails?
  A: Perfect Stitch Viewer only renders machine stitch files; non-machine or editing formats will not preview as stitches.
  • Confirm the file extension is a supported machine format (for example PES, DST, VIP, EXP).
  • Expect non-machine formats (for example C2S, EDR, PDFs, TXTs) to show generic icons—this is normal.
  • Open the file in digitizing software to check for corruption if it is a machine format but still won’t preview.
  • Success check: supported stitch files display a stitch-preview thumbnail while unsupported file types remain generic.
  • If it still fails: suspect a corrupted design file rather than a viewer problem.
• Q: What is the best way to organize an embroidery file library before using Perfect Stitch Viewer thumbnails on Windows?
  A: Clean the folder structure first—thumbnails help most when machine files and documentation are separated.
  • Create separate folders for Machine Files (PES, DST, JEF) and Sourcing/Editing Files (such as EMB, C2S).
  • Move PDFs, color charts, and TXT instructions into a dedicated “Docs” subfolder to keep the visual grid clean.
  • Keep zip downloads in a sorting folder instead of unzipping directly into the main library.
  • Success check: a single folder view shows mostly stitch thumbnails with minimal non-design clutter.
  • If it still fails: re-check file extensions—many “mystery” icons are simply non-machine formats mixed into the same folder.
• Q: How can Windows “Open With” speed up embroidery production after Perfect Stitch Viewer thumbnails are working?
  A: Use the thumbnail as the selector—right-click the design preview and open it directly in the needed software.
  • Locate the correct design by thumbnail in File Explorer (Icon view).
  • Right-click the file and choose Open With to send it to digitizing software without launching and browsing inside the program.
  • Keep your machine-ready formats and working formats clearly separated so you open the right file type.
  • Success check: the correct design opens immediately from File Explorer without extra searching inside the software.
  • If it still fails: confirm the file association is set to the correct program and that the file is a machine format your software can open.
• Q: What safety precautions should embroidery operators follow when using SEWTECH Magnetic Hoops or other magnetic embroidery frames?
  A: Treat magnetic hoops as pinch hazards and keep them away from medical devices—strong magnets can snap together suddenly.
  • Handle magnets with controlled placement; keep fingers clear of the closing path.
  • Maintain a safe distance (commonly referenced as 6 inches) from pacemakers or insulin pumps.
  • Choose the correct hoop size before starting the run to reduce repeated snapping on/off during setup.
  • Success check: magnets clamp fabric securely without finger pinches and the hoop seats smoothly on the machine.
  • If it still fails: stop and re-train the handling sequence—rushing magnetic closure is the most common cause of injuries and mis-hooping.
• Q: After Perfect Stitch Viewer speeds up design selection, how do I reduce hooping delays and hoop burn on hoodies or performance polos without overhauling the whole shop?
  A: Upgrade in levels: optimize hooping technique first, then consider magnetic hoops, and only then consider higher-capacity multi-needle production.
  • Level 1 (Technique/Consumables): use temporary spray adhesive for float-hooping, mark centers with a water-soluble pen, and choose cutaway stabilizer for knits (avoid tearaway on stretchy fabric).
  • Level 2 (Tool Upgrade): switch to magnetic hoops to eliminate screw-tightening, reduce hoop burn risk, and speed fabric clamping.
  • Level 3 (Capacity Upgrade): if order volume is high and thread changes are the limiter, consider a multi-needle machine to keep continuous production moving.
  • Success check: the machine spends more time stitching and less time waiting for hooping, with fewer fabric rings and fewer pop-outs mid-stitch.
  • If it still fails: reassess stabilizer choice and hooping method first—many “hoop problems” are actually stability problems before they are machine problems.
