PE-Design Piping Stitch Fill: The “Butt-Up” Overlap Trick That Stops Those Annoying Gaps

If you’ve ever stitched a specific “piping stitch” design and then stared at a tiny, ugly gap between two objects—right where the eye is drawn—you know the sinking feeling. The file looked seamless on your pristine computer screen, but the thread told the truth.

This is the physics of embroidery: stitches pull fabric in, creating gaps. In PE-Design (and many other software suites), specific stitch types like "Piping Stitch" often lack automatic "Pull Compensation" settings.

This guide, based on Regina’s "Butt-up" method (Part 2), teaches you the professional manual workaround. We will move from screen theory to physical reality, ensuring your adjacent elements meet cleanly without relying on software automation that doesn't exist.

Don’t Panic When PE-Design Piping Stitch Leaves a Gap—It’s Usually a Boundary Problem, Not a “Bad Stitch”

The piping stitch fill looks elegant—resembling a hand-stitched cord—but it is unforgiving. In the digital world, two shapes can touch perfectly. In the physical world, the tension of the thread will pull those boundaries apart, leaving a gap of fabric showing through (often called "The River").

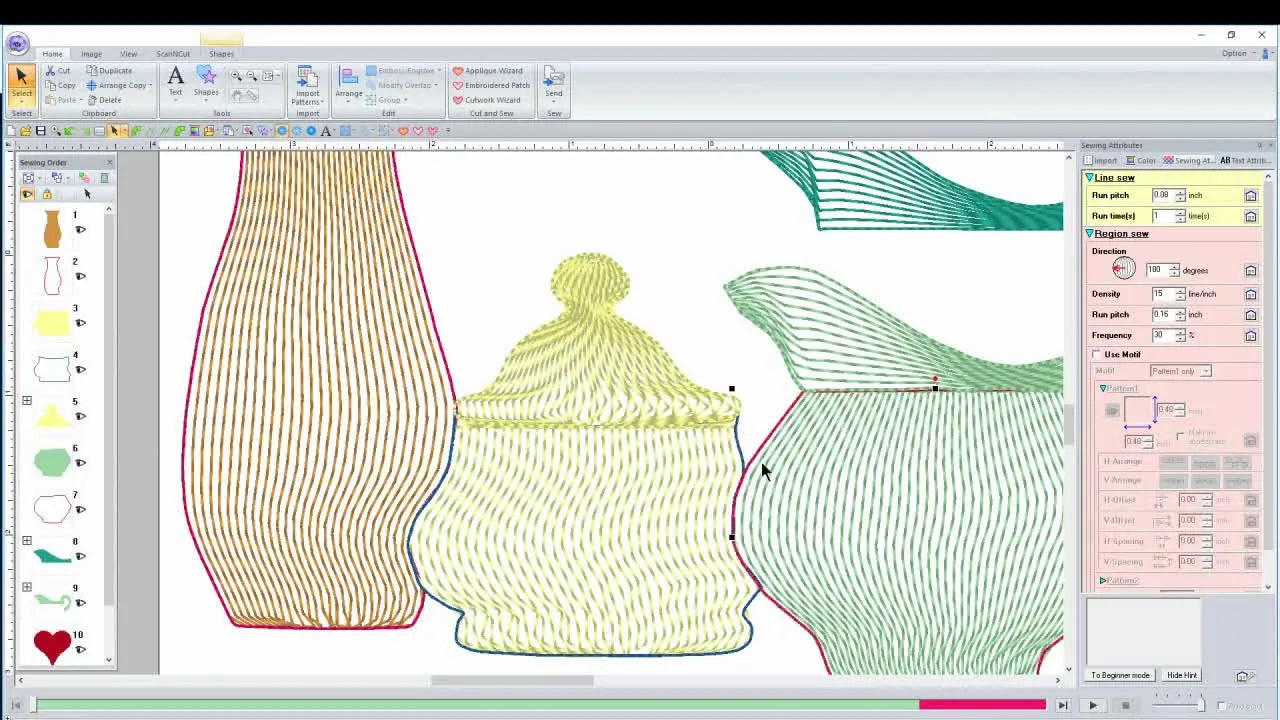

Regina’s video demonstrates a wireframe concept with a vase, sugar bowl, and creamer. Her solution isn't magic; it is manual compensation. She nudges the outlines so they barely overlap.

The Pro Insight: The fabric will shrink; the thread will not stretch. Therefore, your design must be "larger" than the final result. Most gaps are digitizing errors, creating exactly what was programmed: two lines that kiss on screen but divorce on fabric.

The “Hidden” Prep in Brother PE-Design: Set Up Your View So You Can Actually See the Seam

Before you move a single node (the little dots that define your shape), you need absolute visibility. You cannot rely on "eyeballing" two similar colors.

Regina’s trick is to temporarily change the outline colors to high-contrast neons. This separates the "I think it overlaps" assumption from the "I can see the overlap" fact.

Prep Checklist: The Visibility Audit

• Object Isolation: Confirm you have selected the correct object (e.g., the vase) in the layers panel.
• Zoom Level: Zoom in to at least 400-500%. You should see the individual grid lines.
• Layer Hierarchy: Decide which object sits "on top." The object underneath usually doesn't need to move; the object on top needs to overlap it.
• Contrast Mode: Are your outlines set to temporary high-contrast colors (like bright Blue or Red)?
• Consumable Check: Ensure you have temporary marking pens or placement stickers ready for the physical test later.


Use Contrasting Outline Colors in PE-Design to Make Overlap Editing Obvious (Blue First, Then Red)

In the demonstration, Regina changes the vase outline to a bright, electric blue.

1. Select the vase object.
2. Change the outline color to Blue (or any color that clashes with your background).
3. Lock this object (optional but recommended) so you don't accidentally drag it.

Now, that blue line is your "do not cross" barrier—or in this case, your "must cross" target. This visual anchor prevents the common beginner mistake of moving the wrong line and distorting the main shape.

The “Butt-Up” Overlap Move: Drag Vector Nodes Until the Next Object Slightly Crosses the Blue Line

Now for the tactile part of digitizing.

Regina uses the Select Point tool to drag the sugar bowl’s outline so it physically sits inside the adjacent blue vase outline. She brings the line "right up next" and nudges it to "just barely overlap."

Empirical Data for New Users: How much is "barely"?

• Minimum: 0.5mm (approx. 2-3 pixels at standard view).
• Maximum: 1.0mm.
• The Risk: If you overlap more than 2mm, you create a "bulletproof" dense patch that can break needles. If less than 0.3mm, the pull of the fabric might still open a gap.

Checkpoints While You Drag Nodes

• Sensory Check (Visual): Look for the "X" effect where the lines cross.
• Geometry Check: Avoid creating sharp, jagged angles. Gentle curves stitch better than sharp points.
• Consistency: ensuring the overlap is even along the entire seam, not just at the top or bottom.


Warning: Mechanical Safety
When editing nodes, avoid creating "bow ties" or twisted lines where the outline crosses over itself. These create mathematical errors that can cause the machine to stitch in place repeatedly, resulting in a "bird's nest," a jammed bobbin, or even a broken needle flying toward your face. Always use the "Simulator" view before stitching.

When PE-Design Pull Compensation Is Missing on Piping Stitch, Manual Overlap Isn’t a Hack—It’s the Correct Workflow

Regina identifies the critical bottleneck: Pull Compensation is unavailable for this specific stitch type in PE-Design.

In standard satin stitches, you can just dial in "+0.2mm Pull Comp." Here, you cannot. This is not a hack; it is foundational digitizing.

The Physics:

• Piping Stitch: Runs linearly.
• The Pull: As the needle penetrates, it draws the fabric inward toward the center of the fill.
• The Rule: If the software won’t compensate automatically, the digitizer (you) must compensate manually.


Red-on-Blue Verification: Color the Second Object So You Can See Which Layer Wins at the Seam

Regina changes the sugar bowl outline to Red.

She now has a Blue line (Vase) and a Red line (Bowl).

• Where the Red crosses the Blue: Success.
• Where the Red touches the Blue: Risk of Gapping.
• Where the Red is away from the Blue: Guaranteed Gap.

This "Traffic Light" system allows you to scan a design in seconds rather than minutes. It is a quality control habit used by draftspeople in engineering, adapted here for embroidery.

Setup Checklist: The Seam-Proofing Routine

• Color Coding: Object A is Blue; Object B is Red.
• Overlap Verification: Zoom in continuously along the seam. Is the Red line strictly inside the Blue line zone?
• Clean Angles: Did the node moving create any weird spikes? Smooth them out.
• Layer Check: Verify Object A stitches before Object B if that is your intended visual hierarchy.

Closed Curve vs Manual Punch in PE-Design: They Can Look Identical—Until You Start Pushing Stitch Direction

Regina compares shapes created with "Closed Curve" vs. "Manual Punch." Visually, they seem identical.

The Expert Differentiator:

• Closed Curve: Great for organic shapes where the software decides the flow.
• Manual Punch: Essential for "sculpting." You not only define the outline but the angle of the stitches. Use Manual Punch when you need total control over how light hits the thread (like on the handle of a creamer).




Stitch Direction Handles in PE-Design: Small Moves May Do Nothing, Big Moves Can Completely Re-Style the Fill

Regina clicks into stitch direction editing. She demonstrates a reality of embroidery software math:

1. The Dead Zone: Sometimes you move a direction arrow slightly, and the fill doesn't change. The software calculates "best fit."
2. The Warp Speed: You push the handle past a threshold, and suddenly the piping swirls dramatically.

Sensory Guide: Watch the "Rhythm" of the lines on screen. You want the stitch lines to flow like water through a hose—smooth turns. Kinks in the stitch lines on screen equal thread breaks on the machine.

The Creamer Handle Reality Check: Manual Punch + Density Is Often the Only Control That Truly Matters

Regina adjusts the Density in the Sewing Attributes panel.

• Panel shows: Density at 30 (or approx. 4.5 lines/mm depending on version).
• Action: Drags slider.
• Result: Visual spacing changes.

The "Sweet Spot" Density: For standard 40wt embroidery thread, standard density is usually sufficient. However, for piping stitch on contrasting fabric (e.g., black thread on white fabric), you may need to increase density by 5-10% to prevent the fabric color from peeking through.

Tip: Do not simply max out density. Too dense = stiff, cardboard-like embroidery that puckers the surrounding fabric.

Clean Finish Workflow in PE-Design: Revert Temporary Outline Colors and Set the Design Page to 4x4 (100×100mm)

Once the structural work is done, clean up the digital mess.

1. Match Colors: Revert the Red/Blue outlines to the final thread colors.
2. Set Page Size: Lock the design page to your hoop size (e.g., 4x4 or 100x100mm).

Why Page Size Matters: If you design on a giant canvas but stitch on a small hoop, you risk accidental resizing. Always design at the scale of your intended output.

Operation Checklist: Pre-Export Final Review

• Color Reversion: Are all neon temporary colors gone?
• Hoop Constraint: Is the design fully inside the 100x100mm (4x4) boundary?
• Density Safety: Is density set to standard (not dangerously high)?
• Simulator Run: Watch the slow-motion preview. Does the overlap visual look correct?
• File Versioning: Save as Creamer_Fixed_v2.pes (never overwrite your original).

Decision Tree: Stabilizer and Hooping Choices That Keep Your “Perfect Seam” From Turning Into a Pucker

Digitizing is only 50% of the battle. The other 50% is holding the fabric still so that overlap actually happens.

Step 1: Identify Your Fabric

• Fabric A: Stable Woven (Denim, Canvas)
  • System: Tear-away stabilizer is usually fine.
  • Action: Hoop tight (like a drum skin).
• Fabric B: Unstable / Stretchy (T-Shirts, Knits)
  • System: Cut-away stabilizer is non-negotiable. Tear-away will allow the fabric to shift, reopening that gap you just fixed.
  • Action: Do not stretch the fabric while hooping; let it lay flat.
• Fabric C: Slippery / Thick (Jackets, Performance Wear)
  • System: Cut-away + Temporary Spray Adhesive (TSA).

Step 2: Troubleshoot Your Hooping Pain

• Issue: "Hoep Burn" (shiny rings) or difficulty tightening the screw.
• Issue: Repetitive stress on wrists from hooping 50+ items.

This is where your hardware limits your software success. If precise alignment is a struggle, standard plastic hoops can be fighting you. Many professionals upgrade to magnetic embroidery hoops. These use powerful magnets to clamp fabric instantly without the "unscrew-push-pull-screw" dance, reducing movement and preventing the fabric distortion that causes gaps.

Warning: Magnet Safety
magnetic embroidery hoops contain neodymium magnets. They release with extreme force.
* Pinch Hazard: Keep fingers clear of the snapping zone.
* Medical: Keep at least 6 inches away from pacemakers.
* Data: Keep away from credit cards and phone screens.

The Upgrade Path (Without the Hard Sell): When Better Hooping Tools Make Digitizing Tests Faster and More Profitable

Digitizing requires iteration. You might stitch this creamer design three times to get the overlap perfect.

• Level 1: The Hobbyist
  • Stick to standard hoops. Focus on technique. Use spray adhesive to help stabilization.
• Level 2: The Side Hustle (Etsy/Customs)
  • Time is money. If you are testing files constantly, a brother 4x4 magnetic hoop can cut your re-hooping time by 70%, making the "test-tweak-retest" cycle much less painful.
  • Consider a basic hooping station for machine embroidery to ensure your placement is identical every time.
• Level 3: The Production Shop
  • If you are running 6-12 heads or high-speed multi-needles (like SEWTECH machines), efficiency is survival. You need tools that minimize downtime between color changes and loads.

Terms like magnetic embroidery hoop are often searched by users looking to solve specific "shift" issues that software can't fix.

Quick Troubleshooting: Symptoms → Likely Cause → Fix

(Based on the "Regina" piping stitch workflow)

Hidden Consumables You Need:

• New Needles: A burred needle drags fabric. Change every 8 hours of stitching.
• Bobbin Thread: Ensure your bobbin tension is calibrated (drop test: holding the thread, bobbin creates a "spider" drop of 2-3 inches).

One Last Pro Habit: Treat Hooping as Part of Digitizing Quality, Not a Separate Problem

Even though this tutorial lives inside Brother PE-Design, the real-world result depends on the physical grip on your material.

If you are struggling with hooping for embroidery machine—battling inner rings that pop out or screws that strip—your software testing will be flawed. You will think your file is wrong, when actually your hoop slipped.

A clean workflow is: Digitize with deliberate overlaps (0.5mm+) -> Stabilize correctly (Cut-away for knits) -> Secure reliably. When you are ready to stop fighting the plastic rings, look at embroidery hoops for brother machines that utilize magnetic clamping to standardize your tension, layer after layer.

FAQ

• Q: How do I fix gaps between adjacent objects when Brother PE-Design Piping Stitch has no Pull Compensation?
  A: Add a small intentional overlap by editing the boundary nodes—this is the correct workflow for Piping Stitch, not a workaround.
  • Change Object A outline to a high-contrast color (e.g., Blue) and lock it if needed.
  • Change Object B outline to another high-contrast color (e.g., Red), then zoom to 400–500%.
  • Drag Object B nodes so the Red line crosses slightly inside the Blue line by about 0.5–1.0 mm along the full seam.
  • Success check: At the seam, the Red line clearly crosses the Blue line consistently (not just touching).
  • If it still fails: Stitch a quick test and increase the overlap slightly (avoid going beyond 2.0 mm to prevent an overly dense “hard” patch).
• Q: What is a safe overlap amount in Brother PE-Design when using Piping Stitch to prevent “the river” gap without causing excessive density?
  A: Use 0.5–1.0 mm overlap as a practical target; too much overlap can create a dense ridge that increases needle/thread risk.
  • Start at 0.5 mm overlap for stable fabrics and simple seams.
  • Increase toward 1.0 mm if the fabric pull still opens a visible gap after a test sew-out.
  • Avoid overlaps above 2.0 mm because the seam area can become “bulletproof” and harder to stitch safely.
  • Success check: The fabric does not show through at the join, and the seam does not feel stiff or raised like a hard ridge.
  • If it still fails: Re-check stitch order (layer hierarchy) and stabilizer/hooping so the fabric is not shifting during stitching.
• Q: How do I set up Brother PE-Design so overlap editing is visible and I don’t accidentally move the wrong object boundary?
  A: Use a visibility audit: isolate the correct object, zoom aggressively, and temporarily recolor outlines to neon contrasts before moving nodes.
  • Select the target object in the layers/object list to confirm the correct item is active.
  • Zoom to 400–500% until you can clearly see the boundary relationship.
  • Temporarily set outlines to contrasting colors (e.g., Blue for the base object, Red for the object that will overlap).
  • Lock the base object to prevent accidental dragging.
  • Success check: You can visually confirm a clear crossing (“X” effect) where overlap is intended, without guessing based on similar thread colors.
  • If it still fails: Run the Simulator/preview before stitching to confirm the objects stitch in the intended order.
• Q: How do I avoid bird’s nests, bobbin jams, or repeated stitching in place after node editing in Brother PE-Design?
  A: Do not create self-crossing “bow tie” boundaries—always simulate the stitch-out after node moves to catch mathematical/path errors early.
  • Avoid dragging nodes in a way that makes the outline cross over itself or twist into tight knots.
  • Smooth out sharp spikes and jagged angles; gentle curves typically stitch more reliably.
  • Run the Simulator/slow preview before exporting and stitching.
  • Success check: In simulation, the stitch path progresses smoothly without rapid back-and-forth punctures in one spot.
  • If it still fails: Undo the last edits and redo the overlap in smaller, controlled node moves to keep the boundary clean.
• Q: How do I choose stabilizer and hooping for knits in machine embroidery so a “fixed seam” does not pucker or reopen gaps?
  A: For T-shirts and other knits, use cut-away stabilizer and hoop without stretching the fabric—tear-away often allows shifting that reopens gaps.
  • Use cut-away stabilizer as the base for unstable/stretchy fabrics.
  • Hoop the fabric flat and relaxed (do not pull it tight while tightening the hoop).
  • Add temporary spray adhesive when needed to prevent layers from drifting (especially on slippery or thick garments).
  • Success check: After stitching, the fabric lies flat with no wavy edge and the seam remains closed (no visible “river”).
  • If it still fails: Reduce density slightly or improve hoop grip so the material does not creep during the run.
• Q: What quick checks help diagnose shifted registration from fabric movement in the hoop during machine embroidery?
  A: Treat hooping as part of quality control—stabilize correctly, hoop firmly, and use adhesive if needed to stop micro-slips.
  • Tighten the hoop evenly and check firmness (many embroiderers use a “drum-like” feel as a practical cue).
  • Use spray adhesive for better stabilizer-to-fabric bonding when the fabric wants to slide.
  • Re-check that the fabric was not stretched during hooping (especially on knits).
  • Success check: Repeated test runs land stitches in the same place and outlines do not drift between objects.
  • If it still fails: Consider switching to a magnetic hoop to improve consistent grip without over-compressing and distorting the fabric.
• Q: What are the safety precautions when using magnetic embroidery hoops with neodymium magnets for machine embroidery hooping?
  A: Magnetic hoops clamp fast and strong—keep fingers out of the snap zone and keep magnets away from medical devices and sensitive items.
  • Keep fingertips clear when closing the magnetic frame to avoid pinch injuries.
  • Keep magnetic hoops at least 6 inches away from pacemakers and similar medical implants.
  • Keep magnets away from credit cards and phone screens to reduce risk of damage.
  • Success check: The hoop closes under control (no uncontrolled snapping) and the fabric is clamped evenly without you “fighting” the closure.
  • If it still fails: Slow down the closing motion and reposition the fabric so the magnets engage evenly instead of forcing one corner down first.
• Q: When repeated Brother PE-Design Piping Stitch test sew-outs still show gaps or puckering, what is a practical upgrade path from technique to tooling to production capacity?
  A: Escalate in layers: refine overlap and density first, then improve hooping consistency with magnetic hoops, then consider multi-needle production equipment if volume demands it.
  • Level 1 (Technique): Confirm 0.5–1.0 mm manual overlap, run Simulator, and adjust density by small steps (often 5–10%) instead of maxing it out.
  • Level 2 (Tooling): Use a magnetic hoop and (optionally) a hooping station to reduce re-hooping time and stabilize repeat tests.
  • Level 3 (Capacity): If production requires high throughput, move to a multi-needle workflow (such as SEWTECH multi-needle machines) to reduce downtime and improve consistency.
  • Success check: The “test–tweak–retest” cycle becomes faster, and seams stay closed on real garments without repeated re-hooping or redesign.
  • If it still fails: Re-audit fabric type, stabilizer choice (cut-away for knits), and hoop slip before changing the design again.
