PE-DESIGN NEXT for Brother PR1000/PR650: Turn Templates, Name Drop, and Jumbo Hoop Splits into Real Production Speed

If you run a home embroidery business (or you’re trying to), you already know the real enemy isn’t “learning to use the software.” It is rework. It is the sinking feeling of re-hooping a garment because it’s crooked, re-typing names because of a typo, or watching a machine stitch a design that looked perfect on screen but turns into a bulletproof patch on a T-shirt.

This guide takes the feature set of Brother’s PE-DESIGN NEXT—often viewed just as a digitization tool—and reconstructs it into a production control panel. We aren't just looking at buttons; we are looking at how to stop wasting time and start shipping products.

Whether you stitch on a single-needle machine or a production workhorse like a Brother PR1000 or PR650, the physics of embroidery remain the same. Below is a "white paper" level breakdown of how to handle caps, bags, aprons, and team gear with professional consistency, manageable risk, and the right tools.

Calm the Panic: PE-DESIGN NEXT Isn’t “Just Software”—It’s Your Production Control Panel

PE-DESIGN NEXT is technically a personal embroidery design system. The manual tells you it lets you create designs, modify existing files, create monograms, and convert formats. But in a real shop environment, you need to view this software as your Quality Assurance Lab.

If you are transitioning from older software versions, the Ribbon Interface is designed to reduce "mouse mileage." This reduces cognitive friction. When you are six hours into a production run, knowing exactly where the "Density" or "Pull Compensation" tools are located prevents the kind of fatigue-induced errors that ruin garments.

One specific feature mentioned in the video is a quiet lifesaver: Edit User Hoop. This allows you to define unique hoop sizes that match non-standard frames. If you upgrade to specialized gear—like magnetic hoops or clamp frames—you must tell the software exactly what the sewing field is. If the software thinks you have a 100mm x 100mm field, but your clamp only allows 90mm, you risk a needle strike.

The “Hidden” Prep Before You Click Anything: Job Specs, Fabric Reality, and Hooping Strategy

Before you touch a template, you must lock down your physical strategy. Software cannot rescue a physically unstable setup. Experienced embroiderers know that digitizing is only 40% of the battle; the other 60% is stabilization and hooping.

The Physics of Failure: Most production headaches start with hooping friction.

• Thin Aprons: Tend to ripple if the stabilizer isn't adhered properly.
• Bags: Shift because seams and heavy canvas fight the hoop tension.
• Caps: The crown wants to "flag" (bounce up and down), causing bird-nesting or needle breaks.

If you are doing high-volume personalization (teams, uniforms), your hooping method is likely your bottleneck. This is the "Pain Point" where you should evaluate your tools:

1. Level 1 (Technique): Use the correct stabilizer. For stretchy knits (performance wear), use a Cutaway stabilizer (2.5oz or 3.0oz). For stable wovens, Tearaway is acceptable.
2. Level 2 (Tool Upgrade): If you are spending more time wrestling fabric into a frame than the machine spends stitching, a magnetic hoop is a legitimate productivity upgrade.
3. Level 3 (The Solution): If you see "hoop burn" (the shiny ring mark left by traditional plastic hoops) or your wrists hurt from tightening screws, this is not a skill issue—it is a tool issue. Magnetic frames clamp automatically and evenly.

For Brother PR owners specifically, many shops look for magnetic embroidery hoops for brother when they hit that exact wall: hooping speed and consistency, rather than just "hoping" the plastic hoop holds tight enough.

Warning: Hooping and trimming are where 90% of shop injuries occur. Needles, snips, and rotary cutters do not care how experienced you are. Always keep fingers out of the needle path (red light area), power down before any close-in adjustments, and never use your fingers to wipe away lint while the machine is running.

Prep Checklist (Do this once per order)

• Product Category: Identify the item (cap, bag, apron) and the fabric elasticity.
• Hooping Mode: Standard hoop, cap driver, or magnetic frame?
• Stabilizer Match:
  • Stretchy/Knit = Cutaway + Spray Adhesive.
  • Stable/Woven = Tearaway.
  • High Pile (Towels) = Tearaway + Water Soluble Topper (Solvy).
• Hidden Consumables: Do you have fresh needles (75/11 is standard, 90/14 for thick canvas)? Do you have temporary spray adhesive?
• Design Size: Confirm the design fits the actual safe sewing area of your chosen hoop.


Set the Sewing Field First: Ribbon Interface + Edit User Hoop (So Your Preview Matches Reality)

The video demonstrates using the Edit User Hoop function in the Ribbon Interface. This is not just for customization; it is a safety protocol.

The Step-by-Step Safety Workflow:

1. Measure: Take your physical hoop (especially if it is a third-party magnetic frame or a clamp). Measure the internal usable space. Deduct 5mm from each side for a "Safety Zone."
2. Input: Open PE-DESIGN NEXT, go to Hoop Settings > Edit User Hoop. Input your measured dimensions.
3. Save: Name it clearly (e.g., "Mighty Hoop 5.5 inch").
4. Visualize: Now, when you see the grid on screen, it represents your actual physical limit.

Why this matters: If your on-screen boundary implies you have 4 inches of width, but your hoop clamp takes up 0.5 inches on the edges, you will hit the frame. The sound of a needle hitting a metal hoop at 800 stitches per minute is something you never want to hear.

This sector is also where operators consider fixtures. If you are doing repeat placements (e.g., left chest logos on 50 shirts), just "eyeballing it" is professionally dangerous. A hooping station for embroidery machine is a fixture that holds the hoop and garment in the exact same place every time. It reduces placement drift and cuts hooping time by 30-50%.

Setup Checklist (Before you digitize or personalize)

• Hoop Selection: Select the specific User Hoop you created in software.
• Orientation Check: Rotate the design 90° or 180° if the item (like a cap or bag) is loaded upside down or sideways on the machine.
• Split Safety: If splitting a large design, ensure the slice line does not cross a zipper, seam, or pocket.
• Text Readability: Zoom to 100%. If the text looks like a blob on screen, it will look like a blob on fabric.


Turn Templates into Sellable Products: Built-In Categories for Aprons, Bags, Bathrobes, Caps (and More)

The video highlights 200 built-in templates for items like aprons, bathrobes, and caps.

The "Commercial Validated" Workflow: Templates are not just "clipart." They are layout guides. In a business workflow, templates serve three functions:

1. Rapid Visualization: You can email a customer a preview of their logo on an apron within 5 minutes.
2. Placement Standardization: The template suggests the industry-standard distance from the collar or hem.
3. Training Wheels: New employees can produce acceptable layouts without guessing.

The Cap Challenge: The video mentions small text fonts for the back of caps. This is a critical area. Caps are notoriously difficult because the fabric is curved, often stiff (buckram), and the sewing field is small (usually 2 to 2.5 inches high).

• Action: Use "Run Stitch" or specialized small fonts for anything under 5mm height. Standard satin stitches will bunch up.
• Tooling: If your cap workflow is slow, you will eventually compare standard cap frames (which distort the hat) versus specialized hat hoops. Many PR owners search for a brother hat hoop designed to flatten the bill or clamp the back strap more effectively to reduce rejects.

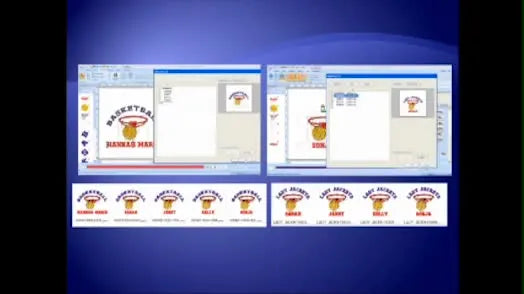

Name Drop Done Right: Batch Personalization Without Re-Typing (Teams, Staff, Events)

The Name Drop feature is your profit engine for team jerseys or corporate uniforms. It allows you to import a list (e.g., Excel/CSV) and auto-generates separate stitch files for every name on the roster.

The Workflow to Avoid Disaster:

1. Draft the Master: Create the design with the team logo and a text placeholder (e.g., "NAME HERE").
2. Formatting: Set the font, height, and ensure "Center Alignment" is selected so short names (Al) and long names (Christopher) both center correctly.
3. Import & Generate: Run Name Drop.
4. The "Sanity Check": Scroll through every generated preview. Look for names that are too long and crash into the logo. Adjust the specific letter spacing for just those anomalies.

Pro Tip: If you are producing 50 personalized shirts, your hooping consistency must be perfect. If the hoop is 1/2 inch lower on shirt #12, the name will look wrong. This is where a hoop master embroidery hooping station becomes an investment in quality control, ensuring the text lands on the same fabric grain line for every single shirt.

Jumbo Hoop Splitting on the Brother PR1000: Make Oversized Designs Stitchable Without Guesswork

For users of the PR1000 (or similar multi-needle machines with large fields), the video shows splitting a large design (e.g., a Christmas tree) to fit the Jumbo Hoop.

The Logic of Splitting: Splitting is risky. If the fabric shifts 1mm between Part A and Part B, you get a visible gap.

• Rule 1: Never split through a face or fine lettering.
• Rule 2: Establish a "bridge." Ensure there is a slight overlap or that the split happens in a filled area where a slight misalignment won't show.
• Rule 3: Stabilization is everything. Use a heavy cutaway stabilizer. Adhesive spray is mandatory to prevent the fabric from "creeping."

Tooling Note: Splitting requires the fabric to be held under tension for a long time. Traditional hoops can loosen slightly over an hour of stitching. This is where magnetic frames shine—they maintain constant pressure. Many PR owners compare options like brother pr1000e hoops to find magnetic solutions that maximize that massive sewing field while keeping the fabric drum-tight.

Stop Losing Designs: Design Database Search + Print Catalog Pages

The Design Database allows you to search, view, and print catalogs (1, 4, or 12 per page).

The Professional Habit: Do not save files as "Design1.pes". Save them as ClientName_ItemType_Date_Version.pes.

• Example: SmithConstruct_JacketBack_Oct2025_v2.pes

Print a catalog page for every job and put it in a physical binder (or a tablet folder) with your production notes: "Used 2 layers of stabilizer, slowed machine to 600 SPM." This creates a "Recipe Card" so you can repeat the job perfectly next year without guessing.

Convert Format Without Breaking Your Workflow (DST, EXP, HUS, VIP)

The software converts between formats like DST, EXP, HUS, and VIP.

The "Container" Metaphor: Think of embroidery files like text documents. A .PES file is like a Word doc—it has color info, settings, and is editable. A .DST (industrial standard) is like a PDF—it only contains coordinates (X, Y movements).

• Best Practice: Always keep your working file in the native format (.PES). Only convert to .DST or .EXP if your specific machine requires it.
• Caution: Converting a file doesn't fix bad digitizing. If the density is too high in the original, it will be too high in the converted file.


Fonts That Actually Stitch: 95 Resizable Fonts + 5 Small Text Fonts

With 100 built-in fonts (95 resizable + 5 small text), you have options. But fonts are where beginners ruin garments.

The "Small Text" Danger Zone: Any text smaller than 5mm (0.2 inches) is physically difficult to stitch with a standard 40wt thread and 75/11 needle.

• The Fix: If you must stitch tiny text (like on specialized layouts or shirt cuffs), switch to a 60wt thread (thinner) and a 65/9 needle.
• The Setup: Small text requires absolutely flat fabric. Any fabric ripple will distort the letters "e" and "a" into blobs. This reinforces why professionalshops treat hooping for embroidery machine technique as a primary skill. The fabric must be taut (like a drum skin), not stretched (pulled out of shape).


Monogram Tool: Two Built-In Monogram Fonts + Decorations

Monograms are high-margin, low-effort items. The video details built-in fonts and decorations.

Commercial Strategy: Create a standardized "Monogram Menu" for your customers. Limit them to 3 font choices and 3 styles (Diamond, Circle, Script). Paradoxically, offering fewer choices speeds up the sales process and ensures you only sell designs you know will stitch perfectly.

Create Floral Pattern: When “A Few Clicks” Is Great—and When It’s a Trap

The "Create Floral Pattern" tool generates spiral/mandala designs.

The Density Trap: Auto-generated patterns often create layers of thread that are too thick for standard T-shirts.

• Test Stitch: Always run these on a piece of scrap denim or heavy felt first.
• Tactile Check: Rub your hand over the finished test. Is it stiff like a board? If so, don't put it on a flexible shirt—it will hang awkwardly. You may need to manually reduce the density in the software settings.


Photo Stitch (6 Modes): How to Avoid the “Muddy Portrait” Result

The Photo Stitch feature converts images (like the fish example) into embroidery.

Managing Expectations: New users often expect photo-realism. Embroidery is pixels made of thread; resolution is low.

• Contrast is King: High contrast photos work best.
• Size Matters: Do not try to Photo Stitch a face smaller than 4x4 inches; you simply don't have enough "pixels" (stitches) to show the eyes.
• Stabilization: Photo stitch designs are dense. Use heavy cutaway stabilizer to prevent the fabric from puckering and destroying the image alignment.


Vector Processing from WMF: Fast Digitizing—If You Respect What Vectors Can’t Tell You

Vector processing converts WMF files to stitches. It’s fast, but vectors don't know physics.

The "Human Override": A vector line is infinitely thin. A thread has width. A vector shape is solid. A thread fill pulls the fabric inward.

• Action: After converting, check the Pull Compensation. You usually need to add 0.2mm - 0.4mm of pull comp to ensure shapes meet and don't leave gaps.


Programmable Stitch Creator + Font Creator: Build What the Library Doesn’t Have

If you need a specific logo font or a custom texture (fill pattern), Font Creator and Programmable Stitch Creator let you build assets that don't exist in the library.

Business Use Case: If you land a corporate client with a quirky font in their logo, map that font in Font Creator. Now you can type their employee names in their exact brand font without manually digitizing every letter. This is a massive time-saver for recurring contracts.

Split Stitch Tool: Salvage Part of a Design Without Re-Digitizing

The Split Stitch tool lets you isolate elements (e.g., one flower from a bouquet).

Production Hack: Build a "Parts Library." If you stitch a great nautical design, use this tool to save just the anchor, just the wheel, and just the rope. Next time a customer wants "just a small anchor on a polo," you have a pre-tested element ready to go.

Linking One PC to Up to Four Brother PR Machines: The Real Bottleneck Isn’t Software

The video shows controlling up to four PR series machines from one PC. This is scalablity.

The Production Reality: Once you have multiple machines running, you cannot afford to stand there hooping one shirt at a time. The machine time is fixed; your handling time is variable.

• The Bottleneck: If it takes you 5 minutes to hoop a shirt and the design runs for 5 minutes, your machine is sitting idle 50% of the time.
• The Solution: Use a hoopmaster hooping station or similar jig system. This allows you (or a helper) to hoop Shirt B perfectly while Shirt A is stitching.
• The Safety: When running multiple heads, fatigue sets in. Magnetic frames reduce the physical strain on your hands compared to screwing and unscrewing traditional hoops hundreds of times a day.

Warning: Magnetic hoops contain powerful Neodymium magnets. They can pinch fingers severely (blood blister risk) and can interfere with pacemakers. Keep them at least 6 inches away from medical devices and computerized machine screens. Always slide them apart; do not try to pry them apart.

Operation Checklist (The "Don't Waste a Day" Final Pass)

• Preview Check: Does the hoop on screen match the hoop on the machine?
• Needle Path: Is the needle area clear of clamps or magnetic frames?
• Bobbin Check: Do you have enough bobbin thread for the whole run? (Listen for the "low bobbin" visual or warning).
• Thread Path: Is the thread seated deeply in the tension discs? (Pull the thread: you should feel resistance similar to flossing teeth).
• Speed: Start new designs at 600-800 SPM. Only go to 1000 SPM if you have verified the stability.

Decision Tree: Stabilizer + Hooping Choices

1) What are you stitching?

• Cap (Structured, Curved)
  • Challenge: Flagging/Bouncing.
  • Solution: Cap Driver or specialized Hat Hoop. Slow speed to 600 SPM.
• Polo Shirt / Knit (Stretchy)
  • Challenge: Distortion/Puckering.
  • Solution: Cutaway Stabilizer (Mesh). Do not stretch fabric when hooping.
• Heavy Jacket / Carhartt (Thick)
  • Challenge: Pop-out (Outer ring won't hold).
  • Solution: Magnetic Frames or strong clamps. Strong adhesive spray.
• Towel (High Pile)
  • Challenge: Stitches sink into loops.
  • Solution: Water Soluble Topper (Solvy) on top + Tearaway on bottom.

The Upgrade Path: From Hobby to Profit

If features like Name Drop, Templates, and Multi-Machine linking appeal to you, you are thinking like a production shop.

Here is the logical path to upgrading your toolkit:

1. Level 1: Software Optimization. Use PE-DESIGN NEXT to create "bulletproof" files that run smoothly without thread breaks.
2. Level 2: Hooping Efficiency. If you are fighting the hoop, upgrade to Magnetic Hoops. They solve "hoop burn," reduce hand strain, and hold thick items (jackets/bags) that plastic hoops can't grip.
3. Level 3: Production Scale. When your single-needle machine can't keep up with orders, looking at a multi-needle platform (like a cost-effective productivity machine from SEWTECH) is the next step. Multi-needles allow you to queue colors without manual thread changes, doubling your daily output.

The best shops don't buy tools to "look cool." They buy tools that turn 20 minutes of frustration into 2 minutes of production.

FAQ

• Q: How do I use Brother PE-DESIGN NEXT “Edit User Hoop” to prevent needle strikes when using a third-party magnetic hoop or clamp frame?
  A: Define the real usable sewing field as a User Hoop before stitching so the on-screen boundary matches the physical frame.
  • Measure the hoop/clamp internal usable area and deduct 5 mm on each side for a safety zone.
  • Enter the dimensions in PE-DESIGN NEXT via Hoop Settings → Edit User Hoop, then save with a clear name.
  • Select that User Hoop for the job before previewing or exporting the file.
  • Success check: The design boundary/grid on screen never overlaps clamps/frame edges, and the needle path stays clear during trace/preview.
  • If it still fails: Re-measure the usable space (not the outer size) and verify the correct User Hoop is selected for that file.
• Q: What stabilizer should I choose for stretchy knit polo shirts versus stable woven items when running a Brother PR series embroidery job?
  A: Match stabilizer to fabric behavior: cutaway for stretch, tearaway for stable wovens.
  • Use Cutaway stabilizer (often 2.5 oz or 3.0 oz) for stretchy/performance knits, and add spray adhesive to prevent shifting.
  • Use Tearaway stabilizer for stable woven goods when appropriate.
  • For towels/high pile, add water-soluble topper on top plus tearaway underneath.
  • Success check: The fabric stays flat after stitching with minimal puckering and the design outline does not “draw up” the garment.
  • If it still fails: Increase stabilization (heavier cutaway and better adhesion) and re-check hooping so fabric is taut but not stretched.
• Q: How do I confirm embroidery hooping is “taut but not stretched” to avoid puckering and distorted small text on a home single-needle embroidery machine?
  A: Hoop to drum-tight tension without pulling the garment out of shape; stability beats force.
  • Smooth fabric on grain, then tighten until the surface feels firm like a drum skin (not stretched thin).
  • Use spray adhesive as needed so the stabilizer and fabric behave as one layer.
  • Zoom to 100% in the PE-DESIGN NEXT preview and avoid tiny text on unstable fabric unless the setup is perfectly flat.
  • Success check: The hooped area feels evenly firm, and finished letters (especially “e/a”) don’t blob or lean.
  • If it still fails: Upgrade stabilization first (cutaway for knits) and consider a magnetic hoop if hooping pressure is inconsistent or hoop burn appears.
• Q: What is a safe starting speed for a new design on a Brother PR series multi-needle embroidery machine to reduce thread breaks and rework?
  A: Start at 600–800 SPM and only increase after the design proves stable on the actual garment setup.
  • Run the first piece slower (600–800 SPM) to validate stabilization, hoop hold, and thread path.
  • Increase toward 1000 SPM only after confirming clean stitching and no frame/contact risk.
  • Keep handling consistent across the run (same hooping method, same stabilizer stack).
  • Success check: No repeated thread breaks, no bird-nesting at start points, and stitch formation looks consistent from piece #1 to piece #5.
  • If it still fails: Re-check hooping stability, bobbin supply, and whether the thread is seated correctly in the tension discs.
• Q: How do I check Brother PR series upper thread seating and tension-disc engagement using a simple “flossing resistance” test?
  A: Reseat the thread path so the thread sits deep in the tension discs and feels like flossing teeth when pulled.
  • Re-thread the machine with presser foot/tension open as required by the machine’s normal threading method.
  • Pull the upper thread by hand and feel for steady resistance (similar to flossing), not free-sliding.
  • Confirm the thread path is fully seated in guides before starting the job.
  • Success check: The pull feel is consistent, and the machine runs without sudden looping/bird-nesting caused by unseated thread.
  • If it still fails: Stop and re-thread again carefully, then verify bobbin status and run at 600–800 SPM for the next test piece.
• Q: How can I avoid hooping placement drift when using Brother PE-DESIGN NEXT Name Drop for team jerseys and batch personalization?
  A: Standardize placement first, then generate names—Name Drop saves typing but cannot fix inconsistent hooping.
  • Build a master layout with a text placeholder and center alignment before importing the CSV/Excel list.
  • Scroll every generated preview and fix the few “too long” names with spacing adjustments before stitching.
  • Use a hooping station/jig for repeat left-chest or name placements so every garment loads the same way.
  • Success check: Names land in the same position garment-to-garment, and long/short names remain centered relative to the logo.
  • If it still fails: Stop batch production and re-validate the physical placement method (hooping station setup and garment alignment) before re-running the list.
• Q: What safety steps should I follow to reduce needle and trimming injuries when hooping and adjusting garments on a Brother PR series embroidery machine?
  A: Treat hooping and trimming as the highest-risk steps and remove hands from the needle zone before motion.
  • Power down before close-in adjustments near the needle area, especially when repositioning hoops/garments.
  • Keep fingers out of the needle path (the red-light/needle area) at all times during operation.
  • Never wipe lint with fingers while the machine is running; stop the machine first.
  • Success check: Hands never cross into the needle area during movement, and all trimming/clearing happens only when the machine is stopped.
  • If it still fails: Slow down the workflow, reorganize tools within reach, and add a consistent “stop → hands away → adjust → restart” routine.
• Q: What magnetic hoop safety rules should I follow to prevent finger pinching and pacemaker interference when using neodymium magnetic embroidery frames?
  A: Handle magnetic hoops as pinch hazards and keep them away from pacemakers and sensitive electronics.
  • Slide magnets apart to open; do not pry them apart where fingers can get trapped.
  • Keep magnetic hoops at least 6 inches away from pacemakers and medical devices.
  • Keep magnetic hoops away from computerized machine screens and avoid snapping them together near the machine bed.
  • Success check: No “snap shut” handling, no finger-in-gap moments, and magnets are stored/handled in a controlled, two-hand manner.
  • If it still fails: Switch to a slower, deliberate handling method and reposition the work area so magnets are opened/closed away from the needle zone and electronics.
