PE Design Next Applique Wizard vs Manual Applique: The 4-Layer Workflow That Prevents Frayed Edges and “Why Didn’t It Stop?” Moments

Applique is one of those techniques that seems deceptively simple—until you are staring at a finished piece with a "gap of doom" where the fabric didn't quite reach the edge, or a "tuft of shame" poking out from the satin stitch.

I’ve spent 20 years on the production floor, and I can tell you: Applique is 20% software and 80% physics.

The good news is that PE Design Next gives you two reliable paths to master this: the Applique Wizard (for standard closed shapes) and the Manual Method (for total control). This guide rebuilds the workflow into a "shop-ready" process, adding the crucial sensory checks and safety protocols that usually only come with years of broken needles.

Don’t Panic When PE Design Next Applique Feels “Fussy”—It’s Just a 4-Stage System

To stop feeling overwhelmed, you need to understand the "Stack." Every applique, whether generated by a wizard or drawn by hand, relies on four distinct physical stages. If you memorize the rhythm of these stages, the software settings will make sense.

1. The Guide Run (Material Line): A simple running stitch on the fabric (if pre-cutting) or the hoop. It tells you: "This is how big the piece needs to be."
2. The Placement Run: A running stitch on the garment/base. It tells you: "Put the fabric right here."
3. The Tack-Down: A loose zigzag or double-run. It tells physical reality: "Hold this fabric still so it doesn't shift."
4. The Cover Stitch (Satin): The dense final border. It says: "Hide the raw edges and make it look professional."


The “Hidden” Prep Before You Click Applique Wizard (So the File Stitches Like the Preview)

Novices rush to the computer. Pros start at the table. Before you digitize a single node, you must decide how you will physically manage the fabric. This prevents the "Hoop Burn Heartbreak"—where you finish a perfect design only to find the hoop has permanently crushed the nap of your velvet or corduroy.

What you’ll need on the table (The "Pilot's Tray")

• PE Design Next (Applique Wizard ready).
• Sharp Applique Scissors: Double-curved scissors are non-negotiable for trimming in the hoop without snipping the base fabric.
• Stabilizer: Match this to your base fabric, not the applique. (E.g., Stretchy T-shirt = Cutaway).
• Temporary Spray Adhesive (ODIF 505 or similar): Critical for holding fabric flat during the placement phase.

The Hooping Reality Check

If you are doing applique on garments, the constant stopping, trimming, and restarting puts immense stress on the fabric tension. Traditional hoop rings often slip during these manipulations. This is why many professionals migrate to magnetic embroidery hoops for applique work. The magnets hold thick fabrics securely without the "tug-of-war" tightening screw, and they allow you to smooth out the applique fabric without popping the hoop effectively.

Prep Checklist (Do this before digitizing)

• Strategy Check: Are you Pre-Cutting (cutting shapes with a laser/Cricut first) or Trimming-in-the-Hoop? (This guide focuses on Trim-in-the-Hoop as it's most common).
• Hoop Check: Is the hoop tension "drum-tight"? Tap the fabric; it should sound like a dull thud, not a flap.
• Consumable Check: Do you have fresh needles? Applique layers dull needles fast. Start fresh to avoid "birdnesting."
• Width Plan: Decide your cover stitch target. 2.5mm is the "Safe Zone" for cotton; 3.5mm+ is required for towels or fleece.

Warning: Mechanical Safety. Applique requires your hands to be inside the embroidery field to trim fabric. NEVER trim while the machine is merely "paused" if your foot is near the pedal or the start button is sensitive. Engage the "Lock" mode or turn the machine off if you touch the needle area. One accidental press can drive a needle through your finger.

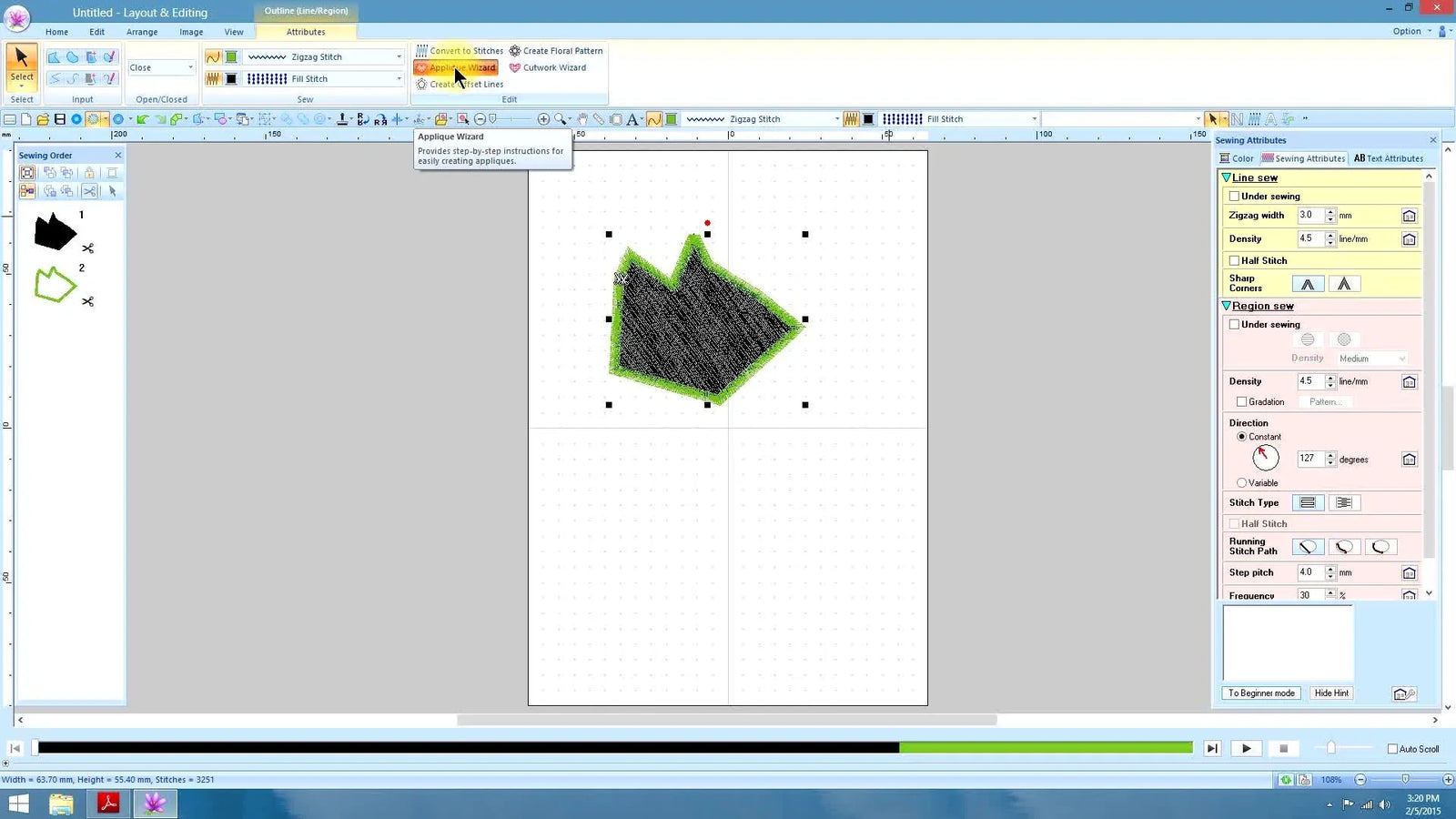

Make the Applique Wizard Work for Closed Shapes (Line Region Tool + One Click)

When dealing with basic shapes (circles, shields, hearts), the Wizard is your best friend. It automates the layer stacking so you don’t have to copy-paste manually.

The Workflow

1. Draw a custom closed shape using the Line Region Tool. It must be a closed loop.
2. Select the object. The Applique Wizard icon (looks like a little "A" with a needle) will light up.
3. Click it to open the dialogue box.

The Practical Decision: Layer Strategy

You will see checkboxes for the four stages. Here is your "Shop Standard" configuration for a Trim-in-the-Hoop workflow:

• Applique Material: Uncheck (Unless you are cutting a template on cardstock first).
• Position: Check. (This stitches on the garment to show you where to lay the fabric).
• Tack Down: Check. (Secure the fabric before the heavy satin stitching).
• Covering Stitch: Check. (The final finish).


Turn Text Into Applique Without the “Wizard Is Greyed Out” Headache

This is the #1 frustration for beginners: You type a name, select it, and the Applique Wizard is greyed out. Why? Because the software sees "Text," not a "Shape."

The "Unlock" Protocol

1. Type your text (use a blocky font like Impact or Arial Black for best results).
2. Right-click -> Convert to > Outline Pattern. This transforms dynamic text into raw shapes.
3. Ungroup the object (Ctrl+G or Home Tab usually).
4. Click away (deselect all), then Click back on a single letter.
5. Success: The Wizard icon is now active.

Note: If you don't use a mouse, consider a stylus or pen tablet. Tracing shapes creates cleaner curves than a jittery mouse hand.

The “Hole Sewing” Checkbox That Saves Letters Like A, O, B (Don’t Skip It)

If you are doing an 'A' or an 'O', the center hole (the "counter") is critical. If you miss this step, the machine will stitch a solid block of applique, covering the hole.

The Fix: Inside the Applique Wizard, ensure the checkbox “Create an applique with hole sewing” is ticked.

• Visual Check: Look at the preview. Do you see the placement line inside the hole? If yes, you are safe.
• Why it matters: Without this, you cannot trim out the center fabric, leaving your letter looking like a blob rather than a character.


Read the Sewing Order Like a Pro: Pink → Green → Tack-Down → Zigzag Cover

You must learn to read the "matrix" of your design. The software breaks the applique into distinct colors—not because it wants you to change threads, but to force the machine to stop.

In the standard Wizard output:

1. Applique Position (Color 1 - e.g., Pink): Machine stops. You place fabric.
2. Applique Tack-down (Color 2 - e.g., Green): Machine stops. You take the hoop off (or slide it out) to trim the excess fabric.
3. Cover Stitch (Color 3): The machine finishes the job.


Setup Checklist (Software Pre-Flight)

• Stop Command Verification: Do the layers have different colors? Same colors = no stop = machine stitches tack-down immediately while your hands are still smoothing the fabric.
• Layer Visibility: Use the "Sewing Order" tab to play a simulation. Does it stitch Inside → Outside?
• Density Check: For the Cover Stitch (Satin), standard density is usually 4.5 - 5.0 lines/mm. If it's too loose, the raw edge of your fabric will poke through like "whiskers."

Dial In Zigzag Width in PE Design Next Sewing Attributes (2.5–3.0 mm Coverage)

Default settings are often too conservative. A default 2.0mm satin stitch is risky—one loose thread and the fabric edge allows the stitch to slip off.

The "Sweet Spot" Settings:

• Standard Cotton/Twill: Set width to 3.0 mm.
• Fleece/Towel: Set width to 4.0 mm - 5.0 mm.

Go to Sewing Attributes. Locate Zigzag Width. Bump it up. Sensory Check: A 3.0mm stitch looks like a thick cord. A 1.5mm stitch looks like a wire. You want the cord.

When Applique Wizard Can’t Help: Manual Applique for Open Shapes (The Cat Example)

Sometimes you have a shape that isn't a closed loop (like a cat tail fading into a seam) or the image is too complex for the wizard. This is Manual Mode. It requires more clicks but offers superior control.

The Manual Tracing Technique

1. Import your background image (File -> Import -> from File).
2. Select the Manual Punch or Bézier Curve tool.
3. Trace the outline of your cat head.
4. Tip: Don't use too many nodes. Fewer nodes = smoother curves.


The Copy/Paste Stack Trick: Build 4 Identical Layers in Seconds

Manual applique is just "The Wizard" done by hand. You need those same 3 or 4 physical stages.

The "Stacking" Workflow:

1. Draw your shape (Trace the cat).
2. Select it. Ctrl+C (Copy), Ctrl+V (Paste). Do this 3 times.
3. You now have 3 identical layers stacked on top of each other in the sewing order.
4. Assign Properties:
   • Layer 1 (Bottom): Change to Running Stitch. Color: Pink. (Position).
   • Layer 2 (Middle): Change to Running Stitch. Color: Blue. (Tack-down).
   • Layer 3 (Top): Change to Satin Stitch. Color: Black. (Cover).


Force Machine Stops with Color Changes (Pink → Green → Gray) So You Can Place and Cut

This is the most critical logic in commercial embroidery. The machine does not know it is doing applique. It only knows "New Color = Stop."

• Layer 1 (Pink): Stitches the outline. Machine Stops. -> You spray adhesive on your fabric and lay it over the outline.
• Layer 2 (Blue): Stitches the outline again (tacking it down). Machine Stops. -> You maximize your workspace. PRO TIP: A magnetic hooping station philosophy applies here—even if you don't have the station, keep your workspace flat and stable while you carefully trim the fabric close to the stitching using your curved scissors.
• Layer 3 (Black): Satin stitches the edge.

Note: If you are doing bulk orders (e.g., 50 patches), managing these stops can be tedious. This is where shops often upgrade to multi-needle machines where stops can be programmed more intuitively.

Operation Checklist (The "Live Fire" Phase)

• The "Click" Test: When placing your hoop back in the machine after trimming, ensure it clicks/locks firmly. A 1mm misalignment here ruins the cover stitch.
• The Trim Margin: Trim as close to the tack-down stitch as possible without cutting the stitch. Ideally, leave 1mm.
• Bobbin Check: Do you have enough bobbin thread? Running out halfway through a cover stitch is a nightmare to patch invisibly.

Add Details Last: Facial Features, Collar, Nose, Whiskers Stitch Over the Applique

Always sequence your details after the cover stitch. Why?

1. Physics: The cover stitch flattens the edges and stabilizes the sandwich.
2. Aesthetics: Whiskers or eyes stitching over the satin border (if needed) look intentional. If the satin stitches over the whiskers, it buries them.


Decision Tree: Fabric + Project Type → Stabilizer + Hooping Choice (So Applique Doesn’t Shift)

The software file is perfect. The machine is good. Why did it fail? Usually, it's the combo.

1. The Base Fabric:

• Stretchy (T-shirt/Performance Wear): MUST use Cutaway stabilizer. Tearaway will result in "gapping" borders.
• Stable (Denim/Canvas): Tearaway is acceptable.
• High Pile (Towel/Velvet): Use Water Soluble Topping (Solvy) under the cover stitch to prevent the stitches from sinking into the fluff.

2. The Hooping Method:

• Standard Hoop: Good for beginners, but watch for "Hoop Burn" (shiny ring marks).
• Volume Production: If you are doing this commercially, repeatable placement is key. Searching for terms like hooping for embroidery machine technique or investing in an embroidery hooping station can drastically reduce crooked placements.
• Home Machine Upgrade: For users of PE800 or similar single-needle machines, fighting with screws is tiring. A magnetic hoop for brother pe800 can act as a bridge—easier on the hands, cleaner on the fabric.

Warning: Magnetic Field Safety. Modern magnetic frames use industrial-grade neodymium magnets. They are incredibly strong. Keep fingers clear of the snap zone to avoid severe pinching. Keep away from pacemakers and magnetic storage media.

Troubleshooting PE Design Next Applique: Symptoms → Causes → Fixes You Can Trust

The Upgrade Path: When Your Applique Workflow Is Solid, Your Bottleneck Becomes Hooping Time

Once you master the digitizing (the 20%), the physics (the 80%) becomes your barrier to profit.

If you are doing one-off hobby projects, standard hoops and patience are fine. But if you find yourself dreading the "Hoop, Stitch, Trim, Re-hoop" cycle, or if you are ruining garments with hoop burns, it’s time to look at your physical tooling.

• For Consistency: Tools like a hoopmaster hooping station (or similar fixtures suitable for your machine) ensure your applique lands in the exact same spot on every shirt.
• For Speed & Quality: magnetic embroidery hoops allow you to float fabric and minimize the "crush," making the trim-in-the-hoop process faster and safer for the garment.

Master the software first. Then, let the tools carry the load. Happy stitching.

FAQ

• Q: In Brother PE Design Next, why is the Applique Wizard icon greyed out when selecting text lettering?
  A: Convert the text into editable shapes (outline) and ungroup it so PE Design Next recognizes a “shape,” not “text.”
  • Right-click the text and choose Convert to > Outline Pattern
  • Ungroup the resulting object, then deselect everything and reselect a single letter
  • Use a blocky font (for example, Impact or Arial Black) for cleaner applique edges
  • Success check: The Applique Wizard “A” icon becomes active (clickable) when a single letter/shape is selected
  • If it still fails: Verify the object is a closed outline (not grouped, not still a text object)
• Q: In Brother PE Design Next Applique Wizard, how do you keep letters like A, O, and B from sewing solid with no center hole?
  A: Enable the Wizard option that creates applique with hole sewing so the inside “counter” gets its own placement line.
  • Open Applique Wizard for the letter shape and tick Create an applique with hole sewing
  • Preview the design before saving the file
  • Success check: The preview shows a placement/outline line inside the letter hole (not just the outer border)
  • If it still fails: Re-check that the letter was converted to an outline pattern and the inner hole is part of the shape
• Q: In Brother PE Design Next applique, how do you force the embroidery machine to stop for fabric placement and trimming during trim-in-the-hoop?
  A: Assign different colors to the applique stages so the machine treats each stage as a “new color stop.”
  • Set separate colors for placement, tack-down, and cover stitch (even if the thread color will be the same later)
  • Run a simulation in the Sewing Order tab to confirm the stop points
  • Success check: The sewing order shows distinct color blocks for placement → tack-down → cover stitch, and the machine pauses between them
  • If it still fails: Confirm the layers are not accidentally the same color (same color often means no stop)
• Q: In Brother PE Design Next applique, what zigzag/satin width settings prevent “tufts of fabric” poking out from the cover stitch?
  A: Increase zigzag (satin) width and trim closer—2.0 mm is often too narrow for reliable coverage.
  • Set Zigzag Width to about 3.0 mm for standard cotton/twill
  • Set Zigzag Width to about 4.0–5.0 mm for fleece/towel
  • Trim the applique close to the tack-down without cutting it (aim for about a 1 mm margin)
  • Success check: The satin stitch looks like a thick cord fully covering the raw edge, with no “whiskers” showing
  • If it still fails: Re-check trim margin first, then widen the cover stitch (and confirm stabilizer/hooping is holding the fabric still)
• Q: For garment applique on stretchy T-shirts in machine embroidery, which stabilizer choice prevents gapping borders and shifting?
  A: Use cutaway stabilizer for stretchy base fabrics because tearaway often allows movement that creates gaps.
  • Match stabilizer to the base garment, not the applique fabric
  • Choose Cutaway stabilizer for stretchy T-shirts/performance wear
  • Tap-test the hooped fabric and aim for a “dull thud” (not a loose flap)
  • Success check: The placement and cover stitch align cleanly with no border gaps after stitching
  • If it still fails: Re-check hoop tension and consider a hooping method that reduces slipping during stop/trim cycles
• Q: During trim-in-the-hoop applique embroidery, what mechanical safety steps prevent needle injuries when trimming fabric near the needle area?
  A: Never trim with the machine merely paused—use the machine lock mode or power off before hands enter the needle area.
  • Engage the machine’s Lock mode (or turn the machine off) before touching the needle/trim zone
  • Keep hands clear until the machine is fully stopped and secured
  • Use double-curved applique scissors to control the cut without drifting into the base fabric
  • Success check: Hands only enter the embroidery field when the machine cannot start unexpectedly
  • If it still fails: Treat the start button/foot pedal as “live” at all times and only handle trimming with the machine locked out
• Q: What magnetic embroidery hoop safety rules prevent finger pinching and magnetic-field hazards during hooping for applique?
  A: Treat magnetic hoops as industrial-strength magnets: avoid the snap zone and keep them away from pacemakers and magnetic media.
  • Keep fingers out of the closing gap when magnets seat (pinch risk is severe)
  • Store and handle magnets deliberately—do not let them slam together
  • Keep magnetic hoops away from pacemakers and magnetic storage items
  • Success check: The frame closes without any “snap onto fingers,” and magnets are controlled at all times
  • If it still fails: Slow down the closing motion and reposition hands to the outer edges before the magnets engage
• Q: For applique production, when should an embroiderer upgrade from standard hoops to magnetic embroidery hoops or a multi-needle embroidery machine to reduce hoop burn and hooping time?
  A: Upgrade when repeated stop-trim-restart cycles cause hoop slipping, hoop burn on delicate/high-pile fabrics, or time losses that dominate the job.
  • Diagnose the bottleneck: Track whether most failures are from shifting/hoop marks (physics) rather than digitizing
  • Try Level 1: Improve hoop tension (“dull thud” tap test), use correct stabilizer, start with fresh needles, and verify color-stop layers
  • Try Level 2: Switch to magnetic hoops when screw hoops slip during trimming or when hoop burn/crush marks are unacceptable
  • Try Level 3: Consider a multi-needle machine when frequent stops and volume (for example, batch patch runs) make single-needle workflow too slow
  • Success check: Placement stays consistent through stops, fabric shows fewer hoop marks, and re-hooping time drops noticeably
  • If it still fails: Re-audit the stop sequence (color changes) and confirm the hoop locks/clicks firmly after every trim cycle before stitching resumes
