PE Design Hoop Settings That Actually Match Your Real Hoop: Units, Machine Type, 5x7 Setup, and the 90° Rotate Trick

PE Design Setup: The "First 5 Minutes" That Save Your Project

If PE Design ever made you feel like your design is “perfect on screen” but somehow disastrous once it hits the fabric, you are not alone. In my 20 years on the shop floor, I’ve seen more wasted stabilizer, ruined garments, and snapped needles caused by page setup errors than by actual digitizing mistakes.

Embroidery is a physical science, not just digital art. When you tell the software "5x7 hoop," you are making a contract with your machine. If you break that contract—by using the wrong unit of measurement or the wrong machine orientation—physics will punish you with broken needles or off-center designs.

This guide transforms the startup workflow (Startup Wizard → Units → Design Settings → Machine Type → Hoop Size → Rotate) from a boring chore into your primary quality control checkpoint.

The PE Design Startup Wizard: Close It with Confidence (and Stop It from Popping Up)

When PE Design opens, you are greeted by the Startup Wizard. The video notes its features: access to manuals, templates, Auto Punch (image-to-stitch), and recent files.

However, from a cognitive load perspective, this wizard is often "noise." For a beginner, it presents too many paths before you have even defined your canvas.

The Veteran Approach: In the video, the creator closes the wizard immediately. I recommend you do the same. Why? Because you need to build a muscle-memory routine that starts with the canvas, not a shortcut.

To silence this distraction permanently, uncheck the "Always show this" box before closing it.

Pro Tip (Production Reality): Reducing pop-ups reduces "click fatigue." When you are tired, every extra dialog box is a chance to click "OK" without reading. Eliminating the Wizard forces you to look at the blank workspace and ask: "Is this the right size?"

Warning (Physical Safety): Never rush into digitizing before verifying your setup. If you design for a 5x7 hoop but accidentally leave the machine in a 4x4 mode, a standard machine may simply refuse to sew. However, on some older or industrial models, sending a design that exceeds the physical limit can cause the needle bar to strike the plastic hoop frame. This can shatter the needle, sending metal shards flying toward your eyes. Always wear safety glasses when testing new setups.

The “Hidden” Prep Before You Touch Design Settings: Decide Your Real-World Hooping Plan

The software setup means nothing if it doesn't match the physical reality of your table. Before you click any icons, you must make two physical decisions.

1. The Fabric-Hoop Interaction (The "Drum Skin" Test) Fabric is fluid; software is rigid. Before opening settings, touch your fabric.

• Is it slippery/stretchy? (Performance wear). You will need a cutaway stabilizer and perhaps a smaller hoop to maintain tension.
• Is it thick/bulky? (Carhartt jackets, canvas bags). You will struggle to close a standard screw hoop without leaving "hoop burn" (those shiny crushed rings that ruin garments).

This is where the tool matters more than the software. If you are constantly fighting to tighten screws or your wrists hurt from wrestling thick seams, this is the trigger point to upgrade. Many professionals switch to magnetic embroidery hoops because they clamp automatically without the "unscrew-rescrew" struggle, reducing fabric damage and physical strain.

2. The Orientation Will you hoop the item vertically or horizontally? This decides your rotation setting later.

Prep Checklist (Do this BEFORE touching the mouse)

• Physical Hoop Check: I have the specific hoop (e.g., 5x7) in my hand that I intend to use.
• Tactile Check: I have tested if the fabric fits in this hoop. If it's too thick, I have considered a magnetic frame or floating method.
• Consumable Check: I have the correct needle (75/11 for detail, 90/14 for denim) and the correct stabilizer (Cutaway for knits, Tearaway for woven).


The One-Click Units Switch in PE Design Rulers: Inches ↔ Millimeters Without Digging Through Menus

The video demonstrates a subtle but critical feature: the ruler toggle.

On the blank workspace, the visual cue is the ruler bar. If you see numbers like 0, 1, 2, 3, you are in Inches. If you see 0, 50, 100, you are in Millimeters. The creator clicks the small white box at the intersection of the top and left rulers to flip between them.

Why "Millimeters" is the Language of Brother: While we often say "4 by 4" or "5 by 7" in conversation, your machine thinks in millimeters.

• "4x4" is actually 100mm x 100mm.
• "5x7" is actually 130mm x 180mm.

The Ambiguity Trap: If you look for a brother 4x4 embroidery hoop in the software list while set to inches, it might be labeled clearly. But often, imported hoop definitions or third-party magnetic hoops are listed strictly by their metric dimensions.

Sensory Step: Click the little white box. Watch the numbers jump from single digits (inches) to triple digits (mm). Do this until you are comfortable reading both. It prevents the disaster of selecting a 100mm hoop when you thought you grabbed a 100 inch canvas (impossible, but software can be confusing).

The Flower Icon Path: Opening PE Design “Design Settings” Without Hunting

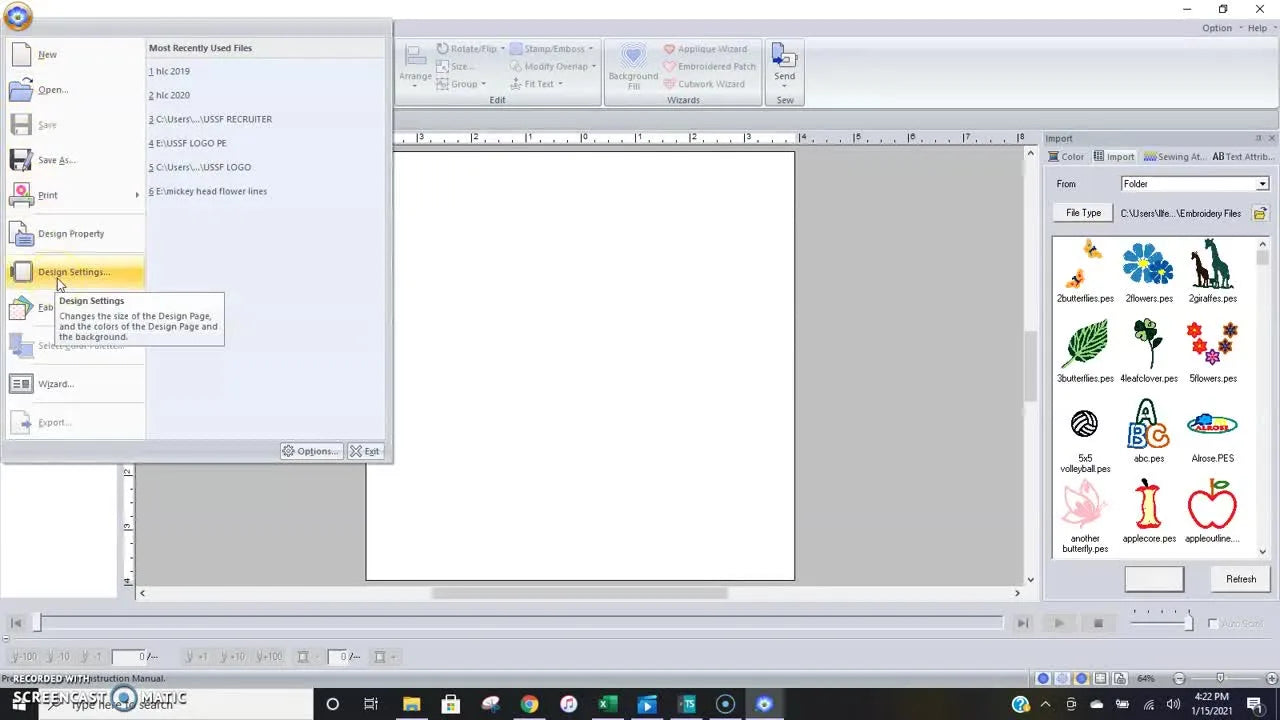

In the video, the creator navigates to the "Flower Icon" (the main application menu in the top-left) and selects Design Settings.

Why not just start drawing? Because the default white box you see when the program starts is a lie. It is a generic default that likely matches none of your actual equipment. You must explicitly define the workspace to match your hardware.

Machine Type in PE Design: Pick the Right Icon or Your Hoop List Will Lie to You

Inside the Design Settings dialog, the video highlights the Machine Type selector. You will see icons representing:

1. Standard Single-Needle Machines: (Like the PE800, SE1900). Flatbed, usually limited to one thread color at a time.
2. Multi-Needle Machines: (Like the Brother PR series or SEWTECH 15-needle commercial machines). Tubular arm, automatic color changes.




The Critical Fork in the Road: If you select the wrong machine type, the software will hide the hoops you actually own.

• Scenario A: You have a home machine but select "Multi-Needle." You might design a large back-jacket logo, only to find your machine cannot read the file because the hoop doesn't exist for it.
• Scenario B: You upgrade to a commercial machine (like a SEWTECH setup) for batch production but leave the software on "Single Needle." You lose the ability to assign needle colors correctly or use large commercial frames.


The Commercial Insight: If you find yourself constantly frustrated by thread changes on a single-needle machine—stopping every 2 minutes to re-thread—this is your "trigger moment." The software supports multi-needle workflows because that is where the profit lies. Moving to a multi-needle machine allows you to set up 10-15 colors at once.

Hoop Size in PE Design: Set 130×180 mm (5x7) So Your Canvas Matches Your Real Hoop

The video scrolls through the list to select 130 × 180 mm (5" × 7"). This is the most common "step-up" size from the basic 4x4.

The Safety Margin Rule: Just because the hoop is 5x7 does not mean you can fill every millimeter.

• The Grip Zone: The plastic or magnetic frame needs space to grip the fabric.
• The Presser Foot Clearance: If you stitch too close to the edge, the metal presser foot can hit the hoop frame.

Hoop Check: When you are shopping for embroidery hoops for brother machines, verify the sewable area, not just the outer dimensions. In PE Design, the red line usually indicates the maximum sewable area. Never force a design past this line.

If you are upgrading to a brother 5x7 hoop from a smaller one, remember that you also need larger stabilizer sheets. Using a too-small piece of stabilizer in a larger hoop is the #1 cause of puckering/shifting designs.

Rotate 90 Degrees in PE Design: The Simple Checkbox That Prevents Sideways Designs

The video demonstrates the Rotate 90 Degrees checkbox.

Visualizing the Output:

• Standard (0°): The hoop appears vertical (Portrait). This is typical for most home machines where the attachment arm is on the side.
• Rotated (90°): The hoop appears horizontal (Landscape).




The "Tote Bag" Scenario: Imagine you are embroidering a tote bag. You physically hoop it sideways because the handles get in the way otherwise.

• If you do not check "Rotate 90 Degrees," you have to design your text sideways (reading up or down) to match. This is mentally difficult.
• If you check "Rotate 90 Degrees," the screen matches the bag. You can type text normally (left to right), and the machine understands the orientation.

Pro Tip: If you frequently use a magnetic hoop for brother pe800 for items like fast tote-bag production, aligning your software rotation to your physical hoop insertion angle will save you from stitching a logo upside down.

The Fix, Step-by-Step: My “No-Regrets” PE Design Page Setup Routine (with Checkpoints)

Do not rely on memory. Use this sensory checklist out loud until it runs on autopilot.

1. Kill the Noise: Close the Startup Wizard immediately.
2. Toggle the Language: Click the ruler corner. Ensure you are in mm (unless you strictly prefer inches, but verify against the hoop list).
3. Open the Controls: Click Flower Icon > Design Settings.
4. Identity Check (Machine Type):
   • Action: Select Single-Needle vs. Multi-Needle.
   • Check: Did the hoop list change? if yes, you are in the right spot.
5. Reality Check (Hoop Size):
   • Action: select 130 x 180mm (or your specific size).
   • Sensory Check: Look at the physical hoop in your hand. Does it match the screen?
6. Orientation Check:
   • Action: Toggle "Rotate 90 Degrees" if needed.
   • Visual Check: layout matches how the fabric is clamped.

Setup Checklist (Digital Confirmation)

• Machine Type: Icons match my actual hardware.
• Canvas: The white area represents the inside of my hoop.
• Grid: I see the grid lines (usually 10mm or 1 inch squares) to help judge scale.
• Safe Zone: I am aware of the red boundary line.

Decision Tree: Which Hoop Size and Orientation Should You Choose Before You Digitize?

Follow this logic path to eliminate guessing.

• STEP 1: The Hardware Limit
  • Does your machine physically accept a 5x7 hoop?
    • NO: You must select 100x100mm (4x4). No software setting can override hardware limits.
    • YES: Proceed to Step 2.
• STEP 2: The Design Requirements
  • Is the design larger than 3.9 inches (99mm) in any direction?
    • YES: You MUST use the 130x180mm (5x7) hoop.
    • NO: You can use the 4x4, OR use the 5x7 to float multiple small designs (batching).
• STEP 3: The Fabric Struggle
  • Is the item easier to hoop sideways (e.g., a sleeve or pant leg)?
    • YES: Check "Rotate 90 Degrees" in software.
    • NO: Leave at default.
• STEP 4: The Speed Bottleneck
  • Are you doing 50 shirts and hating the screw-tightening process?
    • YES: This is a production trigger. Look for hoopmaster hooping station systems or magnetic upgrades to standardize placement and speed.

Troubleshooting the “Scary” Results: Symptoms → Likely Cause → Fix

When the stitches don't land right, don't panic. Consult this table.

The "Why" Behind All This: Software Setup Is a Profit Lever, Not a Preference

Beginners think setup is just about "getting started." Professionals know setup is about profit protection.

Every time you hoop a garment, you are risking money (the cost of the garment + stabilizer + thread + time).

• Wrong Hoop Size = Machine stops, needle break risk.
• Wrong Orientation = Ruined shirt, unpickable mistake.
• Wrong Machine Type = File format errors.

The Upgrade Path: From Hobby to Production As you master these settings, you will eventually hit a physical limit. You will find that hooping takes longer than stitching. You will find that changing threads on a single-needle machine kills your hourly profit.

When you reach that point:

1. Level 1 Upgrade: Magnetic Hoops. Secure fabric faster, zero hoop burn -> Better Quality.
2. Level 2 Upgrade: Hooping Station. Repeatable placement for team orders -> Better Consistency.
3. Level 3 Upgrade: SEWTECH Multi-Needle Machines. 6 to 15 needles, large industrial frames -> True Scalability.

Warning (Magnetic Safety): If you upgrade to magnetic hoops, treat them with respect. They use powerful neodymium magnets. Keep them away from pacemakers and implanted medical devices. Watch your fingers—they snap together with enough force to cause blood blisters. Do not slide them across your computerized machine screen.

Operation Checklist (The Final "Go" Flight Check)

• Visual: Screen hoop matches physical hoop.
• Consumable: I have ample bobbin thread (check the clear window).
• Stable: The hoop is clicked firmly into the carriage (listen for the specific double-click sound on Brother machines).
• Clear: The needle path is clear of clips, pins, or excess fabric.

By respecting these "boring" setup steps, you ensure that the excitement of embroidery is the joy of creation, not the panic of error.

FAQ

• Q: How do I stop the PE Design Startup Wizard from popping up every time PE Design opens?
  A: Uncheck “Always show this” in the Startup Wizard, then close the wizard.
  • Uncheck the “Always show this” box before exiting the wizard.
  • Restart PE Design once to confirm the setting saved.
  • Success check: PE Design opens directly to the blank workspace without the Wizard overlay.
  • If it still fails… look for the checkbox again (it must be unchecked before closing), and verify the software is allowed to save settings on your computer.
• Q: How do I switch PE Design rulers between inches and millimeters using the ruler-corner toggle?
  A: Click the small white box at the intersection of the top and left rulers to flip Inches ↔ Millimeters.
  • Click the ruler-corner box once and watch the ruler numbers change.
  • Read the ruler: single digits (0, 1, 2, 3) typically indicates inches; triple digits (0, 50, 100) indicates millimeters.
  • Success check: the ruler instantly “jumps” from inch-style numbers to mm-style numbers (or back) with one click.
  • If it still fails… confirm the rulers are visible on the workspace, then try clicking precisely on the tiny corner box where the two rulers meet.
• Q: Why does the hoop list “lie” in PE Design when the PE Design Machine Type is set wrong (Single-Needle vs Multi-Needle)?
  A: Set the correct Machine Type in PE Design Design Settings, because the hoop list changes based on the machine icon selection.
  • Open Flower Icon → Design Settings.
  • Select the Machine Type that matches the real hardware (Standard Single-Needle vs Multi-Needle).
  • Success check: the available hoop list changes to match what the machine can actually use.
  • If it still fails… re-open Design Settings and repeat the Machine Type change—if the hoop list never changes, double-check the workflow path and confirm the correct software module is being used.
• Q: How do I set the PE Design hoop size to 130×180 mm (5×7) and avoid stitching too close to the hoop edge?
  A: In PE Design Design Settings, select 130 × 180 mm (5" × 7") and keep the design inside the red boundary line (the maximum sewable area).
  • Open Flower Icon → Design Settings → choose 130 × 180 mm (5" × 7").
  • Keep the design away from the hoop’s grip zone and avoid pushing stitches past the red limit line.
  • Success check: the design fits comfortably inside the red boundary and the on-screen canvas matches the physical 5×7 hoop in hand.
  • If it still fails… verify the machine physically supports a 5×7 hoop; no software setting can override hardware limits.
• Q: How do I prevent sideways text by using the PE Design “Rotate 90 Degrees” checkbox for a Brother-style hooping orientation?
  A: Match PE Design Rotate 90 Degrees to the way the hoop will be inserted on the machine arm so the screen orientation matches real hooping.
  • Decide first whether the item will be hooped vertically (portrait) or sideways (landscape) on the machine.
  • Toggle “Rotate 90 Degrees” in Design Settings to match that physical plan.
  • Print a paper template from PE Design and place it in the hoop to verify orientation before stitching.
  • Success check: the paper template reads normally (left-to-right) when positioned the same way the hoop will sew.
  • If it still fails… re-check whether the hoop was rotated on the machine arm even though the software rotation was left unchanged (or the opposite).
• Q: What causes the “Ghost Hoop” problem in PE Design where the machine says “Change Hoop” or refuses to sew?
  A: The most common cause is the wrong hoop size selected in PE Design Design Settings—choose a hoop size your machine physically supports.
  • Open Design Settings and select the exact hoop size that matches the real hoop being used.
  • Confirm the machine’s maximum stitching area in the machine manual and keep the design within that limit.
  • Success check: the machine accepts the file without prompting “Change Hoop,” and the hoop on screen matches the physical hoop.
  • If it still fails… verify Machine Type is correct (Single-Needle vs Multi-Needle), because the wrong Machine Type can hide or alter available hoop options.
• Q: What safety steps prevent needle strikes or shattered needles when PE Design hoop size exceeds the physical hoop limit on older or industrial embroidery machines?
  A: Never test an oversized design without verifying hoop size and safe boundaries first, because the needle bar can strike the hoop frame on some models.
  • Verify hoop size in PE Design before digitizing (Design Settings must match the real hoop).
  • Keep stitches inside the red maximum sewable area line.
  • Wear safety glasses when testing new setups or unfamiliar hoop/machine combinations.
  • Success check: the machine runs without contacting the hoop frame—no clicking/impact sounds and no needle deflection near the boundary.
  • If it still fails… stop immediately, re-check hoop selection and design placement, and do not continue until the setup matches the machine’s physical limits.
• Q: When hooping thick or bulky items that cause hoop burn and screw-hoop struggle, what is the upgrade path from technique to magnetic hoops to a multi-needle production machine?
  A: Start with technique fixes, move to magnetic hoops for faster clamping and less fabric damage, and consider a multi-needle machine when thread changes become the profit bottleneck.
  • Level 1 (Technique): Try floating (hoop only stabilizer, stick fabric on top) to reduce hoop pressure marks.
  • Level 2 (Tool): Switch to magnetic hoops to reduce over-tightening and wrist strain (this often helps reduce hoop burn).
  • Level 3 (Capacity): Upgrade to a multi-needle machine when stopping every few minutes for thread changes becomes the main slowdown.
  • Success check: hooping becomes faster and repeatable, with fewer crushed rings and fewer restarts due to placement or pressure issues.
  • If it still fails… re-check stabilizer choice and hooping plan first (slippery/stretchy fabrics often need cutaway; thick items may need a different approach), and confirm the hoop’s sewable area and machine compatibility in the manual.
