PE-Design Gradient Fill That Actually Stitches Right: Sunset Shading + “SPURS” Text (and the 3 Traps That Waste Your Thread)

Master Guide: Pro-Level Gradient Fills & Cap Digitzing in Brother PE-Design

Gradient fills are the deceptive "icebergs" of machine embroidery. On your computer screen, they look like smooth, airbrushed artistic masterpieces. But without the right density physics and physical stabilization, that beautiful sunset effect turns into a stiff, bulletproof patch of mud on a real ball cap.

If you have ever stared at a greyed-out "Gradiation" box in PE-Design and thought, "Why is the software fighting me?", you are not alone. This is not a glitch; it is a safety feature you haven't unlocked yet.

This whitepaper rebuilds the workflow for creating professional gradients—first on a simple shape, then on a complex 3D cap logo ("SPURS"). We will move beyond just clicking buttons; we will calibrate your physical setup, from hoop choice to stitch angles, ensuring your output is sellable, not just stitchable.

1. The Core Diagnostic: Why Your Gradient Button is Greyed Out

Most beginners create a text object, click "Sewing Attributes," and panic when the "Gradiation" option is unclickable.

The Reality: PE-Design treats "Text" and "Stitch Data" differently. Standard live text is a vector placeholder. The software cannot fade colors in a vector; it can only fade colors in a stitch fill.

The Unlock: You must mechanically convert the object from a "font" into "editable stitch blocks" (Fill Stitch). Only then does the software expose the advanced density tools required for gradients.

If you are designing for curved surfaces like hats, understanding this distinction is the difference between a design that flows with the fabric and one that puckers it.

2. The Physical "Pre-Flight": Stabilization & Hooping

Before we touch a single pixel, we must address the canvas. A gradient relies on precise alignment between two different thread colors interlacing. If your fabric shifts even 1mm, you get "gapping" (white fabric showing through) or "banding" (hard lines of color).

The Cap Distortion Trap

Caps are notorious for distortion. The front panel is curved, and the buckram is stiff.

• The Risk: Traditional plastic hoops often require you to wrestle the cap flat, leaving "hoop burn" (circular shiny marks) that ruins the merchandise.
• The Pro Fix: Professional shops rarely force-clamp structured caps with standard frames. They use specialized tools.

If you are producing on Brother single-needle machines and fighting alignment issues, you are likely reaching the limits of standard plastic hoops. This is a primary trigger for exploring magnetic embroidery hoops for brother. Using magnets allows the fabric to float securely without the "crushing" force of a mechanical lever, reducing material stress and preserving that critical registration needed for gradients.

Prep Checklist (The "No-Fail" Protocol):

• Fabric Audit: Is it a structured cap or a floppy dad hat? (Structured needs less backing; floppy needs a fusible stabilizer).
• Contrast Check: Select two threads with high contrast (e.g., Red and Yellow) for the first test. Subtle blends (Light Blue to Pale Blue) hide mistakes—you want to see the mistakes now, not later.
• Hoop Tension: If using a standard hoop, tighten until the fabric sounds like a dull thud (drum skin) when tapped. If using a magnetic hoop, listen for the sharp snap of engagement.
• Needle Freshness: Install a fresh 75/11 Sharp needle (for woven caps) or Ballpoint (for knits). A dull needle deflects, ruining gradient alignment.


3. Tutorial Part A: The Clean Sunset Circle

We start with a simple shape to calibrate your software settings.

Step 1: Geometry Control

• Select the Circle/Shape Tool.
• Action: Hold the Shift Key firmly while you click and drag.
• Why: Without Shift, you create an oval. Shift constrains the geometry to a perfect 1:1 ratio.


Step 2: Setting the Horizon (Base Attributes)

Gradients mimic light. For a sunset, the light moves horizontally.

• Select the Circle.
• Fill Stitch: Turn ON.
• Outline: Turn OFF (Zigzag/Run stitch interferes with the edge cleanliness of a gradient).
• Direction: Set to 0.0 Degrees.
  • Visual Check: Look for the stitch lines running perfectly left-to-right. Vertically running stitches (90 degrees) on a horizontal gradient will look choppy.


Step 3: Activating the Gradient Engine

This is the moment most users get stuck.

• Navigate to Sewing Attributes -> Density Tab.
• Check the box: Gradiation (Note: Older versions spell it this way; newer ones may say Gradient).
• Action: Open the Pattern profile settings.
• Critical Setting: Check "Use additional color" (or "Blend" in newer versions).

The "Apply" Rule: Nothing changes on your screen until you hit OK or Apply. If the preview looks unchanged, you missed the confirmation click.

Step 4: Tuning the Blend Ratio

In the Pattern dialog, you will see sliders controlling the Primary Color (Red) and Secondary Color (Yellow).

• The Novice Mistake: Trusting the default 50/50 split. On real thread, this often looks like a solid block of red, a weird stripe, and a solid block of yellow.
• The Expert Adjustment: Move the sliders to create a softer transition. Usually, you want the "mix" area to be wider than the software suggests.
• Preview Reality: The on-screen preview is an approximation. It cannot account for thread sheen. Use it for direction, not accuracy.


Warning: Physical Safety Alert. When testing your file, keep hands clear of the needle bar. If you are using High-Speed mode (standard on industrial machines), a needle strike can cause the needle to shatter. Always wear safety glasses when watching a stitch-out closely.

4. Tutorial Part B: The "SPURS" Cap Project (Advanced)

Now we apply this to a real-world scenario: An athletic team logo on a cap. This is where "Satin Stitch" becomes your enemy.

Step 5: The "Satin" Trap

• Type SPURS using a bold athletic font (Font 032 is a classic choice).
• The Problem: By default, PE-Design sets text to Satin Stitch.
• Why this fails: A satin stitch jumps from one edge of the letter to the other. On a large letter 3cm wide at the base, that is a 30mm floating thread. It will snag, loop, and break. You cannot put a gradient on a satin stitch.


Step 6: Convert to Safe Stitch Blocks

We must strip the text of its "font" properties to make it embroidery-safe.

• Action: Select the text object.
• Command: Click Convert to Outline (or "Convert to Blocks" in V10/11).
• Command: Click Ungroup.
  • Result: Each letter is now an individual shape (S, P, U, R, S) that you can edit.

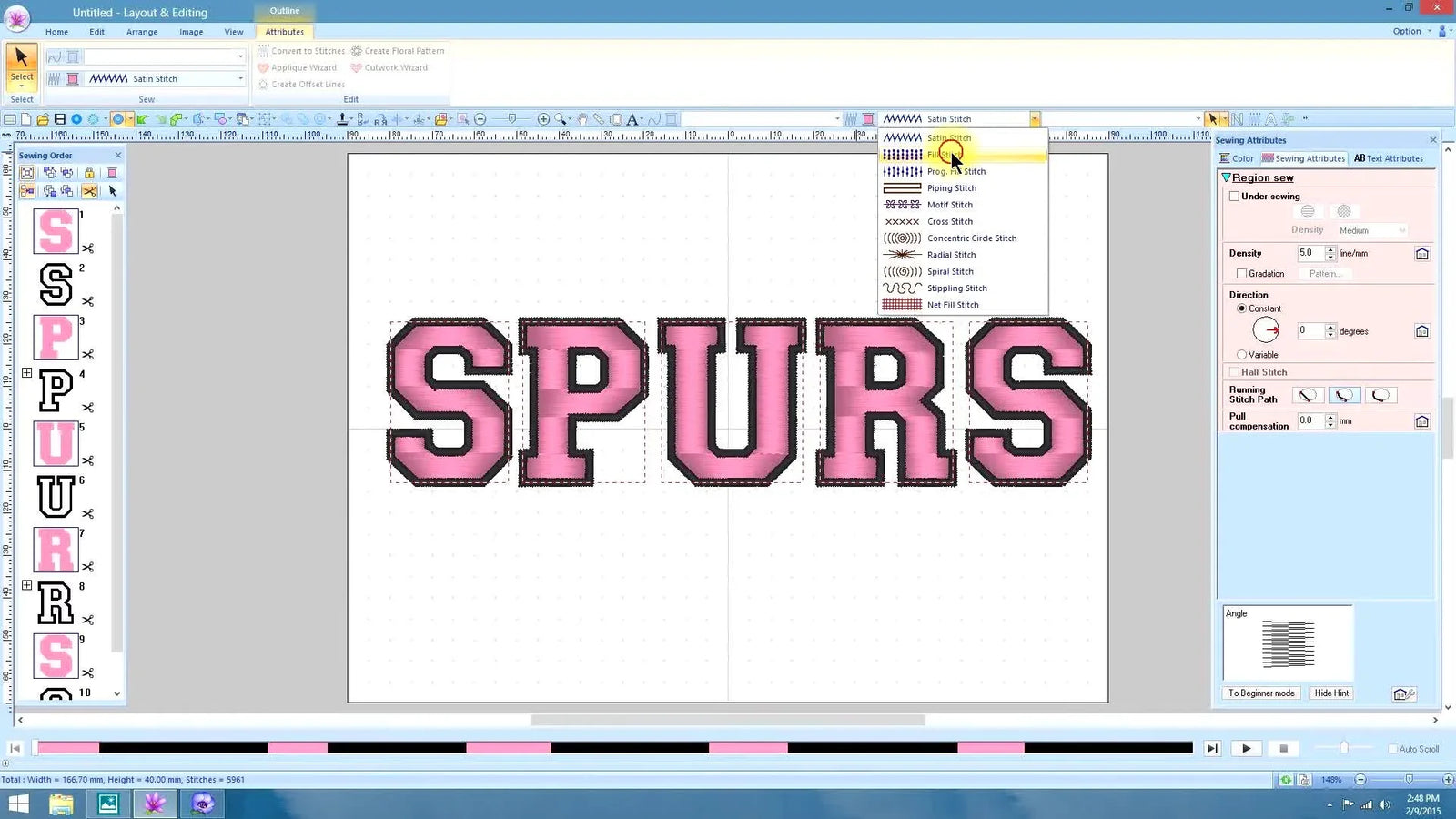

Step 7: Structural Engineering (Satin to Fill)

Now we fix the durability issue.

• Selection Trick: Hold the Control (Ctrl) key and click the body of each letter. Do not select the empty spaces (like inside the P or R).
• Action: Go to Sewing Attributes.
• Change: Switch Stitch Type from Satin -> Fill Stitch.
• Density Sweet Spot: For caps, a density of 4.5 lines/mm (standard) is usually safe. If going for a dense gradient, do not exceed 5.0 lines/mm or you risk breaking needles on the buckram.


Why Fill Stitch? Fill stitches (Tatami) place needle penetrations in the middle of the shape, creating a "fabric" of thread. This anchors the fiber, preventing snags, and—crucially—provides the structure needed to blend two colors.

Setup Checklist (The "Digitizer's Safety Net"):

• Conversion: Did you Convert to Blocks and Ungroup?
• Stitch Type: Are all large letters set to Fill Stitch? (Check specifically for the "S" curves).
• Direction: Is the sewing direction set to 0.0 Degrees (Horizontal)?
• Sequence: Check your sewing order. Gradients require a thread change. Does the machine stitch all Red parts first, then stop for the Yellow? Or is it jumping back and forth? (Optimize color sort to save time).

Step 8: Applying the Gradient to Text

• With letters selected (Fill Stitch active), return to Sewing Attributes -> Density.
• Enable Gradiation.
• Color Selection: change the "Additional Color" to your secondary hue (e.g., Deep Red to Pink).
• Visual Check: Ensure the transition happens in the middle of the letters, not at the very bottom. You may need to adjust the "Center Point" slider in the Pattern tab.




Software Version Note: PE-Design Next vs. 10/11

The logic remains identical, but the vocabulary shifts slightly:

• PE-Design Next: Uses the term "Use additional color".
• PE-Design 10/11: Rebrands this to "Blend".
• Functionality: PE-Design 10+ offers slightly better preview rendering and on-the-fly direction controls inside the gradient box.


5. The "Trial Sew-Out" Rule: Your Only Truth

There is a saying in the industry: "The map is not the territory." The screen is not the thread.

Why you must test (especially on caps):

1. 3D Curvature: A gradient that looks smooth flat may look "stepped" or banded when wrapped around a forehead curve.
2. Thread Sink: On fluffy fabrics, the thread sinks in, making the gradient darker. On stiff buckram, it sits on top.
3. Color Mixing: Yellow thread over Red thread looks Orange. Red thread over Yellow thread looks... different. The sequence matters.

The Test Protocol: Run the design on a scrap piece of denim or heavy cotton with backing. It takes 5 minutes and saves you a $15 blank cap.

6. Decision Tree: Cap Stabilization Strategy

Choosing the right foundation is 80% of the battle. Use this logic tree to decide:

• Is the Cap Structured (Hard Front)?
  • YES: Use Tearaway backing (2.5oz).
    • Hooping: The challenge is keeping it flat. This is the prime use case for cap hoop for brother embroidery machine attachments or magnetic systems to avoid crushing the structure.
  • NO (Dad Hat/Soft Front): Use Cutaway backing (2.0oz - 3.0oz).
    • Why: Soft caps stretch. If you use tearaway, the gradient stitches will pull the fabric together, creating puckers. You need the permanent stability of cutaway.
• Are you facing "Hoop Burn"?
  • YES: The plastic ring is leaving shiny marks.
    • Solution A: Steam the cap after embroidery (time-consuming).
    • Solution B: Upgrade tools. Search for magnetic embroidery hoop solutions compatible with your specific machine model. These clamps hold the perimeter without crushing the fibers.

7. Troubleshooting: Comment-Proven Fixes

Real users stumble on these specific rocks. Here is how to step over them.

A Note on Keywords and Research

If you are struggling with specific techniques, using the right search terms is vital.

• For text issues, search: Gradient Text Embroidery workflows.
• For hooping efficiency: Many professionals search for hooping station for embroidery to find jigs that hold the hoop moving while you position the cap.
• For repeatable placement: A magnetic hooping station is often the "secret weapon" in volume shops for ensuring every logo lands in the exact same spot.

8. The Upgrade Path: From Hobby to Production

Creating gradients on a single-needle machine is possible, but slow. The machine must stop to let you change threads manually for every color shift.

The Production Reality:

• The Bottleneck: If doing 12 caps with a 3-color gradient, that is 36 manual thread changes.
• The Hardware Step-up: This is where shops migrate to multi-needle machines (like the SEWTECH commercial line). These machines hold 10-15 colors simultaneously. The gradient executes in one fluid run without you touching the machine.

The Tooling Step-up: If a new machine is not in the budget, upgrading your method is the next best ROI.

• Magnetic Hoops: For generic single-needle machines (Brother, Babylock, etc.), a magnetic hoop for brother allows you to hoop thick items (towels, bags, caps) that physically won't fit in standard plastic frames.

Warning: Magnetic Safety.
High-quality embroidery magnets (like those from SEWTECH/MaggieFrame) are industrial strength (Neodymium).
* Pinch Hazard: They snap together with enough force to bruise fingers. Handle with a "slide-off" motion, not a straight pull.
* Medical Safety: Keep at least 6 inches away from Pacemakers and insulin pumps.
* Electronics: Keep away from credit cards and phone screens.

Final Inspection: The "Retail Ready" Standard

Your gradient is finished. How do you know if it's good?

1. Tactile Test: Run your finger over the blend. It should feel like a single texture, not a speed bump between colors.
2. Visual Distance: Step back 3 feet. Does the blend read as a fade, or stripes?
3. Registration: Are there any white gaps between the outline and the fill? (If so, increase your "Pull Compensation" to 0.2mm or 0.3mm).

Mastering gradients allows you to say "Yes" to complex corporate logos and team wear that other embroiderers reject. It is a mix of software art and physical engineering—get the density right on screen, and the tension right in the hoop, and the results will sell themselves.

FAQ

• Q: Why is the Brother PE-Design “Gradiation/Gradient” option greyed out when editing embroidery text?
  A: The Gradient option is disabled until the object is converted from live Text into editable stitch blocks using Fill Stitch.
  • Convert: Select the text → Convert to Outline/Convert to Blocks → Ungroup.
  • Switch: Select each letter body → Sewing Attributes → change Satin Stitch to Fill Stitch.
  • Enable: Go to Sewing Attributes → Density and check Gradiation/Gradient, then choose Use additional color/Blend.
  • Success check: The Gradient checkbox becomes clickable and the preview shows a transition after pressing OK/Apply.
  • If it still fails: Confirm the selection is the fill area (not the hole inside letters like P/R) and confirm Fill Stitch is actually active.
• Q: What hooping and stabilization checklist prevents gapping or banding when stitching gradient fills on a ball cap?
  A: Prevent fabric shift first—gradient fills only look clean when the cap and backing stay registered with near-zero movement.
  • Audit: Identify structured hard-front vs soft dad hat before choosing backing.
  • Stabilize: Use Tearaway for structured caps; use Cutaway for soft/stretchy caps to prevent puckers.
  • Secure: Add temporary spray adhesive to bond cap fabric to backing before stitching.
  • Success check: During sewing, the cap panel stays flat with no creeping, and the gradient shows no white “gaps” or hard “steps.”
  • If it still fails: Re-check hooping method—if standard hoops are crushing or shifting the cap, consider a magnetic clamping approach or a cap-specific attachment.
• Q: How tight should a standard embroidery hoop or magnetic embroidery hoop be for cap gradient embroidery, and how can hoop tension be judged?
  A: Use a repeatable tension check—too loose causes registration drift, too tight distorts the cap and can leave hoop marks.
  • Test (standard hoop): Tighten until the fabric gives a dull thud when tapped (drum-skin feel, not over-stretched).
  • Test (magnetic hoop): Seat the magnets and listen/feel for a firm snap engagement without crushing the fibers.
  • Verify: Make sure the cap panel is held stable without forcing it unnaturally flat.
  • Success check: The cap does not shift when lightly nudged, and there are no shiny compression rings after unhooping.
  • If it still fails: If hoop burn appears or alignment keeps drifting, reduce clamping stress and switch to a holding method that grips without lever-crushing.
• Q: What stitch type and density settings in Brother PE-Design prevent satin “rope” letters and thread breaks when digitizing large cap text like “SPURS”?
  A: Large cap letters should be Fill Stitch (Tatami), not Satin, and density must stay conservative to avoid “bulletproof” stitching on buckram.
  • Convert: Convert text to blocks and ungroup so each letter can be edited safely.
  • Change: Set stitch type Satin → Fill Stitch for large letters.
  • Limit: Keep cap density around 4.5 lines/mm as a safe target, and avoid exceeding 5.0 lines/mm when pushing dense gradients.
  • Success check: Letters stitch with a stable “fabric” of thread (no long floating spans, fewer snags, fewer breaks).
  • If it still fails: Check needle choice and freshness, and reduce density if the cap front is stiff or needles are deflecting.
• Q: What needle should be used for gradient fills on caps, and how does needle condition affect gradient alignment?
  A: Start with a fresh needle—dull or wrong-point needles deflect and can ruin gradient registration between the two colors.
  • Install: Use a fresh 75/11 Sharp needle for woven cap fabrics; use Ballpoint for knits.
  • Replace: Swap needles before test-outs if the previous needle has unknown mileage.
  • Observe: Watch for deflection symptoms (misaligned rows, uneven penetration, inconsistent texture).
  • Success check: Stitch rows look evenly spaced and the blend area feels like one consistent texture, not rough or “pulled.”
  • If it still fails: Re-check stabilization and hooping—needle choice cannot compensate for fabric movement.
• Q: What safety steps are required when running high-speed gradient test sew-outs to avoid needle-strike injuries?
  A: Treat every test sew-out like a live hazard—needle strikes at high speed can shatter needles.
  • Clear: Keep hands completely away from the needle bar area while stitching.
  • Protect: Wear safety glasses when watching a stitch-out closely.
  • Slow down: Avoid hovering near the running head to “guide” fabric—stop the machine first if adjustment is needed.
  • Success check: The machine completes the run without contact incidents, and no needle damage is observed.
  • If it still fails: Stop immediately, inspect for bent needles, and re-run only after correcting hooping/stabilization that could be causing deflection.
• Q: What magnetic embroidery hoop safety rules prevent pinch injuries and interference with medical devices during cap embroidery work?
  A: Handle embroidery magnets like industrial neodymium tools—they can snap shut hard enough to bruise fingers and must be kept away from certain devices.
  • Handle: Use a slide-off motion to separate magnets—do not pull straight apart.
  • Protect: Keep fingers out of the closing path when seating the magnetic ring.
  • Separate: Keep magnets at least 6 inches away from pacemakers and insulin pumps.
  • Success check: Magnets seat without finger pinches, and the hoop holds securely without crushing the cap fibers.
  • If it still fails: If magnets feel uncontrollable, change handling technique and reposition the hooping workflow so hands never enter the snap zone.
• Q: How can Brother cap gradient embroidery be improved step-by-step when the results show hoop burn, puckering, or slow production from frequent thread changes?
  A: Use a layered approach: optimize settings first, upgrade holding tools second, then consider multi-needle capacity if volume demands it.
  • Level 1 (technique): Run a trial sew-out on scrap fabric with backing, keep direction consistent (e.g., horizontal for a horizontal fade), and avoid overly high density on caps.
  • Level 2 (tooling): If hoop burn or shifting persists with plastic hoops, switch to a holding method that reduces crushing force (magnetic clamping can help maintain registration).
  • Level 3 (capacity): If gradients require frequent manual thread changes on a single-needle machine, move to a multi-needle workflow to reduce stops and improve throughput.
  • Success check: The finished gradient reads smooth from about 3 feet away and feels like one texture without a “speed bump” between colors.
  • If it still fails: Re-evaluate cap type (structured vs soft) and backing choice, then repeat the test protocol before running on blanks.
