PE-Design Appliqué Wizard (v9 vs v10): The Fastest Way to Stop “Too Many Stops” on Multi-Piece Appliqués

If you’ve ever watched your embroidery machine stop… and stop… and stop again during a multi-piece appliqué, you know the frustration. The real pain isn’t the stitching; it’s the constant "Appliqué Shuffle": trim, place, re-place, re-check, and pray the fabric hasn’t shifted.

Kathleen McKee’s tutorial on PE-Design is legendary not just for showing which buttons to click, but for teaching a production mindset. Whether you are using PE-Design Next (v9) or PE-Design 10, the software default is often inefficient for complex shapes (like a coffee cup with a separate handle and rim).

In this guide, we are going to rebuild her workflow into a "Zero-Friction" guide, adding the sensory checks and shop-floor physics that software manuals ignore.

PE-Design Next (v9) vs PE-Design 10 Appliqué Wizard: what actually changed (and what didn’t)

PE-Design 10 offers a smoother interface for fonts, but both versions share a common flaw: they generate a sewing order that is painfully inefficient for multi-piece designs.

Here is the functional difference you need to know:

• PE-Design Next (v9): You face a "geometry barrier." You must convert TrueType text to an outline, Ungroup it, and perform a specific "re-select trick" before the Appliqué Wizard wakes up.
• PE-Design 10: You can select text directly. However, you must uncheck a default setting ("Replace") to avoid a double-stitch disaster.
• The Common Enemy: Both will process a coffee cup (body + rim + handle) as three separate jobs, forcing you to change fabric 9 times unless you manually intervene.


The “Hidden” prep that prevents ugly appliqué edges before you even open Appliqué Wizard

Software creates the map, but physics dictates the terrain. Before digitizing, you must decide how you will physically hold the fabric. The "Appliqué Wizard" can create perfect stitch lines, but if your fabric moves 1mm, you get "gullies" (gaps) or "bites" (fabric poking out).

The Physics of Failure: Most appliqué fails happen during the Placement → Tackdown transition. If you are hooping a thick hoodie or delicate baby knit, standard plastic hoops often require overtightening to prevent slippage, which causes "hoop burn" (permanent ring marks).

The Solution Hierarchy:

1. Level 1 (Technique): Use temporary spray adhesive (like 505) rather than just gravity to hold appliqué fabric.
2. Level 2 (Tool Upgrade): If you struggle with hoop burn or wrist pain/fatigue from clamping, this is the trigger to upgrade tools. Many pros switch to magnetic embroidery hoops. These use vertical magnetic force rather than friction, allowing you to float delicate items without crushing the fibers.

Warning (Safety): If you upgrade to magnetic hoops, handle with extreme care. The magnets are powerful enough to pinch fingers severely. Keep them away from pacemakers and implanted medical devices.

Prep Checklist (Do this BEFORE software)

• Fabric Test: Squeeze your base fabric. Is it stretchy? If yes, you must use a Cutaway stabilizer (or a fusible mesh). Tearaway will cause the satin edge to distort.
• Contrast Check: Choose a Placement Line thread color that contrasts with the garment (e.g., hot pink thread on a black shirt) so you can see where to place your patch.
• Hooping Strategy: Test your hoop on a scrap. If you see a "shine" or crease after un-hooping, your tension is too high. A magnetic hoop for brother style frame can eliminate this by holding the fabric flat without the "inner ring" friction.
• Consumables Check: Do you have curved appliqué scissors (duckbill scissors)? Do not attempt this with straight scissors; you will slash the base garment.


PE-Design Next (v9): the exact clicks to activate Appliqué Wizard when it’s greyed out

In v9, the Appliqué Wizard is shy. It often stays greyed out even when you have selected an object. This isn't a bug; it's a vector rule.

Kathleen’s "Wake-Up" Sequence:

1. Select Character: Choose your TrueType font letter (e.g., "A").
2. Convert: Go to Text Attributes -> Convert to Outline.
3. Ungroup: If you see blue dotted lines, the object is Grouped. Right-click -> Ungroup.
4. The Secret Handshake: Click on the white workspace background to deselect everything. Then, click the object again to re-select it.
5. Activate: Now check Attributes. The Appliqué Wizard icon should be live.

Success Metric: You know it worked when the blue dotted box vanishes and the Wizard icon turns colorful.

Appliqué Wizard settings in PE-Design Next (v9): the 4-step sequence you should recognize instantly

The Wizard sets up the structural integrity of your patch. In v9, it creates:

1. Cutout: A running stitch (often used as a guide for pre-cut fabrics or a trim line).
2. Positioning: The guide line where you place your fabric.
3. Tack Down: The stitch that locks the fabric in place (Zig-zag, E-stitch, or Run).
4. Covering: The final satin border.

Crucial Setting:

• "Create an applique with hole sewing": You must check this if your letter has a void (like inside an "A", "O", or "P"). If you miss this, you will have fabric covering the hole, and your "A" will look like a triangle.


The “Hole Sewing” checkbox: why missing inner cutouts ruins appliqué (and why it sometimes disappears)

Readers often panic: "I don't see the Hole Sewing checkbox!"

Why this happens: The software analyzes the geometry of your shape. If the vector lines are not closed, or if the shape is complex (like a distress font), PE-Design may not recognize the "hole" as a negative space.

Troubleshooting Protocol:

• Check Source: Are you using a clean TrueType font? "Rough" or "Sketch" fonts often confuse the Wizard.
• Reset Selection: Use the v9 "Deselect/Reselect" trick mentioned above.
• Visual Check: Always look at the preview window inside the Wizard. Do you see stitch lines inside the loop of the letter? If no, the setting is off.

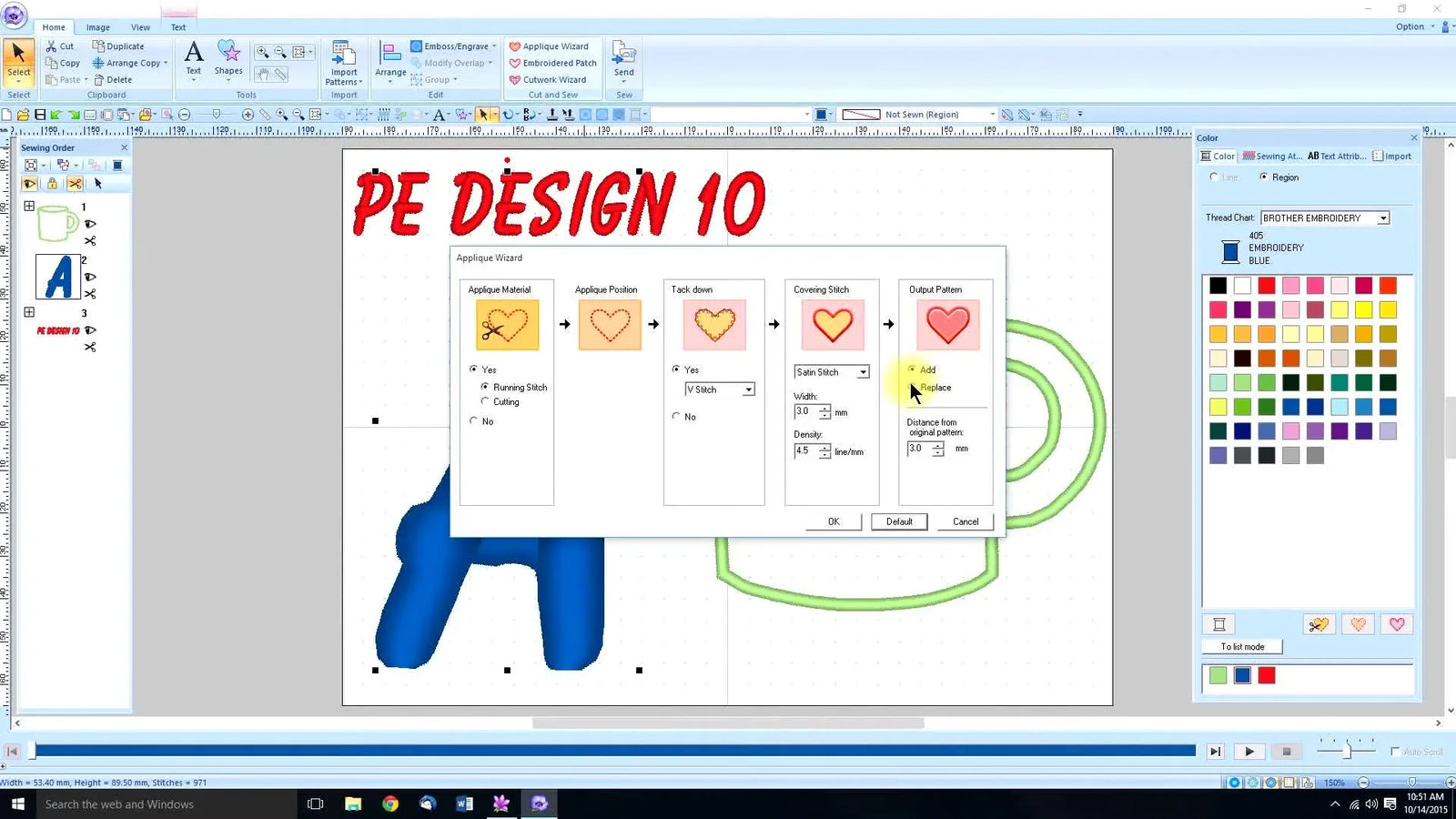

PE-Design 10 Appliqué Wizard: the two checkboxes that prevent extra outlines and missing holes

PE-Design 10 is smarter but requires a specific setting tweak to avoid redundancy.

The PE-Design 10 Optimization Path:

1. Select Text: Click the TrueType font (no conversion needed).
2. Open Wizard: Click the Appliqué icon.
3. The "Replace" Rule: You MUST check "Replace".
   • Why? If you leave it unchecked, the software keeps the original letter stitching underneath your appliqué, creating a bulletproof lump of thread. "Replace" tells the software: "Delete the original, give me only the appliqué."
4. Hole Sewing: Check this to ensure the inside of your letters are cut out.


Multi-region appliqué (Coffee Cup design): why PE-Design creates “too many stops” and how to spot it fast

This is the "Lightbulb Moment" for efficient production. Kathleen uses a coffee cup design made of three parts: Body, Rim, Handle.

The Default Disaster: If you run the Wizard on these three shapes, the machine generates this sequence:

1. Cup Body: Cut → Place → Tack → Cover
2. Cup Rim: Cut → Place → Tack → Cover
3. Handle: Cut → Place → Tack → Cover

The Consequence: Run this on a machine, and you are swapping fabrics and trimming threads 12 separate times. Each stop is a chance for the hoop to get bumped or the fabric to wrinkle.

The “One Placement Pass” method: manually grouping Cutout/Positioning/Tackdown steps by color

To embroider like a professional, we must batch our processes. We want the machine to show us ALL placement lines at once, so we can lay down ALL fabric pieces at once.

The "Batching" Workflow (Universal Logic):

1. Identify: Look at your Sewing Order/Color Panel. You will see the three regions interspersed.
2. Multi-Select: Hold CTRL and click all the "Appliqué Material" (Cut/Place) steps for the Body, Rim, and Handle.
3. Color Grouping: Assign them all ONE unique color (e.g., Bright Pink).
4. Repeat: Select all "Appliqué Position" (Tackdown) steps. Assign them a different unique color (e.g., Neon Green).
5. Drag and Drop: Reorder the list physically in the panel:
   • Batch 1: All "Material/Cut" lines (Pink).
   • Batch 2: All "Position/Tack" lines (Green).
   • Batch 3: All Satin Covering stitches.

The Result: Your 12-stop nightmare becomes a streamlined 3-phase operation.

Setup Checklist (Before Exporting)

• [ ] Sequence Logic: Read the list top-to-bottom. Does it read: All Cuts -> All Tacks -> All Covers?
• [ ] Color Stop: Did you ensure the thread color changes between the Placement and Tackdown? (If they are the same color, the machine won't stop, and you won't have time to place the fabric!)
• [ ] "Replace" Check: In v10, did you ensure the original underlying fill stitch is gone?
• [ ] Density Check: For the Satin Cover, is the density correct? (Standard is roughly 0.40mm - 0.45mm). Too dense = bulletproof edge; Too loose = fabric fraying.


PE-Design 10 still needs manual reordering on multi-piece appliqués (even with batch selection)

A common myth is that PE-Design 10 automates this grouping. It does not.

Even if you drag a box around the entire coffee cup design and click "Appliqué Wizard," the software will still spit out separate sequences for each region. You cannot skip the manual reordering step detailed above. The software is a tool; you are the project manager.

Comment question: “How do I hold the appliqué fabric for tackdown after the placement stitch?”

This is where theory meets reality. A viewer asked: "Okay, the machine stopped. How do I hold this fabric piece so it doesn't slide when the needle starts moving?"

The Tactics:

1. The Spray Method (Best for Knits): Lightly mist the back of your appliqué fabric with temporary adhesive (like KK100). Place it inside the placement line. Smooth it gently.
   • Sensory Check: It should feel tacky like a Post-it note, not gummy like duct tape.
2. The Tape Method: Use embroidery-safe paper tape on the very edges of the fabric (outside the stitch zone) to hold it down.
3. The Interaction: If you are constantly fighting the hoop during these placement steps, consider your hardware. Traditional hoops can be difficult to re-attach perfectly if you take them off to trim. This is why pros often search for how to use magnetic embroidery hoop videos—because magnetic frames allow you to make minor adjustments without "un-hooping" the stabilizer foundation.

Warning (Pinch Hazard): If using magnetic frames, always slide the magnets apart or lift using the designated tabs. Never let two magnets snap together freely—they can pinch skin aggressively.

Comment question: “How do I change an appliqué file into a regular filled embroidery design?”

The Short Answer: You generally don't "convert" it; you rebuild it.

The Expert Explanation:

• Appliqué relies on: Running Stitch (Placement) -> Hand Labor -> Satin Stitch (Cover).
• Filled Design relies on: Underlay (Tatami/Zigzag) -> Density Fill -> Pull Compensation.

If you just delete the appliqué steps and fill the shape, you might lack the necessary Underlay. Without underlay, a large fill will pull your fabric, causing puckering. You are better off digitizing the shape from scratch as a fill stitch to ensure the foundation is solid.

The real “why”: what sewing-order optimization changes in quality, not just speed

Grouping your sewing order isn't just about saving 2 minutes. It is about Registration Accuracy.

Every time you stop the machine, trim, and restart, you introduce micro-vibrations and potential hoop movement.

• Dispersed Order: 12 stops = 12 chances for the hoop to shift.
• Grouped Order: 3 stops = 3 chances.

Production Tip: If you are running 50+ shirts, fatigue becomes your enemy. Wrist strain from unlocking traditional hoops is real. This is the criteria for upgrading: If you finish a run and your hands hurt, look into hooping for embroidery machine aids or ergonomic magnetic hoops that remove the physical strain of clamping.

A stabilizer decision tree for appliqué: pick the backing like a pro (not like a gambler)

Wrong backing = distorted shapes. Use this decision matrix to maximize your success rate.

Decision Tree (Fabric → Solution):

1. Is the item stretchy? (T-Shirt, Hoodie, Beanie)
   • Choice: Cutaway Stabilizer (Must-have).
   • Why? Knits stretch. Tearaway provides zero structural support after you tear it. Your satin stitching will warp into an oval without permanent support.
2. Is the item stable? (Denim Jacket, Canvas Tote)
   • Choice: Tearaway Stabilizer.
   • Why? The fabric supports itself.
3. Is the fabric "slippery" or "puffy"? (Performance wear, fleece)
   • Choice: Cutaway + Water Soluble Topping.
   • Why? The topping prevents the stitches from sinking into the pile.
4. Are you fighting hoop burn?
   • Solution: Consider a brother magnetic frame or similar magnetic system. Because it holds the garment flat between magnets rather than jamming it between plastic rings, it eliminates the "friction shine" on dark fabrics.


The upgrade path: when your bottleneck is hooping time, not digitizing time

Once you master the software grouping, your machine will stitch faster than you can hoop the next shirt. This is a good problem to have—it means you are scaling.

Recognizing the Bottleneck:

• If you hear the machine stop and beep "Finished," but you are still struggling to hoop the next garment, your Hooping Station is the issue.
• For consistent placement (e.g., ensuring every Left Chest logo is exactly 7 inches down), free-handing is too slow.

The Solution: Investigate a hooping station for embroidery. These devices hold the hoop in a fixed position while you slide the shirt over. For high-volume shops, a magnetic hooping station combined with magnetic frames offers the fastest cycle time in the industry: Grid Align -> Magnet Snap -> Sew.

Operation Checklist (The Final "Go/No-Go")

• [ ] Speed Test: For the Tackdown stitch, lower your machine speed to 400-600 SPM. Speed causes fabric ripples here. You can speed up (800+ SPM) for the satin cover.
• [ ] Bobbin Check: Is your bobbin full? Running out of bobbin thread halfway through a satin border is a nightmare to fix invisibly.
• [ ] Needle Check: Are you using a fresh needle? Satin stitching puts heavy wear on needles. A dull needle creates "bird nests."
• [ ] Thread Path: Do you have the correct colors queued? Remember, your "Placement" thread won't be seen, but your "Cover" thread is the star of the show.

The calm, repeatable appliqué workflow you’re aiming for

Great appliqué isn't magic; it is ordered logic.

1. Prep: Proper stabilization and hooping (consider mechanics vs. magnets).
2. Plan: Use the software to Group by Color (All cuts -> All tacks).
3. Produce: Run the machine at safe speeds, using tactile checks to ensure fabric stays put.

By following this reconstructed workflow, you stop fighting the machine and start controlling the outcome. Happy stitching.

FAQ

• Q: In Brother PE-Design Next (v9), why is the Appliqué Wizard greyed out after selecting TrueType text, and what exact steps activate the Appliqué Wizard?
  A: Activate the Appliqué Wizard by converting TrueType text to outline, ungrouping, then deselecting and reselecting the object (this is common in v9).
  • Convert: Go to Text Attributes → Convert to Outline.
  • Ungroup: Right-click → Ungroup until the blue dotted group box disappears.
  • Reselect: Click the white workspace to deselect → click the object again → open Attributes and confirm the Appliqué Wizard icon is live.
  • Success check: The blue dotted selection box vanishes and the Appliqué Wizard icon turns active/colorful.
  • If it still fails: Reconfirm the object is not still grouped, then repeat the deselect/reselect “handshake.”
• Q: In Brother PE-Design 10 Appliqué Wizard, what does the “Replace” checkbox prevent, and what happens if “Replace” is left unchecked?
  A: Turn ON “Replace” to prevent the original lettering stitches from staying underneath the appliqué and creating an overly thick, lumpy result.
  • Open: Select the TrueType text → click the Appliqué Wizard.
  • Enable: Check “Replace” so the original stitch file is removed and only appliqué steps remain.
  • Verify: Use Hole Sewing as needed for letters with inner voids.
  • Success check: The sewing order no longer includes the original base letter stitching under the appliqué steps.
  • If it still fails: Reopen the Wizard and confirm “Replace” stayed checked before finalizing the wizard output.
• Q: In Brother PE-Design Next (v9) or Brother PE-Design 10, why does the Appliqué Wizard “Hole Sewing” option seem missing, and how can inner cutouts for letters like “A” or “O” be restored?
  A: The “Hole Sewing” option may not appear when the software cannot recognize a clean, closed “hole” in the shape, so simplify the source and confirm the preview shows inner stitch lines.
  • Check source: Switch to a clean TrueType font if a rough/distressed font is being used.
  • Reset: In v9, use the deselect/reselect trick before opening the Wizard again.
  • Confirm: Look at the Wizard preview and ensure stitch lines appear inside the letter loop.
  • Success check: The preview clearly shows stitching for the inner void area (the “hole”) instead of treating the letter as a solid shape.
  • If it still fails: Rebuild the shape using a cleaner outline so the negative space is recognized as a true hole.
• Q: In Brother PE-Design (v9 or v10), how can multi-piece appliqué designs (coffee cup body + rim + handle) be reordered to reduce excessive machine stops?
  A: Manually batch the appliqué steps by color so the machine runs “all cuts/placements,” then “all tackdowns,” then “all satin covers,” instead of completing each region one-by-one.
  • Multi-select: In the Sewing Order/Color panel, CTRL-click all “Appliqué Material” (cut/place) steps for every region → assign one unique color.
  • Batch tackdowns: Select all “Appliqué Position” (tackdown) steps → assign a second unique color.
  • Reorder: Drag-and-drop so the list reads: All Cuts/Placements → All Tackdowns → All Covers.
  • Success check: Reading the sequence top-to-bottom shows three clean phases, and the machine stops between placement and tackdown due to a color change.
  • If it still fails: Confirm placement and tackdown are not the same color (otherwise the machine may not stop to allow fabric placement).
• Q: During appliqué on stretchy garments (hoodies, T-shirts), which stabilizer choice prevents satin-edge distortion: Cutaway stabilizer or Tearaway stabilizer?
  A: Use Cutaway stabilizer for stretchy items because the support must remain after stitching; Tearaway often allows the satin edge to warp once removed.
  • Identify: Squeeze the base fabric—if it stretches, treat it as knit/stretchy.
  • Choose: Use Cutaway (or a fusible mesh) as the backing for appliqué on stretch fabrics.
  • Add: For slippery or puffy fabrics, use Cutaway plus a water-soluble topping to prevent stitch sink.
  • Success check: The satin border stays smooth and round/true after unhooping, not pulled into an oval or wavy edge.
  • If it still fails: Recheck hooping method and placement-to-tackdown fabric control (adhesive/tape) because shifting can mimic stabilizer issues.
• Q: What machine settings and checks reduce appliqué tackdown ripples and bird-nesting during satin borders on a multi-needle embroidery machine?
  A: Slow down for tackdown and confirm bobbin/needle readiness before starting, because tackdown is the most shift-prone phase and satin borders punish weak setup.
  • Slow: Run tackdown at 400–600 SPM, then increase speed for satin cover if stable.
  • Check: Verify the bobbin is full before starting a satin border sequence.
  • Replace: Install a fresh needle if bird nests appear or the needle has been heavily used.
  • Success check: Tackdown stitches lay flat with no fabric ripples, and the machine runs the satin border without nesting underneath.
  • If it still fails: Recheck thread path and confirm the appliqué fabric is secured (light spray adhesive or edge tape) before tackdown begins.
• Q: What safety precautions are required when using magnetic embroidery hoops/frames for appliqué, especially regarding finger pinches and pacemakers?
  A: Treat magnetic embroidery hoops as pinch hazards and keep them away from pacemakers and implanted medical devices.
  • Handle: Slide magnets apart or lift using designated tabs—do not let magnets snap together freely.
  • Protect: Keep fingers clear of the closing path to avoid severe pinching.
  • Restrict: Keep magnetic frames away from pacemakers/implanted devices and follow the device manufacturer’s guidance.
  • Success check: Magnets seat smoothly without “snapping,” and fabric is held flat without crushed fibers or hoop burn.
  • If it still fails: Stop and reposition calmly—never force magnets into place; reduce risk first, then adjust alignment.
