PE-DESIGN 11 Shapes That Actually Sew Clean: Hole Sewing Name Tags, Perfect Circles, and the Arc/String Tricks

If you’ve ever watched a design preview in Brother PE-DESIGN 11 and thought, “It looks perfect on screen… but will it stitch out like a stiff, bulletproof hockey puck?”, you are asking the correct veteran question.

In this masterclass, we break down Terry’s demonstration of the Shapes tools inside Layout & Editing. More importantly, we focus on the single most critical command for preventing "thread bulk"—the enemy of soft, flexible embroidery: Modify Overlap → Set hole sewing.

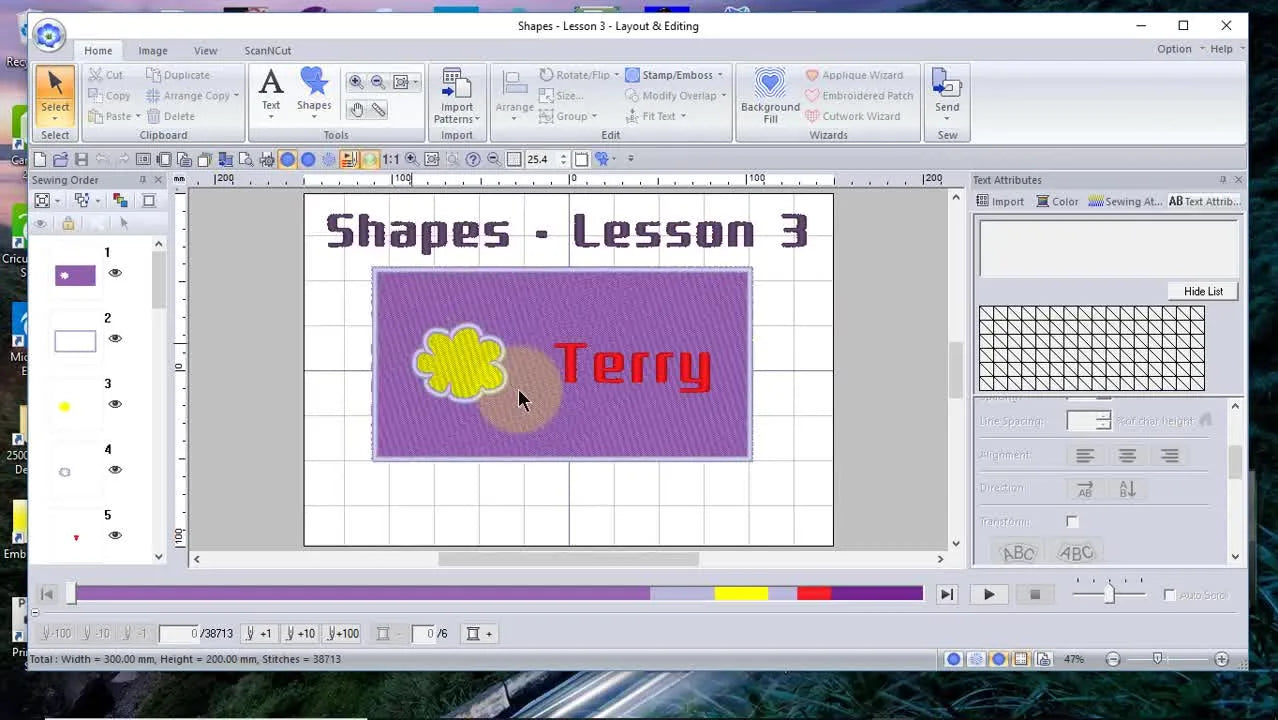

You’ll build a classic name tag (rectangle + flower + text), but we will focus on the "why" and "how"—including the shortcuts that separate hobbyists from efficient digitizers: perfect geometry with Shift, programmable decorative fills, and the specific click sequence required to make Hole Sewing actually work (because the software is unforgiving if you get it wrong).

Calm the Panic: Why “Hole Sewing” in Brother PE-DESIGN 11 Is the Difference Between Clean Layers and Bulky Stitches

When beginners layer shapes, they often leave the background fill stitching underneath the top elements. On your computer monitor, pixels can stack infinitely without consequence. On fabric, however, stacking fill stitches creates three major problems:

1. The "Bulletproof" Effect: The layers create a stiff, heavy patch that pulls differently than the surrounding fabric.
2. Needle Deflection: Forcing a needle through dense background stitching to add a top layer increases friction, heat, and the risk of thread breaks.
3. Distortion: The push/pull of the bottom layer often pushes the top layer out of alignment.

Terry’s name tag example demonstrates the professional fix: The rectangle’s fill is surgically removed only where the flower sits. The flower stitches directly onto the stabilizer/fabric, not on top of a thread mountain.

The Mental Model: Think of Hole Sewing as a "Cookie Cutter." You are telling the software: "Use this top flower shape to punch a hole in the dough (rectangle) underneath it."

The “Hidden Prep” Before You Draw Anything in PE-DESIGN 11 Shapes (So Your Sewing Order Behaves)

Embroidery software is logic-based, not magic. Before you click a single shape tool, you must establish a "clean cockpit" to ensure your commands register correctly.

Terry is working in Layout & Editing. Notice the default behavior: when you create a shape, the software automatically assigns both an Outline (zigzag/run) and a Region Fill (tatami/satin). Beginners often fight the software here, accidentally creating outlines when they wanted fills, or vice versa.

Critical Workflow Check: You must toggle between "Creator Mode" (shape tools) and "Director Mode" (the Select Arrow). If you try to select an object while still holding the Rectangle tool, you’ll just draw a tiny, unwanted rectangle.

Prep Checklist (The "Pre-Flight" Protocol):

• Clear the Deck: Open a fresh design page (Ctrl+N) to avoid layer confusion.
• Visual Confirmation: Ensure the Sewing Order panel is docked and visible. This is your "X-ray vision" to verify execution.
• Tool Location: Locate the Import/Outline/Sewing Attributes tabs on the right and the Home/Shapes ribbon at the top.
• Hidden Consumables: Have a notebook ready to record your settings (like Satin Width) so you can replicate them later without guessing.


Build the Rectangle + Flower Name Tag in PE-DESIGN 11 Shapes Without Guesswork

Terry’s workflow is standardized for a reason. Follow this sequence exactly to build your base structure.

1) Draw the rectangle base

• Navigate to the Home tab, drop down the Shapes menu.
• Select the Rectangle tool.
• Click and drag on the grid.
• Sensory Check: You should see a solid blue line (outline) and a colored interior (fill) appear immediately.


2) Add a flower shape on top

• Return to Shapes and choose a Flower icon.
• Draw the flower directly on top of your rectangle.

Crucial Step: If the flower is the same color as the rectangle, you are flying blind. You cannot edit what you cannot see.

3) Change the flower color for contrast

Terry immediately changes the flower palette color (e.g., to gold). This is not for art—it is for process safety.

• Why: You need a high-contrast visual cue to confirm which layer is on top before attempting the Merge/Hole function.


The One Click That Makes Layering Work: Modify Overlap → Set Hole Sewing (Selection Order Matters)

This is the failure point for 90% of users. In PE-DESIGN 11, the "Set hole sewing" button will often remain greyed out (inactive) if your selection logic is flawed. The software follows a strict hierarchy.

The Non-Negotiable Selection Sequence

1. Target the "Cutter" First: Click the top object (the Flower).
2. Engage Multi-Select: Press and hold the Ctrl key.
3. Target the "Dough" Second: Click the bottom object (the Rectangle).
4. Confirm Selection: You should see the “marching ants” (dotted selection line) around both objects.
5. Execute: Go to the Home tab -> Modify Overlap -> Set hole sewing.


What you should see (Success Metrics)

• Visual: The rectangle color behind the flower disappears.
• Data (Sewing Order): Look at the Sewing Order panel. The rectangle icon should now look like a frame or a stencil, with a white gap where the flower exists.


Warning: PE-DESIGN 11 is unforgiving about order. If you select the Bottom first and Top second, the command may do the inverse (cutting the rectangle shape out of the flower) or simply be unavailable. Rule of thumb: Select the Knife first, then the Butter.

Expert Insight: Why do we do this?

By removing the background stitches, you reduce the stitch count significantly. For a standard 4-inch patch, this could save 2,000+ stitches. This means:

• Less run time on the machine.
• Reduced stabilizer puckering.
• A softer, more flexible final product that doesn't feel like cardboard.

Dial In the Border: Adjust Zigzag Width in Sewing Attributes (Terry’s 4.0 mm Example)

A default zigzag outline is often too thin (approx 2.0mm) to cleanly cover the raw edge of a patch or stand out on textured fabric. Terry beefs this up.

The Adjustment

• Select the Zigzag/Satin Outline in the Sewing Order.
• Open the Sewing Attributes tab on the right.
• Increase Zigzag/Satin Width. Terry pushes this to 4.0 mm.


Calibration Note: A 4.0 mm satin stitch is very bold.

• For Rugged Patches: 4.0 mm is excellent. It mimics the "merrowed edge" look.
• For Delicate Left-Chest Logos: 4.0 mm is likely too wide and may snag or loop. A "Sweet Spot" for general text borders or accent shapes is typically 2.5 mm – 3.0 mm. Adjust according to scale.

The Shift-Key Shortcut You’ll Use Forever: Perfect Squares and Perfect Circles in PE-DESIGN 11

Human hands are bad at drawing perfect ratios. The software solves this with a constraint key.

Perfect square from the Rectangle tool

• Select Shapes → Rectangle.
• Click and drag.
• Action: Hold Shift on your keyboard while dragging.
• Result: The shape snaps to a 1:1 ratio.


Perfect circle from the Circle tool

• Select Shapes → Circle.
• Hold Shift while dragging.
• Result: A geometric circle, not an egg or oval.


Pro Tip: If you require a specific size (e.g., exactly 3.0 inches), draw the shape with Shift first, then type the exact dimension in the Import tab's size field to lock it in.

Make a Plain Circle Look Expensive: Motif Outline + Programmable Fill Stitch Patterns

Standard Tatami fills are functional but boring. Terry demonstrates how to elevate the design value without drawing a single new line.

The "One-Click" Texture Upgrade

• Select your shape.
• Change Outline Sew Type to Motif Stitch (decorative running chain).
• Change Region Sew Type to Programmable Fill Stitch.


selecting the pattern

• In Sewing Attributes, browse the folder icon under Programmable Fill.
• Terry selects a pattern (like diamonds or hearts).


Field Note on Density: Programmable fills can be heavy.

• Watch the Preview: If the pattern looks like a solid block of color on screen, it is likely too dense for a T-shirt.
• Compensate: You may need to increase the size of the pattern or lower the density in Sewing Attributes to prevent "bulletproof" stiffness.

Arc/String in PE-DESIGN 11: Use the “String” Cursor Like a Pro (Not Like a Guessing Game)

The Arc tool confuses beginners because it involves a "Second Click" logic.

The Physical Feel of the Tool

• Click 1 & Drag: Defines the width of the arc.
• Release: Now, moving your mouse pulls a "string" (guideline) that defines the height/curve.
• Click 2: Locks the curve in place.


The Symmetry Trick

Holding Shift works here too. It constrains the arc to be perfectly symmetrical, preventing the "lopsided smile" effect that plagues freehand drawing.

Round Rectangle Edge Radius (10.0 mm in the Video): The Patch/Name-Tag Shape That Stitches Friendlier

Sharp 90-degree corners are stress points in embroidery. They accumulate thread bulk and often poke through pockets.

Terry uses the Round Rectangle tool.

• Look at the top toolbar before drawing.
• Set Edge Radius (Terry uses roughly 10.0 mm).
• Draw the shape.


Why Round Corners? Mechanically, embroidery machines handle curves better than sharp stops. A rounded corner allows the pantograph (arm) to flow smoothly, keeping tension consistent. Sharp corners often cause "bird nesting" underneath the plate if the machine slows down too abruptly.

Fan / Pacman Shapes in PE-DESIGN 11: Great for Wedges, Badges, and Playful Appliqué Layouts

Terry concludes with the Fan tool.

The Mechanics

• It works like the Arc tool: Define radius -> Define slice angle.
• Note: Terry highlights that these fan shapes often default to Outline Only (no fill).


Check your Sewing Attributes immediately after drawing. If you need a filled wedge (like a pie chart or a Pacman), you must manually turn Region Sew Type to "Fill Stitch."

When Hole Sewing Won’t Work: The Fast Diagnosis That Saves Your Sanity

You clicked the buttons, but nothing happened. Don't panic. Run this diagnostic loop.

Troubleshooting Table: The "Modify Overlap" Failure

Setup Habits That Prevent Ugly Stitchouts Later (Even If Your Digitizing Looks Perfect)

The digitizing is only 50% of the battle. The rest is physics.

Key Setup Protocol:

• Gap Compensation: When you create a hole, the fabric in that gap may relax and shrink, revealing a gap between the flower and the rectangle.
• The Fix: In Sewing Attributes, add Pull Compensation (usually 0.2mm - 0.4mm) to the flower shape. This slightly overlaps the edges to ensure no stabilizer shows through.

Setup Checklist (The "Save Yourself" List):

• Layer Audit: Scroll through the Sewing Order. Are there any hidden objects underneath that you forgot to remove?
• Density Check: For Programmable Fills, is the density suitable for your fabric? (Standard is ~4.5 lines/mm; go lower for Patterns).
• Underlay: Ensure "Underlay" is checked for large fill areas to prevent shifting.
• Symmetry Check: Did you use Shift? A slightly oval circle looks like a mistake on a finished uniform.

A Simple Decision Tree: Stabilizer + Hooping Choices for Name Tags and Patches (So Your Digitized Shapes Stay True)

Your file is pristine. But if your physical hooping is loose, the "Hole Sewn" flower will not land inside the hole. It will drift and look amateur.

Decision Tree: Matching Method to Material

1. Metric: "What are you stitching on?"
   • Stiff Fabric (Canvas, Twill, Felt):
     • Stabilizer: Tear-away is usually sufficient.
     • Hooping: Standard hoop. Tighten until "drum tight" (flick it, listen for a thump).
   • Stretchy Fabric (Polo Pique, Performance Knits):
     • Stabilizer: Cut-away is mandatory. Without it, the "Hole" will distort into an oval.
     • Hooping: Do not stretch the fabric. Hoop it neutral.
2. Metric: "Is this a production run?"
   • Scenario: You have to stitch 50 name tags.
   • Pain Point: Traditional screw-hoops cause "Hoop Burn" (shiny rings) and wrist fatigue.
   • Solution: This is where professionals integrate a magnetic embroidery hoop. The magnets clamp instantly without forcing rings together, preventing fabric bruising and saving roughly 30-60 seconds per item.
3. Metric: "Is alignment critical?"
   • Scenario: The text must be perfectly horizontal.
   • Solution: Use a grid measurement or a hooping station for embroidery to ensure every patch lands in the exact same coordinate on the hoop.

The Upgrade Path That Actually Matches Real Work (Not Hype)

Terry taught you the software mechanics. Now, let's talk about the physical reality of applying this in a workflow.

If you are mastering PE-DESIGN 11, you are likely moving past the "casual hobbyist" phase. You will eventually hit physical bottlenecks where software cannot help you.

• The "Hoop Burn" Bottleneck: If your rectangles are distorting or you see ring marks on dark fabric, standard hoops are the culprit. Many experienced users switch to magnetic embroidery hoops for brother machines. These reduce the physical stress on the fabric fibers.
• The "Re-Hooping" Fatigue: If you are fighting with thick items (like hoodies or layered patch twill), a brother magnetic embroidery frame allows you to "slap and sew" thick materials that simply pop out of standard plastic rings.
• The Inventory Check: Before buying generic tools, auditing your current brother embroidery machine hoops is smart. Do you have the right size? Using a massive hoop for a tiny name tag wastes stabilizer and reduces tension quality.

Operational Reality: Learning how to use magnetic embroidery hoop systems is often the pivotal moment where a user transitions from "struggling with materials" to "focused on design."

Warning: Magnetic Safety. Industrial-strength magnetic hoops are powerful tools. They pose a pinch hazard—keep fingers clear of the snapping zone. Crucially, keep them away from pacemakers, magnetic storage media, and credit cards. Treat them with the same respect you give your needles.

Operation Checklist: The “Export-Then-Stitch” Reality Check for Shape-Based Designs

Before you hit the Green Button, run this final check.

• File Format: Export to .PES (for Brother) or .DST (for commercial reliability).
• Needle Status: Are you using a fresh needle? A dull needle will drag the fabric and ruin your perfect "Hole Sewing" alignment. (Use a 75/11 Ballpoint for knits, or 90/14 Sharp for tough canvas patches).
• Bobbin Check: Do you have enough bobbin thread to finish the fill? Running out mid-fill usually leaves a visible "seam."
• Emergency Stop: Keep one hand near the stop button during the "Flower" layer to ensure it lands exactly in the hole you created.

Warning: Mechanical Safety. When the machine is operating, never reach inside the hoop area to trim a thread tail. A moving pantograph can trap your hand against the needle bar in a fraction of a second. Always Stop or Pause before approaching the needle.

The Payoff: Shapes + Hole Sewing = Faster Digitizing and Cleaner Stitchouts

By mastering the Overlap and Shape tools in PE-DESIGN 11, you stop being a "passive clicker" and start being a "structural engineer" for your embroidery.

The result is tangible:

1. Flexibility: Your patches bend with the shirt.
2. Efficiency: Your machine runs faster with fewer unnecessary stitches.
3. Professionalism: Your edges (using that 4.0mm or optimized width) look deliberate and clean.

Start with the simple Name Tag project Terry demonstrated. Once you trust the "Hole Sewing" command, apply it to complex logos to instantly reduce bulk and thread usage.

FAQ

• Q: In Brother PE-DESIGN 11 Layout & Editing, why is “Modify Overlap → Set hole sewing” greyed out when layering a flower on a rectangle?
  A: The selection order is wrong or the objects are not truly both selected—select the top “cutter” first, then the bottom “dough.”
  • Click empty space to deselect everything.
  • Click the Flower (top object) first, then hold Ctrl and click the Rectangle (bottom object).
  • Go to Home → Modify Overlap → Set hole sewing.
  • Success check: the rectangle color behind the flower disappears, and the Sewing Order shows the rectangle as a “frame/stencil” with a gap.
  • If it still fails: right-click and Ungroup any grouped items (often text), then repeat the selection sequence.
• Q: In Brother PE-DESIGN 11 Layout & Editing, why did “Set hole sewing” cut the wrong object (a hole appears in the flower instead of the rectangle)?
  A: The objects were selected in the inverted order—undo and reselect with the top object first.
  • Press Ctrl+Z to undo immediately.
  • Click the Flower first (the “knife”), then hold Ctrl and click the Rectangle second (the “butter”).
  • Run Home → Modify Overlap → Set hole sewing again.
  • Success check: the rectangle becomes a background with a clean missing area where the flower sits.
  • If it still fails: confirm both objects show the dotted “marching ants” selection line before applying the command.
• Q: In Brother PE-DESIGN 11, how can users confirm “Hole Sewing” worked if there is no visible change on the screen after Modify Overlap?
  A: The hole may be there but hidden by identical colors—verify in Sewing Order instead of relying on color.
  • Change the top object (Flower) to a contrasting color before running Hole Sewing.
  • Open and watch the Sewing Order panel while applying Set hole sewing.
  • Look for the rectangle icon changing to a frame/stencil-like object with a white gap.
  • Success check: Sewing Order clearly shows a cutout area even if the canvas colors look unchanged.
  • If it still fails: re-run the selection steps and confirm both objects are selected at the same time.
• Q: In Brother PE-DESIGN 11 Sewing Attributes, what zigzag/satin border width should be used if the default outline looks too thin on a patch-style rectangle?
  A: Increase Zigzag/Satin Width in Sewing Attributes; 4.0 mm is a bold patch edge, while 2.5–3.0 mm is often a safer general range depending on scale.
  • Select the Zigzag/Satin Outline in the Sewing Order list.
  • Open Sewing Attributes and raise Zigzag/Satin Width (Terry demonstrates 4.0 mm).
  • Test a smaller width first if the design is delicate or small.
  • Success check: the border fully covers the edge cleanly without looking ropey or oversized for the design.
  • If it still fails: scale the design appropriately and re-check the border selection (outline vs region) in Sewing Order.
• Q: In Brother PE-DESIGN 11 Shapes tools, how do users draw a perfect square or perfect circle instead of an uneven rectangle or oval?
  A: Hold Shift while dragging a Rectangle or Circle shape to lock the ratio.
  • Choose Shapes → Rectangle or Shapes → Circle.
  • Click-and-drag, then hold Shift while dragging to constrain the geometry.
  • If an exact size is needed, type the final dimension in the Import tab after drawing.
  • Success check: the shape measures evenly (1:1) and looks geometrically true—no “egg” circle.
  • If it still fails: redraw using Shift first, then set the exact size numerically (instead of trying to freehand the final size).
• Q: What stabilizer and hooping method should be used so Brother PE-DESIGN 11 Hole Sewing alignment stays accurate on stretchy polo knits versus stiff twill patches?
  A: Match the material: stiff fabrics often work with tear-away and a drum-tight standard hoop, while stretchy knits need cut-away and neutral hooping (no stretching).
  • Choose tear-away for stiff canvas/twill/felt, and hoop “drum tight” (flick-test for a firm thump).
  • Choose cut-away for stretchy knits (polo/performance fabric) and hoop the fabric neutral (do not stretch).
  • Run a quick stitch test if the design has tight layering where the flower must land in the hole.
  • Success check: the flower stitches land centered in the cut area and the hole does not distort into an oval.
  • If it still fails: check hoop tightness, reduce fabric stretch during hooping, and consider pull compensation for the top shape (often 0.2–0.4 mm as a starting point).
• Q: What are the key safety rules before starting an embroidery stitch-out of a Brother PE-DESIGN 11 shape-based design on a Brother-compatible machine?
  A: Prevent injuries and ruined runs by checking needle/bobbin first and keeping hands out of the hoop area while the machine moves.
  • Install a fresh needle matched to fabric (ballpoint for knits, sharp for tough canvas) and confirm enough bobbin thread to finish the fill.
  • Keep one hand near the stop/pause control during the critical “top layer landing in the hole” section.
  • Never reach into the hoop area to trim thread tails while the machine is running—stop/pause first.
  • Success check: the machine runs smoothly through dense areas without deflection, and no hand comes near the moving pantograph/needle zone.
  • If it still fails: stop immediately, re-check hooping/stabilizer, and review the sewing order to ensure background fills were actually removed under top shapes.
