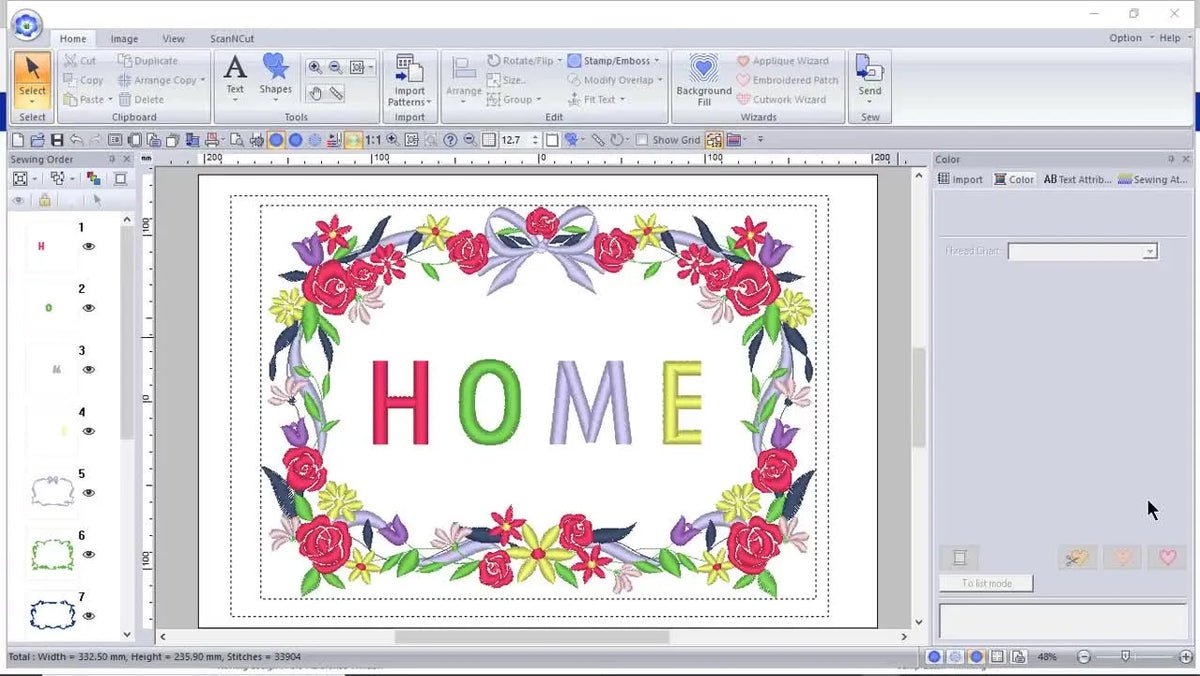

PE Design 11 Sewing Order Pane: The Calm, Fast Way to Dock It, Lock It, Optimize Colors, and Turn On Trim Scissors

If you have ever stared at your PE Design 11 screen and felt a cold pit in your stomach because the Sewing Order list—your command center—has vanished, you are not alone. I have watched seasoned digitizers lose twenty minutes of production time panic-clicking tabs, convinced their software is broken.

In the world of embroidery, software is the brain, but the machine is the brawn. If the brain is confused, the brawn fails—usually resulting in broken needles or the dreaded bird’s nest. This guide rebuilds a clean, production-ready workflow around the Sewing Order pane in PE Design 11. We will move beyond just "clicking buttons" to understanding why these settings prevent physical disasters on your machine.

The “Don’t Panic” Reset: Bringing Back the PE Design 11 Sewing Order Pane When It Vanishes

When the Sewing Order pane disappears, your ability to control the stitch sequence vanishes with it. Without this pane, you are flying blind—unable to see color stops or trim commands.

What to do:

1. Locate the 'View' Tab: Move your mouse to the top ribbon.
2. The Visual Check: Look for the Sewing Order checkbox. If it is unchecked, click it.
3. Physical Anchor: You should see the pane pop back onto the screen immediately.

What you should see (Success Metric):

• The Sewing Order pane reappears (usually on the left).
• Your design's "ingredients list" (colors, objects) is visible again.

Pro tip from the production floor: If you are working on a laptop or a smaller monitor, screen real estate is precious. Experienced digitizers often deselect the Stitch Simulator or Import panes when not in use. This prevents "Interface Claustrophobia"—allowing you to see the design details clearly without squinting, which reduces eye strain during long digitizing sessions.

Stop Fighting Floating Windows: Dock the Sewing Order Pane So It Stays Put

A floating pane covers your workspace, blocking your view of the actual design. It feels cluttered and chaotic, like a messy workbench where you can't find your scissors.

Fix it (The Snap Method):

1. Grab: Click and hold the title bar of the floating pane.
2. Drag: Pull it firmly toward the left edge of the screen until your cursor touches the side.
3. The "Snap": You will see a transparent shadow or outline appear. Release the mouse.
4. Alternative: Right-click the pane header and select Docking.

Sensory Check: You should feel the window "snap" into place, becoming a solid part of the interface wall rather than a floating nuisance.

Watch out: If you dock it and it still feels intrusive, do not close it. Instead, use the Auto-Hide feature (detailed below). This is equivalent to putting a tool back in its drawer but keeping the drawer slightly open.

The Flyout Trick Pros Use on Big Layouts: Auto-Hide (Pushpin) for Multi-Hooping Designs

When you are building massive layouts—especially designs that split across multiple frames—space is critical. This is relevant when you are preparing files for a project that requires a multi hooping machine embroidery strategy, where precise alignment marks must be visible on screen.

How to do it (Tactile Action):

1. Locate the Pushpin Icon in the top-right corner of the Sewing Order pane.
2. Click it. Watch the pane slide away to the left, leaving only a tab.
3. Hover: Move your mouse over the tab to verify it "flies out" momentarily.
4. Lock it: Click the pushpin again to dock it permanently when you need to do heavy editing.

Why this matters (Expert Insight): In professional digitizing, you constantly switch between "Macro View" (checking overall composition) and "Micro View" (adjusting nodes and density). Auto-hide allows you to visualize the entire jacket back or quilt block without interface obstruction.

Build Your “One-Click” Toolbar: Quick Access Customization That Saves Real Time

In embroidery, repetitive motion injury (RSI) is a real threat. Moving your mouse across the screen 500 times a day to find "Export" adds up to physical wrist fatigue.

The Ergonomic Fix:

1. Right-click anywhere on the ribbon area (the gray bar at the top).
2. Select Customize Quick Access Toolbar.
3. In the dropdown menu, select Commands Not in the Ribbon (this unveils the hidden tools).
4. Find your most-used tools (e.g., Export File, Center Design).
5. Click Add.

Expected Outcome:

• Your essential tools appear as tiny icons at the very top left of your window.

Efficiency Note: If you save just 3 seconds per file export, and you process 20 files a day, you save time. But more importantly, you save your wrist tendon. This creates a smoother workflow, allowing you to focus on the quality of the design rather than navigating menus.

Prep Checklist (Before You Touch the Design)

Complete these distinct checks to ensure your "digital workspace" is safe and ready.

• Visibility Check: Is the Sewing Order pane visible? (View > Sewing Order).
• Space Check: Switch to Auto-hide if your design is larger than your screen view.
• Ergonomic Check: Is your "Export" button in the Quick Access Toolbar?
• Safe State: Save your file as a working .pes file before you start reordering objects.

Selecting Like a Pro: Group Folders, Ctrl-Clicks, and Zooming Tiny Thumbnails

The Sewing Order pane is not a passive list; it is a surgical tool. Attempting to click a specific tiny stitch on the canvas often leads to selecting the wrong object or slightly shifting a layer, which causes registration errors (gaps between outlines and fill).

Selecting a Group (The Bucket Approach):

• Click the Folder icon in the pane. This grabs the entire component (e.g., the text "HOME"), ensuring you don't accidentally move just the letter 'H' and ruin the alignment.

Precision Selection:

• Hold Ctrl and click individual items in the list to select non-adjacent objects (e.g., the first and last flower, but not the leaves in between).
• Visual Anchor: Look for the "marching ants" (dotted bounding box) on the canvas to confirm selection.

Make it Readable:

• Click the Zoom icon inside the pane. Enlarging the thumbnails helps you distinguish between similar-looking parts, like a "left petal" versus a "right petal."






Troubleshooting "Frozen" Objects: If you click an object on the canvas and it won't move, you are likely clicking a Group when you think you are clicking an Object (or vice versa). Always look at the Sewing Order pane to see what is highlighted in blue. That is the truth of what you have selected.

Clean Up the Noise: Show by Color Order + Hide Objects Not Stitched

A messy file leads to disjointed embroidery. If your machine jumps from blue to red back to blue, you are wasting time and thread.

Show by Color Order:

• Click Show by Color Order. This collapses the list.
• Diagnostic Use: This instantly reveals if you have 4 different shades of "red" that look identical but will trigger 4 separate color stops on the machine.

Hide Objects Not Stitched:

• Click Hide Objects Not Stitched.
• This hides artwork, vectors, and placement lines that are not actual stitches.
• Why: It prevents you from accidentally trying to sequence or edit a background image that won't even be embroidered.




Expert Insight: Use "Show by Color Order" to diagnose efficiency, but switch it off when you need to see the exact layering sequence (which object sits on top of which).

The Safety Net: Hide and Lock Objects So You Don’t Accidentally Wreck Your Design

Nothing is more frustrating than perfecting a design, only to accidentally nudge a border 2mm to the right, ruining the symmetry.

The "Do Not Touch" Button (Lock)

1. Select the completed part of your design (e.g., the background fill).
2. Right-click in the pane and choose Lock.
3. Visual Check: A padlock icon appears. YOU CANNOT MOVE IT NOW.

Visibility Control (Hide)

• Click the Eye icon.
• Use this when working on dense, multi-layer designs. Hiding the top layers allows you to inspect the underlay stitching beneath without deleting anything.




Warning (Software Safety): If an object refuses to move, do not force it or drag it aggressively. Nine times out of ten, it is locked. Forcing it usually results in accidentally selecting a different unlocked object nearby and moving that one by mistake, creating a hidden alignment error you won't see until the machine stitches it out.

Reorder Without Regret: Sew First, Sew Next, Dragging, and the Optimize Sewing Order Button

Sequencing determines the flow of your machine. Poor sequencing causes excessive travel runs (long jump stitches) and unnecessary color changes.

Manual Control (Specific Layering)

• Right-click an object: Sew First (moves to background) or Sew Last (moves to foreground).
• Physics Check: Always sew from the center out, or background to foreground.


Automatic Optimization (The Commercial Standard)

1. Select All.
2. Click Optimize Sewing Order.
3. The Result: The software groups identical colors together.


Why this matters (Commercial Scalability): If you are running a single-needle machine, changing thread takes 60 seconds. Reducing changes from 10 to 4 saves you 6 minutes per design. However, if you operate brother multi needle embroidery machines, optimization is even more critical. These machines are built for speed. Jumping around colors defeats the purpose of the multi-needle head. An optimized file lets the machine run at top speed (800-1000 SPM) without pausing, maximizing your profit per hour.

Recolor Fast: Change an Entire Group (Like “HOME”) in One Move

Changing colors object-by-object is slow and prone to error.

1. Select the Group (Folder).
2. Click the new color in the palette.
3. Visual Confirmation: The entire word or design element updates instantly.


Pro Tip: If you change a color here, ensure you match it to the physical thread cone at your machine. The software screen is just a suggestion; the cone is reality.

Where the Scissors Are Hiding: Turn On Jump Stitch Trimming by Switching to Multi-Needle Settings

Many users panic because they cannot find the "Trim" (Scissors) command. This is often because PE Design defaults to a "Standard Machine" view which hides advanced commands.

The Fix:

1. Go to Design Settings (Flower icon > Design Settings).
2. Change Machine Type to Multi-needle (even if you own a single needle, this unlocks the UI features).
3. Select a generic large hoop (e.g., 360 x 360 mm).
4. Action: You will now see tiny Scissor Icons in the Sewing Order pane. Use these to force the machine to trim the thread after a specific object.






Physical Consequence: If you leave long jump stitches (no trim), your machine's presser foot can catch the loop on the next pass, ripping the fabric or breaking the needle. Enabling trims for jumps longer than 5mm is a standard safety practice.

Decision Tree: Fabric + Hoop Reality Check Before You Blame the File

A perfect software file will still fail if the physics of the hoop are wrong. Use this logic flow to diagnose issues before you stitch.

1. The Fabric Variable:
   • Is it stable (Denim/Towel)?
     • Action: Use Tearaway stabilizer. Standard hooping is fine.
   • Is it unstable (T-shirt/Knit)?
     • Action: You MUST use Cutaway stabilizer (2.5oz minimum). Consider a water-soluble topper to prevent stitches sinking.
2. The Hooping Variable (The "Hoop Burn" Problem):
   • Are you seeing shiny rings or crushed pile on velvet/towels?
     • Condition: Traditional plastic hoops require friction and high pressure.
     • Solution: This is the specific use case for a magnetic embroidery hoop. Magnetic force holds fabric evenly without the friction-burn of plastic rings.
3. The Production Variable:
   • Are you stitching 1 shirt or 50?
     • 1 Shirt: Standard hooping is acceptable.
     • 50 Shirts: Muscle fatigue becomes a factor. A magnetic hoop reduces wrist strain significantly.
4. The Machine Variable:
   • Single Needle vs. Multi-Needle?
     • Single: Don't over-optimize color changes if it creates dangerously long jumps.
     • Multi: Optimize aggressively.

The “Ungroup” Question Everyone Asks: Stitch File vs. Shape

PE Design treats "Shapes" (created in software) and "Stitches" (imported files like .DST) differently.

• To Edit an Imported File: You must convert it. Right-click -> Convert to Shapes / Divide by Color.
• The Risk: This can slightly alter density. Always inspect the design at 100% zoom after converting.
• Ungrouping: Holding Ctrl or Alt while clicking helps select nested objects within a stubborn group.

“My Brother PR1050X Won’t Read the USB File”: The PES Version Fix

Newer software saves in newer formats (e.g., PES v11). Older machines (or machines with older firmware) speak older languages.

The Compatibility Fix:

1. File > Save As.
2. Look at the "Save as type" dropdown.
3. Downgrade: Select PES version 9 or PES version 10. These are the "universal donors" of the embroidery world—almost all modern Brother machines read them reliably.

Practical Habit: If you sell designs or send them to a shop, always provide a v9 or v10 file to ensure compatibility.

The Upgrade Path (When Software Efficiency Meets Stitch-Out Reality)

You have optimized your file. The sewing order is perfect. But your production is still slow, or your results are inconsistent. Why? Because software cannot fix physics.

Once your digital workflow is clean, look at your physical workflow:

• The "Squintey Eye" Problem: If hooping creates alignment struggles, a hooping station for machine embroidery ensures your perfected software design actually lands straight on the shirt.
• The "Hooping Fatigue" Problem: For Brother Luminaire owners, the machine is powerful, but hooping large quilts is physically exhausting. magnetic hoops for brother luminaire use magnetic force to clamp thick layers instantly, removing the need to wrestle with screws.
• The "Slipping Fabric" Problem: Users of the Dream Machine often struggle with slippery satin or performance wear. A magnetic hoop for brother dream machine secures these tricky fabrics with even pressure, preventing the "flagging" (bouncing fabric) that causes bird's nests.
• The Production Bottleneck: If you are running a PR1050X, time is money. Standard cylinder frames leave gaps. Upgrading to specialized brother pr1050x hoops allows you to stitch securely on backs of caps, tote bags, and thick jackets that standard frames cannot handle.

Warning (Safety Alert): Magnetic hoops are industrial tools. They contain powerful neodymium magnets.
* Pinch Hazard: Keep fingers clear of the snapping zone. The snap is instantaneous and painful.
* Medical Safety: Keep magnets away from pacemakers and insulin pumps.
* Electronics: Do not place credit cards or phones directly on the magnet bars.

Setup Checklist (Right Before You Start Editing)

• Command Center: Sewing Order pane is visible and docked.
• Clarity: Thumbnails are zoomed in; you can identify the difference between a period and a comma.
• Filter: "Show by Color Order" is ON for optimizing, OFF for layering checks.
• Safety: Background elements are Locked.

Troubleshooting the Scary Stuff: Symptoms → Likely Cause → Fix

The Real Win: A Faster, Safer PE Design 11 Workflow

Mastering the Sewing Order pane is the difference between fighting the software and commanding it.

When you can reliably dock your tools, optimize your colors to save thread changes, and lock your background layers to prevent errors, you stop being a "user" and become a "digitizer." A clean Sewing Order leads to a clean stitch-out. And a clean stitch-out means fewer broken threads, less wasted fabric, and a much happier embroidery experience.

Warning (Operational Safety): When testing new trim settings, always watch the first run-through with your hand near the Stop button. If the machine misses a trim command, stop it immediately before the presser foot catches the jump stitch. Never put your hands inside the hoop area while the machine is moving.

Operation Checklist (Right Before Exporting)

• Sequence Scan: Scroll through the list—does the stitching logic hold up (Background -> Foreground)?
• Optimization: Have you clicked "Optimize Sewing Order" to group colors?
• Unlock: Are all necessary locks removed?
• Trims: Are trim commands (scissors) active on long jumps (over 5mm)?
• Compatibility: File saved as PES v9/v10 for the machine?
• Physical Prep: Correct stabilizer loaded for the specific fabric type?

FAQ

• Q: How do I restore the Sewing Order pane in Brother PE Design 11 when the Sewing Order list disappears?
  A: Turn the Sewing Order pane back on from the View tab—this is usually just a hidden checkbox, not a software failure.
  • Click View on the top ribbon.
  • Check Sewing Order (enable the checkbox).
  • Re-arrange other panes if the screen feels cramped (temporarily deselect panes you are not using).
  • Success check: The Sewing Order pane reappears (often on the left) and the color/object list is visible again.
  • If it still fails: Close and reopen the file, then repeat View > Sewing Order to confirm it is not simply off-screen.
• Q: How do I dock a floating Sewing Order pane in Brother PE Design 11 so it stops covering the design workspace?
  A: Dock the pane using the snap-to-edge method so it becomes a fixed part of the interface instead of a floating window.
  • Click-and-hold the pane title bar.
  • Drag the pane firmly to the left edge until a shadow/outline appears.
  • Release to snap it into place, or right-click the pane header and choose Docking.
  • Success check: The pane snaps and stays attached to the side, no longer drifting over the design area.
  • If it still fails: Use Auto-Hide instead of closing the pane to keep access without losing the tool.
• Q: How do I use Auto-Hide (pushpin) for the Sewing Order pane in Brother PE Design 11 when working on multi-hooping layouts?
  A: Click the pushpin to auto-hide the Sewing Order pane so you can see large layouts without the interface blocking alignment areas.
  • Locate the pushpin icon at the top-right of the Sewing Order pane.
  • Click the pushpin to auto-hide (it collapses into a tab).
  • Hover over the tab to make the pane fly out when needed.
  • Success check: The pane slides away and returns only when you hover, giving more canvas space.
  • If it still fails: Click the pushpin again to re-dock, then repeat the auto-hide step more slowly.
• Q: How do I enable jump stitch trimming (scissors icons) in Brother PE Design 11 when the Trim command is missing?
  A: Switch PE Design 11 to Multi-needle machine type to unlock the scissors (trim) icons in the Sewing Order pane.
  • Open Design Settings (Flower icon > Design Settings).
  • Set Machine Type to Multi-needle (this can be used even if the physical machine is single-needle).
  • Select a generic large hoop size (example shown: 360 × 360 mm).
  • Success check: Small scissor icons appear in the Sewing Order pane so trims can be inserted per object.
  • If it still fails: Confirm the setting actually saved, then reopen the design and re-check the Sewing Order pane for the scissors icons.
• Q: How do I fix a Brother PR1050X USB read error when the embroidery file was saved from Brother PE Design 11?
  A: Save the design as an older PES format (PES v9 or PES v10), because newer PES versions may not be readable on some machine/firmware setups.
  • Go to File > Save As.
  • In Save as type, choose PES version 9 or PES version 10.
  • Copy the newly saved file to the USB drive and try again.
  • Success check: The Brother PR1050X shows the design on-screen and allows selection without a USB/file error.
  • If it still fails: Re-save again explicitly as v9/v10 (not the default), and verify the USB is being read by the machine with another known-good design file.
• Q: How do I safely prevent bird’s nests and needle breaks caused by long jump stitches when using Brother PE Design 11 trim settings?
  A: Turn on trims for long jumps and supervise the first stitch-out with the Stop button ready—missed trims can let the presser foot catch a loop and break a needle.
  • Enable trim access (use Design Settings > Machine Type > Multi-needle if scissors are missing).
  • Add trims using the scissor icons in the Sewing Order pane where jumps are long (the guide notes over 5 mm as the safety practice threshold).
  • Watch the first run-through closely with your hand near Stop.
  • Success check: Long jumps are trimmed cleanly and the machine does not catch loops on the next pass.
  • If it still fails: Stop immediately and reduce risky jumps by adjusting the sewing order (manual reorder or Optimize) before re-testing.
• Q: How do I choose between standard hooping and a magnetic embroidery hoop when hoop burn or hooping fatigue keeps happening during production?
  A: Use a simple level-based decision: optimize hooping technique first, then consider a magnetic hoop for hoop-burn/fatigue, and only then consider a production machine upgrade if volume demands it.
  • Level 1 (Technique): Match stabilizer to fabric (stable fabrics can use tearaway; unstable knits require cutaway and may benefit from a topper) and verify hooping is not over-tightened.
  • Level 2 (Tool): If hoop burn (shiny rings/crushed pile) appears on towels/velvet or hooping causes wrist strain on batches, switch to a magnetic embroidery hoop to clamp evenly with less friction.
  • Level 3 (Capacity): If output is still limited after the file is optimized (color order, trims, locking), consider a multi-needle workflow for faster production.
  • Success check: Hoop marks reduce and fabric stays secure with fewer re-hoops; production time per piece becomes more consistent.
  • If it still fails: Re-check sewing order and trims first (software can still cause physical issues), then evaluate whether the hoop size/type matches the project.
