PE-Design 11 Photo Stitch That Actually Stitches Out Clean: The Settings, the Color Fix, and the Stabilizer “Sandwich” That Stops Buckling

Photo Stitching Masterclass: Transforming Pixels into Precision Embroidery with PE-Design 11

Photo Stitch can feel like magic—right up until you press "Start" and reality hits. The fabric buckles, the face turns a bruised purple, and your machine sounds like it’s chewing rocks.

If you are using Brother PE-Design 11, the difference between a ruined garment and a masterpiece isn't luck; it's physics. Photo stitch designs are incredibly dense. They require your machine, needle, and stabilizer to perform in perfect unison.

This guide rebuilds the popular video tutorial into a shop-floor standard operating procedure (SOP). We will move beyond "guessing" and into "engineering" your results, ensuring you understand the why behind every click and every hop.

The Photo Stitch Reality Check in Brother PE-Design 11: Pick a Photo That Won’t Betray You

Before you touch a single slider, you must pass the Source Material Audit. The most common cause of failure isn't the software; it is asking the software to interpret a bad photo.

The algorithm sees contrast, not emotion. If the photo is muddy, the stitch file will be a mess.

The "Safe Zone" Criteria for Beginners:

1. High Contrast: A black dog on a black sofa is a guaranteed failure. You need clear separation between subject and background.
2. Avoid "White-on-White": Blonde hair, white hats, or snow scenes translate poorly because the "canvas" (usually white thread or fabric) offers no contrast.
3. Crop Aggressively: Photo stitch is an artistic interpretation, not a 4K print. Crop to the face or the key focal point. Unnecessary background (ocean, trees) wastes thousands of stitches and increases the risk of puckering.

Pro Tip: If you are new to this, start with Grayscale or Sepia. This removes the complexity of color blending and allows you to focus purely on the structural mechanics of the stitch.

Image Tab + Image Tune in PE-Design 11: Sharpen First, Then Brighten, Then Warm the Skin

In PE-Design 11, the Image tab is your "Pre-Press" station. Do not skip this. You must manipulate the image data so the digitizing engine can read it clearly.

The Golden Workflow:

1. Import & Crop: Select Photo Stitch and isolate your subject.
2. Open Image Tune: This is where the magic happens.
3. Step A - Sharpness (The Anchor): Crank this up significantly. You want hard edges.
   • Visual Check: The image should look slightly "over-processed" or gritty on screen. This helps the needle define edges later.
4. Step B - Brightness: Nudge this up. Embroidery thread reflects light; muddy photos stitch out darker than they appear on a backlit monitor.
5. Step C - Warmth (v11 Feature): Increase warmth to reduce blue/cool tones.
   • Why: Cameras often capture shadows as cool gray/blue. If you don't warm the image, the software will literally stitch blue thread into a face, making the subject look bruised or dead.


Design Settings + Brother 8x14 Hoop (360×200 mm): Bigger Hoop, Better Resolution—No Shortcut Around It

The Physics of Resolution: In photo stitch, stitch count equals resolution. A small hoop (4x4 or 5x7) forces the software to compress details, turning a face into a blob.

The Strategy:

1. Open Design Settings.
2. Select the 360×200 mm (8×14) hoop (or the largest your machine allows).
3. Click Fit to Page.

The Friction Point: Large hoops create a large surface area of fabric that must be held under tension like a drum skin. If the fabric slips even 1mm, the photo lines won't match up.

This is where standard plastic hoops often fail—they struggle to grip thick stabilizer sandwiches without leaving permanent "hoop burn" rings on the fabric. Many professionals solve this by upgrading to magnetic embroidery hoops. These use powerful magnets to clamp the fabric without forcing it into a groove, preventing hoop burn while maintaining the extreme tension required for dense photo work.

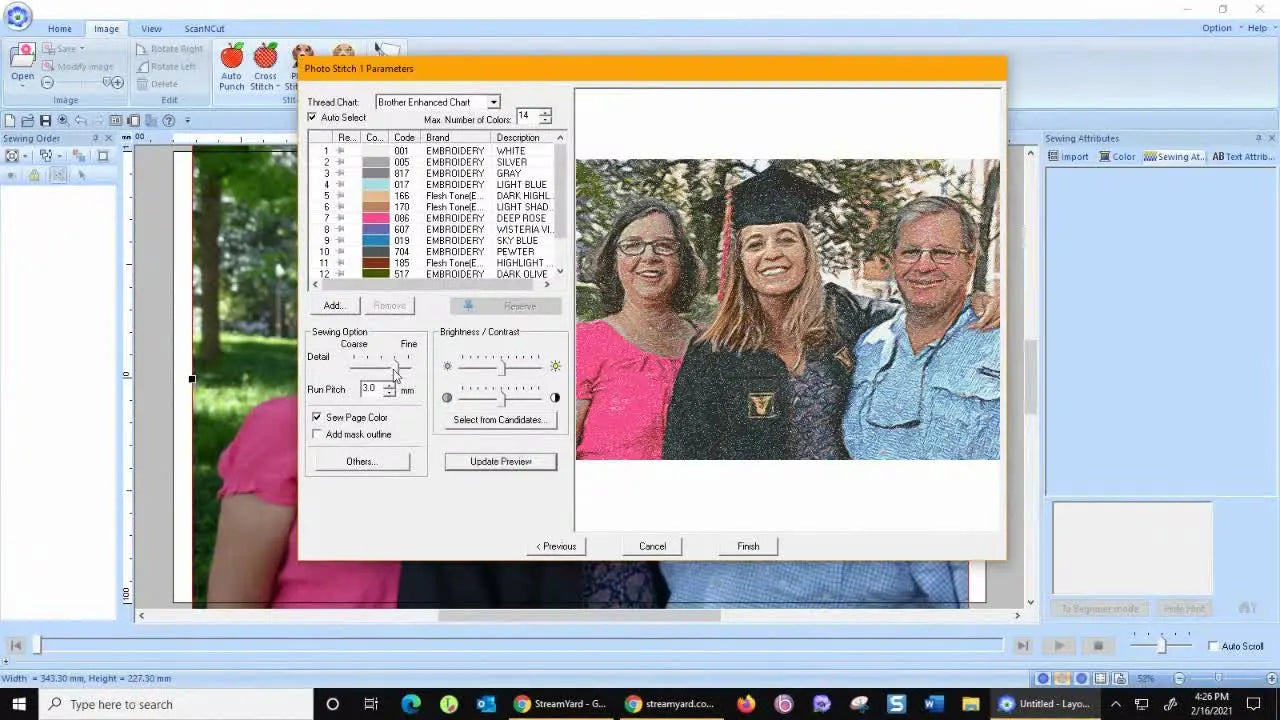

The Two Settings That Make or Break PE-Design 11 Photo Stitch: Detail (Fine) + Run Pitch 2.0 mm

This is the "Secret Sauce" from the video, but it comes with a physical cost you must manage.

The Settings:

• Detail (Density): Set to "Fine".
• Run Pitch (Stitch Length): Reduce to 2.0 mm.

The Consequence: These settings dramatically increase stitch count. A 2.0 mm run pitch means the needle is entering the fabric very frequently.

Warning: Mechanical Stress & Needle Heat
Denser designs generate significant friction. A hot needle can shred thread or melt synthetic fabrics.
* Speed Limit: Do NOT run your machine at max speed (e.g., 1000 SPM). Slow down to 500-600 SPM.
Auditory Check: Listen to your machine. A rhythmic thump-thump is good. A harsh, metallic clack-clack* means the needle is struggling to penetrate the dense areas. Change to a fresh needle (Titanium coated recommended) immediately.

Prep Checklist (Pre-Digitizing Protocol)

• Subject: Is the photo cropped to the essential focal point?
• Tones: Have you sharpened the image and added warmth to prevent "zombie" skin tones?
• Hoop: Are you using the largest available hoop (e.g., 8x14)?
• Needle: Is a fresh 75/11 or 80/12 Sharp/Topstitch needle installed? (Avoid ballpoint for photo stitch).
• Bobbin: Do you have a full, wound bobbin? (Photo stitch consumes massive amounts of bobbin thread).


Thread Charts, Color Count (12–14), and Why “Purple Lips” Are a Software Suggestion—Not a Requirement

The Logic: The software wants to match the pixel color exactly, even if that means picking a bizarre thread color. You are the editor; the software is just the drafter.

The Numbers:

• Target: 12–14 Colors.
• Why: Fewer than 10 loses depth. More than 15 yields diminishing returns and creates a "bulletproof vest" of thread buildup.

The "Purple Lip" Phenomenon: If the subject has a shadow on their lip, the software might grab a purple or dark grey thread.

• Action: Don't accept it. You can manually override these colors later in the sequence.
• Rule of Thumb: It is better to have a slightly less accurate shadow than a subject that looks like they ate a grape popsicle.


Speeding Up PE-Design 11 Editing: Stitch Preview vs Realistic Preview (So Your PC Doesn’t Crawl)

Photo stitch files are heavy. Rendering millions of virtual thread textures will choke even powerful computers.

• The Fix: Work in Stitch Preview (the skeletal view) mode.
• The Workflow: Only toggle Realistic Preview ON for a final visual check, then toggle it OFF immediately to resume editing.

Ergonomics Note: Photo stitch projects require intense focus during hooping and editing. If you find yourself constantly moving between your computer and machine, creating a dedicated workspace helps. Many shops pair a computer + machine area with a designated embroidery hooping station to standardize alignment and reduce back/wrist strain during the setup phase.

Divide by Color + Split Stitches in PE-Design 11: The Clean Fix for “Sunburn” Faces and Hot-Pink Patches

This is the advanced technique that separates amateurs from pros. When the software puts a "hot pink" patch on a cheek to represent a blush, it often looks like a rash.

The Surgical Fix:

1. Go to the Stitches tab.
2. Select Divide by Color.
3. Locate the problem color block in the Sewing Order.
4. Select the Split Stitches tool.
5. Trace: click around the specific area (e.g., the pink patch on the cheek) to isolate it. Double-click to close.
6. Re-Assign: Change that isolated patch to a "Flesh Tone" or "Linen" color that blends naturally.

Sensory Check: Look at the screen. Does the patch now blend, or does it sit on top like a sticker? If it looks like a sticker, proceed to the next step (Layering).

The “Layering” Secret: Sewing Order Matters More Than People Think in Photo Stitch

Embroidery is 3D layering. The first stitches laid down are the "background/base," and the last stitches are the "highlights."

If you isolate and recolor a part of the face (from Fig 07), the software might move it to the end of the sewing order.

• The Risk: Your "cheek fix" will stitch on top of the eyes or nose definition.

The Fix: Drag the re-colored layer back up in the Sewing Order panel. It needs to sit within the "mid-tones" of the face, not on top of the black detail lines defining the features.

Grayscale Photo Stitch in PE-Design 11: The Fast Win for Elegant Results (and Fewer Color Headaches)

If you are frustrated with color matching, switch to Grayscale.

• Why it works: It relies purely on light and shadow (Luminance), ignoring hue.
• Thread Economy: You still use 10-12 shades of gray/black/white, but you will never have to worry about a "green cast" on a face.
• Aesthetic: It looks like a vintage etching or sketch.
• Materials: Stitch this on white Kona cotton for high contrast, or off-white for a Sepia tone.


Exporting Files from PE-Design 11: Use Export (Not Open) When You Need Other Machine Formats

A quick housekeeping rule:

• Images are manipulated in the Design Page.
• Stitch Files (.PES, .DST, .JEF) are created via the Export function.

Do not try to "Save As" an image. You are exporting machine logic instructions.

The Stabilizer “Sandwich” for Dense Photo Stitch: Fusible Interfacing + Water-Activated Stiff Stabilizer (No Tear-Away)

This is the most critical section. 90% of photo stitch failures happen because the stabilizer choice was wrong.

Photo stitch creates thousands of needle perforations. If you use Tear-Away, you are effectively creating a "perforated stamp." The design will punch itself out of the stabilizer, the fabric will buckle, and the registration will drift.

The "Bulletproof" Sandwich Recipe:

1. Layer 1 (On Fabric): Iron on a Fusible Interfacing (like SF101) to the back of the fabric. This prevents the fabric weave from distorting.
2. Layer 2 (The Foundation): Use a Heavy Cutaway or a stiff Water-Activated Adhesive Stabilizer.
   • Technique: Bond the fabric to this stabilizer completely. There must be zero movement.

Warning: Magnetic Safety
If you follow the pro tip of using a magnetic hoop for brother machines to hold this thick sandwich, handle them with care. These magnets are industrial strength.
* Pinch Hazard: Keep fingers clear when snapping the frame shut.
* Medical Devices: Keep strong magnets away from pacemakers.

Decision Tree: Select Your Stabilizer Strategy

What the Finished Piece Tells You: Photo Stitch Is Often Better as “Home Décor,” Not Apparel

Because of the massive thread count and heavy stabilization required, the final result will be stiff—almost like a piece of cardboard.

Manage Expectations:

• Do: Frame it, use it for throw pillows, tote bag panels, or quilt squares.
• Don't: Put a large photo stitch on the middle of a lightweight t-shirt. It will sag and feel uncomfortable against the skin.


Fix the Three Most Common Photo Stitch Failures: Slow Preview, Buckling, and Weird Skin Tones

Use this troubleshooting table to diagnose issues quickly.

The Upgrade Path When Photo Stitch Becomes a Product (Not a One-Off): Hooping Speed, Jump-Stitch Labor, and Multi-Needle Reality

Once you master the technique, you might start selling these (pet portraits are a huge market). At that point, your bottlenecks will shift from quality to time.

The "Volume" Problem:

1. Thread Changes: A single-needle machine requires you to manually change the thread 12-14 times per photo. This kills productivity.
2. Jump Stitches: Photo stitch generates hundreds of jump stitches. Manual trimming can take 20 minutes per portrait.

The Solutions (Commercial Integration):

• Level 1: Efficiency (Hooping): If you are struggling to get consistent tension on repeat jobs, a hooping station for embroidery ensures every pillow or canvas is centered exactly the same way, saving minutes per unit.
• Level 2: Speed (Framing): To reduce "hoop burn" returns and speed up the loading of thick stabilizer sandwiches, many pros search for magnetic embroidery hoops. The magnetic clamp is faster than screwing and unscrewing traditional hoops and holds thick layers securely.
• Level 3: Scale (The Machine): When you have orders for 10+ portraits, a single-needle machine becomes the bottleneck. This is when upgrading to a multi-needle machine (like the SEWTECH ecosystem compatible models) makes financial sense.
  • Why? You set up 12 colors at once. The machine automatically trims the hundreds of jump stitches. You press start and walk away.

Operation Checklist (The "Don't Ruin It Now" List)

• Hoop Tension: Tap the fabric. does it sound like a drum? (Crucial!)
• Speed: Is the machine speed set to Medium (approx 600 SPM)?
• Observation: Watch the first 1000 stitches. If loops appear, re-thread immediately.
• Jump Stitches: If your machine doesn't auto-trim, do you have curved micro-tip scissors ready?
• Hidden Consumables: Do you have Spray Adhesive (e.g., 505) to bond the stabilizer, and a lint roller to clean the fuzz from the machine bobbin case after such a dense project?

Follow these physics-based rules, and you will turn the "magic" of photo stitch into a repeatable, high-quality process.

FAQ

• Q: In Brother PE-Design 11 Photo Stitch, what causes a portrait face to stitch out purple/blue (“bruised” or “zombie” skin tones)?
  A: Increase Warmth in Image Tune before re-digitizing, because cool camera shadows often convert into blue/purple stitches in the face.
  • Open Image Tune and adjust in order: Sharpness first, then Brightness, then Warmth.
  • Re-create the Photo Stitch after the Image Tune changes (don’t just recolor after stitching is generated).
  • Success check: On-screen preview should show warmer mid-tones in cheeks/forehead instead of gray-blue casts.
  • If it still fails: Use Divide by Color + Split Stitches to isolate the problem facial patch and reassign it to a more natural thread color.
• Q: In Brother PE-Design 11 Photo Stitch, how do you fix “sunburn” cheeks or hot-pink facial patches without ruining the rest of the portrait?
  A: Use Divide by Color and Split Stitches to surgically isolate the patch, recolor it, then place it correctly in the Sewing Order.
  • Go to the Stitches tab and click Divide by Color to find the offending color block in Sewing Order.
  • Use Split Stitches to trace only the cheek/lip patch, then Re-Assign it to a softer flesh/linen tone.
  • Drag the recolored patch back into the mid-tone area of the Sewing Order so it doesn’t sit on top of eyes/nose detail.
  • Success check: The patch blends into surrounding skin tones and does not look like a “sticker” on top of facial detail.
  • If it still fails: Revisit Image Tune (especially Warmth) and re-digitize to reduce extreme color blocks at the source.
• Q: For Brother PE-Design 11 Photo Stitch, what stabilizer stack prevents puckering and buckling on dense portrait designs?
  A: Use a “no-movement” stabilizer sandwich—fusible interfacing on the fabric plus heavy cutaway or stiff water-activated adhesive stabilizer; avoid tear-away alone.
  • Iron Fusible Interfacing onto the back of the fabric to stop weave distortion.
  • Bond the fabric fully to Heavy Cutaway or Water-Activated Adhesive Stabilizer so nothing can shift during stitching.
  • Avoid Tear-Away alone on photo stitch (dense perforations can cause the design to punch out and drift).
  • Success check: After hooping, tap the hooped area—fabric should feel tight and stable, with no rippling at the edges.
  • If it still fails: Re-check that the fabric is truly bonded (zero slip) and reduce machine speed to lower stress during dense areas.
• Q: In Brother PE-Design 11 Photo Stitch, how do you prevent gaps or white lines showing through dark areas of a portrait?
  A: Treat gaps/white lines as movement or shrinkage—improve holding power and slightly increase pull compensation if needed.
  • Strengthen stabilization and hooping so the fabric cannot pull inward during dense stitching.
  • Use a stronger holding method if the fabric sandwich is thick and tends to slip.
  • Adjust Pull Compensation slightly if the design is consistently exposing fabric in dense dark regions.
  • Success check: Dark fills look continuous with minimal “railroad” white channels when viewed at normal viewing distance.
  • If it still fails: Re-hoop with better tension and confirm the stabilizer is not shifting or tearing under needle perforations.
• Q: In Brother PE-Design 11 Photo Stitch, what is the safest machine speed and needle choice to reduce needle heat, thread shredding, and harsh “clack-clack” sounds?
  A: Slow down to about 500–600 SPM and run a fresh 75/11 or 80/12 Sharp/Topstitch needle (titanium-coated often helps) for dense photo stitch.
  • Reduce speed instead of forcing high-speed stitching through “Fine” detail density and 2.0 mm run pitch.
  • Install a fresh sharp-style needle; avoid ballpoint for photo stitch.
  • Stop immediately if the sound turns harsh/metallic and change the needle before continuing.
  • Success check: The machine produces a steady rhythmic “thump-thump” and thread runs cleanly without fraying.
  • If it still fails: Re-thread top and bobbin, confirm bobbin is full, and consider simplifying density settings if the fabric is heat-sensitive.
• Q: When using an industrial-strength magnetic embroidery hoop for dense Brother PE-Design 11 Photo Stitch stabilizer sandwiches, what safety precautions prevent pinch injuries and device risks?
  A: Treat magnetic hoops like industrial clamps—keep fingers clear when closing and keep strong magnets away from pacemakers and sensitive medical devices.
  • Keep fingertips out of the closing path when “snapping” the frame shut.
  • Close the hoop slowly and deliberately, especially with thick stabilizer stacks.
  • Store and handle magnets away from medical implants and devices.
  • Success check: The hoop closes smoothly without finger contact and the fabric remains evenly clamped with no shifting.
  • If it still fails: Re-seat the layers and close again—never force alignment with fingers between the magnets.
• Q: For selling PE-Design 11 Photo Stitch portraits, how do you choose between workflow tweaks, magnetic hoops, and a multi-needle machine when production time becomes the bottleneck?
  A: Use a tiered upgrade path: first standardize hooping and preview workflow, then improve framing speed/consistency with magnetic hoops, then move to a multi-needle machine when thread changes and trimming dominate labor.
  • Level 1 (Technique): Work in Stitch Preview to avoid PC lag, slow to medium speed, and watch the first 1000 stitches for early thread/loop issues.
  • Level 2 (Tooling): Use faster, more consistent framing methods when thick stabilizer sandwiches cause slipping or hoop-burn complaints.
  • Level 3 (Capacity): Upgrade when 12–14 manual thread changes and heavy jump-stitch trimming per portrait are limiting daily output.
  • Success check: Repeat jobs load faster, run with fewer stops, and deliver consistent alignment without re-hooping.
  • If it still fails: Track where time is spent (hooping vs thread changes vs trimming) and upgrade the single biggest bottleneck first.
