PE-DESIGN 11 New Features That Actually Change Your Stitch-Outs: Photo Masking, Echo Fills, Random Shift, and Custom Stitches

If you’ve ever upgraded embroidery software and thought, “Okay… but will this actually make my stitch-outs cleaner, faster, or more sellable?”—you’re not alone. PE-DESIGN 11 has a handful of changes that do translate into better results on fabric, especially if you digitize photos, build quilt-style backgrounds, or want fills that don’t look like a sterile computer pattern.

This article rebuilds the video into a shop-floor workflow: what to click, what to watch for, what “good” looks like, and where people usually get burned.

Calm the Panic: PE-DESIGN 11 Isn’t “Magic,” But These Features Save Real Time

PE-DESIGN 11 (shown as version 11.21 on launch) is still the same core ecosystem—Layout & Editing, wizards, sewing attributes—but the updates in this video focus on reducing extra steps and adding texture control.

Two mindsets matter here:

• Hobby mindset: “I want it to look cool once.”
• Production mindset: “I want it to look consistent 50 times, with fewer test runs.”

Even though the video is software-focused, the end goal is always physical: stable fabric, predictable stitch paths, and fewer surprises at the machine.

The “Hidden” Prep Pros Do Before They Touch Photo Stitch 1 or Background Fill Wizard

Before you start clicking wizards, do the prep that prevents 80% of ugly results later. Most software errors are actually physics errors waiting to happen.

Prep checklist (do this before you digitize)

• Confirm Workspace: Check your page/hoop workspace (the video uses 200 × 300 mm). If you digitize in the wrong size, your density calculations will be off.
• Define the End Use: Is this for a quilt block (flat) or a hoodie (stretchy)? Your fill choices must match the fabric structure.
• Physical Test: Pick one “test fabric” and stick with it.
• Hooping Strategy: If you’re digitizing for garments, remember the real bottleneck is often hooping—not software. A stable hooping method (and, for many shops, a hooping station for embroidery setup) is what makes your “perfect file” stitch perfectly.
• Consumables Check: Have you checked your needle tip? Run your finger over it; if it catches your skin, it will shred your thread. Ensure you have temporary spray adhesive or the right stabilizer ready.


Photo Stitch 1 Background Masking: Cut the Subject Cleanly Without Leaving PE-DESIGN 11

The video’s first practical win is inside Photo Stitch 1 Wizard: you can remove a background using the Clipping Mask tool, instead of bouncing to an external photo editor.

What the video does

1. Open Photo Stitch 1 Wizard.
2. Choose Clipping Mask.
3. Click points around the subject (the example is a French Bulldog) to create a cut-out path.
4. Watch for the visual cue: the area outside your selection turns white/transparent, meaning the background is excluded.

Expected outcome

• Your subject is isolated cleanly enough for embroidery conversion.
• You’ve reduced “background noise” that would otherwise become messy stitches.

Pro tip (experience-based)

Photo masking is not about perfection at 800% zoom—it’s about preventing the software from interpreting background gradients as stitchable detail. If you leave too much background, you’ll get extra texture where you don’t want it, and it will fight your stabilizer later.

Background Fill Wizard Echo Fill & Stippling: Quilt Texture Without Guessing the Numbers

If you do quilting-style embroidery, backgrounds are where designs either look “premium” or “cheap.” The Background Fill Wizard is built to create stitch textures around a selected object.

What the video does (Echo Fill workflow)

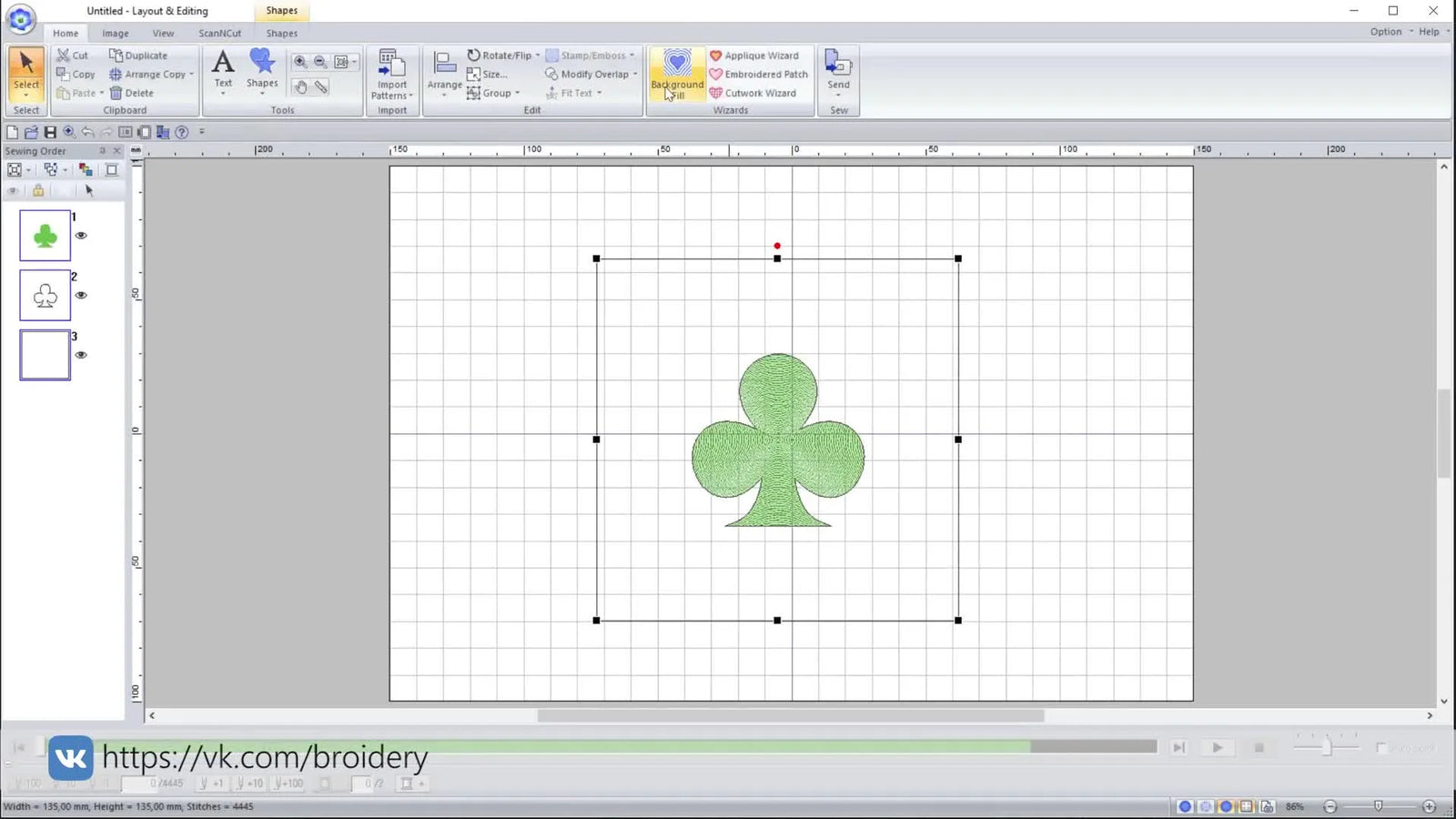

1. Select a central object (the video uses a green club/clover shape).
2. Open Background Fill Wizard.
3. Choose Echo Fill.
4. Adjust sewing attributes to control the ripple effect.

The video shows concrete settings in the fill parameters:

• Run pitch: 2.0 mm (Note: Short stitches create smoother curves but take longer).
• Spacing: 5.0 mm (Note: A safe "sweet spot" ensures the fabric remains flexible).
• Density (region sew attributes): 4.5 line/mm


What “good” looks like

You should see concentric lines radiating around the object, filling the hoop area or a specified region.

Setup checklist (before you commit to the fill)

• Anchor Check: Check that your central object is truly the “anchor” of the composition. If it’s off-center, your echoes will look accidental.
• Spacing Verification: Start with the video’s spacing numbers. 5.0 mm is a safe "sweet spot." Keep spacing above 3.0 mm for thick batting.
• The "Drum" Test: When hooped, the fabric should sound like a tight drum when tapped gently. If it sounds dull or loose, dense backgrounds will cause puckering.

Watch out (common shop mistake)

Echo and stippling fills can look gorgeous on screen and still pucker on fabric. In real stitching, the background fill is a large-area stitch field that pulls fabric inward towards the center. Generally, you’ll need appropriate stabilization (often a Cutaway for stability) and hooping tension.

If you’re doing a lot of garment work and you’re tired of hoop burn or inconsistent clamping, a magnetic embroidery hoop can be a practical upgrade path—especially when your designs include large background textures that punish sloppy hooping.

Stitch Direction Curves on Fill/Tatami: Make the Light “Flow” Instead of Looking Flat

PE-DESIGN 11 improves control over stitch direction by letting you manipulate a manual curve line with multiple points. This changes how light reflects off the thread.

What the video does

1. Select a fill (the example is a bear shape).
2. Use the manual curve guide line.
3. Drag the Bezier control points to curve the stitch angle across the object.

The video also shows a fill density example on the bear:

• Density: 2.0 line/mm (cover stitch settings example)


Expected outcome

Straight stitch lines become curved, creating a more dimensional, “sculpted” look.

Built-in safety behavior (from the video)

If curve points are set incorrectly (mechanically impossible), the program returns them to the original valid position.

Why this matters in real embroidery

Curved direction lines aren’t just aesthetics. They can:

• Reduce harsh “split lines” where stitch angles collide.
• Help fills lay flatter by distributing pull in a more balanced way.

If you digitize logos for production, this is one of those small controls that separates “home software results” from “shop-ready results.”

Flexible Spiral Stitch: The Fastest Way to Fake Depth (When You Move the Center Point)

The video demonstrates a new fill type: Flexible Spiral Stitch.

What the video does

1. Change the fill type to Flexible Spiral Stitch.
2. Move the spiral’s center point (focal point) away from the object’s center.

Expected outcome

You get an asymmetrical spiral convergence that can read as a subtle 3D effect—especially on floral or rounded shapes.

Pro tip (production reality)

Spiral fills are sensitive to fabric distortion because the stitch path is continuous and directional. If your hooping is inconsistent, the “center” can visually drift after stitching.

For shops running repeat garment orders, the upgrade isn’t only software—it’s repeatable hooping. If you’re using Brother machines and want faster, more consistent clamping, a magnetic hoop for brother is often chosen specifically to reduce hooping variability on knits and midweight garments.

Decorative Fill + Random Shift 80%: Turn a Computer Pattern Into an Organic Texture

Uniform geometric fills can scream “digitized.” PE-DESIGN 11 adds a Random Shift control that distorts decorative fill motifs.

What the video does

1. Apply a repeating decorative fill (the example uses geometric triangles).
2. In Sewing Attributes, increase Random Shift.
3. The video sets Random Shift to 80%.


Expected outcome

The clean grid becomes irregular—more hand-stitched, less mechanical.

The “why” (expert insight)

Random Shift works best when the base pattern is simple enough that your eye recognizes repetition. By displacing nodes, you break the visual rhythm.

Watch out (quality control)

Too much distortion can create:

• Awkward gaps or overlaps in the motif.
• Uneven stitch density in localized areas (bird nesting risks).

When you plan to sell products, do a test stitch on your actual fabric. What looks “organic” on screen can look “messy” on a textured knit.

Convert Satin or Text to Running Stitch Outline: Cleaner, Lighter, and Easier to Edit

This is one of the most practical features in the video: converting a region (including text) from satin/fill into an editable line.

What the video does

1. Select a text object (example: “Happy”) or a motif.
2. Use the right-click menu or Shapes tab.
3. Convert the region into Running Stitch / Line.

Expected outcome

Solid block letters become thin outlines.

Why shops love this

• Running stitch outlines can reduce bulk on lightweight fabrics.
• Outlines can be easier to register cleanly than wide satin columns.
• It’s a fast way to create a “sketch” style without redigitizing.

If you’re building designs for small hoops or small text (under 5mm), this conversion can be the difference between readable and “thread blob.”

Warning: Monitor Your Machine Speed. When you switch from satin to running stitch, you’re changing how the thread sits on fabric. Running stitches have less grip. Always slow down (try 500-600 SPM initially) and test first—needle strikes, thread breaks, or trimming accidents happen most often when operators rush a new stitch type.

Arrange Copy + Merge Overlapping Shapes: Build Complex Motifs From Simple Geometry

The video briefly shows a workflow that matters for digitizers who build decorative elements quickly.

What the video does

1. Use Arrange Copy.
2. Enable Merge Overlapping Shapes.


Expected outcome

Multiple copies become a single merged object, allowing you to form complex wreath-like shapes from simple ones.

Pro tip (digitizing logic)

Merged shapes reduce the “object management tax.” Fewer separate objects often means:

• Cleaner sequencing.
• Less chance of accidental overlaps.
• Faster edits later.

Stitch Design Factory: Create Custom Programmable Stitches You Can Reuse

For advanced users, the Stitch Design Factory is where PE-DESIGN 11 starts to feel like a creative tool, not just a converter.

What the video does

1. Open Stitch Design Factory.
2. Draw a stitch pattern node-by-node on a grid.
3. Preview how the line repeats.
4. Save as a custom .pmf or .pcf file for use in the main program.

Expected outcome

You create a reusable stitch “recipe” that can be applied like a built-in decorative stitch.

Operation checklist (before you save and stitch)

• Sharp Turn Check: Preview the repeating run. Look for sharp direction changes that create an acute angle; these are weak points for thread breaks.
• Complexity Guard: Keep early patterns simple; complexity scales fast once you apply it to real shapes.
• Version Control: Save versions (v1, v2, v3) so you can roll back after a stitch test.
• Fabric Match: If you plan to stitch this on garments, test on the same fabric + stabilizer combo you’ll sell.

Wireless Transfer: Nice Convenience—But Don’t Let It Hide Workflow Bottlenecks

The video mentions wireless transfer for owners of embroidery machines with wireless data transmission.

Wireless is convenient, but in real shops it rarely fixes the true time sinks:

• Hooping and alignment.
• Thread changes and trims (this is where multi-needle machines shine).
• Rework from unstable fabric.

If you’re scaling beyond hobby volume, your biggest gains usually come from repeatable setup and faster hooping. For example, many Brother users pair consistent hooping methods with magnetic embroidery hoops for brother to reduce clamp time and operator fatigue—especially when running textured backgrounds like echo fills.

Warning: Magnetic Safety. Magnetic frames are powerful tools, but high-strength magnets can affect medical implants and pinch fingers hard. Keep magnetic hoops away from pacemakers/implants, store them away from electronics and magnetic-sensitive items, and never let two frames snap together uncontrolled.

Quick Decision Tree: Choosing Stabilization Strategy for Echo/Stippling Backgrounds

Use this as a practical starting point. Fabric behavior varies, so treat it as a “first test” map.

Decision Tree

1) Is the fabric stretchy (knit, jersey, performance wear)?

• Yes: Use a stable hooping method and a Cutaway backing (2.5oz or similar). Consider adding a water-soluble topper if the surface is textured.
• No: Go to 2.

2) Is the fabric lightweight or delicate (prone to "hoop burn" marks)?

• Yes: Avoid standard plastic hoops if possible. Reduce aggressive clamping, test lighter stabilization, and avoid over-dense backgrounds.
• No: Go to 3.

3) Is the background fill large-area (echo/stippling across most of the hoop)?

• Yes: Increase stabilization (possibly double layer) and test spacing first (the video’s 5.0 mm spacing is a sensible baseline).
• No: Standard stabilization is often sufficient.

If your biggest pain is “I can digitize it, but I can’t hoop it cleanly,” that’s the moment to evaluate tooling. Many shops move to magnetic embroidery frames when they need faster loading and more consistent fabric tension across repeats.

Troubleshooting the One Scary Moment in the Video: “Invalid” Curve Points That Snap Back

The video calls out one specific behavior: curve points that are set incorrectly will return to their original position.

The Upgrade Path That Actually Pays Off: Match Software Features to Hooping Speed and Production Volume

PE-DESIGN 11 helps you create better files—but your profit (or your free time) is usually lost at the machine.

Here’s a practical way to think about upgrades:

• Level 1 (Technique): If you’re doing occasional personal projects, focus on mastering Echo Fill, curve direction, and satin-to-running conversions. Use the checklists above to minimize frustration.
• Level 2 (Tooling): If you’re stitching for customers, your bottleneck is repeatability. When hooping becomes the step you dread, accessories become a necessity, not a luxury. Many Brother owners look for brother pe800 magnetic hoop options to solve hooping pain, reduce wrist strain, and eliminate "hoop burn."
• Level 3 (Scale): If you are consistently running orders of 20+ items, even the best single-needle setup will struggle. This is when professionals look at high-value multi-needle platforms (like SEWTECH machines) to handle the volume that good software enables.

And if you’re still learning how to handle magnets safely and consistently, start with a controlled routine—how to use magnetic embroidery hoop practices are all about repeatable placement, clean fabric tension, and keeping your hands safe.

FAQ

• Q: In Brother PE-DESIGN 11 Photo Stitch 1 Wizard, how do I remove a photo background using Clipping Mask without creating messy “background noise” stitches?
  A: Use the Clipping Mask to isolate only the subject so the wizard does not convert background gradients into stitches.
  • Open Photo Stitch 1 Wizard and choose Clipping Mask.
  • Click points around the subject to close a clean cut-out path.
  • Stop chasing perfection at extreme zoom; prioritize removing obvious background areas that would turn into texture.
  • Success check: the area outside the selection turns white/transparent, and only the subject remains visible as the target.
  • If it still fails… simplify the selection (fewer points, smoother outline) and re-mask before converting to stitches.
• Q: In Brother PE-DESIGN 11 Background Fill Wizard Echo Fill, what are safe starting settings for run pitch, spacing, and density to avoid puckering on quilt-style backgrounds?
  A: Start with the video’s baseline settings, then test on real fabric because large-area backgrounds pull fabric inward.
  • Set Run pitch to 2.0 mm, Spacing to 5.0 mm, and Density (region sew attributes) to 4.5 line/mm.
  • Verify the central object is positioned as the true anchor before generating the echoes.
  • Keep spacing above 3.0 mm when using thick batting as a safe starting point.
  • Success check: the echo lines look evenly concentric around the object on-screen, and the hooped fabric passes the “drum test” (tight, crisp sound when tapped).
  • If it still fails… reduce background aggressiveness and increase stabilization (often Cutaway is used for stability), then re-test.
• Q: How do I know the hooping tension is correct for dense echo or stippling backgrounds in Brother PE-DESIGN 11 stitch-outs before I waste a full test run?
  A: Do a quick hooping tension verification before stitching, because dense background fields magnify small hooping errors.
  • Tap the hooped fabric lightly and listen for a tight “drum” sound.
  • Re-hoop if the fabric sounds dull/loose, especially for large-area echo or stippling fills.
  • Match the stabilization choice to the fabric type (knits usually need more stable support, often Cutaway).
  • Success check: the fabric surface looks flat and evenly tensioned in the hoop with no slack zones, and the drum test sounds tight.
  • If it still fails… decrease fill coverage/spacing intensity first, then reassess stabilizer strength and hooping method.
• Q: In Brother PE-DESIGN 11 Fill/Tatami stitch direction curves, why do manual curve points snap back to the original position and how do I stop it?
  A: The curve points snap back when the curve becomes mathematically invalid, so keep the curve gentler and use fewer nodes.
  • Drag Bezier control points less aggressively and avoid extreme bends.
  • Remove extra points and redefine the stitch direction with fewer, smoother curve nodes.
  • Re-check the curve after each small adjustment instead of making one large move.
  • Success check: the curve stays in place after releasing the mouse, and the stitch direction preview shows a smooth flow across the fill.
  • If it still fails… reset the guide and rebuild the curve with fewer points from a clean starting position.
• Q: In Brother PE-DESIGN 11 Decorative Fill, is Random Shift 80% safe, and what should I do if the texture becomes messy or risks bird nesting?
  A: Random Shift 80% can work for an organic look, but reduce it if the pattern starts creating uneven density or ugly distortion.
  • Apply the decorative fill first, then increase Random Shift gradually and preview the result.
  • If the motif shows awkward gaps/overlaps, back Random Shift down (the blog suggests 20–40% as a corrective range).
  • Stitch a small test on the actual fabric because screen texture can turn into “messy” thread on knits.
  • Success check: the fill looks less grid-like while still evenly covered, with no obvious voids or stacked overlaps in the motif.
  • If it still fails… simplify the base pattern and re-test before committing to a sellable run.
• Q: In Brother PE-DESIGN 11, how do I convert satin text to a running stitch outline without causing thread breaks or poor stitch control at the embroidery machine?
  A: Convert the object to a running stitch outline, then slow the machine down for the first test because running stitches have less grip than satin.
  • Select the text/object and convert the region into Running Stitch/Line using the program’s conversion option.
  • Reduce machine speed for the first run (the blog suggests starting around 500–600 SPM).
  • Inspect the needle tip and replace it if it catches your skin, because damaged tips shred thread.
  • Success check: the outline stitches cleanly without thread shredding, trimming accidents, or skipped segments, and the text stays readable (especially on small sizes).
  • If it still fails… slow down further and re-check needle condition and thread path before re-testing.
• Q: What magnetic embroidery hoop safety rules should embroidery operators follow when switching from standard hoops to magnetic frames for repeat garment hooping?
  A: Treat magnetic hoops as high-force tools: prevent pinches, avoid medical/electronic risks, and control how frames come together.
  • Keep magnetic hoops away from pacemakers/medical implants and store them away from electronics and magnetic-sensitive items.
  • Keep fingers clear of the closing zone and never let two frames snap together uncontrolled.
  • Build a consistent handling routine so placement stays repeatable without rushing.
  • Success check: the frame closes in a controlled way without finger pinches, and the fabric seats evenly without sudden shifts.
  • If it still fails… stop and reset the setup calmly—rushed handling is the main cause of pinches and mis-hooping with strong magnets.
• Q: For Brother PE-DESIGN 11 users making echo fills, curved stitch directions, and photo stitches, when should embroidery operators stay with technique fixes versus upgrading to magnetic hoops or multi-needle machines?
  A: Use a tiered decision: technique first, tooling when hooping is the bottleneck, and multi-needle when order volume overwhelms a single-needle workflow.
  • Level 1 (Technique): refine masking, spacing/density, and stitch direction curves to reduce rework and test runs.
  • Level 2 (Tooling): move to magnetic frames when hoop burn, inconsistent clamping, or hooping fatigue becomes the repeatability limiter.
  • Level 3 (Scale): consider multi-needle production when running consistent orders around 20+ items and thread-change time becomes a major drag.
  • Success check: the chosen level reduces the real bottleneck (fewer re-hoops, fewer re-stitches, and more consistent results across repeats).
  • If it still fails… identify the slowest step (hooping, thread changes, or rework from instability) and address that step before changing anything else.
