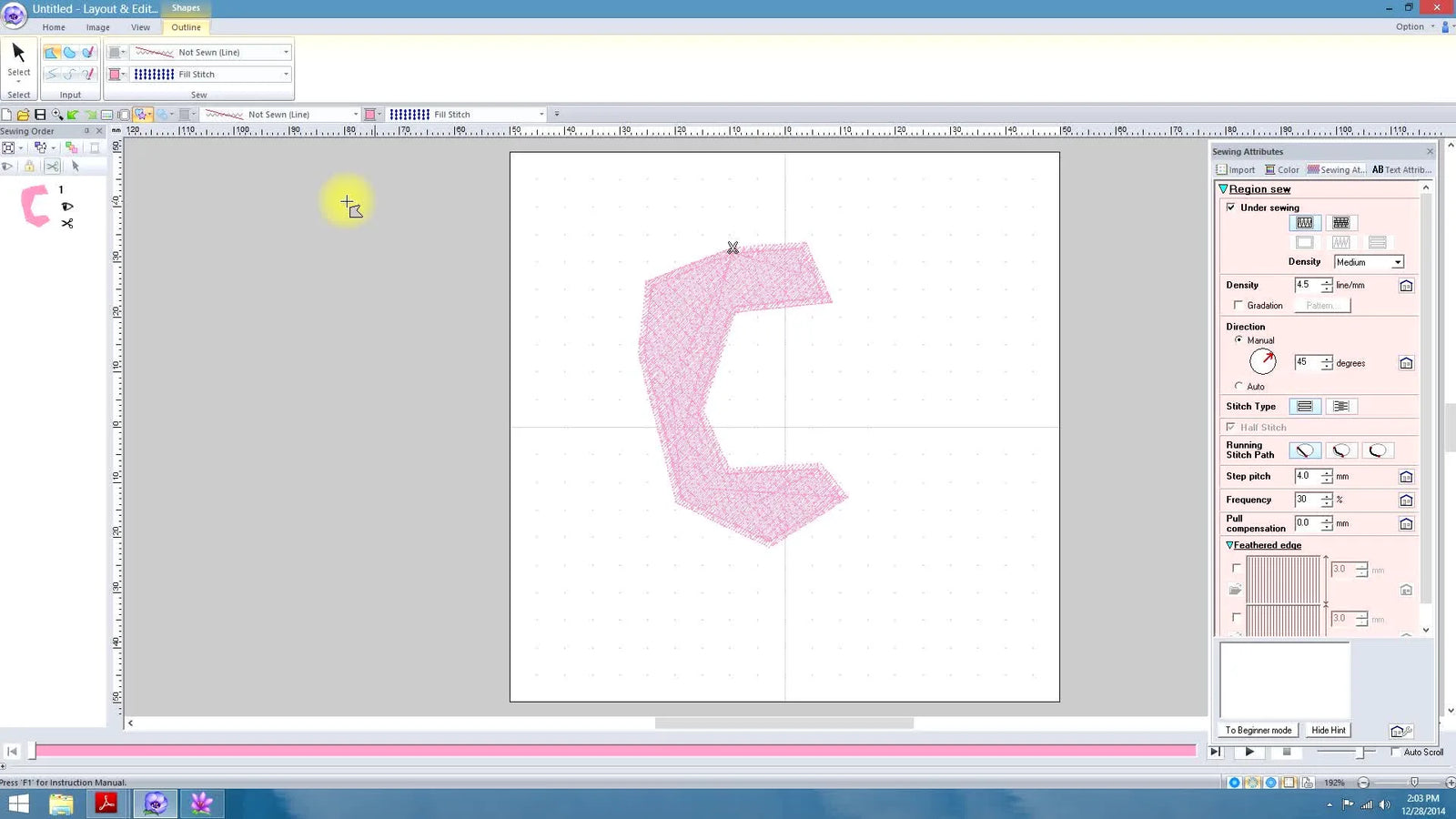

PE-Design 10 vs PE-Design Next: The Upgrade Wins on Direction Lines—But DST Imports Can Bite You

If you have ever upgraded your embroidery software, sat down with a coffee, and immediately thought, "Why did they move everything… and why does my trusty file suddenly look like a mess?"—you are experiencing a very specific type of panic. It’s the friction between your muscle memory and a new interface logic.

The good news? The core lesson from the video is accurate: PE-Design 10 introduces genuinely production-saving tools (specifically Direction Lines and Quick Outlines). The bad news? The workflow for importing DST files can turn a simple edit into a “click-fest” if you don’t know the secret handshake.

This guide rebuilds Lesson 1 into a clean, repeatable Standard Operating Procedure (SOP). I won’t just tell you what to click; I will explain the physics of why it matters to your machine, your needle, and your profit margin.

Don’t Panic: PE-Design 10 vs PE-Design Next Is Mostly a “Where Did They Put It?” Problem

Upgrading from PE-Design Next (or older versions like v6/v7) can feel like someone rearranged your entire workshop while you slept. The hammers aren't where the hammers used to be. Kathleen is very clear in the video: most changes are improvements, a few are frustrating, and the learning curve is 90% about tool location.

If you are watching on a small screen (tablet/iPad), the fast toggling between PE-Design 10 and Next in tutorials can be disorienting.

• The Fix: Treat this lesson as two separate mental sessions. Watch once for PE-Design 10 mechanics only. Ignore the "comparison" segments unless you are nostalgic.

The Reality Check: PE-Design 10 is not a “lightweight” app. It is a full digitizing environment. You cannot learn it by clicking randomly. You need to build a mental map.

• Sensory Anchor: Think of the software like driving a new car. The pedals (digitizing logic) work the same, but the dashboard buttons (interface) constitute the new language you must learn.


The Click-Saving Habit: Build a PE-Design 10 Quick Access Toolbar That Matches Your Brain

The video starts with the single most high-ROI (Return on Investment) move you can make: customizing the Quick Access Toolbar.

Why does this matter? In embroidery, "friction" kills profit. Every time you have to click through three tabs to find "Hoop Size," you break your flow.

The Protocol (PE-Design 10):

1. Locate the command you use constantly (e.g., the purple flower icon for Design Settings).
2. Right-click it.
3. Select Add to Quick Access Toolbar.
4. Verify the icon appears in the top-left header bar.

What belongs on your toolbar? Kathleen recommends Set Hoop Size and the Shapes menu. I would add:

• Modify Overlap (Crucial for preventing bulletproof patches).
• Sewing Attributes (Your control center for density).

The Commercial Connection: This "reduce clicks" mindset is exactly the same logic used in high-volume production. If you are running physical production on brother multi needle embroidery machines, you know that shaving 10 seconds off a hoop change adds up to hours over a week. Software efficiency must mirror hardware efficiency. If your digitizing is fast but your hooping is slow, you still have a bottleneck.

Prep Checklist (The "Clean Slate" Protocol):

• Verify Version: Are you actually in PE-Design 10? Check the splash screen.
• Identify the "Big 3": Pick the three tools you use every single session.
• Declutter: Do not add everything. A crowded toolbar is just as bad as a hidden menu.
• Test: Click your new shortcuts. Do they open the window you expect, or just a submenu?


The One-Icon Shapes Menu in PE-Design 10: Faster Than Tabs Once You Accept the Two-Click Reality

PE-Design 10 consolidates shape tools under a single Star/Heart icon.

• The Action: Click the icon -> Dropdown appears -> Select Rectangle/Circle.
• The Cost: Two clicks instead of one.

Kathleen’s point is subtle: You were already doing two clicks in previous versions—they were just spread across selecting a tab and then selecting a tool.

Expert Insight: If you do a lot of geometric construction—like creating Applique Placement Lines or Patch Borders—this consolidated menu is superior. It clears screen real estate for what matters: your workspace. Place this consolidated icon on your Quick Access Toolbar, and your muscle memory will adapt within 50 repetitions.

Remove Overlap in PE-Design 10: Clean Fills, Fewer Bulges—But Watch Zigzag Double-Sewing

Overlap management is the difference between a flexible, soft embroidery and a "bulletproof" stiff patch that breaks needles.

The Workflow:

1. Create two overlapping filled shapes.
2. Select both.
3. Go to Modify Overlap -> Remove Overlap.
4. Result: The software deletes the stitches of the bottom layer only where the top layer covers it.

The Hidden Trap: The video highlights a critical nuance: Zigzag outlines may still double sew.

• The Physics: An outline is a separate "object" from a fill. Removing the fill overlap does not automatically delete the outline running underneath.
• The Consequence: If you have two satin stitch borders stacking on top of each other, you create a "hard spot." When the needle hits this spot at 800 SPM (Stitches Per Minute), it may deflect, hit the hook plate, and snap.
• The Fix: You must manually edit or trim the outline of the underlying shape if they overlap perfectly.

Commercial Application: If you are building designs for corporate logos on left-chest polos, mastering overlap is non-negotiable. Excess density causes "puckering"—where the fabric ripples around the design.

Stitch Attributes in the PE-Design 10 Shapes Tab: “Not Sewn” Is the New Sanity Button

In older versions, turning off a fill or outline was a toggle hunt. PE-Design 10 introduces the Not Sewn dropdown.

The Meaning of "Not Sewn":

• Select an object.
• Go to Attributes.
• Set Line Sew to Not Sewn.
• Set Region Sew to Not Sewn.

This effectively turns the object into a "Ghost Object"—it exists in the file for your reference, but the machine will ignore it.

Why use this?

• Knockdown Stitch Guides: Create a shape to plan your knockdown area, but keep it "Not Sewn" until you are ready to generate the actual stitching.
• Alignment Marks: Draw a box to represent a pocket location. Keep it "Not Sewn" so you don't accidentally stitch a black box on a shirt.

Hidden Consumable Tip: When testing these attributes, always keep a water-soluble pen nearby. Mark your fabric manually to verify that your digital "Not Sewn" lines align with physical reality.

The Feature That Justifies the Upgrade: Multiple Direction Lines in PE-Design 10 Fill Stitches

This is where PE-Design 10 justifies its price tag. This feature allows a standard Fill Stitch (Tatami) to behave like a complex manual turn.

The Mechanics:

1. Select a Fill Stitch object.
2. Select the Edit tool.
3. Right-click the object -> Add Direction Line.
4. Draw a line indicating the angle of the thread.
5. Repeat. You can add multiple lines.

The "Why" (Physics of Embroidery): Thread has "lustre" (shine). Light reflects differently depending on the angle of the thread. By curving the direction lines, you create a dynamic, organic look (like liquid or animal fur) rather than a flat, mechanical block.

Structural Integrity: More importantly, direction lines control Push/Pull Compensation. Fabric shrinks in the direction of the grain and stretches in the direction of the stitch.

• Without Direction Lines: A large fill pulls the fabric in one uniform direction, warping the garment.
• With Direction Lines: You can distribute the tension around curves, neutralizing distortion.
• Application: If you stitch on structured items like caps, directional control is vital. The fabric on a cap curve is under immense tension; fighting that tension with straight fill stitches leads to gaps.


Right-Click Outlines in PE-Design 10: Add Running Stitch or Zigzag Borders Without Rebuilding the Shape

This is a pure speed feature.

• Action: Select a fill -> Right-Click -> Select Running Stitch or Zigzag from the context menu.
• Old Way: You had to duplicate the shape, turn off the fill, turn on the outline, and align it.
• New Way: Instant border.

Use Case: Quilting outlines. A commenter asked if this works for quilting effects. Yes. You can create a "Redwork" style design instantly by taking a filled shape, converting it to an outline, and deleting the fill.

The Green “X” Trick: Moving the Radial Stitch Center in PE-Design 10 Without Hunting Menus

Radial stitches (starbursts) rely entirely on where the center point sits.

The Workflow:

1. Select the Edit Tool.
2. Click the object.
3. Locate the small Green X.
4. Drag it.

The Safety Warning (The "Donut" Principle): When you move the center of a radial stitch, you are bunching hundreds of start/stop points into one location.

• The Danger: If the center hole is too small (or non-existent), you create a "bird's nest" of thread. This hard knot can break needles or suck the fabric down into the needle plate hole.
• The Fix: Always leave a tiny open circle (a donut hole) in the center of radial designs, or ensure your Underlay covers the center so the needle doesn't hammer the same spot 50 times.


Density Up to 14.0 in PE-Design 10: Puffy Foam Potential, Real Risks, and When to Back Off

Kathleen notes that density can now go up to 14.0 (software unit value). This is aimed at 3D Puff (Foam) embroidery, which requires high density to "cut" the foam and cover the sidewalls.

The "Sweet Spot" Analysis:

• Standard Density: Usually around 4.5 to 5.0 lines/mm (software dependent).
• Foam Density: Needs to be almost double the standard to cover the foam color.

The Danger Zone: Just because you can go to 14.0 doesn't mean you should.

• Friction: High density creates massive friction. The needle heats up.
• Thread Breaks: Hot needles melt polyester thread.
• Fabric Destruction: If you put 14.0 density on a t-shirt, you will cut a hole in the shirt just like a postage stamp perforation.

Warning: High-density settings increase needle heat dramatically. Use a Titanium-coated needle (keeps cool) and slow your machine speed down (e.g., 600 SPM) when stitching super-dense foam fills.

“Where Are My Scissors?” Turn On View Thread Trimming and Confirm Multi-Needle Mode

Trims are the invisible time-killers.

• Action: View Tab -> Check View Thread Trimming.
• Visual: Look for small scissor icons on your workspace.

Why it matters: If you see a scissor icon every 5mm, your design is inefficient. The machine will slow down, cut, move, tie in, and speed up constantly. This adds minutes to run time.

• If you are building files for the brother pr680w, seeing these trims allows you to optimize your pathing before you export. You want one fluid line, not a series of stops and starts.


The DST Import Headache in PE-Design 10: “Convert to Block” Works, But Segmentation Can Explode

This is the most technical part of the lesson. A DST file is a "dumb" machine file—it only knows X/Y coordinates, not shapes.

The Challenge: When you import a DST into PE-Design 10 and select Convert to Block, the software tries to guess the original shapes.

• PE-Design Next: Tended to group large areas into single blocks. Easier to edit globally.
• PE-Design 10: Tends to fragment design into tiny, separate blocks for every stitch direction change.

The Strategy:

• Scenario A (Quick Resizing): If you just need to resize a DST slightly, don't convert to blocks. Leave it as stitch data and recalculate from there.
• Scenario B (Deep Edit): If you must convert, be prepared to use the Merge tool to combine those fragmented segments back together, or accept that you will be selecting 50 objects to change the color of one flower.


The “Open the Program First” Rule: Avoid Accidental Version Lock-In When You Run Multiple PE-Design Versions

A golden rule from the comments section: Never double-click a file to open it.

The Protocol:

1. Open PE-Design 10 (or Next) from your Start Menu.
2. Go to File -> Open.
3. Select your design.

Why: Windows File Associations are easily confused. If you double-click, it might open in the newest version installed. If you hit "Save," you might inadvertently save it as a "Version 10" file, making it unreadable if you later try to open it on a coworker's older laptop.

Setup Checklist: A Clean PE-Design 10 Workspace Before You Touch a Single Node

Professional results start with a standardized environment. Do this before every session.

Setup Checklist:

• Hoop Verification: Is the on-screen hoop set to the actual hoop you hold in your hand? (e.g., if using brother pr680w hoops, ensure the screen matches the specific frame size).
• Quick Access Check: Are "Shapes," "Hoop," and "Overlap" visible in the header?
• Grid Check: Is the grid set to 10mm (1cm)? This helps you visualize physical size instantly.
• Trim Visibility: Toggle "View Thread Trimming" ON.
• Fabric Check: Have you set the "Design Settings" -> "Fabric Selector" to match your actual material? (This adjusts default density automatically).


Decision Tree: Choose Stabilizer Like a Digitizer (Because Software Fixes Can’t Save Bad Support)

Software settings (like Density) are intimately linked to your Stabilizer choice. No amount of direction lines will save a design if the foundation is weak.

Decision Tree (Fabric + Design Density = Stabilizer Choice):

1. Is the fabric stretchy (Knit/Performance)?
   • YES: Use Cutaway (No exceptions). Mesh Cutaway for light shirts, Heavy Cutaway for hoodies.
   • NO: Proceed to step 2.
2. Is the design high density (20,000+ stitches or Foam)?
   • YES: Use Heavy Cutaway or Double Tearaway. A single layer will perforate and fail.
   • NO (Standard wovens/Caps): Tearaway is acceptable.
3. Is hooping difficult (Velvet, thick seams, backpacks)?
   • YES: Avoid crushing the fabric with standard hoops. Consider upgrading to magnetic embroidery frames. They hold uneven thickness without creating "hoop burn" (shininess marks).

Warning: If you upgrade to Magnetic Hoops, be aware they use powerful neodymium magnets. Keep them away from pacemakers and medical implants. Keep fingers clear of the "snap zone" to avoid painful pinches.

Comment-Driven Reality Checks: Dongles, Card Reader Prompts, and “Do I Need Previous Versions?”

Three technical hurdles identified in the community discussion:

1. The Dongle is Key: You cannot run PE-Design 10 without the security USB stick. It is your license. Do not lose it.
2. The Upgrade Path: If you bought an "Upgrade" version, the installer may check for your old card reader or dongle to verify eligibility.
3. Compatibility: Yes, you generally need to own a license for a previous version to use an "Upgrade" pack, otherwise you must buy the "Full" version.


The Upgrade Path That Actually Saves Time: Pair Software Efficiency With Physical Workflow Efficiency

Optimizing software clicks is step one. But if you save 5 minutes digitizing and lose 15 minutes fighting with a hoop, your business isn't growing.

Here is how to diagnose if you need a Tool Upgrade versus a Skill Upgrade:

• Trigger (The Pain): You have optimized your file in PE-Design 10, but your machine downtime is high because hooping perfectly straight takes you too long.
• Criteria (The Math): If you are spending more than 2 minutes hooping a shirt, or if you ruin 1 in 10 shirts due to crooked alignment or hoop burn.
• Options ( The Solution):
  • Level 1 (Home/Hobby): Use magnetic embroidery hoops for brother. They float the fabric, eliminating hoop burn and making adjustments instant.
  • Level 2 (Production): If you run 50+ shirts a week, a hoopmaster hooping station ensures perfect placement every time. However, many shops search for how to use magnetic embroidery hoop systems precisely because they are faster than screw-tightened hoops, even without a station.

Operation Checklist: A Repeatable “Test Sew” Routine for PE-Design 10 Changes

When you use the powerful new features of PE-Design 10 (Dynamic Direction Lines, High Density), you enter "Experimental Territory." You must follow a safe testing protocol.

Operation Checklist (Pre-Flight for New Designs):

• The "Zoom" Check: Zoom in to 400% on Direction Lines. Are there sharp, jagged angles? Smooth them out to prevent thread breakage.
• The "Overlap" Audit: Right-click outlines, check for double-sewing under fills.
• Consumable Match: Use the exact same needle (e.g., 75/11 Ballpoint for knits) and backing for your test as you will for the final run.
• The Sound Check: Listen to the test sew. A rhythmic "hum" is good. A harsh "thump-thump" means your density is too high or your needle is dull.
• Density Safety: If using 14.0 density for foam, did you slow the machine down to 600 SPM or less?

By mastering the software and the physics of the machine, you turn PE-Design 10 from a confusing upgrade into a precision instrument. Happy stitching.

FAQ

• Q: How do I stop PE-Design 10 Direction Lines from causing thread breaks when editing fill stitches?
  A: Smooth Direction Lines before testing—sharp angle changes often translate into harsh stitch direction shifts.
  • Zoom to 400% and inspect every Direction Line curve before saving.
  • Edit jagged corners into smoother transitions, especially on tight curves and small fill areas.
  • Test sew using the same needle type and stabilizer planned for production.
  • Success check: The machine sound stays a steady “hum” without rhythmic thumping, and the fill shows even sheen with no random breaks.
  • If it still fails… reduce aggressiveness of direction changes and re-check overlap/density interactions in the same area.
• Q: Why does PE-Design 10 Remove Overlap still double-sew zigzag or satin outlines on overlapping shapes?
  A: Remove Overlap deletes overlapping fill stitches, but outlines are separate objects and may still stitch on top of each other.
  • Run Modify Overlap → Remove Overlap on the filled shapes first.
  • Identify border objects (zigzag/satin outlines) that sit under another border and manually trim/edit the underlying outline.
  • Re-check the stitch order so stacked borders are not hitting the same path twice.
  • Success check: The finished border area feels flexible (not “bulletproof”) and the needle does not hammer or deflect at border intersections.
  • If it still fails… simplify borders (use one outline) or reduce density in the border area and re-test sew.
• Q: How do I use PE-Design 10 “Not Sewn” to keep alignment boxes or placement guides from stitching out?
  A: Set Line Sew and Region Sew to “Not Sewn” so the object stays in the file but the machine ignores it.
  • Select the guide object, open Attributes, set Line Sew → Not Sewn.
  • Set Region Sew → Not Sewn to prevent accidental fills.
  • Keep a water-soluble pen nearby and mark the fabric to confirm the digital guide matches real placement.
  • Success check: The guide object remains visible on screen but does not appear as stitches in the stitch simulator/output.
  • If it still fails… confirm you changed both Line Sew and Region Sew, and re-check the object you selected (not a different layer).
• Q: How do I move the PE-Design 10 radial stitch center using the Green X without causing bird’s nesting at the center point?
  A: Move the Green X carefully and keep a small open “donut hole” (or ensure underlay support) so the needle does not hammer one point repeatedly.
  • Select the Edit tool, click the radial object, and drag the Green X to the new center.
  • Avoid placing the center on a tiny solid point with no relief; leave a small open circle in the middle.
  • Test sew the center area first if the design is dense or small.
  • Success check: The center does not form a hard knot, and the fabric does not get pulled down into the needle plate.
  • If it still fails… enlarge the center opening or adjust the structure so the center is not receiving excessive start/stop stacking.
• Q: When PE-Design 10 density is increased up to 14.0 for 3D puff, how do I reduce needle heat and thread breaks safely?
  A: High density can overheat needles—slow the machine and use a Titanium-coated needle when running super-dense foam.
  • Set machine speed down (for example, around 600 SPM) for super-dense foam areas.
  • Switch to a Titanium-coated needle to help the needle run cooler.
  • Avoid using extreme density on delicate fabrics like t-shirts where perforation can occur.
  • Success check: No melted polyester thread, fewer break alarms, and the fabric is not cutting out like a perforated stamp edge.
  • If it still fails… back off density from the extreme setting and re-test; excessive density may be the root cause even with speed reduction.
• Q: How do I turn on PE-Design 10 View Thread Trimming, and what does “too many scissors icons” mean for multi-needle production?
  A: Turn on View Thread Trimming to spot time-wasting trims—dense clusters of scissor icons usually mean slow, stop-start stitching.
  • Go to the View tab and enable View Thread Trimming.
  • Scan the design path: if scissor icons appear every few millimeters, expect longer runtime and more tie-ins.
  • Adjust pathing/edit objects to reduce unnecessary stops before exporting.
  • Success check: Fewer trim icons and a more continuous stitch path, with reduced stitch time on the machine.
  • If it still fails… re-check for tiny isolated objects/segments created during imports or conversions and merge/simplify them.
• Q: Why does PE-Design 10 DST Import “Convert to Block” create many tiny segments, and what is the best workflow for resizing versus deep editing?
  A: DST is stitch-only data—PE-Design 10 may fragment it during Convert to Block, so choose the workflow based on the goal.
  • For quick resizing: avoid Convert to Block and keep the DST as stitch data when possible.
  • For deep edits: use Convert to Block, then plan to Merge fragmented pieces back into larger editable sections.
  • Expect heavy clicking if the design explodes into many small blocks after conversion.
  • Success check: A single intended change (like one color or one area) can be edited without selecting dozens of tiny objects.
  • If it still fails… abandon block conversion for that file and treat it as stitch data, or re-import and retry with a different edit plan.
