PE Design 10 “Split at Point”: Turn Any Closed Shape Into a Clean Open Outline (Without Redrawing Everything)

If you’ve ever painstakingly drawn a “perfect” shape in PE Design 10, only to realize two minutes later that you actually needed an open outline—not a closed object—you know the sinking feeling. It’s annoyance mixed with the urge to delete everything and start over.

Don’t delete it.

Embroidery digitizing is an "experience science." Newcomers often treat software like a drawing program, but veterans treat it like a blueprint for a machine. The Split at Point tool is one of those critical features that bridges the gap between a digital drawing and a physical stitch path. It lets you surgically cut a closed outline at a specific node, reshaping the ends into an open path exactly as Sue demonstrates in the video.

The Calm Truth About PE Design 10: Nothing “Broke,” You Just Changed the Physics

When you successfully use Split at Point, the first thing you’ll notice is visually dramatic: the fill color instantly disappears.

For a beginner, this looks like a glitch. For a pro, this is confirmation.

Here is the steadying reality: In the physics of digitizing, software treats shapes as either "Buckets" (Closed) or "Pipes" (Open).

• Closed Shapes hold water (fill stitches).
• Open Shapes let water flow out (outline/run stitches only).

In the video, Sue shows that this tool converts the Bucket into a Pipe. Once that boundary is broken, the software can no longer mathematically calculate a fill region, so it removes it. If you are learning from bite-sized lessons like this, you are on the right track—understanding why the machine reacts this way is more valuable than just memorizing which button to click.

The “Hidden Prep” Before You Click: Setting Up for Clean Stitching

Before you split any node, you need to ensure your "digital blueprint" is clean. Splitting a messy, node-heavy outline will result in a messy stitch file that causes your machine to stutter or slow down.

A quick note from a production perspective: PE Design shapes can look smooth on screen, but the node structure (the little black squares) determines how the machine moves. Too many nodes = machine vibration and loud stitching.

Prep Checklist (Digital Hygiene):

• Layer Check: Confirm you are selecting the outline object (not a background image or a hidden underlay layer).
• Gap Strategy: Decide precisely where the opening should be. (e.g., If you are stitching a "C" shape for a logo, place the gap where the font naturally breaks).
• Simplify: If the shape has 50 nodes but only needs 10, run a "cleanup" or delete extra nodes before splitting. Fewer nodes = smoother satin stitches later.
• Backup: Save a copy of your file. Once an object is split, re-joining it perfectly can be tedious.
• Consumable Check: Keep a notebook or water-soluble pen handy to mark your physical fabric where the split design will land—digital precision needs physical references.


Draw the Closed Shape: The Foundation of Good Digitizing

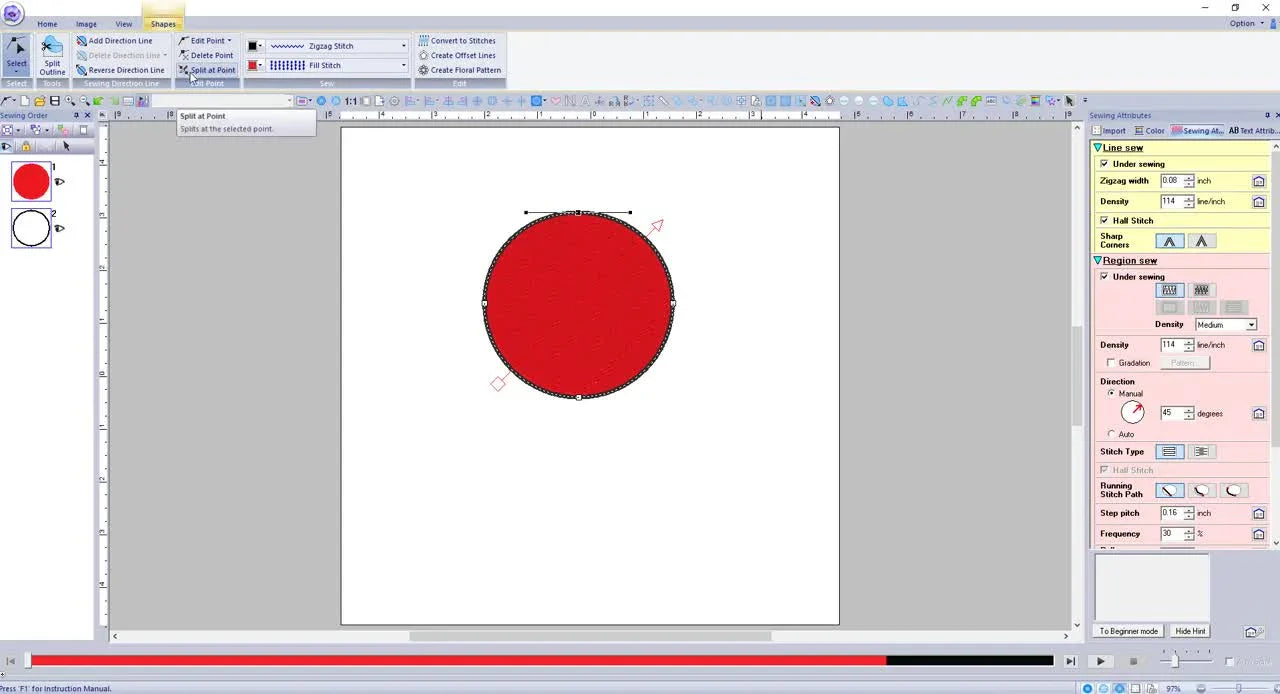

Sue starts with a simple circle, and this is the perfect training ground.

1. Select the Shapes Tool.
2. Tactile Tip: Hold down the Shift key on your keyboard while dragging. You should feel the immediate "lock" on the screen—this constrains the proportions to create a perfect geometric circle rather than an oval.

You will see a shape with a red fill and a black outline. This is a "Closed Object."

Node Mode That Actually Works: Select Point is the Gatekeeper

This is the step most people skip, leading to the "grayed out button" frustration. You cannot tell the software to cut a line if you haven't told it which point to cut.

1. Click the Select Point tool (often called “node mode” by digitizers).
2. Visual Anchor: Look for the change in the wireframe. The large sizing handles (black squares on the corners) will disappear, replaced by tiny points along the line itself.

Sue mentions a crucial limitation: In this mode, you can move points to reshape the curve, but the "loop" is still closed. You are just stretching the rubber band, not cutting it.

The Exact Workflow: How to Cut the Line (Level 2 Action)

This is the core operation. Follow these micro-steps to ensure the software accepts the command.

1. Select the Victim: With Select Point active, click one specific node where you want the cut to happen.
   • Sue clicks the single node at the absolute top of the circle.
   • Sensory Check: The node should change color (usually to black or blue depending on your theme) to indicate it is the active target.
2. Navigate to the Shapes tab on the top ribbon.
3. Locate and click the Split at Point icon (it looks like a knife cutting a line).
4. The Result:
   • Visual: The red fill vanishes. You are left with a black outline.
   • Logic: This is not a bug. Your "Bucket" is now a "Pipe."

If you are preparing this file for a brother embroidery machine, this software-side control is vital. Brother machines are excellent at reading .PES files, but they interpret jump stitches relative to start/stop points. By splitting the node here, you are manually telling the machine: "Start the run here, and end it here."

Verification: How to Prove the Outline is Open

After the split, the shape might visually look like a circle, because the two new endpoints are sitting exactly on top of each other. You need to physically separate them.

Sue verifies it like this:

1. Grab one of the nodes at the split location.
2. Drag it slightly to the left or right.
3. Visual Confirmation: You will see a gap open up, turning the circle into a "C" shape or a Horseshoe.

That gap is your proof. You now have an open path with two distinct endpoints (Start and End) that you can manipulate independently.

The "Club Shape" Demo: Why Fewer Nodes = Better Stitches

Sue repeats the process on a more complex "club" shape.

She points out something distinct: the pre-made shape has surprisingly few nodes.

• The Rookie Mistake: Beginners often think more nodes = more detail.
• The Expert Reality: More nodes = jerky machine movement. When a machine moves from node A to node B, it calculates a curve. If there are 100 nodes in an inch, the pantograph (the arm moving the hoop) has to make 100 micro-adjustments. This causes vibration and noise.

Workflow Recap on the Club:

1. Enter Select Point mode.
2. Select the top center node.
3. Click Split at Point.
4. Watch the fill disappear.
5. Pull the endpoint to open the silhouette.










Why the Fill Disappears: The Physics of Stitch Types

Sue states it plainly: Split at Point is for outlines, not fills.

Let's dive deeper into the "Why" so you can make better decisions for your projects.

• Closed Shape: The software calculates a "Tatami" or "Satin" fill by bouncing the needle back and forth inside the boundaries. It needs a sealed perimeter to know where to turn around.
• Open Shape: The software treats this as a "Run Stitch" or "Satin Border." It follows the line like a train on a track.

The Viewer's Question: "Can I fill it back in?" Sue’s honest answer is "It depends." You cannot simply "pour" color into an open line. You would need to:

1. Manually create a specific shape behind the outline to act as the fill.
2. Use the "Connect Points" tool to close the gap again (reversing your work).

Troubleshooting: Structured Diagnosis

If "Split at Point" isn't working, don't just click harder. Use this diagnostic table.

Warning: When dragging nodes to open a shape, be careful not to create sharp, acute angles (less than 30 degrees). Sharp angles can cause thread accumulation (birdsnesting) on the underside of the fabric because the needle is striking the same spot repeatedly.

Physical Reality: From Screen to Stabilizer

Even though this tutorial is software-based, your end goal is thread-on-fabric. An open outline is much less stable than a filled shape. Without the structural integrity of a fill stitch, outlines can shift and warp on the fabric.

You must upgrade your physical prep to match your digital design.

Decision Tree: Fabric → Stabilizer Approach Use this logic to ensure your open outlines don't distort during stitching.

1. Is the fabric stretchy (T-shirt, Polo, Knit)?
   • YES: You MUST use Cutaway stabilizer. Tearaway will allow the outline to distort into a wavy line.
   • NO (Denim, Canvas): You can use Tearaway, but a medium weight is safer.
2. Is the fabric fluffy (Towel, Fleece)?
   • YES: You need a Water Soluble Topping (Solvy) on top, or the thin outline will sink into the pile and vanish.
   • NO: Standard backing is fine.

When you start doing repeated runs of outline designs, you will find that the bottleneck isn't the software—it's the hooping. If your hooping for embroidery machine technique leaves slack in the fabric, your perfect digital circle will stitch out as an oval.

Warning: If you choose to upgrade to magnetic embroidery hoops to solve hooping distortion, handle them with extreme care. Strong magnets can pinch fingers severely. Keep them away from pacemakers and magnetic media.

The Production Upgrade Path: Beyond the Software

Speed in embroidery comes from two places: Clean files (what we just did) and efficient workflows (what you use).

Here is the "Scene Trigger" logic I teach studios to decide when to upgrade their gear:

• Scene Trigger: You are spending more time struggling to hoop thick items (like Carhartt jackets) or fighting "hoop burn" marks on delicate fabrics than you are actually stitching.
• Diagnosis: Your standard included hoops are purely mechanical and rely on friction, which is inconsistent.
• The Solution Path:
  • Level 1 (Technique): Use spray adhesive and "float" the fabric (messy, but cheap).
  • Level 2 (Tool Upgrade): Switch to a brother magnetic embroidery frame. These use magnetic force to hold fabric flat without forcing it into a ring, eliminating hoop burn and hooping strain.
  • Level 3 (Capacity Upgrade): If you are consistently running orders of 20+ pieces, a single-needle machine is your bottleneck. This is where looking at SEWTECH multi-needle machines becomes a financial decision, not just a hobby choice. The ability to queue colors and not re-thread manually changes your profitability instantly.

Many people search for how to use magnetic embroidery hoop videos because they want consistency. The goal is repeatable tension—so that the open outline you split on screen lands exactly where you planned it on the shirt.

A hooping station for embroidery is another "hidden gem" for consistency. It ensures that your chest logo is always 4 inches down from the collar, every single time.

Comment-Driven "Watch Outs"

Experience from the community highlights two edge cases:

• "Can I outline a photo?"
  • Verdict: No. Split at Point works on vector paths. It is not a magical "photo tracer." You must digitize correctly first.
• "Can I rejoin them later?"
  • Verdict: Yes, but it requires the "Connect Open Paths" tool. It is much harder to close a shape perfectly than to open it. Always save a backup before splitting!

Operation Checklist: The 30-Second Routine

Use this mental checklist before every "Split" operation to ensure success.

Operation Checklist:

• Mode Check: Am I definitely in Select Point mode? (Can I see the little nodes?)
• Selection: Did I click exactly one node? (Is it highlighted?)
• The Cut: Did I click Split at Point?
• Visual Verify: Did the fill disappear?
• Physical Verify: Can I drag the point to see the gap?
• Safety Save: Did I save this as filename_v2_open.pes?

The Final Payoff

Sue’s core message is simple: Splitting nodes saves time because you don't have to redraw or race a closed object.

But the expert takeaway is this: Control. By manually opening shapes, you control where the machine starts and stops. You control the pathing. You reduce the node count.

When you combine clean digital files with professional physical tools—like correct stabilizers and high-efficiency magnetic hoops—you move from "hoping it works" to "knowing it will work." That is the difference between a hobbyist and a digitizer.

FAQ

• Q: Why does PE Design 10 remove the fill color after using the PE Design 10 Split at Point tool on a closed shape?
  A: This is normal behavior—PE Design 10 converts the object from a closed “fillable” shape into an open outline, so the fill disappears.
  • Confirm the object was a closed shape before splitting (it showed a fill + outline).
  • Use Split at Point only when the goal is an open outline/run path, not a filled region.
  • Success check: the fill vanishes immediately and only the outline remains.
  • If it still fails… verify the Split at Point command actually executed (see the “tool grayed out” FAQ).
• Q: Why is the PE Design 10 Split at Point button grayed out when trying to split an outline node?
  A: The Split at Point button is grayed out because no single node is actively selected (or the object is still grouped).
  • Switch to Select Point (node mode) so the small nodes appear on the line.
  • Click exactly one node until it highlights as the active target.
  • Right-click the shape and Ungroup if the object is grouped.
  • Success check: after clicking Split at Point, the fill disappears and the outline remains.
  • If it still fails… re-check that the selected item is the outline object (not a background image or another layer).
• Q: How can PE Design 10 users verify an outline is truly open after using Split at Point when the shape still looks closed?
  A: Gently pull the split endpoint apart—an open path will reveal a visible gap even if the endpoints started on top of each other.
  • Grab one node at the split location and drag slightly left or right.
  • Look for the shape to become a “C”/horseshoe instead of a perfect loop.
  • Success check: a clear gap appears, showing two separate endpoints (start and end).
  • If it still fails… undo and repeat, making sure a single node was selected before splitting.
• Q: How do you prevent “kinked” outlines in PE Design 10 after using Split at Point on a curve?
  A: Smooth the curve at the split by correcting the nearby node handles—kinks usually come from a bad handle angle at the cut.
  • Zoom in and inspect the nodes right next to the split.
  • Adjust the Bezier handles to restore a smooth curve through the split area.
  • Avoid creating sharp angles while repositioning endpoints.
  • Success check: the outline curve looks continuous and smooth with no sudden corner at the split.
  • If it still fails… undo, simplify the outline (reduce extra nodes), then split again on a cleaner point.
• Q: Why does an embroidery machine sound like it is “grunting” or vibrating after digitizing in PE Design 10 with too many nodes?
  A: Excessive or stacked nodes force the machine to make too many micro-movements, which often causes vibration, noise, and rough motion.
  • Zoom in heavily (the blog suggests 500%) and look for nodes that are extremely close or stacked.
  • Delete unnecessary nodes so the outline uses fewer points while keeping the intended shape.
  • Clean up messy, node-heavy outlines before using Split at Point.
  • Success check: stitching sounds smoother and the machine motion looks less “jittery.”
  • If it still fails… re-digitize that segment with a simpler node structure rather than trying to “fix” hundreds of points.
• Q: What stabilizer should be used for open-outline embroidery designs (run/outline paths) on knit shirts versus denim to prevent distortion?
  A: Open outlines need stronger stabilization—use cutaway on stretchy knits; medium tearaway can work on stable fabrics like denim/canvas.
  • Choose cutaway stabilizer for T-shirts, polos, and other knits to reduce wave distortion.
  • Choose tearaway for denim/canvas, and consider medium weight for extra safety.
  • Add water-soluble topping on towels/fleece so thin outlines do not sink into the pile.
  • Success check: circles stitch as circles (not ovals/waves) and outlines stay aligned without shifting.
  • If it still fails… review hooping tightness and placement consistency before changing the design.
• Q: When hooping for embroidery keeps causing hoop burn or inconsistent outline placement, what is the upgrade path from technique fixes to magnetic hoops to multi-needle machines?
  A: Start with technique tweaks, then upgrade to magnetic hoops for consistent holding, and consider a multi-needle machine only when order volume makes re-threading the real bottleneck.
  • Level 1 (Technique): Use spray adhesive and float the fabric when hooping is difficult (cheap but can be messy).
  • Level 2 (Tool): Use magnetic hoops to hold fabric flat with less ring pressure and less hoop burn.
  • Level 3 (Capacity): Move to a multi-needle machine when frequent multi-color runs and 20+ piece orders make single-needle workflow too slow.
  • Success check: hooping becomes repeatable (less re-hooping), outlines land where planned, and scrap rate drops.
  • If it still fails… add a hooping station for consistent placement reference, especially for chest logos.
• Q: What magnetic embroidery hoop safety precautions should be followed to prevent finger pinches and interference with medical devices?
  A: Treat magnetic hoops as pinch hazards—keep fingers clear during closing and keep strong magnets away from pacemakers and magnetic-sensitive items.
  • Keep fingertips out of the closing path when bringing magnets together.
  • Store and handle magnets deliberately—do not let frames “snap” together uncontrolled.
  • Keep magnetic hoops away from pacemakers and magnetic media.
  • Success check: the hoop closes without sudden snapping or painful pinches, and handling feels controlled.
  • If it still fails… stop and re-position hands/parts before closing; do not force alignment while magnets are pulling.
