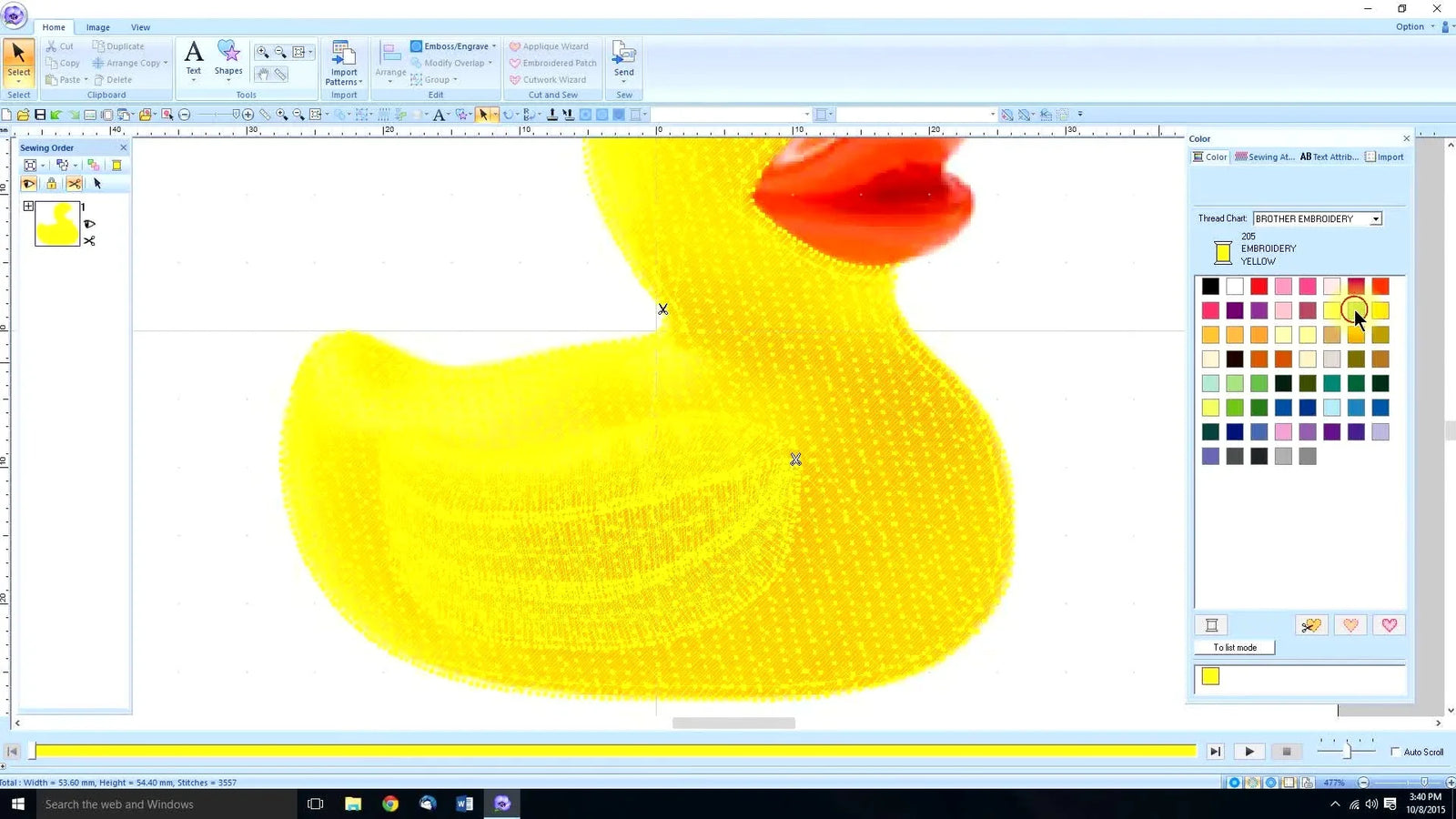

PE Design 10 Rubber Ducky Digitizing: Manual Punch Control, Clean Layering, and the Towel-Proof Pull Compensation Fix

If you have ever watched an expert digitizer work in PE Design 10 and thought, “That looks like magic,” let me correct that perception immediately. It is not magic; it is engineering. The difference between a professional sew-out and a "melted duck" on a towel comes down to a handful of disciplined habits: how you control the "flow" of the thread, where you forcefully compensated for the fabric's physics to pull the stitches inward, and whether you respected the limitations of your machine.

This Rubber Ducky project appears deceptively simple. However, it is a Trojan Horse for advanced concepts. We are going to use this "easy" project to master Manual Punching, Pull Compensation, and Keyboard Accelerators. If you plan to stitch this on terry cloth (towels), the quality control steps regarding stitch width and stabilization are the only things standing between a crisp design and a fuzzy disaster.

Import the Rubber Ducky Backdrop Image in PE Design 10 Without Warping It

Every digitizing project begins with a foundation. If your foundation moves, your house collapses. Kathleen starts exactly where you must: importing the backdrop, sizing it, and purely locking it down.

The Video Workflow (Standard Operating Procedure):

1. Navigate to the Image tab > From File to bring in the artwork.
2. Crucial Step: Resize by grabbing a corner handle while holding the SHIFT key.
   • Why? Holding Shift constrains proportions. If you drag without Shift, you distort the duck into an oval, and your final embroidery will look warped.
3. Click completely outside the image to deselect it. The handles disappear.


Expected Outcome: The image sits on your grid, sized correctly (e.g., fitting within a 100mm x 100mm area), with no active selection handles.

Expert Insight (The "Drift" Phenomenon): Novice digitizers often leave the background image "floating." If you accidentally click and drag it halfway through digitizing the wing, your reference point is gone, and the wing will not match the body. Once your image is sized, treat it like a permanent fixture. If you must resize later, use the Modify Image tool numerically rather than dragging handles.

Prep Checklist: The "Pre-Flight" Safety Protocol Do not place a single stitch until you check these four boxes:

• Unit Check: Confirm workspace units. Kathleen uses millimeters (mm). In machine embroidery, mm is the language of precision; inches are too vague for density settings.
• Substrate Decision: Decide your fabric now. This project targets terry cloth/towels. This decision dictates your underlay and pull compensation later.
• Visual Contrast: Pick a thread color for digitizing that contrasts with the background (e.g., use bright pink for the wing temporarily) so you can clearly see your stitch inputs.
• Hand Position: Place your left hand on the keyboard. Locate the V, X, and Z keys. You will need them to build muscle memory.


Manual Punch the Wing in PE Design 10 When You Need Stitch Direction to “Flow”

Why use Manual Punch instead of the auto-shape tools? Control. Auto-shapes fill an area with a generic, flat direction (usually 45 degrees). The wing of a duck, however, is organic. It curves.

Manual Punch allows you to dictate the angle of the thread at every specific point. This creates a "turning satin" effect that reflects light differently, giving the wing a 3D, shimmering appearance.

The Video Workflow (Wing Construction):

1. Select Home tab > Shapes tool > Manual Punch.
2. Adopt the Top-Bottom Sequencing rhythm: Click top, click bottom, click top, click bottom. This defines the "rungs" of the satin ladder.
3. The Secret Weapon: Press V to insert a Running/Feed stitch between segments.
4. Press X to toggle the Curved Manual Punch mode for rounded feathers.
5. Slightly overlap the segments. Physics Note: Fabric pulls apart; overlaps ensure no gaps appear between feathers.




Expected Outcome: A wireframe representation of the wing where the angle lines (slope) follow the curve of the feather, connected by a single running stitch line (no jump stitches).

Warning: Manual Punch allows you to create dangerously dense stitches if you place points too close together. If you sew a high-density area at high speed (e.g., 1000 spm), you risk needle deflection or thread shredding.
* Sensory Check: Listen to your machine. A rhythmic "thump-thump" is normal. A sharp, loud "CRACK" or grinding noise means your density is too high/needle is hitting the throat plate. Stop immediately.

The "V-Key" Philosophy: If you digitize three separate feathers without connecting them, your machine will do this: Stitch Feather A -> Trim -> Jump -> Tie-in -> Stitch Feather B. This takes forever and leaves messy thread tails. By pressing V and clicking a path to the next feather, you force the machine to travel silently under the fabric. No trims. No mess.

Use the V, X, and Z Keyboard Shortcuts in PE Design 10 to Digitize Faster Without Losing Accuracy

Speed in digitizing isn't about rushing; it's about flow state. You cannot maintain creative flow if you are constantly hunting for icons with your mouse. Kathleen demonstrates professional "left-hand logic":

• V: Inserts a Running Stitch (Feed). Use this to travel between objects or close a shape without cutting the thread.
• X: Toggles Curve Mode. Use this when the shape has a soft, organic bend (liker the duck's chest).
• Z: Toggles Straight Mode. Use this for sharp turns or geometric edges (like the tip of a beak).

Expert Drill: Open a blank design. Press Z, click twice. Press X, click twice. Watch how the line changes from rigid to fluid. Do this until your fingers find the keys without your eyes leaving the screen.

Setup Checklist (Tool Calibration):

• Test that pressing V creates a dotted line (run stitch) vs. a solid line (satin edge).
• verify X creates a node with bezier handles (curve).
• Verify Z creates a square node (corner).
• Adjust zoom level so you can see the pixel edges of your background image.

Trace the Duck Body with the Closed Curve Tool and Turn Off the Zigzag Outline

For the large yellow body, we change tactics. We need a solid fill, not a turning satin. Kathleen selects the Closed Curve Tool.

The Decision: No Outline. In the Line Attribute panel, she sets the Line Sew Type to Not Sewn.

• Why? On a textured fabric like a towel, a thin zigzag outline around a large fill is a registration nightmare. As the large yellow fill stitches out, it pushes the fabric. By the time the machine comes back to stitch the outline, the fabric has shifted, and you end up with a gap (white space) between the yellow body and the outline. It is safer and cleaner to have no outline.

The Video Workflow:

1. Select Closed Curve Tool.
2. Set Line Attribute to Not Sewn.
3. Trace the perimeter. Use Z for the tight corners near the neck and X for the smooth belly.




Expected Outcome: A large, flat yellow geometric shape that covers the duck, with no border stitch.

Cognitive Shift: Digitizing is the art of "necessary distortion." You are not tracing the photo exactly; you are tracing the shape that will result in the photo. Often, this means extending the yellow fill slightly under where the wing will go.

Layer the Wing Above the Body in the Sewing Order Pane for a Clean 3D Effect

Embroidery is physical layering. Just as you wouldn't put your socks over your shoes, you must tell the machine the correct physical order.

The Video Workflow:

• Navigate to the Sewing Order pane (usually on the left or right dock).
• Drag the Wing object so it sits below (which means "after") the Body object in the list.

Expected Outcome: In the Realistic Preview, the wing appears to sit on top of the yellow body, creating a shadow and depth.

Commercial Context: This "Foundation First, Detail Second" logic is essential for corporate logos. If you are doing a left-chest logo, always lay down the large background fills first to stabilize the fabric before adding text or details on top.

Build the Beak with a Running Stitch Outline First, Then Add the Fill for a Sharper Edge

For the beak, Kathleen uses a specific technique: Define, then Fill.

The Video Workflow:

1. Digitize a Running Stitch loop that traces the exact shape of the beak.
2. Create the Fill Stitch object inside that loop.
3. Assign the color (Vermilion).




Physics Explanation: Why the extra running stitch? Think of it as a "dam." When you stitch the fill, the thread exerts pressure that distorts the fabric. The running stitch outline acts as a preliminary fence, holding the fabric structure in place so the fill stays within the lines. On unstable fabrics like towels, this improves the crispness of the edge significantly.

Add the Eye with the Circle Tool, Then Manual Punch the Eyelashes for Character

Kathleen simplifies the eye:

• Circle Tool: For the white sclera (background).
• Manual Punch: For the black pupil and eyelashes.




Critical Observation: The eyelashes are thin satin columns. These are the most dangerous part of the design when stitching on towels. If they are too thin, they will sink between the loops of the terry cloth and disappear, making the duck look eyeless.

The Towel Test: Measure Satin Stitch Width and Fix “Sinking” with Pull Compensation Level 3 (0.3 mm)

This section contains the most valuable data in the tutorial. You cannot guess stitch width on towels; you must measure.

Kathleen uses the Ruler (Check Size) tool. The measurement reads 0.67 mm.

• Verdict: Failure imminent. 0.67 mm is too narrow for terry cloth loop height.

The Solution: Pull Compensation Thread tension tightens the fabric, making satin columns narrower than they look on screen. Pull Compensation forcefully widens the column to counteract this.

The Fix Workflow:

1. Select the eyelash segments.
2. Go to Sewing Attributes.
3. Change Pull Compensation to 0.3 mm (often listed as Level 3 in older PE Design versions).
4. Target: You want a final width of at least 1.00 mm to 1.2 mm for towels.




Expected Outcome: On screen, the eyelashes might look "chunky." This is good. On the towel, the pile will hide the base, and the top will look perfect. Trust the math, not just your eyes.

A Simple Stabilizer Decision Tree for Towels (So Your Digitizing Actually Shows Up)

The best digitizing file will fail if your stabilization strategy is weak. Use this logic tree to make the right choice before you hoop.

Decision Tree (Terry Cloth / Towel Projects):

1. Analyze the Towel Pile:
   • Thick/Plush (Bath Towel): MUST use Cutaway stabilizer. Tearaway provides insufficient support for the heavy fabric weight and dense stitches.
   • Thin/Flat (Kitchen Towel): A heavy Tearaway might work, but Cutaway is still safer for longevity.
2. Top Stabilization (The Hidden Consumable):
   • Always: Use a Water Soluble Topping (Solvy film) on top of the towel. This acts as a barrier, preventing stitches (especially the beak and eye) from sinking into the loops.
3. Hoop Selection:
   • Standard Step: Use a hoop that fits the design closely to maintain tension.
   • Upgrade: If you struggle to hoop thick towels without "hoop burn" (ring marks), consider an alternative hooping method (see below).

Troubleshooting the Rubber Ducky Sew-Out: Symptoms, Causes, Fixes You Can Trust

If your test stitch fails, do not panic. Use this diagnostic table to identify the root cause.

Hooping Reality Check: Your Digitizing Can Be Perfect and Still Sew Badly

Even if your file is perfect, physical reality dictates the result. Towels are bulky, slippery, and thick. Hooping them in a standard plastic hoop often leads to two problems:

1. Hoop Burn: The outer ring crushes the nap of the towel, leaving a permanent "ghost ring."
2. Pop-outs: The inner ring cannot grip the thick fabric, and the towel pops out mid-stitch (catastrophic failure).

Many professionals search for how to use magnetic embroidery hoop solutions when they encounter these hoop burn issues. A magnetic embroidery hoop solves this by using strong magnets to sandwich the fabric without forcing it into a grooved channel. This eliminates hoop burn and makes hooping thick items significantly faster and safer.

Warning: Magnetic Safety
Magnetic hoops use industrial-grade magnets. They snap together with immense force.
* Pinch Hazard: Keep fingers clear of the edges.
* Medical Safety: Keep away from pacemakers.
* Electronics: Keep away from phones and screens.

When You Outgrow “One Towel at a Time”: Turning This Skill Into Repeatable Output

Creating one ducky towel is a fun project. Creating 50 towels for a local swim team is a production challenge.

If you find yourself moving into "batch mode," standard home equipment becomes the bottleneck.

• The Hooping Bottleneck: Trying to align 50 towels perfectly straight on a table is exhausting. An embroidery hooping station (or a dedicated hooping station for embroidery) allows you to repeat the exact same placement on every towel using a fixture, ensuring consistency.
• The Thread Change Bottleneck: A single-needle machine requires you to stop and manually change threads for the yellow body, orange wing, orange beak, white eye, and black pupil. That is 5 stops per towel. For 50 towels, that is 250 manual interventions.

This is the "Trigger Point" where hobbyists become business owners. Upgrading to a multi-needle machine (like the SEWTECH commercial models) allows you to set all colors at once and let the machine run uninterrupted.

Small-Hoop Constraints: What to Do If Your Machine Is Only 4x4

A common question from the community involves size limits, specifically regarding machines like the Brother SE-625.

If you are working with a brother 4x4 embroidery hoop or trying to maximize the area of a brother se600 hoop, you must be strategic.

1. Scale Down: Use the resize method (with Shift!) discussed in step 1.
2. Splitting: If the desire is larger, you enter the realm of multi hooping machine embroidery. This involves splitting the duck into "Top" and "Bottom," stitching half, re-hooping, and matching the alignment lines. Advice: Master the single hoop first before attempting this on a towel, as alignment on terry cloth is extremely difficult.

The “Final Pass” Ritual: What I Check Before I Export a PES File

Kathleen ends with a habit you should steal: The Final Preview. Never export immediately after placing the last point.

Operation Checklist (Export Protocol):

• Travel Check: Do you see "dotted lines" (Jumps) where there should be travel stitches? If so, add your 'V' stitches.
• Border Check: Is the body outline set to "Not Sewn"?
• Layering Check: Is the Wing physically listed after the Body in the sewing order?
• Width Check: Are eyelashes measuring ≥ 1.00 mm (with 0.3mm Pull Comp applied)?
• Join Check: Are start/stop points moved to hidden corners?

If you can check these five boxes, you aren't just hoping for the best—you are ensuring a clean, professional sew-out that will survive the wash and look great for years.

FAQ

• Q: In Brother PE Design 10, how do I import and resize a backdrop image without warping the artwork when digitizing the Rubber Ducky?
  A: Resize the backdrop only from a corner handle while holding SHIFT, then deselect it so it doesn’t “drift.”
  • Hold SHIFT and drag a corner handle to keep proportions locked.
  • Click completely outside the image to deselect (handles must disappear).
  • If resizing is needed later, change size numerically with the Modify Image tool instead of free-dragging.
  • Success check: the duck image looks proportional (not stretched) and shows no selection handles while you digitize.
  • If it still fails: re-import the original artwork and repeat the Shift-corner resize before placing any stitches.
• Q: In Brother PE Design 10 Manual Punch, how do I prevent jump stitches between wing feather segments and keep a clean stitch flow?
  A: Use the V key to add running (feed) travel stitches between segments so the machine travels instead of trimming and jumping.
  • Build feathers with the top-bottom click rhythm, then press V to insert a running stitch path to the next segment.
  • Toggle X for curved manual punch when shaping rounded feathers.
  • Overlap feather segments slightly to avoid gaps caused by fabric pull.
  • Success check: the preview shows a continuous travel path (running stitch connection) and no trim/jump behavior between feather sections.
  • If it still fails: slow down and spread points slightly—points placed too close can create overly dense, problematic stitching.
• Q: In Brother PE Design 10, how do I use the V, X, and Z keyboard shortcuts to digitize faster without losing accuracy?
  A: Keep the left hand on the keyboard and use V (run stitch), X (curve), and Z (straight) to maintain control and speed.
  • Press Z for sharp corners and geometric edges before placing points.
  • Press X for smooth curves on organic shapes before placing points.
  • Press V to insert running stitches for travel or to connect segments cleanly.
  • Success check: you can switch between straight and curved nodes without hunting icons, and the line behavior matches the shape (rigid vs. fluid).
  • If it still fails: zoom in until you can clearly see the background edges and confirm each key produces the expected node/line type.
• Q: In Brother PE Design 10 Closed Curve Tool, why should the duck body outline be set to “Not Sewn” when embroidering on terry cloth towels?
  A: Set Line Sew Type = Not Sewn to avoid outline-to-fill registration gaps caused by fabric shift on towels.
  • Select the body object and change Line Sew Type in the Line Attribute panel to Not Sewn.
  • Trace the body with Z at tight corners and X across smooth curves.
  • Plan the fill to extend slightly under overlapping parts (like the wing) for cleaner coverage.
  • Success check: the body is a clean fill shape with no border stitch, and the edge looks cleaner on towel pile.
  • If it still fails: check hoop tension and stabilizer choice—fabric movement is usually the root cause, not the outline setting.
• Q: On terry cloth towels, how do I stop Brother PE Design 10 satin stitch eyelashes from “sinking” and disappearing, and what pull compensation value should I use?
  A: Measure the satin width and apply Pull Compensation = 0.3 mm so the final stitched eyelash width lands around 1.0–1.2 mm on towels.
  • Measure eyelash satin width with the Ruler (Check Size) tool before exporting.
  • Select eyelash segments and set Pull Compensation to 0.3 mm in Sewing Attributes.
  • Add water-soluble topping on top of the towel to prevent pile from swallowing the stitches.
  • Success check: on-screen eyelashes may look thicker, but the stitched result is visible and defined on towel pile (not buried).
  • If it still fails: re-check the measured width—if it’s still under 1.0 mm, adjust the satin geometry and confirm topping is actually being used.
• Q: What stabilizer and topping should be used for terry cloth towel embroidery to prevent gaps, distortion, and detail loss?
  A: Use cutaway stabilizer for thick/plush towels and always add a water-soluble topping on top.
  • Identify towel type: plush bath towel = cutaway is required; thin kitchen towel may handle heavy tearaway, but cutaway is often safer.
  • Place water-soluble topping over the towel before stitching to keep details from sinking.
  • Choose a hoop size that fits the design closely to maintain tension.
  • Success check: fills stay smooth, edges stay crisp, and details (like the eye/beak) remain visible after removing topping.
  • If it still fails: revisit hoop tension (should be “drum tight”) and reduce fabric movement before changing digitizing settings.
• Q: When embroidering towels, how do magnetic embroidery hoops reduce hoop burn and pop-outs, and what magnetic safety rules must be followed?
  A: Magnetic embroidery hoops clamp thick towels without crushing the nap, but the magnets can snap together dangerously—handle with strict safety habits.
  • Keep fingers clear when closing magnets to avoid pinch injuries.
  • Keep magnetic hoops away from pacemakers and similar medical devices.
  • Keep magnets away from phones/screens and sensitive electronics.
  • Success check: the towel is held securely without a crushed “ring mark,” and the fabric does not pop out mid-stitch.
  • If it still fails: confirm the hoop is sized appropriately for the design and the towel bulk is evenly clamped (no folded layers inside the clamping area).
• Q: For batch towel production, when should embroidery workflow upgrade from technique fixes to magnetic hoops, hooping stations, or a SEWTECH multi-needle embroidery machine?
  A: Upgrade in layers: fix digitizing and stabilization first, then reduce hooping time with magnetic hoops/hooping stations, and move to a multi-needle machine when thread changes become the bottleneck.
  • Level 1 (technique): connect objects with V travel stitches, measure satin widths, and use correct stabilizer+topping so rework stops.
  • Level 2 (tooling): add magnetic hoops to reduce hoop burn and speed up hooping on thick towels; add a hooping station for repeatable placement.
  • Level 3 (capacity): move to a SEWTECH multi-needle machine when frequent manual color changes and stops prevent consistent output.
  • Success check: towels stitch consistently with fewer restarts, fewer trims, and repeatable placement across multiples.
  • If it still fails: track where time is lost (hooping alignment vs. thread changes vs. restitching) and upgrade the single biggest bottleneck first.
