PE-DESIGN 10 Name Drop: Turn One Team Template into Dozens of Perfect PES Files (Without Losing Your Mind)

If you’ve ever taken a team order—20 hoodies, 35 tote bags, a whole stack of warm-ups—and realized you’re about to retype the same name line over and over… you already understand why PE-DESIGN 10’s Name Drop exists.

Name Drop is one of those features that feels “too simple” until you use it once. Then you wonder how you ever survived without it. But let's be clear: software is only half the battle. The real challenge is managing the physical chaos of a 50-piece order without ruining a garment or losing your mind.

This guide rebuilds the exact workflow shown in the video, but with a "shop-floor" perspective. We will cover how to import a stock design, create a dynamic field, and batch-generated files. More importantly, we will cover the hidden safety checks and production upgrades that separate a hobbyist from a profitable embroiderer.

Name Drop in Brother PE-DESIGN 10: The calm way to handle volume

Name Drop is a function where you create a master pattern once, and PE-DESIGN 10 substitutes the name text using a list you provide. In practical terms: you build one clean template, and the software outputs a separate .pes file for every "Josephina," "Mike," and "Sarah" on your list.

This matters because in embroidery, setup time is the profit killer. The stitches don’t change much, but the keystrokes do.

One important mindset shift: Name Drop doesn’t “fix” a weak template. If your baseline text placement, density, or underlay settings are sloppy, you will simply mass-produce sloppy files faster. The win comes from building a template that is rock-stable across short names (like "Ed") and long names (like "Christopher").

The “Hidden Prep”: Template discipline before you click

Before you start importing art and typing names, do the "Pre-Flight" checks that experienced digitizers treat as non-negotiable.

1. Define your Anchors vs. Variables: In the video, the coffee cup graphic and the arched “Hot Beans” headline are anchors—they never move. The name line is the variable.

2. Define your Flex Limits: Your name line can flex in width, but you usually don't want it to flex in height. Distorting a font vertically destroys its readability. This is why we will later rigorously check “Maintain aspect ratio.”

3. Physical Workflow Planning: Software batching is useless if your physical workflow is a bottleneck. Are you stitching performance wear? Fleece? Using standard hoops on slick polyester often leads to "hoop burn" (permanent ring marks). If you are planning a run of 20+ items, consider your hooping strategy now.

Prep Checklist (Do before building the template)

• Software Mode: Confirm you are in Layout & Editing.
• Variable Plan: Decide on a "Safe Zone" width (e.g., 100mm max width for text).
• Output Strategy: Create a dedicated folder on your drive now. Do not save 50 files to your desktop.
• Consumables Check: Ensure you have enough tear-away stabilizer for the run, and water-soluble topping if stitching on fleece/towels to prevent text from sinking.


Step 1: Importing the Stock Art

The video uses a built-in design to keep the lesson focused.

1. Click Import.
2. Choose From Design Library.
3. Category Dropdown: Miscellaneous.
4. Scroll to the Coffee Cup.
5. Double-click to place it on the canvas.

Expert Note: Stock art is often digitized with "safe" density (around 0.4mm spacing). It is reliable purely because it is generic. For efficient production, this is often exactly what you need.

Step 2: Creating the Static Headline ("Hot Beans")

Next, we add the text that will appear on every garment.

1. Select the Text Tool (the "A" icon).
2. Click on the design page.
3. Type “Hot Beans” and press Enter.
4. Change font to Salamanca.
5. In Text Attributes, check the Transform box.
6. Choose the Arch style (first icon).

Sensory Check: Look at the lettering. Is the arch perfectly symmetrical? If the text looks "cramped" at the top of the curve, slightly increase the spacing in your text attributes before you move on.

Step 3: Centering Habits (The "Ctrl+M" Rule)

The video centers the design using layout tools. Do not eyeball this.

1. Select All (Ctrl + A).
2. Go to Arrange > Layout > Center.
3. Go to Arrange > Layout > Move to Center (or Ctrl + M).

Why does this matter? If your template is 2mm off-center, every single one of your 50 shirts will be stitched 2mm off-center. Fix it here, or fix it 50 times later.

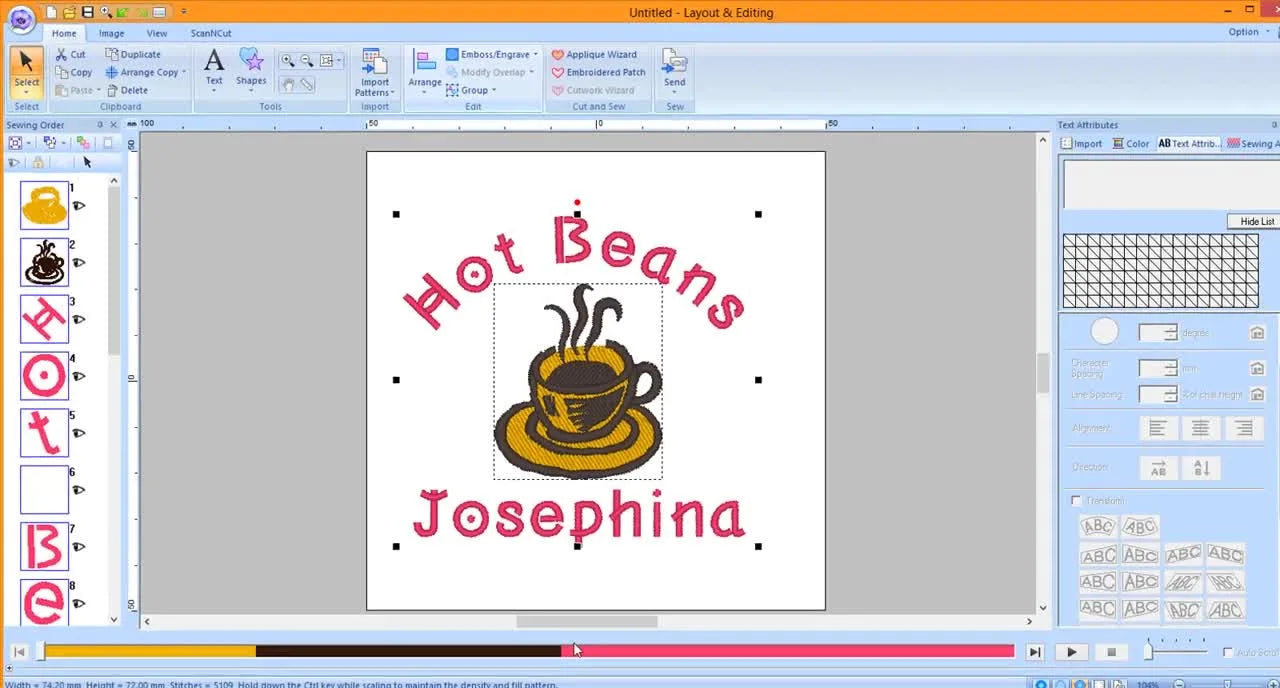

Step 4: Building the "Smart" Placeholder

Now we create the variable field.

1. Use the Text Tool again.
2. Type “Josephina” and press Enter.
3. Uncheck Transform in Text Attributes (keep names straight for legibility).
4. Move it beneath the cup.
5. Select All and Center again.

Why "Josephina"? Using a long name as your placeholder is a stress test. "Amy" fits anywhere. "Josephina" reveals spacing collisions immediately. If "Josephina" hits the edges of your hoop area, you need to shrink your font size now, not after printing the files.

Expert Rule of Thumb: Leave at least 15mm of "breathing room" on either side of your placeholder name to accommodate the hoop mechanics.

Step 5: Activating Name Drop (The Critical Checkbox)

This is the engine room of the process.

1. Click off the design to deselect.
2. Click only the name text (“Josephina”).
3. On the Text Tab, check the box labeled Name Drop.
4. CRITICAL: Check Maintain aspect ratio.
5. Click Name Drop List.
6. Type your names (Sally, Susan, Mindy, Cindy), pressing Enter after each.

The "Squash" Factor: If you forget "Maintain aspect ratio," the software will force a short name like "Ed" to stretch to the width of "Josephina." "Ed" will look like a flattened pancake. By checking this box, the software keeps the font height constant and only adjusts the width naturally.

Step 6: Batch Output (Avoiding the "Missing File" Trap)

Now we generate the files. Pay close attention here; this is where most users fail.

1. Click To Folder.
2. Type a base filename (e.g., "Mug_").
3. Click the Folder Icon to browse.
4. Create Setup:
   • Click the target parent folder.
   • Click Make New Folder.
   • Name it (“Name Drop 2”).
   • ACTION: Click the new folder once so it is highlighted blue.
5. Click OK.
6. Click OK again to generate.

Warning: File Path Error
If you create a new folder but do not highlight it before clicking OK, PE-DESIGN often defaults to saving the files in the parent directory—or worse, a random system folder. Always ensure your destination folder is highlighted in blue.

Setup Checklist (Pre-Output)

• Selection: Is only the variable text selected for Name Drop?
• Ratio: Is "Maintain aspect ratio" checked?
• List: Are there any accidental blank lines in your name list? (Delete them).
• Path: Did you highlight the destination subfolder?

Step 7: Verification (Trust, but Verify)

Never trust software blindly.

1. Go to Option > Design Database.
2. Navigate to your save folder.
3. Visual Scan: Look at the thumbnails. Does "Ed" look normal? Does "Josephina" fit in the hoop?

This 30-second check saves you from ruining a garment later.

The Production Reality: From Software to Stitching

You now have 30 perfectly digitized files. Now comes the hard part: getting them onto garments efficiently.

If you are using a standard single-needle machine, the bottleneck is no longer digitization—it is hooping. Traditional screwing and unscrewing of hoops is slow, causes hand fatigue, and can leave "hoop burn" (shiny crushed fibers) on delicate polys or fleece.

The Profit Pivot: Upgrading your Hoop Logic

When you move from "one-off gifts" to "team orders," professional shops change their tooling.

• Level 1: Better Techniques. Use spray adhesive and float the fabric to avoid hoop burn. (Slow, messy).
• Level 2: Tool Upgrade. Many Brother users switch to a brother magnetic hoop for production runs. These use magnets to clamp fabric instantly without adjusting screws. They drastically reduce prep time and virtually eliminate hoop burn.
• Level 3: Equipment Upgrade. If you are consistently running orders of 50+ items, a single-needle machine creates a production bottleneck. This is when shifting to a multi-needle machine (like the SEWTECH commercial series) becomes a math decision, not a luxury decision.

If you are struggling to keep garments straight or hating the "screw-tighten-pull" routine, searching for a compatible magnetic embroidery hoop or a dedicated hooping station for embroidery is often the most cost-effective way to speed up your existing machine.

Warning: Magnetic Safety
Magnetic hoops use powerful industrial magnets.
* Pinch Hazard: They can snap together with crushing force. Keep fingers clear.
* Medical Safety: Keep them at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Do not place them directly on USB drives or credit cards.

If you decide to upgrade, ensure you search for specific terms like magnetic embroidery hoops for brother to ensure compatibility with your specific arm width and attachment mechanism. A generic brother magnetic embroidery frame may not fit all models.

Production Decision Tree

• Scenario A: 1-5 Items (Gifts)
  • Method: Standard hoop + standard manual loading.
  • Focus: Precision.
• Scenario B: 6-30 Items (Small Team)
  • Method: Batch files -> Save to USB.
  • Focus: Workflow. Consider a magnetic hoop for brother to save wrist strain and improve speed.
• Scenario C: 30+ Items (Commercial Run)
  • Method: Assembly line. One person hoops, one person runs the machine.
  • Focus: Throughput. If you don't have a multi-needle machine, you must use magnetic frames to keep up.

Operation Checklist ("Don't Ruin the Batch")

• The Test Stitch: Run the longest name on a scrap piece of fabric first.
• Needle Check: Install a fresh 75/11 needle (Ballpoint for knits, Sharp for wovens). A dull needle causes bird-nesting.
• Bobbin Check: Do you have enough pre-wound bobbins for the whole job?
• Hooping: If using a how to use magnetic embroidery hoop guide, verify the magnets are seated fully before hitting start.


Final thoughts

Name Drop turns a 2-hour digitizing nightmare into a 5-minute task. But remember: the software only generates the map; you still have to drive the car. Keep your templates clean, verify your files in the database, and respect the physical limits of your hoop and fabric. That is how you turn a stressful order into a repeat customer.

FAQ

• Q: In Brother PE-DESIGN 10 Name Drop, why does the short name “Ed” look stretched or squashed compared with “Josephina”?
  A: Turn on Maintain aspect ratio in the Name Drop settings so PE-DESIGN 10 keeps the font height consistent.
  • Open the Text tab and select only the variable name text (example: “Josephina” placeholder).
  • Check Name Drop, then check Maintain aspect ratio before generating files.
  • Re-check the Name Drop List for accidental blank lines that can create weird outputs.
  • Success check: In thumbnails, short names (like “Ed”) look naturally narrower, not flattened wide.
  • If it still fails: Delete and recreate the variable name line to ensure the correct object (only the name text) is assigned to Name Drop.
• Q: In Brother PE-DESIGN 10 Name Drop, why are the batch-generated .PES files missing or saved to the wrong folder after clicking “To Folder”?
  A: Highlight the destination subfolder (blue selection) before clicking OK, or PE-DESIGN 10 may save somewhere else.
  • Click To Folder, then browse to the parent folder and create the new subfolder.
  • Click the new subfolder once so it is highlighted blue, then click OK.
  • Use a clear base filename (example: “Mug_”) and avoid saving dozens of files to the desktop.
  • Success check: The destination folder contains one separate file per name (for example, Mug_Sally, Mug_Susan, etc.).
  • If it still fails: Open Option > Design Database and search the parent directory to locate where the files actually saved.
• Q: In Brother PE-DESIGN 10 Layout & Editing, how can embroidery templates end up 2mm off-center across a whole Name Drop order?
  A: Use PE-DESIGN 10 alignment tools (not eyeballing) and re-center after placing the placeholder name line.
  • Select the whole design (Ctrl + A).
  • Use Arrange > Layout > Center, then Arrange > Layout > Move to Center (Ctrl + M).
  • After adding the variable name line, select all and center again to lock the template.
  • Success check: The design crosshair/center reference and the design group visually align exactly at center.
  • If it still fails: Re-check that all objects were included in the selection before pressing Ctrl + M.
• Q: In Brother PE-DESIGN 10 Name Drop, why should the placeholder name be a long name like “Josephina” instead of a short name like “Amy”?
  A: Use a long placeholder to stress-test spacing so long real names do not collide with the hoop limits or artwork.
  • Type a long placeholder name and position it under the anchor graphic.
  • Reduce font size early if the long placeholder approaches the hoop boundary.
  • Leave side “breathing room” around the placeholder so different name lengths remain safe.
  • Success check: The longest placeholder fits comfortably without touching hoop edges or crowding the design.
  • If it still fails: Rebuild the safe-zone width (set a max text width plan) before generating the Name Drop list.
• Q: In Brother PE-DESIGN 10 Name Drop, how can users verify the batch files before stitching so garments are not wasted?
  A: Use Option > Design Database to visually scan thumbnails before exporting to the machine.
  • Open Option > Design Database and navigate to the save folder.
  • Compare the shortest and longest names in thumbnail view for spacing and readability.
  • Confirm the long name still fits the hoop area and the short name is not distorted.
  • Success check: Thumbnails show clean, readable text; “Ed” looks normal and “Josephina” stays within the hoop boundary.
  • If it still fails: Return to the template and confirm only the variable text has Name Drop enabled and aspect ratio is maintained.
• Q: When stitching a Brother Name Drop batch on fleece or towels, what stabilizer and topping setup helps prevent text from sinking?
  A: Plan enough tear-away stabilizer for the run and add water-soluble topping on high-pile fabrics to keep lettering crisp.
  • Hoop with tear-away stabilizer as the base for consistent support across the batch.
  • Add water-soluble topping on fleece/towels before stitching to prevent stitches from disappearing into the pile.
  • Run a test stitch using the longest name first to confirm the stack works.
  • Success check: Letter edges remain sharp and readable; stitches sit on top of the pile instead of sinking.
  • If it still fails: Slow down and re-check hooping stability and needle choice before changing the design.
• Q: How can a Brother single-needle embroidery workflow reduce hoop burn and hand fatigue during 20–50 piece Name Drop orders without changing the design?
  A: Upgrade the hooping method first; magnetic hoops often clamp faster and reduce ring marks compared with screw-tightened hoops.
  • Level 1: Use careful technique (for example, floating with spray adhesive) when standard hooping marks delicate fabric.
  • Level 2: Switch to a magnetic hoop approach to speed clamping and reduce screw-tighten repetition.
  • Level 3: If orders are consistently 50+ items, consider whether a multi-needle machine is needed to remove the throughput bottleneck.
  • Success check: Hooping time per garment drops and finished garments show fewer shiny ring marks on slick polyester or fleece.
  • If it still fails: Re-evaluate the physical workflow (one person hooping, one running the machine) and confirm fabric handling is consistent.
• Q: What safety rules should be followed when using magnetic embroidery hoops for Brother-style production runs?
  A: Treat magnetic hoops as industrial-strength magnets—keep fingers clear, keep them away from medical devices, and avoid placing them on sensitive electronics.
  • Keep fingers out of the closing path to prevent pinch injuries when magnets snap together.
  • Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Avoid placing magnetic hoops directly on USB drives or credit cards.
  • Success check: The hoop halves seat fully and close in a controlled way without sudden finger-pinching incidents.
  • If it still fails: Stop and reposition the fabric calmly; do not force the magnets closed if alignment feels unstable.
