PE Design 10 Angle Lines That Actually Behave: Control Stitch Direction, Avoid Snap-Back, and Build Clean Curves

When you look at a digitized design on screen, it is perfect mathematics. When you stitch it out, it becomes physics—tension, friction, and resistance.

If your embroidery looks “almost right” but feels stiff, lumpy, or fails to reflect light beautifully on curves, the problem is rarely your machine mechanics. It is your stitch flow.

In PE Design 10, Angle Lines (also known as Direction Lines) are the steering wheel of your machine. Without them, your machine drives in a straight line regardless of the road's curve. Stitching a curved letter with a single, flat angle line is like trying to drive around a roundabout without turning the steering wheel—you will crash into the edges.

This guide moves beyond basic software button-pushing. We will explore the physics of stitch direction, how to manipulate it to create "liquid" textures, and the critical physical workflows (hooping and stabilizing) that ensure your software decisions survive the transition to real fabric.

Angle Lines in PE Design 10: The One Control That Changes “Okay” Digitizing Into “Professional” Stitch Flow

Why do angle lines matter? Because thread is a three-dimensional cylinder, not a flat pixel.

When light hits embroidery thread, it reflects differently depending on the angle. If you stitch a circle with a single, vertical stitch angle, the top and bottom will look dark (light absorbed between threads), while the sides look shiny (light reflecting off the length of the thread).

To create a professional, "satin-smooth" look, you must tell PE Design 10 how stitches should travel through a shape. Angle lines are your map.

The Physics of Flow:

• Static Flow: One angle line. The needle creates a uniform "carpet" effect. Good for backgrounds, bad for organic shapes.
• Dynamic Flow: Multiple angle lines. The needle "turns" with the shape. This manages push and pull compensation. When stitches follow the curve, they distort the fabric less than when they fight against the grain.


The “Hidden” Prep Before You Touch Direction Lines: Set the Object Up So the Preview Tells the Truth

Novice digitizers often dive straight into editing without establishing a baseline. The result is "Chasing the Lie"—tweaking settings based on a preview that doesn't match reality.

Before dragging arrows, you must configure your workspace to simulate physical reality.

Step-by-Step Prep:

1. Isolate the Variable: Work on one object at a time. Select the shape you want to edit.
2. Select the Right Stitch Type: The video and industry standards suggest starting with a Motif Stitch or Satin Stitch for practice. These stitch types have long, visible structural lines that make direction changes obvious to the naked eye.
   • Tatami/Fill stitches often hide direction changes until you look closely.
3. Visual Audit: Zoom in (Ctrl + Scroll) until you can clearly see the perimeter nodes (points) and the endpoints.
4. Define Intent: Ask yourself, "Is this a ribbon (needs to flow) or a brick (needs to be solid)?"

Hidden Consumable Alert: Before doing any sew-out tests based on your digital prep, ensure you have temporary spray adhesive (like 505) and a fresh 75/11 needle. Old needles burr and snag, creating "pull" that looks like a digitizing error but is actually hardware failure.

Prep Checklist (Pre-Flight):

• Selection Check: Is only the target object selected? (Check the "Sewing Order" pane).
• Stitch Type Check: Is it set to Motif or Satin for clear visibility?
• Zoom Check: Can you see the "Start" (Box) and "End" (Triangle) markers?
• Backup: Did you save a version (e.g., Design_V1_Backup.pes) before aggressive editing?


Find the Angle Line Fast: Enter “Select Point” (Node Mode) Without Guessing

You cannot edit the skeleton of a design while looking at its skin. You must enter "X-Ray Mode."

In PE Design 10, the angle line is invisible in standard selection mode. You must activate Select Point (often called Node Mode).

How to Activate:

1. Go to the Select dropdown menu on the Home ribbon.
2. Choose Select Point.
3. Visual Verification: Look for the object outline turning into a series of small white squares (nodes) and a dotted line with an arrow running through the shape.

Troubleshooting “The Missing Line”:

• Symptom: "My panel doesn't look like yours."
• Diagnosis: You may be in "Select" mode, not "Select Point" mode. Or, the shape might be a "shape-oriented" grouped object.
• Fix: Ungroup the object (Right-Click > Ungroup) or ensure you have clicked explicitly on the outline of the specific shape.

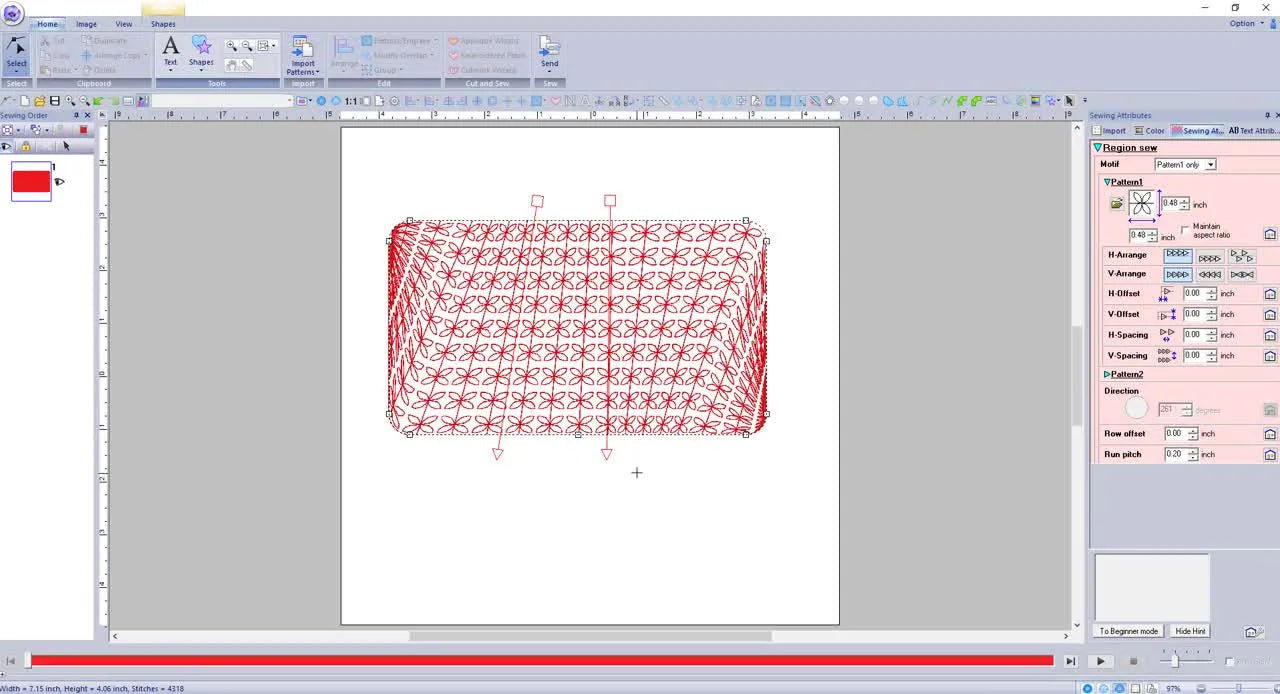

Drag the Existing Angle Line in PE Design 10: The Cleanest Way to Change Stitch Direction Without Rebuilding Anything

This is your primary tool for fixing "flat" looking embroidery. By changing the angle, you change how light hits the thread.

The 45-Degree Rule: Experienced digitizers know that a 45-degree angle often produces the best sheen and the least amount of fabric distortion on stable woven fabrics. Vertical (90-degree) stitches tend to sink into the fabric grain; Horizontal (0-degree) stitches can gap.

Execution:

1. Identify: Locate the dotted arrow line (the Angle Line).
2. Grab: Left-click and hold the Blue/Black Endpoint square of the arrow line.
3. Drag: Move it to rotate the line.
4. Observe: Watch the motif pattern or satin grain update instantly.

Sensory Feedback:

• Visual: Does the pattern now align with the longest axis of the shape? Ideally, stitches should run perpendicular to the width of the shape for Satin, or match the "grain" you desire for a Fill.

Checkpoint: Stop dragging when the texture flows "downhill" relative to the shape's orientation.

Add Multiple Direction Lines (Angle Lines) for Controlled Warping: How to Get That “Fan” Effect on Purpose

Single lines are for blocks. Multiple lines are for organic flow. This is how you create the "Fan Effect," where stitches are tight on the inside of a curve and fanned out on the outside (like a turning car's wheels).

The Process:

1. Select the object in Point Mode.
2. Right-click on the object.
3. Choose Add Direction Line.
4. Click-Drag-Click: Click outside the shape to start, drag across the desired path, click outside to end.
5. Repeat: Add 2-3 lines at critical turning points of the curve.

The Physics of Warping (Risk Assessment): When you add multiple lines, the software calculates an average path between them.

• The Benefit: Beautiful, liquid movement.
• The Risk: varying Stitch Density.
  • On the "short side" of the turn, stitch points crowd together.
  • On the "wide side" of the turn, stitches spread apart.

Expert Insight: If your stitches get too close (under 0.3mm density), you risk Needle Heating and thread breaks. If you warp a design aggressively, check the "Density" setting in your embroidery attributes to ensure it isn't set too high (keep it around 4.5 lines/mm or 0.4mm spacing for safety).

The Two Non-Negotiable Rules: Why Angle Lines Snap Back (and Why PE Design 10 Refuses to Place a New One)

The software has hard mathematical limits to prevent you from creating a file that is impossible to stitch. If you encounter resistance, it is a safety feature, not a bug.

Rule 1: Endpoints must be outside the object

Think of the angle line as a skewer going through a kebab. The handle must be visible on the outside.

• The Error: The line snaps back to its original position.
• The Physical Reason: The software needs a vector that fully transects the stitch calculations.
• Fix: Ensure your Start Box and End Triangle are dropped strictly outside the wireframe of the object.




Rule 2: Direction lines cannot cross

You cannot tell a car to drive North and West simultaneously on the same single-lane road.

• The Error: The cursor shows a "No Entry" symbol or refuses to click.
• The Physical Reason: If lines cross, the mathematical calculation for stitch direction hits a singularity (a divide-by-zero error equivalent).
• Fix: Visualize water flowing down a pipe. The lines must flow alongside each other, never crossing.

Warning: Mechanical Safety Check.
When testing designs with complex, warped stitch angles, lower your machine speed to 600 SPM (Stitches Per Minute) or less. Rapidly changing stitch lengths caused by aggressive angle lines can cause needle deflection, where the needle bends, hits the needle plate, and shatters. Always wear eye protection when testing new, high-complexity files.

Reverse Direction Line in PE Design 10: A Tiny Right-Click That Can Completely Change the Stitch Flow

Sometimes the angle is correct (e.g., 45 degrees), but the "flow" feels backward, causing unnecessary jump stitches or travel runs.

The Action:

1. Select the specific direction line.
2. Right-click.
3. Choose Reverse Direction Line.


Checkpoint: The arrow head flips. Expected outcome:

• For Motif: The pattern flips 180 degrees.
• For Satin/Fill: The software recalculates the entry and exit points of that specific segment.

Pro-Tip: If your machine is making a loud "thump-thump" sound at the start of a segment, reversing the direction line might move the tie-in stitches to a less dense area, smoothing out the operation.

The “I Got Lost” Reset Button: Delete Lines Not Selected to Clean Up a Mess in Seconds

Over-editing creates "Noise." If you have added 5 lines and the design looks like a crumpled napkin, do not try to fix each line. Nuke it and start over.

The Clean Slate Protocol:

1. Select the one direction line you actually like (or the primary one).
2. Right-click.
3. Choose Delete Lines Not Selected.




This returns the object to a single-flow calculation, instantly removing all the warping logic. This is your "Undo" button for complex logical errors.

Setup Habits That Prevent Bad Stitch Flow Later: Think Like a Digitizer, Not Like a Clicker

Software is the theory; the machine is the reality. Stitch direction affects the physical integrity of the fabric.

The "Push and Pull" Reality:

• Pull: Stitches pull the fabric in towards the center of the stitch direction.
• Push: The fabric pushes out perpendicular to the stitch direction.

If you set an angle line to run parallel to the stretch of a t-shirt (usually horizontal), the shirt will stretch like an accordion.

Setup Checklist (Before Exporting to Machine):

• Intersection Check: Do any direction lines cross? (Software usually prevents this, but check visually).
• Boundary Check: Are all endpoints clearly outside the shape?
• Fabric Logic Check: Are my main angle lines fighting the fabric stretch?
  • Rule of Thumb: On knits, try to run stitches diagonally (bias) to the fabric stretch for maximum stability.
• Density Audit: If I have warped the design heavily, did I lower the density slightly to prevent bulletproof stiffness?

A Simple Decision Tree: When to Use One Angle Line vs Multiple Direction Lines (and When to Stop)

Use this logic flow to prevent over-digitizing:

1. Is the shape geometric and uniform (Rectangle, Circle, Star)?
   • YES: Use ONE angle line. Adjust angle for light reflection (sheen).
   • NO: Go to Step 2.
2. Does the shape emulate something organic (Petal, Feather, Ribbon, Letter)?
   • YES: Add TWO to THREE lines maximum. Place them at the beginning, middle turn, and end.
   • NO: Stick to one line.
3. Is the preview showing "jagged" edges on curves?
   • Action: Add intermediate angle lines to smooth the transition.
4. Did the preview turn into a chaotic knot?
   • Action: Delete Lines Not Selected immediately. You have engineered a conflict. Simplify.

Comment-Driven Pro Tips: What People Get Excited About (and What They Trip Over)

• The "Illustrator Convert" Problem: If you auto-digitize from Adobe Illustrator, the software often defaults to a single "flat" angle. Angle lines are the first tool you should use to fix flat auto-digitized logos.
• The UI Panic: If your screen looks different, do not panic. The Select Point tool is the key. As long as you can see nodes, you can edit angles.
• The "Play" Mindset: Create a "Sandbox.pes" file. Draw a blob. Twist it with 10 angle lines. See what breaks. It is free to fail in software; it is expensive to fail on garments.

The Upgrade Path When You’re Ready to Produce (Not Just Preview): Hooping Speed, Consistency, and ROI

You can have the most beautifully digitized angle lines in the world, but if your hooping is loose, the fabric will shift, and your perfect curves will pucker. This is where software meets hardware.

The Hierarchy of Stability:

1. Level 1: Skill. Learning to tighten a wooden hoop until it sounds like a drum (tight, but not stretched).
2. Level 2: Physics. Using the correct backing. (Cutaway for knits, Tearaway for woven).
3. Level 3: Tools. Upgrading to magnetic embroidery hoops.

Why Professionals Switch to Magnets: Traditional screw-tighten hoops rely on hand strength and often leave "hoop burn" (crushed fibers) that ruins delicate fabrics. When you are fighting hoop burn, you start hooping looser, which leads to poor registration.

The search for terms like magnetic embroidery hoop usually begins when a user ruins a customer's expensive jacket with hoop marks. Magnetic frames hold fabric firmly without the friction-burn of inner rings. They also allow for faster re-hooping during production runs.

Commercial Consistency: If your shop is scaling up, you might investigate a machine embroidery hooping station. These devices ensure that every left-chest logo is placed in the exact same spot on every shirt, regardless of size.

A consistent hooping station, combined with a hoopmaster system, eliminates the "human error" variable. This allows your perfectly digitized angle lines to perform exactly as they did on screen.

For those running industrial equipment, a robust hoopmaster hooping station is often the investment that bridges the gap between "hobbyist struggle" and "commercial profitability."

Warning: Magnetic Safety Alert.
Magnetic embroidery hoops use industrial-grade magnets (Neodymium).
* Pinch Hazard: They snap together with enough force to crush fingers. Handle with extreme care.
* Medical Safety: Keep strong magnets at least 6 inches away from pacemakers and ICDs.
* Electronics: Keep away from credit cards, phones, and machine LCD screens.

Operation Checklist (Test-Stitch Like a Pro):

1. The "Drum" Test: Tap your hooped fabric. It should sound taut, not thudded.
2. Speed Dial: Reduce machine speed to 600 SPM for the first run of a new file.
3. Auditory Monitor: Listen.
   • Rhythmic hum: Good.
   • Sharp hacking/slapping: Bad. Check tension or stabilizer.
4. Visual Monitor: Watch the long satin stitches on curves. Are they looping? (Tighten top tension). Are they tunneling? (Loosen top tension or add stabilizer).
5. Documentation: Write down the settings that worked (e.g., "Cotton Shirt + 2 layers Cutaway + 45-degree angle").




FAQ

• Q: In Brother PE Design 10, why does the Angle Line snap back when dragging the direction line on a Satin Stitch object?
  A: The Angle Line endpoints are not placed strictly outside the object, so PE Design 10 rejects the edit as an impossible stitch calculation.
  • Switch: Go to Select > Select Point so the dotted arrow line and nodes are visible.
  • Drag: Move the Start/End handles so both endpoints sit clearly outside the object outline.
  • Re-test: Rotate again from the endpoint square (not from the middle of the line).
  • Success check: The stitch preview updates immediately and the direction line stays where it was placed.
  • If it still fails: Ungroup the artwork and reselect the specific shape outline, then try again.
• Q: In Brother PE Design 10, why does “Add Direction Line” refuse to place a new line and show a “No Entry” cursor?
  A: The new direction line is crossing an existing direction line, and PE Design 10 blocks crossing lines by design.
  • Inspect: In Select Point mode, look for where the new line would intersect another line.
  • Re-route: Place the new line so direction lines run alongside each other and never cross.
  • Simplify: Keep to 2–3 direction lines on organic curves (start / mid-turn / end).
  • Success check: The software allows the click-drag-click placement without resistance, and the preview warps smoothly instead of knotting.
  • If it still fails: Use Delete Lines Not Selected to reset the object to a clean baseline, then add lines again.
• Q: In Brother PE Design 10, how can digitizers find the Angle Line quickly when the direction line is not visible in normal Select mode?
  A: Use Select Point (Node Mode)—Angle Lines are not reliably editable from standard selection mode.
  • Open: Home ribbon Select dropdown > Select Point.
  • Verify: Confirm the outline becomes small white square nodes and a dotted arrow line appears through the object.
  • Target: Click the specific shape outline (not empty canvas) to ensure the correct object is active.
  • Success check: Nodes plus the dotted arrow direction line are visible on the exact object being edited.
  • If it still fails: Right-click the artwork and Ungroup, then select the individual shape and retry.
• Q: In Brother PE Design 10, what prep steps help prevent “chasing the lie” when editing Direction Lines for Motif Stitch or Satin Stitch?
  A: Set a clean baseline first so the preview reflects real stitching behavior as closely as possible.
  • Isolate: Edit one object at a time (confirm in the Sewing Order pane).
  • Choose: Start with Motif Stitch or Satin Stitch so direction changes are obvious.
  • Audit: Zoom in until you can clearly see nodes plus Start (box) and End (triangle) markers.
  • Replace: Use temporary spray adhesive (like 505) and a fresh 75/11 needle before sew-out tests.
  • Success check: The preview changes are easy to see, and the sew-out is not falsely “pulled” by snaggy needle behavior.
  • If it still fails: Save a backup version and re-check that only the target object is selected before editing.
• Q: In Brother PE Design 10, how does “Reverse Direction Line” fix backward stitch flow that causes unnecessary travel or loud “thump-thump” starts?
  A: Reverse the specific direction line so the arrow flips and the entry/exit logic recalculates for that segment.
  • Select: Click the specific direction line in Select Point mode.
  • Reverse: Right-click and choose Reverse Direction Line.
  • Observe: Watch the arrowhead flip and the stitch preview re-route.
  • Success check: The segment starts more smoothly and the stitch path looks cleaner with fewer awkward starts.
  • If it still fails: Reduce complexity by removing extra lines (use Delete Lines Not Selected) and rebuild with fewer direction lines.
• Q: In Brother PE Design 10, what is the fastest way to recover when multiple Direction Lines make the preview look like a chaotic knot?
  A: Keep one good direction line and use Delete Lines Not Selected to instantly remove the rest and reset the flow.
  • Choose: Select the single direction line that is closest to correct.
  • Clean: Right-click and choose Delete Lines Not Selected.
  • Rebuild: Add back only 2–3 direction lines at the most important curve turns.
  • Success check: The object returns to a readable, single-flow preview immediately and warping becomes predictable again.
  • If it still fails: Start over from a saved backup file version and reapply direction lines more conservatively.
• Q: When test-stitching heavily warped Direction Lines from Brother PE Design 10, what machine safety steps prevent needle deflection or needle breakage?
  A: Slow down and test like a controlled prototype, because aggressive angle changes can create rapid stitch-length variation.
  • Reduce: Set machine speed to 600 SPM or less for the first run of a complex file.
  • Monitor: Listen for sharp hacking/slapping sounds and stop if they appear.
  • Protect: Wear eye protection during high-complexity test runs.
  • Success check: The machine runs with a steady rhythmic hum and the stitches form cleanly without sudden impacts.
  • If it still fails: Re-check density on warped areas (avoid overly tight settings) and simplify direction line changes before re-testing.
• Q: For curved satin lettering digitized in Brother PE Design 10, when should embroidery users upgrade from tightening a standard hoop to using a magnetic embroidery hoop or a hooping station?
  A: Upgrade when good digitizing still fails on fabric due to shifting, hoop burn, or inconsistent placement—fix stability before blaming stitch direction.
  • Level 1 (Skill): Tighten the hoop to “drum” tautness without stretching fabric.
  • Level 2 (Materials): Match backing to fabric (cutaway for knits, tearaway for woven).
  • Level 3 (Tools): Use a magnetic embroidery hoop to reduce hoop burn and improve consistent holding pressure; use a hooping station for repeatable placement in production.
  • Success check: Curves sew out closer to on-screen flow, with less puckering and more consistent registration between repeats.
  • If it still fails: Slow the first sew-out to 600 SPM and re-check tension/stabilizer before changing digitizing again.
