Pant Leg Embroidery on a YunFu Multi-Needle: The Pant Device Setup That Prevents Wrinkles, Strikes, and Rehoops

Pant legs are the kind of “simple job” that quietly eats your day: the fabric twists, the surface isn’t truly flat, and one wrong frame setting can put your machine in a risky position. For a novice, the fear of a needle strike or a ruined pair of custom jeans is real. But the good news is that the pant device workflow on YunFu cylinder arm machines is solid—if you treat it like a repeatable engineering system, not a one-time demo.

As someone who has spent two decades managing production floors, I can tell you that successful tubular embroidery isn't about luck; it's about physics and preparation. Below is the exact process shown in the video, rebuilt into a shop-ready routine with the sensory checkpoints and safety margins I’d insist on training a new operator.

Calm the Panic First: Why Pant Device Embroidery Goes Wrong on a YunFu Cylinder Arm

Tubular embroidery fails for two predictable reasons. Understanding them is half the battle:

1. The "Trampoline Effect" (Instability): The embroidery surface looks "okay" on top, but the fabric is loose underneath. When the needle penetrates, the fabric bounces (flags). This causes skipped stitches, birdnesting, and designs that look "dragged" or rippled.
2. The Coordinate Mismatch (Collision Risk): On DAHAO systems, the machine doesn't automatically know you switched from a flat hoop to a pant frame. If you don't tell it, the pant driver moves to coordinates meant for a flat table, leading to frame collision. This is the source of most operator anxiety.

If you’re setting up a machine embroidery hooping station, your goal is not just “get it on the hoop.” Your goal is flat + tight + centered + traced before you even look at the start button.

The Table Clamp Matters More Than People Admit: Mounting the Pant Station So It Doesn’t Drift

In the video, the operator mounts the pant station to the table edge using the hand screw. That’s not a disposable step—if the station shifts by even 2mm while you’re sliding heavy denim on, you’ll fight alignment the entire session.

The Procedure (Action-First):

1. Position: Place the pant station at the sturdy edge of the table.
2. Secure: Tighten the clamp screw until you feel significant resistance.

Expert Sensory Checkpoint (The "Push Test"): Before moving on, push the station arm sideways with your palm using moderate force.

• Fail: It slides or pivots. Tighten it again.
• Pass: The table moves, but the station stays rigid.

Warning: Keep fingers clear of pinch points on the clamp and station arm. The leverage here is strong; a quick “one more turn” can bite hard, and you don’t want a hand injury right before handling needles.

The “Hidden” Prep That Saves Rehoops: Cylindrical Pant Hoop + Backing Placement

The video shows a straightforward prep: sliding the cylindrical pant hoop onto the station arm and draping the backing/stabilizer over it. However, the type of backing you use here defines your success.

The "Invisible" Consumables:

• Backing: For denim, use a standard 2.5oz or 3.0oz Cutaway. Tearaway is rarely strong enough to support the stitch density on a cylinder arm.
• Adhesion (Optional but Recommended): A light mist of temporary adhesive spray or a touch of double-sided tape on the corners of the backing helps keep it from shifting as you slide the pant leg on.


Prep Checklist (Do verification before the garment touches the station)

• Seating Check: Confirm the cylindrical hoop is fully seated on the station arm. Shake it gently—there should be zero wobble.
• Backing Geography: Cut backing large enough to cover the stitch area with at least a 1-inch margin on all sides. Don't be stingy; stabilizer is cheaper than a ruined garment.
• Smoothness Check: Run your hand over the backing on the cylinder. If you feel a crease, smooth it out now. A crease in the backing equals a pucker in the finished embroidery.
• Seam Scout: Pre-check the pant leg for bulky seams near your intended design spot. You want the flattest area possible.

If you’re comparing different hooping stations for tubular work, this is the moment you’ll notice the difference between “it holds the hoop” and “it holds the hoop consistently.” Consistency is the only metric that matters in production.

Hooping Denim on the Pant Device: Slide the Pant Leg On Without Twisting the Grain

The video’s method is the correct baseline: Pull the pant leg opening over the station and hoop, then center the embroidery area on the top of the cylinder.

Visual & Tactile Anchoring:

• Don’t fight the denim—guide it. If you yank hard, you bias (stretch) the fabric grain. When you take it off the hoop later, the fabric snaps back, and your perfect circle becomes an oval.
• The "Top Dead Center" Rule: Tubular items trick the eye. Stand directly above the station to judge the center. What looks centered from the side is often 15 degrees off.

If you’re used to flat hoops, this is where a sleeve hoop mindset helps: you’re managing a 3D tube, decreasing friction is key. Roll the pant leg up like a sock before sliding it on to reduce drag.

Binder Clips Are the Secret Weapon: Making the Embroidery Surface Flat, Flat, and Tight

This is the most critical quality step in the entire video. The operator attaches multiple binder clips to the bottom ridges of the hoop assembly.

Why this is non-negotiable: On a cylinder, gravity works against you. The binder clips provide downward tension, pulling the excess fabric tight against the stabilizer. This turns a floppy tube into a surface that feels like a drum skin.

The Tactile Success Metric: After clipping, tap the fabric in the hoop with your finger.

• Fail: It feels soft or spongy.
• Pass: It feels taut and has a slight bounce.

Comment-driven pro tip: Build a dedicated "Tubular Kit" bin containing your pant device parts, specifically sized binder clips, pre-cut cutaway backing, and a small screwdriver. Hunting for clips mid-job causes frustration that leads to mistakes.

DAHAO “Pant Frame” Selection: The One Tap That Prevents Scary Near-Collisions

The video is very clear on sequencing, and I cannot stress this enough: Software Setup happens BEFORE Mechanical Mounting.

1. Go to the DAHAO Screen: Do not put the hoop on the machine yet.
2. Select Frame: Find the specific “Pant Frame” icon.
3. Confirm: The driver will move to the correct center coordinates automatically.


This is not optional. If you skip this trigger, the machine thinks it is operating a flat sash frame. It might try to move to a corner that doesn't exist on the pant driver, leading to a frame crash.

Warning: Selecting the wrong frame type drastically increases the risk of the needle bar hitting the metal hoop. Always choose the DAHAO “Pant Frame” first. If you are unsure, restart the machine sequence.

If you’re running multiple tubular jobs per day, a dedicated embroidery hooping station workflow pays off here: frame selection becomes a muscle memory step, essentially a "pre-flight check."

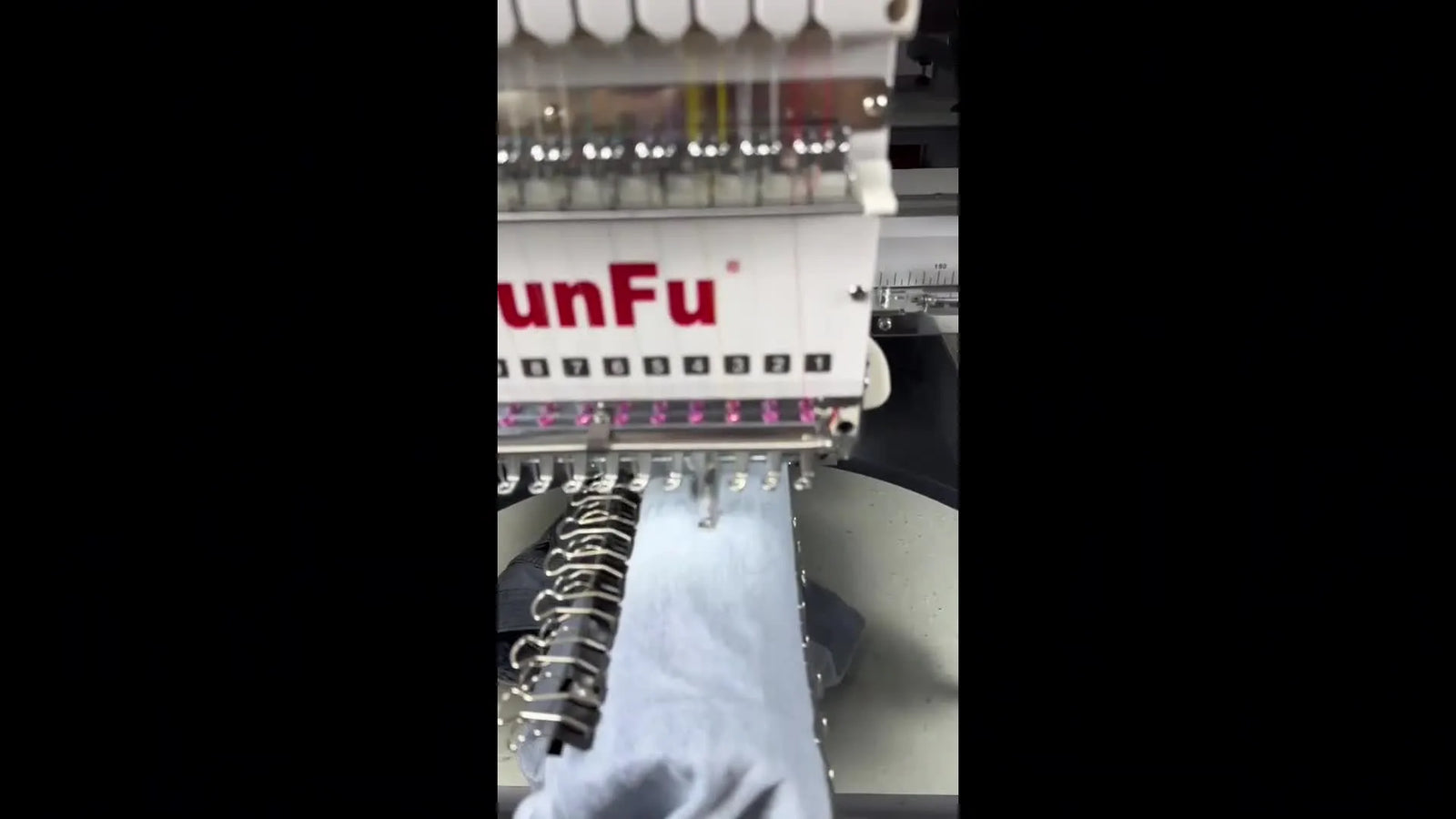

The Three-Click Lock-In: Mounting the Pant Hoop on the YunFu Cylinder Arm Without Slop

After frame selection, the video shows mounting the hooped pant leg onto the machine’s cylinder arm.

The Auditory Anchor: There are usually three locking points (two side pins and a central lock or similar configuration depending on the exact model).

• Listen: You want to hear a distinct click or metallic clunk as they engage.
• Feel: Wiggle the hoop gently. If it rocks, it is not locked.


What to do: Slide the hoop onto the cylinder arm rails smoothly. Engage the points. If it resists, do not force it—pull back, check for loose threads or fabric caught in the rail, and try again.

The DAHAO Setup Flow That Keeps You Out of Trouble: Design → Orientation → Colors → Mode → Border

The video walks through the DAHAO sequence. Here is the expert logic to ensure you don't waste the garment.

1. Select Design: Pick your file.
2. Orientation: In the video, they keep it at 0°. Note: Ensure your design was digitized with the correct "Up" for a pant leg (usually bottom-up or top-down depending on how you hooped).
3. Color Sequence: Map your needles.
4. Border Trace: This is your safety net.




Setup Checklist (The "Save Your Bacon" Protocol)

• Frame Check: Is DAHAO set to "Pant Frame"? (Yes/No)
• Orientation Check: Is the design right-side up relative to the waistband?
• Thread Path: Are top threads flossed correctly into the tension discs? (Pull gently to feel resistance).
• Bobbin Check: Is there enough bobbin thread for the whole job? (Don't run out mid-pant).
• Border Run: Press the "Border" or "Trace" button. Watch the needle bar number 1 (or the laser) trace the outer box. Does it hit the clips? Does it hit the bulky side seam?
• Adjustment: If the border is off, use the jog keys to center it. Trace again.

Stitching on Pants Without Regret: Start, Monitor, and Lower Speed for Better Quality

The video’s operation step is simple: Return to main page -> Start. However, they touch on a crucial variable: Speed.

The "Safe Zone" Speed Settings: While your machine might be rated for 1000 or 1200 SPM (Stitches Per Minute), tubular embroidery involves more vibration.

• Beginner/Safe Zone: 550 - 650 SPM.
• Pro Zone: 750 - 850 SPM (Only if clamped perfectly).


Why slower is better for pants: Reducing speed minimizes "flagging" (fabric bounce) and gives the rotary hook a slightly wider margin of error to catch the thread loop. On thick denim seams, high speed is the leading cause of needle deflection and breakage.

Operation Checklist (Active Monitoring)

• The First 30 Seconds: Do not walk away. Watch the first few color fills.
• Sound Check: Listen for a rhythmic hum-hum-hum. A sharp slap-slap sound usually means the fabric is hitting the needle plate (too loose), and a grinding noise means the hoop is rubbing the arm.
• Safety: Keep hands at least 6 inches away from the moving needle case.

Clean Removal and a Professional Finish: Don’t Distort the Fresh Stitching

After embroidery, unlock the hoop and remove the jeans. Support the fabric weight as you pull it off so you don't distort your fresh stitches.

Finishing Touches:

• Trim Jump Stitches: Use curved snips to cut jump stitches close to the fabric.
• Backing Removal: cut the Closeaway backing, leaving about 0.5cm - 1cm around the design. Don't cut into the denim!
• Pressing: If needed, steam the area from the backside or use a pressing cloth. Never iron directly on polyester thread, or it will melt/flatten.

Troubleshooting Pant Device Embroidery: Symptoms & Solutions

Stabilizer Decision Tree for Tubular Pants

The video uses backing (Cutaway), which is the industry standard. Here is how to choose the right combo from your SEWTECH supplies:

Start here: What is the Pant Material?

• A) Heavy / Rigid Denim (Standard Jeans):
  • Solution: SEWTECH 2.5oz Cutaway.
  • Why: Denim is stable, but the cylinder arm introduces instability. Cutaway provides the necessary foundation.
• B) Stretchy Denim / Jeggings:
  • Solution: SEWTECH 3.0oz Cutaway (or two layers of 2.0oz) + Binder Clips.
  • Why: Stretch breaks needles and distorts circles into ovals. You need maximum stability.
• C) Workwear / Canvas Pants:
  • Solution: SEWTECH Medium Cutaway.
  • Why: Canvas is stiff, so the stabilizer focuses on stitch definition.
• D) Performance / Poly-Blend Pants:
  • Solution: Performance Cutaway (fusible if possible).
  • Why: Keeps the slippery fabric from sliding on the hoop.

When to Upgrade the Workflow (Converting Frustration to Profit)

If you strictly follow the steps above, you can get professional results. However, if you are doing this commercially—perhaps 20 pairs of team pants a week—manual hooping becomes your bottleneck.

Upgrade Path 1: Solving the "Hoop Burn" and Wrist Strain

Traditional hooping requires force. If you are struggling with thick seams or your hands hurt at the end of the day, this is the trigger to investigate magnetic embroidery hoop technology.

• The Advantage: Magnetic hoops clamp thick seams instantly without forcing an inner ring into an outer ring. They reduce "hoop burn" (shiny marks on fabric) significantly.
• The Commercial Logic: If you save 2 minutes per pant leg, and you do 30 legs, you just saved an hour of labor.
• Options: SEWTECH offers magnetic hoops compatible with various machine models that make tubular hooping faster and safer for the fabric.

Warning: Industrial magnetic hoops are incredibly powerful. Keep them away from pacemakers, credit cards, and keep your fingers out of the "snap zone" to avoid pinch injuries.

Upgrade Path 2: Scaling Production Volume

If you find yourself turning down orders because your single-head machine is too slow, or the setup time for pants is killing your profit margin, it’s time to look at the SEWTECH Multi-Needle ecosystem.

• The Trigger: You are spending more time changing threads and re-hooping than actually stitching.
• The Solution: A dedicated multi-needle machine allows you to keep the pant device set up permanently on one head while doing flats on another.

Comparisons for Context

When researching efficiency, you will see terms like hoop master embroidery hooping station or the hoopmaster hooping station. These are excellent industry benchmarks for consistent placement. Similarly, the dime totally tubular hooping station is a popular style of workflow.

• The Bottom Line: Regardless of the brand name, the principles remain the same—stability, repeatability, and tension. Whether you use existing tools or upgrade to a specialized station, success comes from the discipline of the "Check, Trace, Stitch" routine.

The Repeatable Pant Device Routine (Summary)

1. Clamp: Secure the station rigidly to the table.
2. Prep: Backing over the cylinder, smooth and creaseless.
3. Hoop: Slide pant leg on; center visually.
4. Tension: Apply binder clips underneath until fabric is "drum tight."
5. Software: Select DAHAO "Pant Frame" immediately.
6. Mount: Lock hoop onto arm (Listen for 3 Clicks).
7. Verify: Check Thread, Bobbin, and Orientation.
8. Trace: Run Border Check to ensure seam clearance.
9. Stitch: Run at 600 SPM and monitor.
10. Finish: Unhoop gently, trim backing, and inspect.

Master this loop, and pant legs stop being "that scary job" and start being the high-margin service your competitors are too afraid to offer.

FAQ

• Q: On a YunFu cylinder arm embroidery machine with a DAHAO control system, what exact step prevents pant frame collision when switching from a flat hoop to a pant device?
  A: Select the DAHAO “Pant Frame” on the screen before mounting the pant hoop on the machine.
  • Go to the DAHAO frame selection page while the hoop is still off the machine.
  • Tap the “Pant Frame” icon and confirm so the driver moves to the correct center coordinates.
  • Run a Border/Trace after design selection to confirm clearance from clips and seams.
  • Success check: the Border/Trace path stays inside the usable area and does not approach the hoop metal, binder clips, or bulky side seam.
  • If it still fails: restart the machine sequence and re-confirm the frame type is “Pant Frame,” then trace again before stitching.
• Q: How do I stop “trampoline effect” flagging and birdnesting when embroidering denim pant legs on a YunFu cylinder arm pant device?
  A: Make the hoop surface “drum tight” using binder clips underneath to create downward tension.
  • Add multiple binder clips to the bottom ridges of the hoop assembly to pull excess fabric tight against the stabilizer.
  • Smooth the backing on the cylinder first; remove any creases before the garment goes on.
  • Reduce speed to the safer tubular range (a safe starting point is 550–650 SPM) to reduce vibration and fabric bounce.
  • Success check: tap the hooped area— it should feel taut with a slight bounce, not soft or spongy.
  • If it still fails: switch to heavier cutaway stabilizer for denim and re-hoop with more clips.
• Q: What stabilizer and light adhesion setup works best for denim pant embroidery on a YunFu cylinder arm pant hoop?
  A: Use cutaway stabilizer (often 2.5oz or 3.0oz cutaway for denim) and optionally add light temporary adhesion to prevent backing shift.
  • Cut backing with at least a 1-inch margin around the stitch area on all sides.
  • Mist a light temporary adhesive spray or place small pieces of double-sided tape at the backing corners to keep it from creeping while sliding the pant leg on.
  • Scout the pant leg for bulky seams near the design location and choose the flattest zone possible.
  • Success check: shake the cylindrical hoop gently on the station arm—there should be zero wobble, and the backing should lie smooth with no crease.
  • If it still fails: increase stabilizer weight (or layer cutaway) and re-check clamp rigidity before hooping.
• Q: How can I tell if the pant device clamp is secure enough before hooping jeans on a YunFu pant station?
  A: Use the “Push Test” and do not proceed until the station stays rigid under moderate side force.
  • Tighten the table clamp screw until you feel significant resistance.
  • Push the station arm sideways with your palm using moderate force.
  • Re-tighten if any slide or pivot is observed before loading heavy denim.
  • Success check: the table may move slightly, but the pant station arm does not drift or twist.
  • If it still fails: reposition to a sturdier table edge and repeat the clamp-and-push test.
• Q: What is the safest way to prevent needle strikes and near-collisions when tracing a design on a YunFu cylinder arm pant frame with binder clips attached?
  A: Always run the Border/Trace and watch for clip and seam clearance before pressing Start.
  • Set DAHAO to “Pant Frame,” then select the design and confirm orientation before tracing.
  • Press Border/Trace and visually follow the outer box path, especially near binder clips and bulky side seams.
  • Jog to center if needed, then trace again—do not assume one trace is enough.
  • Success check: the traced border clears all clips and seams with visible space and no contact sounds.
  • If it still fails: re-hoop higher/lower on the pant leg to avoid the seam, or resize the design to fit the pant frame area.
• Q: What should I do when a YunFu cylinder arm embroidery machine shows a “Frame Limit” error while using the DAHAO Pant Frame?
  A: The design is too large for the pant frame area—resize the design and confirm with Border/Trace before stitching.
  • Stop and do not force the stitch-out in the current size.
  • Resize the design in software so it fits within the pant frame’s usable area.
  • Re-load the file and run Border/Trace to confirm the new boundary.
  • Success check: Border/Trace completes without hitting the frame limits and stays within the safe sewing zone.
  • If it still fails: reduce design size further and re-check that DAHAO is set to “Pant Frame,” not a flat frame type.
• Q: When should a shop upgrade from manual pant hooping to a magnetic embroidery hoop or a SEWTECH multi-needle system for pant leg production?
  A: Upgrade when pant jobs are consistently slowed by hooping force, hoop burn, rehoops, or thread-change downtime—fix technique first, then scale tools and capacity.
  • Level 1 (Technique): stabilize better (cutaway + adhesion), clamp rigidly, add binder clips, and run Border/Trace every time.
  • Level 2 (Tool): consider magnetic embroidery hoops if thick seams cause hooping strain or hoop burn marks during repeated pant jobs.
  • Level 3 (Capacity): consider a SEWTECH multi-needle setup if orders are limited by thread changes and repeated setups rather than actual stitch time.
  • Success check: setup time per pant leg drops and first-pass quality improves (less re-hooping, fewer collisions, fewer needle breaks).
  • If it still fails: track where time is lost (hooping vs. tracing vs. thread changes) and upgrade the specific bottleneck, not everything at once.
• Q: What magnetic hoop safety rules should operators follow when using industrial magnetic embroidery hoops for pant legs?
  A: Treat industrial magnetic hoops as pinch hazards and keep them away from sensitive items.
  • Keep fingers out of the “snap zone” when magnets close to avoid pinch injuries.
  • Keep magnetic hoops away from pacemakers and items like credit cards.
  • Stage the hoop halves on a stable surface so they cannot jump together unexpectedly.
  • Success check: the hoop closes in a controlled way without finger contact, and the garment is clamped evenly without forcing.
  • If it still fails: stop and re-train handling technique—do not “muscle through” magnets that are misaligned.
