Mastering ITH Quilt Blocks: The Production-Ready Guide

If you’ve ever watched an in-the-hoop (ITH) quilt block stitch-out and thought, “Why does mine ripple, shift, or finish slightly ‘off’ even when the design is good?”—you’re not alone. Quilt blocks are unforgiving because you are fighting physics: you’re stacking stabilizer + high-loft batting + fabric, then asking the machine to compress that sandwich with a quilting fill that can take longer than the rest of the design combined.

Regina’s Palette 11 workflow is solid because it respects one simple truth: flat layers come from controlled tack-down timing.

As an educator who has watched thousands of blocks get stitched (and ruined), I am rebuilding her exact order of operations into a shop-ready routine. This isn't just about following steps; it's about understanding the tactile feedback of your machine and upgrading your toolkit when the physics of standard hoops starts working against you.

The Calm-Down Primer: What “ITH Quilt Block” Really Means on an Embroidery Machine

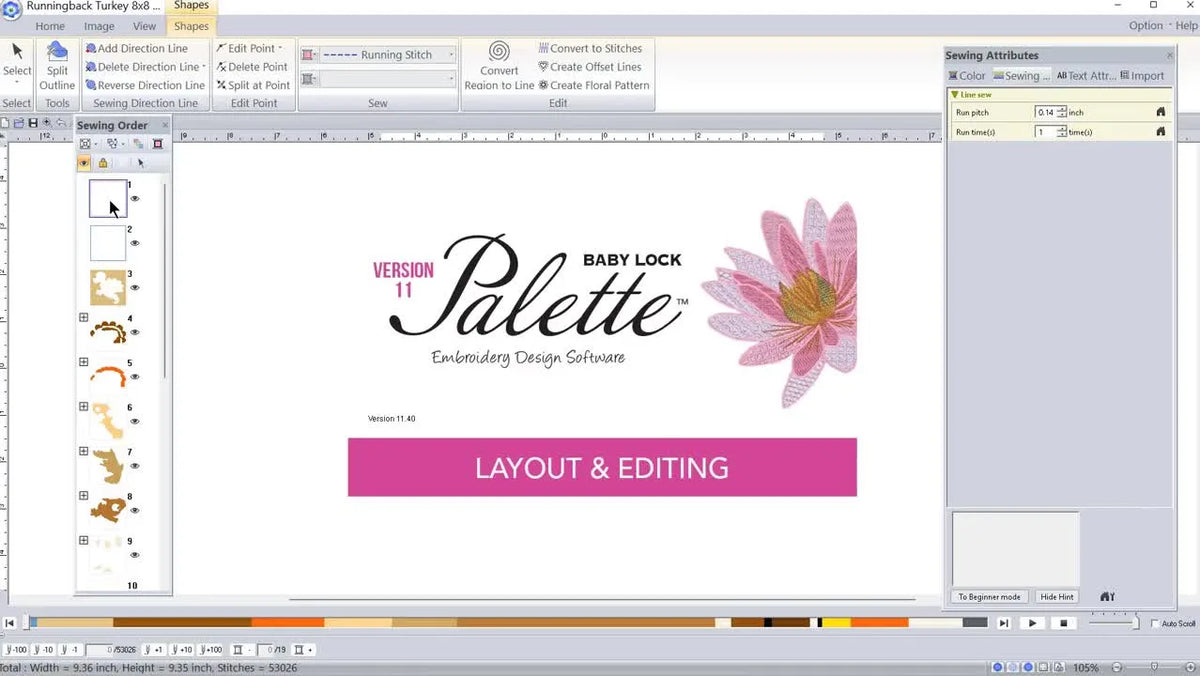

Regina’s process is a classic ITH construction sequence inside Palette 11: the file is built so the machine stitches a placement line, then tacks batting, then tacks fabric, then runs the decorative background quilting fill, and only after that does it stitch the main embroidery elements and text.

That order provides structural integrity. The background quilting is the “stress test.” It is the longest-running section and creates a “pull” effect on the fabric. If your stabilization isn't rigid, the fabric will contract, leading to blocks that aren’t square.

The Reality Check: Regina shows the Running Back Turkey block at 8x8 inches, with design properties showing 7.83" x 7.83" and 55,446 stitches.

• Time Investment: ~115 minutes per block.
• Risk Factor: High. If the stabilizer fails at minute 90, you lose the materials and nearly two hours of time.


Stabilizer Choices for Dense Quilt Blocks: No-Show vs Cutaway (Don’t Guess—Use Stitch Density)

Regina’s stabilizer rule is practical, but let’s add the engineering context.

• Light Designs: She uses no-show mesh or Soft and Stay. This works only if the stitch count is low (under ~10,000 stitches) and the background fill is open (stippling).
• Dense Designs: For blocks like the Fall Pumpkin (heavy fills), she recommends cutaway stabilizer.

Why Cutaway is Non-Negotiable for Fills: Dense quilting fills function like a perforator. They add thousands of needle penetrations that weaken the structural integrity of the fabric. Tear-away stabilizer will shred under this stress, causing the block to distort. Cutaway acts as a permanent suspension bridge for your stitches.

This is also where hardware matters. If you are struggling to hoop thick Cutaway + Batting + Fabric without "hoop burn" (those shiny rings left on fabric), this is a Trigger Point to look at upgraded tools. Many professionals switch to hooping stations or magnetic frames at this stage—not because they are "fancy," but because the consistent magnetic pressure holds the sandwich without crushing the batting fibers at the hoop edge.

Stabilizer Decision Tree (Quilt Block Edition)

Use this logic flow before you cut a single piece of fabric:

1. Analyze the Background Fill

• Is it a light stipple or open motif? → Go to Step 2.
• Is it a dense geometric, pebble, or full-coverage fill? → Go to Step 3.

2. Light Density Path

• Primary Choice: No-Show Mesh (PolyMesh) or Soft and Stay.
• Condition: Use only if the fabric is stable cotton. If using a knit/stretch fabric for a quilt block, add a layer of fusible woven interfacing to the fabric back.

3. High Density/High Stitch Count Path

• Primary Choice: Medium-Weight Cutaway (2.5oz - 3.0oz).
• Condition: If effective stabilization creates too much bulk, this is the trade-off for a square block. Do not compromise stability for softness in a wall hanging or runner.


The “Hidden” Prep Before You Hit Start in Palette 11 Simulator (This Prevents 80% of Rehoops)

Regina uses Palette 11’s simulator to visualize the sequence. This is your "Pre-Flight Check."

The Simulation Protocol:

1. Isolate the Tack-Downs: Confirm the first three color stops are Placement → Batting Tack → Fabric Tack.
2. Verify Fill Order: Confirm the decorative background quilting fill happens immediately after the fabric tack, but before the satin stitches or text.
3. Check for "Travel Lines": Watch where the needle moves. Does it jump across an open area? This signals where you might need to trim jump stitches manually.

Why Separate Tack-Downs Matter: Regina explicitly notes she dislikes files that tack batting and fabric in one pass.

• The Physics: Batting has "loft" (air). Fabric has "grain." If you tack them together, the foot pushes the air out of the batting while pushing the fabric grain. This creates ripples.
• The Fix: Tacking batting first compresses the air. Tacking fabric second creates a smooth surface.


Warning: Rotary cutters are responsible for more sewing room injuries than needles. When trimming batting in the hoop, engage your "sensory safety": ensure your non-cutting hand is widely splayed and visible. Always retract the blade guard immediately after the cut. Never leave an open blade on the table.

Prep Checklist (Do this once per project start)

• Fresh Needle Installed: Use a Topstitch 90/14 or Titanium 75/11. The titanium coating resists heat buildup during the 100-minute run time.
• Bobbin Status: For a 55k stitch design, start with a full bobbin.
• Hidden Consumables: Have Temporary Spray Adhesive (505) and Curved Appliqué Scissors ready.
• Simulation Run: Confirmed tack-down order (Batting separate from Fabric).
• Fabric Allowance: Fabric cut 1 inch larger than the batting on all sides.


The Placement Stitch on Stabilizer: Your “Map Line” for Perfect Batting Placement

Regina’s first color stop is a single run stitch directly onto the stabilizer.

Sensory Check:

• Visual: The line should be crisp.
• Tactile: Tap the stabilizer inside the hoop. It should sound like a drum skin (thump-thump). If it sounds loose or flabby now, stop. Tighten the hoop. Loose stabilizer at step 1 guarantees a warped block at step 10.


Batting Tack-Down (Color Stop 2): Lock the Loft Before It Can Shift

Regina lays the batting over the placement line.

Expert Technique: The "Float" vs. hoop Regina is effectively "floating" her materials. She isn't hooping the batting; she is laying it on top.

• The Risk: The presser foot can catch the edge of the batting and flip it.
• The Fix: Use a light mist of temporary adhesive spray on the back of the batting, OR use a chopstick/stylus to hold the batting edge down as the machine takes the first few stitches.

Checkpoint: After Color Stop 2, run your hand over the batting. It should feel flat and compressed within the stitch line. If there is a bubble, lift the corner (carefully tearing the batting from the stitch) and smooth it out, then re-stitch or tape it down.

Fabric Tack-Down (Color Stop 3): Smooth It Like You Mean It

This is the critical moment for surface quality. Regina lays the fabric over the tacked batting.

The "Ironing" Touch: Before hitting start, use your fingers to "iron" the fabric from the center out to the edges. You are establishing the grain line.

• Touch: You should feel the fabric grip the batting texture.
• Sound: Listen for the machine speed. For the tack-down, slow your machine to 350-400 SPM (Stitches Per Minute). High speed here causes the fabric to form a "wave" in front of the foot.

Tool Upgrade Insight: The Magnetic Advantage If you are doing production runs of 50+ blocks (e.g., for a craft fair), the repetitive motion of tightening screw-hoops causes wrist strain. This is a common entry point for magnetic hooping station setups. By using magnets, you can adjust the fabric tension after the hoop is magnetically locked but before it goes on the machine, giving you a second chance to smooth wrinkles without unscrewing everything.

Setup Checklist (Right before the long quilting fill)

• Hoop Check: Inner hoop is strictly flush with outer hoop (no popping out).
• Surface: Fabric smoothed center-out; no bubbles.
• Machine Speed: Set to "Beginner Sweet Spot" (600-700 SPM) for the main fill. Do not run at max speed (1000+) on dense quilt blocks; the friction causes thread breaks.
• Tail Management: All thread tails trimmed or pulled to the back.


The Time-Eater: Decorative Background Quilting Fill (Why It Takes So Long—and How to Keep It From Ruining the Block)

Regina identifies this as the "Time-Eater." This is the background texture (stippling, cross-hatch, etc.).

The Physics of Pull Compensation: As the machine stitches thousands of times, it pulls the fabric inward.

• Visual: Watch the edges of your block. You might see the stabilizer start to pull away from the hoop edges.
• The Fix: This is why we used Cutaway.
• The Tension Check: Look at the back of your hoop after the first 500 stitches. You should see 1/3 white bobbin thread down the center of the satin column. If you see top thread looped on the bottom, your top tension is too loose. If you see no bobbin thread, your top tension is too tight (risking bobbin pull-up on top).

Solving the "Hoop Burn" & "Pop-Out" Issue: Standard hoops rely on friction. Thick quilt sandwiches (Stabilizer + Batting + Fabric) can be too thick for the inner ring, leading to the hoop popping open mid-stitch. This is a catastrophic failure. If you experience this, magnetic embroidery hoops are the engineering solution. They use vertical magnetic force rather than friction, allowing them to hold thick layers securely without forcing the inner ring to expand beyond its limit. They also prevent the "hoop burn" marks that are difficult to iron out of quilt cotton.

Final Embroidery Elements & Text: The Fun Part (But Only If the Foundation Is Solid)

Once the background is quilted, the fabric is now essentially a stable piece of "cardboard." It is rigid.

• Action: Now you can safely stitch satins and text.
• Speed: You can bump the speed back up to 800 SPM providing your machine is stable.

Regina notes the "Happy Chanukah" text comes last. This ensures the text sits on top of the quilting loft, rather than being buried by it.

Reading Design Properties in Palette 11: Use Stitch Count and Size to Predict Stabilizer Needs

Regina checks the properties: 55,446 stitches.

The Pro's Formula:

• < 15,000 stitches: Low risk. Tear-away or PolyMesh is fine.
• 15,000 - 35,000 stitches: Medium risk. Cutaway recommended.
• > 35,000 stitches: High risk. Heavy Cutaway + fresh needle mandatory.

This high stitch count is another reason to consider babylock magnetic embroidery hoops if you own a Baby Lock machine. The larger total surface area and strong grip are designed to handle the push-pull compensation of high-stitch-count designs better than standard plastic hoops, which can flex under pressure.

The Perimeter Stitch Line Trick: Trim a True 1/4" Seam Allowance Without Guesswork

Regina’s trimming instruction is the difference between a "homemade" look and a "professional" look.

1. Identify the Outermost Line: This is usually a running stitch executed at the very end of the design.
2. The Ruler Work: Place your clear quilting ruler so the 1/4" markings align directly on top of that stitch line.
3. The Cut: Trim along the ruler edge.

Why this works: Even if the fabric shrank slightly during stitching, the stitch line represents the mathematically correct size of the block. Trimming based on the stitch line corrects for any minor shrinkage.

“Why Did My Block Warp?”—Fast Troubleshooting Based on Regina’s Workflow

If your block isn't square, don't guess. Use this diagnostic table.

The Upgrade Path That Actually Saves Time on Quilt Blocks

If you are making a single table runner as a hobby, standard tools are fine. But if you are hitting frustration points, here is how to determine if you need to upgrade.

1. The "Hoop Burn" Frustration

• The Pain: You spend 10 minutes ironing out hoop marks, or you can't get the screw tight enough on thick batting.
• The Upgrade: Magnetic Hoops.
• The Term: Search for terms like magnetic hoops for babylock embroidery machines (or your specific brand) to find frames that snap shut instantly. This eliminates the "screw and tug" battle.

2. The Productivity Wall

• The Pain: The 115-minute run time is killing your profit margin. You have to change threads manually 10 times.
• The Upgrade: Multi-Needle Machine (e.g., SEWTECH / Ricoma style).
• The Gain: These machines stitch faster (1000 SPM real speed) and change colors automatically. You can load a block, hit start, and walk away for an hour.

3. The Wrist Fatigue

• The Pain: Sore hands from tightening hoops.
• The Upgrade: Hooping Station.
• The Gain: Uses leverage and magnets to hold the hoop while you effortlessly align the fabric.

Warning: Magnetic Field Safety
Magnetic hoops use powerful Neodymium magnets.
* Pinch Hazard: They snap together with force capable of bruising fingers. Handle with deliberate care.
* Medical Devices: Keep at least 6 inches away from pacemakers.
* Electronics: Do not place phones, credit cards, or USB drives directly on the magnets.

Finishing Like a Pro: What to Check Before You Assemble Blocks

Regina creates a full table runner. To ensure yours lies flat:

Operation Checklist (Post-Production)

• Squareness: Measure diagonals of the block. If one is 11" and the other is 11.25", the block is skewed. Block it with steam before sewing.
• Edge Integrity: Ensure the stabilizer is trimmed cleanly away from the seam allowance to reduce bulk in the final quilt seams.
• Visual Continuity: Lay all blocks on the floor. Do the background quilting densities look identical? (If not, did you change bobbin thread brands halfway through?)


One Last “Watch Out” From Regina’s Community Workflow

Regina mentions a practical administrative hurdle: Facebook Group approvals.

• The Lesson: Specialized embroidery groups are goldmines for specific files (like the Dreidel block). When requesting access, answer the membership questions. Admins of these high-value groups act as gatekeepers to keep spam out. Treat the entry questions like a captcha test—they are mandatory for entry.


By respecting the physics of the "Quilt Sandwich"—stabilizing the bottom, tacking the middle, and smoothing the top—you transform a stressful 115-minute stitch-out into a predictable manufacturing process. Whether you stick with your single-needle or upgrade to a magnetic framework, the secret remains the same: Control the layers, and you control the result.

FAQ

• Q: How do I prevent ripples and fabric shifting when stitching an ITH quilt block on a single-needle embroidery machine using stabilizer + high-loft batting + fabric?
  A: Use a three-step tack-down sequence—Placement on stabilizer, then Batting Tack, then Fabric Tack—so the loft is locked before the fabric grain is set.
  • Run: Confirm the first three color stops are Placement → Batting Tack → Fabric Tack before any background quilting fill.
  • Slow: Reduce speed to 350–400 SPM during the fabric tack-down so the presser foot doesn’t push a “wave” into the fabric.
  • Smooth: Finger-press the fabric from center outward right before starting the fabric tack-down.
  • Success check: After the fabric tack-down, the surface feels flat with no bubbles when you sweep your hand across the stitched area.
  • If it still fails: Re-run the simulator to verify the decorative background quilting fill comes immediately after the fabric tack-down (not before), and re-check hoop tightness.
• Q: How do I choose no-show mesh vs cutaway stabilizer for a dense ITH quilt block with a long background quilting fill and a high stitch count (for example 55,446 stitches at about 8x8 inches)?
  A: Use medium-weight cutaway (2.5–3.0 oz) for dense quilting fills and high stitch counts, because tear-away-style support can shred and let the block distort.
  • Check: Read the design properties and use stitch count as the decision trigger (<15k low risk; 15k–35k cutaway recommended; >35k heavy cutaway + fresh needle).
  • Match: Use no-show mesh/Soft and Stay only for low stitch count designs with open stippling and stable cotton.
  • Accept: Keep stability even if it adds bulk—dense fills behave like a perforator and need permanent support.
  • Success check: During the long fill, the block edges stay stable instead of drawing into an hourglass shape.
  • If it still fails: Upgrade to a heavier cutaway and verify the stabilizer is hooped drum-tight before stitch 1.
• Q: What is the “drum-tight” hooping success standard for stabilizer before starting an ITH quilt block, and how do I know the stabilizer tension is correct?
  A: The stabilizer must be tight before the placement line—if it is loose at step 1, the block will warp later.
  • Tap: Tap the hooped stabilizer inside the ring before starting.
  • Tighten: Re-hoop or tighten until the stabilizer is uniformly tensioned with no soft spots.
  • Start: Stitch the placement line only after the hoop passes the tension check.
  • Success check: The stabilizer sounds like a drum skin (“thump-thump”) and the placement stitch line looks crisp.
  • If it still fails: Inspect for hoop mis-seating (inner ring not flush) and slow down early tack-down steps to reduce shifting.
• Q: How do I set and verify upper thread tension during a long decorative background quilting fill on an embroidery machine to avoid loopies and pull distortion?
  A: Use the early stitches of the quilting fill as the tension test and correct immediately before you waste an hour.
  • Inspect: After roughly the first 500 stitches, check the back of the hoop.
  • Adjust: Tighten upper tension if top thread is looping on the underside; loosen upper tension if bobbin thread never shows in the column.
  • Clean: If tension swings suddenly, floss the tension discs with un-waxed floss to remove lint.
  • Success check: On the underside, satin columns show about 1/3 white bobbin thread running down the center (not all top thread, not zero bobbin showing).
  • If it still fails: Pause and clean the bobbin area; lint in the bobbin case can mimic bad tension.
• Q: What causes embroidery hoop pop-out on thick quilt sandwiches (stabilizer + batting + fabric), and when should I switch to magnetic embroidery hoops?
  A: Hoop pop-out usually happens when the sandwich is too thick for friction-style standard hoops; magnetic embroidery hoops are the next-step tool when thickness and long fills keep defeating standard clamping.
  • Check: Confirm the inner hoop is fully flush with the outer hoop (no partial seating) before starting the long fill.
  • Reduce: Avoid max speed on dense quilt blocks; use a safer 600–700 SPM range for the main fill to reduce vibration and shifting.
  • Upgrade: If pop-out repeats, move to magnetic hoops that hold with vertical magnetic force instead of friction pressure.
  • Success check: The hoop stays locked for the full quilting fill without loosening, and hoop-burn rings are reduced because the fabric isn’t being crushed at the edge.
  • If it still fails: Re-evaluate bulk (stabilizer weight + batting loft) and consider a hooping station for more consistent clamping and alignment.
• Q: What needle and pre-flight prep should I do before running a high-stitch-count ITH quilt block (around 55,446 stitches) to prevent mid-run failures?
  A: Treat high-stitch-count blocks like a long production run: start with a fresh needle, a full bobbin, and tools staged before pressing Start.
  • Install: Use a Topstitch 90/14 or a Titanium 75/11 needle to handle heat buildup during long run times.
  • Load: Start with a full bobbin for large designs to avoid a failure near the end.
  • Stage: Keep temporary spray adhesive (505) and curved appliqué scissors ready for controlled floating and trimming.
  • Success check: The machine runs through the first minutes without thread shredding or repeated breaks, and the early stitches look consistent.
  • If it still fails: Slow the machine during tack-downs, then re-check tension and lint in the bobbin/tension path.
• Q: What are the key safety rules when trimming batting in the hoop with a rotary cutter during ITH quilt block embroidery?
  A: Use deliberate hand placement and blade discipline—rotary cutters cause more injuries than needles in this step.
  • Position: Keep the non-cutting hand widely splayed and clearly visible before making any cut.
  • Control: Cut slowly and only along the intended line; avoid reaching across the blade path.
  • Retract: Engage the blade guard immediately after every cut and never leave an open blade on the table.
  • Success check: The batting is trimmed cleanly without nicked fabric edges, and both hands stayed outside the blade path throughout the cut.
  • If it still fails: Switch to smaller controlled cuts and consider using curved appliqué scissors for tighter areas where a rotary cutter feels unsafe.
• Q: What magnetic hoop safety rules should embroidery operators follow when using strong neodymium magnetic embroidery hoops for quilt blocks?
  A: Handle magnetic hoops like clamps—they snap together hard and can pinch fingers or affect sensitive devices.
  • Separate: Keep fingers out of the closing gap and bring hoop halves together slowly and deliberately.
  • Distance: Keep magnetic hoops at least 6 inches away from pacemakers.
  • Protect: Do not place phones, credit cards, or USB drives directly on the magnets.
  • Success check: The hoop closes without finger pinches, and the fabric sandwich is held evenly without needing excessive force.
  • If it still fails: Pause and reposition the fabric before closing; forcing alignment increases pinch risk and can mis-tension the layers.
