PAL 2 Laser Crosshair Lamp: The “Hooping Throne” Setup That Stops Crooked Designs, Bad Re-Hooping, and Wasted Fabric

If you’ve ever stared at a "perfectly hooped" project on your machine screen, held your breath, hit start, and then watched in horror as the design stitched out crooked, you are not alone.

In my 20 years in the embroidery industry—from running high-volume production floors to teaching nervous beginners—I have learned that hooping anxiety is the number one barrier to growth. The panic is real: one bad center mark can turn an expensive jacket back into a rag, and one sloppy re-hoop can ruin a 10-hour continuous project.

Embroidery is a game of millimeters. The PAL 2 (Perfect Alignment Laser) crosshair lamp is one of those deceptively simple tools that lowers the heart rate of the operator. In the demonstration we are analyzing today, it is used as a permanent overhead crosshair that makes centering and straight lines visible—on garments, in hoops, and even on cutting mats.

But a tool is only as good as the hands using it. Below, I will break down exactly how to use this laser system to eliminate guesswork, and help you decide when it’s time to rely on skill versus when it’s time to upgrade your equipment for production-level consistency.

The PAL 2 Laser Crosshair Lamp “Hooping Throne”: Set It Once, Stop Re-Checking Center All Day

The PAL 2 is essentially a tall, stationary lamp that clamps to the side of your work surface. It projects a vertical and horizontal laser line that intersect to form a perfect crosshair. The host describes this setup as a "hooping throne," and from an ergonomics and workflow perspective, she is absolutely correct. By keeping your hoop right underneath a fixed light source, you create a "Zero Point" for your studio.

Two practical details from the demo matter more than people expect:

• The lamp height is shown as 28 inches. This is the "Goldilocks zone"—high enough to clear your hands and bulky fabric, but low enough to keep the laser line crisp.
• It is clamped to the table edge. Stability is non-negotiable here. If your light source moves, your center moves.


The hidden win: you’re reducing “micro-decisions”

Most alignment errors aren’t caused by one catastrophic mistake; they are caused by ten tiny ones. A hoop rotated a single degree, fabric that slid while you reached for the masking tape, or stabilizer that obscured your chalk marks.

A fixed crosshair above your hooping area removes the need for your brain to constantly calculate "is this straight?" If you have been trying to build a dedicated hooping station for machine embroidery, this is the foundational mindset: one consistent place, one consistent reference, fewer surprises.

Warning: Mechanical & Cutting Safety
Rotary cutters and embroidery needles do not forgive distractions. When using lasers for cutting lines (as discussed later), keep fingers clearly out of the blade path. Always lock the rotary cutter blade immediately when setting it down. Never reach under a hooped area while the machine is running—a moving pantograph frame can crush fingers against the machine arm.

Prep Checklist (Do this *before* you touch any fabric)

• Clamp Security: Shake the table gently. Does the PAL 2 wobble? If yes, tighten the clamp. A vibrating laser is useless.
• Surface Hygiene: Clean your cutting mat. Lint or stray threads under your fabric create bumps that distort measurements.
• Consumable Check: Ensure you have Painter’s Tape (blue or purple) for temporary marking—chalk is too messy for lasers.
• Stabilizer Selection: Have your stabilizer cut and ready. (e.g., Cutaway for knits, Tearaway for wovens).
• Visual Calibration: Turn on the laser and align it with the grid lines on your cutting mat to ensure the tool itself is square.

Mark a Jacket Back Center Line with Painter’s Tape + PAL 2 (No Chalk, No Guessing)

The demo starts with a classic real-world headache: Jacket Backs. These are high-stakes items. If you ruin a customer's expensive denim jacket, you are buying them a new one.

Finding the vertical center is usually straightforward—there is often a center back seam, or you can fold the garment to find the midline. The stress point is the horizontal line where lettering or a logo needs to sit perfectly straight across the shoulders.

Here is the "Zero Friction" workflow:

1. Laser On: Activate the PAL 2.
2. Vertical Lock: Align the jacket’s vertical center seam exactly with the vertical laser line.
3. The Tape Trick: Use blue painter’s tape to mark the horizontal axis. Instead of drawing a line, lay the top edge of the tape exactly along the horizontal laser beam.
4. Transfer: At the machine, place the design so the bottom of the lettering sits on that taped line, then remove the tape immediately before stitching.




Pro Tip: Tape is a “Temporary Ruler”

Why tape and not chalk? Chalk rubs off, and pens bleed. Painter's tape provides a physical ridge that you can see and feel. However, do not pull the tape as you apply it. Stretched tape wants to contract, and it will pull your fabric into a pucker, causing registration issues later. Lay it down gently, like a feather.

Watch out: The "Manufactured Center" Lie

A center back seam is usually reliable, but on mass-produced garments (especially budget-friendly hoodies or tees), the seam can be off-center by up to 5mm.

• The Check: Fold the garment shoulder-to-shoulder. Does the fold line match the seam? If not, trust the fold, not the seam.

Center Fabric in a 5x7 Embroidery Hoop Using PAL 2 + Target Stickers (Even When Stabilizer Hides the Marks)

This is the moment in the demo where beginners usually have a "lightbulb moment." The fundamental flaw of standard hoops is that once you put the fabric and stabilizer in, you cover up the grid marks on the inner ring. You are flying blind.

The PAL 2 solves this by projecting the grid on top of the opaque fabric.

The Workflow:

1. Squaring the Base: Turn on PAL 2 and align the laser crosshairs with the 1-inch grid lines on your cutting mat.
2. Hoop Alignment: Place your empty hoop on the mat. Align the plastic centering notches (at the N, S, E, W positions of the hoop) with the lasers.
3. Stabilizer Layer: Place stabilizer over the hoop. The hoop grid is now gone, but the laser crosshair remains visible.

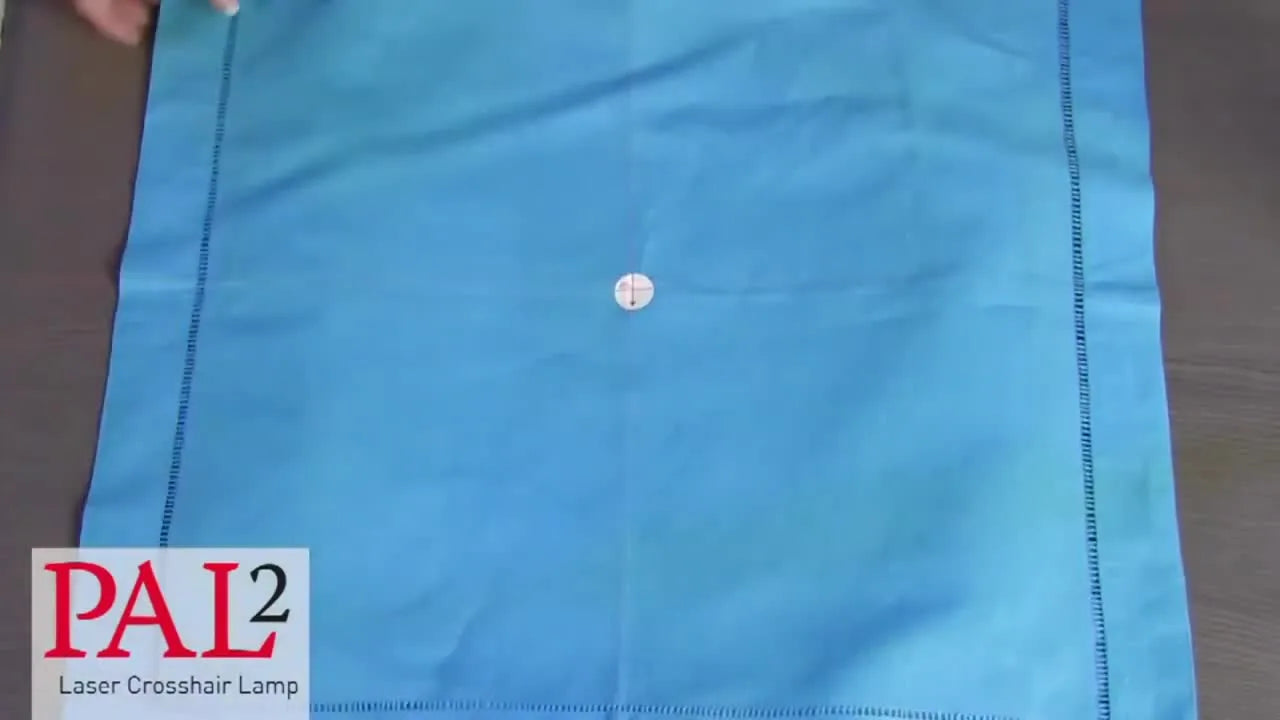

4. The Drop: Place your fabric with a target sticker (snowman sticker) applied. Align the sticker’s crosshair directly under the projected laser crosshair.






Why this prevents “I’m only 1/4 inch off” disasters

In the demo, the host correctly points out that large designs (filling a 5x7 hoop) have zero "wiggle room." You cannot just nudge the design on the screen because you will hit the plastic frame. You must hoop accurately.

The Commercial Pivot: When to upgrade? This method works, but it requires dexterity. You are trying to hold the outer ring, the stabilizer, the fabric, and the inner ring all at once. If your hand slips, the fabric shifts. If you are struggling with "hoop burn" (shiny marks left by tight rings) or you consistently find the fabric moving as you tighten the screw, this is a hardware limitation. If you are working with a standard 5x7 hoop and considering a brother magnetic hoop 5x7, the decision point is simple: Magnetic frames eliminate the "shove and tighten" friction. You simply lay the top frame down, and it snaps into place, clamping the fabric without dragging it out of alignment. For production runs of 10+ items, this saves hours of frustration.

Warning: Magnetic Safety
Magnetic frames utilize powerful industrial magnets (Neodymium).
* Pinch Hazard: Keep fingers clear when snapping frames together. They can cause blood blisters instantly.
* Medical Devices: Keep magnets at least 6 inches away from pacemakers or implanted medical devices.
* Electronics: Do not place magnetic hoops directly on top of laptops or computerized tablets.

Setup Checklist (End of the “Center It” Phase)

• Squareness: Is the hoop still aligned square to the cutting mat grid?
• Laser Check: Is the crosshair hitting the exact center notches of the hoop?
• Fabric Tension: Tap the fabric. It should sound like a dull thud (taut) but not a high-pitched ping (stretched).
• Bubble Check: Is the target sticker flat? A bubbling sticker creates optical illusions.
• Visual Confirm: Look directly down (not from an angle) to ensure the sticker center matches the laser center.

Re-Hooping Continuous Embroidery Designs: Use Sticky Stabilizer + PAL 2 to Hit Registration Marks Dead-On

Continuous embroidery (connecting one stitched section to the next, like a long border on a skirt) is the "Black Belt" level of hooping. Most people fail here because they try to eyeball the connection.

In the demo, the garment has the first section stitched, which ends with an "alignment mark" (usually a small cross or L-shape stitched by the machine).

The method shown:

1. Base Layer: Hoop tearaway stabilizer alone.
2. Adhesive: Spray only the stabilizer window with temporary adhesive (like KK100 or 505 Spray) to create a sticky surface.
3. The "Zero" Setup: Place the hooped stabilizer under PAL 2. Align the hoop center under the laser.
4. The Match: Take the garment with the first part stitched. Stick the garment onto the stabilizer so the stitched alignment mark from the previous run sits exactly under the laser crosshair.






The “Why” that prevents repeat failures: Gravity & Friction

When you re-hoop a large garment, gravity is your enemy. The weight of the jacket hanging off the table pulls the fabric, causing it to twist.

• The Sensory Fix: You must support the bulk of the fabric. Use books, boxes, or an extension table to keep the garment weight neutral. If the fabric drags, the laser alignment will look right for a second, then shift as soon as you let go.

Troubleshooting: Continuous Design Alignment

If you find yourself doing this weekly—for example, long names down a gi pant leg or altar cloths—this is where hoop master embroidery hooping station-style thinking pays off. You need a jig or a fixture (like the PAL 2 represents) because human eyes get tired, but lasers do not.

Align Quilt Block Trim 1 Inch from the Edge with PAL 2 (Fast, Straight, and Repeatable)

The demo shifts to quilting: placing decorative trim roughly 1 inch from the edge. This is a standard "batch processing" task.

The Steps:

1. Place the quilt block edge on the 1-inch line of the cutting mat.
2. Move the PAL 2 so the laser beam hits that same line.
3. Lay your fusible web or ribbon down, following the red light.
4. Iron it down.




Why this matters in production

If you are making one quilt, you can use a ruler. If you are making 50 squares, moving a ruler 50 times guarantees error creep. The laser allows you to move the fabric to the light, which is faster and more accurate. This is the difference between "crafting" and "manufacturing."

Cut Fabric Strips with a Rotary Cutter Using the PAL 2 Laser Line (No Ruler Needed, But Don’t Skip Squaring)

This is a clever trick found in quilt shops, used here for cutting appliques or borders.

The Steps:

1. Align the fabric fold with the cutting mat grid.
2. Project the laser line at the desired width (e.g., 3 inches).
3. Run the rotary cutter blade directly along the laser beam.


The Iron Rule: Garbage In, Garbage Out

The laser is straight, but is your fabric? The host explicitly notes you must align the straight edge with the mat first. Sensory Check: Look at the weave of the fabric. Is the grain running parallel to your cut? If you cut bias strips by accident because the fabric wasn't square, your bindings will twist.

The “Why” Behind Laser Alignment: Hooping Physics, Fabric Behavior, and Where People Get Burned

A laser crosshair doesn’t magically fix embroidery—what it does is remove ambiguity. But hardware creates the conditions for success.

Here are the three heavy-lifters in accurate placement:

1. Visual Reference (The Laser): Solves the problem of "Lost Marks" when stabilizer covers the fabric.
2. Fabric Stabilization (The Consumable): Solves the problem of fiber distortion. (Always use Cutaway for knits!)
3. Fabric Holding (The Hoop): Solves the problem of drift.

The Level 2 Upgrade: If you are frequently fighting hoop pressure marks (bruising velvet or crushing piquè knits), or if you have hand pain from tightening screws, a magnetic embroidery hoop is the logical next step. It creates even, downward pressure around the entire perimeter, rather than the "pinch and drag" of standard inner loops. This significantly reduces fabric distortion during the hooping phase.

A Simple Decision Tree: Stabilizer + Holding Method for Accurate Placement

Use this logic flow to determine your setup for the day.

1. Is the item impossible to hoop (e.g., rigid collar, heavy bag)?
   • YES: Use "Floating" method. Hoop Sticky Stabilizer -> Score paper -> Stick Item to adhesive -> Use Laser to Align.
   • NO: Go to Step 2.
2. Is the fabric delicate or prone to "Hoop Burn" (velvet, performance wear)?
   • YES: Use a Magnetic Hoop. Lay bottom frame -> Stabilizer -> Fabric -> Top Magnet. (Zero friction).
   • NO: Go to Step 3.
3. Is exact continuous alignment required?
   • YES: PAL 2 Laser + Sticky Stabilizer. Align stitched registration marks to the crosshair.
   • NO: Standard Hooping with PAL 2 for center placement is sufficient.

The Upgrade Path: From "Best Best" to "Profitable Shop"

The PAL 2 solves the "Where exactly is center?" problem. But in a real production shop, the next bottleneck is speed.

Here is the natural progression I have observed in successful embroidery businesses:

• Level 1 (Accuracy): You add a laser (like PAL 2) to stop ruining garments with crooked logos.
• Level 2 (Consistency): You upgrade to specific workholding tools. magnetic hoops for embroidery allow you to hoop faster with less hand strain, and products like the hoopmaster hooping station allow for repeatable chest-logo placement on 50 shirts without measuring each one.
• Level 3 (Scale): When you are spending more time re-threading colors than actually stitching, you have outgrown the single-needle machine. This is when a move to SEWTECH Multi-Needle Machines becomes necessary. It doesn't just add needles; it adds the stability required for larger hoops and faster speeds (800-1000 SPM) without compromising the stitch quality we just worked so hard to set up.

Operation Checklist (Before you press 'Start')

• The Gap Check: Is the presser foot height set correctly? (It should just barely skim the fabric, not plow through it).
• The Path: Is the space behind the machine clear? Large hoodies often get snagged on the wall behind the machine, ruining the registration.
• Tape Removal: Did you remove that blue painter’s tape? (Stitching through tape gums up the needle—don't do it).
• Final Laser Glance: One last look. Does the needle drop point match the laser center?

Quick Fixes for Common Alignment Headaches

The Problem: "I can't mark horizontal lines on uneven textures like fleece." The Fix: Don't mark the fabric. Mark the stabilizer using the laser, then float the fleece on top perfectly square.

The Problem: "My hoop markings disappear under the backing." The Fix: Trust the PAL 2. If the laser is square to the mat, and the hoop is square to the mat, the laser is center.

The Problem: "Re-hooping takes me 20 minutes per section." The Fix: Speed comes from confidence. Use sticky stabilizer so you aren't fighting pins and shifting layers. Align, pat down, stitch.

By building a repeatable alignment habit at the "Hooping Throne," your time at the machine becomes calmer, faster, and far more profitable.

FAQ

• Q: How do I set up the PAL 2 Laser Crosshair Lamp at a hooping station so the center reference never drifts during the day?
  A: Clamp the PAL 2 firmly and square the laser to a gridded mat before doing any hooping so the crosshair becomes a fixed “zero point.”
  • Clamp: Tighten the table-edge clamp and re-tighten if the table vibrates.
  • Set height: Use the demonstrated 28-inch lamp height as a reliable starting point, then adjust only if hands or bulky fabric hit the lamp.
  • Calibrate: Align the projected lines to the cutting mat grid to confirm the laser is square.
  • Success check: The laser line looks crisp and does not “wiggle” when the table is lightly bumped.
  • If it still fails… Move to a sturdier work surface or re-seat the clamp—any movement in the light source equals movement in the center.
• Q: How do I mark a jacket back horizontal placement line using PAL 2 Laser Crosshair Lamp and blue painter’s tape without crooked lettering?
  A: Use the laser to lock the vertical center first, then place painter’s tape with its top edge exactly on the horizontal laser line for a clean, removable baseline.
  • Align: Match the jacket’s vertical center (seam or fold) to the vertical laser line.
  • Apply: Lay (do not stretch) blue painter’s tape so the tape’s top edge sits on the horizontal laser beam.
  • Transfer: At the machine, position the design so the bottom of the lettering sits on the taped line, then remove the tape before stitching.
  • Success check: The tape edge stays straight with no puckering, and the garment surface remains flat.
  • If it still fails… Verify the “manufactured center” by folding the jacket shoulder-to-shoulder; if the seam is off, trust the fold line instead.
• Q: How do I center fabric in a 5x7 embroidery hoop with PAL 2 Laser Crosshair Lamp when stabilizer hides the hoop grid marks?
  A: Use the PAL 2 crosshair as the visible “grid” and align the hoop notches plus a target sticker under the laser before tightening anything.
  • Square: Align the PAL 2 crosshair to the cutting mat’s 1-inch grid lines first.
  • Align hoop: Place the empty hoop on the mat and match the hoop’s centering notches (N/S/E/W) to the laser lines.
  • Layer: Add stabilizer over the hoop, then place the fabric with a target sticker and center the sticker under the crosshair.
  • Success check: Looking straight down, the laser crosshair hits the hoop’s center notches and the sticker crosshair simultaneously.
  • If it still fails… Slow down the “drop” step and re-check squareness—large 5x7 designs have no wiggle room, so even small shifts matter.
• Q: How do I prevent hoop burn and fabric shifting when tightening a standard embroidery hoop screw, and when should a magnetic embroidery hoop be considered?
  A: Reduce over-tightening and fabric drag first; if hoop burn or shifting continues, a magnetic embroidery hoop may be the hardware fix for gentler, even clamping.
  • Optimize: Hoop to “taut, not stretched”—avoid cranking the screw harder than needed.
  • Stabilize: Match stabilizer to fabric (the blog notes cutaway for knits and tearaway for wovens as typical choices).
  • Upgrade path: If fabric keeps moving while tightening or hoop burn is recurring, consider a magnetic hoop to eliminate the “shove and tighten” friction.
  • Success check: Fabric taps with a dull thud (taut) rather than a high-pitched ping (over-stretched), and no shiny ring marks appear after unhooping.
  • If it still fails… Switch to a floating method with sticky stabilizer for sensitive fabrics, then align with the laser instead of forcing the fabric into the ring.
• Q: How do I re-hoop continuous embroidery designs using sticky stabilizer and PAL 2 Laser Crosshair Lamp to match stitched registration marks accurately?
  A: Hoop stabilizer first, make the stabilizer window sticky, then use the PAL 2 crosshair to place the previously stitched alignment mark exactly on center.
  • Hoop: Hoop tearaway stabilizer alone.
  • Stick: Spray only the stabilizer window with temporary adhesive to create a controlled sticky surface.
  • Register: Position the hooped stabilizer under PAL 2, then stick the garment so the stitched alignment mark sits under the crosshair.
  • Support: Prop and support the garment bulk so gravity does not twist the fabric while aligning.
  • Success check: The stitched alignment mark stays on the crosshair even after hands are removed and the garment weight is supported.
  • If it still fails… If gaps appear, increase holding (stronger adhesive or perimeter pinning outside the stitch area); if angles are off, lock the vertical axis with the laser—not center point only.
• Q: What safety rules should be followed when using PAL 2 Laser Crosshair Lamp for rotary cutting lines and when running an embroidery machine near a hooping station?
  A: Treat the laser as an alignment aid, not a safety device—keep hands out of blade paths, lock cutters immediately, and never reach under a hooped area while the machine is running.
  • Cut safely: Keep fingers clearly away from the rotary cutter track and lock the blade as soon as the cutter is set down.
  • Stitch safely: Do not reach under or into the hooping field while the machine is moving; pantograph/frame motion can crush fingers.
  • Stay focused: Avoid distractions when the laser is being used as a cutting guide.
  • Success check: Hands remain outside the cutting/stitching zone for the entire operation, and tools are returned to a safe “locked” state between actions.
  • If it still fails… Pause the task, reset the workspace, and remove clutter—safe workflow depends on clear space and full attention.
• Q: What magnetic embroidery hoop safety rules apply when using industrial neodymium magnetic frames in an embroidery workflow?
  A: Handle magnetic hoops like a pinch hazard tool and keep them away from medical implants and sensitive electronics.
  • Protect fingers: Keep fingertips out of the closing zone when snapping the top and bottom frames together.
  • Respect medical risk: Keep magnets at least 6 inches away from pacemakers or implanted medical devices.
  • Protect electronics: Do not place magnetic hoops directly on laptops or computerized tablets.
  • Success check: Frames close without finger contact, and magnets are stored away from electronics when not in use.
  • If it still fails… Slow down the closing motion and reposition hands—most pinches happen during rushed “one-handed” closing.
