One-Hooping ITH Pleated Face Mask: The Floating Fabric Method That Won’t Shift, Pucker, or Eat Your Needle

When an ITH (In-The-Hoop) project goes wrong, it rarely fails because the machine "glitched." It fails because of physics. It goes wrong in the same three places: the fabric shifts under the foot, the needle deflects off a bulky seam, or the stabilizer tears loose right when the perimeter stitch matters most.

This ITH pleated face mask design is popular because it seduces you with a promise: zero sewing machine work afterward. Everything is built in one hooping. But here is the hard truth from the production floor: because this method relies entirely on "floating" multiple folded layers, your success is 80% preparation and 20% stitching.

If you treat this like a "push button and pray" project, you will break needles. If you treat it like an engineering assembly, you will produce professional-grade masks by the dozen.

The Calm-Down Check: What This ITH Face Mask File Actually Does (and What It Doesn’t)

Before we touch the screen, let’s deconstruct the file. This project is an ITH pleated face mask. It features pleats on the front, casings for elastic, a filter pocket, and a nose wire channel.

The creator’s promise is a single hooping workflow. However, beginners often panic when they see the digital simulation. Here are your reality checks to lower your heart rate:

• The "Black Thread" Lie: In the demo video/software, you see high-contrast black thread. This is for teaching clarity only. In reality, you will use a thread color that matches your fabric to hide the construction seams.
• The "One Color" Truth: You do not need to change thread colors. Even if the machine stops and asks for "Color 2," it is just a coded stop to let you place fabric. You can run the entire design in white or gray.
• The Skill Level: This is labeled "intermediate" not because the stitching is complex, but because bulk management is required.

If you are currently searching for a clean, repeatable workflow for floating embroidery hoop projects, this mask is the ultimate training ground. It forces you to master fabric control, which is the foundation of all advanced embroidery.

The “Hidden” Prep Pros Do First: Fabric Memory, Bulk Control, and a Tearaway Plan

The video demonstrates using cotton quilting fabric and medium-weight tearaway stabilizer. This combination is forgiving because woven cotton has "memory"—when you crease it, it stays creased.

A seasoned operator thinks about three forces before the first stitch:

1. Fabric Memory (Iron Work): Pleats must be pressed so sharply they act like a single layer of cardstock, not a bouncy spring.
2. Bulk Stacking: Every overlap is a speed bump. Your presser foot hates speed bumps.
3. Stabilizer Integrity: The tearaway must be strong enough to hold thousands of stitches, but weak enough to remove cleanly.

Hidden Consumables You Need:

• Best Press / Starch: Essential for giving cotton that "paper-like" stiffness.
• Paper Tape / Painter's Tape: Do not use Scotch tape. You need residue-free removal.
• 75/11 or 90/14 Needles: Do not use a dainty 65/9 needle here; it will deflect and snap.

Warning: Project Safety Critical. Keep fingers, hemostats, and scissors well away from the needle path when you are taping or “holding” fabric. A machine running at 600 SPM moves the needle faster than your reflex reaction time. A needle strike can shatter the needle, sending metal shards towards your eyes or damaging the machine's hook timing.

Fabric pieces used in the tutorial (Verified Data)

The tutorial demonstrates the large size mask.

• Front (Piece A): Pleated to a finished height of 7 inches.
• Side casings (Piece D): Folded/pressed to a finished height of 3 inches.
• Nose wire: A 12-inch pipe cleaner (folded in half for strength).
• Elastic: Demonstrated with a 30-inch piece.


Prep Checklist (Do verify this OR fail)

• Iron: Press Piece A pleats firmly. Measure it: does the finished height land exactly at 7 inches?
• Iron: Press Piece B folded in half (wrong sides together, right side out). create a razor-sharp crease.
• Iron: Press Piece C top edge down about 1/2 inch, then add pleats near the top.
• Iron: Press both Piece D strips to a 3-inch finished height.
• Prep: Cut a 12-inch pipe cleaner and fold in half.
• Prep: Cut elastic at 30 inches (it's better to trim later than come up short).

Hooping Tearaway Stabilizer on a 5x7 Hoop: The Taut-But-Not-Drum Rule

The video uses a standard slide-in hoop. The creator confirms that small, medium, and large sizes fit a 5x7 hoop. Only the extra-large requires a 6x10 field.

The "Drum Skin" Sensory Test

Most hoop burn and shifting issues come from improper tensioning.

1. Hoop tight: Place the stabilizer. Tighten the screw.
2. The Sound: Tap the stabilizer. It should sound like a dull thud or a loose drum. It should not ring like a high-pitched snare drum (that is too tight and will warp).
3. The Touch: Push your finger in the center. It should deflect slightly but spring back instantly.

If you find yourself constantly fighting with screw tension or suffering from hand strain, this is where hardware limits meet human limits. Many users switch to a brother 5x7 magnetic hoop (or compatible brand) for this specific type of project. Magnetic hoops clamp the stabilizer instantly without the "unscrew-pull-tighten-repeat" cycle, which significantly speeds up batch production.

The Placement Stitch: Your Map, Your Alignment, Your Insurance Policy

The first stitch-out is the placement outline on the bare stabilizer. Do not skip watching this.

Visual Check: Look at the stitched rectangle. Is it square? Are the lines straight? If the stabilizer puckered or gathered during this simple outline, stop immediately. If it puckered now, it will destroy your mask later. Re-hoop until that outline lies perfectly flat.

This outline is your "Do Not Cross" border. Everything you place next must respect these lines.

Floating Back Panels (Pieces B & C): The “Butt the Folds” Trick That Prevents Bulk

This is the step that makes or breaks the project. You are placing the back closure panels.

1. Place Piece B: Folded edge aligned against the top placement line.
2. Place Piece C: Folded/hemmed edge aligned against Piece B.

The Golden Rule: The creator is specific—do not overlap these two pieces. You want the folds to butt up against each other perfectly, like two floorboards meeting.

Why? (The Physics): If you overlap them, you create a triple-to-quadruple layer ridge. When the presser foot hits that ridge at speed, it may stall, causing stitches to pile up, or it may deflect the needle, causing a break.

Tape strategy that behaves under bulk

Beginners use two pieces of tape. Pros use a "bridge" strategy.

• The Problem: Pleats act like springs; they want to pop up.
• The Fix: Tape across the pleats (perpendicular), bridging from the fabric all the way to the stabilizer. Rub the tape down firmly with your fingernail to activate the adhesive.

If you are doing a production run of 50+ masks, tape waste becomes annoying. This is a scenario where magnetic embroidery hoops shine—the strong magnets can clamp the floated fabric edges down firmly, eliminating the need for sticky tape residue on your needle and saving you prep time.

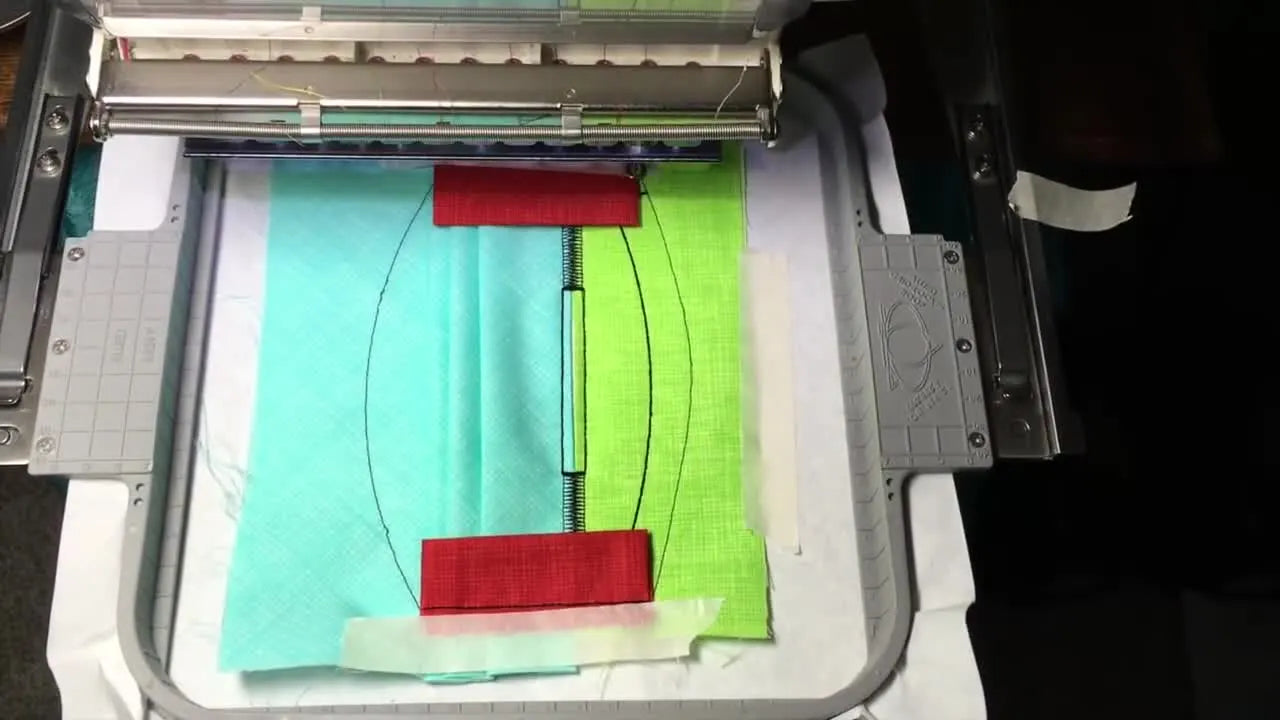

Side Casings (Piece D): Cover the Corner Stitching, Don’t Chase Perfect Edges

Now, place the two side casing pieces (Piece D) over the left and right corners.

• Raw edges: Face outward.
• Folded edges: Face inward.


Critical Safety Check: These pieces add significant height to the assembly. Ensure your presser foot height is adjusted if your machine allows it.

Setup Checklist (Right before the casing stitch)

• Tactile Check: Run your finger over the "butt joint" of Pieces B and C. Is it flat?
• Visual Check: Does Piece D completely cover the corner placement lines?
• Clearance: Remove any tape that is inside the stitch path. Tape gum will gunk up your needle eye instantly.
• Speed: Reduce machine speed. Drop to 600 SPM or lower. Stitched slowly, bulk is manageable. Stitched fast, it is a crash waiting to happen.

The Final Layer (Piece A): Pleat Direction Is Not Optional

Place the front piece (Piece A) face down.

The Non-Negotiable Rule: The pleats must face toward the bottom (chin edge).

Why? If pleats face the wrong way, the presser foot will travel against the grain of the folds, acting like a snowplow. It will lift the pleat, get stuck under it, and leave you with a bird's nest of thread. By facing them down, the foot glides over the "shingles" of the pleats.

Warning: Magnetic Hoop Safety. If you have upgraded to magnetic hoops for embroidery machines to manage this bulk, always slide the magnets apart—never let them snap together. The pinch force can severely injure fingers. Keep magnets away from pacemakers and computerized machine screens.

Unhooping, Tearaway Removal, and Trimming: How to Get a Cleaner Edge Without Panic

Once the machine sings its finish song:

1. Remove the hoop.
2. Tear away the stabilizer.
3. Trim the perimeter.




The Secret to Clean Edges: Support the stitches. Do not just rip the tearaway like you are starting a lawnmower. Place your thumb over the stitching line and tear the paper away from your thumb. This prevents the stitches from distorting.

Trim the fabric leaving a 1/4 inch seam allowance. Clip your corners (cut diagonally across the corner point) to reduce bulk when turning, but do not cut the stitching!

Pro Tip: For consistent alignment on repeat hooping, many shops use hooping stations. While optional for a hobbyist, they guarantee that every mask is centered exactly the same way, reducing the need to trim uneven edges later.

Turning and Pressing: The 60-Second Finish That Makes It Look “Store-Bought”

Turn the mask right side out through the opening. Poke the corners out with a chopstick or turning tool.

The "Professional" Difference: Do not skip the iron here. Finger pressing is not enough. Steam press the mask flat. This sets the memory of the final shape and buries the thread tension into the fabric fibers.

Nose Wire Pocket: Make the Slit in Only One Layer (or the Wire Will Float)

The top channel creates the pocket for the nose wire. The Precision Step: You need to cut a small slit to insert the wire, but you must only cut the outer top layer.

• Technique: Pinch the fabric to separate the layers. Roll it between your fingers to feel that you only have one layer. Snip carefully.


Insert the folded 12-inch pipe cleaner. The fold is crucial—raw wire ends will eventually poke through the fabric and scratch the wearer's face.

Threading Elastic Through the Side Slots: Hemostats Make This a 10-Second Job

Thread your elastic or ties through the side casings. If you do not own hemostat forceps (locking clamps), buy them. They grip the elastic securely and feed it through in seconds, unlike a safety pin which can pop open.

Operation Checklist (The "Don't Ruin It Now" List)

• Corners: Are they poked out square?
• Slit: Is the nose wire slit strictly in the top layer only?
• Wire: Is the pipe cleaner folded (no sharp ends)?
• Ties: Is the elastic knotted securely?

A Practical Stabilizer Decision Tree for This ITH Mask (So You Don’t Guess)

Use this logic flow to prevent material mismatch errors.

1. What is your Mask Body Fabric?

• Woven Cotton (Recommended):
  • Stabilizer: Medium-weight tearaway (2.0 - 2.5 oz).
  • Hooping: Drum-tight.
• Knit/Spandex (Advanced):
  • Stabilizer: Cutaway mesh (Tearaway will perforate and the mask will lose shape).
  • Action: Knits are tricky for this pattern. Expect the pleats to fight you.

2. Is the fabric shifting during the final stitch?

• No: Continue.
• Yes:
  • Level 1 Fix: Iron pleats flatter and use more tape.
  • Level 2 Fix: Use spray adhesive (temporary) to bond layers.
  • Level 3 Fix: Your hoop isn't holding. Check if your inner ring is wrapped, or switch to a magnetic frame for better grip on thick assemblies.

Comment-Driven “Watch Outs” That Save Hours

Critique 1: "My single-needle machine keeps jamming on the corners."

• Diagnosis: The pressure foot is too low for the stack of fabric (Stabilizer + Back + Pleats + Casing = 6+ layers).
• Fix: Check your machine settings for "Foot Height" or "Presser Foot Pressure." Raise it slightly. Hand-crank the machine (use the handwheel) over the thickest corners to prevent a needle strike.

Critique 2: "The tape got stitched over and now I can't get it out."

• Diagnosis: Poor tape placement.
• Fix: Use water-soluble tape if you struggle with placement, OR place tape further out and rely on gravity/friction. Better yet, upgrade to a system that doesn't need tape (magnetic clamping).

Critique 3: "Word Doc vs. PDF Confusion."

• Fact: The download is a ZIP file. The instructions are a PDF. The machine file is DST/PES/EXP. Do not try to "open" the machine file on your PC; your PC cannot read it. Copy it to a USB and put it in the machine.

The Upgrade Path: When to Stop Fighting Tape and Start Buying Time Back

If you are making one mask for yourself, the standard method works fine. But if you are hitting volume—donations, Etsy orders, or team gifts—pain is your indicator for an upgrade.

Scenario A: "I spend more time taping than stitching."

• The Pain: Sticky residue on needles, tape lifting up, fabric sliding.
• The Diagnosis: Traditional hoops rely on friction and weak tape for floating.
• The Upgrade: magnetic embroidery hoops for brother (or your specific brand). These allow you to "sandwich" the floated layers instantly with powerful magnets. No tape, no residue, no shifting.

Scenario B: "My wrists hurt from tightening the hoop screw."

• The Pain: Repetitive Motion Injury (RSI) is real in embroidery.
• The Diagnosis: Standard hoops are ergonomically poor for high-repetition work.
• The Upgrade: If you are using a single-needle machine like a Brother low-shank or a Baby Lock, look into brother persona prs100 hoops or generic magnetic equivalents that minimize wrist torque.

Scenario C: "I need to make 50 masks by Friday."

• The Pain: Stopping to change threads (even for one color) and re-hooping is too slow.
• The Diagnosis: You have outgrown the hobby workflow.
• The Upgrade: Volume requires tools.
  1. Station: A hoop master embroidery hooping station ensures every mask is hooped in 5 seconds, not 5 minutes.
  2. Machine: A multi-needle machine (like a SEWTECH 15-needle) allows you to define the process once and run it continuously without stopping for simple trims or color swaps.

Final Word: The Fastest ITH Mask Is the One You Don’t Have to Re-Do

Speed in embroidery doesn't come from a fast needle (1000 SPM). Speed comes from flow.

This design is efficient because it removes the sewing machine from the equation. Your job is to be the quality control engineer. Press the pleats sharp. Butt the folds tight. Secure the bulk. If you respect the physics of the fabric, the machine will reward you with a perfect finish.

FAQ

• Q: What supplies are required to successfully float multiple folded layers for an ITH pleated face mask on a Brother 5x7 hoop workflow?
  A: Use starch/Best Press, residue-free paper/painter’s tape, and a stronger needle (75/11 or 90/14) before stitching—this project is preparation-heavy, not stitch-heavy.
  • Press: Starch and iron pleats until the fabric behaves like a single firm layer.
  • Tape: Use painter’s/paper tape (not Scotch) and keep tape out of the stitch path.
  • Needle: Install a 75/11 or 90/14 needle to reduce deflection on bulky seams.
  • Success check: Pleats stay flat without “springing up” when touched.
  • If it still fails: Reduce machine speed and review whether any layers are overlapping where they should only meet.
• Q: How tight should tearaway stabilizer be when hooping an ITH mask on a 5x7 slide-in embroidery hoop to prevent hoop burn and fabric shifting?
  A: Hoop the tearaway “taut-but-not-drum-tight” so it holds stitches without warping the fabric.
  • Tighten: Secure the stabilizer and tighten the hoop screw.
  • Tap: Listen for a dull thud/loose-drum sound, not a high-pitched “snare” ring.
  • Press: Push the center lightly; it should dip slightly and spring back.
  • Success check: The stabilizer sits flat with no visible ripples or distortion.
  • If it still fails: Re-hoop and consider a magnetic hoop if screw-tension consistency is the limiting factor.
• Q: What should the placement stitch look like on bare stabilizer for an ITH pleated face mask, and when should embroidery be stopped immediately?
  A: Stop immediately if the placement outline puckers or gathers—fix the hooping before adding fabric layers.
  • Stitch: Run the placement outline on stabilizer only.
  • Inspect: Check that the rectangle is square and the lines are straight.
  • Re-hoop: Re-hoop until the outline lies perfectly flat.
  • Success check: The outline is flat with no puckers and no pulled-in corners.
  • If it still fails: Re-check stabilizer tension and hooping technique before changing any design settings.
• Q: How should Pieces B and C be positioned in an ITH pleated face mask to avoid needle breaks and jams from bulk at the center seam?
  A: Do not overlap Pieces B and C—make the folds butt together like two floorboards to prevent a thick ridge.
  • Align: Place Piece B folded edge to the top placement line.
  • Butt-joint: Place Piece C folded/hemmed edge directly against Piece B (no overlap).
  • Secure: Tape using a “bridge” across pleats to keep edges from popping up.
  • Success check: Run a finger over the joint; it should feel flat, not like a raised hump.
  • If it still fails: Slow down and remove any tape that could be entering the stitch path.
• Q: Why must pleats on Piece A face toward the bottom (chin edge) in an ITH pleated face mask, and what happens if pleats face the wrong direction?
  A: Pleats must face downward so the presser foot glides over them; reversed pleats can get lifted and cause a bird’s nest.
  • Place: Position Piece A face down with pleats pointing toward the bottom edge.
  • Verify: Smooth the pleats in the direction the foot will travel.
  • Slow: Reduce machine speed when stitching over the thickest areas.
  • Success check: The presser foot “rides over” pleats without catching or pushing fabric upward.
  • If it still fails: Re-press pleats sharper and increase edge control (tape or stronger clamping).
• Q: What safety steps prevent needle strikes and injuries when taping and handling bulky layers for an ITH face mask at around 600 stitches per minute?
  A: Keep hands and tools completely out of the needle path and slow down—needle strikes can shatter needles and damage machine timing.
  • Pause: Stop the machine before repositioning tape, fabric, hemostats, or scissors.
  • Handwheel: Hand-crank over the thickest corners to confirm clearance before running.
  • Slow: Run at 600 SPM or lower when bulk is highest.
  • Success check: The needle passes corners cleanly with no “snap,” deflection, or sudden stall.
  • If it still fails: Re-check bulk stacking (overlaps) and confirm the presser foot has enough clearance for the assembly.
• Q: What is the upgrade path if floating fabric keeps shifting on an ITH pleated face mask—when should a magnetic embroidery hoop, hooping station, or multi-needle machine be considered?
  A: Start with technique, then upgrade clamping, then upgrade throughput—pain and rework are the signal, not speed settings.
  • Level 1 (technique): Press pleats flatter, use better tape placement, and slow to 600 SPM or lower on bulky corners.
  • Level 2 (tooling): Switch to a magnetic embroidery hoop to clamp floated edges firmly and reduce tape residue and shifting.
  • Level 3 (production): Add a hooping station for repeat alignment and move to a multi-needle machine for continuous volume runs.
  • Success check: Fabric edges stay locked during the final perimeter stitch with no creeping or distortion.
  • If it still fails: Inspect hoop grip consistency (inner ring condition/wrapping) and reassess stabilizer choice for the fabric type.
