OESD Tiling Scene on a Bernina 7 Series: The No-Gaps Workflow for Hooping, Seam Stitches, and Perfect Joins

Tiling scenes are the "Mount Everest" of machine embroidery. When they work, they look magical—a seamless tapestry that defies the physical limits of your hoop size. But when they fail? They are absolutely maddening.

If you have ever stared at a finished column of tiles and thought, "Why is there a 2mm gap at the seam?" or "Why did my blocks drift north even though I measured twice?", you are not alone. You are experiencing the difference between theory and the physical reality of fabric distortion.

This guide creates a "White Paper" standard workflow for the OESD tiling scene method. It is built around one non-negotiable truth: The embroidery machine gives you a seam map (a contract), and your job is to respect it.

1. Calm the Panic: The Physics of Tiling Scenes

A tiling scene isn't hard because the design is complicated. It is hard because it is repeatable. You must hoop, stitch, unhoop, slide, re-hoop, and stitch again—sometimes 20 or 30 times.

In my 20 years of experience, I’ve found that failure rarely comes from the machine. It comes from Cumulative Tolerance Error. If every tile is 0.5mm off, by the time you join four of them, you have a visible 2mm gap.

To conquer this, we focus on two physical variables:

1. Uniform Radial Tension: The fabric must be held with the exact same tension in tile #1 as in tile #20. Most beginners pull the fabric "drum tight" on the first tile, get tired, and leave the last tile loose. This causes size mismatch.
2. The "Holy" Seam Line: The final outline stitch is not decoration. It is the definitive reference line for your rotary cutter.

This is a marathon, not a sprint. If you find yourself dreading the repetitive strain of tightening hoop screws 30 times, recognize that tools like magnetic embroidery hoops were invented specifically to turn this "weekend struggle" into a predictable, low-fatigue production routine.

2. The "Hidden" Prep: Fabric Strip Strategy & Fusible Woven

The video demonstrates a classic OESD "Slide Method." Instead of cutting individual squares (which involves a nightmare of centering), you cut one continuous strip of fabric the width of your hoop.

The Stabilizer Bond

You must fuse OESD Fusible Woven (or a generic high-quality fusible woven stabilizer) to the wrong side of the fabric strip.

Why Woven? Beginners often ask, "Can I use Polymesh?" For tiling scenes, the answer is generally No. Tiling scenes have dense stitch counts (often 20,000+ stitches per block). Polymesh is too soft; it allows the fabric to shrink inward as stitching progresses (the "hourglass" effect). Fusible Woven freezes the grain of the fabric, preventing it from shifting.

Sensory Check for Fusing:

• Visual: The fabric should look smooth, not bubbly.
• Tactile: When you run your hand over it, it should feel like a single, stiffened material. If it crinkles or peels, hit it with the iron again.

The "Hidden" Consumables List:

• Fresh Rotary Blade (Crucial for the trimming phase).
• Fine-point Tweezers (For picking tiny threads out of the seam allowance).
• "Purple" Thang or Stiletto tool (To hold fabric down safely).

Prep Checklist: The "Go/No-Go" Standard

(Complete this before the hoop touches the machine)

• Fabric Continuity: Fabric is cut as one continuous strip, width matched to your hoop.
• Bond Integrity: Stabilizer is fully fused edges-to-edge. No bubbles implies no shifting.
• Needle Freshness: A fresh Topstitch 90/14 or Embroidery 75/11 is installed (burrs caused by old needles will shred the dense satin columns).
• Bobbin Audit: You have at least 3-4 pre-wound bobbins ready. Running out mid-seam is a disaster.
• Mental Reset: You are not rushing. Speed is the enemy of alignment.

Warning: Rotary Safety
Rotary cutters and acrylic rulers are a "blink and bleed" combination. When heavy pressure is applied, the blade can jump the ruler edge. Always keep your non-cutting hand spider-ed neatly on the ruler, away from the edge, and engage the safety lock the second you put the cutter down.

3. Hooping: Tension, Grain, and the "Hoop Burn" Trap

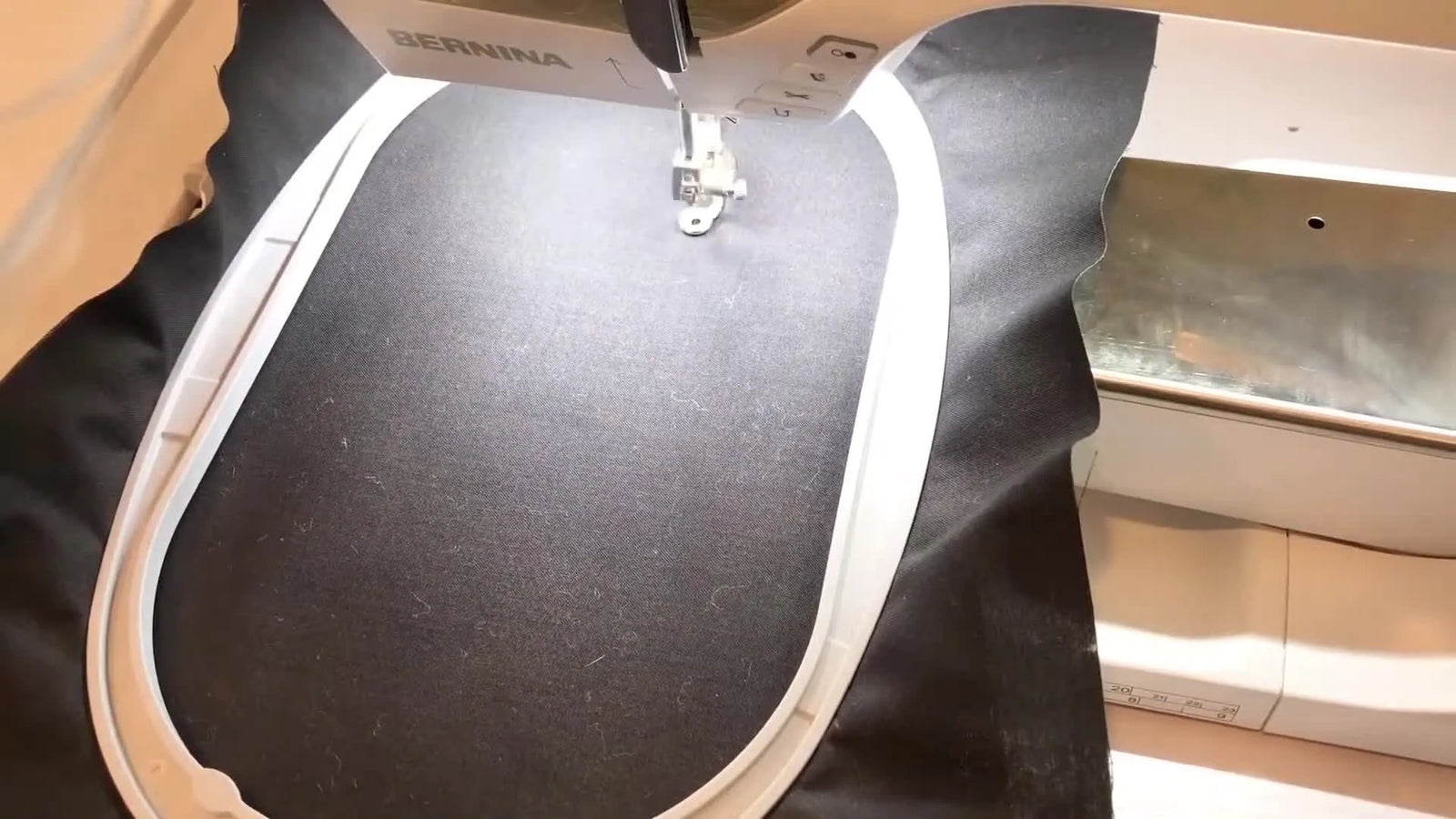

The video shows a standard Bernina Oval Hoop. The stabilized strip is placed over the outer ring, the inner ring is pressed in, and the screw is tightened.

The Trap: The Screw-Tightening Inconsistency

Here is the pitfall I see in workshops: On thick sandwiches (Fabric + Fusible Woven + Thread Buildup), you have to torque the screw aggressively to hold everything.

1. Hoop Burn: The friction crushes the fabric fibers, leaving permanent white marks on dark fabrics.
2. Grain Distortion: As you tighten the screw, the fabric naturally twists slightly clockwise (following the screw torque). This makes your square tile a rhombus.

The Professional Fix: You want "Drum Skin" tension, not "Trampoline" tension.

• Touch Test: Tap the fabric. It should sound like a dull thud, not a high-pitched ping.
• Pull Test: Tug the fabric edge gently. It should have almost zero give.

If you are fighting to get thick seams into a standard hoop, this is the definitive triggering event for upgrading. A magnetic hoop for bernina (or your specific machine brand) eliminates the "screw twist." The magnets clamp straight down with vertical force, preserving the fabric grain and saving your wrists from repetitive strain injury.

If you are using standard hoops, consider a hooping station for embroidery machine. These devices hold the outer hoop fixed while you align the long strip, preventing that dreaded "twist" when you insert the inner ring.

4. Stitching the Tile: The Seam Line Contract

Once hooped, the setup is run on the machine. You will stitch the background, the details, and the shading. But the most critical moment arrives at the very end.

The "Contract" Stitch

The final step in these designs is a functional Seam Line. It is usually a single or triple run stitch that outlines the square.

• Do not skip this.
• Do not rush this.
• Do not let the bobbin run out here.

The Bobbin Rule: If your machine warns of low bobbin, or if you "feel" you are running low (listen for a change in the sewing sound—a hollow rattling often precedes a run-out), STOP. Change the bobbin before the final color change.

Why? If the bobbin runs out halfway through the seam line, you will have to backtrack. Backtracking often creates a "double line" or a tiny knot. When you later try to trim perfectly along this line, that knot will act like a speed bump for your ruler, throwing off your 1/2" measurement.

5. The Slide-and-Rehoop Move

After the first tile is done, you un-hoop. Do not cut the fabric! Loosen the screw, slide the fabric strip down, and hoop the next section.

The "Crush" Zone Risk When you hoop the second tile, the edge of the first tile might end up trapped under the hoop frame.

• Standard Hoops: This is dangerous. The hard plastic ring can crush the satin stitches of the finished tile, making them look flat and shiny.
• Solution: Use a scrap piece of batting or "Hoop Guard" felt over the finished stitches if the hoop must clamp over them.

This repetitive action is where workflow efficiency dies. If you are doing a 20-tile wall hanging, you will spend 60% of your time hooping. This is where the commercial benefit of a magnetic hooping station becomes undeniable. It allows you to use magnetic force to snap the fabric in place in seconds, without the "loosen screw -> slide -> tighten screw -> adjust -> tighten more" cycle.

6. Stabilizer Decision Tree

A common confusion from the comments: "What stabilizer do I actually use?"

The video uses Fusible Woven. However, experienced embroiderers adjust based on the Stitch Density of the scene.

Decision Tree: Select Your Stabilizer

• Scenario A: Standard Tiling Scene (20k-40k stitches/block)
  • Recommendation: OESD Fusible Woven.
  • Why: Maximum stability, prevents shrinkage.
• Scenario B: Very Dense / Photorealistic Scene (50k+ stitches/block)
  • Recommendation: Fusible Woven + 1 Layer Medium Cutaway (floated underneath).
  • Why: The fabric will buckle under the sheer weight of thread without extra support.
• Scenario C: Lightweight/Sheer Fabric
  • Recommendation: Fusible Polymesh.
  • Why: Woven stabilizer might shadow through or look too stiff.
  • Caveat: You must slow your machine speed down (500 SPM) to prevent distortion.

Warning: Magnetic Safety
If you upgrade to embroidery hoops magnetic, treat them with extreme respect. These are industrial Neodymium magnets. They can pinch fingers severely (blood blister hazard) and must be kept away from pacemakers and computerized machine screens. Do not let children play with them.

7. Trimming: The 1/2-Inch Truth

This is the point of no return. You are cutting your artwork.

The video teaches aligning the 1/2 inch mark of your acrylic ruler with the stitched seam line.

The cognitive shift: Stop looking at the fabric edge. It is irrelevant. The only thing that matters is the stitched line.

The Cutting Technique:

1. Stand up. You need weight over the ruler.
2. Align the ruler's 1/2" line directly on top of the stitch line.
3. Sensory Check: Press down firmly with your non-cutting hand. Your fingertips should turn white from the pressure. If the ruler slips now, the tile is ruined.
4. Cut smoothly in one motion.

Setup Checklist (Trimming Phase)

• Lighting: You are working under bright, direct light (shadows cause measuring errors).
• Ruler Integrity: Your acrylic ruler markings are crisp (not worn off).
• Verification: You have visually confirmed which line is the seam line (sometimes it is the second-to-last stitch).
• Blade Sharpness: You changed your blade recently. A dull blade "pushes" the fabric before cutting it, adding 1-2mm of error.

8. Joining: The "Needle in the Gutter" Technique

To join blocks, place them right-sides together. Pin excessively.

The Secret to Invisible Seams: You are sewing a straight stitch to join the blocks. Where do you aim? The video correctly advises: Place your needle one thread-width inside the seam stitch line.

• Too far inside (deep): You eat up the design, cutting off part of the embroidery.
• Too far outside (shallow): You leave a gap of fabric showing between the embroidery blocks (the dreaded "white gap").
• Just right: The embroidery blocks "kiss" perfectly.

9. Finishing: Pressing & Quilting

Use a tool like the OESD Perfect Point and Press Tool (or a wooden clapper). You must press the seams OPEN.

Why open? Embroidery is thick. If you press seams to one side (like in quilting), you will have 6 layers of stabilizer and thread on one side. It will look like a lump. Pressing open distributes the bulk.

Finally, layer your backing and batting. The video implies "Stitch in the Ditch" quilting.

Quilting Strategy: Do not quilt over the embroidery. It ruins the 3D effect. Stitch exactly in the seam lines (the "ditch") using invisible thread or a color-matched thread. This creates the structure of a quilt without distracting from the art.

Operation Checklist (Final Assembly)

• Bobbin Match: Bobbin thread matches top thread for the joining seams (in case tension pulls it up).
• Pressing: All seams are pressed completely flat within the allowances.
• Basting: Spray baste is applied evenly (avoid heavy wet spots which can stain).
• Ditch Stitching: Tension is clear; no loops on the back.

10. The Upgrade Path: Moving from Hobby to Production

Tiling scenes are the ultimate stress test for your equipment. They expose every weakness in your workflow.

If you love the result but hate the process, diagnose your pain point to find the right solution:

1. Pain: "My hands hurt from tightening screws."
   • Diagnosis: Repetitive Strain.
   • Solution: magnetic embroidery hoops. The magnetic closure is instant and requires zero wrist torque.
2. Pain: "My blocks are crooked."
   • Diagnosis: Hooping Misalignment.
   • Solution: A hoopmaster hooping station or similar jig. This standardizes placement so tile #1 and tile #50 are identical.
3. Pain: "I spend more time changing thread than sewing."
   • Diagnosis: Single-Needle Bottleneck.
   • Solution: This is the trigger to look at SEWTECH Multi-Needle Machines. Tiling scenes often have 50+ color changes. A multi-needle machine automates this, turning a 3-week project into a 3-day project.
4. Pain: "I have 'Hoop Burn' rings on my dark fabric."
   • Diagnosis: Mechanical abrasion from plastic rings.
   • Solution: A magnetic hoop for bernina (or your machine type). The flat clamping pressure acts like a sandwich press, holding firm without grinding the fabric fibers.

EMBROIDERY IS NOT MAGIC; IT IS PHYSICS. Control the variables—tension, stability, and alignment—and the magic will happen on its own.

FAQ

• Q: Why do OESD tiling scene embroidery blocks shift and create a visible 2mm seam gap after several re-hoops on a Bernina Oval Hoop?
  A: This is commonly caused by cumulative tolerance error from inconsistent hoop tension and fabric grain distortion across tiles.
  • Match hoop tension every time: aim for “drum skin” tension, not over-tight “trampoline” tension.
  • Prevent screw-twist distortion: tighten smoothly and avoid torquing so hard that the fabric rotates with the screw.
  • Treat the seam line as the only reference: always trim and join from the stitched seam line, not the fabric edge.
  • Success check: after stitching, repeated tiles measure and align consistently, and the seam line position stays predictable tile-to-tile.
  • If it still fails, switch to a fusible woven stabilizer strategy (fully fused) and reduce any rushed handling during re-hooping.
• Q: Can Polymesh stabilizer replace OESD Fusible Woven for an OESD tiling scene method on dense 20,000+ stitch blocks?
  A: Generally no—Polymesh is often too soft for dense tiling blocks and can allow inward shrinkage during stitching.
  • Fuse a quality fusible woven to the wrong side of the fabric strip to “freeze” the grain.
  • Inspect the fuse before hooping: re-iron any areas that bubble, crinkle, or peel.
  • Keep the fabric as one continuous strip (hoop-width) to reduce centering errors between tiles.
  • Success check: the fused fabric feels like one single stiffened layer (smooth visually, no bubbles, no peeling at edges).
  • If it still fails, add an extra floated layer of medium cutaway underneath for very dense blocks (often 50k+ stitches per block).
• Q: How do you prevent hoop burn and permanent white rings on dark fabric when re-hooping a thick fabric + fusible woven “sandwich” in a Bernina Oval Hoop?
  A: Reduce friction and torque—hoop burn is commonly caused by aggressive screw tightening and ring abrasion on thick stacks.
  • Tighten only to stable “drum skin” tension rather than over-cranking the screw.
  • Avoid re-clamping on top of heavy thread buildup whenever possible during the slide-and-rehoop sequence.
  • Consider a magnetic embroidery hoop for Bernina-type setups when repeated screw torque is causing grain twist and abrasion.
  • Success check: after unhooping, the fabric shows minimal or no white compression marks, and the tile remains square (not rhomboid).
  • If it still fails, use a hooping station to control alignment and reduce the need for excessive tightening.
• Q: What is the correct “go/no-go” prep checklist before starting an OESD tiling scene strip on a home embroidery machine with repeated re-hooping?
  A: Do the consumables and readiness checks first—most alignment failures start before the hoop touches the machine.
  • Install a fresh Topstitch 90/14 or Embroidery 75/11 needle to avoid shredding dense satin columns.
  • Pre-wind and stage 3–4 bobbins so the seam line step is never interrupted mid-stitch.
  • Replace the rotary blade before trimming day (a dull blade can push fabric and add 1–2 mm error).
  • Success check: stabilizer is fused edge-to-edge with no bubbles, and tools/bobbins are staged so the seam line can be stitched without stopping.
  • If it still fails, slow down and reset—rushing is a repeatable cause of misalignment across tiles.
• Q: How do you avoid ruining an OESD tiling scene seam line when the bobbin runs low during the final outline “contract” stitch on a home embroidery machine?
  A: Stop and change the bobbin before stitching the seam line—running out during the seam line often creates backtracking bumps that ruin trimming accuracy.
  • Listen for a sound change (a hollow rattling may precede run-out) and treat it as a stop signal.
  • Change the bobbin before the final color change that stitches the seam line.
  • Do not skip or rush the seam line; it is the trimming and joining reference.
  • Success check: the seam line stitches as one clean, continuous outline with no gaps, knots, or doubled backtracking.
  • If it still fails, recheck bobbin readiness (have multiple pre-wounds staged) and avoid continuing when “feeling” low.
• Q: What is the safest way to trim OESD tiling scene blocks using an acrylic ruler aligned to the 1/2-inch mark without slipping and ruining the tile?
  A: Align the ruler to the stitched seam line (not the fabric edge) and cut with firm, controlled pressure using a fresh rotary blade.
  • Stand up to put body weight over the ruler for stability.
  • Place the ruler’s 1/2" line directly on top of the stitched seam line and verify it is the correct seam line.
  • Press down hard with the non-cutting hand before cutting in one smooth motion.
  • Success check: the ruler does not drift during the cut, and the cut edge remains consistently 1/2" from the seam line on all sides.
  • If it still fails, improve lighting and replace the rotary blade—dull blades and shadows commonly cause 1–2 mm trimming error.
• Q: What safety rules prevent injuries when using a rotary cutter and acrylic ruler for trimming OESD tiling scene embroidery blocks?
  A: Treat rotary cutting as a high-risk step—use correct hand placement and lock the blade immediately after each cut.
  • Keep the non-cutting hand “spider-ed” flat on the ruler, away from the ruler edge.
  • Apply pressure straight down so the blade cannot jump the ruler edge under force.
  • Engage the rotary cutter safety lock the second the cutter is set down.
  • Success check: the ruler stays planted and the cutting hand never crosses in front of the blade path.
  • If it still fails, stop and reset the workspace—unstable rulers and rushed pressure are the common precursors to slips.
• Q: What safety precautions are required for neodymium magnetic embroidery hoops used for repeated re-hooping in tiling scene projects?
  A: Use magnetic hoops with strict pinch and medical/device safety—these magnets can cause severe finger pinches and must be kept away from pacemakers and computerized screens.
  • Keep fingers clear when bringing magnetic components together; clamp vertically and deliberately.
  • Store magnets controlled and separated; do not allow children to handle them.
  • Keep magnetic hoops away from pacemakers and avoid placing them near machine screens/electronics.
  • Success check: hooping is fast and consistent without finger pinch incidents or accidental snapping onto nearby metal objects.
  • If it still fails, slow the hooping motion and consider using a magnetic hooping station to control placement and reduce snap hazards.
