No-Scissors Free-Standing Embroidery Patches: Burning No Show Mesh Cleanly, Then Stitching Them onto Stretchy Denim Without Puckers

If you’ve ever tried to turn a digital embroidery design into a physical patch and ended up with frizzy stabilizer edges, wavy outlines, or a badge that looks stiff and "homemade" in the wrong way—this technique is the cleanest shortcut I know.

In the industry, we often fight between "bulletproof" stability and "soft" wearability. The video demonstrates a hybrid method: stitching a design onto two layers of No Show Mesh, then using a Floriani Heat Craft Tool to melt away the excess stabilizer instead of cutting it. Finally, the host attaches the finished patch to a stretchy Lycra denim jacket using invisible thread, a lightning stitch, and free-motion control.

A couple of viewers asked the exact questions I hear in my workshops all the time:

• “Does the tool burn the stabilizer but not the thread?” (Yes—but only if you understand the melting points of polyester vs. stabilizer.)
• “We can’t see the technique; your head is in the way.” (Fair point—so I am going to spell out the tactile hand positions and checkpoints clearly so you can execute this without needing a perfect camera angle.)


The Calm-Down Moment: Why Free-Standing Patches on No Show Mesh Actually Work

Free-standing embroidery usually requires heavy water-soluble stabilizers that wash out, leaving just thread. But that can be flimsy. The method here uses No Show Mesh (Polymesh) as a permanent base.

Why does this work better than standard cutaway for patches?

1. Hand Feel: Mesh is soft and drapable. Standard cutaway feels like cardstock.
2. Edge Finish: Mesh is synthetic (polyester). It doesn't fringe when cut; it melts and seals when heated.

The secret relies on one critical equation: Stability during stitching + Clean removal after.

• Stability comes from two layers of No Show Mesh hooped together.
• Clean Edges come from cauterizing the extra mesh right up to the satin edge, rather than trying to scissor-cut complex curves, which usually leaves "pokies."

If you are already thinking, “My hooping is slow, and I struggle to get layers tight without hand pain,” you have identified the first bottleneck. This is exactly where a consistent hooping workflow matters—especially if you plan to make multiple patches in a batch using effective techniques for hooping for embroidery machine.

The “Hidden” Prep Pros Don’t Skip: No Show Mesh, Hoop Tension, and a Safe Heat-Work Surface

Before you stitch a single patch, you must set your environment to prevent physical distortion and safety hazards. We aren't just sewing; we are about to use a 700°F+ heating element.

What the video uses (and why it matters)

• Two layers of No Show Mesh stabilizer: The host hoops them at a 45° angle to each other. Keep reading—this isn't optional.
• Standard Embroidery Hoop: The video uses a screw-tighten hoop.
• Ceramic tile: Placed under the work area to protect the table from the heat tool.

That 45° cross-layering is physics, not a "hack." Mesh stabilizer has a grain; it stretches more in one direction. By rotating the second layer 45 degrees, you lock the stretch in all directions (multidirectional stability).

Warning: Burn & Fire Hazard. A heat craft tool can reach temperatures exceeding 750°F (400°C). It will instantly melt synthetic table covers, burn skin, and ignite paper scraps. Always work on a ceramic tile or heat-resistant mat. Never set the hot tool down directly on your table—use the provided stand.

Prep Checklist (Do this **before** hooping)

• Consumable Check: Ensure you have two clear pieces of No Show Mesh (Polymesh).
• Hardware Check: Run your finger along your hoop’s inner ring. If you feel nicks or burrs, sand them down—they will snag the delicate mesh and ruin tension.
• Safety Check: Place a ceramic tile (a cheap hardware store tile works perfectly) at your workstation.
• Cleaning Prep: Keep a copper-bristled brush nearby.
• Hidden Consumable: Have a roll of heat-resistant tape or painter's tape ready if your mesh pieces are slippery and hard to align.

(If you are producing patches regularly, fighting with manual screw hoops allows slippage that ruins the concentricity of circular patches. Many shops move to a dedicated hooping station for embroidery machine or magnetic frames once they realize hooping consistency is their quality bottleneck.)

Locking the Foundation: Hooping Two No Show Mesh Layers at 45° So the Patch Doesn’t Warp

In the video, the host hoops two layers of No Show Mesh with the seed layers rotated 45 degrees relative to each other. She stitches the design directly onto this "sandwich."

How to do it (Clear, repeatable steps)

1. Layer 1: Lay the first piece of mesh over your bottom hoop. Note the direction of the "grain" (lines).
2. Layer 2: Lay the second piece on top, rotating it so its grain runs diagonally to the first piece. It should look like an 'X' or + combined.
3. Hoop: Insert the top hoop. Tighten the screw.
4. Sensory Check (The "Drum" Test): Tap the mesh lightly with your fingernail.
   • Correct: You hear a light "thump" or drum sound.
   • Incorrect: It sounds loose or ripples when you press. Tighten and re-hoop. DO NOT pull the mesh after the hoop is tightened, or you will distort the fibers.

Why this prevents "Footballing"

Round patches often come out oval (shaped like a football) because the stabilizer stretched during sewing. The 45-degree lock prevents this.

If you are using a home machine like a brother embroidery machine, this method is critical because single-needle machines often have less clamping force than commercial machines. The mesh must carry the weight of the dense patch stitches.

The No-Scissors Cutout: Using the Floriani Heat Craft Tool Without Melting Your Stitches

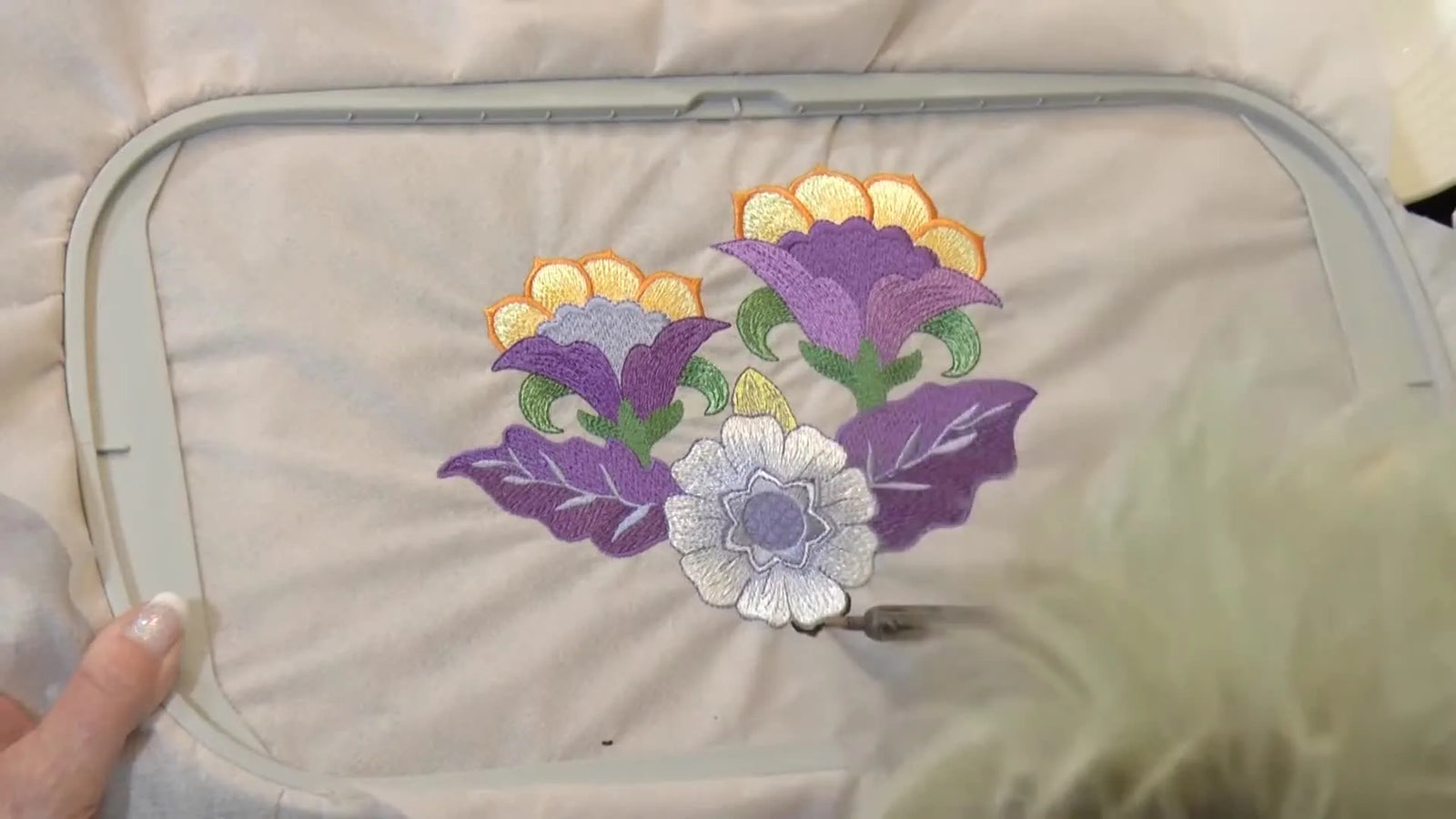

This is the heart of the technique. Instead of trimming mesh with scissors and leaving jagged edges, you "draw" around the outside edge with the heated tip. The mesh retreats and melts away cleanly.

In the video, the host emphasizes keeping the tool moving. She uses the tool like a pen, tracing the outer edge of the embroidery.

Step-by-step: Burning away the stabilizer

1. Transfer: Move your stitched hoop/project onto your ceramic tile.
2. Grip: Hold the heat tool comfortably like a pen, keeping fingers well away from the metal shaft.
3. Action: Trace immediately adjacent to the outer satin stitching.
4. Motion: Keep a steady pace. Do not stop. Imagine you are drawing a line with a marker that is running out of ink—steady pressure, steady speed.

“It burns the stabilizer but not the thread?”—The Physics

A commenter asked the perfect question: why does the mesh disappear, but the rayon or polyester embroidery thread survives?

It is about Thermal Mass and Melting Points. The mesh is extremely thin and melts instantly on contact. The embroidery thread block (the satin stitch) is dense and thick. If you keep the tip moving, the heat melts the thin mesh before it has time to damage the dense thread.

However, you need a "Safe Zone":

• Don't dig the tip under the stitches.
• Don't press hard against the thread.
• Do let the heat radiate slightly ahead of the tip.


The “Black Goo” Problem: Cleaning the Heat Tool Tip with a Copper Brush (So It Keeps Cutting Clean)

As you work, you will see a black, sticky residue accumulating on the tool tip. This is melted polyester mesh. If you ignore this, it will ruin your patch. The "goo" creates drag, cools down the tip, and can leave black scorch marks on light-colored threads.

How to clean it (The Video Method)

1. Pause: Every few inches, or whenever you feel the tip "drag" instead of glide.
2. Scrub: While the tool is still HOT, gently rub the tip against a copper-bristled brush.
3. Resume: Go back to cutting immediately.

Pro Tip: Do not use a synthetic scrubbing pad or a nylon toothbrush—they will melt instantly onto the tool. Brass or Copper brushes are mandatory here.

The Patch Reveal: What a Finished Free-Standing Flower Should Look Like Before You Attach It

After burning away the mesh, the patch should pop out of the hoop freely.

Quality Control: The "2-Second" Inspection

Hold the patch up to the light:

1. Edge Check: are there "whiskers" or sharp melted points? If yes, tap them gently with the side of the heat tool to smooth them down.
2. Flatness Check: Does the patch curl? (Curling usually means your stabilizer tension was too tight compared to your thread tension).
3. Density Check: Can you see through the patch? A good patch should be solid.

If you are planning to sell patches or apply them to garments in volume, manual cutting (even with heat) is a bottleneck. In production, consistency is everything—this is where shops start standardizing hooping with tools like a hoop master embroidery hooping station (or similar systems) to ensure every patch is sewn in the exact same spot on the mesh, minimizing waste.

Don’t Let Stretchy Lycra Denim Eat Your Patch: Floating Medium Tearaway Behind the Jacket

Now the video shifts to attaching the patch to a stretchy Lycra jean jacket. This is the danger zone. Lycra denim is unstable; if you sew a dense patch onto it without support, the jacket will pucker and ripple.

The host uses a "Floater" method: placing a piece of medium tearaway stabilizer behind the denim, unhooped.

Decision Tree: Choosing Your Stabilizer for Patch Attachment

Use this quick decision logic to avoid the two most common failures (puckers vs. permanent stiffness):

• Scenario A: High-Stretch Garment (Lycra, T-Shirt, Performance Knit)
  • Risk: Puckering and tunneling.
  • Solution: Cutaway Stabilizer (Mesh or Standard). The video uses tearaway, but industry best practice for Lycra is usually Cutaway because the stabilizer must remain forever to support the stretch. If you use tearaway, the jacket may ripple after the first wash.
• Scenario B: Low-Stretch Canvas or 100% Rigid Denim
  • Risk: Needle deflection (thickness).
  • Solution: Tearaway Stabilizer. The fabric supports itself; the stabilizer just aids feeding.
• Scenario C: The Video's Hybrid Setup (Stretchy Denim)
  • Method: Floating Medium Tearaway.
  • Why it works here: The denim has some structure, but the tearaway adds just enough rigidity for the edge stitch.


Invisible Thread Without the Drama: Half-Speed Bobbins, Half-Full Winding, and Why It Prevents “Explosions”

The host uses YLI invisible thread (clear monofilament) in the bobbin and on top. Monofilament is basically fishing line. It acts differently than cotton or poly thread.

The Physics of the "Exploding Bobbin": When you wind monofilament under tension, it stretches thin. As it sits on the bobbin, it cools and attempts to contract (shrink back). This massive inward pressure can literally crush plastic bobbins or jam inside the metal bobbin case, making it impossible to remove.

Setup Checklist (Invisible Thread Safety)

• Winding Speed: Set your winder to HALF speed. This reduces heat and stretch.
• Capacity: Fill the bobbin only HALF full. Less thread = less cumulative pressure.
• Machine Speed: Slow the embroidery machine down (approx. 400-600 SPM).
• Needle Choice: Use a fresh needle (Size 75/11 or 80/12) to prevent shredding the plastic thread.


The Clean Edge Attachment: Lightning Stitch + Clear Open Toe Foot + Dropped Feed Dogs for Free Motion

To attach the patch, the host converts the sewing machine for "Free Motion" work. This means you are moving the fabric, not the machine.

The Setup

• Foot: Clear Open Toe Foot. (Visibility is non-negotiable here; you need to see the patch edge.)
• Stitch: Lightning Stitch (a very narrow, slanted zigzag). It’s better than a straight stitch because it stretches with the Lycra.
• Feed Dogs: DROPPED. (The teeth under the fabric are lowered so they don't pull the fabric).

Step-by-Step Attachment

1. Position: Place the patch on the jacket using spray adhesive or double-sided tape (don't rely on hope).
2. Float: Slide the stabilizer sheet under the jacket area.
3. Engage: Lower the presser foot. Bring the bobbin thread up to the top so it doesn't nest.
4. Sew: Run the machine at a moderate speed. Move the jacket with your hands to trace the edge of the patch. The lightning stitch should bite the edge of the patch and the denim.

Warning: Finger Safety. When feed dogs are dropped, YOU control the fabric feed. It is very easy to accidentally push your fingers into the needle path while focusing on steering a curve. Keep your fingers at least 1 inch away from the foot at all times. Use a stylus or tweezers to hold the patch edge down if needed.

The “Why” Behind the Settings: Stretch Control, Stitch Geometry, and Keeping the Patch Flat Over Time

Here is the mechanical breakdown of why this specific combination avoids the "homemade" look:

• Why Free Motion? It avoids the friction of the presser foot dragging across the textured patch, which can push the patch out of alignment.
• Why Lightning Stitch? A straight stitch "locks" the fabric. If the wearer stretches the Lycra jacket, a straight stitch will snap. The lightning stitch acts like a tiny accordion spring—it expands with the movement.
• Why Floating? By not hooping the thick denim seams, you avoid "hoop burn" (the permanent ring mark left by traditional loops).

If you’re doing this casually, this manual method is excellent. However, if you are doing this for a team order (e.g., 20 jackets), manual free-motion attachment is exhausting and inconsistent. This is where upgrading your toolset to Magnetic Frames becomes a game-changer. They allow you to clamp the jacket instantly without un-hooping, securing thick seams that standard embroidery machine hoops simply cannot handle.

Troubleshooting the Three Failures That Waste the Most Time (and How to Fix Them Fast)

1. The "Bird's Nest" (Thread bunching under the plate)

• Symptom: You start sewing and the machine jams instantly with a grinding noise.
• Likely Cause: You didn't hold the top and bobbin thread tails when taking the first stitch. Free motion needs tension on the first stitch.
• Fix: Always hold thread tails for the first 3-4 stitches until the lock is formed.

2. The Jagged Edge

• Symptom: The patch edge feels scratchy or looks uneven after heat cutting.
• Likely Cause: The heat tool tip was dirty (black goo) or you moved too slowly.
• Fix: Clean the tip with your copper brush. Re-pass the tool quickly over the rough spots to smooth them down.

3. The "Puckered Halo"

• Symptom: The patch looks fine, but the denim ripples around it like a halo.
• Likely Cause: The jacket fabric stretched while you were sewing it down.
• Fix: You need more friction/stability. Use a temporary spray adhesive (like 505 Spray) to glue the patch to the denim and the stabilizer to the back of the denim before sewing. This creates a "rigid sandwich" temporarily.


The Upgrade Path When You’re Doing More Than One Jacket: Faster Holding, Cleaner Placement, and Less Hand Fatigue

The method shown in the video is skill-intensive. It requires good hands-on control for free-motion sewing. As you scale up from "one cool jacket" to "patch production for a club," your tools need to change to protect your time and your wrists.

Level 1: Consumable Upgrade

Switch to high-quality Magnetic Bobbins or specifically wound pre-wound bobbins for invisible thread to avoid the "explosion" risk and tension issues.

Level 2: Tooling Upgrade (The Hooping bottleneck)

If you struggle with hooping thick denim layers or getting stabilization straight, SEWTECH Magnetic Hoops are the industry standard solution.

• Benefit: They snap onto thick seams without screw-tightening (which causes hand strain).
• Result: No hoop burn on the denim, and 5x faster loading time.

Level 3: Production Upgrade

If you are making 50 patches, a single-needle machine will slow you down due to thread changes. Multi-needle machines (like SEWTECH 15-needle models) allow you to set the colors once and let the machine run the entire batch. Combined with mass-production placement tools (often compared to a hoopmaster or hoopmaster station kit in function), you move from "crafter" to "manufacturer."

Warning: Magnetic Safety. Professional magnetic hoops use industrial-grade magnets. They are incredibly strong. Keep them away from pacemakers, credit cards, and hard drives. Watch your fingers—they can snap together with enough force to cause a blood blister (pinch hazard).

Operation Checklist (Final "Go" Flight Check)

1. [ ] Bobbin: Invisible thread, wound half-full/half-speed?
2. [ ] Machine: Feed dogs dropped, Lightning stitch selected?
3. [ ] Stabilizer: Floater placed behind the denim?
4. [ ] Speed: Machine restricted to 50% max speed?
5. [ ] Safety: Fingers clear of the needle path?

Get these right, and that patch will look like it was born on the jacket—permanent, professional, and clean.

FAQ

• Q: How do two layers of No Show Mesh (Polymesh) stabilizer get hooped at a 45° angle to prevent “footballing” on free-standing patches?
  A: Hoop two No Show Mesh layers with the grain rotated about 45° to lock stretch in every direction and keep round patches from sewing out oval.
  • Lay Layer 1 on the bottom hoop and note the grain direction (the “lines” in the mesh).
  • Place Layer 2 on top and rotate it so the grain runs diagonally to Layer 1 (the grains should form an X-like relationship).
  • Tighten the hoop screw, then stop touching the mesh—do not pull the mesh after tightening.
  • Success check: Tap the hooped mesh and listen for a light “drum” thump; the surface should not ripple when pressed.
  • If it still fails: Re-hoop and tighten again; also check the hoop inner ring for nicks/burrs that can snag mesh and ruin tension.
• Q: How can a Floriani Heat Craft Tool melt No Show Mesh stabilizer without melting polyester or rayon embroidery thread on a satin edge?
  A: Keep the Floriani Heat Craft Tool moving and trace right next to the satin edge so the thin mesh melts first and the dense stitch line stays safe.
  • Move the hooped project onto a ceramic tile or heat-safe surface before using the tool.
  • Hold the tool like a pen and trace immediately adjacent to the outer satin stitching (do not dig under stitches).
  • Maintain steady speed and light contact—do not pause in one spot.
  • Success check: The mesh retreats cleanly right up to the satin edge with no scorched thread and no jagged “pokies.”
  • If it still fails: Speed up slightly and reduce pressure; if the tip drags or leaves marks, clean the tip before continuing.
• Q: How do you remove black melted residue (“black goo”) from a Floriani Heat Craft Tool tip when cutting No Show Mesh?
  A: Clean the hot tip frequently with a copper- or brass-bristled brush so the tool glides and does not smear residue onto light thread.
  • Pause as soon as the tip starts to drag or you see buildup forming.
  • Scrub the tip while the tool is still hot using a copper/brass brush (not nylon or synthetic pads).
  • Resume cutting immediately after the residue is cleared.
  • Success check: The tip glides smoothly and the cut line looks clean with no black scorch smears.
  • If it still fails: Clean more often (every few inches) and avoid lingering on curves where residue accumulates faster.
• Q: How can YLI invisible thread (monofilament) be wound to prevent an “exploding bobbin” and bobbin-case jams?
  A: Wind YLI invisible thread at half speed and only half-fill the bobbin to reduce stretch-and-shrink pressure that can crush or jam the bobbin.
  • Set the bobbin winder to HALF speed to reduce heat and stretching during winding.
  • Stop winding at HALF a bobbin (do not fill it to the rim).
  • Slow the machine down (a safe starting point is roughly 400–600 SPM) and install a fresh 75/11 or 80/12 needle.
  • Success check: The bobbin turns freely and removes easily from the case with no tight, “springy” bulging wind.
  • If it still fails: Rewind a new bobbin with even less fill and verify thread path/tension per the machine manual (monofilament is less forgiving than poly).
• Q: How do dropped feed dogs, a clear open-toe foot, and a lightning stitch reduce puckering when attaching a patch to stretchy Lycra denim?
  A: Use free-motion control (feed dogs dropped) with a clear open-toe foot and a lightning stitch so the seam can stretch and the patch edge can be steered accurately.
  • Secure the patch first using temporary spray adhesive or double-sided tape instead of relying on pinning alone.
  • Float medium tearaway stabilizer behind the jacket area to add short-term rigidity during stitching.
  • Bring the bobbin thread up and hold thread tails for the first few stitches to prevent immediate nesting.
  • Success check: The lightning stitch “bites” the patch edge evenly and the denim lays flat with no rippled halo.
  • If it still fails: Add more stabilization/friction by bonding both the patch-to-denim and stabilizer-to-denim with temporary spray adhesive before stitching.
• Q: What causes a bird’s nest jam during free-motion patch attachment, and how can thread bunching under the needle plate be stopped?
  A: A free-motion bird’s nest usually happens when thread tails are not controlled at the start—hold both tails for the first few stitches to form a clean lock.
  • Pull both top and bobbin threads to the top before starting the seam.
  • Hold both thread tails firmly for the first 3–4 stitches while you begin moving the fabric.
  • Start at a moderate speed and avoid “stabbing” the first stitch in one spot repeatedly.
  • Success check: The underside shows a normal, flat lockstitch instead of a tight wad of thread under the plate.
  • If it still fails: Re-thread and re-seat the bobbin case (common after a jam), then test on scrap with the same patch + stabilizer stack.
• Q: When patch-making on No Show Mesh and jacket attachment becomes slow or inconsistent, what is the best upgrade path from technique fixes to Magnetic Hoops to a SEWTECH multi-needle embroidery machine?
  A: Improve technique first, then upgrade holding/hooping for consistency, and only then consider production equipment if volume and color changes are the true bottlenecks.
  • Level 1 (technique): Standardize hoop tension (drum test), cross-layer No Show Mesh at 45°, and keep the heat-tool tip clean to prevent jagged edges and rework.
  • Level 2 (tooling): Move to magnetic hoops/frames when screw hoops slip, hooping causes hand strain, thick seams are hard to clamp, or hoop burn becomes a recurring issue.
  • Level 3 (production): Consider a multi-needle machine when batch work is slowed mainly by repeated thread changes and you need repeatable output across dozens of patches/jackets.
  • Success check: Loading/positioning time drops, placement repeatability improves, and rework from distortion or misalignment noticeably decreases.
  • If it still fails: Track where time is lost (hooping vs. trimming vs. color changes); the biggest time sink should decide the next upgrade, not a single frustrating job.
