No Placement Stitch? No Panic: A Brother PE-770 ITH Mickey Pancake Appliqué That Stays Flat, Clean, and Sellable

Mastering ITH Appliqué: The Zero-Placement Stitch Guide (Brother PE-770 & Beyond)

If you’ve ever started an In-The-Hoop (ITH) appliqué project and felt your stomach drop because the design doesn’t provide a placement stitch—breathe. You are not alone. This is a common panic moment for users of entry-level single-needle machines like the Brother PE-770.

However, a missing placement line is not a project killer. You can still achieve a crisp, flat, commercial-grade result if you master two things: structural engineering (stabilization) and hoop discipline.

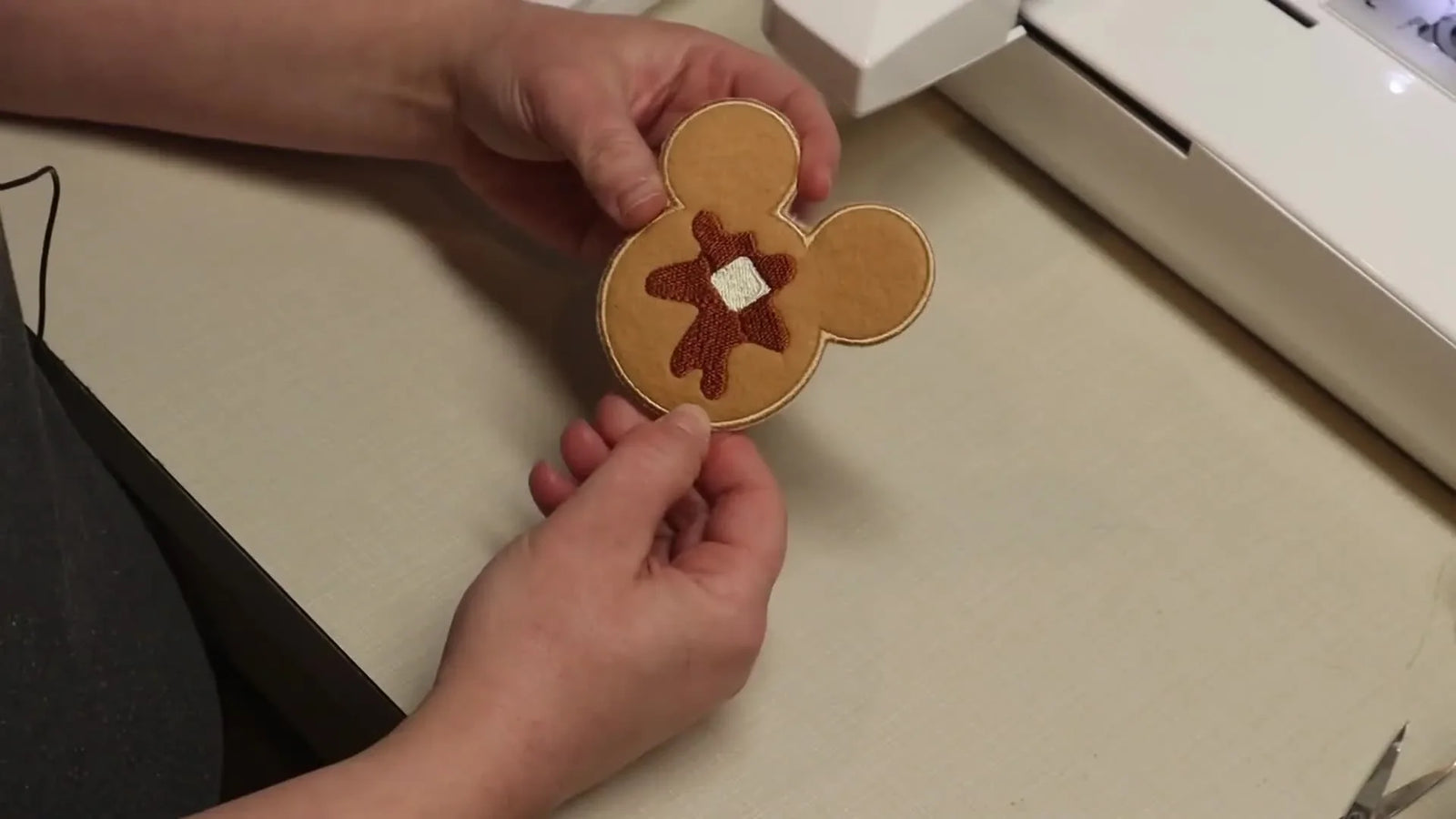

This guide breaks down a felt Mickey Mouse pancake project (stitched for a play kitchen) into an industrial-standard workflow. We will cover the outline, the trim, color layering, floating backing, and the critical final satin stitch.

The "Blind" Start: How to Engineer Alignment Without a Guide

The video tutorial demonstrates a design loaded on a Brother PE-770 that jumps straight into a tack-down/outline stitch without a preliminary placement stitch.

In a professional setting, we call this "floating blind." The workaround is not magic; it’s geometry. You must pre-cut your felt to be larger than the design area and rely on the hoop's physical grid rather than digital lines.

The Pro Technique:

1. Use your grid template: Every Brother PE-770 comes with a clear plastic grid. Place it over your hooped stabilizer.
2. Mark the center: Use a water-soluble pen or chalk to mark the center crosshair on the stabilizer.
3. Align the felt: Center your pre-cut felt piece over those marks.
4. Secure: Use a light mist of temporary adhesive spray (like Odif 505) or tape corners to hold the felt until the needle drops.


Sensor Check (Success Metrics):

• Visual: The needle drops at least 1 inch inside the felt edge on all sides.
• Tactile: The felt feels secure against the stabilizer, not "floating" or loose.

The Beginner Trap: Do not simply "eyeball" the placement while the hoop is locked into the embroidery arm. The angle of your vision will deceive you. Always align firmly on a flat table before attaching the hoop to the machine.

When you repeat this process for a dozen pancakes, consistency becomes your enemy. This is where hooping for embroidery machine shifts from an art to a manufacturing process. Your hands must replicate the same tension and position every single time to ensure the final satin stitch lands on the fabric, not into empty air.

The Physics of Puckering: The 8,000-Stitch Rule

The creator in the tutorial offers a piece of advice that is practically industry gospel: Stabilizer is not just paper; it is a foundation.

The rule of thumb for standard density designs:

• 1 layer of Medium Tearaway for every 6,000–8,000 stitches.

This pancake design clocks in at over 12,000 stitches. Therefore, the math dictates two layers of medium tearaway stabilizer.

Why This Matters (The Science)

Embroidery is a series of thousands of knots pulling fabric toward the center. This is called the "Push-Pull Effect."

• 12,000 stitches = High compression force.
• Soft Felt = Low structural resistance.
• Result without support: The felt buckles, creating a "dome" or pucker in the center of your design.

Pre-Flight Tension Check: Before attaching the hoop, tap the stabilizer with your finger.

• Correct: It sounds like a tight drum skin ("thump").
• Incorrect: It sounds loose or rattles. If it is loose, re-hoop immediately. Do not try to tighten the screw and pull the sides—this causes "hoop burn" and wraps the fabric grain.


The "Hidden" Consumables Checklist

This project looks deceptively simple. It is 2mm thick felt involving two trim stages. Standard office supplies will result in hand fatigue and jagged edges.

Prep Checklist: The "Mise-en-place"

Complete this physical inventory before turning on the machine.

• Machine State: Design loaded; bobbin case cleaned of lint (use the brush, never blow into it).
• Needle: 75/11 Sharp or Titanium. (Ballpoint needles may struggle to pierce dense 2mm felt cleanly).
• Stabilizer: Two layers of medium tearaway, cut 1 inch larger than the hoop on all sides.
• Material: Two felt pieces (Front + Backing) pre-cut to cover the 5x7 hoop area.
• Adhesion: Temporary spray adhesive or painter's tape.
• Cutting Tools:
  • Double-Curved Appliqué Scissors: Crucial for the surface trim.
  • Micro-Tip Straight Scissors (Titanium): For tight corners.
• Threads:
  • Top threads staged in order (Brown, Rust, Yellow).
  • Matching Bobbin: A bobbin wound with thread matching the final satin border color.


Hooping Strategy: Defeating the "Hoop Burn"

The tutorial utilizes a standard 5x7 hoop. Hooping two layers of stabilizer plus thick felt (if you were hooping the felt directly) is a recipe for physical struggle.

The Friction Point: Tightening the screw on a standard hoop requires wrist strength. As you tighten, the inner ring tends to "walk" or twist, distorting your stabilizer.

The Commercial Solution: If you find yourself constantly adjusting the screw or suffering from wrist pain, this is a hardware limitation, not a skill issue. This is the stage where many users upgrade. People searching for magnetic hoops for brother pe770 are usually looking to bypass the screw-tightening mechanism entirely. Magnetic hoops clamp down vertically, preventing the "twist" and saving your wrists during repetitive batch work.

Phase 1: The Blind Outline

With the felt floated or lightly sprayed onto your stabilizer, start the machine.

Speed Recommendation: For the initial outline on thick felt, reduce your speed. If your machine runs at 650 Stitch Per Minute (SPM), drop it to 400-500 SPM. This prevents the feed dog movement (or lack thereof) from shifting the un-tacked felt before the needle secures it.

Expected Outcome: The machine stitches a single run or triple run outline. This is your "cut line." It must be geometrically straight relative to the hoop frame.

Phase 2: The "Flat Table" Trimming Ritual

This is the single most critical skill in ITH appliqué. You must trim the excess felt close to the stitch line without cutting the stitches and without popping the fabric out of the hoop.

The Protocol:

1. Remove the hoop from the machine.
2. Place the hoop on a hard, flat surface. Never trim comfortably in your lap.
3. Angle your curved applique scissors so the blade creates a slight "shelf" on the stabilizer.
4. Glide the scissors.

Warning: Mechanical Safety. Never attempt to trim while the hoop is still attached to the embroidery arm. If you accidentally hit the start button or bump the carriage, the needle bar can come down on your hand, or the movement can drive the scissors into the machine bed.

Why "Flat" is Non-Negotiable: If you lift the hoop in the air to trim, your grip pressure flexes the stabilizer. When you release it, the stabilizer relaxes, and your felt shifts by 1-2mm. That micro-shift is enough to cause the final satin stitch to miss the edge, leaving a "gap" or "halo."

Phase 3: Color Changes & Jump Thread Management

The design proceeds with color fills—syrup (Rust/Brown) and butter (Yellow).

The "Clean Cut" Rule: Between every color change, trim your jump threads.

• Why? Felt is slightly translucent and textured. If you leave a dark brown jump thread under a yellow butter fill, it will create a "shadow" that looks like a stain.
• Technique: Pull the thread tail gently until you feel resistance (like flossing teeth), then snip close to the knot.




Phase 4: Floating the Backing (The "Burrito" Method)

To make the pancake reversible and hide the ugly back-of-embroidery knots, we add a backing layer.

1. Remove the hoop.
2. Flip the hoop upside down.
3. Place the second piece of felt over the stitch area on the underside.
4. Tape the corners/edges securely with Scotch tape or Painter's tape.

The "Floating" Search Intent: Users who look up floating embroidery hoop techniques are often trying to solve the problem of hooping items that are too thick, too small, or too delicate to be clamped. Here, we float because we physically cannot hoop the backing—it must go on after the other stitching is done.

Warning: Magnetic Safety. If you have upgraded to magnetic frames, be hyper-aware during this step. High-strength magnets can pinch skin severely. Keep them away from pacemakers and sensitive electronics.

Phase 5: The Bobbin Swap

Do not skip this step. Before running the final tack-down on the backing, remove your standard white bobbin thread. Insert a bobbin that matches your final satin border color.

The Visual Audit:

• Standard Bobbin: White thread shows on the back edge, making the project look "homemade."
• Matched Bobbin: The edge looks solid color on both sides, making the project look "manufactured."


Phase 6: The Backside Trim

After the machine tacks down the backing felt, you must trim again—this time from the underside.

The Tactical Challenge: You are trimming felt blind to the front design, relying only on the tack-down line.

• Tool: Use the Micro-Tip Titanium scissors here.
• Goal: Trim as close as 1mm to the stitching. Any excess bulk here will push against the satin stitch loops, causing them to look jagged or uneven.


Phase 7: The Final Satin Stitch (The Seal)

The machine will now run a dense satin column around the entire perimeter. This seals the front felt, the stabilizer, and the back felt into a unified object.

Speed Limit: This is the heavy lifting. The needle is penetrating roughly 4mm of compressed material + stabilizer.

• Slow Down: Reduce speed to 400 SPM.
• Listen: Listen for a rhythmic "thump-thump." If you hear a "crunching" sound, your needle is struggling. Change to a fresh 75/11 or 80/12 needle immediately.

Troubleshooting Wavy Edges: If your satin border looks wavy:

1. Stabilizer Failure: Did use the 8,000-stitch rule? (Needs 2 layers).
2. Hoop Shift: Did you trim on a flat table?
3. Gaping: Did you trim the felt too aggressively, leaving nothing for the needle to grab?


Clean Release: The Final Polish

Remove the hoop. Tear away the stabilizer gently.

• The Heat Trick: If fuzzy felt fibers are sticking out of your satin edge, do not pull them. Swiftly pass a heat gun or a lighter (expert consumers only) near the edge to melt the synthetic felt fuzz. This cauterizes the edge for a pro finish.


Operation Checklist: The Quality Control Routine

Perform these checks before handing the toy to a child or packaging for sale.

• Structure: Is the pancake flat? (No cupping/warping).
• Edge Quality: Is the satin stitch solid? No "halos" of felt peeking out.
• Safety: Are all jump threads trimmed flush? (Loops can catch on fingers).
• Back Side: Is the bobbin thread matched? Is all backing tape removed?

Decision Tree: Stabilizer & Material Matrix

Use this logic flow to determine your setup for future felt projects.

1. What is the Total Stitch Count?

• < 8,000 Stitches: 1 Layer Medium Tearaway.
• 8,000 - 15,000 Stitches: 2 Layers Medium Tearaway (Or 1 Layer Cutaway).
• > 15,000 Stitches: 1 Layer Cutaway + 1 Layer Tearaway.

2. What is the Fabric Thickness?

• Stiff Craft Felt: Standard 75/11 Needle.
• Soft/Flimsy Felt: Use spray adhesive to bond it to the stabilizer to prevent shifting.
• Thick 2mm+ Felt: 75/11 or 80/12 Titanium Needle; Reduce machine speed by 20%.

3. Is it Reversible?

• No: Standard white bobbin is fine.
• Yes: Match bobbin to border thread; Float backing felt on underside.

The Growth Path: From Hobby to Production

Creating one perfect pancake is a fun Sunday afternoon. Creating 50 sets for a holiday craft fair is a production challenge.

When you move from "making one" to "making many," your bottlenecks will change.

• Pain Point: Wrists hurt from screwing hoops tight.
  • Solution Level 1: brother 5x7 magnetic hoop. This tool eliminates the screw-tightening action, saving your wrists and speeding up the "hoop-burn" prevention significantly.
• Pain Point: Changing thread colors 10 times per pancake is boring.
  • Solution Level 2: Multi-Needle Machine. Machines like the SEWTECH multi-needle series allow you to set all 6-10 colors at once. The machine handles the swaps automatically, reducing production time by 30-50%.

Smart upgrading isn't about buying the most expensive gear; it's about identifying where your time is being wasted. Often, makers start by researching embroidery hoops magnetic because it is the most cost-effective way to stabilize their workflow before investing in larger machinery.

Setup Checklist (Quick Recap)

• Stabilizer: 2 Layers Medium Tearaway (for >8k stitches).
• Grid: Use template to center felt (no "eyeballing").
• Tools: Curved & Straight Titanium Scissors ready.
• Bobbin: Matched color ready for the final step.
• Speed: Reduced to ~500 SPM for accuracy.

FAQ

• Q: How do I align felt for an ITH appliqué on a Brother PE-770 when the design has no placement stitch?
  A: Use the Brother PE-770 hoop grid and a pre-cut oversized felt piece to “float blind” with controlled alignment.
  • Place the clear Brother PE-770 grid template over the hooped stabilizer on a flat table.
  • Mark the center crosshair on the stabilizer using a water-soluble pen or chalk.
  • Center a felt piece that is larger than the full design area over the marks, then secure with light temporary spray adhesive or tape corners.
  • Success check: The needle drop point lands at least 1 inch inside the felt edge on all sides, and the felt feels secure (not loose) before stitching.
  • If it still fails: Stop “eyeballing” after the hoop is on the embroidery arm; re-align on a flat surface before attaching the hoop to the Brother PE-770.
• Q: How many layers of stabilizer should a Brother PE-770 use for a 12,000-stitch ITH felt appliqué to prevent puckering?
  A: Use two layers of medium tearaway stabilizer for a ~12,000-stitch ITH appliqué as a safe rule-based setup.
  • Stack 2 layers of medium tearaway and cut them at least 1 inch larger than the hoop on all sides.
  • Hoop the stabilizer firmly and evenly; avoid over-tightening the screw to “force” tightness.
  • Success check: Tap the hooped stabilizer and listen for a tight “thump” like a drum skin (not a loose rattle).
  • If it still fails: Re-hoop immediately (do not keep tightening the screw), and consider switching to 1 layer cutaway + 1 layer tearaway for higher stitch counts as a next-step option.
• Q: How can Brother PE-770 users prevent hoop burn and hoop twisting when hooping thick felt and multiple stabilizer layers?
  A: Reduce screw-hoop strain by hooping only the stabilizer cleanly and floating the felt, then upgrade to a magnetic hoop if repetitive hooping causes pain or shifting.
  • Hoop the stabilizer “drum tight” first, then float/spray-baste the felt instead of forcing thick felt into the screw hoop.
  • Tighten the hoop gradually and evenly; stop if the inner ring starts to “walk” or twist.
  • Success check: The stabilizer stays flat and centered after tightening, with no visible distortion lines or shifted grid alignment.
  • If it still fails: Treat it as a hardware limitation—switching to a magnetic hoop (vertical clamping, no twisting) is often the most reliable next step for batch work.
• Q: What prep checklist should Brother PE-770 users follow before stitching an ITH felt appliqué to avoid thread issues and messy edges?
  A: Do a quick “machine + tools + thread” inventory before power-on to prevent avoidable failures mid-design.
  • Clean lint from the bobbin area using a brush (do not blow into the bobbin case).
  • Install a fresh 75/11 sharp or titanium needle (ballpoint may not pierce dense 2mm felt cleanly).
  • Stage curved appliqué scissors for top trimming and micro-tip straight scissors for tight corners and backside trimming.
  • Success check: The first outline stitches cleanly without dragging the felt, and trims can be made smoothly without jagged tearing.
  • If it still fails: Re-check needle condition (new needle) and slow the machine speed for thick felt during outline and satin phases.
• Q: Why does the final satin stitch on a Brother PE-770 ITH appliqué look wavy or leave a gap/halo on felt edges?
  A: Wavy satin borders usually come from stabilization failure, hoop shift during trimming, or trimming too aggressively before the satin pass.
  • Add support first: Follow the stitch-count stabilizer rule (for 8,000–15,000 stitches, use 2 layers medium tearaway or 1 layer cutaway).
  • Trim correctly: Remove the hoop and trim on a hard flat table so the stabilizer does not flex and rebound.
  • Leave material to grab: Trim close, but do not shave the felt away so far that the satin stitch lands into empty space.
  • Success check: The satin stitch covers the edge evenly with no felt “halo” and no visible waviness around curves.
  • If it still fails: Re-run with slower speed (about 400 SPM for the satin border) and replace the needle if penetration sounds strained.
• Q: Is it safe to trim felt while the Brother PE-770 hoop is still attached to the embroidery arm during ITH appliqué?
  A: No—always remove the hoop before trimming because accidental movement or a start command can cause serious hand injury or machine damage.
  • Press stop, then remove the hoop completely from the Brother PE-770 before any trimming.
  • Place the hoop on a hard flat surface and trim with curved appliqué scissors angled to glide, not stab.
  • Success check: Hands never enter the needle area, and trimming can be controlled without the hoop shifting or bouncing.
  • If it still fails: If trimming feels unstable or rushed, slow down the workflow—safe trimming requires the hoop to be stationary on a table, not supported in the air.
• Q: What magnetic hoop safety rules should Brother PE-770 users follow when floating backing felt for a reversible ITH appliqué?
  A: Treat magnetic hoop magnets as pinch hazards and keep them away from pacemakers and sensitive electronics during backing placement.
  • Keep fingers clear of magnet contact points when positioning the frame; separate magnets deliberately, not by sliding fingertips between them.
  • Tape backing felt securely on the underside when the hoop is flipped, and re-check that nothing shifts before restarting.
  • Success check: Backing felt stays fully covered and firmly taped with no loose edges before the tack-down stitch begins.
  • If it still fails: Remove the hoop and re-tape; do not try to “hold” backing by hand near magnets or near the needle path.
