No Pins, No Panic: Embroidering Knit Pajama Pants on the Brother PRS100 (and Keeping Durkee Easy Frames Safe)

Embroidering knit pajama pants is the ultimate "deception test" for any machine operator. The garment looks soft and innocent, but physically, it is a nightmare combination: a narrow tube that fights your hoop, an unstable fabric structure that wants to crawl under the needle, and—crucially—a customer expectation of perfection on a wearable item.

If you mess up a tote bag, you lose $5. If you mess up a customer’s favorite pajama bottoms or a team uniform leg, you lose reputation and hours of unpicking.

We are looking at a case study involving the Brother PRS100 Persona and Durkee Easy Frames, a setup often used by small business owners. However, the principles here apply to anyone moving from flat towels to tubular garments. The goal isn’t just to "get it done." The goal is to build a repeatable, safe workflow that eliminates the three enemies of embroidery: Distortion, Displacement, and Damage.

We will break this down using 20 years of shop-floor experience, moving beyond "hope it works" to "know it works."

The “Knit Pant Leg Panic” Moment: What’s Actually at Risk on a Brother PRS100 Persona

Why do sophisticated users freeze up when asked to embroider a pant leg? Because the margin for error is effectively zero. Unlike a flat t-shirt where you have acres of fabric, a pant leg is a confined space.

On a machine like the prs100 embroidery machine, which is a single-needle tubular prowess, the "Panic Moment" usually stems from two distinct physical realities:

1. The "Elastic Rebound": You stretch the knit to get it into the frame. It looks tight. You stitch it. You take it off. The fabric tries to return to its original shape, but the stitches hold it open. Result: The dreaded "waffle effect" or puckering that no amount of steaming can fix.
2. The "Blind Strike": You are using an aftermarket frame (like Durkee). The machine’s brain does not know this frame exists. It thinks it has a standard hoop attached. If you don't manually tell the machine where the plastic edges are, the needle bar will come down at 1,000 stitches per minute onto hard plastic. This shatters the needle, ruins the garment with metal shards, and can throw off the timing of your $5,000+ machine.

Larry’s demo highlights the solution: precise manual verification. But we need to go deeper. You must treat a pant leg like a structural engineering project. You are building a solid foundation (stabilizer) on shifting sand (knit fabric).

The No-Pin Hooping Strategy for Knit Pajama Pants: Stable Without Hoop Burn

Hooping is where 90% of embroidery failures occur. In the demo, the operator makes a controversial but effective choice: No pins.

Why? Because pins in a tubular setup are dangerous. As the pant leg rotates or bunches on the free arm, hidden pins can catch on the machine chassis or, worse, slide under the embroidery foot.

Instead, the strategy relies on adhesion and friction rather than mechanical clamping pressure alone. Here is the cognitive shift you need to make: Don't trap the fabric; support it.

The Stabilizer Physics

The demo uses a water-soluble stabilizer. From an industry "best practice" standpoint, this requires nuance.

• The Pro View: Water-soluble (heavy fibrous type, like Vilene) is excellent because it leaves no scratchy residue inside the pajamas. However, once it washes away, the stitches have zero support. For high-stretch knits, this can lead to the design distorting over time.
• The Secure Alternative: For maximum longevity, I recommend using a Fusible No-Show Mesh (PolyMesh). It is soft against the skin, translucent, but permanent. It locks the knit fibers in place forever.

If you are researching hooping for embroidery machine techniques for delicate knits, consider using a specific "float" method to avoid hoop burn (those shiny rings left by tight frames):

1. Hoop the stabilizer only.
2. Apply a light mist of temporary spray adhesive (like 505 or embroidery-specific spray).
3. Smooth the pant leg onto the stabilizer.
4. (Optional) Use a basting box stitch to tack it down.

This "floating" technique is the commercial standard for difficult tubes because it subjects the fabric to zero stretching forces during the framing process.

The “Hidden” Prep Most People Skip (and then blame the machine)

Amateurs rush to the machine. Professionals win at the prep table. Before you even look at the PRS100, you must perform a "Pre-Flight Check."

Knits are unforgiving of mechanical flaws. A burr on your needle or a snag in your thread path will cause the knit to pull, creating holes.

Critical Hidden Steps:

1. The "Snag Test": Run the pant leg fabric over your hands. If you have rough skin or rings, you might snag the knit before you start. Wear gloves if necessary.
2. Needle Freshness: When was the last time you changed your needle? For knits, you need a Ballpoint Needle (75/11 BP). The rounded tip slides between the knit fibers rather than cutting them. A sharp needle creates holes that turn into runs (ladders) after washing.
3. Bobbin Tension: Check your bobbin. On a tubular machine, if the bobbin tension is too loose, you get loops on top. If too tight, you pucker the knit. The "Drop Test" (holding the bobbin case by the thread) should result in a slow, controlled drop, not a freefall.

Warning: Mechanical Hazard. When working with tubular items on a free arm, ensure no drawstrings, cuffs, or excess fabric can dangle into the moving pantograph mechanism. A caught drawstring can snap the pantograph drive belt instantly. Tape loose items down with painter's tape.

Prep Checklist (end here on purpose—don’t skip):

• Needle Check: Is a fresh 75/11 Ballpoint needle installed? (Do not use Sharps/Universals on loose knits).
• Consumables: Have you selected the correct stabilizer? (Mesh/Cutaway for longevity, fibrous water-soluble for softness).
• Physical Clearance: Are excessive seams or pockets taped back so they don't catch on the presser foot?
• Hoop Integrity: If using sticky stabilizer on a frame, is the adhesion fresh? (Touch it—it should feel aggressively tacky).
• Thread Path: Is the upper thread seated deeply in the tension disks? (Floss it in to be sure).


The One Button That Prevents Disaster: Brother PRS100 “Trace Out” with Durkee Easy Frames

If you take only one thing from this guide, let it be this: The Trace (or Trial) button is not a suggestion; it is a requirement.

Larry emphasizes this for a reason. durkee ez frames are phenomenal tools—they are low profile and hold securely. But they are "dumb" hardware. The Brother PRS100 sensors communicate with Brother frames. When you snap on a third-party frame, the machine has no idea that the metal bracket is 2mm closer to the needle than usual.

The Anatomy of a Proper Trace

Don't just watch the laser; watch the Presser Foot.

1. Lower the presser foot manually to its lowest point (without hitting fabric).
2. Run the trace.
3. Visual Check: Does the foot clear the frame clips? Does the needle bar (the screw clamp) clear the frame edges?
4. The "Wiggle Room": You need at least 5mm of clearance between your design and the frame edge. Knits move. If you trace with 1mm clearance, the fabric pull during stitching might drag the design right into the metal frame.


Setup on the Free Arm: Why Pant Legs Behave Differently Than Flat Goods

The "Free Arm" is a misnomer. It is an "Unsupported Arm."

When you load a heavy item like a pant leg (especially thick flannel or fleece) onto the machine, gravity is your enemy. As the hoop moves in the Y-axis (front to back), the weight of the dangling pant leg acts like a pendulum.

• Result: The design registers perfectly at the top, but the heavy fabric drags the bottom of the design down, creating an oval shape out of a circle.
• Solution: You must support the weight. Use a table extension, or simply use your hands (safely) or clips to bunch the excess fabric so it rests on the machine bed/table, rather than hanging off the edge.

The Business Case for Magnetic Hoops

This setup phase is also the "Pain Point" that drives users to upgrade. Struggling to clamp a thick seam on a pant leg into a Durkee or standard screw-hoop causes hand strain (Carpal Tunnel is real in this industry).

This is why professionals compare brother persona prs100 hoops and eventually migrate to Magnetic Hoops.

• The Logic: Magnetic hoops (like those from SEWTECH) self-adjust to the fabric thickness. You don't have to fiddle with a screw. You just snap the top ring on.
• The Benefit: It eliminates "Hoop Burn" almost entirely because there is no friction-twist motion, just vertical clamping pressure. For pajama pants, this cuts safe hoop-up time by 50%.


Setup Checklist (end here on purpose—lock it in before you stitch):

• Gravity Management: Is the weight of the rest of the pants supported on a table surface?
• Orientation: Double, triple check: Is the leg upside down? (The waist is usually "up" relative to the design).
• Trace Confirmation: Did you run the trace and visibly confirm 5mm+ clearance on all sides?
• Topping: Did you place a layer of water-soluble topping on top of the knit to keep stitches from sinking? (Crucial for high-pile knits).


Start Clean on the PRS100: Unlock, Start, and Watch the First 30 Seconds Like a Hawk

The machine is ready. You press Unlock, then Start.

Do not walk away.

The first 30 seconds are the "Diagnostic Window." This is where the machine tells you if your variables are correct.

• Listen: You want a rhythmic, soft chug-chug-chug. A sharp slap sound usually means the thread is catching on the spool cap. A grinding noise suggests the needle mechanism is fighting fabric drag.
• Watch the Pull: Look at the fabric inside the hoop. As the needle penetrates, does the fabric "trampoline" (bounce up and down)?
  • If Yes: Your stabilization is too loose. Stop immediately. If you continue, you will get skipped stitches and loop-de-loops.
  • The Fix: Use a "Spray and pat" technique to adhere the fabric more firmly to the stabilizer, or use a magnetic hoop which naturally provides better flag-control.

Larry’s method of watching the first color (the gold lion crown) is standard operating procedure. If the underlay (the foundation stitching) looks warped, the final satin stitch will look terrible.

Read the Screen Like a Production Owner: Speed 700 spm, Design Size, and What It Implies

The demo shows a speed of 700 SPM.

• Beginner Sweet Spot: If you are new to tubular knits, drop this to 500-600 SPM.
• Why? Slower speeds reduce the friction heat on the needle (which can melt synthetic pajama fibers) and reduce the "flagging" (bouncing) of the knit.

The screen also shows 395 / 8437 stitches.

• Density Analysis: Over 8,000 stitches in a 4x4 inch area is moderately dense.
• The Risk: High density puts a lot of thread into the fabric. This can push the fabric outward (the "pushout" effect).
• The Adjustment: If you digitized this yourself, ensure you have Pull Compensation set to at least 0.3mm or 0.4mm for knits. If purchasing the file, test it on a scrap piece of similar knit first.

When checking brother prs100 hoop sizes, remember that the nominal size (e.g., 200x200) is the outer limit. Your safe sewing field is usually 20mm smaller. Always respect the safe margin.

Thread Choice That Holds Up on Lounge Wear: Madeira Polyneon Polyester (and Why It Matters)

Larry utilizes Madeira Polyneon (100% Polyester). This is not just a brand preference; it is a chemical necessity for this application.

• Polyester vs. Rayon: Rayon is beautiful and shiny, but it is weaker chemically. Pajamas are washed often, sometimes in hot water, sometimes with bleach alternatives. Polyester is essentially liquid plastic spun into fiber—it is bulletproof against bleach and high-temp drying.
• Tension Behavior: Polyester has more "stretch" than cotton or rayon.
  • Tip: When threading polyester on a machine like the PRS100, ensure your top tension isn't too tight. If you stretch the thread through the tension discs, it will relax after it's stitched, causing the fabric to pucker (the "seersucker" look).

Hidden Consumable: Keep a Thread Net handy. Slick polyester thread tends to pool off the spool. A net keeps it feeding smoothly, preventing those random "snaps" that happen when thread falls under the spool pin.

The Finish That Sells: Clean Lettering (“ZACHEUS”) Under a Dense Fill Design

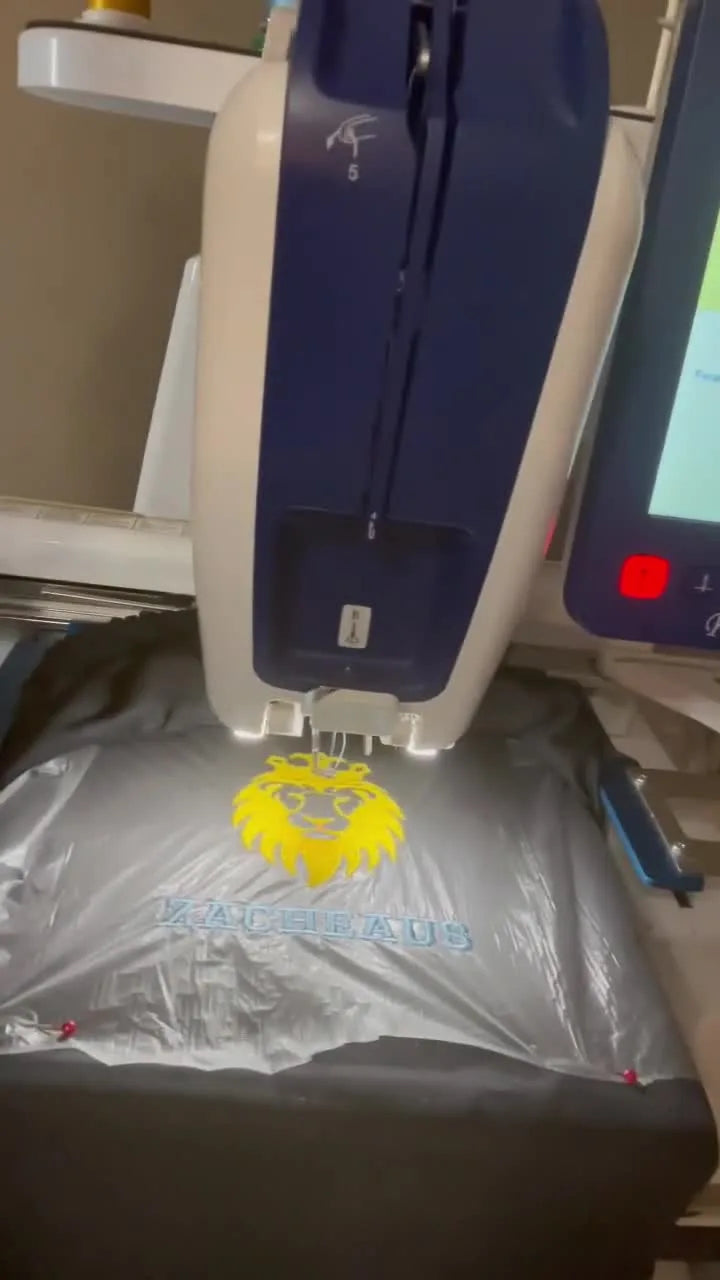

The final test is the lettering. The machine switches to blue for "ZACHEUS."

Lettering is the first place customers look for quality. On knits, lettering often sinks into the fabric, looking thin or "choppy."

• The Fix: This is why Water-Soluble Topping (Solvy) is non-negotiable for me. It acts as a temporary platform, keeping the stitches sitting on top of the knit loops rather than diving between them.
• Underlay: For lettering on knits, you need a "Center Run" or "Edge Run" underlay to stabilize the fabric before the satin column covers it.




A Stabilizer Decision Tree for Knits: Pick Support First, Then Speed

Larry uses water-soluble for the hooping method, but let’s create a definitive guide for your shop to prevent returns.

Decision Tree (Knit Fabric $\rightarrow$ Stabilizer Strategy):

1. Is the fabric unstable/stretchy? (e.g., Jersey Knit, Spandex)
   • Yes: use Fusible PolyMesh (Cutaway). It provides permanent support.
   • Top: Use lightweight Water-Soluble Topping.
2. Is the fabric thick/stable? (e.g., Heavy Sweatpants)
   • Yes: You might get away with Tearaway + Spray Adhesive, but Cutaway is still safer.
   • Top: Heavy Solvy (if fuzzy/fleece).
3. Are you fighting Hoop Burn?
   • Yes: Switch to snap hoop for brother prs100 (Magnetic). Or, use the "Float" method with Sticky Stabilizer.
4. Is the item "Next to Skin"? (Babies, Pajamas)
   • Yes: Use PolyMesh (softest) or heavy Water-Soluble (if the design is light density). Avoid harsh heavy Cutaways that scratch.


Troubleshooting Knit Pajama Pants on the Brother PRS100: Symptoms, Causes, Fixes

When things go wrong, don't guess. Use this diagnostic table.

1) Symptom: White bobbin thread is showing on top (on the sides of satin columns)

• Likely Cause: Top tension is too tight, OR the knit fabric is pulling away.
• Quick Fix: Lower top tension slightly.
• Real Fix: Your hooping is too loose. The fabric is flagging. Re-hoop tighter or use adhesive spray.

2) Symptom: The specific "waffle" texture around the embroidery

• Likely Cause: "Hooping Stretch." You pulled the knit too tight during hooping. It relaxed after you took it off.
• Fix: Hoop "neutral." The fabric should lay flat, not be drum-tight. Use a Magnetic Hoop to achieve this "neutral tension" effortlessly.

3) Symptom: Needle Breakage / Loud "Bang"

• Likely Cause: Frame Strike (Machine hit the hoop) or Needle Deflection (Needle hit a thick seam and bent).
• Fix: ALWAYS TRACE. Use a larger needle (80/12) if going over heavy seams.

Warning: Magnetic Safety. If you upgrade to Magnetic Hoops, be aware they generate powerful fields. Pinch Hazard: They can snap together with enough force to bruise or break fingers. Keep them away from pacemakers and sensitive electronics (like the PRS100 LCD screen). Slide them apart; don't pry them.

The Upgrade Path That Actually Pays Off: Faster Hooping, Fewer Restarts, Cleaner Deliverables

Larry’s workflow works effectively for one-offs. But if you start getting orders for "10 pairs for the bridal party," manual frustration will set in.

Business Logic: When to Upgrade?

1. The "Third Hand" Problem: If you find yourself wishing for a third hand to hold the backing, the fabric, and the hoop screw simultaneously—you are ready for Magnetic Hoops. They snap shut, hold thick knits without crushing them, and significantly speed up the loading process.
2. The Capacity Wall: If changing thread colors manually on the PRS100 (a single-needle machine) is eating your profit margin, it is time to look at SEWTECH Multi-Needle Machines. A multi-needle allows you to set up 12-15 colors and walk away, turning "operator time" into "owner time."

When looking for embroidery hoops for brother machines, prioritize magnetic options for knitwear. They are not just a luxury; they are an ergonomic and quality-control tool that pays for itself by saving garments from "hoop burn" rejects.

Operation Checklist (end here on purpose—this is how you avoid “why did it shift?”):

• Watch the First Layer: Did the underlay stitch down without puckering?
• Mid-Game Check: Is the excess pant leg still supported on the table, or did it slide off and start dragging?
• Topping Removal: Upon completion, tear away the toppings gently. Do not pull hard, or you will distort the lettering you just perfected.
• Sealing: If using Fusible Mesh, give the back a light press (with a pressing cloth) to re-activate the adhesive and lock the stitches post-production.

FAQ

• Q: How do I prevent Brother PRS100 Persona needle strikes when using Durkee Easy Frames on a pant leg?
  A: Always run the Brother PRS100 “Trace/Trial” function and confirm physical clearance before stitching—this is the main prevention for frame strikes.
  • Lower the presser foot to its lowest point (without hitting fabric) before tracing.
  • Run Trace and watch the presser foot and needle bar area, not just the laser path.
  • Keep at least 5 mm clearance between the design boundary and the frame edges/clips.
  • Success check: The trace completes with zero “near hits,” and the presser foot clears all frame hardware through the full travel.
  • If it still fails: Reduce design size or reposition the design to increase margin, then trace again before pressing Start.
• Q: What stabilizer setup prevents puckering and “waffle effect” when embroidering knit pajama pants on a Brother PRS100 Persona?
  A: Use a knit-safe support strategy that avoids hoop-stretch: a fusible no-show mesh (PolyMesh) cutaway for permanent support, plus water-soluble topping on top when needed.
  • Hoop stabilizer only, then float the knit onto it with a light mist of temporary spray adhesive.
  • Smooth the pant leg onto the hooped stabilizer (do not stretch the knit to “drum tight”).
  • Add water-soluble topping on top of the knit to prevent stitch sink on textured knits.
  • Success check: After stitching and removing the hoop, the area around the design stays flat without ripples/waffling.
  • If it still fails: Stop and re-hoop with more adhesion (spray and pat) or switch to a magnetic hoop to hold “neutral tension” more consistently.
• Q: How can I tell during the first 30 seconds that Brother PRS100 Persona hooping and stabilization are correct on a knit pant leg?
  A: Watch and listen immediately after pressing Unlock/Start—early motion and sound reveal stabilization problems before the design is ruined.
  • Listen for a rhythmic, soft “chug-chug” rather than a sharp slap or grinding noise.
  • Watch the fabric inside the hoop for “trampoline” bounce (flagging) as the needle penetrates.
  • Stop immediately if the knit is bouncing; increase adhesion (spray and pat) or improve holding method.
  • Success check: The knit stays stable (minimal vertical bounce) and the underlay forms cleanly without distortion.
  • If it still fails: Reduce speed to 500–600 SPM for tubular knits and re-check the hooping/adhesion before restarting.
• Q: What needle type and pre-flight checks reduce knit snags and holes when embroidering pajama pants on a Brother PRS100 Persona?
  A: Start with a fresh 75/11 ballpoint needle and do the pre-flight checks before loading the pant leg—knits reveal every small issue.
  • Install a new 75/11 Ballpoint needle (avoid sharps/universals on loose knits).
  • Do a quick “snag test” by running the fabric over hands/rings; wear gloves if needed.
  • Confirm upper thread is seated deeply in the tension disks (floss it in).
  • Success check: The needle penetrates without creating visible holes or runs, and the knit surface stays intact around the stitches.
  • If it still fails: Replace the needle again and re-check the thread path for any snag points before adjusting digitizing or density.
• Q: How do I adjust tension when white bobbin thread shows on top of satin columns on knit pajama pants stitched on a Brother PRS100 Persona?
  A: First lower top tension slightly, but treat it as a stabilization/flagging warning—not only a tension issue.
  • Reduce top tension in small steps and test on a scrap knit with the same stabilizer stack.
  • Re-check hooping: ensure the fabric is not loose and bouncing; add spray adhesion if needed.
  • Re-hoop if necessary to eliminate movement inside the sewing field.
  • Success check: Satin column edges look solid with minimal white bobbin peeking at the sides.
  • If it still fails: Stop and fix flagging (better adhesion or a magnetic hoop) before chasing tension further.
• Q: What are the key safety risks when embroidering tubular pant legs on a Brother PRS100 Persona free arm, and how do I prevent them?
  A: Prevent entanglement and sudden jams by controlling all loose fabric and drawstrings before stitching on the free arm.
  • Tape down drawstrings, cuffs, and excess fabric so nothing can dangle into moving mechanisms.
  • Support the garment weight on the table/bed so it does not hang and pull like a pendulum during hoop travel.
  • Keep hands clear of moving parts while still managing fabric support safely.
  • Success check: The pant leg stays supported throughout the run and nothing migrates toward the mechanism during Y-axis movement.
  • If it still fails: Pause the job and re-secure/tape and re-support the garment before continuing—do not “power through” a drag situation.
• Q: When should a Brother PRS100 Persona owner switch from Durkee Easy Frames to magnetic hoops, or upgrade to a SEWTECH multi-needle machine for pajama pants orders?
  A: Upgrade in levels based on the bottleneck: fix technique first, use magnetic hoops when hooping/hoop burn slows you down, and move to multi-needle when manual color changes destroy profit.
  • Level 1 (Technique): Float the knit on hooped stabilizer, manage gravity on the free arm, run Trace, and slow to 500–600 SPM for stability.
  • Level 2 (Tool): Choose magnetic hoops if hoop burn, hand strain, or slow clamping on thick seams causes rejects or re-hoops.
  • Level 3 (Capacity): Choose a multi-needle machine when frequent thread color changes on a single-needle workflow consume most operator time.
  • Success check: Hooping becomes repeatable (fewer restarts), garments show less distortion/hoop burn, and production time per pair drops predictably.
  • If it still fails: Track where time is actually lost (hooping vs. rework vs. color changes) and address that specific constraint before changing multiple variables at once.
