No PC, No Panic: Move PES Designs from Your Android Phone to a USB Stick (and Keep Your Brother Machine Happy)

If you have ever purchased a digital embroidery design, opened the confirmation email on your phone, and felt that sinking feeling—“Great… now I have to go find a computer, boot it up, and hope the drivers work”—you are certainly not alone. This is a friction point that nearly kills the creative buzz for hobbyists and stalls production for business owners.

The good news is that modern mobile technology has bridged this gap. You can move embroidery files straight from an Android phone to a USB flash stick using one small, inexpensive adapter—then plug that stick directly into your machine. No laptop required. No cloud syncing issues. Just a direct, physical transfer.

This guide rebuilds the exact workflow shown in the video but elevates it with 20 years of production flloor experience. We are going to move beyond just "making it work" and focus on establishing a professional data hygiene habit. We will cover the "seasoned operator" protocols that prevent corrupted USB sticks, "ghost files" that the machine can't see, and messy libraries that slow you down when money is on the line.

The Calm-Down Moment: Your Android Phone Can Feed a Brother Embroidery Machine Without a PC

Let’s address the anxiety first. When your workflow depends entirely on a laptop, every forgotten password, forced Windows update, dead battery, or missing dongle becomes a production stop. It creates a bottleneck. By shifting this task to your phone—a device you always have—you gain redundancy.

The method is elegantly simple in theory but requires strict adherence to sequence to work reliably: connect a USB stick to your phone using a USB On-The-Go (OTG) adapter, save the design attachments from your email directly to your internal storage, and then copy them onto the USB stick.

If you are running a brother embroidery machine, this is one of those “small change, big relief” tricks. It shines specifically when you are traveling for a craft show, taking a class, or working in a tight studio layout where the computer is physically distant from the embroidery station. It turns your phone into a mobile command center.

The Adapter That Makes This Work: Type-C Male to USB Female OTG (Don’t Guess the Port)

The hardware bridge here is a USB OTG (On-The-Go) Adapter. However, buying the wrong one is the most common reason users fail at step one. The critical detail is not the brand—it is the connector shape that matches your phone’s charging port.

There are two primary standards you will encounter in the Android ecosystem:

1. USB-C (The Modern Standard): This is the oval-shaped connector that can be plugged in either way (up or down). Most phones made in the last 4-5 years use this. You need a Type-C male to USB-A female adapter.
2. Micro-USB (The Older Standard): This is the trapezoid shape with small hooks on one side; it only fits effectively one way. Older phones or budget tablets often use this. You need a Micro-USB male to USB-A female adapter.

Sensory Check: When you plug the adapter into your phone, it should seat firmly with a distinct tactile "snap" or resistance. If it wobbles, feels loose, or falls out with gravity, the data connection will be unstable, leading to file corruption.

This exact question came up repeatedly in the comments: “What is the name of this adapter?” The creator’s answer is practical: physically take your phone to a computer shop or mobile carrier store. Show them the charging port and ask for a male [your port type] to USB female adapter.

The “Hidden” Prep Pros Do First: Set Up Your USB Stick So Designs Don’t Disappear Later

Before you even touch your phone, we need to talk about the USB stick itself. A common frustration for beginners is successfully copying a file, plugging the stick into the machine, and seeing... nothing. A blank screen.

This usually happens because the file structure is messy, or the stick is formatted incorrectly. Machines are simpler than computers; they get confused easily.

Here consists the "Pro Prep" drill (Best Practice):

1. Format to FAT32: Most embroidery machines (especially older Brother models) cannot read large, modern file formats like NTFS or exFAT. Ensure your USB stick is 32GB or smaller and formatted to FAT32.
2. Dedicate the Stick: Use a dedicated embroidery USB stick. Do not mix your expensive embroidery files with family vacation photos, MP3s, or Excel spreadsheets. Every extra file forces the machine’s processor to work harder to find the stitch data.
3. Root Directory vs. Folders: While some modern machines handle folders well, many prefer files to be in the main (Root) directory or one folder deep.
4. The "Sanitized" Name Rule: Rename your stick to something simple like "EMB_01". Avoid spaces and special characters.
5. The "NEW" Folder Strategy: Create a single folder named "NEW" or "TODAY" for immediate transfers. This stops you from scrolling through hundreds of old designs on the machine's tiny low-resolution screen.

Hidden Consumable Alert: If you have not done so, buy a 3-pack of low-capacity (4GB - 16GB) USB sticks. High-capacity drives (64GB+) often cause compatibility errors with embroidery machine operating systems.

Prep Checklist (do this before you touch the email):

• Physical Match: OTG adapter matches your phone port (USB-C vs Micro-USB).
• Capacity Check: USB Stick is 32GB or less and formatted to FAT32 (do this on a PC initially if needed).
• Assembly Sequence: USB stick is inserted into the adapter before the adapter is plugged into the phone.
• Storage Space: Phone has enough internal storage to save attachments into Downloads.
• Navigation: You know where your Android file manager is (the video uses My Files, commonly found in the "Samsung" or "Tools" folder).


The Connection Order That Prevents “Why Isn’t It Showing?”: USB Stick First, Then Plug Into the Phone

In the world of electronics, sequence matters. In the video, the connection order is specific for a reason—it ensures the phone powers the bus correctly to read the drive.

1. Assemble the Tool: Insert the USB flash drive into the USB female end of the adapter. Ensure it is seated all the way in.
2. Connect to Host: Plug the adapter (with the stick already attached) into the phone’s charging port.
3. Visual Verification: Watch the top status bar of your phone. You are looking for a small USB icon (often looks like a trident) to appear.

If you plug the adapter in empty, and then plug the stick into the adapter, some phones fail to trigger the "mount" sequence, and the drive won't appear.

The On-Screen Proof You’re Connected: “USB Storage Added” Is the Green Light

Never guess. Wait for confirmation. The video demonstrates a simple verification step that takes two seconds but saves twenty minutes of frustration:

1. Swipe down from the top of the screen to open your notification shade.
2. Look for the system notification reading “USB storage added” or “USB drive connected.”
3. Tap that notification. It should open your file manager directly into the drive, showing you the drive's contents.

Troubleshooting the Connection:

• No Light? If the USB stick has an LED light, it should be blinking or solid. No light means no power.
• No Notification? If you don’t see that message, don’t force it. Disconnect, blow gently into the ports (to clear pocket lint), and re-seat the adapter.


Pull Designs Straight From Email: Save Attachments to Downloads (Don’t Try to Copy From the Email App)

Now you are going to grab the embroidery files. A critical mistake here is trying to "Share" the file directly from the email to the USB. That often creates a temporary link that the machine cannot read. You must Save (download) the file to the phone's physical storage first.

The video’s reliability comes from this two-step process:

1. Open your email client (Gmail, Outlook, etc.).
2. Find the message with your design attachments. The video mentions .pes (Brother native format) and .fcm (cutting machine format).
   • Note: Ensure you are downloading the Stitch File (PES, DST, JEF), not the color chart (PDF) or the vector art (SVG), unless your machine reads those specifically.
3. Press and hold on the attachment filename, or tap the Download arrow icon next to it.
4. You will likely see a "Toast" notification (a pop-up message) saying “Saved to /Downloads”.


Pro tip from real-world stitching: If you buy designs often, your inbox is a chaotic warehouse. Create an email label or folder called “Embroidery Purchases.” More importantly, when you download the file, take a mental note of the filename. Designers often use cryptic codes like "FL_2204_4x4.pes". If you don't know the code, you won't recognize it in the file manager later.

Also, regarding a common question: "Where do I find designs?" The video demonstrates a transfer method, not a shopping trip. Whether you buy from Etsy, specialized embroidery digitizers, or major marketplaces, you will receive an email regardless. This workflow is universal.

Find the Files Fast in Android “My Files”: Go Straight to Downloads

The files are on your phone, but they are currently in the "Downloads" holding pen. We need to move them to the "USB" shipping container.

1. Open the My Files app (or Google "Files," or your specific File Manager).
2. Locate the category or folder labeled Downloads.
3. Visual Check: Confirm you can see the newly saved files. Look at the file extension. Does it say .pes? Good. If it says .zip, you have an extra step: you must tap the zip file to extract (unzip) the contents before you copy them to the USB. Most machines cannot read inside a zip file.


Multi-Select Like a Pro: Long-Press One File, Tick the Rest, Then Copy

Novices move files one by one. Pros move batches. This is the difference between a 2-minute setup and a 10-minute annoyance.

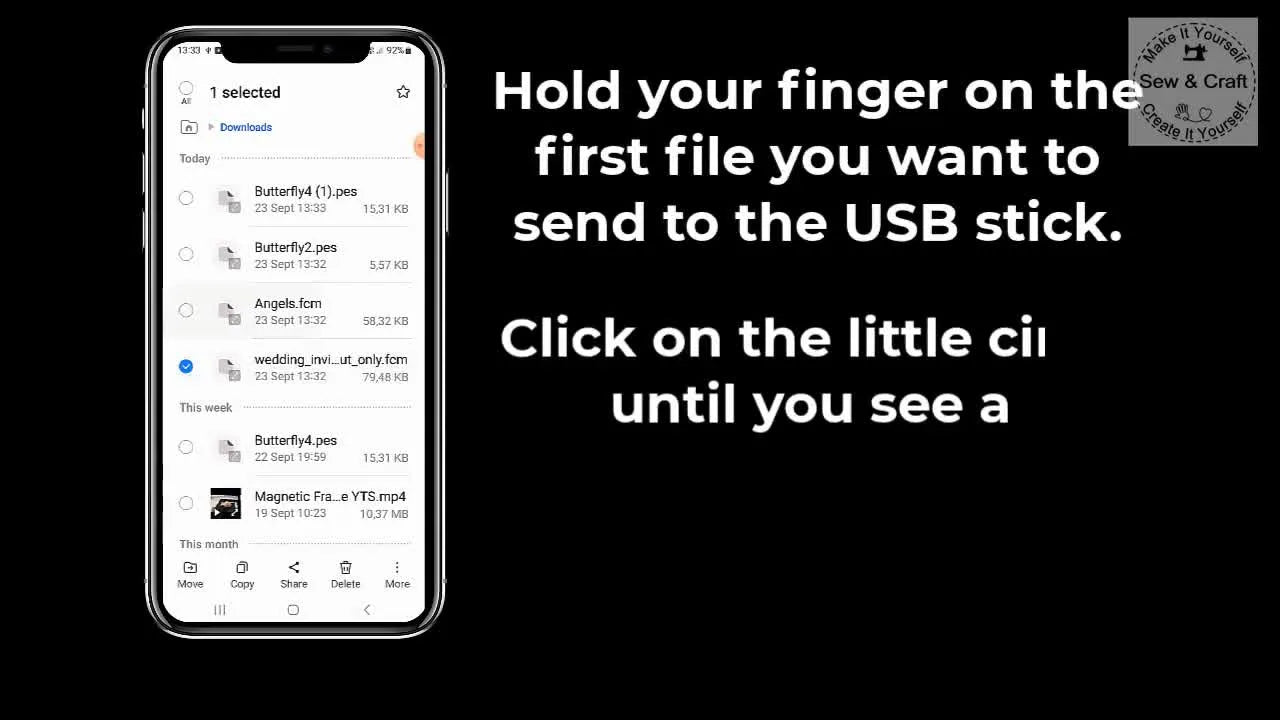

1. The Trigger: Long press (press and hold) the first file you want to transfer. After about one second, the screen will shift to "Selection Mode."
2. The Batch: Tap the empty circles or checkboxes next to the other files you need for this project.
3. Success Metric: Look at the top or bottom of the screen. It should say “4 selected” (or however many you tapped).
4. The Action: Tap Copy in the bottom menu.
   • Expert Note: Always use Copy, not Move. Why? If the transfer to the USB fails or the stick gets corrupted, you still have the backup original safely in your phone's Download folder. "Move" deletes the original after transferring.


Paste to “USB Storage 1”: Back Out, Open the Drive, Then “Copy Here”

You currently have the files on your "virtual clipboard." Now you need to navigate to the destination.

1. Tap the Back arrow or navigation breadcrumb to return to the main "My Files" screen.
2. Tap on USB storage 1 (This is your external flash drive).
3. Optional: Navigate into your "NEW" folder if you created one.
4. Tap Copy here (or Paste) in the bottom menu.
5. Wait. Watch the progress bar. Do not touch the adapter. Even if it says 100%, wait another 2 seconds for the data cache to clear.


Setup Checklist (The "Pre-Flight" Check):

• Visibility: Files are visible inside the Downloads folder.
• Unzipped: You have extracted any .zip files and are selecting the raw stitch files (.pes/.dst).
• Batching: You used the multi-select tool to grab everything at once.
• Redundancy: You used Copy (not Move) to ensure a backup remains on the phone.
• Confirmation: You navigated into USB storage 1 and can visually verify the files are present.


The One Step That Saves USB Sticks: Unmount Before You Pull (Yes, Every Time)

This is the "don't learn the hard way" part. In digital embroidery, a corrupted file doesn't just "not open"—it can cause the machine to freeze, crash, or sew unpredictable erratic stitches that ruin a garment.

The video warns clearly: if you just yank the adapter out, you risk electrical arcing or incomplete data writing.

The Safe Removal Protocol:

1. In the file manager, while looking at the USB drive, tap the three vertical dots (usually top right corner).
2. Select Unmount (some phones say "Eject").
3. Auditory/Visual Cue: Wait for the system to flash a message “USB storage 1 unmounted” or the USB icon to disappear from the top bar.
4. Only then physically remove the adapter from the phone.


Warning: Never yank the USB/adapter out while files are copying. Corrupted sticks are the #1 cause of "My machine keeps skipping stitches" or "My screen is frozen" support calls.

Bonus Move From the Video: You Can Also Copy From USB Back to Your Phone

The creator also demonstrates the reverse workflow: reading files from the USB stick onto the phone. This is incredibly useful for:

• Backups: Making a safety copy of your favorite USB stick designs onto your phone.
• Verification: Opening a file on the USB stick to check if it looks correct (if you have an embroidery viewer app installed).
• Sharing: copying a file from the stick to email to a client or friend.

The logic is identical: Long-press the file on the USB stick -> Copy -> Navigate to Internal Storage -> Paste.

Troubleshooting the Two Most Common Failures (and the Fixes That Actually Work)

If things aren't working, don't panic. It is rarely the machine's fault. It is usually the connection or the file type.

The Decision Tree That Saves Time: Choose the Right Workflow for Hobby vs Production

Not every user needs every tool. Use this logic path to determine if you need to stick with this method or upgrade your setup.

A) Are you transferring designs occasionally (1-5 files per week) for personal use?

• Yes → Phone + OTG + USB stick is perfect. It is cheap, mobile, and requires no new equipment.
• No → go to B

B) Are you running a small business (Etsy/Custom), transferring daily, and managing client logos?

• Yes → Standardize your data pipeline.
  • Use the phone method for "Field Intake" (client emails you a file while you are out).
  • At the studio, dedicate specific USB sticks for specific machines to prevent cross-contamination.
• No → go to C

C) Is your bottleneck actually the "Physical Setup" rather than the "Digital Transfer"?

• Yes → If you can transfer files in 2 minutes, but it takes you 15 minutes to hoop a shirt correctly, your problem isn't data—it's mechanics.
  • Standard machine embroidery hoops are notorious for causing "Hoop Burn" (permanent ring marks) and requiring significant hand strength to tighten.
  • This is the trigger point where professionals switch to magnetic embroidery hoops. These allow you to clamp fabric instantly without unscrewing/tightening rings, drastically speeding up the time between "File Loaded" and "Start Button."

Where This Fits in a Real Embroidery Workflow (and When to Upgrade Tools)

File transfer is only the first link in the embroidery chain. Once you master the "Phone to USB" data link, you will likely find the next frustrations appearing in the physical realm:

1. Placement Accuracy: Dealing with crooked designs.
2. Hoop Marks: Ruining delicate velvet or performance wear with ring crush marks.
3. Operator Fatigue: Sore wrists from manual hooping on repeat orders.

If you are just doing one-offs, standard tools are fine. But if you are doing a run of 20 polo shirts, using a hooping station for embroidery ensures that the logo lands in the exact same spot on every shirt, regardless of size.

Furthermore, for those eyeing commercial expansion, tools like the hoopmaster hooping station are industry standards for consistency. But for the intermediate user looking for a "Quick Win," learning how to use magnetic embroidery hoop systems is often the most cost-effective upgrade. They hold thick items (like towels or Carhartt jackets) that plastic hoops simply cannot grip, and they reduce the "re-hooping" frustration that makes beginners quit.

Warning: Magnet Safety
Magnetic frames utilize powerful Neodymium magnets.
* Pinch Hazard: They snap together with extreme force—keep fingers clear of the contact zone.
* Health Risk: Keep them away from pacemakers, insulin pumps, and medical implants.
* Data Risk: Do not place the magnets directly on top of your phone, USB sticks, or credit cards, as the field can scramble data.

The “Why” Behind This Method: It’s Not Just Convenience—It’s Workflow Control

From a studio perspective, mastering the phone-to-USB method gives you autonomy.

• Redundancy: If your computer crashes, your shop doesn't close.
• Speed: You can move from a client email to a test stitch in under 3 minutes.
• Client Experience: You can take a custom file while standing in front of the customer and show them it is ready to sew.

The goal of any embroidery operator is to reduce the friction between "Idea" and "Finished Product." By cleaning up your digital transfer process, you clear the path for the actual art of stitching.

Operation Checklist (The Final 60 Seconds):

• Data Integrity: Files are confirmed visible on USB storage 1.
• Safe Removal: You accessed the menu and saw “USB storage 1 unmounted”.
• Physical Removal: USB stick is removed only after the unmount confirmation.
• Identification: USB stick is labeled (use a label maker or sharpie) so it doesn't become the "Mystery Drive."
• Ready State: You have your stabilizers, threads, and magnetic hoops ready at the machine before you plug the drive in.

FAQ

• Q: Why does an Android phone not show “USB storage added” after connecting a USB OTG adapter and USB flash drive for Brother embroidery machine file transfer?
  A: Use the correct connection order and reseat the hardware until Android mounts the drive.
  • Insert the USB flash drive into the OTG adapter first, then plug the adapter into the Android phone.
  • Swipe down and look for the system message “USB storage added” / “USB drive connected,” then tap it to open the drive.
  • Clean and reseat: disconnect, clear pocket lint from ports, and reconnect firmly (a loose fit can cause unstable data).
  • Success check: a USB icon appears in the status bar and the file manager opens to the USB drive contents.
  • If it still fails: try a different (high-rated) OTG adapter because incompatible adapters are a common cause.
• Q: How should a USB flash drive be formatted for Brother embroidery machine design files so the machine does not show a blank screen?
  A: Use a dedicated USB stick that is 32GB or smaller and formatted to FAT32, with simple naming and a clean folder layout.
  • Format the USB stick to FAT32 (many embroidery machines cannot read NTFS or exFAT).
  • Keep the stick “embroidery-only” (avoid photos, music, spreadsheets) to reduce machine scanning confusion.
  • Place files in the root directory or only one folder deep; use a simple folder like “NEW” or “TODAY.”
  • Success check: the embroidery machine displays the design files instead of showing an empty list.
  • If it still fails: confirm the stick is not high-capacity (64GB+) and try a smaller 4GB–16GB stick.
• Q: Why does a Brother embroidery machine not see a .PES file copied from an Android phone when the download is a .zip attachment?
  A: Unzip the download on the Android phone first, then copy the actual stitch file (.PES) to the USB drive.
  • Open the Android file manager and go to Downloads, then locate the file extension.
  • Tap the .zip file to extract it; select the raw stitch file (for Brother, typically .PES), not the .zip container.
  • Copy (do not Move) the extracted stitch files to “USB storage 1,” ideally into a “NEW” folder.
  • Success check: the USB drive shows individual .PES files (not only a .zip), and the machine can list them.
  • If it still fails: confirm the attachment is the stitch file (not a PDF color chart or other non-stitch document).
• Q: Should Android users use “Copy” or “Move” when transferring embroidery designs from Downloads to a USB stick for a Brother embroidery machine?
  A: Use Copy, not Move, to keep a backup on the phone in case the USB transfer fails or the stick corrupts.
  • Long-press one file, select the rest, and choose Copy to batch transfer.
  • Navigate to “USB storage 1” and use “Copy here,” then wait briefly after the progress bar finishes.
  • Keep the originals in /Downloads until the design successfully loads on the embroidery machine.
  • Success check: files appear both in Android Downloads and on the USB drive after the transfer.
  • If it still fails: redo the transfer with fewer files at once and avoid touching the adapter during copying.
• Q: How do Android users safely remove a USB stick after copying embroidery files so the Brother embroidery machine does not freeze or the USB stick does not corrupt?
  A: Always unmount/eject the USB drive in Android before physically unplugging the adapter.
  • In the file manager while viewing the USB drive, tap the three-dot menu and choose Unmount (or Eject).
  • Wait for the message “USB storage 1 unmounted” or for the USB icon to disappear from the status bar.
  • Only then pull the adapter and USB stick out of the phone.
  • Success check: Android confirms unmount and the USB icon disappears before removal.
  • If it still fails: reformat the USB stick to FAT32 on a PC (this erases data) and restart the process.
• Q: What is the safest way to identify the correct Android USB OTG adapter for transferring embroidery designs to a Brother embroidery machine without file corruption?
  A: Match the adapter to the phone’s charging port exactly and ensure it fits firmly (USB-C vs Micro-USB is the usual mismatch).
  • Check the phone port shape: USB-C is the oval, reversible plug; Micro-USB is the older trapezoid shape that inserts one way.
  • Buy an OTG adapter that is “male (your phone port) to female USB-A” and avoid loose-fitting connectors.
  • Test-fit: the adapter should seat with firm resistance and not wobble under its own weight.
  • Success check: the connection is stable and Android consistently shows “USB storage added” when connected.
  • If it still fails: take the phone to a shop and match the port in person to avoid guessing.
• Q: When should an embroidery business upgrade from Android phone-to-USB transfer to faster hooping tools like magnetic embroidery hoops or production equipment like a multi-needle embroidery machine?
  A: Upgrade when file transfer is no longer the bottleneck and physical setup (hooping speed, hoop marks, operator fatigue) is slowing production.
  • Diagnose: time the workflow—if designs load in ~2 minutes but hooping takes 10–15 minutes, the constraint is mechanical, not digital.
  • Level 1 (optimize): standardize dedicated FAT32 USB sticks, a “NEW/TODAY” folder, and always unmount to prevent downtime.
  • Level 2 (tool upgrade): consider magnetic hoops if manual tightening causes slowdowns or hoop marks on sensitive fabrics (follow magnet safety rules).
  • Success check: reduced re-hooping, faster garment setup, and fewer hoop-mark complaints on finished items.
  • If it still fails: evaluate whether repeat orders and daily transfers justify moving to a higher-capacity production workflow (and follow the machine manual for compatibility).
