No More Gutter-Stitching: Embroider a Quilted Baby Heirloom Blanket on a Brother PR1055X with an 8x9 Magnetic Hoop

Quilted Heirloom Baby Blankets: The Master Class on Placement, Stabilization, and Risk Management

Quilted heirloom baby blankets are deceptively difficult. They are one of the sweetest products you can stitch—high value, sentimental, and deeply appreciated—but they are also the fastest way to humble a confident embroiderer.

You aren’t just stitching on fabric; you are navigating a topographical map of thickness, seams, "puffy" batting, and a geometric layout that looks symmetrical until you realize your expensive monogram is about to land right in a "gutter" (the seam between medallions).

This guide rebuilds Jeanette’s process on the Brother Entrepreneur Pro X PR1055X (10-needle) and injects the "20-year veteran" physics and safety protocols capable of keeping quilts flat, designs centered, and your machine—and fingers—safe.

Read the Medallion Map on a Quilted Heirloom Blanket—So Your Monogram Doesn’t Land in the Gutter

Jeanette’s first move is the one most novices skip in their excitement to start: Topographical Analysis. She studies the blanket’s quilted medallion grid (three across, four down) before even touching a stabilizer.

The customer initially requested the embroidery "right smack in the middle." While the customer is always right in intent, they are often wrong in engineering. Jeanette explains that a dead-center placement on this specific quilt would force the design to stitch across the seam between two medallions—the "gutter."

Why "Gutter Stitching" Fails:

1. Texture Gap: The needle jumps from a high, puffy medallion to a flat, compressed seam. This change in Z-axis height causes loop-outs and tension issues.
2. Visual Break: The seam visually slices your design in half, destroying the aesthetic flow.

Her solution is practical and photo-friendly: place the design in a corner, centered inside a single medallion. This isn't just a technical fix; it's a marketing win. When the blanket is unfurled for the baby's milestone photo, the corner monogram reads cleanly without being bunched up in the folds.

A quick placement rule you can reuse

• The Island Rule: If the blanket has medallions, treat each one as an island. Keep your design entirely inside the coastline of one medallion.
• The Axis Check: If the blanket has distinct long and short sides, avoid "center on the long end" if it forces the design into a gutter.
• The Camera Test: If you’re unsure, lay the blanket in a crib or drape it over a chair. Take a quick photo. Place a paper printout of your design where you think it should go. Does it look right through the lens?

Pro Tip: Create a simple cardboard template for your shop that marks the standard distance from the corner (e.g., 4 inches up, 4 inches over). This ensures that if a customer buys two blankets a year apart, they look like part of a matched set.

Make Thick Quilts Behave with an 8x9 Magnetic Hoop—Without Clamps, Hoop Burn, or Wrestling

Jeanette uses an 8x9 magnetic frame (compatible with her multi-needle machine) because it fits the medallion area perfectly while providing ample margin for a wreath-style monogram.

When you work with thick quilted material, traditional screw-tightened hoops are the enemy. They leave "hoop burn" (crushed fibers that never fluff back up), they distort the quilt’s natural "puff," and they are physically exhausting to clamp. This is exactly the scenario where magnetic embroidery hoops earn their keep: you rely on vertical magnetic force rather than horizontal friction.

The Physics of Compression (Why Magnets Save Quilts)

Quilted blankets are not a single flat layer—they are a unstable "sandwich" (top fabric + batting + backing).

• Traditional Method: When you tighten a standard hoop, you drag the top layer faster than the bottom layer, creating a "wave" or bubble in the center of the hoop.
• Magnetic Method: A magnetic hoop comes straight down. It compresses the sandwich evenly (like a panini press) without dragging the fabric sideways. This eliminates the "bubble" effect instantly.

Warning: Magnetic Safety
powerful magnetic hoops can snap together with over 30 lbs of force.
* Pinch Hazard: Keep fingers strictly on the handles, never on the rim.
* Interference: Keep magnets at least 6 inches away from pacemakers, insulin pumps, and computerized machine screens.

The “Hidden” Prep Before You Hoop a Baby Blanket: Stabilizer Choice, Needle Choice, and Thread Reality

Jeanette’s consumable choice is simple: she uses tearaway stabilizer under the quilt.

Is this safe? Yes, for this specific type of dense, stable quilt. However, "quilts" is a broad term. If you are stitching on a looser, hand-quilted heirloom or a stretchy jersey knit quilt, tearaway is risky because the stitches can perforate the stabilizer, leaving the embroidery unsupported.

The Expert's "Sweet Spot" Recommendation:

• Start with Medium Weight Tearaway for dense, stiff quilts (like the one in the video).
• Switch to PolyMesh Cutaway if the quilt feels floppy, stretchy, or thin. Cutaway provides permanent support that won't degrade after 50 washes.

Jeanette also confirms her needle choice: Ballpoint (75/11).

• Why? A sharp needle can slice the delicate threads of the quilt batting or the woven quilt top. A ballpoint needle pushes fibers aside, maintaining the structural integrity of the blanket.

Prep Checklist (Do this BEFORE you hoop)

• Identify Top vs. Bottom: Check tags and hem folds. You want to embroider the "presentation side."
• Select Stabilizer: Tearaway for stable quilts; Cutaway for stretchy/thin quilts.
• Install Ballpoint Needle: Size 75/11 is the universal standard for quilting.
• Check the Bobbin: Is it full? A generic pre-wound bobbin is fine, but ensure the tension is balanced for thick top usage.
• Prepare Consumables: Have your temporary spray adhesive (if floating) or masking tape ready to secure loose edges.

Commercial Diagnosis: If you are doing these weekly in a shop environment, wrestling with traditional hoops costs you about 5-10 minutes per blanket. Upgrading to a dedicated set of magnetic hoops allows you to hoop a thick blanket in 30 seconds. This time savings pays for the hoop after about 20 orders.

Hoop a Quilted Blanket with Tearaway Stabilizer on a Hooping Station—The Snap Method That Stays Square

Jeanette’s hooping sequence is disciplined:

1. Place tearaway stabilizer over the bottom magnetic frame.
2. Lay the quilt corner over the stabilizer, aligning the medallion center with the hoop center.
3. Tactile Check: Feel through the thick quilt to locate the edges of the bottom frame.
4. The Snap: Press the top frame down firmly until it locks.

She notes that for this thickness, clamps are unnecessary; the magnets hold securely. However, aligning a hidden bottom hoop by "feel" alone is tricky for beginners.

This is where a hooping station for machine embroidery transforms the workflow. A station holds the bottom hoop rigid and perfectly level. This frees up both of your hands to smooth the quilt and align the grain, rather than using one hand to hold the hoop and the other to guess placement.

Watch out: “Taut” vs. “Stretched”

On quilts, your goal is Neutral Tension.

• Wrong: Drum-tight stretching. This pulls the "puff" out of the quilt. When you unhoop, the fabric shrinks back, and your embroidery puckers.
• Right: Flat and smooth. The fabric should relax into the hoop without sagging.

Lock In the Brother Extension Table on a PR1055X—Because Heavy Quilts Will Drag Your Stitch Field

Jeanette installs the Brother tubular frame table (extension table) to support the weight of the blanket.

Installation Sequence:

1. Slide table onto the arm.
2. Lift slightly to engage brackets.
3. The "Safety Click": Push down until seated.
4. Torque Check: Tighten the black underside knobs firmly.

She emphasizes tightening the knobs because a loose table is a vibration hazard.

The Physics of Drag (Why the table is mandatory)

A baby blanket creates "Drag Force." If the heavy remaining fabric hangs off the machine arm, gravity pulls the hoop downward and backward.

• Consequence 1: The pantograph (embroidery arm) has to fight this weight, causing premature motor wear.
• Consequence 2: As the arm accelerates to 800 stitches per minute (SPM), the hanging quilt swings like a pendulum, causing registration errors (outlines not matching fill).
• Solution: The table creates a friction-free surface, neutralizing gravity.

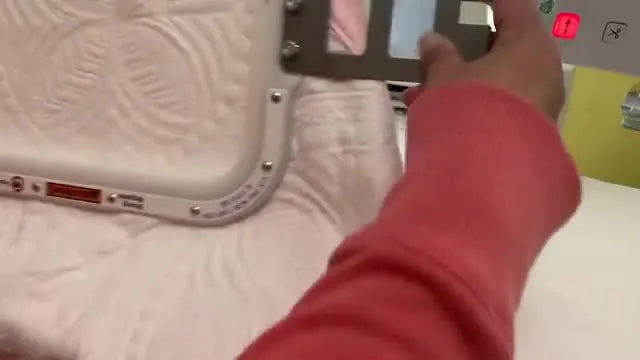

Fix the Most Common Magnetic Hoop Mistake on Brother PR Machines: Brackets Facing the Wrong Way

Jeanette mounts the hoop and immediately catches a classic error: the mounting brackets are facing the operator, not the machine.

She removes, rotates the top magnet 180 degrees, and re-snaps.

This highlights a unique feature of magnetic hoops: they are often symmetrical looking but directional in function.

Visual Anchor: Before you snap the magnet, look for the Metal Flanges/Brackets. They must always point toward the "throat" of the machine. If you snap it backward, you have to peel the powerful magnets apart and start over—risking a hoop shift.

Mount the Hoop and Do the Clearance Sweep Behind the Needles—Stop the Quilt from Getting “Crunked Up”

Jeanette slides the hoop brackets into the embroidery arm and performs a physical "sweep" behind the needles. She ensures the bulk of the blanket isn't bunched ("crunked up") against the machine body.

The "Crunked Up" Risk Factor: Quilts are bulky. If the excess fabric bunches behind the needle bar, it acts like a brake pad.

• Result: The hoop tries to move Y-Axis (back), meets resistance, the motor slips, and your design shifts 2 inches down.


Setup Checklist (The "Pre-Flight" Check)

• Hoop Engagement: Listen for the solid CLICK when the brackets lock into the carrier arm.
• Click Check: Wiggle the hoop gently. It should feel fused to the machine, not rattly.
• Clearance Sweep: Run your hand behind the hoop. Is the fabric loose?
• Table Support: Is the bulk of the blanket resting on the table, not falling off the edge?
• Hoop Orientation: Are the brackets facing the machine?

For high-volume shops, this repetitive strain of checking and re-checking is reduced by using standardized magnetic frames for embroidery machine setups that self-align, but the visual sweep is a habit you never retire.

Rotate 180°, Resize, Then Run Trace on the Brother PR1055X—The Safety Step That Prevents Hoop Strikes

On-screen, Jeanette performs three critical digital operations:

1. Rotate 180°: Because the brackets are at the "top" of the quilt corner relative to the machine, the design needs to flip.
2. Scale Down: She shrinks the design slightly to ensure a safety margin away from the medallion borders.
3. Trace (The Needle 7 Check): She runs the Trace function.


The PR1055X Trace function drops a designated needle (often Needle 1 or the current active needle—Jeanette uses Needle 7) and physically moves the hoop around the design's outer box.

Why Trace is Non-Negotiable

With magnetic embroidery hoop systems, the frame is rigid metal. If your needle strikes the frame:

• The needle shatters.
• The timing belt likely strips.
• The repair bill exceeds $300.
• Jeanette's Rule: "Even if it looks safe on screen, Trace anyway."

Sensory Check during Trace: Watch the needle tip. Does it come within 5mm of the metal frame? If yes, resize down or move the design. Don't risk it.

Decision Tree: Stabilizer Strategy for Quilted Baby Blankets (Thick vs Thin) and When to Float

Jeanette’s blanket is thick, so tearaway works. But what if your customer brings you a thin, vintage, hand-stitched quilt?

Use this decision logic to avoid ruining irreplaceable items.

Stabilizer Decision Tree:

1. Is the Quilt Thick & Dense (Puffy)?
   • YES: Use Tearaway (Jeanette's Method). It supports the stitches but tears away cleanly, leaving the quilt soft.
   • NO: Go to step 2.
2. Is the Quilt Thin, Stretchy, or Drapey?
   • YES: Use PolyMesh Cutaway (floated or hooped).
     • Why? Thin quilts will buckle under the thread tension. Cutaway acts as a permanent foundation.
   • Action: Apply temporary spray adhesive to the stabilizer, and "float" the quilt on top of the hoop to avoid crushing the delicate batting in the frame ring.
3. Are you stitching on a Single-Needle Home Machine?
   • YES: Jeanette recommends Floating regardless of thickness. It is very hard to hoop a thick quilt in a standard home machine hoop without popping the inner ring out.
   • Upgrade Path: Consider a reliable magnetic embroidery hoop designed for home machines (like the SEWTECH models for Brother/Babylock). They allow you to hoop thick items on a single-needle machine without the struggle.

Stitch-Out Reality: Multi-Needle Thread Changes, Sensory Checks, and Keeping the Machine Healthy

Jeanette has her design loaded and threads (Pink, Green, Dark Pink) assigned. She hits "Go."

Sensory Feedback Loop

When stitching on thick quilts, engage your senses:

• Sound: You should hear a consistent thrum-thrum. If you hear a sharp slap, the hoop is bouncing on the table (add clips). If you hear a grinding noise, the fabric is dragging.
• Sight: Watch the fabric in front of the foot. Is it forming a "wave"? If so, your foot height (Presser Foot Height) might be too low, pushing the fabric. Raise the foot height settings in your machine menu (try 1.5mm to 2.0mm for quilts).

Speed Limit: For your first quilt, cap your speed at 600 SPM. Speed creates friction and heat; on a thick sandwich, slower is safer.

Bird Nesting on Quilts: The Fast Diagnosis That Saves You Three More Failed Attempts

A viewer comment triggered a crucial troubleshooting session: "I tried this 3 times on a thin quilt and got bird nesting every time."

Jeanette’s diagnosis is sharp: "Bird nesting usually means the machine is not threaded correctly."

While true, let's expand on why quilts specifically cause this:

1. The "Sponge" Effect: As the needle creates a loop, the puffy quilt batting can expand and grab the thread loop prematurely.
2. Tension Loss: If the thread jumps out of the tension disc during a color change, the machine creates a massive nest underneath because there is no resistance holding the top thread back.

The 2-Minute Fix:

• Cut the nest carefully (don't pull!).
• Raise the presser foot (this opens the tension discs).
• Re-thread the entire path from the spool. Floss the thread into the tension discs.
• Check the bobbin area for lint.
• Test: Pull the thread at the needle eye. You should feel resistance (like dragging a fishing line through water), not loose freedom.

Finishing Like a Pro: Tear Away Stabilizer Cleanly Without Distorting the Back of the Blanket

Jeanette removes the hoop and tears the stabilizer. Note her technique: she doesn't yank.

How to Tear Without Distortion:

1. Place the blanket face down on a flat surface.
2. Place your thumb on top of the embroidery stitching to hold it flat.
3. Gently tear the stabilizer away from the stitches, moving outward.
4. Why? If you just yank the backing, you can stretch the quilt threads or distort the medallion shape you worked so hard to preserve.

Because the blanket is thick, Jeanette notes she doesn't need "Tender Touch" (fusible cover) on the back. The batting absorbs the knot texture, keeping it soft enough for a baby.

Final Reveal: Center the Wreath Inside One Medallion and You’ll Get That “Heirloom” Look Every Time

Jeanette’s finished product—a floral wreath monogram—stays perfectly inside the "coastline" of her chosen medallion. It looks intentional, expensive, and professional.

This result wasn't luck. It was the cumulative effect of:

1. Choosing the right magnetic hoop to avoid distortion.
2. Using the extension table to neutralize gravity.
3. Tracing to verify the safety zone.
4. Centering the design relative to the quilt grid, not the blanket edges.

One more takeaway for home users: If you are struggling to get this result on a flatbed single-needle machine, the struggle is often the tool, not your skill. The jump from a standard hoop to a magnetic embroidery hoop is often the single biggest "quality of life" upgrade you can make. And if your volume grows to the point where re-threading feels like burning money, looking into the brother pr1055x or a high-efficiency SEWTECH multi-needle system is the path to turning a hobby into a production business.

Operation Checklist (The "Don't Ship Regret" List)

• Trace Verification: Did the needle path clear the hoop metal by at least 2mm?
• Orientation: Did you confirm 180° rotation if required?
• Support: Is the quilt gliding on the extension table, not dragging?
• Sound Check: Is the stitching rhythmic (good) or banging (bad)?
• Inspection: Is the design centered in the medallion?
• Clean Up: Is all stabilizer removed without stretching the fabric?

Mastering quilts is about respect—respect for the fabric's thickness and respect for the physics of the machine. Once you control the variables, the fear disappears, and only the "heirloom" remains.

FAQ

• Q: On a Brother Entrepreneur Pro X PR1055X, how do I prevent a monogram from stitching across a quilted medallion seam (“the gutter”) on a heirloom baby blanket?
  A: Place the design fully inside one medallion (often a corner medallion) instead of dead-center across seams.
  • Treat each medallion as an “island” and keep the entire design within one medallion boundary.
  • Do a camera test: lay the blanket as it will be used and check placement with a paper printout of the design.
  • Use a repeatable corner template distance if you need consistent results across multiple blankets.
  • Success check: the design is not visually sliced by a seam line, and the stitching area stays on one consistent “puffy” height.
  • If it still fails: rotate/resize the design so the outer edges stay farther from the medallion borders before stitching.
• Q: When hooping a thick quilted baby blanket with a magnetic embroidery hoop on a Brother PR1055X, what is the correct fabric tension so the embroidery does not pucker after unhooping?
  A: Aim for neutral tension—flat and smooth, not drum-tight stretched.
  • Smooth the quilt into the frame so it relaxes naturally without pulling the “puff” out.
  • Avoid over-tightening behavior (even pressure is the goal, not maximum pressure).
  • Keep the blanket supported so gravity is not tugging the hooped area while you mount it.
  • Success check: the quilt surface looks flat in the hoop (no center bubble), and after unhooping the stitches lie flat without the fabric springing back into puckers.
  • If it still fails: reassess stabilizer choice (tearaway vs. PolyMesh cutaway) and slow the machine speed for the first run.
• Q: For embroidering a quilted heirloom baby blanket, when should I use tearaway stabilizer vs. PolyMesh cutaway stabilizer, and when is “floating” safer?
  A: Use medium tearaway for thick, dense quilts; use PolyMesh cutaway when the quilt is thin, stretchy, or drapey, and float when hooping would crush or distort the quilt.
  • Feel the quilt: if it is floppy/thin/stretchy, switch to PolyMesh cutaway for permanent support.
  • Float by securing the quilt to the stabilizer (for example with temporary spray adhesive) to avoid crushing delicate batting in the hoop ring.
  • On single-needle home machines, floating is often the safer default because thick quilts can be difficult to hoop securely in standard hoops.
  • Success check: the fabric stays supported under stitch tension (no buckling/waves forming in front of the foot).
  • If it still fails: re-check threading and bobbin area cleanliness, because nesting can mimic stabilizer failure.
• Q: On a Brother Entrepreneur Pro X PR1055X, how do I avoid needle strikes when using a rigid metal magnetic hoop, and what is the correct way to use the Trace function?
  A: Always run Trace before stitching and keep a visible safety margin between the needle path and the metal frame.
  • Rotate 180° when needed so the design orientation matches how the hoop is mounted at the quilt corner.
  • Scale the design down slightly if the outer box approaches the hoop edge.
  • Run Trace using a designated needle and watch the needle tip as the machine traces the outer boundary.
  • Success check: during Trace, the needle tip never comes close to the hoop metal (keep a small clear gap the entire path).
  • If it still fails: stop immediately and move/resize the design again—do not “chance it” with a metal frame.
• Q: What magnetic hoop safety rules prevent finger pinches and device interference when hooping thick quilts for machine embroidery?
  A: Handle magnetic hoops only by the handles and keep strong magnets away from sensitive medical devices and electronics.
  • Keep fingers off the rim when snapping the top and bottom frames together (pinch force can be significant).
  • Lower the top frame straight down—do not “slide” it into place where it can grab unexpectedly.
  • Keep magnets well away from pacemakers, insulin pumps, and computerized machine screens.
  • Success check: the frames snap together under control without sudden side-snap, and hands never enter the pinch zone.
  • If it still fails: slow down the hooping motion and reset your hand position before trying again.
• Q: On a Brother PR1055X, what is the most common magnetic hoop mounting mistake with brackets facing the wrong way, and how do I fix it without shifting placement?
  A: Ensure the metal mounting brackets/flanges face toward the machine throat before snapping the hoop together.
  • Visually locate the brackets before you snap the top magnet down (don’t rely on “symmetry”).
  • If mounted backward, remove and rotate the top frame 180°, then re-snap carefully.
  • Reconfirm hoop engagement with a firm lock-in click when mounting to the embroidery arm.
  • Success check: the brackets insert smoothly into the carrier arm and the hoop feels fused—not rattly—after locking.
  • If it still fails: unmount and re-seat the hoop again; forcing bracket alignment can cause a shift or a poor lock.
• Q: On a Brother Entrepreneur Pro X PR1055X, how do I prevent quilt drag and design shifting when embroidering a heavy baby blanket (registration errors, outlines not matching fill)?
  A: Support the quilt with the extension table so the blanket glides instead of hanging and pulling the hoop.
  • Install the extension table fully and tighten the underside knobs firmly to prevent vibration.
  • Do a clearance sweep behind the needles so excess blanket bulk is not bunched against the machine body.
  • Reduce speed for the first quilt (a safer starting point is slower than maximum) to minimize swing and drag.
  • Success check: the stitch sound stays rhythmic (not banging/grinding) and outlines stay aligned with fills through the run.
  • If it still fails: check for fabric acting like a brake behind the needle bar and re-route the blanket so it rests on the table, not off the edge.
• Q: On a Brother PR1055X embroidering a thin quilt, what is the fastest way to fix bird nesting under the fabric after multiple failed attempts?
  A: Re-thread the machine correctly from the spool with the presser foot raised, then verify you feel normal tension at the needle.
  • Cut the nest carefully; do not pull the thread mass tight through the fabric.
  • Raise the presser foot to open the tension discs, then re-thread the entire path and floss thread into the discs.
  • Clean lint from the bobbin area before restarting.
  • Success check: when pulling thread at the needle eye, there is steady resistance (not free-sliding slack), and the next stitches form cleanly without a growing underside wad.
  • If it still fails: re-check stabilizer strategy for thin quilts (PolyMesh cutaway and floating) because thin “drapey” quilts amplify looping and tension loss.
