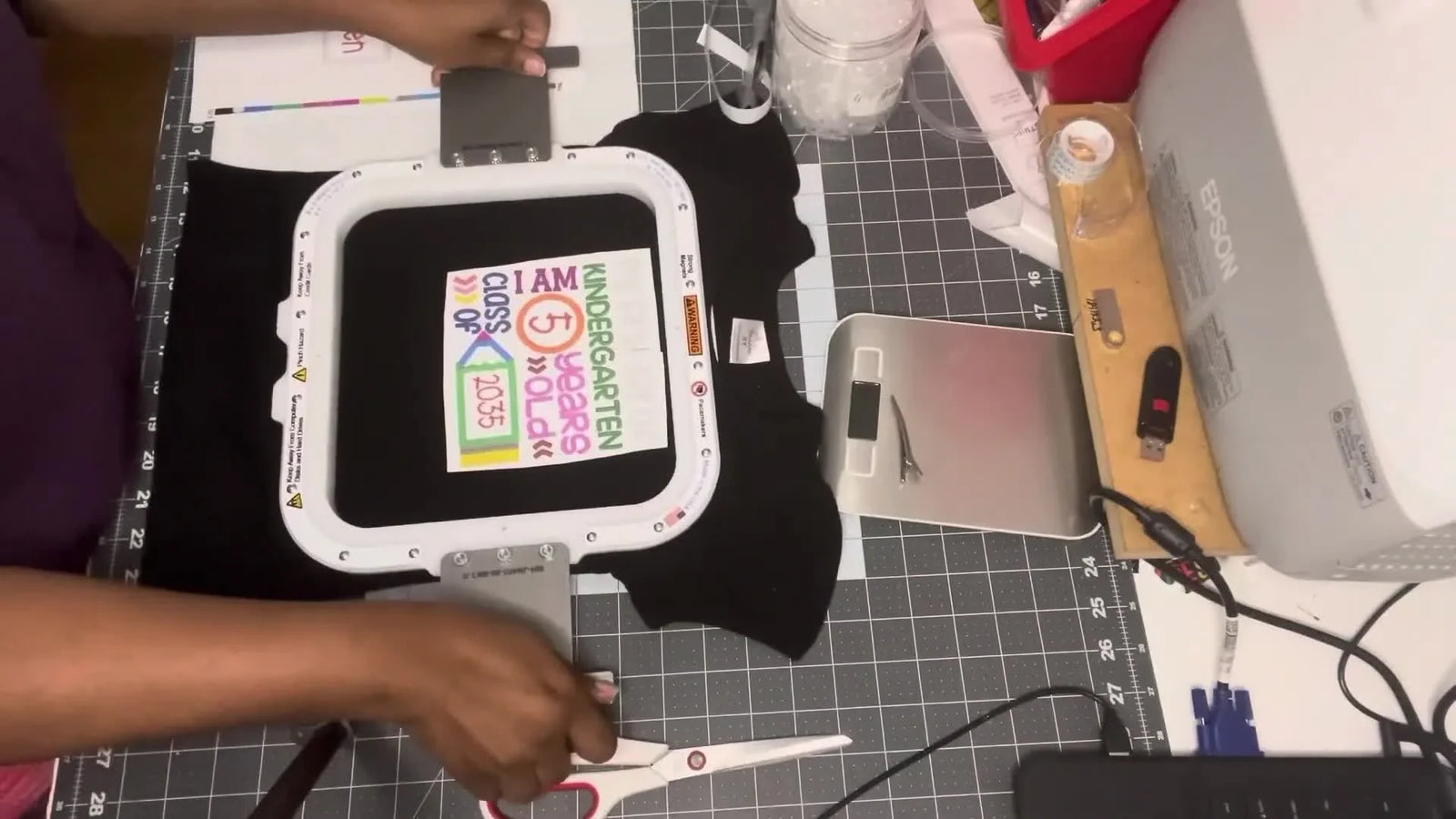

No More Guesswork: Hooping a 5T Shirt on a Janome MB-7e with an 8x9 Magnetic Hoop (Plus a Clean Appliqué Cut)

The Precision Protocol: Mastering Small Garment Appliqué on Multi-Needle Machines

If you’ve ever tried to embroider a tiny 5T kids’ shirt and felt your confidence evaporate the moment the hoop goes on, you’re not alone. Small garments don’t forgive "close enough" placement—especially when the shirt is a stretchy knit and the design is text-heavy like "Kindergarten Class of 2035."

The fear is real: one false move with the hoop screws results in "hoop burn" (permanent fabric crushing), and one millimeter of drift results in crooked text that ruins your profit margin.

But here is the truth experienced pros know: Success isn't about hope; it's about physics.

This guide deconstructs the workflow of a professional utilizing a Janome MB-7e (a standard multi-needle platform) paired with a magnetic hooping strategy. We will move beyond basic instructions into the sensory details and empirical data—speed limits, tension checks, and tools—that turn a scary project into a boringly predictable production run.

1. The Geometry of Panic: Why Small Shirts Fail & How to Fix It

A 5T tee offers less flat real estate, significant seam interference near the neckline, and zero tolerance for alignment drift. Unlike a sturdy hoodie, a knit tee is fluid; it wants to move.

To conquer this, we stop treating the shirt like fabric and start treating it like a grid. The workflow we are analyzing succeeds for two specific reasons:

1. Absolute Reference: A 1:1 paper template replaces the "eyeball method."
2. Mechanical Locking: A magnetic hoop station removes the variable of human wrist strength/error.

If you are running a production setups—whether it's a single-needle workhorse or a multi-needle beast like the janome mb-7 embroidery machine—adopting this "Template + Station" protocol is the difference between a hobby and a business.

2. The Paper Template: Your Blueprint for Accuracy

The video demonstrates printing the design at true scale from Embrilliance software. This is not optional.

The Problem with Digital Screens

On your computer monitor, a 5x7 design looks proportionate. On a tiny 5T chest, that same design can stretch from armpit to armpit, creating a "billboard effect" that looks cheap.

The Execution

• The Check: Print the design. Cut the paper exactly to the design perimeter.
• The Adjustment: In this case study, a larger design was rejected for a 5x7 version.
• The Sweet Spot: Ideally, you want at least 1.5 inches of negative space between the design edge and the sleeve seams to allow the jersey knit to drape naturally.

Pro Tip: For "Back to School" seasons, keep a physical folder of these cut-out templates. It saves you 10 minutes of printing time per repeat order.

3. Finding "True North": The Shoulder Seam Method

Finding the center of a knit shirt is tricky because the fabric grains skew. The ribbing on the collar is often sewn on slightly crooked. Never trust the collar.

Instead, use the "Shoulder Seam Anchor":

1. Fold: Fold the shirt vertically in half.
2. Align: Match the left shoulder seam strictly to the right shoulder seam. Shake the shirt to let the body fall naturally.
3. Mark: Use a clip or a heat-erase pen to mark the fold line.
4. Sensory Check: Run your fingernail down the fold. It should feel like a sharp crease. If the fabric ripples, you aren't centered.

Vertical Placement Rule: The industry standard "Sweet Spot" for a 5T shirt is 2 to 2.5 inches (approx. 3-4 fingers) down from the bottom of the collar ribbing. Any higher, it chokes the wearer; any lower, it hits the belly.

4. The "Hidden" Prep Checklist: Don't Load Until You Check

Disasters happen because we assume the machine is ready. It isn't. Before you touch the hoop, run this "Pre-Flight" check.

Hidden Consumables You Need

• Needles: For T-shirt knits, use a 75/11 Ballpoint needle using a chrome finish if possible. The ballpoint pushes fibers aside rather than cutting them (preventing holes).
• Adhesive: Temporary spray adhesive (like 505) if you plan to float stabilizers.
• Stabilizer: Cutaway (2.5 - 3.0 oz). Do not use Tearaway on kid's knits.

Prep Checklist

• [ ] Scale Check: Is the design printed at 100% (1:1) scale?
• [ ] Obstruction Check: Is the hoop size (5x7) compatible with the shirt size without stretching the neck?
• [ ] Mechanical Check: Run your finger over the bobbin case. Is it smooth? Any lint?
• [ ] Tool Check: Are your curved appliqué scissors within arm's reach?
• [ ] Safety Check: Are you wearing closed-toe shoes? (Falling needles happen).

Warning: Needle Safety. Appliqué requires your hands to be close to the needle bar during fabric placement. Always wait for the "Stop" indicator and keep fingers at least 2 inches away from the foot when restarting. A needle through the finger is a career-ending injury.

5. The Magnetic Advantage: Mechanical Consistency vs. Human Error

Hooping a small, circular neck opening on a standard friction hoop requires three hands and often results in "Hoop Burn"—shining rings where the fabric was crushed.

The creator uses a magnetic hooping station to solve this.

Why Tools Matter Here

If you are doing one shirt, you can struggle through with a standard hoop. If you are doing 50, you need an upgrade.

• Standard Hoops: Require screw tightening. Inconsistent tension. Risk of hoop burn.
• Magnetic Hoops: Use vertical clamping force. Zero hoop burn. 100% consistent tension.

The Hooping Sequence:

1. Drop: Place the bottom magnetic ring on the station.
2. Load: Slide the shirt over the fixture. The station holds the shirt open (reducing distortion).
3. Align: Match your center crease clip to the station's center line.
4. Snap: Lower the top magnetic frame. Listen for the distinct "CLACK".

That sound is the sound of success. It means the fabric is locked vertically without being pulled horizontally (which causes puckering).

The Commercial Upgrade Path

When does a hobbyist become a pro? When they stop fighting their equipment.

• Level 1 (Technique): Use standard hoops but wrap the inner ring with pre-wrap tape to increase grip and reduce burn.
• Level 2 (Tool Upgrade): Switch to SEWTECH Magnetic Hoops. This eliminates the thumbscrew entirely and is safer for delicate fabrics.
• Level 3 (Production Upgrade): If you are tackling bulk orders (e.g., 8x9 designs), investing in an industrial-grade 8x9 mighty hoop equivalent ensures every shirt is identical.

Warning: Magnet Safety. Magnetic hoops generate 10+ lbs of pinch force instantly. Never place your fingers between the rings. Do not use if you have a pacemaker, and keep credit cards/phones at least 12 inches away from the magnets.

6. The Float Technique: Stabilizing Without Bulk

The creator demonstrates the "Float Method": hooping the shirt only, then sliding the stabilizer underneath.

Why do this? Hooping thick cutaway stabilizer along with a small T-shirt can make the hoop "pop" open due to bulk.

The floating embroidery hoop Technique:

1. Mount: Lock the hooped shirt onto the machine arm.
2. Slide: Slide the cutaway stabilizer sheet between the needle plate and the shirt.
3. Secure: Critical Step - Use a light mist of temporary adhesive or use the machine's "Basting Box" function to lock the stabilizer to the shirt before the design starts. If you don't anchor it, the stabilizer will vibrate away from the center.


7. The Trace: The Metric of Truth

You must trace. Staring at the screen is not enough.

The Action: Activate the machine's trace function (Standard or Contour). The Visual Check: Watch the presser foot hover. Does it hit the plastic hoop edge? Does it look too close to the collar ribbing? The Adjustment: In the video, the creator notices a misalignment. She adjusts the Starting Point on the interface.

Expert Rule: If the foot comes within 3mm of the hoop edge, move the design or downsize. Hitting a magnetic hoop with a needle bar moving at 800 stitches per minute can shatter the needle bar reciprocator.

Setup Checklist

• [ ] Connection: Is the magnetic hoop snapped firmly into the machine bracket? Shake it gently—it should feel solid, like part of the chassis.
• [ ] Float: Is the stabilizer covering the entire stitch area (plus 1 inch margin)?
• [ ] Needle: Is the correct needle (e.g., Needle 5) assigned to the first color stop?
• [ ] Trace: Did the trace run clear of all hard edges?
• [ ] Speed: Reduce max speed to 600 SPM for the detailed satin borders.


8. Appliqué Execution: Cut, Stops, and Satins

Appliqué is a game of "Stop and Go."

Step 1: The Placement Line

The machine stitches a single running stitch outline.

• Speed: 600-800 SPM.
• Purpose: Shows you exactly where to put the fabric.


Step 2: The Fabric Placement

Place your appliqué fabric (yellow cotton in the video) over the outline.

• Tactile Tip: Smooth the fabric from the center outward. Any bubble here becomes a permanent wrinkle later.


Step 3: The Tack-Down & Trim

The machine stitches a second outline (often a double run or zigzag) to lock the fabric.

• The Cut: Remove the hoop (or pull the sliding table forward). Use double-curved appliqué scissors.
• The Technique: Pull the excess fabric gently up and slightly back. Rest the "bill" of the scissors on the stabilizer. Cut smoothly. You want to feel the scissors "shearing" the fabric, not hacking it.
• Clearance: Cut within 1-2mm of the stitches. If you leave too much, the final satin stitch won't cover the raw edge (whiskers). If you cut the thread, the appliqué will unravel in the wash.




9. Decision Tree: Stabilizer & Fabric Pairing

Since the video uses a floating technique, use this logic to choose your materials for similar projects.

Variable: What is the base garment?

• Standard Cotton T-Shirt (Little Stretch):
  • Stabilizer: Medium Weight Cutaway (2.5 oz).
  • Needle: 75/11 Ballpoint.
• Performance Poly/Knit (High Stretch):
  • Stabilizer: Heavy Cutaway or Fusible No-Show Mesh (PolyMesh). Reason: Mesh minimizes "badge effect" stiffness on thin shirts.
  • Needle: 70/10 Ballpoint.
• Text-Heavy Designs (Class of 2035):
  • Stabilizer: Fusible Cutaway. Reason: Text distorts easily; fusing prevents fabric drift.

10. Troubleshooting: The Professional's Diagnostics

If your shirt didn't come out perfect, here is why.

11. Scaling Up: The Logic of Upgrades

The workflow shown—Paper Template -> Magnetic Station -> Multi-Needle Stitching—is safe, repeatable, and profitable.

If you find yourself bottlenecked, identify the pain point:

• Pain: "I spend more time changing threads than stitching." -> Upgrade: Consider a SEWTECH Multi-Needle Machine.
• Pain: "My wrists hurt from 8 hours of hooping." -> Upgrade: Invest in a Magnetic Hooping Station.
• Pain: "I still get hoop marks on dark shirts." -> Upgrade: mighty hoops magnetic embroidery hoops or compatible SEWTECH frames are the industry standard for mark-free hooping.

Operation Checklist (The Final Go)

• [ ] Hoop is square; center mark aligns.
• [ ] Stabilizer is floated and basted/sprayed.
• [ ] Trace is verified (cleanance ok).
• [ ] Appliqué fabric is pre-ironed (no wrinkles).
• [ ] GO.


By following this protocol, you aren't just "trying" to embroider a shirt; you are executing a manufacturing process. That mindset shift is what allows you to handle that "Kindergarten Class of 2035" order with zero fear and perfect results.

For those looking to optimize their production line, whether learning how to use mighty hoop systems or upgrading to multi-needle efficiency, remember: the machine does the stitching, but you engineer the quality.

FAQ

• Q: What needles and stabilizer should be used for small kids’ knit T-shirts on a Janome MB-7e multi-needle embroidery machine to prevent holes and distortion?
  A: Use a 75/11 ballpoint needle and 2.5–3.0 oz cutaway stabilizer as the default for kids’ knit tees; avoid tearaway on kid knits.
  • Install: Switch to a 75/11 ballpoint (chrome finish if available) before hooping.
  • Choose: Use cutaway (2.5–3.0 oz); use heavier cutaway or fusible no-show mesh for high-stretch performance knits; use fusible cutaway for text-heavy designs.
  • Prep: Keep temporary spray adhesive available if stabilizer will be floated.
  • Success check: The stitched area lies flat with no needle holes or “wavy” distortion around text after stitching.
  • If it still fails: Reduce speed to 600 SPM for detailed satins and re-check that the shirt was not stretched during hooping.
• Q: How do you find true center and correct vertical placement for a 5T shirt appliqué so the design does not look crooked on a Janome MB-7e embroidery machine?
  A: Center the shirt using the shoulder seams (not the collar), then place the design 2–2.5 inches below the collar ribbing.
  • Fold: Fold the shirt vertically and align left shoulder seam exactly to right shoulder seam; let the body fall naturally.
  • Mark: Clip or mark the fold line; keep that as the center reference.
  • Place: Position the design 2–2.5 inches (about 3–4 fingers) down from the bottom of the collar ribbing.
  • Success check: The fold crease feels sharp under a fingernail with no ripples, and the paper template looks visually balanced between side seams.
  • If it still fails: Re-print the design at true 1:1 scale and confirm the chosen size leaves negative space from sleeve seams.
• Q: What is the safest way to use the trace function on a Janome MB-7e with a magnetic embroidery hoop to avoid a needle strike on the hoop?
  A: Always run a trace and maintain at least 3 mm clearance from the hoop edge before stitching at speed.
  • Activate: Run the machine’s trace (Standard or Contour) and watch the presser foot path, not the screen.
  • Adjust: Move the starting point or downsize the design if the foot comes within 3 mm of the hoop edge.
  • Set: Reduce max speed to 600 SPM for detailed satin borders.
  • Success check: The trace path clears all hard edges and looks comfortably away from the collar ribbing and hoop rim.
  • If it still fails: Stop immediately and re-hoop with better alignment before restarting—do not “chance it” near the hoop.
• Q: How do you float cutaway stabilizer under a hooped T-shirt on a multi-needle embroidery machine so the stabilizer does not drift during stitching?
  A: Float the stabilizer only after the shirt is hooped, then anchor the stabilizer with light adhesive spray or a basting box before the design starts.
  • Mount: Hoop the shirt only, attach the hoop to the machine arm, then slide the cutaway stabilizer between needle plate and shirt.
  • Secure: Apply a light mist of temporary spray adhesive or use the machine’s basting box function to tack the stabilizer in place.
  • Cover: Ensure stabilizer fully covers the stitch area plus about 1 inch margin.
  • Success check: The stabilizer stays centered and does not “walk” or vibrate away during the first stitches.
  • If it still fails: Use more secure basting and confirm the stabilizer sheet is large enough for the entire design area.
• Q: What causes puckering around text on a small knit shirt when using a standard embroidery hoop, and how can SEWTECH Magnetic Hoops reduce puckering?
  A: Puckering usually happens because the knit was stretched in the standard hoop; magnetic clamping helps because it locks fabric vertically without pulling it sideways.
  • Re-hoop: Aim for the shirt to sit flat and relaxed—do not tension-stretch the knit to “drum tight.”
  • Upgrade: Use a magnetic hooping station or magnetic hoop to remove thumbscrew variability and reduce hoop burn and distortion.
  • Finish: Steam-press after stitching as a quick cosmetic fix (does not correct severe distortion).
  • Success check: Text columns and satin edges stay smooth with no ripples radiating outward from lettering.
  • If it still fails: Switch to fusible cutaway for text-heavy designs to reduce fabric drift.
• Q: Why is white bobbin thread showing on top on a Janome MB-7e multi-needle embroidery machine, and what is the fastest fix before restarting the design?
  A: White bobbin on top usually means top tension is too tight or the bobbin is not seated correctly; correct the threading and clean the bobbin area before changing settings aggressively.
  • Loosen: Reduce top tension slightly as the first adjustment.
  • Reseat: Reinsert the bobbin and confirm it is properly seated.
  • Clean: Remove lint and check the bobbin case/race feels smooth to the touch.
  • Success check: Satin stitches look balanced with bobbin thread not peeking through on the top surface.
  • If it still fails: Re-check the full thread path and confirm the correct needle position is assigned to the first color stop.
• Q: What safety rules should be followed during appliqué fabric placement and trimming on a Janome MB-7e multi-needle embroidery machine to prevent needle injuries?
  A: Treat appliqué as a stop-and-go process: wait for a full stop indicator, keep fingers at least 2 inches from the foot when restarting, and keep tools ready before you begin.
  • Pause: Wait for the machine “Stop” indicator before placing fabric near the needle bar area.
  • Distance: Keep fingers at least 2 inches away from the presser foot when restarting stitching.
  • Prepare: Keep double-curved appliqué scissors within reach so you do not rush mid-cycle.
  • Success check: Fabric placement happens with the needle fully stopped and hands never crossing under the needle path.
  • If it still fails: Slow down the workflow—appliqué speed comes from consistency, not rushing near the needle.
