No More Gaps on Hats: Digitizing the Texas Flag in Wilcom with Push/Pull That Actually Stitches Clean

If you’ve ever stitched a crisp, clean flag file on a flat polo shirt… only to watch that same file fall apart on a structured cap with "mystery gaps" and misaligned borders, take a deep breath. You are not alone.

In the world of embroidery, hats are the "final boss." They magnify every weakness in your digitizing because the physics change completely: fabric tension fluctuates, the sewing field is curved, and "push/pull" forces become aggressive.

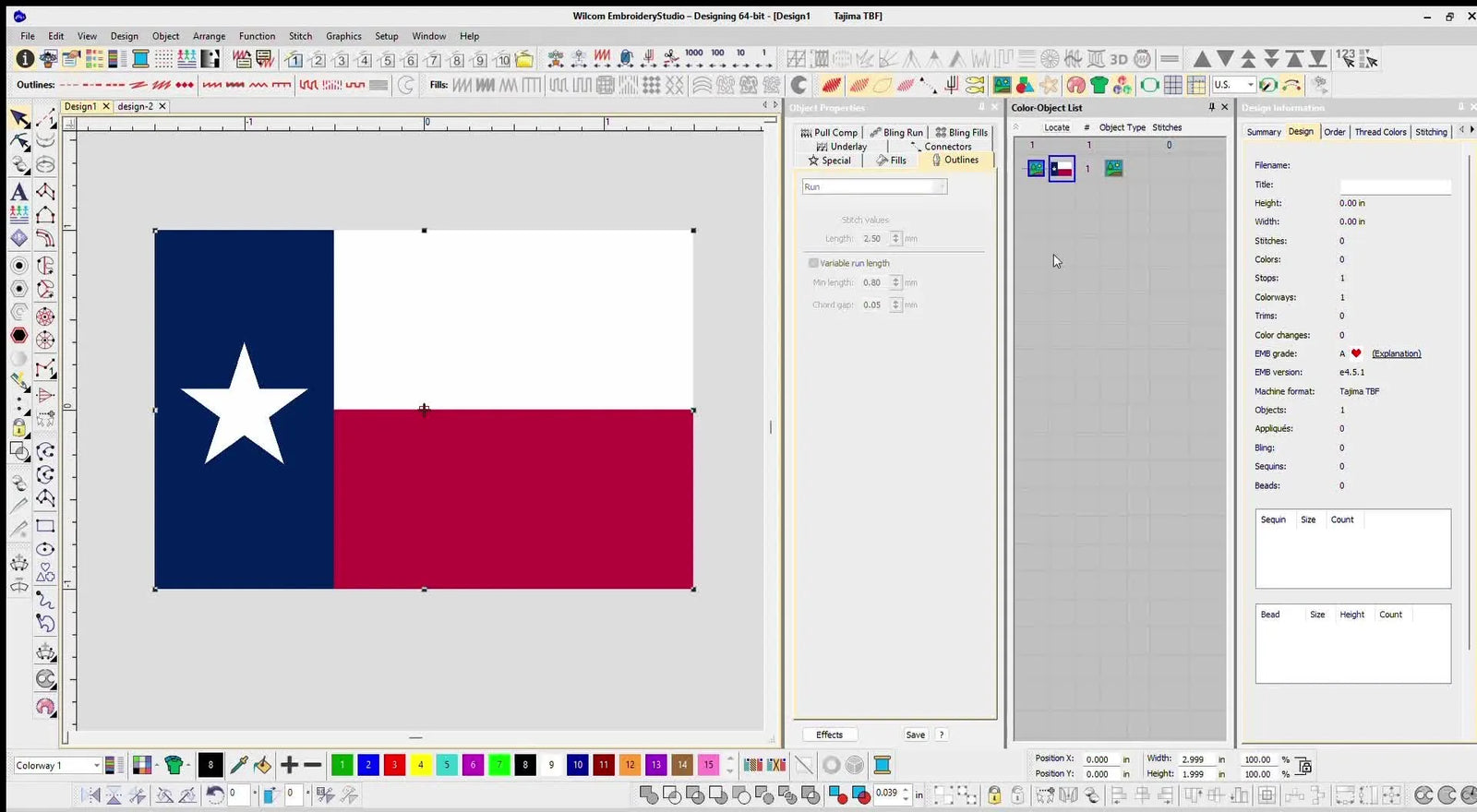

In this guide, based on the Romero Threads workflow, we will rebuild a Texas Flag in Wilcom EmbroideryStudio. But we aren’t just tracing lines. We are learning compensation physics—the art of deliberately overlapping shapes (even when it looks "wrong" on screen) so the final physical product looks perfect.

1. Lock in the 3" x 2" Standard: The "Sweet Spot" for Caps & Chests

First, verify your design canvas. Romero demonstrates setting the design to exactly 3 inches wide by 2 inches high. This isn't random; it is the industry "sweet spot." It is large enough to be legible on a hat front, yet small enough to fit a standard left-chest placement without resizing.

Two habits separate the hobbyist from the pro:

1. Confirm size before the first click. Resizing a finished file changes density physics. If you shrink a file later, stitches crowd together, causing needle breaks.
2. Lock your grid. If your reference image drifts while you zoom in and out, your registration will fail.


The Physics of the "Hat Punish"

On a flat sweatshirt, the fabric gives. On a structured cap (like a Flexfit or trucker hat), the buckram (the stiff front panel) fights back. Small scaling errors that "slide" on a hoodie will show up as glaring gaps on a hat.

Warning: Safety First. When test-stitching on caps, keep your hands well clear of the needle bar. Broken needles on structured hats can shatter and fly. Never reach under the presser foot while the machine is running.

**Phase 1: Prep Checklist (Do NOT Skip)**

• Size Check: Is the artwork target exactly 3.00" x 2.00"?
• Needle Check: Are you using a fresh Sharp 75/11 needle? (Ballpoints can deflect on stiff buckram).
• Consumables: Do you have spray adhesive and the correct cap backing (tearaway is usually insufficient standard; consider cutaway for structure)?
• Grid Lock: Is the reference image locked in Wilcom?

2. The Foundation: Build a "Global Underlay"

Before laying down the heavy flag colors, we need to stabilize the battlefield. Romero uses the Digitize Open Shape tool to create a manual global underlay—a simple running stitch zig-zagging across the entire 3x2 area.

Think of this like rebar in concrete. Its purpose is to:

• Flatten the "nap": Mat down any fuzz on the fabric.
• Bond the layers: Physically tack the hat fabric to the stabilizer before pull forces begin.
• Platform: Give the heavy Tatami fills a smooth floor to sit on.

Pro Tip: If stitching on a white hat, match this underlay to the hat color (white). This makes the foundation invisible if tiny gaps occur later.

Expert Context: Software vs. Hardware Stability

Global underlay helps, but it cannot fix bad hooping. If your fabric is loose in the hoop, no amount of underlay will save you. If you struggle with manual hooping consistency, search for terms like hooping for embroidery machine to learn how mechanical aids can stabilize your physical canvas. Treat underlay as the partner to your hoop, not the replacement.

3. The Red Fill: Controlling the "Push" with Angles

Next, digitize the bottom red rectangle using Digitize Closed Shape and convert it to a Tatami fill.

The Data Points (Beginner Sweet Spot):

• Stitch Angle: 45°. This is vital. Never run fills at 0° (vertical) or 90° (horizontal) on hats unless necessary, as they pull against the grain of the cap seam.
• Start/Stop: Set these intentionally so the machine sews logically (e.g., typically from the center out or bottom up) to "push" the fabric smoothly rather than bunching it.
• Underlay: Tatami 90° + Edge Run.


The "First Object" Trap

The first large object you stitch (the Red Fill) effectively "seats" the hat into the machine. It tightens the assembly. If it tightens too much, the rest of the design will shift. This is why we check that 45° angle—it distributes tension diagonally, which is gentler on the hat structure.

4. Mirroring for Consistency (The White Fill)

Don’t redraw the top white rectangle. Duplicate the red block and use Mirror by Reference Line.

Why? Consistency. It guarantees the density and shape are identical to the red block.

• The Math: When you mirror a 45° angle, it becomes 135° (45° + 90°). This opposing diagonal balances the tension on the hat fabric, preventing the "twisting" effect.


Density: The "Safe Zone" Settings

For beginners working on standard polyester thread (40 wt), here are the safety numbers Romero uses. Do not deviate until you have experience:

• Spacing (Density): 0.40 mm. (Going tighter, like 0.35mm, risks chopping the fabric on a hat; going looser, like 0.45mm, may show gaps).
• Stitch Length: 4.0 mm.


**Phase 2: Setup Checklist (Before Building the Star)**

• Red Fill: Tatami at 45°.
• White Fill: Mirrored to 135°.
• Density Check: Are both set to 0.40mm spacing?
• Underlay: Do both have Edge Run + Tatami 90°?

5. The Blue Field: The 15° Secret

Romero duplicates the shape again for the blue vertical field. Here is the critical hat-specific adjustment:

Do NOT set the stitch angle to 0° (vertical). Instead, set the Blue Stitch Angle to 15°.

The Physics of Why: A vertical (0°) stitch travels up and down the curve of the hat forehead. This path creates massive pull at the top and bottom, often creating an "hourglass" shape gap. By tilting it just 15°, you break that direct line of tension, allowing the fabric to relax.

If you use tools designed for speed and grip, such as magnetic embroidery hoops, you gain physical stability, but you still need these software angles. Using a magnetic hoop keeps the rim secure, but only the 15° angle prevents the fabric in the center from distorting.

6. The Star: Wireframe & The Center Gap

Romero manually digitizes the star. Note two sophisticated moves here:

1. Sequence by Select: He orders the points 1-2-3-4-5 logically to minimize travel time.
2. The Center Gap: He leaves a microscopic hole in the very center of the star.




Why the Gap? (Sensory Check)

If 5 points of a star all meet at a perfect mathematical center, stitches pile up.

• Tactile Check: Rub your thumb over a bad star. It feels like a hard pebble or knot in the middle.
• Visual Check: The center looks white and mashed.
• The Fix: Leaving a tiny gap allows the thread to "breathe." As the thread builds up, it naturally fills that hole, creating a flat, smooth star rather than a knot.

7. The Core Lesson: Push/Pull Compensation

Now, Romero draws arrows on screen to show where the fabric will move. This is the difference between a tracer (amateur) and a digitizer (pro).

• Pull: Stitches pull in along the direction of the thread. (The shape gets skinnier).
• Push: The mass of thread pushes out perpendicular to the stitch. (The shape gets longer).

Hats exaggerate this. If you trace the flag perfectly line-to-line, you will get gaps.

The Commercial Reality

"I want to digitize in-house to save money." The fastest way to lose money is stopping the machine every 10 minutes to fix a broken thread or re-hoop a ruined hat. Your workflow must be: Stable Hooping + Compensated File = Profit. If you are struggling with "hoop burn" or inconsistent tension, investing in a hooping station for embroidery machine creates the mechanical consistency that makes digitizing easier.

8. The Fix: "Looks Wrong, Stitches Right"

This is the hardest part for beginners to accept. You must manually move the nodes so the shapes overlap.

Use the Reshape Tool (H):

• Drag the Red and White borders underneath the Blue field.
• Extend the outer edges slightly outward.
• Visual Rule: If it looks "perfect" on screen, it's wrong. If it looks "overlapped and messy" on screen, it will likely stitch perfectly.


9. Borders & Final Polish

Finally, apply a satin border (3mm width) to frame the flag.

• Underlay: Center Run + Double Zigzag.
• Settings: 3mm width is safe; anything thinner than 2mm on a hat risks getting lost in the fabric texture.


Troubleshooting Trims

A common question: Why does my machine leave long tails?

1. Tension: Check your upper tension.
2. Routing: 90% of "trim failures" are actually mis-routed threads.
3. Fatigue: If you are hooping hundreds of caps, hands get tired, routing gets sloppy. A magnetic hooping station can reduce wrist strain, keeping your manual operations as precise as your digital ones.

10. Validation: The Stitch Out

Romero tests on a structured white hat.

Success Metrics (The "Pass/Fail" Test):

1. No Gaps: No white fabric visible between the blue field and the stripes.
2. Flat Star: The center of the star is smooth, not knotted.
3. Straight Edges: The 15° angle prevented the blue field from hourglassing.




Critical Hat Variables (Equipment Check)

Even the best file will fail if the hat frame moves. If you are using a standard driver, ensure it is clipped tight. If you are using a specifically designed brother hat hoop or similar OEM part, check that the "teeth" of the driver are gripping the sweatband securely.

**Phase 3: Operation Checklist (The "Pre-Flight" Check)**

• Hooping: Is the sweatband locked tight? (Tap the bill of the cap; it should sound like a drum, not a thud).
• Trace: Run a trace on the machine. Does the needle bar clear the bill of the cap?
• Speed: Slow down. For structured hats, drop your speed to 600-700 SPM. High speed increases flag-wagging (distortion).
• Magnets: If using magnetic frames, keep them clear of the machine's control panel.

Decision Tree: Choosing Stabilizer for Caps

Warning: Magnetic Hoop Safety. Whether using compact frames or large stations, these magnets are industrial strength. They can pinch skin severely. Keep away from pacemakers. Do not let two loose magnets snap together; they can shatter.

The Upgrade Path: When to Scale

If you master this file but still struggle with large orders, the bottleneck isn't your digitizing—it's your hardware capacity.

• Level 1: Fix the File (This guide).
• Level 2: Fix the Hooping (Magnetic Hoops/Stations).
• Level 3: Fix the Capacity. When single-needle color changes consume your day, upgrading to a specialized multi-needle machine (like the SEWTECH commercial line) moves you from "hobbyist" to "manufacturer."

Summary Lesson: Trace less. Compensate more. Trust the overlap. Your screen should look messy so your hat can look clean.

FAQ

• Q: In Wilcom EmbroideryStudio cap digitizing, why must the Texas Flag design be locked to exactly 3.00" x 2.00" before digitizing?
  A: Locking the Texas Flag to 3.00" x 2.00" first prevents density and registration problems that often show up as gaps and needle breaks on structured caps.
  • Confirm the design size is 3.00" wide x 2.00" high before placing the first stitch object.
  • Avoid resizing after completion, because shrinking can crowd stitches and increase break risk.
  • Lock the grid/reference image so artwork cannot drift while zooming.
  • Success check: A test trace/stitch-out matches the intended placement without borders “walking” or shifting.
  • If it still fails: Re-check hooping stability and cap frame/driver tightness before adjusting the file further.
• Q: For structured cap embroidery, how does a Wilcom “global underlay” running stitch help prevent gaps in a 3" x 2" Texas Flag?
  A: A manual global underlay run across the full 3" x 2" field stabilizes the cap fabric early so later Tatami fills do not pull open and create “mystery gaps.”
  • Digitize an open-shape running stitch that zig-zags across the entire design area before the color fills.
  • Use it to tack the hat fabric to the stabilizer and flatten nap/fuzz before heavy stitching starts.
  • Match the underlay thread color to the hat color (often white on a white hat) to hide tiny future gaps.
  • Success check: The hat surface looks evenly “tacked down” and does not ripple before the main fills start.
  • If it still fails: Treat it as a hooping/frame issue—loose hooping cannot be fixed by underlay alone.
• Q: In Wilcom cap digitizing, what stitch angles prevent hourglassing and distortion when stitching the Texas Flag fills on a structured hat?
  A: Use 45° for the red fill, mirror to 135° for the white fill, and set the blue field to 15° (not 0°) to reduce aggressive push/pull on the curved cap front.
  • Set the red Tatami fill stitch angle to 45° and keep start/stop points intentional for smooth sew direction.
  • Duplicate and mirror the white fill so the angle becomes 135° to balance tension.
  • Change the blue field angle to 15° to avoid the vertical 0° pull that commonly creates an “hourglass” gap.
  • Success check: The blue field stays straight (no pinched waist), and no fabric color shows between color blocks.
  • If it still fails: Slow the machine down to 600–700 SPM and verify the cap is clamped tightly in the driver.
• Q: What Wilcom density settings are a safe starting point for a Texas Flag Tatami fill on structured caps using 40 wt polyester thread?
  A: A safe beginner starting point is 0.40 mm spacing (density) with 4.0 mm stitch length for the Tatami fills, paired with Edge Run + Tatami 90° underlay.
  • Set both red and white fills to 0.40 mm spacing to reduce fabric chopping or visible gaps.
  • Keep stitch length at 4.0 mm as shown, and avoid “tightening up” until the stitch-out is proven.
  • Apply Edge Run + Tatami 90° underlay under the Tatami fills for support.
  • Success check: The fill looks solid without cutting into the cap fabric or showing consistent light gaps.
  • If it still fails: Confirm the cap backing choice and hooping tension before changing density tighter.
• Q: In Wilcom star digitizing for cap embroidery, why should a small center gap be left in the satin star to avoid a hard knot?
  A: Leaving a tiny center gap prevents stitch pile-up so the star center stitches “breathe” and sew flat instead of forming a hard pebble-like knot.
  • Digitize the star points in a logical order to reduce unnecessary travel stitches.
  • Avoid forcing all points to meet at a perfect mathematical center; leave a microscopic opening.
  • Let normal thread buildup naturally fill the gap during stitching.
  • Success check: Rub a thumb over the stitched star center— it should feel smooth, not like a hard bump.
  • If it still fails: Re-check the star’s center geometry and reduce overlap at the exact center point.
• Q: For cap embroidery push/pull compensation in Wilcom, how should Texas Flag shapes be reshaped to eliminate gaps between the blue field and stripes?
  A: Intentionally overlap shapes using the Reshape Tool so the red/white areas sit slightly under the blue field and outer edges are extended, even if the screen preview looks “messy.”
  • Use the Reshape Tool (H) to move nodes so the red and white borders extend underneath the blue field.
  • Extend the outer edges slightly outward to counter pull-in during stitching.
  • Accept that “perfect on screen” often means gaps on the cap due to push/pull.
  • Success check: The stitch-out shows no visible hat fabric between the blue field and the stripes.
  • If it still fails: Verify hooping stability and reduce sewing speed; then refine overlap incrementally.
• Q: What safety rules should be followed when test-stitching structured caps on a multi-needle embroidery machine to reduce needle injury risk?
  A: Keep hands clear of the needle bar and never reach under the presser foot while stitching, because broken needles on stiff buckram can shatter and fly.
  • Keep fingers away from the needle area during stitching and during any test runs.
  • Stop the machine fully before adjusting the cap, thread path, or cap frame position.
  • Run a trace first to confirm the needle bar clears the bill of the cap.
  • Success check: The design traces without contacting the bill, and hands stay outside the needle zone at all times.
  • If it still fails: Reposition the cap in the driver/frame and re-run trace before stitching at speed.
• Q: For high-production cap embroidery with repeated registration issues, what is the step-by-step upgrade path from technique fixes to magnetic hoops and then to a multi-needle SEWTECH machine?
  A: Fix the digitized file first, then improve hooping consistency with magnetic hoops/stations if needed, and only then scale capacity with a multi-needle SEWTECH machine when color-change time becomes the bottleneck.
  • Apply Level 1: Correct angles, underlay, density, and deliberate overlap so the file compensates for cap push/pull.
  • Apply Level 2: Upgrade hooping consistency with magnetic hoops or a hooping station if manual hooping variance causes shifting.
  • Apply Level 3: Upgrade to a multi-needle SEWTECH machine when single-needle color changes and frequent stops limit throughput.
  • Success check: The process runs with fewer stops (less re-hooping, fewer gaps) and repeat orders match the first approved sample.
  • If it still fails: Audit the cap frame/driver grip on the sweatband and reduce speed to 600–700 SPM for structured hats.
