New brothread 4-in-1 Hoops on a Brother PE-770: Hoop Sizes, Split-Hoop Alignment, and the “Clicks-Right” Mounting Test

The Ultimate Guide to Hooping for the Brother PE-770: From Unboxing to Production-Ready Precision

Author: Chief Embroidery Education Officer | Read Time: 12 Minutes

If you’ve ever stared at your Brother PE-770 and thought, “Why does hooping feel like the hardest part of embroidery?”, you’re not alone. I have spent twenty years on factory floors and in home studios, and I can tell you this: Hooping is deceptively simple. It looks like two rings and a screw, but it is actually a complex interaction of tension, friction, and physics. It is the single point of failure that can steal your time, ruin your patience, and destroy perfectly good garments.

This creates a high level of cognitive friction for beginners. You fear the "hoop burn," you fear the pucker, and you fear the needle break.

This post completely rebuilds the standard unboxing lesson for the New brothread 4-in-1 hoop set. We aren't just looking at plastic rings; we are building a production-grade workflow that keeps you from buying the right kit but still ending up with slipping rings, crooked placement, or wasted stabilizer.

What’s Actually in the New brothread 4-in-1 Hoop Set (and what to check before you toss the packaging)

The set is presented as a replacement or “extra hoop” bundle for Brother embroidery machines, and the core value is simple: you get four hoop sizes in one box, plus alignment templates and a small storage accessory. But as an expert, I see this differently. I see a variable tension system that allows you to match the physics of the hoop to the physics of your fabric.

In the box, you’ll see four beige plastic hoops nested together, wrapped in plastic film. The presenter cuts the zip tie and removes the protective wrap so each hoop can be separated and identified.

Here’s what’s included:

• Four hoop sizes: 1" x 2.5" (SA437), 4" x 4" (SA438), 5" x 7" (SA439), and 6" x 10" multi-position (SA441).
• Clear grid templates for hoop alignment (essential for visual registration).
• A blue hoop storage hanger/organizer.
• Stabilizer sheets: medium-weight cutaway and lightweight tearaway (1.8 oz), each in 12" x 10" sheets.
• An instruction/care manual and a customer care card.

The "Hidden Consumables" You Need to Add: New embroidery enthusiasts often miss the invisible tools that make these hoops work. Before you start, ensure you also have:

1. Temporary Spray Adhesive (e.g., ODIF 505): To float fabric or secure stabilizer.
2. Water-Soluble Pen: For marking center points on the fabric.
3. Lint Roller: To clean the hoop itself (plastic debris reduces friction).

The "Finger Test" (Crucial Quality Control): One practical note from a production standpoint: before you file the box away, run your finger along the inner edge of the inner ring and the outer edge of the outer ring. You are feeling for burrs or rough molding lines.

• Sensory Check: It should feel smooth like glass.
• The Risk: Even a microscopic rough spot can snag delicate satin or leave a "drag line" on performance wear. If you feel a snag, gently buff it with a high-grit nail file.

SA437–SA441 Hoop Sizes on Brother PE-770: pick the hoop that matches the job, not your mood

The video identifies the set as the SA437/SA438/SA439/SA441 style bundle. It is helpful to think of these hoops as "physics containers." The larger the hoop, the more the fabric can "trampoline" (bounce) during stitching, which causes registration errors.

• Small 1" x 2.5": High tension, low movement. Great for tiny monograms, cuffs, and rigid placements.
• Medium 4" x 4": The everyday workhorse. Provides excellent stability for 3.5" designs.
• Large 5" x 7": The sweet spot for left-chest logos.
• Extra Large 6" x 10" multi-position: This is a specialized tool for oversized designs on a limited-field machine.

If you’re searching specifically for a brother 5x7 hoop, treat it as your default hoop for learning placement and hooping technique. Why? Because it gives you enough working area to see alignment errors early—without the extra complexity of multi-position stitching.

The 6x10 Multi-Position “Split Hoop” Trick: how the inner box and grid marks keep big designs from drifting

The presenter highlights what makes the 6x10 hoop special: the grid template and the “inner box” markings. This often confuses beginners because the PE-770 cannot stitch 10 inches in one continuous pass.

The key idea shown in the video is that you can use split hoop design patterns (generally built around a 5x7 field) and make them work on smaller machines by stitching the design in sections—using the hoop’s registration marks to re-hoop or re-position accurately.

From an experienced operator’s perspective, here’s the “why” behind those marks:

• The Enemy: Cumulative Placement Error. A 1mm shift in section A becomes a 3mm gap by section C.
• The Solution: The grid template gives you a repeatable reference so you’re not eyeballing centerlines.

Pro Tip (The "Air Stitch" Test): Before stitching a split design on a real garment, run the machine without thread (or with the needle removed) over your hoop with paper clamped in it. Watch where the needle drops for the "alignment crosses." This visual confirmation builds confidence before you risk an expensive jacket.

The “Hidden” Prep: stabilizer choices, sheet handling, and why hoop tension is really a physics problem

The kit includes both cutaway and tearaway stabilizer sheets, and the presenter shows the labeling/texture and counts.

What the video demonstrates clearly:

• Cutaway stabilizer (medium weight): three sheets, 12" x 10".
• Tearaway stabilizer (lightweight 1.8 oz): three sheets, 12" x 10".

Here is the expert layer that prevents beginner frustration: hooping isn’t just “tighten the screw.” Hooping is controlled friction.

• The Physics: You are sandwiching fabric between two slick plastic rings.
• The Goal: You want the fabric to be "Taut, not Stretched."
• Sensory Anchor: Tap the hooped stabilizer. It should sound like a dull drum—thump, thump. It should not sound high-pitched (too tight, stretching fibers) or floppy (too loose, puckering imminent).

Stabilizer Decision Tree (Simple, Reliable, and Safe)

Beginners often over-complicate this. Use this production-standard logic flow. When in doubt, choose the path of most stability (Cutaway).

Decision Tree:

1. Does the fabric stretch? (T-shirts, hoodies, knits, jersey)
   • Yes → STOP. You MUST use Cutaway. Tearaway will result in broken stitches and gaps.
   • No → Go to step 2.
2. Is the design dense (high stitch count, >8,000 stitches)?
   • Yes → Cutaway (or two layers of Tearaway, but Cutaway is safer).
   • No → Go to step 3.
3. Will the item be washed frequently (Baby clothes, towels)?
   • Yes → Cutaway (holds the design shape over time).
   • No (Wall art, decorative bags) → Tearaway is acceptable.

If you’re building a repeatable workflow for hooping for embroidery machine, write your stabilizer choice on a small card and keep it with the design file notes. That one habit prevents “mystery failures” months later.

Prep Checklist (Do this before you even loosen the hoop screw)

• Hoop Match: Confirm hoop size matches design field (don't force a 3.9" design into a 4x4 hoop if you have a 5x7; give it breathing room).
• Safety Check: Inspect hoop rings for cracks or hairline fractures near the screw mechanism.
• Cleanliness: Lint roll the inside of the outer hoop and outside of the inner hoop (dust reduces grip).
• Tool Readiness: Have scissors and your grid template within arm's reach.

The blue hoop hanger organizer: a small accessory that saves real time in a busy sewing room

The presenter demonstrates the included blue hanger: it wraps around the stacked hoops and threads through a slit to form a loop.

In the video, it’s suggested you can hang it on a wall screw or a slat board peg. That’s not just “nice”—it’s workflow engineering.

From a studio efficiency standpoint, the biggest time leak is not stitching; it’s searching. If your hoops live in a drawer, you’ll waste minutes per job tangling/untangling them. If you hang them by size, you’ll grab the right hoop on autopilot.

If you’re scaling up and you find yourself wishing for a dedicated hooping station, that’s usually your signal that hooping has become a bottleneck—not a hobby step. A standardized station implies you are ready for volume.

The screw-hoop routine on a 5x7 hoop: the flush-fit test that prevents slipping and crooked stabilizer

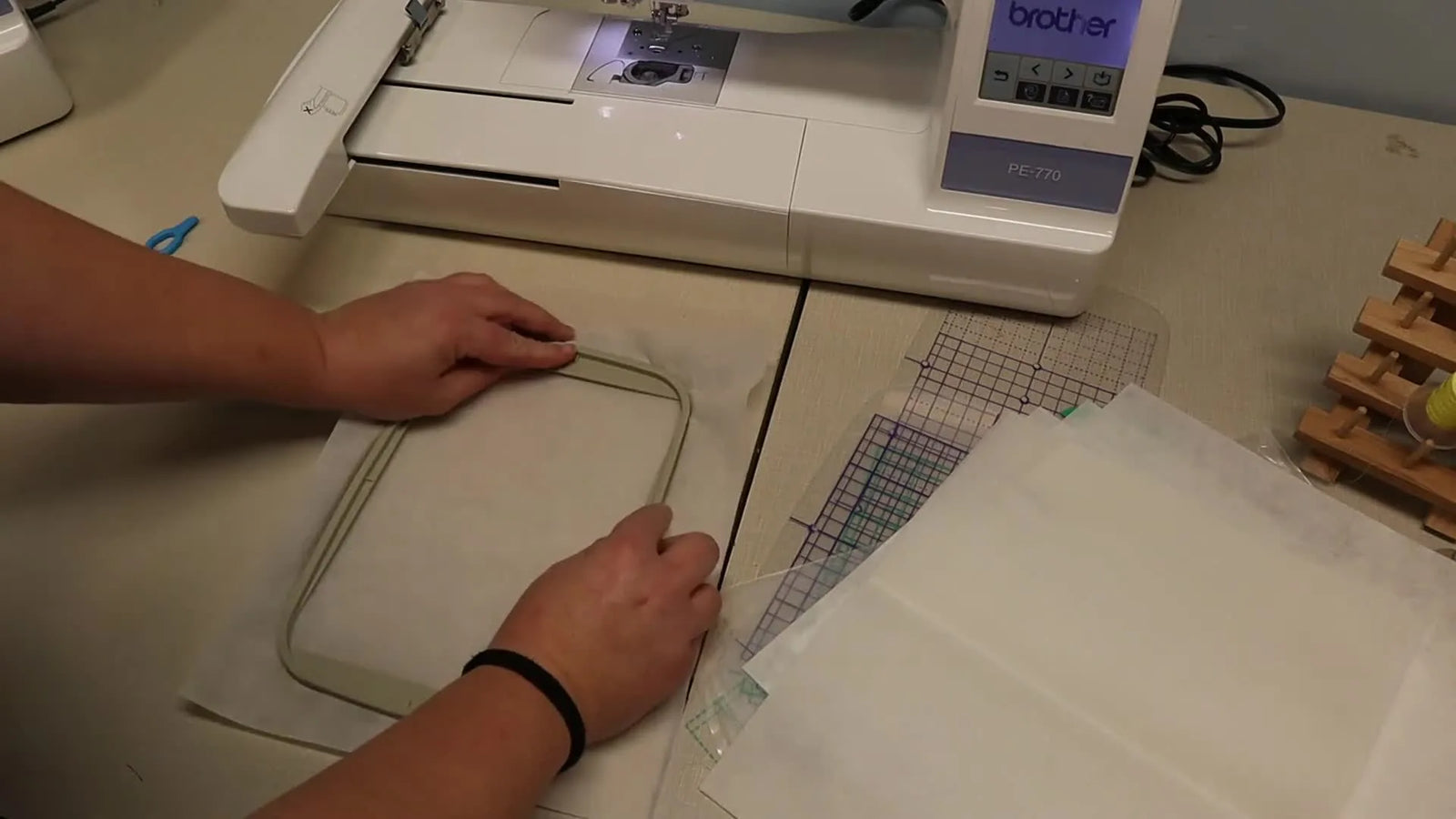

The video’s hands-on demo uses the 5x7 hoop. The presenter loosens the screw, removes the inner ring, places stabilizer, presses the inner ring back in, then tightens the screw.

This is where 90% of beginners fail. They either "muscle" the hoop (damaging the fabric) or leave it too loose (causing shifts).

The "Goldilocks" Protocol:

1. The "Pre-Loosen" Move: Loosen the outer ring screw until the inner ring can lift out with zero resistance.
   • Sensory Check: The outer ring should feel floppy.
2. The Sandwich: Lay your stabilizer (and fabric) over the outer ring. Ensure it overlaps all edges by at least 1 inch.
3. The "Finger Press" (Crucial):
   • Do NOT push the inner ring straight down.
   • Insert the top edge (opposite the screw) first.
   • Gently press the sides, moving toward the screw mechanism last.
   • Sensory Anchor: You should feel the fabric pulling slightly taut as the ring seats.
4. The "Tactile Check": Run your hand over the hooped area. It should feel smooth. Run your finger along the seam between the inner and outer hoop.
   • Success Metric: The inner ring should protrude slightly (pop up) above the outer ring (about 1mm). This ensures the fabric is gripping the bottom edge of the hoop, usually providing better hold on standard Brother hoops.
5. The Final Torque: Tighten the screw.
   • Warning: Do not use a screwdriver unless you have weak hand strength. Over-tightening with tools can crack the plastic header. Finger-tight plus one quarter-turn is usually the Sweet Spot.

Warning: Mechanical Safety. Keep fingers away from the pinch point where the inner and outer rings meet. If the hoop snaps shut suddenly, it can pinch skin painfully. Never force a hoop that feels misaligned.

Troubleshooting: “My inner ring slides down into the outer hoop—does it push straight through?”

A common worry (and it showed up in the comments) is the feeling that the inner ring is dropping too easily or “sliding” instead of seating.

Here’s how I diagnose that in the real world:

• Scenario A (Too Loose): If the inner ring drops in with almost no resistance, your screw was too loose to begin with. The fabric will slip.
• Scenario B (Too Tight): If you have to stand up and put your weight on it to get it to pop in, the screw is too tight. You risk "Hoop Burn" (crushing the fabric fibers permanently).

The "Hoop Burn" Dilemma and the Upgrade Path

If you are struggling with "Hoop Burn" on delicate fabrics (velvet, performance wear) or find your wrists aching from repetitive tightening, this is a hardware limitation, not a skill failure.

This is the moment many professionals transition to Magnetic Hoops.

• The Trigger: You are doing a run of 20+ polos and your hands hurt, or the rings are leaving marks.
• The Solution: A magnetic hoop for brother pe770 uses flat force rather than friction pinch. This eliminates hoop burn and speeds up the process significantly.
• Brand Note: SEWTECH offers high-quality magnetic frames compatible with Brother machines that fill this exact gap between hobbyist struggles and industrial ease.

Mounting the hoop on the Brother PE-770 carriage: the “slide, align, click” sequence that keeps you from fighting the machine

Once the stabilizer is hooped, the presenter brings it to the machine, slides it under the needle area, aligns the connector slots with the carriage pins, and presses down until it locks.

This is the part where people get nervous because it feels like you’re pushing plastic near expensive parts.

Use this sequence:

1. Lift the Presser Foot: Ensure it is in the "Extra High" position if possible.
2. Slide: Slide the hoop under the needle hub.
3. Align: Match the hoop connector slots with the carriage arm pins.
4. The Latch: Press down firmly on the connection mechanism.
   • Auditory Anchor: You must hear a sharp CLICK. If you don't hear the click, the machine will not recognize the hoop area, or (worse) the hoop will eject mid-stitch.

Setup Checklist (Pre-Flight)

• The Click: Confirmed audible lock on the carriage.
• Clearance: Move the hoop around manually (if machine allows) or check visually to ensure the hoop edges won't hit the machine arm or wall.
• Tail Management: Ensure the thread tail is not trapped under the hoop.
• Obstruction: Ensure no excess fabric is bunched under the hoop (this stitches the shirt to itself—a classic rookie mistake!).

Removing the hoop safely: the release lever habit that prevents broken tabs

The video shows removal clearly: pull back/depress the release lever on the carriage arm while lifting the hoop upward to disengage.

Two small habits make this smoother and save you $50 in broken parts:

• Thumb Discipline: Use your thumb to fully engage/depress the release lever before you start lifting.
• Vertical Lift: Lift straight up just an inch, then slide out. Do not twist. Do not yank. The carriage pins are metal; the hoop slots are plastic. Plastic loses that fight every time.

The “Why it works” layer: hoop tension, distortion, and how to avoid hoop burn and registration drift

Even though the video demonstrates hooping stabilizer, the same mechanics apply to fabric. The #1 enemy of embroidery is Movement.

If your system is missing one of these, you will fail:

1. Stabilizer: The foundation (Choice of Cutaway vs Tearaway).
2. Friction: The hoop holding the fabric (Standard Hoop vs Magnetic).
3. Adhesion: The bond between fabric and stabilizer (Spray adhesive).

When you start doing repeat orders, the conversation shifts from “Can I make it work?” to “How fast can I make it consistent?” That’s the heart of commercial scalability.

When it’s time to upgrade: screw hoops vs magnetic hoops (and how to choose without wasting money)

The New brothread set is a practical way to add sizes and learn alignment. It is the "University Level" of learning.

But if your pain points are any of these:

• Pain: Your hands/wrists get sore from tightening screws (Carpal Tunnel is real in this industry).
• Quality: You’re seeing glossy rings (hoop burn) on dark fabrics.
• Speed: You are re-hooping too slow to make a profit.

…then it’s reasonable to consider magnetic hoops for brother pe770 as a workflow upgrade.

Here’s the “Scene Trigger + Decision Standard + Options” way I recommend thinking about it:

• Scene Trigger: You have an order for 50 left-chest logos on polo shirts.
• Decision Standard: Standard hooping takes 2 mins/shirt. Magnetic hooping takes 30 seconds/shirt. That is 75 minutes saved on one job.
• Options:
  • Level 1: Master the manual hoops (Cost: $0, Time: High).
  • Level 2: Upgrade to SEWTECH Magnetic Hoops (Cost: Moderate, Time: Low, Quality: High).
  • Level 3: Production scaling. Only when you are constantly maxing out your single-needle speed (650 SPM) should you look at SEWTECH Multi-Needle machines (1000+ SPM).

Warning: Magnetic Force Safety. Magnetic hoops use strong industrial neodymium magnets.
* Health: Keep them away from pacemakers and implanted medical devices (ICD).
* Pinch Hazard: They snap together instantly. Do not leave fingers between the frames.
* Electronics: Keep away from credit cards and machine screens.

“Where can I get them?” and the smarter buying checklist

A comment asked where to buy the hoops; the video notes the set can be purchased on Amazon.

Before you buy any hoop set—especially if you’re shopping quickly—use this checklist used by sourcing managers:

• Model Match: Confirm your machine model (Brother PE-770, PE-800, SE-1900 usually share the same connector style, SA444/SA445).
• Arm Style: Check the connector slots on the listing photos against your current hoop.
• Template Inclusion: Ensure the set includes the plastic grid templates. Buying them separately is a nightmare.
• Workflow Need: Do you need extra hoops to "Pre-Hoop" the next garment while the first one stitches? (This doubles your efficiency).

If your long-term goal is smoother workflow, consider building a simple hooping area: a flat surface, consistent lighting, and a place to store hoops by size. Many people search for a hooping station for embroidery machine after they realize the machine isn’t the bottleneck—the hooping is.

Final Operation Checklist (Post-Stitch)

• Release: Lever fully engaged before lifting.
• Inspect: Check hoop connector slots for whitening (stress marks)—replace if seen.
• Store: Use the blue hanger immediately. Do not stack heavy objects on hoops.
• Record: Note on your design sheet: "Used 5x7 Hoop + 1 Sheet Cutaway + 505 Spray." Future you will thank present you.


If you master the “flush-fit” hooping feel, the auditory “click” of the carriage, and the discipline of stabilizer selection, you’ll eliminate 95% of beginner problems. From there, the best upgrades aren’t about fancy gadgets—they’re about removing the friction, whether that’s upgrading to magnetic frames or simply organizing your workspace.

FAQ

• Q: What extra supplies are required to hoop cleanly with the New brothread SA437/SA438/SA439/SA441 hoop set on a Brother PE-770?
  A: Add temporary spray adhesive, a water-soluble marking pen, and a lint roller before the first hooping session.
  • Use temporary spray adhesive to secure stabilizer/fabric when needed (especially if floating).
  • Mark center points with a water-soluble pen before hooping to prevent crooked placement.
  • Lint-roll the hoop contact surfaces to restore grip (dust/plastic debris reduces friction).
  • Success check: The fabric/stabilizer holds tension without shifting when you lightly rub a finger across the hooped area.
  • If it still fails: Do the hoop “finger test” for burrs on the hoop edges and gently buff any rough spot with a high-grit nail file.
• Q: How can Brother PE-770 users check New brothread plastic hoops for burrs that can snag fabric or cause drag lines?
  A: Run a finger along the inner and outer ring edges and remove any snag points before hooping delicate fabric.
  • Slide a fingertip slowly along the inner edge of the inner ring and the outer edge of the outer ring.
  • Stop if anything feels rough or catches—this is a common cause of snags on satin/performance wear.
  • Buff the spot lightly with a high-grit nail file until it feels smooth.
  • Success check: The edge feels “glass smooth” with no catching when you repeat the finger pass.
  • If it still fails: Avoid hooping delicate fabric directly and test on scrap first to confirm the ring is not marking.
• Q: How tight should Brother PE-770 hooping be on a 5x7 screw hoop to prevent puckering without causing hoop burn?
  A: Aim for “taut, not stretched,” then tighten finger-tight plus about a quarter-turn.
  • Loosen the screw first until the inner ring lifts out with zero resistance.
  • Seat the inner ring by inserting the top edge first, then press sides, and press near the screw last.
  • Tighten by hand (avoid a screwdriver unless hand strength is limited).
  • Success check: Tap the hooped area—it should sound like a dull drum “thump, thump,” and the inner ring should sit slightly proud (about 1 mm) above the outer ring.
  • If it still fails: Switch to cutaway stabilizer for more support and consider a magnetic hoop if hoop burn or wrist pain is recurring.
• Q: Why does the inner ring on a Brother PE-770 5x7 screw hoop feel like it “slides down” too easily, and how can Brother PE-770 users fix it?
  A: The screw was usually loosened too far (too little friction) or left too tight (forcing the ring), so reset the screw and re-seat the ring in a controlled sequence.
  • Re-loosen until the outer ring feels floppy, then place stabilizer/fabric with at least 1 inch overlap around the hoop.
  • Insert the inner ring starting opposite the screw, then press sides, and press near the screw last.
  • Tighten to finger-tight plus a quarter-turn—do not “muscle” it.
  • Success check: The fabric does not creep when you lightly tug near the hoop edge, and the surface stays smooth.
  • If it still fails: Inspect for cracks/whitening near the screw area or loss of grip from lint; replace the hoop if stress marks are visible.
• Q: What is the correct “slide, align, click” method to mount a Brother PE-770 embroidery hoop so the hoop does not eject mid-stitch?
  A: Slide the hoop under the needle area, align connector slots with the carriage pins, and press until an audible click locks it in.
  • Lift the presser foot to the extra-high position if possible before inserting the hoop.
  • Align the hoop connector slots carefully with the carriage arm pins (don’t force it at an angle).
  • Press down firmly on the connection mechanism until it clicks.
  • Success check: You clearly hear a sharp “CLICK,” and the hoop sits flat without wobble.
  • If it still fails: Remove and re-mount without twisting; also check that bulky fabric is not bunched under the hoop and preventing a full latch.
• Q: How can Brother PE-770 users remove an embroidery hoop without breaking the plastic connector tabs?
  A: Fully engage the release lever first, then lift straight up slightly and slide out—do not twist or yank.
  • Press/pull the carriage release lever with your thumb until it is fully disengaged.
  • Lift the hoop vertically about an inch, then slide it out smoothly.
  • Keep the hoop level to avoid levering the plastic slots against the metal pins.
  • Success check: The hoop releases smoothly with no whitening/stress marks around the connector slots.
  • If it still fails: Stop forcing—re-engage the lever fully and check for any jammed fabric or misalignment at the connector.
• Q: When should Brother PE-770 users upgrade from standard screw hoops to a magnetic hoop to reduce hoop burn and speed up repeat orders?
  A: Upgrade when hoop burn, wrist/hand pain, or slow re-hooping becomes the consistent bottleneck, not an occasional annoyance.
  • Level 1 (Technique): Improve seating order, tension (“taut not stretched”), and stabilizer choice first.
  • Level 2 (Tool): Use a magnetic hoop when repeated tightening causes hoop marks or sore wrists, or when re-hooping speed limits output.
  • Level 3 (Capacity): Consider a multi-needle machine only after single-needle speed and repeated hooping are clearly limiting production.
  • Success check: Re-hooping time drops noticeably and fabric shows fewer ring marks while maintaining stable registration.
  • If it still fails: Re-check stabilizer choice (cutaway is the safe starting point on stretch fabrics) and confirm the hoop is fully latched with a clear click.
• Q: What magnetic hoop safety rules should Brother PE-770 users follow to avoid pinch injuries and medical-device risks?
  A: Treat magnetic hoops as industrial-strength magnets: keep fingers clear, keep away from pacemakers/ICDs, and store away from sensitive items.
  • Keep hands and fingers out of the closing gap—the frames can snap together instantly.
  • Keep magnetic hoops away from pacemakers or implanted medical devices (ICD); follow medical guidance and the machine manual.
  • Keep magnets away from credit cards and electronics/screens during storage and handling.
  • Success check: Frames are brought together in a controlled way with no sudden snapping onto fingers, and the work area stays clear of sensitive items.
  • If it still fails: Switch to slower, two-handed handling and set the frames down flat before aligning—do not “hover-close” them in the air.
