Net Fill in Creative DRAWings That Actually Holds Together: The Cutwork-Style Sequence, Offsets, and Hooping Moves That Prevent Blowouts

Master Class: The Complete Guide to Net Fill & Cutwork in Creative DRAWings

Net fill—often used for the "open work" effect in classic cutwork or Richelieu embroidery—looks deceptively simple on a computer screen. It is just a grid, right?

But in the physical world of needles and thread, net fill is an engineering challenge. You are literally cutting a hole in your fabric’s structural integrity and asking thread to bridge that void. If you get the parameters wrong, the grid collapses, the raw edges fray into a mess, or—worst of all—the machine keeps sewing while you frantically try to trim the fabric, resulting in a ruined garment.

This guide takes the solid workflow from Creative DRAWings and injects 20 years of production flloor reality. We will move beyond "clicking buttons" to understanding the physics of tension, offset, and stabilization.

The Calm-Down Primer: Net Fill Cutwork Is 80% Stitch Order, 20% “Magic”

If you have ever attempted this and the net “disappeared” or pulled away from the edge, do not blame yourself. Digital tutorials often skip the tactile reality of fabric distortion.

To succeed, you must understand that you are building a structural sandwich in a specific order. Two non-negotiable rules govern whether your design holds together:

1. The Hard Stop: The machine must stop exactly when the cut guide is finished. If it doesn't, you cannot trim the fabric.
2. The Anchor Bite: The net fill must extend past the cut edge (the Offset) to bite into solid fabric. If it stops exactly at the cut line, it is sewing into thin air.

This design is not one object; it is a sequence of three layers plus a border.

The “Hidden” Prep Before Creative DRAWings: Fabric, Stabilizer, and a Reality Check on Handling

The Creative DRAWings wizard asks for "Fabric Type." Selecting Cotton isn't just a label; it tells the software to apply specific pull compensation (usually adding about 0.2mm - 0.4mm to stitch width).

However, the software cannot select your physical tools. Cutwork is a "high-risk" maneuver because you must manipulate the hoop mid-stitch.

The "Hidden" Consumables List

Beginners often focus on thread and fabric, but these tools are the difference between success and frustration:

• Curved Appliqué Scissors (Duckbill): Essential for trimming fabric close to stitches without snipping the threads.
• Water-Soluble Stabilizer (WSS): Use a heavy fibrous type (like Vilene) rather than a thin film (Solvy), as it needs to support the net structure.
• New Needle: Use a 75/11 Sharp (not Ballpoint). You need crisp penetration to keep the edge clean.
• Spray Adhesive (Temporary): To hold the WSS in place during the "patch" phase.

Prep Checklist: The "Pre-Flight" Safety Check

• Hoop Tightness: The fabric must sound like a drum when tapped. Any slack will cause the net to sag.
• Tool Access: Place your curved scissors exactly where you can reach them without twisting your body.
• Stabilizer Patch: Pre-cut your water-soluble stabilizer 1 inch larger than the intended hole on all sides.
• Hoop Hygiene: If you are using a standard plastic hoop, check the inner ring for residue. For production runs, many professionals switch to a magnetic embroidery hoop to prevent "hoop burn" (the shiny ring marks left on fabric) during the clamping and unclamping process.
• The "One-Off" Rule: Decide now—are you making one gift or 50 uniforms? Repeat work requires a different setup for efficiency.

Warning: Mechanical Hazard. The trim-out step happens inches from the needle bar. Always remove the hoop from the machine to trim. If your machine allows trimming while attached, Power Down or engage "Lock Mode." A foot pedal slip while your fingers are inside the hoop can result in severe injury.

Set Up the Creative DRAWings New Graphic So Density Behaves: Hoop Size + Cotton + Embroidery Normal

We start by calibrating the software's physics engine.

1. Open New Document > New Graphic.
2. Select your Hoop Size.
3. Crucial: Set Style to Embroidery Normal.
4. Crucial: Set Fabric to Cotton. This preset adjusts the underlay density. If you choose "Silk" or "Terry Towel," the software might add too much bulk or too little structure for this specific technique.


Draw the Base Shape with the Create Shape Tool (Ellipse) Without Fighting the UI

We will use a circle for this master class, as it has consistent tension in all directions (X and Y axis).

1. Locate Create Shape on the left toolbar.
2. Long-Click the small arrow to reveal the fly-out menu.
3. Select Ellipse.
4. Hold Ctrl (Windows) or Cmd (Mac) while dragging to create a perfect circle.
5. Center it in the workspace.


Build the Green Cut Line: Remove Fill, Set Outline Color, Then Force a 0.6 mm Double Stitch

This is not a decorative outline; it is a structural retaining wall.

1. Select the shape.
2. Object Properties: Set Fill to None.
3. Palette: Right-click a Green thread relative to your background to set the outline color.
4. Tool Options: Set outline width to 0.6 mm.
5. Stitch Type: Verify it is set to Double Stitch (Run stitch back and forth).

Why 0.6 mm? A standard running stitch is too thin to trim against. A 0.6 mm double run creates a palpable "ridge." When you run your scissors along this ridge, it acts as a physical guide, preventing you from cutting the fabric too short.

Force a Real Machine Stop: Duplicate the Cut Line and Change the Second Outline to Magenta

Embroidery machines do not have a "Stop for Cutting" command in standard DST/PES files; they simple stop when the color changes. You must hack this into the design.

1. Duplicate the green outline (Copy/Paste).
2. Change the color of this new outline to Magenta.

The Logic Sequence:

1. Green: Stitches the guide. Machine Stops (Color Change).
   • Action: You remove hoop, trim fabric inside the green line, apply WSS patch.
2. Magenta: Stitches the WSS and fabric together.
   • Action: This locks the "sandwich" before the net begins.

Expected Outcome: Sequence Manager shows [Green Object] -> [Magenta Object].

Setup Checklist: The "Stop" Verification

• Visual Check: Do you see two distinct colors in the object list?
• Object Type: Are both lines set to "Double Stitch"? (Satin is too bulky at this stage).
• Mental Rehearsal: Visualize the moment the machine stops. If you are doing bulk orders, this stop is your biggest bottleneck. Using a repositionable embroidery hoop or magnetic system can speed up the "remove-trim-return" cycle by ensuring the hoop snaps back into the exact same position without force.

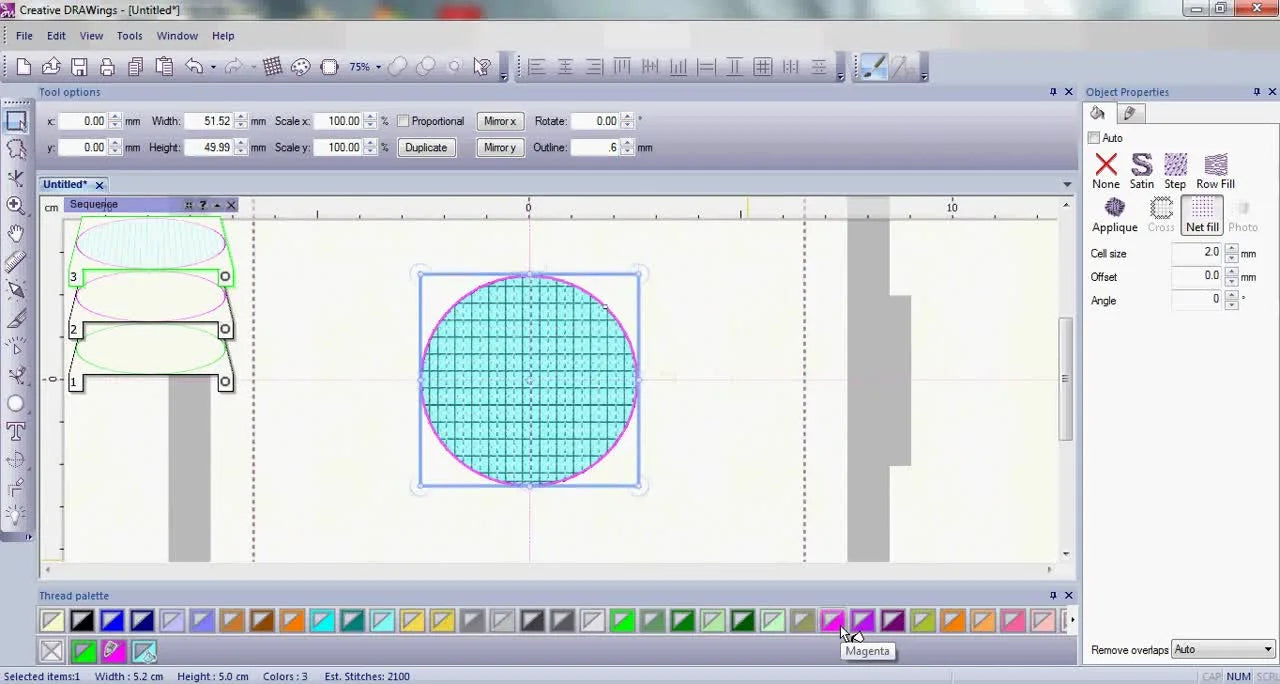

Add the Net Fill Layer (Magenta) So It Sews Right After Tack-Down—No Extra Stop

Now we create the net. Efficiency dictates that we do not want the machine to stop between tacking down the stabilizer and potential netting.

1. Duplicate the shape a third time.
2. Object Properties: Set Fill to Net Fill.
3. Color: Keep it Magenta.

Why No Color Change? Since the previous step (Tack-down) was Magenta, the machine will flow instantly from the tack-down stitch into the net fill. This reduces the chance of the hoop vibrating or shifting during a stop/start cycle.

The 1.5 mm Offset That Saves the Design: Make Net Fill Bite Into Fabric Instead of Falling Into the Void

Expert Alert: This is the most common point of failure.

In the default setting, the net fill stops exactly where the outline is. Because fabric relaxes when cut, the hole often becomes 0.5mm larger than the stitches. The result? A net that is not attached to anything.

1. Open Net Fill Properties.
2. Find Offset.
3. Enter -1.5 mm (or 1.5mm depending on how your specific software version handles the direction—look for the preview to expand outward).

The Sweet Spot Data:

• 0.0 mm: High Failure Rate. Net detaches.
• 1.5 mm: The Sweet Spot. The net overlaps solid fabric, sandwiched between the tack-down line and the final satin border.
• 3.0 mm+: Dangerous. The net might poke out from under the final satin border, looking messy.


Finish Like You Mean It: Satin Serial Border at 3.5 mm to Cover the Cut Edge and Net Edge

The final step is the "cleanup crew." The satin border must hide the cut raw edge of the fabric and the anchor points of the net.

1. Duplicate the shape one last time (or select the outline of the net object if converting).
2. Convert stitch type to Satin Serial.
3. Set Width to 3.5 mm.

The Math of Coverage: With a 3.5 mm satin column:

• The center is at 0.
• It extends 1.75 mm inward and 1.75 mm outward.
• Since our Net Offset was 1.5 mm, the Satin completely covers the net's anchor points with 0.25 mm to spare. Perfect concealment.


Slow Redraw Is Your Insurance Policy: Verify the Exact Stitching Sequence Before You Export

Never export without simulation. We are looking for the "Logic Check."

1. Activate Slow Redraw.
2. Watch the sequence:
   • Phase 1: Green Line -> STOP.
   • Phase 2: Magenta Tack-down -> Magenta Net -> STOP (Wait for color change).
   • Phase 3: Satin Border (Select a 3rd color like Blue or Black to ensure a stop if needed for thread change, or keep Magenta if you want a monotone look).

Visual Success Metric: You should see the Green line stitch completely, then a pause, then the Magenta line stitches on top of the Green, followed immediately by the Net. Finally, the bulky Satin eats everything underneath it.

The In-Hoop Handling Moves That Prevent Shifting (and Why Hooping Matters More Than People Admit)

The tutorial shows the software, but your hands do the work. The "Trim-Out" phase requires you to pop the hoop off the machine (or slide the pantograph out).

The Risk: Every time you unlock the hoop, you introduce torque. If you push the inner ring even 1mm, your final Satin Stitch will be off-center, exposing the raw cut fabric (a defect called "gapping").

The Solution Ladder:

1. Level 1 (Technique): Use a table to support the hoop while trimming. Do not trim in mid-air.
2. Level 2 (Workflow): Use a hooping station for embroidery machine or a dedicated embroidery hooping station to ensure your initial hoop is perfectly square.
3. Level 3 (Hardware Upgrade): For cutwork, embroidery hoops magnetic are superior. Unlike screw-tension hoops which require force to clip in, magnetic hoops snap gently. This reduces the "shimmy" that happens during re-attachment.

Warning: Magnetic Safety. If you upgrade to a magnetic hooping station or hoops, be aware they use industrial-strength neodymium magnets. Keep them away from pacemakers, computerized machine screens, and credit cards. Watch your fingers—the "snap" can cause painful pinched blood blisters.

A Quick Decision Tree: Choosing Stabilizer Strategy for Net Fill (Cotton vs. “That Weird Fabric”)

Not all fabrics behave like the cotton in the tutorial. Use this logic to adapt.

Condition: What are you stitching on?

• Standard Cotton / Broadcloth:
  • Recommended: Cutaway on back (framed) + WSS patch for the window.
  • Offset: 1.5 mm.
• T-Shirt Knit / Stretchy Performance:
  • Risk: The hole will stretch and deform into an oval.
  • Adjustment: Bond a fusible interlining to the back of the knit before hooping. Use sticky stabilizer.
  • Offset: Increase to 2.0 mm for safety.
• Terry Cloth / Towel:
  • Risk: Loops poke through the satin; net gets lost in the pile.
  • Adjustment: Use a heavy water-soluble topper and bottom. The tack-down stitch must range slightly wider to mat down the loops.
• Sheer / Delicate Fabrics:
  • Risk: The "pull" of the net tears the fabric.
  • Adjustment: Lower the density of the Net Fill. Reduce hoop tension slightly to avoid drum-tight tearing.

Comment-Driven Pro Tips: The Questions People Ask Every Time (and the Practical Answers)

"Is it done the same way on a towel with a name?" Yes, the sequence (Cut -> Tack -> Net -> Satin) is identical. However, for a towel, you are fighting "loft" (fluffiness). You must trim the towel loops very aggressively inside the cut zone so they don't poke through the net.

"My net looks loose and saggy." This is usually a tension issue, not software. Cutwork relies on the Water-Soluble Stabilizer being distinctively taut. When applying the WSS patch, use temporary spray adhesive or tape to pull it tight—like a drum skin—before the Magenta tack-down stitch runs.

Troubleshooting Net Fill in Creative DRAWings: Symptoms, Causes, Fixes You Can Apply Fast

The Upgrade Path (When You’re Ready): Faster Hooping, Cleaner Results, and Less Rework

Once you master the logic of net fill, your limitation will become throughput. Manual trimming takes time. Retightening hoops takes time.

If you find yourself doing production runs of cutwork (like team jerseys or boutique items), observe your pain points:

• If your hands hurt from hooping: Consider a hooping for embroidery machine aid.
• If you are ruining 1 in 10 garments due to slips: The stability of SEWTECH magnetic hoops can reduce the slippage rate significantly.
• If the color changes are killing your profit margin: A single-needle machine requires you to sit there and change threads for the Cut, Tack, Net, and Satin. A Multi-Needle Machine automates the color swaps, stopping only for the trim step. This turns a 20-minute babysitting job into a 5-minute intervention.

Operation Checklist: The Final "Go" Sequence

• Green Line Stitched? -> Machine Stopped.
• Action: Hoop removed, thread tails trimmed.
• Action: Fabric cut carefully inside the green line (leave 1mm to the stitching).
• Action: WSS patch applied securely underneath.
• Magenta Tack-down Stitched? -> WSS is now tight.
• Net Fill Stitched? -> Check that it caught all edges.
• Satin Border Stitched? -> Covers all sins.
• Cleanup: Rinse away WSS with warm water or dab with a wet sponge.

FAQ

• Q: In Creative DRAWings net fill cutwork, how do I force an embroidery machine to stop exactly for trimming the fabric window?
  A: Use a deliberate color-change “stop” by duplicating the cut guide line and assigning the duplicate a different thread color.
  • Duplicate the green cut guide outline and change the duplicate to Magenta (or any different color).
  • Keep both outlines as Double Stitch (a satin line is too bulky for this step).
  • Run Slow Redraw to confirm the stitch order is Green line → STOP → Magenta tack-down.
  • Success check: The object list shows two separate colors, and the machine pauses at the color change right after the green guide finishes.
  • If it still fails: Re-check that the two lines are truly different colors in the design (not two shades mapped to the same thread on export).
• Q: In Creative DRAWings net fill cutwork, what net fill offset prevents the net from detaching after cutting the fabric?
  A: Set the net fill Offset so the net “bites” into solid fabric; a proven starting point is 1.5 mm outward overlap.
  • Open Net Fill Properties and adjust Offset so the preview expands outward beyond the cut edge (some versions show this as -1.5 mm depending on direction).
  • Avoid 0.0 mm Offset (high failure rate) and avoid going too large (3.0 mm+ can peek out from the final border).
  • Keep the net on the same color as the tack-down so it stitches immediately after tack-down (no extra stop).
  • Success check: After stitching, the net grid is attached all around the opening and does not pull away from any side.
  • If it still fails: Inspect fabric fraying and confirm the tack-down stitched before the net (Cut → Tack → Net → Satin).
• Q: In Creative DRAWings net fill cutwork, how do I stop the net from looking loose and saggy inside the opening?
  A: Treat the water-soluble stabilizer patch like a drum skin—taut WSS is what holds the net structure.
  • Pre-cut a heavy fibrous water-soluble stabilizer patch about 1 inch larger than the hole on all sides.
  • Secure the patch tightly under the opening using temporary spray adhesive or tape before the Magenta tack-down runs.
  • Make sure hooping is firm (no slack) before starting the design.
  • Success check: The WSS feels tight to the touch and the stitched net looks even, not droopy or wavy.
  • If it still fails: Re-check hoop tightness and handling—any slack or shifting during remove/return can distort the net.
• Q: For Creative DRAWings net fill cutwork, what hooping tightness and handling rules prevent shifting and satin “gapping” after trim-out?
  A: Hoop tight and handle supported—most cutwork alignment problems come from torque when removing and re-attaching the hoop.
  • Hoop so the fabric sounds like a drum when tapped; any slack increases sag and misalignment risk.
  • Remove the hoop from the machine to trim, and support the hoop on a table while cutting (do not trim in mid-air).
  • Cut carefully inside the guide line and avoid pushing on the inner ring when reattaching.
  • Success check: The final satin border sits centered over the cut edge with no raw fabric showing (no “gapping”).
  • If it still fails: Improve the initial squareness/consistency with a hooping station, or consider a magnetic hoop system to reduce re-attachment “shimmy.”
• Q: What needle type should be used for Creative DRAWings net fill cutwork to keep the cut edge clean?
  A: Use a fresh 75/11 Sharp needle; a ballpoint needle often reduces edge crispness for this technique.
  • Install a new 75/11 Sharp needle before starting (do not “use up” an old needle on cutwork).
  • Pair the needle with careful trimming using curved appliqué (duckbill) scissors to avoid snipping threads.
  • Keep the cut guide line as a 0.6 mm Double Stitch to create a ridge you can trim against.
  • Success check: The cut edge trims cleanly along the stitched ridge and the satin border later covers without fuzzy fray.
  • If it still fails: Slow the process down—stop after the cut guide and verify the ridge is clear and continuous before cutting.
• Q: What is the safest way to do the trim-out step during machine embroidery cutwork when working close to the needle bar?
  A: Always remove the hoop from the machine before trimming; if trimming while attached is possible, power down or use lock mode to prevent accidental stitching.
  • Stop at the color-change right after the cut guide finishes, then take the hoop off the machine.
  • Use curved appliqué scissors and keep fingers clear of the stitch line while trimming.
  • Place tools within easy reach so the body does not twist while holding the hoop.
  • Success check: Trimming is controlled and the machine cannot move while hands are inside the hoop area.
  • If it still fails: Change the workflow so the machine is fully disabled during trim-out—this risk is not worth “saving time.”
• Q: When net fill cutwork production is slow because removing and re-attaching hoops causes repeats and defects, what upgrade path improves throughput?
  A: Start with technique, then add workflow tools, then consider hardware—upgrade only when the bottleneck is clear.
  • Level 1 (Technique): Support the hoop on a table for trim-out and rehearse the stop moment (Cut → Tack → Net → Satin).
  • Level 2 (Workflow): Use a hooping station to keep hooping square and consistent across repeats.
  • Level 3 (Hardware): Use magnetic hoops to reduce force during clamping/re-attachment and reduce slip-related defects; for frequent multi-color steps, a multi-needle machine reduces babysitting time.
  • Success check: The re-attach cycle is repeatable with fewer off-center satin borders and less rework per batch.
  • If it still fails: Re-verify the design logic in Slow Redraw—incorrect stops or stitch order will waste time no matter what hardware is used.
• Q: What magnetic safety rules should be followed when using magnetic embroidery hoops or a magnetic hooping station for cutwork workflows?
  A: Treat magnetic hoops as industrial-strength magnets and manage pinch risk and interference risk.
  • Keep magnetic hoops away from pacemakers, machine screens/computerized displays, and credit cards.
  • Control hand placement during closing—expect a fast “snap” that can pinch fingers.
  • Store magnets so they cannot jump together unexpectedly on the workbench.
  • Success check: The hoop closes without finger pinches and the work area stays free of magnet-related accidents.
  • If it still fails: Switch back to a non-magnetic hoop for that workstation setup until safe handling and storage are in place.
