Nail the ITH Front Zipper Pocket Window (Without Warping Your Hoop or Smashing a Needle on the Zipper Pull)

Zippers make even confident embroiderers tense up—because one tiny mistake can turn into a warped window, a wavy zipper, or the worst sound in the room: the sickening crunch of a needle striking the metal zipper pull.

As someone who has trained hundreds of operators, I can tell you that the fear is valid, but the fix is procedural. The "Sweet Pea" technique is genuinely solid because it relies on engineering, not luck. It creates a "window" that allows you to install a zipper into a bag panel in a controlled, in-the-hoop (ITH) workflow.

However, machines are unforgiving of physics. If you are an intermediate embroiderer who understands basic stabilizers, this guide will upgrade your bag-making by teaching you the two real danger zones: precision corner cutting and kinetic zipper management.

Supplies for the Sweet Pea ITH Front Zipper Pocket (and the small extras that prevent rework)

Success in machine embroidery is 90% preparation and 10% stitching. You need to gather a mix of embroidery-specific tools and standard sewing supplies. Do not start until these are on your table.

The Essentials (From the video setup):

• Embroidery Machine: (Brother/BabyLock style or similar single/multi-needle).
• Hoop: Size 6x10 or 7x12 is mandatory for this pocket size.
• Hoop Type: Standard plastic hoop with clips OR a magnetic hoop (for easier re-adjustment).
• Stabilizer: Medium-weight Cutaway (2.5 oz) is recommended for bags to prevent distortion over time.
• Batting: Single layer (fusible fleece or warm & natural).
• Main Fabric: Bag panel (denim, canvas, or faux suede) prepared with Iron-on Interfacing on the back.
• Lining Fabric: Low-bulk cotton (lemon print in the demo).
• Zipper: Nylon coil zipper (No metal teeth allowed for this method).
• Adhesive: Washi tape or Painter's tape (Never use duct tape or high-residue tape).
• Tooling: Small sharp scissors (Curved tip + Straight tip), seam ripper, mini iron, and a rubber pressing mat.

The "Hidden Consumables" (Pro additions):

• Needle: Size 75/11 or 80/12 Titanium/Topstitch needle. A fresh needle is cheap insurance against deflection.
• Stiletto/Awl: A tool to hold fabric down so your fingers don't get near the needle.
• Temporary Spray Adhesive: (Optional) ODIF 505 for batting placement.




Prep Checklist (do this before you hoop anything)

• Verify File Size: Confirm the design fits your 6x10 or 7x12 hoop constraints.
• Pre-cut Materials: Cut batting and lining 1-inch larger than the window area on all sides.
• Interface the Main Panel: Apply fusible interfacing to the entire back of the main fabric. This provides the "skeleton" needed to support the zipper weight.
• Bobbin Check: Ensure you have at least 50% bobbin remaining. Running out of bobbin thread during a zipper tack-down is a nightmare to fix.

The “Don’t Panic” Primer: Why this zipper-window method works (and why it feels scary the first time)

New users panic because they think they need to aim the zipper perfectly. You don't. This technique works because the digitized file is the ruler. It stitches a placement line, then a window outline, then a cutting line. You are simply the material handler.

However, the machine cannot feel texture. You must execute two manual operations where the machine cannot help you:

1. Trimming/Cutting: You must surgically cut the "Y" shape at the corners.
2. Pressing: You must press the seam allowance flat without melting your hoop or stretching the fabric.

If you are building bags to sell, this is a production skill. A clean, square window with zero puckers increases the perceived value of your product immediately.

Batting Placement on Stabilizer: Trim inside the window so layers don’t separate later

The process begins by creating a foundation. We are building the bag panel from the bottom up.

1. Stitch Placement: Load your hoop with stabilizer. Run the first color stop to stitch the placement box on the stabilizer.
2. Place Batting: float your single layer of batting over the placement lines.
3. Secure: Run the next step to tack the batting down.
4. Tactile Check: Rub your hand over the batting to ensure no ripples.
5. Trim: Using curved scissors (Duckbill scissors are best here), trim the batting close to the stitching line inside the window.

Why trim inside? The video emphasizes trimming on the inside of the window stitching. This reduces bulk in the seam allowance later. If you leave batting in the fold, your window edges will look puffy and round instead of crisp and sharp.

Warning: Physical Safety Hazard. Curved scissors are incredibly sharp. When trimming inside a hoop, keep your stabilizing hand on the outside of the hoop frame, never near the cutting path. If the hoop slips, you want to stab the table, not your palm.

Main Fabric + Window Stitching: Use interfacing and matching thread to hide “stitch grinning”

Now we add the "skin" of the bag.

1. Layer Up: Place your interfaced main fabric right side up over the batting stack.
2. Adhere: Use a light mist of spray adhesive or tape at the corners to prevent shifting.
3. Stitch Motif: The machine will sew the decorative element (the lemon design in the demo).
4. Stitch Window: The machine creates the window outline through all layers.

The "Stitch Grin" Secret: The instructor uses thread that matches the main fabric. Why? Because when you turn the fabric inside out, the tension of the fold might reveal tiny specks of the thread holding the layers together (called "grinning"). Matching thread makes these invisible to the human eye.

Cutting the Window Opening: The Y-cuts decide whether your corners look “custom” or “homemade”

This is the "Point of No Return." You are about to cut a hole in your project. Breathe.

1. Layer Lining: Place your lining piece right side down (Right Sides Together with main fabric).
2. Align: Position the fold about 1 cm above the bottom window placement line (as per video instruction).
3. Tack Down: Stitch the cutting box (a long rectangle representing the zipper opening).
4. Pierce: Use a seam ripper to start a hole in the center of the box.
5. Cut Center: Use straight scissors to cut down the center, stopping 0.5 inches from the ends.
6. The Y-Cut: Cut diagonally into the corners. Stop exactly 1-2mm before the stitch line.

The Geometry of a Pucker-Free Corner:

• Too shallow: If you stop too far from the stitch, the fabric will pull and pucker when turned.
• Too deep: You will cut the stitch or the fabric weave, causing a hole.
• Just right: You need to get close enough that the tension releases, but the thread holds.




Pressing Inside the Hoop with a Mini Iron: Support the hoop so you don’t stretch stabilizer

Most "wavy zippers" are caused right here. You must turn the lining through the hole to the back and press it flat while it is still in the hoop.

The Protocol:

1. Support the Hoop: Place a rubber silicone mat or a firm wool pressing mat under the hoop. The hoop ring must not be floating in the air.
2. Finger Press: Push the lining through the window. Use your fingers to roll the seam so the main fabric is visible, and the lining is hidden.
3. Mini Iron: Use the tip only. Press the long sides first, then the triangle corners.
4. Scent Check: If you smell hot plastic, you are too close to the hoop edge.

The Equipment Gap: Standard hoops rely on friction and screw tension. When you apply heat and downward pressure (pressing), you often loosen this tension, causing "hoop burn" or stabilizer sag. This is a primary reason professionals switch to magnetic embroidery hoops. These tools use magnetic force rather than friction, allowing you to press directly in the frame with zero slippage or burn marks, which is critical for ITH precision.

Zipper Placement Under the Window: Tape only the teeth area, not the stitch path

We are now installing the hardware.

1. Flip: Turn the hoop over so the back is facing up.
2. Position: Center the zipper face down over the window opening.
3. Tape Strategy: Use Washi tape or painter's tape across the teeth of the zipper.
4. No-Go Zone: Do not tape the vertical edges. The needle needs to stitch there. Sewing through adhesive leaves a gummy residue on your needle, leading to thread shredding.

Consistency Upgrade: If you find yourself constantly retaping because the zipper slides, your hoop surface might be slippery. Serious bag makers who need perfect repeatability often use a hooping station for embroidery machine or a specialized jig to hold the panel rigid while they align the zipper from the back.

Warning: Needle Gunk Alert. If you accidentally stitch through tape, listen for a change in the sewing sound (a "thwack" instead of a "thump"). Stop immediately, clean the needle with alcohol, or replace it. A sticky needle causes bird nests instantly.

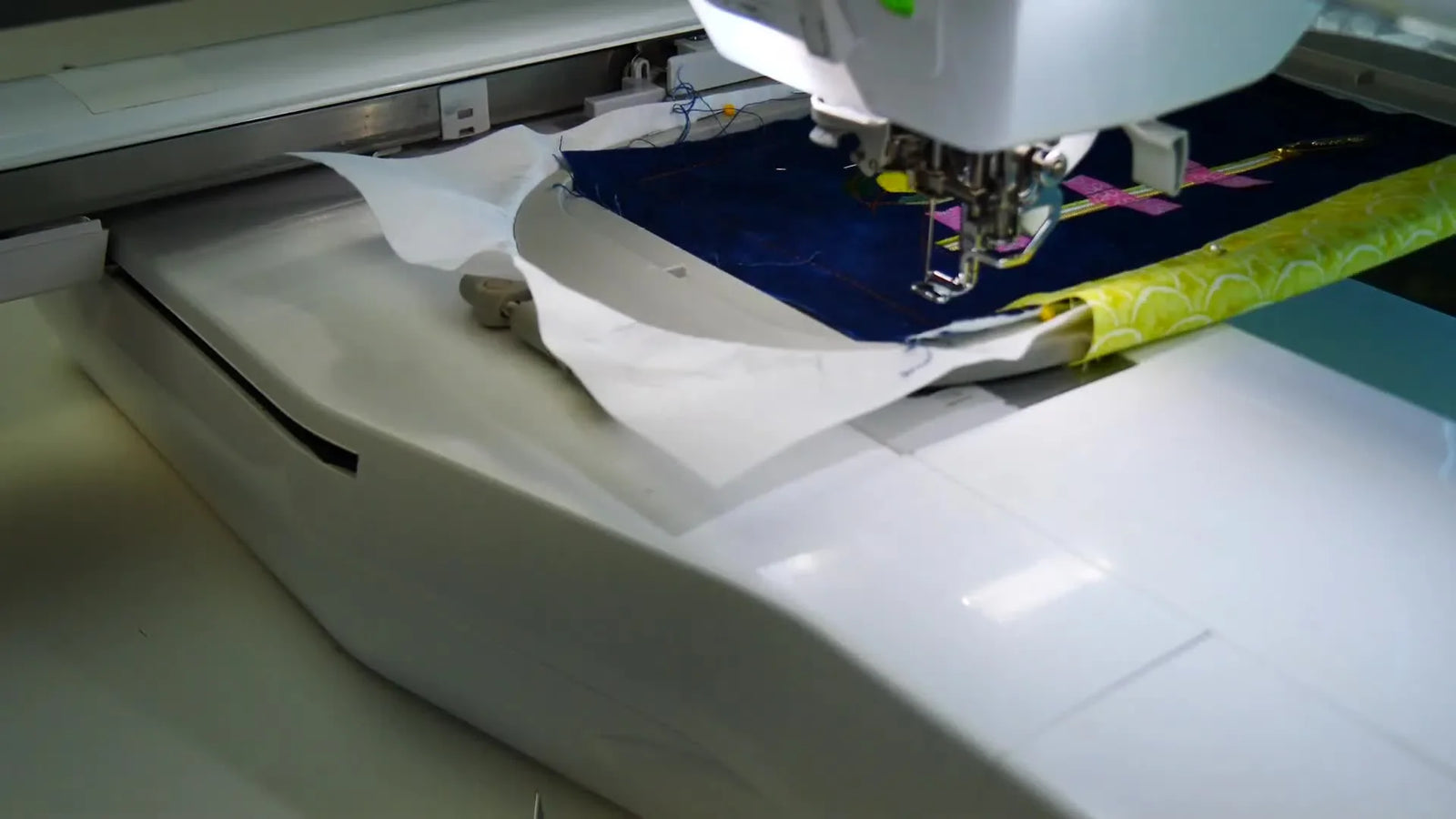

Stitching the Zipper on the Embroidery Machine: Slow speed, constant awareness, and a zipper-pull “ritual”

This is the moment of highest risk. We must stitch the zipper down without the needle striking the metal/plastic pull tab.

1. Reduce Speed: Set your machine to 300-400 SPM (Stitches Per Minute). This is not a race.
2. Position Pull: Move the zipper pull to the bottom (outside the start area).
3. Engage: Start stitching.
4. The Ritual: As the foot approaches the middle of the zipper:
   • STOP the machine.
   • LIFT the presser foot.
   • REACH in and slide the zipper pull past the foot into the stitched area.
   • LOWER the foot and continue.

If you are fighting with a bulky bag panel, standard hoops can pop open under the weight. A magnetic hoop for brother or similar strong-force frames can be a game-changer here, as they hold thick assemblies securely without the dreaded "inner ring pop-out."

Setup Checklist (right before you press Start)

• Speed Limit: Speed is capped at 400 SPM (or your machine's lowest setting).
• Tape Check: No tape lies in the digitized stitch path.
• Pull Safety: Zipper pull is clear of the starting needle position.
• Audio Queue: Listen for the sharp "click" of the foot lowering completely before stitching.

Pocket Bag Construction on a Sewing Machine: Trim, clip curves, and understitch so the lining stays hidden

The embroidery machine's job is done. Now we finish the internal pocket structure using a standard sewing machine.

The Finishing Steps:

1. Remove Tape: Gently peel away all tape.
2. Fold: Fold the pocket lining up, using the top edge of the zipper tape as your hinge.
3. Trim XS: Trim the zipper tape to 1 cm from the stitch line and the seam allowance to 0.25 inch.
4. Relieve Tension: Clip small triangles into the curved seam allowance. This allows the curve to lay flat when turned.
5. Sew Perimeter: Stitch around the pocket bag edge to close it.
6. Understitching (The Secret Sauce): Stitch the seam allowance to the lining (not the main fabric) about 1/8" from the seam.

Why Understitch? This forces the lining to roll inward. Without this, your yellow lining will constantly peek out at the top of the zipper, looking amateurish.

Final Assembly: Stitch the curved pocket envelope line, then trim back for a clean finish

To define the pocket shape functionally:

1. Sight Line: Locate the visible curved placement line on the interior.
2. Topstitch: From the front, stitch 0.25 inch outside that curved line. This sandwiches the pocket bag between the front panel and the lining.
3. Final Trim: Trim the excess fabric 0.5 inch away from your new stitch line.


Operation Checklist (The "Don't ruin it at the finish line" list)

• Visual Check: Ensure the lining is pulled flat and not bunched under the needle.
• Seam Allowance: Verify your trim is consistent (0.5 inch).
• Clip Curves: Did you clip the curves? If not, the pocket will pull and distort the front of the bag.
• Clean Up: Remove all water-soluble marker lines or chalk marks.

Quick Decision Tree: Fabric + Stabilizer + Hoop choice for ITH zipper pockets

Use this logic to prevent wasted materials.

1) Is your main fabric thick (Canvas, Denim, Vinyl)?

• Yes: Use a Cutaway stabilizer. Do not use interfacing if the vinyl is thick enough.
• No (Cotton, Linen): Use Fusible Interfacing (Medium weight) + Cutaway Stabilizer. This adds the necessary rigidity.

2) Are you experiencing "Hoop Burn" (shiny ring marks) when pressing?

• Yes: Switching to an embroidery magnetic hoop eliminates the friction ring entirely, allowing you to press safely.
• No: Continue using standard hoops, but ensure you wrap the inner ring with bias binding to soften the grip.

3) Is the zipper tape shifting during the tack-down stitch?

• Yes: Your tape is failing or your hoop surface is slippery. Clean the hoop with alcohol.
• Persistent Issue: Consider a machine embroidery hooping station to mechanize your alignment process.

Troubleshooting the three failures that waste the most time

Warning: Magnetic Safety. If you upgrade to magnetic hoops, be aware they are powerful industrial tools. Pinch Hazard: Keep fingers clear when magnets snap together. Pacemaker Warning: Keep magnets away from medical devices.

The “Upgrade Path”: When tools improve quality (not just your gadget drawer)

In embroidery, you should only buy gear that solves a specific headache. Here is the commercial logic for upgrading your setup based on this project.

Phase 1: The Hobbyist (Pain: Slight alignment issues)

If you make one bag a month, stick to standard hoops. Use the Rubber Mat trick mentioned above to stabilize your pressing. It costs nothing and works well.

Phase 2: The Batch Maker (Pain: Hoop Burn & Wrist Fatigue)

If you are pressing 20 pockets a day, the standard hoop clips will hurt your wrists and mark your fabric.

• The Upgrade: pocket hoop for embroidery machine (Magnetic).
• The Gain: You can hoop thick seams without adjusting screws, and you eliminate the "hoop burn" marks that ruin velvet or faux suede.

Phase 3: The Production Shop (Pain: Setup Time & Throughput)

If you sell these bags, your bottleneck is the setup time.

• The Upgrade: A hoop master embroidery hooping station ensures every zipper lands in the exact same spot on every shirt/bag.
• The Ultimate Scale: If single-needle thread changes are slowing you down, moving to a SEWTECH Multi-Needle machine allows you to keep the placement color, tack-down color, and satin stitch color loaded simultaneously, cutting production time by 30-40%.

A note on comments (and what they tell me as a shop owner)

The comments on this tutorial are pure appreciation—people love how clearly it’s explained. That’s a signal: ITH zipper pockets are a high-value skill.

If you felt intimidated reading “cut a window,” remember that every master embroiderer once held scissors with shaking hands. Trust the math of the placement lines, respect the physics of the zipper pull, and you will produce a retail-quality pocket. Do it once slowly, do it a second time with confidence. By the third pocket, it will be muscle memory.

FAQ

• Q: For the Sweet Pea ITH front zipper pocket method, which zipper type prevents needle crashes: nylon coil zipper or metal-tooth zipper?
  A: Use a nylon coil zipper only; do not use metal teeth for this in-the-hoop zipper-window workflow.
  • Choose: Buy nylon coil zippers for this project and set metal zippers aside for non-ITH sewing steps.
  • Check: Confirm the zipper teeth are plastic/nylon and the pull moves smoothly before hooping.
  • Success check: No “crunch” sound risk points are present because there are no metal teeth in the stitch zone.
  • If it still fails… If needle strikes still happen, focus on zipper-pull management during stitching (stop, lift foot, move pull, resume).
• Q: For an ITH zipper pocket on a Brother/BabyLock-style embroidery machine, what needle size and type reduces deflection when stitching near zipper tape?
  A: Start with a fresh 75/11 or 80/12 Titanium/Topstitch needle to reduce needle deflection and shredding near the zipper area.
  • Replace: Install a new needle right before the zipper tack-down sequence.
  • Match: Use the needle size that best penetrates the bag stack without forcing the fabric (a safe starting point is 75/11–80/12; follow the machine manual if it specifies otherwise).
  • Success check: Stitching sounds steady and thread does not fray or snap as the needle crosses zipper tape.
  • If it still fails… Re-check tape placement (no tape in the stitch path) and clean/replace the needle if adhesive was hit.
• Q: For the Sweet Pea zipper-window corners, how close should the Y-cuts stop to avoid puckers without cutting the stitch line?
  A: Stop the diagonal Y-cuts about 1–2 mm before the stitch line so the corner can turn cleanly without creating holes.
  • Pierce: Start the opening with a seam ripper in the center, then cut the center line and stop about 0.5 inches from each end.
  • Cut: Make diagonal corner cuts toward each corner and stop 1–2 mm before the stitching.
  • Success check: After turning, corners look square and flat with no pulling (too shallow) and no thread break/hole (too deep).
  • If it still fails… If corners pucker, the cut was often too shallow; if a corner hole appears, the cut was too deep—reduce the diagonal length on the next run.
• Q: When pressing an ITH zipper window inside a standard plastic embroidery hoop, how do I prevent wavy zippers caused by stabilizer sag or hoop slippage?
  A: Support the hoop on a rubber/silicone or firm pressing mat and press gently with a mini iron tip—do not pull on the lining while it is still hooped.
  • Support: Place the hooped project fully on a rubber/silicone mat so the hoop ring is not “floating.”
  • Press: Finger-roll the seam, then press long sides first and triangle corners second using only the mini iron tip.
  • Success check: The window edge lies flat and the zipper area stays straight (no waves forming as the fabric cools).
  • If it still fails… If hoop tension loosens during pressing or “hoop burn” marks appear, consider switching to a magnetic embroidery hoop to remove friction-ring stress.
• Q: During ITH zipper placement from the back of the hoop, where should painter’s tape be placed so the embroidery needle does not stitch through adhesive and gum up?
  A: Tape across the zipper teeth area only and keep tape completely out of the digitized vertical stitch path.
  • Flip: Turn the hoop so the back side faces up and center the zipper face down over the opening.
  • Tape: Apply washi/painter’s tape only across the teeth; avoid the vertical edges where the machine stitches.
  • Success check: After stitching, the needle stays clean and the stitch sound stays consistent (no “thwack” from adhesive drag).
  • If it still fails… If you accidentally stitched tape, stop immediately, clean the needle with alcohol or replace the needle to prevent instant bird nests.
• Q: For stitching an ITH zipper on a Brother/BabyLock-style embroidery machine, what speed and zipper-pull procedure prevents needle breaks on the zipper pull?
  A: Slow the machine to 300–400 SPM and use the stop–lift–move–lower “zipper-pull ritual” as the foot approaches the zipper middle.
  • Set: Cap speed at 300–400 SPM before starting the zipper tack-down.
  • Move: Start with the zipper pull at the bottom, away from the starting needle position.
  • Stop: As the foot nears the middle, stop the machine, lift the presser foot, slide the pull past the foot into the stitched area, lower the foot, then continue.
  • Success check: No needle deflection or break occurs and the stitch line remains continuous around the zipper.
  • If it still fails… Re-check that the pull is fully clear of the needle path before restarting and slow down further if the machine allows.
• Q: When an ITH zipper pocket shows dropped stitches near the zipper teeth, what presser-foot adjustment fixes the loop formation problem?
  A: Increase presser foot height slightly and level the foot so it doesn’t tilt on the zipper teeth.
  • Adjust: Increase presser foot height in machine settings (follow the machine manual for the correct menu and limits).
  • Level: Place a scrap of fabric behind the foot to “hump jump” and keep the foot flat as it crosses the zipper area.
  • Success check: Stitches near the zipper become consistent with no skipped/dropped sections.
  • If it still fails… Slow down and re-check the zipper is centered and taped only on the teeth area (not along the stitch path), then test again.
