The "Zero-Fail" Guide to Embroidering Sweatshirt Cuffs: A Production Manual

Sleeve cuffs are the "silent killers" of the embroidery world. They are where profitable shops quietly make their margins—and where beginners quietly ruin expensive inventory.

If you have ever tried to embroider a name near a sweatshirt cuff using a standard hoop or without a rigorous protocol, you know the two distinct flavors of fear:

1. Metric Fear: The design lands crooked, too high, or disappears into the ribbing.
2. Catastrophic Fear: You accidentally stitch through both layers, permanently sealing the sleeve shut.

Embroidery is not just art; it is physics. When dealing with tubular knits like sweatshirt cuffs, you are fighting fabric memory, elasticity, and friction.

This guide acts as your standard operating procedure (SOP). We are moving beyond "hoping it works" to a repeatable industrial workflow using a Janome MB-7 (or similar multi-needle machine), a narrow magnetic hoop, and a hooping station. We will calibrate your speed, refine your sensory checks, and upgrade your tooling logic to ensure that every sleeve comes off the machine ready for sale.

Phase 1: Digital Prep & The "Paper Truth"

Before you even touch a garment, you must simulate reality. Beginners often skip printing a template because they trust the screen. Do not trust the screen. The screen does not show you the physical limitations of a 3-inch ribbed cuff.

Step 1: Create a Safe Zone in Software

In your software (like Embrilliance), do not simply work on a blank canvas. You must create a custom hoop visualization that mimics your physical cuff hoop (e.g., 8 inches long by 2 inches high).

• The Constraint: Setup your font (e.g., "After Hours" from Stitchtopia).
• The Data Point: Resize the design to 0.75 inches in height or less for standard adult cuffs. Anything larger than 0.85 inches risks hitting the ribbing or the hoop edge.
• The Action: Print the design template at 100% scale. Do not select "Scale to Fit."

Step 2: The Template Reality Check

The printed template is your "Paper Truth." It is a zero-cost tool that prevents a high-cost mistake.

• Visual Logic: A sleeve hoop is narrow. The paper template lets you physically verify that the descenders (tails of letters like 'y' or 'g') won't crash into the metal frame.


Expert Insight: Why do we print? Because digital software shows geometry, but the garment shows distinct physical barriers (the seam thickness, the ribbing connection). The paper template bridges this gap.

Phase 2: Physical Alignment (The "No-Measure" Method)

Forget measuring tapes. Tapes rely on you pulling the fabric with consistent tension, which is impossible on stretchy knits. Instead, use the garment's architecture.

Step 1: Locate the Shoulder Crease

The sweatshirt sleeve has a natural crease running from the shoulder seam down to the cuff. This is the manufacturing center line.

1. Find the top shoulder crease.
2. Fold the sleeve lengthwise along this natural line.
3. Smooth it down to the cuff.


Step 2: Establish the Vertical Axis

The fold you just made is now your "True Center."

• Why this works: It accounts for the spiraling that sometimes happens in cheap sweatshirt construction. If you align to the fold, the name will look centered when the arm hangs naturally.


Phase 3: The Hooping Station & "Stabilizer Logic"

This is where the battle is won or lost. If you are fighting to hold the garment, the hoop, and the backing simultaneously, you will fail. This is where the commercial benefits of a dedicated hooping station and magnetic embroidery hoops become undeniable.

The Stabilizer Choice: Cut-Away (Non-Negotiable)

• The Rule: If it stretches, it needs Cut-Away.
• The Physics: Sweatshirt fleece is unstable. Tear-away stabilizer will disintegrate under the needle penetrations, causing the name to distort or "tunnel."
• The Setup: Place one sheet of medium-weight (2.5oz) Cut-Away stabilizer on the bottom bracket of your hooping station.


The Tooling Upgrade: Why Magnetic?

In a production environment, standard friction hoops require you to "force" the inner ring into the outer ring. On a thick cuff, this creates two problems:

1. Hoop Burn: The pressure leaves a shiny, crushed ring on the fabric that steam often cannot remove.
2. Distortion: You inevitably stretch the knit to get the hoop to close.

A magnetic frame clamps vertically. It secures the fabric without stretching it. If you are struggling with hoop burn, this is your hardware solution.

Warning: Magnet Safety
Magnetic hoops (specifically brands like Mighty Hoop) utilize refined rare-earth magnets. They snap together with immense force (often 30+ lbs of pinch pressure).
* Pinch Hazard: Keep fingertips clear of the mating surfaces.
* Medical Devices: Maintain a 6-inch safe distance from pacemakers.
* Electronics: Do not place frames directly on laptops/tablets.

Phase 4: The "Stuff Method" for Distortion-Free Hooping

The creator demonstrates a specific technique called "The Stuff" to manage excess fabric on a 9x3 fixture.

Step 1: The Slide and Stuff

1. Slide the sleeve opening over the bottom hoop arm.
2. Sensory Check: Ensure the stabilizer remains flat. If you feel it bunching up, stop and reset.
3. The Stuff: Deliberately bunch (stuff) the excess sleeve fabric toward the back of the station.
   • Why: If the sleeve hangs heavy off the front, gravity will pull the cuff tight, distorting your center line. By "stuffing" it back, you create a neutral tension zone at the hooping area.

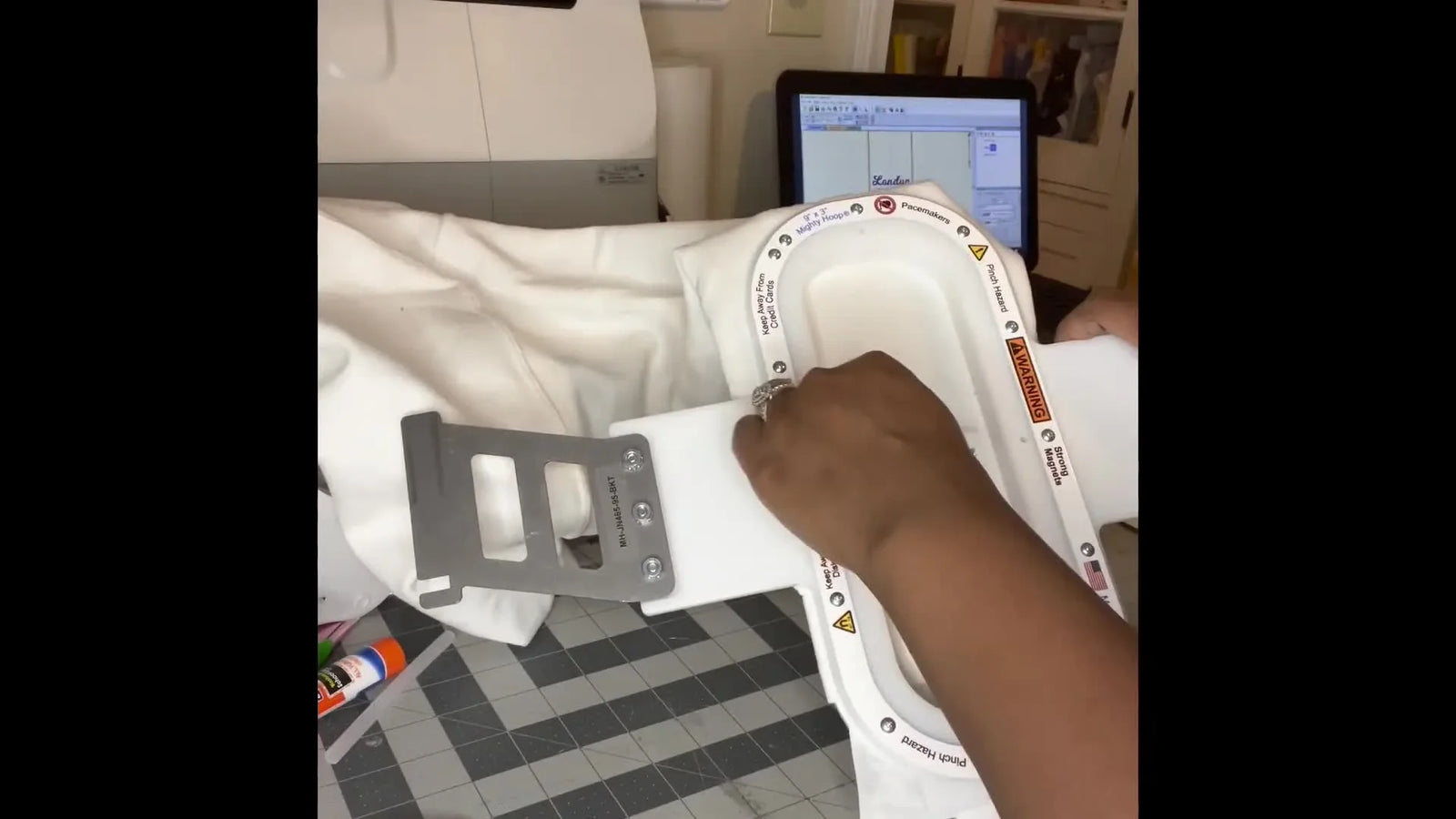

Step 2: The Alignment and Clamp

1. Align your sleeve's "crease center" with the station's center mark.
2. Hold the top magnetic frame directly over the bottom.
3. The Action: Press down firmly and evenly. Listen for the solid CLACK of the magnets engaging.

If you are using a 9x3 mighty hoop, the frame is perfectly sized for this task. It is narrow enough to fit inside the sleeve but long enough to cover the embroidery area.

Pre-Flight Checklist: Hooping Station

Before removing the hoop from the station, verify three things:

• Squareness: Is the cuff ribbing parallel to the hoop edge?
• Centering: Is the sleeve crease perfectly aligned with the hoop's center notches?
• Planarity: Is the fabric flat (taut) but not stretched (distorted)?

Phase 5: Loading the Machine & The "Death Zone" Check

You are now moving to the machine (demonstrated on a Janome MB-7). This is the highest risk phase for stitching the sleeve shut.

Step 1: Mount the Hoop

Attach the hoop to the driver arm. Ensure it clicks/locks into place securely.

Step 2: The "Fold-Under" Maneuver

This is the single most important step in the entire article.

1. Reach under and behind the machine head.
2. Grab the bulk of the sweatshirt sleeve that is hanging below the hoop.
3. Action: Pull this bulk completely through to the back/side, away from the needle plate.
4. Verification: Look under the hoop. You should see only the single layer of the cuff stabilizer against the needle plate.


If you operate a janome mb-7 seven-needle embroidery machine, standardizing this "bulk clearance" move is critical. The open architecture of the MB-7 allows for this, but you must be disciplined.

Sensory Check: The "Free Travel" Test

Before pressing any buttons, perform a tactile check.

• Touch: Gently run your fingers around the perimeter of the hoop arm.
• Feel: Is there tension? Is the garment catching on the machine bed?
• Result: The hoop should feel like it is "floating." If there is drag, the embroidery will register incorrectly.


Phase 6: The Template Trace (Your Final Exit)

Never stitch a cuff without a trace. The ribbing creates an optical illusion that makes centering difficult by eye.

Step 1: The Paper Overlay

Place your printed paper template (from Phase 1) directly onto the fabric in the hoop.

Step 2: The Machine Trace

Activate the trace function (where the machine moves the hoop to define the design boundaries).

• Observation: Watch the needle (or laser pointer) travel around the paper template.
• Correction: In the video, the creator notices the design is too far up (too close to the leg/arm). She jogs the design down.
• Validation: Without the template, she would have guessed. With the template, she corrects.


Warning: Mechanical Safety
Keep hands, scissors, and the paper template clear of the needle bar during the trace.
* Do not hold the paper with your fingers. Use a piece of painter's tape or just lay it flat if the movement is slow.
* Eye Protection: If a needle strikes the plastic hoop frame, it can shatter. Always wear standard eyewear.

Phase 7: Execution & Production Standards

Recommended Settings for Beginners

While expert shots run at high speeds, cuffs are small and unstable.

• Speed: 600 - 700 SPM (Stitches Per Minute). Do not run at 1000 SPM. High speed causes vibration on the narrow hoop arm, which leads to jagged satin stitches.
• Needle: 75/11 Ballpoint (for knits).
• Thread: 40wt Polyester (standard).

Step 1: The Stitch Out

Press stride. Watch the first 100 stitches closely. This is when "fabric creep" happens.

Step 2: Removal and Finish

1. Remove the hoop from the driver.
2. Technique: To release a magnetic hoop, do not pull up. Twist the top frame to break the magnetic bond, then lift. This prevents yanking the fresh stitches.
3. Trim: Snip jump threads immediately.


Troubleshooting Guide: The "Cuff Clinic"

If things go wrong, use this diagnostic table before changing random settings.

Consumables Decision Tree: Stabilizer & Hoops

Your meaningful output depends on your inputs. Use this logic flow to make decisions.

Scenario A: Standard Cotton/Poly Sweatshirt

• Stabilizer: 1 Layer Cut-Away (2.5oz).
• Hoop: Magnetic (Preferred) or Standard with light tension.

Scenario B: High-Stretch Performance Tech Fleece

• Stabilizer: 1 Layer No-Show Mesh (Fusible preferred) + 1 Layer Tear-Away (floating underneath).
• Hoop: Magnetic is Essential here to prevent "burn" marks on delicate synthetic fibers.

Scenario C: Heavyweight Carhartt-Style Hoodie

• Stabilizer: 1 Layer Heavy Cut-Away.
• Hoop: High-Grip Magnetic (to hold through the thickness).


The Commercial Loop: When to Upgrade

If you are a hobbyist doing one hoodie a month, you can struggle through with standard hoops and patience. However, if you are running a business, you must calculate Return on Investment (ROI) based on "pain points."

Step 1: Identify the Bottleneck

• Are stitches distorting? -> Operator Error / Stabilizer Issue.
• Are you getting "Hoop Burn"? -> Tooling Issue (Standard Hoops).
• Is hooping taking longer than stitching? -> Workflow Issue.

Step 2: The Solution Hierarchy

1. Level 1 (Technique): Implement the "Paper Template" and "Shoulder Crease" methods described above. Cost: $0.
2. Level 2 (Tooling): If you are fighting thick cuffs, upgrade to mighty hoops for janome mb7. The magnet simply works better for thick tubes than friction hoops.
3. Level 3 (Workflow): If you are doing volume (10+ shirts), a dedicated station is required. While you might search for a generic hoopmaster hooping station, the key is pairing a reliable station with your magnetic frames to reduce "load time" to under 30 seconds.
4. Level 4 (Capacity): If the MB-7 is too slow for your volume (frequent thread changes), this is when you look at higher-needle-count machines from brands like SEWTECH, which maximize uptime between garment swaps.


Final Thoughts: The "Quiet Money" of Cuffs

The video tutorial this guide is based on succeeds because it respects the material. It doesn't force the sweatshirt; it works with it using the "Stuff Method."

If you follow this protocol—specifically the Template Trace and the Fold-Under Check—you turn a high-anxiety task into a boring, profitable one.

The creator uses a specific narrow frame often searched as the mighty hoop sleeve. If you plan to specialize in cuffs, this is not an accessory; it is a necessity. It turns the "impossible to hoop" area into a flat, stable canvas.

Operation Checklist (Post-Job)

• Check the inside of the sleeve for leftover stabilizer (trim roughly 0.5" from design).
• Inspect the cuff ribbing. If there are pressure marks, steam them immediately.
• Verify the bobbin tension. If the text looks "bubbly," your top tension is too loose or the bobbin is too tight.

Master the cuff, and you master the most lucrative real estate on the hooded sweatshirt.

FAQ

• Q: On a Janome MB-7, how do I prevent sewing a sweatshirt sleeve cuff shut when embroidering a name near the ribbing?
  A: Do the “Fold-Under” bulk-clearance move before you stitch—this is the main prevention step.
  • Pull the hanging sleeve bulk completely to the back/side of the machine, away from the needle plate area.
  • Look under the hoop and confirm only a single cuff layer plus stabilizer is against the needle plate (no second layer tucked underneath).
  • Run the “Free Travel” test by lightly feeling around the hoop arm for drag before pressing start.
  • Success check: The hoop feels like it is “floating” with no fabric catching, and you can visually see only one layer under the hoop.
  • If it still fails: Stop immediately, cut stitches, and re-hoop with the bulk clipped/managed farther away from the needle zone.
• Q: In Embrilliance (or similar embroidery software), what is the safe maximum design height for embroidering text on adult sweatshirt cuffs to avoid hoop strikes?
  A: Keep cuff text at 0.75" tall or less as the safe target, and treat 0.85" as a practical upper limit to reduce ribbing/hoop-edge risk.
  • Set up a custom narrow cuff “hoop” area in software (example workflow uses an 8" long × 2" high visualization).
  • Print the template at 100% scale (do not use “Scale to Fit”) and test it physically on the cuff before stitching.
  • Trace the design on the machine before sewing to confirm clearance at the top and bottom.
  • Success check: During trace, the needle/laser path stays inside the printable template area and does not approach the hoop/frame edge.
  • If it still fails: Resize the design smaller and re-run the trace before committing to stitches.
• Q: When embroidering sweatshirt cuffs, should I use tear-away or cut-away stabilizer to prevent distortion and “white outlines” (gaping)?
  A: Use medium-weight 2.5 oz cut-away stabilizer for sweatshirt cuffs; tear-away commonly breaks down and allows tunneling/distortion on stretchy fleece.
  • Place one sheet of medium-weight cut-away on the hooping station base before loading the cuff.
  • Hoop the fabric flat and taut but not stretched (magnetic frames help reduce stretch during clamping).
  • Watch the first ~100 stitches closely for fabric creep and stop early if the knit starts shifting.
  • Success check: Satin edges stay filled with no white fabric peeking, and the lettering does not look pulled or tunneled.
  • If it still fails: Re-check hooping tension for stretch/distortion and slow the machine speed into the recommended beginner range.
• Q: With a Mighty Hoop (9x3) magnetic frame, how do I reduce hoop burn and knit distortion on thick sweatshirt cuffs?
  A: Switch from “forcing” a friction hoop to vertical magnetic clamping, and manage fabric weight using the “Stuff Method.”
  • Slide the sleeve over the bottom hoop arm and keep the stabilizer perfectly flat (reset if it bunches).
  • Stuff excess sleeve fabric toward the back so gravity does not pull the cuff tight at the hooping zone.
  • Press the top frame down evenly until the magnets fully engage.
  • Success check: The cuff surface looks flat (not stretched) and the hoop closes cleanly with a solid clack—no shiny crushed ring from over-compression.
  • If it still fails: Re-hoop with less tension and confirm the cuff ribbing is parallel to the hoop edge before removing from the station.
• Q: What safety rules should I follow when using the trace function on a Janome MB-7 to position cuff embroidery with a paper template?
  A: Keep hands and loose items out of the needle-bar area during trace, and secure the paper template without fingers.
  • Place the printed paper template on the hooped cuff and use painter’s tape if needed instead of holding it.
  • Run the machine trace and watch the boundary path relative to the paper template.
  • Keep scissors, fingers, and any tools clear of the needle bar and moving hoop at all times.
  • Success check: The trace completes without the template shifting and without any contact risk near the needle bar.
  • If it still fails: Slow down, re-position the template, and re-trace—never “guess” alignment on ribbing.
• Q: What magnetic hoop safety precautions should I follow when using Mighty Hoop-style rare-earth magnetic embroidery frames?
  A: Treat magnetic frames as pinch hazards and keep them away from sensitive medical devices and electronics.
  • Keep fingertips away from mating surfaces when closing the frame; let magnets seat straight down rather than sliding into place.
  • Maintain at least a 6-inch distance from pacemakers.
  • Do not place magnetic frames directly on laptops/tablets or near sensitive electronics.
  • Success check: The frame closes without pinching, and handling feels controlled—no sudden snap onto fingers.
  • If it still fails: Separate by twisting to break the magnetic bond, then re-close slowly and evenly.
• Q: If sweatshirt cuff hooping takes longer than stitching and hoop burn keeps happening, when should I upgrade technique vs a magnetic hoop vs a higher-capacity SEWTECH multi-needle embroidery machine?
  A: Use a tiered approach: fix technique first, upgrade to magnetic frames for cuff-specific pressure problems, and consider a higher-needle-count machine only when thread-change downtime becomes the bottleneck.
  • Apply Level 1 technique: Print a 100% paper template, align using the sleeve shoulder crease fold, and always run a trace before stitching.
  • Move to Level 2 tooling: Use a narrow magnetic hoop when thick cuffs cause hoop burn or when standard hoops force stretch/distortion just to close.
  • Improve Level 3 workflow: Add a hooping station when load time is the slowest step and you need repeatable sub-minute hooping.
  • Consider Level 4 capacity: Upgrade to a higher-needle-count SEWTECH machine when volume makes frequent thread changes the limiting factor.
  • Success check: Hooping becomes consistent (flat-not-stretched), placement errors drop, and cycle time is driven by stitching—not rework.
  • If it still fails: Track where time and defects occur (placement, hooping, thread changes) and address the dominant bottleneck first.
