Nail Perfect Placement on a Brother PR1000e: Camera Scanning + Arced Text on Printed Fabric (Without the Rehoop Panic)

If you’ve ever tried to stitch lettering onto a busy print and ended up “close enough” (or worse—right through the face of the character), you already know the sinking feeling. You aren’t fighting your technical skill; you are fighting visibility and the physical limitations of trusting your eyes against a machine that moves in millimeters.

On the Brother Entrepreneur Pro PR1000e, the built-in camera background capture is one of the fastest ways to stop guessing. It bridges the gap between digital design and physical reality. Pat from The Sewing Studio Fabric Superstore demonstrates a clean, repeatable workflow: scan what’s actually in the hoop, place the text directly on top of the real fabric image, arc it to match the artwork, then stitch—without the usual trial-and-error that leads to ruined garments.

The Calm-Down Truth: Brother PR1000e Camera Scanning Is Built for “Busy Prints” (Not Just Fancy Tech)

Patterned cotton can make even simple lettering feel risky. The problem isn’t the font—it’s that your eyes can’t reliably judge where the needle will land once the fabric is hooped, tensioned, and slightly distorted by the laws of physics.

The PR1000e’s camera background capture solves that by turning your hooped fabric into the on-screen “wallpaper.” Instead of placing design elements onto a sterile grey grid, you place them against the real print. When you’re doing names, short words, punctuation marks, or tiny symbols on printed fabric, this is the difference between a professional result and a "homemade" look. It eliminates the cognitive load of calculating X/Y coordinates in your head.

The “Hidden” Prep Pros Do Before Background Capture on a Standard Tubular Hoop

Before you touch that enticing camera icon, you must stabilize the physical variable: the fabric holding. If your hooping is flawed, the camera will scan a lie.

Fabric + Stabilizer Reality Check (Why It Matters):

• The Lie of the Camera: The camera shows you the fabric before stitches are applied. It cannot predict how the fabric will buckle during the stitching process.
• The Physics of Pull: Printed cotton moves under stitch stress. Small lettering has high density (lots of needle penetrations in a small area). Without adequate stabilization, the fabric will pucker, and your text will drift off the "perfect" spot you chose on the screen.
• The Solution: You need a "sandwich" that resists deformation.

Hooping Tension Principle (The "Goldilocks" Zone): This is where 90% of beginners fail. You want the fabric held "taut," not "stretched."

• The Test: Tap the hooped fabric. It should sound like a dull thud (good), not a high-pitched ping (too tight/stretched), and it definitely shouldn't ripple (too loose).
• The Risk: Traditional tubular hoops rely on friction and inner/outer ring pressure. If you pull the fabric too tight to remove wrinkles, you distort the grain. When you un-hoop later, the fabric snaps back, and your text puckers.

If you find yourself struggling to get consistent tension or dealing with manual fatigue, consider your environment. Many shop owners eventually upgrade their workflow with better ergonomic tools or even a hooping station for brother embroidery machine, which holds the frame steady and allows you to use gravity to your advantage, ensuring the fabric is loaded consistently from piece to piece.

Prep Checklist (Do this before you start typing letters)

• Hoop Check: Confirm your fabric is hooped in a Standard Tubular Hoop and sits flat. There should be no "flagging" (bouncing fabric) near the inner ring.
• Stabilizer Selection: Add the correct backing/stabilizer. (Recommended: Use a Medium Weight Cutaway for cotton prints to ensure the text doesn't sink or distort; tearaway is often too weak for dense small text).
• Clearance Check: Ensure the area behind the machine is clear. The frame will travel to its limits during scanning.
• Tool Prep: Keep a stylus in your hand. Finger touches are too imprecise for text alignment involved here.
• Asset Prep: Have your thread cone ready. Decide which needle position you want to use to avoid re-threading later.

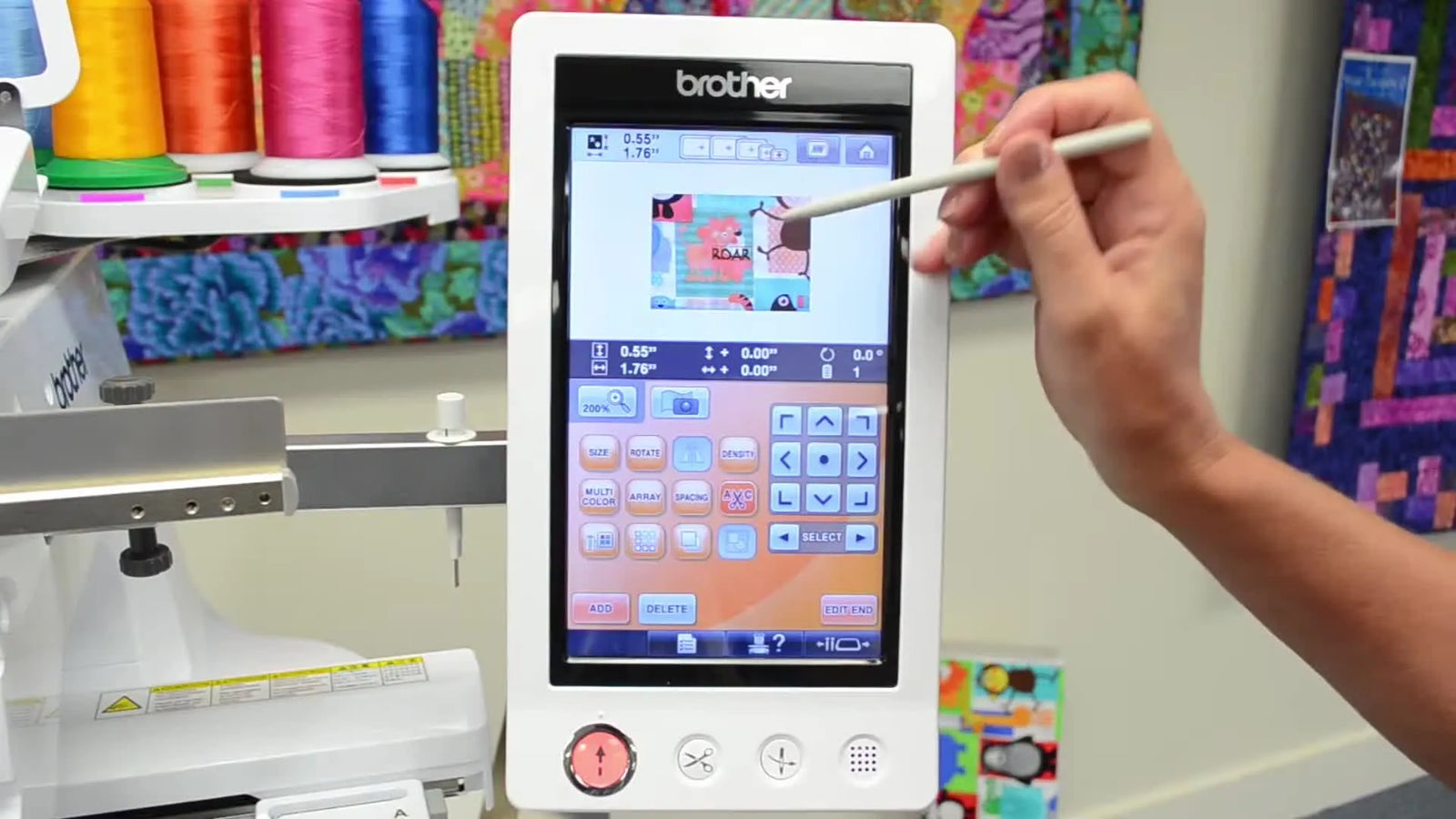

Build the Lettering on the Brother PR1000e Screen: Font Page 2, Then Size Down to Medium (M)

Pat’s workflow starts with lettering created directly on the machine's operating system. This is often faster than using PC software for simple names.

1. Select a font on the PR1000e.
   • She navigates to page 2 of the fonts and chooses a “childish” or hand-drawn style that complements the artwork.
2. Type the first letter (“R”) and check size immediately.
   • The Trap: The default size shown is usually L (1.26 inches). If you type the whole word "ROAR" at this size, it will likely exceed your hoop limits or the artwork's scale.
3. Resize to Medium (M) before finishing the word.
   • She switches to M, approximately 0.60 inches (approx. 15mm), then completes the word R O A R.
   • Expert Note: Always size down from the closest native font size rather than sizing up. Sizing up can degrade stitch density calculations.
4. Press SET to confirm the word.

This “type one letter → judge size → then commit” habit prevents you from building a whole word and realizing it’s too tall for the artwork you’re trying to frame, saving you the frustration of backing out and starting over.

Capture the Real Fabric as Your Background: What the PR1000e Is Doing During “Recognizing…”

Now comes the feature that makes placement feel almost unfair (in a good way). This is where the machine digitizes your physical reality.

1. Tap the Camera icon (usually looked like a camera lens).
2. Confirm the prompt that the embroidery frame will move. (Do not ignore this!)
3. The Scan: The machine moves the hoop around on the pantograph while the camera takes multiple high-resolution snapshots.
4. Processing: You’ll see a “Recognizing…” progress bar. The processor is stitching these images together to form a seamless composite background.

Warning: Physical Safety Hazard
Keep hands, tools, and loose items (scissors, rulers, phones) AWAY from the moving frame and needle area during scanning. The hoop drive system moves with significant torque and speed. A collision with a stray pair of scissors can throw off the pantograph calibration or break the camera lens glass.

Place “ROAR” Exactly Where You Want It: Drag First, Then Nudge with the 8-Way Arrows

Once the scan finishes, the magic moment happens: the lion print appears on the LCD as the background. You are now working in Augmented Reality (AR).

1. Macro Move: Drag the word “ROAR” directly over the lion image using the stylus. Get it roughly in the right neighborhood.
2. Micro Move: Use the 8-way directional arrow keys (jog keys) for fine adjustments. Tap, don't hold.

This two-stage approach is faster than trying to “nudge” from the start:

• Drag gets you 90% there in 2 seconds.
• Arrows get you the last millimeter—where the professional look lives.

Pro-Tip on Hoop Selection: If you’re frequently doing placement work on tricky items (bags, seams, or thick canvas) that resist laying flat in tubular hoops, your hoop choice becomes a productivity lever. The "Hoop Burn" (shiny rings left on fabric) is a major issue with standard hoops. Many embroiderers who start with standard brother pr1000e hoops eventually test magnetic options because they can reduce hoop marks and drastically speed up loading on repeat jobs by clamping the fabric rather than forcing it into a ring.

Arc Text with the Array Menu: Match the Curve of the Artwork (Instead of Forcing a Straight Line)

Pat then uses the PR1000e’s Array menu to curve the lettering. Text that sits straight across a curved graphic looks disconnected and "slapped on."

1. Open the Edit tab and select Array.
2. Select the Arc function (usually looks like text on a curve).
3. Adjust the Curve Degree until the word follows the shape of the lion’s head or the graphic's contour.

This is the part many beginners skip—and it’s why their lettering looks amateur. Curving the text to echo the artwork makes the customization feel intentional.

The Physics of Arced Text: A practical note from production experience: Arced text concentrates the pull force in different directions compared to straight text.

• Straight text: Pulls fabric mostly vertically.
• Arced text: Pulls fabric radially.
• Implication: Good stabilization matters even more here. Ensure your cutaway stabilizer extends at least 1 inch beyond the design area to support these multi-directional forces.


Setup Checklist (Right before you go to the Sewing screen)

• Visual Confirmation: Confirm the scanned background is clearly visible and the text sits exactly where you want it relative to the print.
• Spacing Check: Use drag + arrow nudges until the spacing looks balanced around the artwork (e.g., equidistant from the lion's ears).
• Clearance: Apply Array → Arc and re-check that the bottom of the letters doesn't crash into the artwork.
• Size Check: Double-check your size choice (Pat prefers Medium (M) roughly 0.60" for this project).
• Physical Path: Make sure the hoop can still move freely. Ensure no clamps or magnetic clips are near the needle throat plate.

Stop Rethreading: Reassign the Thread Color to Needle 6 on the PR1000e Sewing Screen

Here’s the time-saver that separates hobbyists from shop owners. In a commercial environment, time spent rethreading is lost revenue.

When Pat goes to the Sewing screen, the machine creates a default color instruction—in this case, it prompts for Black thread because the digital file defaults to black. Instead of unthreading Needle 1 and putting on Black, she does this:

1. Identify the resource: Look at the thread tree. Which needle already has the color you want (Red)?
   • In her case, Red is on Needle 6.
2. Override the machine: On-screen, tap the thread spool icon and select Needle 6 (or the corresponding anchor) to force the machine to use that needle for the text.
3. Commit: Close out the color-change prompt, unlock the machine, and press the physical Start button.

This is a classic multi-needle efficiency move: you let the machine’s default suggestion be a suggestion, not a command.

If you’re running frequent small customizations (names, short words, punctuation), this kind of workflow is where multi-needle machines earn their keep. And if you’re scaling up, it’s also where tool ROI becomes obvious—especially when you compare manual hooping time versus faster loading systems like magnetic hoops for brother pr1000e on repeat orders, which allow you to snap fabric in place without adjusting screws.

What “Perfect Placement” Really Depends On (So It Stays Perfect After the First 200 Stitches)

Camera scanning gets you accurate placement before the needle drops—but stitch physics decides whether it stays accurate.

1) Hooping Tension and Fabric Distortion

Generally, fabric can shift in two ways:

• During Hooping: The print stretches slightly, so the scan reflects a distorted “truth.” When you un-hoop, the text shrinks with the fabric.
• During Stitching: The needle penetrations ("flagging") pull the fabric in, especially with dense satin column lettering.

The Fix: Your goal is consistent, moderate hoop tension (drum-like but not stretched) and enough stabilizer support so the fabric doesn't migrate under the stitch load.

2) Stabilizer/Backing Is Your Insurance Policy

Pat uses backing/stabilizer. In practice, the right backing choice is what keeps small lettering crisp.

Decision Tree: Fabric Feel → Backing Strategy (Follow this general expert guidance, but always test on scraps first)

3) Why Magnetic Hoops Can Reduce “Hoop Burn” and Speed Up Repeat Work

When you’re doing lots of placement-critical personalization, the slowest part is often not stitching—it’s loading and reloading fabric consistently without leaving marks.

Many shops move toward magnetic embroidery hoops for brother because the magnetic clamping force is vertical (flat), not shearing (pulling). This offers three distinct advantages:

1. Zero Hoop Burn: No friction rings to crush delicate cotton fibers.
2. Speed: "Snap and Go" is faster than "Loosen screw, insert, tighten screw, pull fabric, tighten screw."
3. Ergonomics: Reduces hand strain compared with forcing tight rings (especially in long production sessions).

Warning: Magnetic Safety
magnetic hoops for brother pr1000e feature incredibly strong industrial magnets.
* Pinch Hazard: Do not place fingers between the top and bottom frames. They snap together with enough force to cause blood blisters or worse.
* Medical Devices: Keep them at least 6 inches away from pacemakers, insulin pumps, and credit cards.

“I Want This Look on Everything”: Project Ideas Pat Shows (And How to Keep Them Clean)

Pat shares a few examples that highlight how far you can take this technique:

• A children’s print with “ROAR” completely arced over the lion.
• A pouch embellished with punctuation marks, numbers, plus signs, and other symbols pulled from the machine's built-in font menus.
• A red-and-white star fabric where she selects a period, repeats it, and places dots precisely in the center of the stars using the camera.

The takeaway: once you can see the print on-screen, you can place tiny elements with confidence—dots, symbols, accents—without eyeballing or using masking tape markers.

For a shop workflow, this is also where batching helps: scan, place, and stitch a set of similar items in one session. If you’re still spending most of your time wrestling fabric into rings, consider whether your manual hooping for embroidery machine process is your bottleneck—and whether a faster clamping method or a dedicated station would pay for itself in labor savings (and saved fingers).

Quick Troubleshooting: When the Screen Says Black but You Want Red (and Other “Scary” Moments)

Even intermediate users get tripped up by a few predictable issues. Here is your "Panic Button" guide.

The Upgrade Path That Actually Makes Sense: When to Stick with Tubular Hoops vs. Upgrade Tools

If you’re doing this once for fun, the standard tubular hoop and camera scan will get you a beautiful result. You don't need extra gear for a one-off.

However, if you’re doing this weekly (or selling personalized items), your time cost calculates differently:

• Hobby Pace: You can tolerate 5 minutes of hooping and the occasional "hoop burn" removal with a steamer.
• Production Pace: You need repeatable loading (under 30 seconds), less hand fatigue, and zero fabric marks.

That’s where upgrades become practical investments rather than "extra toys." For example, many owners compare options like mighty hoops for brother pr1000e or other magnetic-style frames based on:

1. Cycle Time: How fast can you load/unload?
2. Quality Control: How consistently does the fabric sit without distortion?
3. Rejection Rate: Are hoop marks ruining your profit margin on delicate items?

And if you’re scaling beyond occasional personalization into steady output (50+ items a week), a multi-needle upgrade focused on robust productivity—like a SEWTECH multi-needle embroidery machine—can be the next logical step. These machines maximize the run time (needle up) versus setup time (needle down), especially when running multiple colors.

Operation Checklist (Right as you press Start)

• Needle Check: Confirm the correct needle is selected/highlighted (Pat uses Needle 6).
• Wait for Speed: New users often panic and slow the machine down. Keep the machine at a "Sweet Spot" speed (approx 600-800 SPM) for text. Too slow can actually cause thread fraying; too fast reduces precision on small letters.
• Clear Path: Ensure the hoop path is clear (no wall behind, no table in front).
• The "One Inch" Rule: Watch the first few stitches carefully. If placement looks wrong in the first inch, STOP immediately. Fixing a mistake at stitch 10 beats fixing (or scrapping) at stitch 10,000.
• Breathe: Trust the scan, but verify with your eyes.

FAQ

• Q: How do I get accurate text placement on a busy print using the Brother Entrepreneur Pro PR1000e camera background capture?
  A: Use camera background capture only after stable hooping, then drag for rough placement and nudge with the 8-way arrows for final alignment.
  • Hoop: Load the fabric flat in a Standard Tubular Hoop and add appropriate backing before scanning.
  • Scan: Tap the Camera icon, confirm frame movement, and let the PR1000e finish “Recognizing…” without touching the hoop.
  • Place: Drag the word to the target area first, then use the 8-way arrows for millimeter-level adjustments.
  • Success check: The printed motif appears clearly as the on-screen background, and the text sits exactly where intended without “guessing by eye.”
  • If it still fails: Re-hoop with better, more even tension and stronger backing because the scan cannot compensate for fabric distortion during stitching.
• Q: What is the correct hooping tension for small lettering on printed cotton when using the Brother PR1000e Standard Tubular Hoop?
  A: Aim for “taut, not stretched” tension—too tight distorts the print and causes puckering after un-hooping.
  • Tap-test: Tap the hooped fabric and listen for a dull thud (good), not a high-pitched ping (too tight), and avoid any rippling (too loose).
  • Flatten: Remove slack without pulling the grain off; prioritize flatness over “drum-tight stretching.”
  • Stabilize: Pair printed cotton with a medium weight cutaway to resist pull from dense small letters.
  • Success check: The fabric surface stays flat near the inner ring with no flagging (bouncing) when the machine runs.
  • If it still fails: Add more stabilization support (often cutaway) and consider using a basting box if available to reduce shifting.
• Q: Which stabilizer should I use for crisp small text on the Brother PR1000e when stitching on cotton prints, knits, or slippery thin prints?
  A: Choose stabilizer based on fabric behavior; cutaway is generally the safe starting point for small, dense lettering.
  • Cotton print (stable): Use medium cutaway (about 2.5oz) to keep text from distorting after stitching and washing.
  • Knit/stretchy print: Use no-show mesh cutaway because knits often “eat” stitches without permanent backing.
  • Slippery/thin print: Use fusible cutaway to prevent layers from sliding during stitching.
  • Success check: After stitching, the lettering edges look crisp and the fabric around the text stays flat instead of puckering.
  • If it still fails: Increase backing coverage (keep at least ~1 inch beyond the design area) and reduce fabric movement by improving hooping consistency.
• Q: How do I curve lettering on the Brother PR1000e to match artwork using the Array Arc function without the text looking uneven?
  A: Use Edit → Array → Arc, then re-check spacing and stabilization because arced text changes pull direction.
  • Open: Go to the Edit tab, choose Array, then select the Arc function.
  • Adjust: Change the curve degree until the text follows the artwork contour, then re-center with drag + arrow nudges.
  • Support: Use solid backing (often cutaway) and ensure it extends beyond the design area for multi-direction pull.
  • Success check: The curved word visually “echoes” the graphic and spacing remains balanced around the artwork.
  • If it still fails: Strengthen stabilization and re-check hooping tension because arced text can magnify distortion.
• Q: How do I stop the Brother PR1000e from asking for Black thread when I want to stitch the text using Red on Needle 6?
  A: Override the color instruction on the Sewing screen by assigning the design step to the needle that already has the correct thread.
  • Identify: Look at the thread tree and confirm which needle is threaded with Red (example: Needle 6).
  • Reassign: Tap the on-screen thread/spool indicator and select Needle 6 for that color step.
  • Sew: Close the prompt, unlock the machine, and press Start.
  • Success check: The active needle highlight matches Needle 6, and the machine begins stitching with the Red thread already loaded.
  • If it still fails: Pause and confirm the correct needle is selected/highlighted before restarting to avoid unintended stitching.
• Q: What safety precautions should I follow when the Brother PR1000e shows “Frame will move” during camera background capture scanning?
  A: Treat scanning like an active motion cycle—keep hands and loose tools completely out of the hoop travel area until “Recognizing…” finishes.
  • Clear: Remove scissors, rulers, phones, and any objects near the needle/pantograph path.
  • Keep out: Do not hold the hoop or reach under the head while the frame is moving.
  • Wait: Let the machine complete the full “Recognizing…” progress cycle before making adjustments.
  • Success check: The scan completes without collisions, and the background image appears aligned on the screen.
  • If it still fails: Stop and re-check the clearance behind and around the machine because the frame can travel to its limits during scanning.
• Q: How do magnetic embroidery hoops help reduce hoop burn and speed up repeat jobs on the Brother PR1000e, and what is the magnet safety risk?
  A: Magnetic hoops can reduce hoop marks and loading time by clamping vertically, but the magnets create a serious pinch hazard.
  • Optimize first: If tubular hooping causes shiny rings or slow loading, consider magnetic clamping as a Level 2 workflow upgrade.
  • Load: Clamp the fabric rather than forcing it into a tight ring to reduce friction-based hoop burn.
  • Protect: Keep fingers out of the closing gap—magnets can snap together hard enough to cause injury.
  • Success check: Fabric loads faster with fewer visible hoop rings, and placement stays consistent across repeated items.
  • If it still fails: Re-check stabilization and hooping tension because even magnetic hoops cannot prevent distortion from under-supported fabric; also keep magnets away from pacemakers, insulin pumps, and credit cards.
