Nail Left-Chest USMC Logos on Port Authority K455 Polos: The HoopMaster + 5.5" Mighty Hoop Workflow That Stops Costly Rehoops

Left-chest logos look “easy” until you’re the one eating the cost of a remake because the emblem sits too close to the armpit, the placket line isn’t parallel, or the shirt shifts inside the hoop halfway through the run.

Embroidery is an empirical science: specific inputs yield specific outputs. This workflow is built for commercial reality: repeatable placement, fast hooping, and clean fine-detail stitching on a Port Authority polo—using a HoopMaster station and a 5.5" magnetic hoop.

The Calm-Down Moment: Left-Chest Logo Placement Errors Are Fixable (Even When You’re On a Deadline)

If you’ve ever stared at a polo and thought, “I measured it… why does it still look off?”, you’re not alone. Left-chest placement is one of those jobs where a 1/2" mistake looks like a mile once the shirt is worn. This frustration is the number one reason beginners quit or hesitate to take on bulk orders.

Here’s the good news: the method below is not about chasing a “magic number.” It’s about building a Standard Operating Procedure (SOP)—a repeatable reference system combining a visual crosshair, placket alignment, and a hooping station grid—so the shirt lands in the same place every time.

One comment thread nailed a common confusion: the crosshair (+) doesn’t always sit in the physical center of the hoop opening. That’s not automatically wrong. If your design has room to shift inside the hoop, you can move the design center around via your machine interface—as long as you trace/verify before you hit start. That single habit prevents most “it started 1 inch off” panic attacks.

The “Hidden” Prep Pros Do First: Polo Shirt + Backing + Marking Tools That Prevent Shifting

Before you touch the hooping station, set yourself up so the fabric behaves. The physics of embroidery are simple: needle penetration pushes fabric; thread tension pulls fabric. Your prep must counteract both.

The Ingredients for Stability

• Garment: Port Authority polo (K455/60/40 blend). These sit in a “middle ground”—not super heavy piqué, not ultra-thin golf performance. Note: Blends containing polyester have “memory”—if you stretch them in the hoop, they will snap back later, causing puckering.
• Backing (Stabilizer): 8x8 performance No-Show Mesh or Cutaway (2.5oz). The video uses a cutaway with a diagonal web structure. Why? Diagonal webbing provides multi-directional stability against the needle's force.
• Marking Tools: A water-soluble pen for a crisp crosshair, and an erasable dye pen/air-erase pen for verifying lines.
• Hidden Consumables:
  • Temporary Adhesive Spray (e.g., KK100): Use a light mist to bond the backing to the shirt. This prevents "flagging" (fabric bouncing up and down).
  • Masking Tape: To secure loose straps or backing edges.

If you’re building a commercial workflow, this is where you win or lose time. The goal is to prevent “micro-shifts” that only show up once the needle starts punching.

Prep Checklist: The "Zero-Fail" Protocol

• Surface Check: Polo is fully relaxed on a flat surface (no collar tugging, no side seam twisting).
• Placket Audit: Placket is buttons-up and smoothed flat so it reads as a true vertical reference.
• Tool Staging: Ruler and water-soluble pen are within arm's reach.
• Stabilizer Prep: Backing sheets cut to size (8x8 minimum for a 5.5" hoop).
• Environment: Hoop and station are clean; magnets are clear of stray needles or debris.


Warning: Hand & Safety Hazard
Pinch Point: Keep fingers clear when snapping magnetic frames shut. Never "help" the hoop close by pushing near the magnetic perimeter. The closing force of a 5.5" Mighty Hoop is strong enough to cause severe blood blisters or bruising.
Medical Device: If you have a pacemaker, consult your doctor. Strong magnetic fields can interfere with medical electronics.

The Measurement Sweet Spot: Left-Chest Placement on Port Authority Polos Without Guessing

Placement databases vary, but for adult polos (Sizes S–XL), there is a commercially safe "Sweet Spot." The video uses a practical placement zone that works well for standard corporate wear.

The Coordinates

1. Vertical placement: Draw a line 7.5" to 9" down from the high point of the shoulder (where the shoulder seam meets the collar).
   • Pro Tip: For Small shirts, stick to 7.5"; for XXL, go to 9".
2. Horizontal placement: 3.5" to 4.5" from center (using the placket center as the reference).
   • Caution: The specific instruction is not to drift toward the sleeve. A logo that sits in the armpit is the hallmark of an amateur job.

For this specific design, the logo is 2.5" high and 2.5" in diameter (a circular USMC emblem). This size is a classic left-chest scale—big enough to read, small enough to look professional.

The Professional Nuance: Parallelism

The vertical line of your crosshair must run parallel to the placket, not necessarily parallel to the side seam (which is often twisted on cheap shirts). That’s how you avoid the “logo looks rotated” problem.

Work Method: Action-First

1. Lay the shirt flat.
2. Measure your vertical zone (7.5–9" down).
3. Measure your horizontal zone (aim ~4" out from the placket center).
4. Mark a clean crosshair (+).
5. Verify the vertical line is parallel to the placket visually.

When dialing in your mighty hoop left chest placement, treat the crosshair as your “truth,” and treat the hoop as the tool that must obey that truth—not the other way around.

The Hooping Station Setup That Stops Loose Backing: HoopMaster Fixture Settings and Backing Size

The video’s station setup is simple, but it’s the kind of simple that saves you from rework. The HoopMaster station standardizes the "Z-axis" (height) and "X/Y axis" (position) of your hooping process.

Station Calibration

• Backing: Place the 8x8 performance cutaway backing onto the HoopMaster fixture.
• Fixture Arms: Adjust the station’s hoop fixture arms from position 26 to 27 for this shirt/placement.
• The Size Rule: The creator explicitly warns: use 8-inch backing, not 7-inch, or it can feel loose in the fixture.

Why "Loose Backing" Destroys Quality

That “loose backing” issue is not cosmetic. In production, loose backing leads to:

• Flagging: The fabric bounces with the needle, causing birdnesting.
• Registration Drift: Outlines don’t line up with the fill stitches.
• Distortion: The dreaded “it looked centered until it stitched” effect.

This is where a hooping station earns its keep. By using a hoop master embroidery hooping station, you’re not just speeding up hooping—you’re standardizing the tension and alignment inputs so your machine isn’t fighting inconsistent setups.

Setup Checklist: Before Cloth Meets Magnet

• Flatness: Backing is flat on the fixture with no curled corners.
• Lock check: Fixture arms (tabs) are locked securely at setting 27.
• Compatibility: Hoop top and bottom match correctly (ensure top frame orientation matches bottom).
• Visibility: You can clear see the station’s grid/letters for alignment.
• Clearance: You have a clear path to slide the shirt over the board without snagging seams.

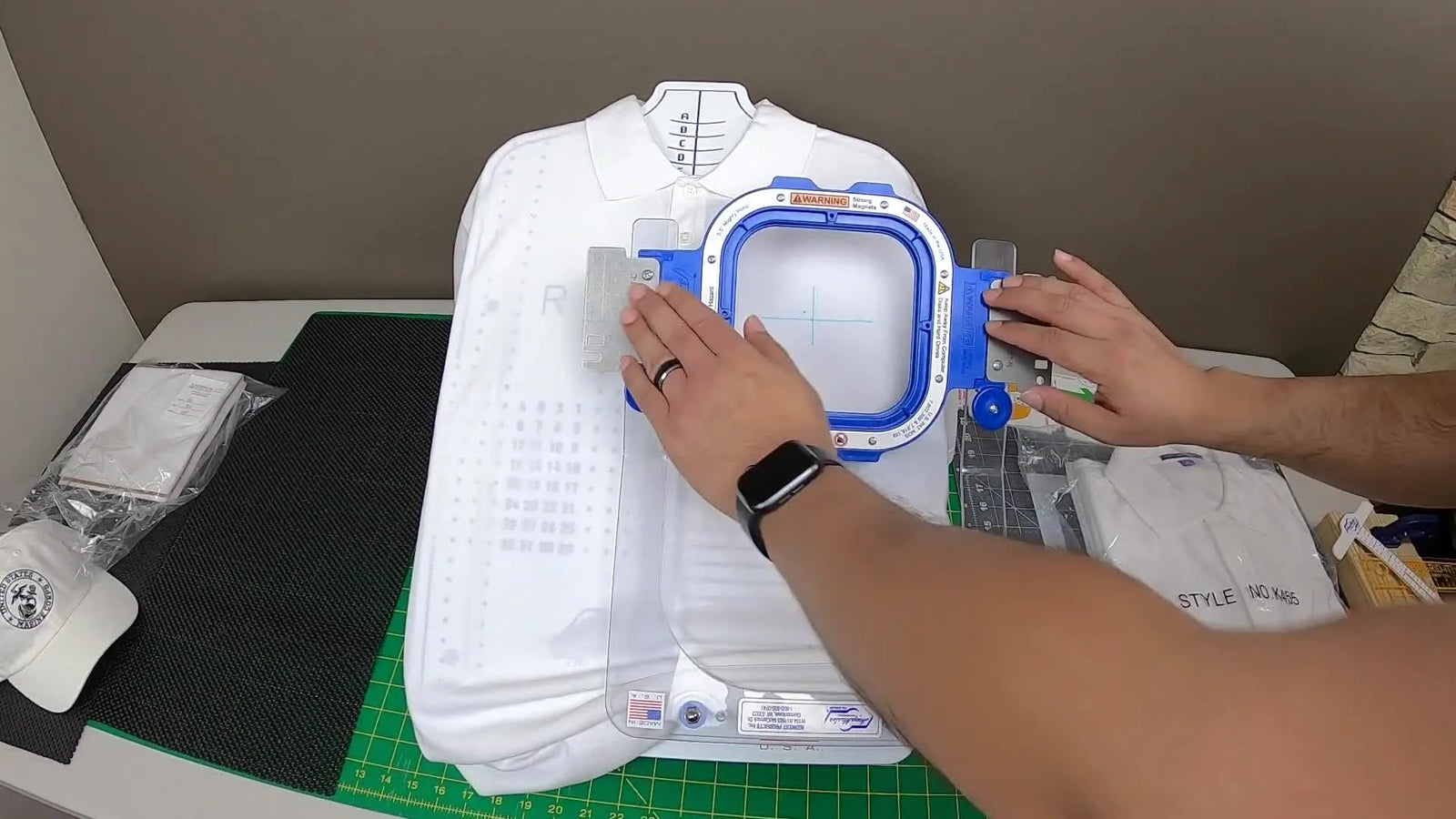

The Snap-and-Check Routine: Hooping a Polo Shirt with a 5.5" Magnetic Hoop Without Stretching the Knit

The hooping sequence in the video is the heart of the workflow. This is also where Magnetic Hoops (like Mighty Hoops or Sewtech Magnetic Frames) shine compared to traditional screw-tighten hoops. Traditional hoops require "tugging" to get wrinkles out, which creates hoop burn and distortion. Magnetic hoops simply clamp.

The Execution Steps

1. Slide the polo shirt over the station board.
2. Smooth the fabric. Sensory Cue: Do not pull it tight like a drum. Just remove the wrinkles. It should feel relaxed.
3. Align the drawn crosshair with the station’s laser-etched letters/grid.
4. Pre-Flight Visual: Check alignment with the buttons/placket one last time.
5. Engage: Place the top magnetic frame over the alignment pins and let it snap down properly.

Sensory Anchor: The Sound

The creator calls out the sound: a loud SNAP. That’s normal. It means the magnets have fully engaged. If you hear a soft "thud" or a "click-click," check if fabric is bunched between the magnets.

The "Why" (Physics of Knits)

Polos are knit structures (loops of yarn). Unlike woven denim, knits deform under tension. If you stretch the shirt while hooping, the fabric relaxes after hooping, and your design will pucker.

If you’re running magnetic embroidery hoops in production, the best habit you can build is this: smooth, align, then clamp—never “stretch to fit.”

Warning: Magnetic Field Safety
Magnetic frames generate strong fields. They can affect pacemakers and implanted medical devices. Keep magnets away from children, phones, credit cards, and anyone with implanted devices. Always store frames separated or with the provided spacers to prevent accidental slamming.

The Machine Run That Protects Fine Detail: Ricoma Hoop Preset + Thread/Needle Choices From the Video

Once hooped, the video loads the shirt onto a Ricoma embroidery machine.

Machine Configuration

• Hoop Selection: On the Ricoma interface, they select Hoop C (130 mm) for the 5.5" hoop to ensure the trace function works correctly.
• Needle Choice: 65/9 (Ballpoint) is used for high detail.
  • Expert Note: While the video uses 65/9, a 75/11 Ballpoint is the industry standard "safe" needle for polos. 65/9 is thinner and sharper, great for small text, but more prone to breakage if tension isn't perfect.
• Thread: 60 weight (thinner for detail) vs standard 40 weight.
  • Speed Rule: For small text on knits, slow down! A commercial machine can do 1000 SPM (Stitches Per Minute), but for quality, run this at 600-750 SPM.

The practical takeaway: fine lettering on a left-chest emblem is unforgiving. Thinner thread and an appropriately small needle can help the design read clean instead of looking “bunched.”

If you’re setting up a ricoma embroidery machine for polos, don’t skip the last pre-run check: make sure the backing is held firmly on all sides and the shirt isn’t trapped in a twist around the hoop.

Operation Checklist: The "Go/No-Go"

• Lock: Hoop is fully seated on the pantograph arms and locked (listen for the click).
• Clearance: Shirt back and sleeves are tucked away safely (use clips if necessary).
• Centering: Confirm the needle is directly over your crosshair center.
• Trace: Run the "Trace/Contour" function. Visual Check: Does the presser foot stay within the hoop safely?
• Recipe: confirm Thread Weight (60wt/40wt) matches the digitized file settings.


The "Center Isn't Always Center" Truth: Getting the Crosshair to Match the Logo Center on the Machine

A viewer asked the question every operator eventually asks: “Does the (+) have to be in the center of the hoop?”

The creator’s answer is the correct commercial answer:

• Scenario A (Max Size): If your design fills the hoop (e.g., 5" wide in a 5.5" hoop), you must be dead center.
• Scenario B (Left Chest): If your design is small (2.5") and has room to shift, you can move the center around digitally.

Troubleshooting: The "1-Inch Drift"

A viewer described a 1" shift at the start. Usually, this means:

1. File Center: The digitized file wasn't saved with the design in the center of the workspace.
2. User Center: The user manually jogged the pantograph but didn't reset the design origin.

In plain shop language: your crosshair is only as accurate as the design’s center point and how you’re aligning it on the machine.

When using a mighty hoop for ricoma, the fastest “no drama” workflow is:

1. Mark crosshair on garment.
2. Hoop to crosshair.
3. Mount hoop.
4. Use machine arrows to move needle directly over the crosshair center.
5. Trace.
6. Start.

The Backing Formula for Polos and Jerseys: When to Use Two Pieces (and When No-Show + Cutaway Can Work)

The video uses two pieces of performance cutaway for the polo. Is this overkill? For a dense military crest, no.

The Stabilizer Decision Tree

Use this logic to choose your backing based on specific variables (Fabric + Design Density):

• Scenario 1: Standard Piqué Polo + Heavy Logo (Stitch count > 8,000)
  • Choice: 2 layers of 2.5oz Cutaway.
  • Why: Maximum stability. Prevents tunneling and puckering.
• Scenario 2: Thin "Golf" Polo + Medium Logo
  • Choice: 1 layer No-Show Mesh (against skin) + 1 layer Cutaway.
  • Why: "No-Show" makes the back softer against the nipple/chest, cutaway provides the structure.
• Scenario 3: Stretchy Poly/Spandex + Tiny Text
  • Choice: 2 layers Cutaway + Water Soluble Topping.
  • Why: Topping keeps the fine thread sitting on top of the piqué texture rather than sinking in.

This is also where tool upgrades become a business decision. If you’re hooping a lot of polos daily and fighting distortion, a magnetic hoop system (like Sewtech Magnetic Hoops) can reduce handling time and reduce “over-stretching by hand.” For home single-needle users who struggle with clamping and hoop burn, a magnetic hoop designed for domestic machines can be a meaningful upgrade path; for multi-needle production, industrial magnetic frames are often the bigger time-saver when you’re batching dozens of garments.

The Finish That Makes It Look Expensive: Unhooping, Inspecting, and Removing Marking Lines Fast

After stitching, the video shows the breakdown:

1. Unhoop: Pull the tabs to release the magnet. Note: Unlike screw hoops, there is no "hoop burn" ring to steam out.
2. Inspection: Check for thread loops or missed trims.
3. Erase: Remove the blue alignment marks.

Erasure Methods

• Chemical/Dye Pen (Tide Pen style): Good for instant removal.
• Water Pen/Sponge: The creator notes a damp sponge works for water-soluble ink.
• Steam: Often steam from an iron will vanish air-erase pens instantly.

One more finishing note from the comments: the creator mentions adding Cloud Cover / Tender Touch (a fusible soft backing) on the back of the embroidery. This seals the scratchy bobbin threads—a premium touch your customers will notice immediately when they put the shirt on.

The Upgrade Path That Actually Pays Off: Faster Hooping, Fewer Reworks, and Cleaner Left-Chest Runs

If you’re doing one polo for fun, you can get away with slow measuring and careful hand-hooping with standard hoops.

If you’re doing 20, 50, or 200 polos, your profit is hiding in two places:

1. Hooping time per shirt (Operator Fatigue).
2. Rework rate (Spoiled garments).

This is why a station + magnetic hoop workflow is so common in commercial shops. With a hoopmaster hooping station, you’re building repeatability into the process—especially when multiple staff members are hooping.

Commercial Diagnostics: When do you upgrade?

• The Problem: Hands hurting from tightening screws? Hoop burn ruining delicate polyester?
  • The Upgrade: Magnetic Hoops (Compatible with Brother, Ricoma, Tajima, Bai, etc.).
• The Problem: Single-needle machine taking 45 minutes per shirt because of thread changes?
  • The Upgrade: Multi-Needle Machines (like SEWTECH 15-needle systems). This allows you to set up 15 colors at once and walk away while it runs.

And if you’re already pairing station + hoop, the next logical step is to standardize your “toolkit”:

• Keep consistent backing sheets staged.
• Keep a dedicated marking system.
• Keep a consistent hoop size for your most common left-chest logo range.

If you’re using a mighty hoop 5.5 for logos, the real win isn’t just speed—it’s the confidence that the 50th shirt will look identical to the 1st.

FAQ

• Q: How do HoopMaster station users prevent loose 8x8 cutaway backing from shifting in the fixture during left-chest polo hooping?
  A: Use a full 8x8 backing sheet and lock the fixture arms so the backing sits flat and captured before the shirt goes on.
  • Place the 8x8 performance cutaway on the fixture with corners fully down (no curl).
  • Set the HoopMaster fixture arms to the same setting used for the job (the video shows moving from 26 to 27) and lock both sides.
  • Avoid undersizing the backing (the video warns 7-inch backing can feel loose in the fixture).
  • Success check: Backing stays flat when the shirt is slid over the board—no drifting, lifting, or “walking” when touched.
  • If it still fails: Lightly mist temporary adhesive spray to bond backing to the shirt before hooping, then re-seat the backing flat on the fixture.
• Q: How do Port Authority polo left-chest logos end up too close to the armpit, and what measurements prevent armpit placement?
  A: Anchor placement to the placket center and stay in the measured “sweet spot” instead of chasing the sleeve seam.
  • Measure 7.5"–9" down from the high point of the shoulder (shoulder seam meets collar) before marking.
  • Measure 3.5"–4.5" out from the placket center (not the side seam) and mark a clear crosshair.
  • Keep the crosshair vertical line parallel to the placket so the logo doesn’t look rotated on-body.
  • Success check: When the shirt is worn or held up, the logo sits comfortably on the chest panel—not in the armpit zone—and reads square to the placket.
  • If it still fails: Re-check that the placket is smoothed flat and untwisted before measuring; twisted shirts make side seams lie to you.
• Q: Does the crosshair (+) have to be centered inside a 5.5" magnetic hoop opening for left-chest embroidery on a Ricoma machine?
  A: No—small left-chest designs can be shifted digitally, but designs near hoop max size must be dead center.
  • Decide which scenario applies: max-size design in a 5.5" hoop (must center) vs. small 2.5" logo with extra room (can shift).
  • Mark the garment crosshair first, then hoop to that crosshair (treat the mark as the truth).
  • On the machine, jog the needle to sit directly over the crosshair center before running Trace/Contour.
  • Success check: Trace stays safely inside the hoop boundary and the needle visually lands on the drawn crosshair center at start.
  • If it still fails: Verify the digitized file was saved with the design centered in its workspace and reset any manual origin/jog offsets before starting.
• Q: What causes a 1-inch start-position drift on a Ricoma embroidery machine when stitching a left-chest logo in a 5.5" magnetic hoop?
  A: A 1-inch drift is usually a design-center mismatch or an origin/jog reset mistake—fix it before stitching by re-centering and tracing.
  • Confirm the correct hoop preset is selected so Trace matches the physical hoop (the video uses Hoop C / 130 mm for a 5.5" hoop).
  • Move the needle with the arrow keys until it is directly over the garment crosshair.
  • Run Trace/Contour every time after mounting the hoop to catch offset before the first stitch.
  • Success check: The trace path matches the marked area and does not “walk” off the crosshair when the machine returns to start.
  • If it still fails: Re-open the file and confirm the design center is truly centered in the file; then re-load and repeat the needle-to-crosshair alignment.
• Q: How do magnetic embroidery hoops reduce hoop burn and knit distortion on polo shirts compared with screw-tighten hoops?
  A: Magnetic hoops clamp without the over-tugging that creates hoop burn rings and stretched knits.
  • Smooth the polo fabric to remove wrinkles, but do not pull it drum-tight (knits relax after hooping and can pucker).
  • Align the marked crosshair to the station grid, then clamp—avoid “stretch to fit” habits from screw hoops.
  • Listen for the full SNAP when the top frame engages; a soft thud can mean fabric is bunched in the magnet perimeter.
  • Success check: Fabric feels relaxed (not stretched), and after clamping there are no deep hoop marks and no visible distortion around the hoop edge.
  • If it still fails: Re-hoop and focus on smoothing-only (no tension), and confirm no thick seams or bunched fabric are trapped under the magnetic ring.
• Q: What pinch-point safety steps should operators follow when closing a 5.5" magnetic embroidery hoop (Mighty Hoop style) on a hooping station?
  A: Keep hands clear and let the magnets close by themselves—never guide closure near the magnetic perimeter.
  • Position the top frame using alignment pins, then release it to snap down rather than pushing it closed.
  • Keep fingertips away from the rim where the magnet force pulls frames together.
  • Store frames separated or with spacers so frames cannot slam together unexpectedly.
  • Success check: The frame closes with a controlled SNAP and no fingers are anywhere near the closing edge.
  • If it still fails: Stop and reset—do not “help” it close; re-position fabric so nothing is bunched that tempts you to press near the edge.
• Q: What magnetic field safety rules should embroidery shops follow when using strong magnetic hoops around pacemakers, phones, and credit cards?
  A: Treat magnetic hoops like industrial magnets: keep them away from implanted medical devices and sensitive electronics, and store them safely.
  • Do not allow anyone with a pacemaker or implanted medical device to handle or work near strong magnetic frames without medical guidance.
  • Keep frames away from phones, credit cards, and similar items that can be affected by magnetic fields.
  • Store frames separated (or with provided spacers) to prevent accidental slamming and sudden magnetic pull.
  • Success check: Frames are stored controlled (no accidental snap closures) and the work area stays clear of sensitive devices.
  • If it still fails: Re-organize the station area so magnets have a dedicated storage zone away from electronics and personal items.
• Q: When should a shop upgrade from technique fixes to magnetic hoops or a SEWTECH multi-needle embroidery machine for left-chest polo production?
  A: Upgrade in layers: fix repeatability first, then reduce hooping distortion with magnetic hoops, then add multi-needle capacity when thread changes become the bottleneck.
  • Level 1 (Technique): Standardize marking (crosshair + placket-parallel line), always Trace, and stage backing/adhesive so shirts stop shifting.
  • Level 2 (Tool): Move to magnetic hoops if screw-hoop tightening causes hoop burn, hand fatigue, or repeated knit distortion during hooping.
  • Level 3 (Capacity): Move to a multi-needle system like SEWTECH when single-needle thread changes turn each polo into a long, interruption-heavy run.
  • Success check: Rework rate drops (fewer “too close to armpit / rotated / shifted” remakes) and hooping time per shirt becomes consistent across operators.
  • If it still fails: Audit the process step causing variation (marking, backing control, hoop mounting, or trace discipline) before buying more capacity.
