Nail Left-Chest Heart Monograms on a Melco EMT16X: The Hoop Master + 5.5" Mighty Hoop Workflow That Stays Consistent

The "Perfect Placement" Protocol: Mastering Left-Chest Monograms on Sweatshirts (Even If You're Scared to Ruin the Blank)

If you have ever stared at a 50/50 blend sweatshirt, holding a pair of scissors to cut stabilizer, and felt that knot in your stomach thinking, "One inch off and I owe the customer a refund," you are not being dramatic. You are being realistic.

Left-chest placement is the "unforgiving mile" of embroidery. Unlike a tote bag where being half an inch off looks like an artistic choice, a left-chest monogram has a rigid architectural expectation. It must sit on the pectoral muscle—too low and it looks like a stomach stain; too high and it rides the clavicle.

In this industry-grade guide, we are deconstructing Ashley’s workflow (using a Melco EMT16X and magnetic hoops) and rebuilding it into a production-ready Standard Operating Procedure (SOP). I will add the veteran-level "guardrails"—specific tension feelings, auditory cues, and safety margins—that turn a stressful gamble into a boringly reliable process.

The "Don’t Panic" Primer: Why Sweatshirts Fail (and How Physics Can Save You)

Sweatshirts are deceptively difficult. They feel thick and sturdy, but under the needle, they are unstable.

1. The Knit Structure: The fabric is a knit loop. It stretches horizontally. If you hoop it like a drum without the right backing, the fabric stretches out, the stitches go in, and when you unhoop, the fabric snaps back, creating the dreaded "pucker ring."
2. The Loft (Pile): The fuzzy surface wants to swallow your thread. Without a topper, your crisp satin stitches will look like they are drowning in cotton fuzz.
3. The Placement Drift: Without a mechanical jig, humans are notoriously bad at eyeing "straight."

Ashley’s approach works because it replaces "eyeballing" with "indexing." She uses a Hooping Station (mechanical lock) + Target Sticker (visual lock) + Stabilizer Stack (chemical/physical lock).

Supplies That Actually Matter (The "No-Fail" Loadout)

Forget the long shopping lists found on hobby blogs. In a production environment, we need tools that solve specific physical problems. Here is the breakdown:

The Hardware

• Machine: Melco EMT16X (Running Needle #16).
  • Note: While pro machines are great, the physics of stabilization apply whether you run a Melco, a Tajima, or a SEWTECH multi-needle unit.
• Hooping System: Hoop Master Station + 5.5" Magnetic Hoop (Mighty Hoop).
• Placement Tools: Ruler, Dime Target Stickers, Laser Alignment.

The Consumables (The "Secret Sauce")

• Garment: Gildan 5050 Sweatshirt (The industry standard workhorse).
• Foundation: Pre-cut Cutsaway Stabilizer (AllStitch Classic).
  • Why: Keeps the knit from distorting over the garment's life.
• Reinforcement: Tearaway Stabilizer.
  • Why: Added stiffness for the actual stitching event.
• The Topper: Water Solvy (Water-soluble film).
  • Why: Keeps stitches riding high on top of the fleece.
• The Hidden Consumables (Have these within arm's reach):
  • New 75/11 Ballpoint Needles (Sharp needles can cut knit fibers).
  • Precision Tweezers.
  • Sewing Machine Oil (Clear).
  • Canned Air.

One SEO term you’ll often see people search for is melco emt16x embroidery machine, but experienced operators know that the machine is only 40% of the success equation. The other 60% is your stabilization recipe and placement consistency.

Prep Checklist: The "Pre-Flight" Safety Protocol

• Needle Check: Run your finger gently over the tip of Needle #16. If you feel a burr (scratch), change it immediately. A burr acts like a miniature saw blade on knits.
• Design Analysis: Is the heart monogram "brick dense"? (Check stitch count). If yes, prepare two layers of backing.
• Thread Path: Floss the thread through the tension discs. You should feel smooth, consistent resistance (like pulling a tea bag out of water), not jerky snags.
• Bobbin: Ensure you have at least 1/3 bobbin remaining. Running out mid-monogram creates a tie-off scar that is hard to hide.


The Hoop Master Fixture "Sweet Spot": Why Slot 14 Matters

In the video, Ashley moves her fixture setting from 15 to 14. This isn't random; it's calibration.

The Hoop Master station uses a grid system. For this specific size of Gildan sweatshirt and 5.5" hoop, Slot 14 aligns the hoop center with the human chest center.

The Action:

1. Unscrew the bottom fixture guide pins.
2. Move them to Slot #14.
3. The "Click" Test: Wiggle the fixture. It should seat firmly with zero play.

The Lesson: "Find your groove." If you run a shop, do not rely on memory. Create a "Shop Bible" (a binder or iPad note).

• Entry: Gildan 5050 (Adult S-XL)
• Fixture: #14
• Sticker: H-Position

This turns a 5-minute guessing game into a 10-second setup.

Stabilizer Stacking: The "Sandwich" Theory

Ashley highlights a critical failure she made previously: using too little stability on a dense font, resulting in puckering.

The Fix: The Hybrid Stack

1. Bottom Layer: Tearaway (for immediate rigidity).
2. Top Layer: Cutaway (closest to the fabric, for long-term shape).
3. Mechanism: She uses the magnetic flaps on the station to hold this "sandwich" taut.

Why this works: The Tearaway acts like a temporary scaffolding to handle the intense needle penetration of a satin stitch heart. The Cutaway ensures that when you wash the sweatshirt 50 times, the embroidery doesn't curl into a ball.

If you are researching magnetic embroidery hoops, understand that the hoop's job is to hold the fabric without crushing it, but the stabilizer's job is to stop the fabric from moving. You need both.

Decision Tree: The "What Stabilizer Do I Use?" Logic Map

Don't guess. Follow the physics.

1. Is the fabric a Knit (T-shirt, Hoodie, Polo) or Woven (Denim, Canvas)?

• Woven: Tearaway is usually fine.
• Knit: MUST use Cutaway. (Proceed to Step 2).

2. Is the design heavy (Solid fills, Dense Satin)?

• Light: 1 layer of Cutaway (2.5oz).
• Heavy (Like this Heart Monogram): 1 layer Cutaway + 1 layer Tearaway (The Ashley Method).

3. Is the fabric surface fuzzy (Fleece, Velvet, Towel)?

• Yes: Add Water Solvy Topping.
• No: No topping needed.


The 4" Over / 6.5" Down Rule: The Golden Ratio of Left Chests

Placement is where beginners freeze. Ashley uses the industry standard coordinate system for Adult Left Chest: 4 inches from center, roughly 6.5 to 7 inches down from the shoulder seam.

The Workflow:

1. Find Center: Fold the sweatshirt vertically.
2. Press the Crease: Use a heat press to create a hard visible centerline.
3. The Measure: Measure 4" to the left of that crease, and roughly 6.5" down from where the shoulder seam meets the collar.
4. The Sticker: Place the target sticker so the crosshairs intersect at that point.

Expert Note: The crease is your "North Star." Ashley mentions it washes out. This is true. If you are worried about scorching white polyester, use a Teflon sheet or pressing cloth.

Data Point: Industry standard allows a variance of about 0.5". If you are 4.2" over, nobody notices. If you are 6.5" down or 7" down, it is acceptable. But if you drift to 2" or 5", the garment looks "wrong" to the human eye.

Warning: Thermal Safety
Heat presses operate at 300°F+ (150°C+). This is enough to instantly blister skin. Treat the platen like a loaded weapon. Never reach under the platen while looking away.

Magnetic Hooping: The "Snap" That Saves Your Wrists

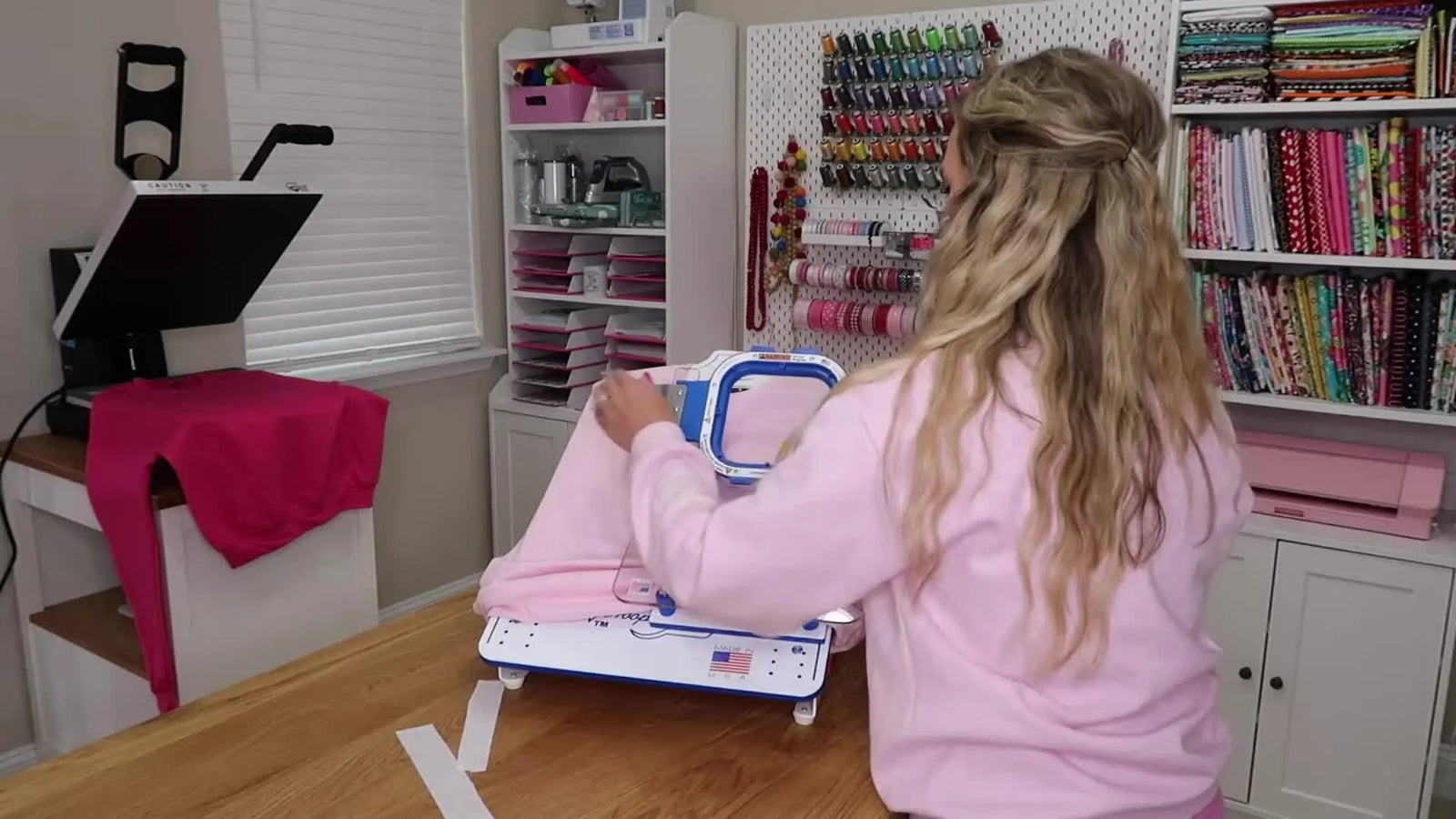

Ashley hooping process is nearly instantaneous. She aligns the top ring and lets it snap.

The "Hoop Burn" Problem: Traditional screw-tighten hoops require you to force an inner ring inside an outer ring. On thick fleece, this crushes the fibers, leaving a permanent ring (hoop burn) that ironing won't fix.

The Magnetic Solution: The mighty hoop left chest placement system uses vertical clamping force. It holds the fabric between the rings rather than stretching it around a ring.

• Sensory Check: You should hear a solid THWACK sound.
• Tactile Check: Run your hand over the sweatshirt inside the hoop. It should feel flat and neutral, not stretched like a trampoline. If you over-stretch a knit while hooping, it will pucker the second you un-hoop it.

Warning: Magnetic Pinch Hazard
Industrial magnetic hoops (like Mighty Hoops) use Neodymium magnets with 30+ lbs of force.
* Do not place fingers between the rings.
* Do not let hoops snap together without fabric nearby.
* Do not use if you have a pacemaker (magnets can interfere with medical devices).

Setup Checklist: The "Ready to Load" Protocol

• Fixture Setting: Confirmed at Slot #14.
• Stabilizer: Cutaway + Tearaway secured under magnetic flaps.
• Fabric Draft: Sweatshirt drafted over the station; shoulder seams even.
• Target: Sticker is flat; no corners peeling up.
• The Snap: Hoop is engaged unevenly? (Check that no fabric bunched in the back corners).


Machine Maintenance: The "One Drop" Ritual

Ashley performs a "pit stop" before stitching. She removes the bobbin case, blasts the rotary hook with air, checks the bobbin level, and adds one drop of oil to the hook race.

Why this is crucial: Modern machines run at high RPM. A dry hook race creates friction, which creates heat, which melts polyester thread. If your machine sounds "clacky" or metallic, it is crying for oil.

• The Rule: One drop every 4 hours of running time.
• The Mistake: DO NOT drown it. Too much oil will splatter onto your pink sweatshirt and stain it permanently. One drop. Cycle the machine. Done.


Laser Alignment: Trust, But Verify

Putting the hoop on the machine is Step A. Telling the machine where start is Step B. Ashley uses the Laser Alignment feature on her Melco.

The Process:

1. Snap hoop onto pantograph arms.
2. Use the Keypad to move the pantograph.
3. Align the Red Laser Dot directly into the center of the crosshair on your target sticker.
4. Confirm Center.

This step bridges the gap between the physical world (the sweatshirt) and the digital world (the embroidery file).

If you are investigating the hoop master embroidery hooping station ecosystem, realize that this laser step is what makes the station powerful. You define center off the machine, and the laser confirms it on the machine.

Maximum Clearance: The "Bullseye" Trick & Sticker Removal

Before hitting start, Ashley recommends two actions that save frustration:

1. Trace: The machine moves the hoop to the design boundaries. Watch specifically for the needle bar hitting the plastic edge of the hoop. Listen for the click of plastic on plastic. If you hear it, you are too close.
2. Sticker Removal: Just before stitching, peel the sticker. Ashley uses the "Bullseye" (or Wiper) button to move the needle bar/grabbers out of the way so she can reach in safely.

Veteran Tip: Never stitch over a paper sticker. The needle will punch adhesive down into your bobbin case, gumming up the rotary hook and causing thread to shred 10 minutes later.

The "Snowshoe" Effect: Why You Need Water Solvy

Ashley floats a layer of Water Solvy on top of the sweatshirt.

Think of a sweatshirt's surface like deep snow. If you walk on it (stitch), you sink. Water Solvy acts like snowshoes. It sits on top of the fuzz, providing a smooth, flat surface for the thread to lay upon.

• Result: Crisp edges, readable text, and zero "sinking."
• Removal: It dissolves with a light water mist or rips away cleanly after stitching.


The Stitch Out: Monitoring the "Pulse" of Production

Ashley runs the design on Needle #16. While the video doesn't specify speed, here is the industry safety zone for a design this dense on a knit:

Speed Recommendation:

• Beginner/Safe Mode: 600 - 700 SPM (Stitches Per Minute).
• Pro Mode: 800 - 950 SPM.
• Redline: Do not run dense satins on sweatshirts at 1200+ SPM unless your stabilization is bulletproof. The push/pull forces will distort the fabric.

Sensory Monitoring:

• Sound: You want a rhythmic "thump-thump-thump." If you hear "Slap-Slap" (loose fabric) or "Grind-Grind" (needle struggle), STOP immediately.
• Sight: Watch the topper. If the foot catches the edge of the Solvy and drags it, pause and tape it down.

Warning: The "Kill Zone"
An embroidery machine needle moves faster than the human eye can track.
* Never use scissors to trim a thread while the machine is running.
* Keep loose hair and hoodie drawstrings tied back. A drawstring caught in the take-up lever is a disaster.

Operation Checklist: The "Green Light" Protocol

• Trace Passed: No hoop collisions.
• Sticker Gone: Adhesive removed.
• Topper On: Solvy covering the entire design area.
• Hands Clear: Fingers outside the hoop perimeter.
• Emergency Stop: Do you know exactly where the E-Stop button is? (Locate it visually now).


Troubleshooting: When Bad Things Happen to Good Shirts

Even pros have bad days. Here is Ashley’s reality, structured for rapid diagnosis.

The "Wonky Font" Warning: A Note on Digitizing

Ashley mentions she bought the font on Etsy and noticed some letters could look "wonky" inside the heart shape. The Pro Take: Not all fonts found on Etsy are production-grade. Many are auto-digitized.

• Rule: Always do a test sew on a scrap piece of similar fabric (e.g., an old towel or t-shirt) before committing to the final garment.
• Look for: Underlay stitches. A good file will stitch a lattice foundation before the satin top stitch. If the file goes straight to satin, delete it; it will sink into your sweatshirt.

The Growth Path: From Hobbyist to Production House

Ashley’s video demonstrates a perfect "Prosumer" workflow. But if you find yourself doing this 50 times a week, you will hit physical bottlenecks. Here is how to identify when it’s time to upgrade your tools:

Scenario A: "My wrists ache from tightening screws."

• The Diagnosis: Repetitive Strain Injury (RSI) risk.
• The Prescription: Magnetic Hoops. Whether for a home machine or a commercial machine, the mighty hoop 5.5 eliminates the twisting motion that kills wrists.

Scenario B: "I spend more time measuring than stitching."

• The Diagnosis: Inefficient prep time.
• The Prescription: A magnetic hooping station. As seen in the video, mechanically locking the placement saves 3-5 minutes per shirt.

Scenario C: "I hate changing threads for every color."

• The Diagnosis: Single-needle bottleneck.
• The Prescription: SEWTECH Multi-Needle Machines. Moving to a 10, 15, or 20-needle machine means you set the colors once and walk away. That is how you turn "crafting time" into "profit time."

Scenario D: "Placement is slow; I want it faster."

• The Diagnosis: Manual marking fatigue.
• The Prescription: Many professionals researching dime magnetic embroidery hoops are looking for speed—combining magnetic efficiency with visual alignment tools is the industry standard for scaling up.

Final Thoughts: The Recipe for Confidence

Perfect placement is not a talent; it is a recipe.

1. Crease it.
2. Measure it.
3. Stabilize it.
4. Snap it.

Ashley proved that with the right sequence—Hoop Master Station $\rightarrow$ Sticker $\rightarrow$ Laser $\rightarrow$ Stitch—you can approach a $20 blank sweatshirt with zero fear.

Respect the physics of the fabric, listen to the sound of your machine, and let the magnets do the heavy lifting. Now, go press that start button.

FAQ

• Q: How do I prevent puckering and a “pucker ring” when embroidering a left-chest monogram on a 50/50 sweatshirt knit?
  A: Use a knit-safe stabilizer stack and do not stretch the sweatshirt while hooping—most rings come from over-stretching or under-stabilizing.
  • Use cutaway as the primary backing for knits; add a tearaway layer under/with it when the design is dense (hybrid stack).
  • Hoop the garment so it feels flat and neutral, not tight like a trampoline.
  • Add water-soluble topping on fleece to keep satin stitches from sinking and pulling.
  • Success check: after unhooping, the fabric around the design stays smooth without a visible “tension halo.”
  • If it still fails: reduce stitch stress by slowing down into the safer SPM range for dense satins and re-check the backing rigidity.
• Q: What is the correct Hoop Master fixture setting for a 5.5" magnetic hoop on a Gildan 5050 sweatshirt left-chest placement, and how do I verify the fixture is locked?
  A: Set the Hoop Master fixture to Slot #14 for this sweatshirt/hoop combo, then confirm the fixture has zero play before hooping.
  • Unscrew the bottom fixture guide pins and move them to Slot 14.
  • Wiggle the fixture immediately after tightening to confirm it seats firmly.
  • Record the setting in a shop reference (garment + size range + fixture slot) to avoid re-guessing later.
  • Success check: the fixture “clicks” into position and does not shift when pushed side-to-side.
  • If it still fails: re-seat and retighten the pins—any movement in the fixture can become placement drift on the chest.
• Q: How do I use the “4 inches over / 6.5–7 inches down” left-chest placement rule on an adult sweatshirt without eyeballing?
  A: Create a hard center reference first, then measure from the center crease to place the target precisely.
  • Fold the sweatshirt vertically to find center and press a visible crease as your reference line.
  • Measure 4" left from the center crease, then measure about 6.5–7" down from the shoulder seam/collar intersection.
  • Place a target sticker so the crosshairs intersect at that measured point.
  • Success check: the target crosshair is square to the garment centerline and sits consistently within about a 0.5" tolerance.
  • If it still fails: stop relying on visual “straight”—use the hooping station indexing plus on-machine laser confirmation.
• Q: How tight should thread feel when “flossing” through embroidery machine tension discs during the pre-flight check?
  A: The thread should pull with smooth, consistent resistance—not jerky snags—when flossed into the tension discs.
  • Unthread and re-thread by flossing the thread into the discs (do not just lay it across).
  • Pull the thread by hand to feel for steady drag (smooth resistance).
  • Replace the needle immediately if the tip feels burred, because burrs can create shredding that feels like tension trouble.
  • Success check: the pull feels even and the machine runs without sudden “snag-release” sensations.
  • If it still fails: inspect the thread path again and confirm the bobbin is not near empty (run-outs can mimic tension problems mid-design).
• Q: How do I confirm bobbin performance on a sweatshirt monogram when stitches are missing on the left side?
  A: Treat missing stitches on one side as a bobbin-system check first: verify bobbin level and avoid overly tight bobbin tension.
  • Check that the bobbin is not close to empty before starting (avoid mid-design run-out scars).
  • Inspect the underside stitch formation and aim for the bobbin thread to appear as a straight line on the back.
  • Re-seat the bobbin case after cleaning if you recently removed it for maintenance.
  • Success check: the back shows a clean, consistent bobbin line and the left-side stitches no longer drop out.
  • If it still fails: stop the run and troubleshoot tension balance systematically—do not keep stitching and “hope it fills in.”
• Q: How do I avoid permanent hoop burn on thick fleece sweatshirts when using traditional screw-tight embroidery hoops?
  A: Reduce crushing and over-stretching—magnetic hoops help because they clamp vertically instead of forcing the knit around a ring.
  • If using screw-tight hoops, avoid “drum-tight” tension on knits; hoop only until the fabric is flat.
  • Consider switching to a magnetic hoop for sweatshirts to minimize fiber crushing and placement distortion.
  • After hooping, smooth the fabric inside the hoop to remove drag lines before stitching.
  • Success check: no hard ring imprint remains after unhooping, and the fleece pile is not permanently flattened.
  • If it still fails: reassess the hooping method—over-tightening and thick fleece are a common hoop-burn combination.
• Q: What are the key safety rules for industrial magnetic embroidery hoops with strong neodymium magnets (30+ lbs of force)?
  A: Keep fingers and medical devices away from the closing rings—magnetic hoops can pinch instantly and hard.
  • Keep hands outside the ring gap while aligning; let the hoop close only when fabric is correctly positioned.
  • Never let magnetic rings snap together without fabric in place nearby (control the closure).
  • Do not use strong magnetic hoops if a pacemaker is present (magnets may interfere with medical devices).
  • Success check: the hoop closes with a controlled solid “thwack,” and no fingers are ever between the rings at any time.
  • If it still fails: slow the hooping process down—speed is not worth an injury, and mis-snaps usually come from rushing alignment.
• Q: If measuring left-chest placement and tightening hoops is slowing production, what is a practical upgrade path from technique to tools to capacity?
  A: Start by locking down a repeatable placement routine, then upgrade to magnetic hooping tools, and only then consider a multi-needle machine if thread changes are the bottleneck.
  • Level 1 (technique): standardize the crease + measure + target sticker process and always run a trace to prevent hoop collisions.
  • Level 2 (tools): use magnetic hoops to reduce wrist strain and speed hooping; add a hooping station to cut repeat setup time by minutes per garment.
  • Level 3 (capacity): move to a multi-needle machine when constant color changes are limiting throughput more than hooping/placement.
  • Success check: prep time becomes predictable and repeatable (less re-measuring, fewer re-hoops, fewer rejects).
  • If it still fails: time your workflow step-by-step—identify whether the real bottleneck is placement, hooping, or thread changes before spending on upgrades.
