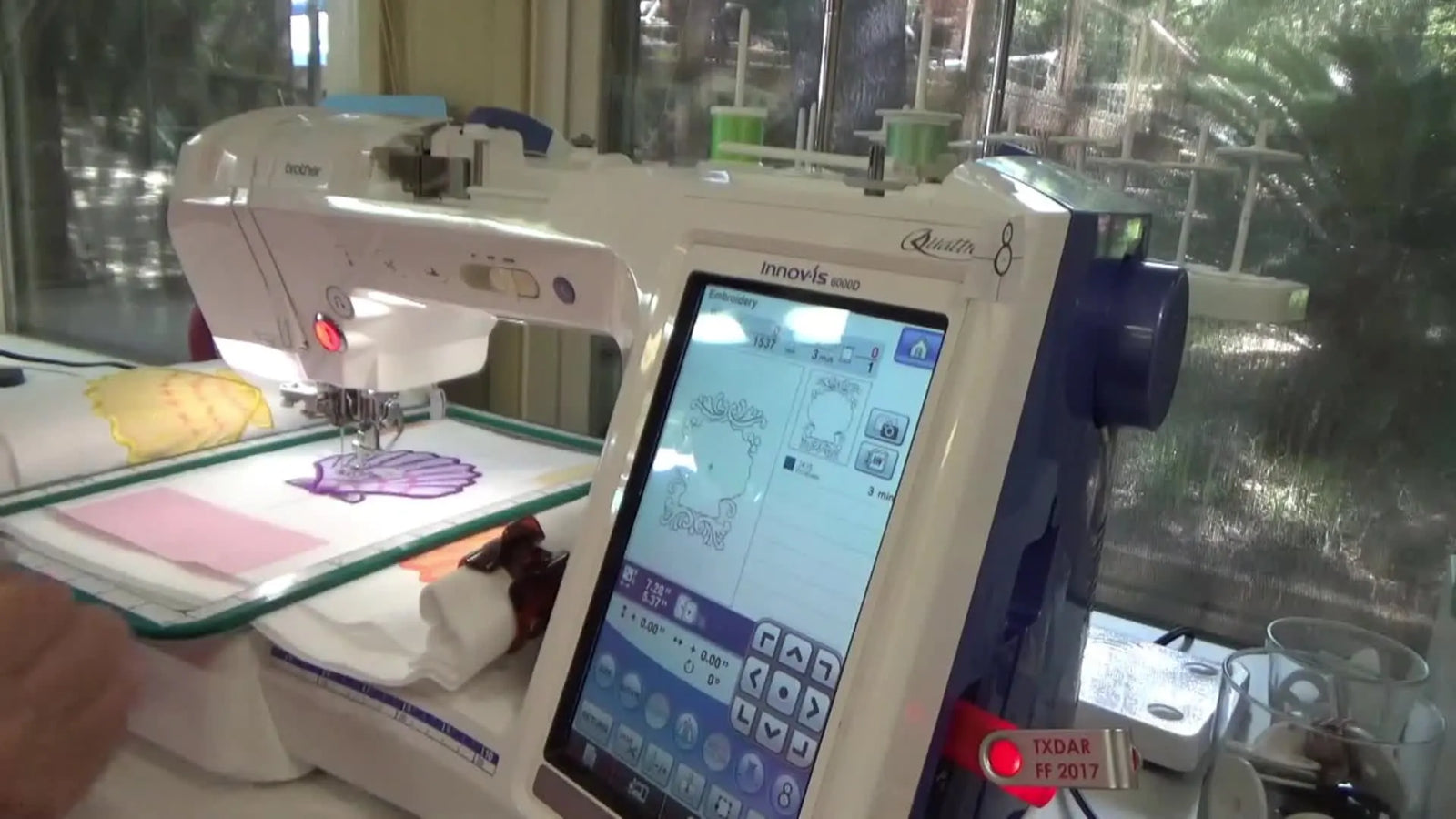

Nail Embroidery Outline Placement on Appliqué Shells: 3 Proven Brother Quattro/Dream Machine Methods (and the Magnetic Hoop Trick That Saves Your Sanity)

Master Guide: Precision Outline Stitching & Placement for Appliqué

Outlining around dense appliqué is one of those high-stakes moments where even confident stitchers hold their breath.

You have already done the heavy lifting—the dense shells, the satin borders, the delicate accent fabric. Now, a single outline pass will determine the result. It can either elevate the table runner to a custom-professional level, or it can nick the satin edge, pull the fabric, and scream "amateur" from across the room.

If you are fighting hoop burn, struggling with alignment, or terrified of ruining a project in the final minute, you are not alone. Machine embroidery is an experience-based science.

This guide rebuilds the process into a repeatable, low-anxiety workflow. We will cover three specific placement methods—from manual to camera-assisted—and the physical tools that make precision inevitable.

The "Don’t Panic" Primer: Why Outline Stitching Feels Risky

Outline stitching is intimidating because you are stitching near a "No-Fly Zone"—your existing satin border.

When the needle penetrates too close to a dense satin column, two things happen physically:

1. Deflection: The needle hits the dense thread and slides off, potentially bending or breaking.
2. Distortion: The fabric pushes away, ruining your perfect gap.

The "Sweet Spot" Settings

Before you start, adjust your machine physics to favor precision over speed.

• Speed (SPM): Drop your machine speed to the 400–600 SPM (Stitches Per Minute) range. Expert production runners might go faster, but 600 SPM is the "Beginner Sweet Spot." It gives your eyes time to react if the alignment looks wrong.
• Tension Check: Pull your top thread gently before threading the needle. It should feel smooth but firm, like pulling waxed dental floss. If it jerks, re-thread.


Phase 1: The Hidden Prep (Avoid the "Permanent Crease")

Rule #1 of Embroidery on Finished Goods: Never fold the fabric to find the center.

On a dense shell runner, folding creates a "memory crease" that is nearly impossible to iron out without crushing your embroidery. Instead, we use non-destructive marking.

The Marking Protocol (8" x 6" Block Example)

1. Map the Zone: Measure your block width (e.g., 8").
2. Mark Vertical Center: At 4", use a heat-erasable pen (like Frixion) or a water-soluble marker to draw a vertical line. Use a quilting ruler to ensure it is perpendicular to the hem.
3. Mark Horizontal Center: Measure the height (e.g., 6") and mark the center at 3".
4. Confirm Landmark: Identify a physical anchor point on your design. In the video example, the host uses the distinct divot at the bottom of the shell.

Pro Tip: If you cannot name your landmark out loud (e.g., "The bottom V-shape," "The top center point"), you are guessing, not aligning.

Prep Checklist (Pre-Flight)

• Action: Block size and seam allowance measured and confirmed.
• Action: Crosshairs marked with removable ink (NO FOLDING).
• Visual: Physical landmark selected (e.g., shell divot).
• Physical: Bobbin thread checked (ensure you have enough for the full outline).
• Tool: Stabilizer selected based on fabric weight. (For runners, a medium-weight tear-away or cut-away floated underneath is standard).


Method 1: The Manual "Needle-Drop" (Universal Method)

Best for: Classic machines, single-needle home machines without cameras.

This method relies on mechanical alignment. It works on everything from a vintage machine to a modern multi-needle.

The Step-by-Step

1. Load the File: Select your outline design.
2. Physical Alignment: Move your hoop until the needle is physically hovering directly over your marked crosshair center.
3. The "Hand Wheel" Test: Slowly turn the hand wheel toward you to lower the needle tip. Bringing it within 1mm of the fabric confirms your true center.

The "Scrap Test" (Your Insurance Policy)

If your outline gap is tight (less than 3mm), do not guess.

1. Hoop a piece of scrap fabric with stabilizer.
2. Run the Placement Line only.
3. Draw a line 1/8" (3mm) outside that stitched line. This represents your satin border.
4. Run the outline stitch.
5. Audit: Does it clear your drawn line evenly? If not, adjust the design size or position on screen before touching the real project.

Note for Shoppers: Efficiency lovers often research a hooping station for embroidery. While these stations maximize consistency for batch jobs (like 50 left-chest logos), they do not replace the scrap test for custom appliqué alignment.

Warning: Project Safety. Keep fingers, hair, and loose fabric/straps away from the embroidery arm path. During positioning, it is easy to get pinched or stitch through a stray strap.

Method 2: The "Snowman" Sticker (Optical Recognition)

Best for: Brother Quattro, Dream Machine, and similar models using optical sensors.

This bridges the gap between manual work and full camera scanning. It relies on a specific "Target Sticker" (often called the Snowman).

The Sensor Workflow

1. Apply Sticker: Place the sticker so its crosshairs align perfectly with your drawn fabric marks. Ensure the arrow points "UP" (top of design).
2. Safety Check: Ensure the Needle is UP. The camera cannot see past the needle bar if it is down.
3. Scan: Press the Snowman icon on the screen.
4. Listen & Watch: You will hear the frame motor whir as it moves to find the sticker. Once located, the machine automatically centers the design ID to that sticker.
5. Remove: Peel off the sticker before stitching.

Context: If you are looking at upgrading your hoop game, you might see terms like dime snap hoop. These magnetic systems work brilliantly with optical scanning because they hold the fabric flat without the "hoop burn" distortion that confuses sensors.

Method 3: Camera Background Scan (The "God Mode" of Placement)

Best for: High-end single-needle or multi-needle machines (e.g., Brother Luminaire, SEWTECH commercial models with camera kits).

This method projects the digital design onto a live video feed of your fabric. It eliminates the need for physical crosshairs entirely.

The Nudge Protocol

1. Scan: Tap the camera icon. The frame will move to capture a composite image of the hoop area.
2. Visualize: You will see your real fabric (shell) on the screen.
3. Digital Overlay: The outline stitch appears over the image.
4. The "Nudge": Use the stylus to micro-step the design.
5. The Zoom Check: Zoom in 200%-400% on the screen. Check the gap at the top, bottom, left, and right.

Success Metric: You are not looking for mathematical symmetry; you are looking for Visual Balance. If the shell appliqué is slightly wonky, adjust the outline to match the shell, not the grid.

Commercial Context: This workflow is why professionals often upgrade to machines compatible with a magnetic hoop for brother dream machine. The combination of camera scanning + magnetic hooping allows for the fastest changeovers in the industry.

The "Floating" Technique & Magnetic Hoops

The video demonstrates "Floating" the runner—placing the item on top of the hooped stabilizer rather than clamping it in the rings.

Why Float? (The Physics of Hoop Burn)

Clamping a velvet or thick quilted runner into a standard plastic ring crushes the fibers. This is called "Hoop Burn." It can be permanent.

The Magnetic Solution

The industry is moving toward magnetic frames for this exact reason.

• Zero Drag: You can slide the runner to micro-adjust alignment before locking it down.
• Even Tension: Magnets hold with consistent pressure, unlike screws which tighten from one corner.
• Sound Check: When using a magnetic embroidery hoop, listen for a solid "CLACK" as the magnets engage. This indicates a secure hold.

Warning: Magnet Safety. Modern magnetic hoops (especially for multi-needle machines) use Neodymium magnets. They are incredibly strong.
* Pinch Hazard: They can bruise fingers or break skin.
* Electronic Hazard: Keep away from pacemakers, credit cards, and machine screens.
* Storage: Always store with the provided spacers.

Setup Checklist: The "Last 60 Seconds"

Do not hit "Start" until you pass this gate.

• Needle Position: Needle is UP (essential for Snowman/Camera).
• Obstruction: Excess runner fabric is clipped back (hair clips or magnetic clips).
• Stability: Tap the fabric. It should feel taut, like a drum skin (if hooped) or be firmly adhered (if floated).
• Clearance: Zoom in on-screen to verify the outline does not overlap the satin.
• Consumables: Fresh needle installed? (A size 75/11 Embroidery needle is standard here).


Advanced Workflow: Independent Design Manipulation

A common panic moment: You load a second outline for the bottom shell, try to move it, and both outlines move together.

The Fix

This is a software mode issue.

• Sewing Mode: Groups designs for output. Moving one moves all.
• Edit Mode: treats designs as individual objects.

The Workflow:

1. Go to Embroidery Edit.
2. Select the specific outline you want to move.
3. Rotate/Move it independently.
4. Only go to Sewing Mode when placement is locked.

By mastering this, you reduce the time you spend fighting the machine. This efficiency is crucial. In a production environment, time is money—which is why shops utilizing magnetic hoop embroidery systems often report 30% faster job completion due to less re-hooping time.

Decision Tree: Best Method for Your Setup

Use this logic flow to choose your method.

START: Do you have a Camera Background Scan (Live Feed)?

• YES: Use Method 3. No marking needed. Fastest & most accurate for wonky shells.
• NO: Do you have an Optical Sensor (Snowman)?
  • YES: Use Method 2. Requires Sticker + Crosshair. Good for repeatability.
  • NO: Use Method 1. Requires Crosshair + Scrap Test.
    • CRITICAL: If using Method 1 on expensive fabric, always stitch the placement line on a scrap piece first to verify 1/8" clearance.


Structured Troubleshooting: Symptom → Cure

The "Tool Upgrade" Path: When to Buy What

Eventually, skill hits a ceiling, and tools become the limiting factor. Here is how to diagnose if you need an upgrade.

Scenario A: The "Hoop Burn" Struggle

• The Pain: You spend 20 minutes ironing velvet/quilts after stitching to remove ring marks.
• The Fix: Magnetic Hoops.
• Criteria: If you embroider delicate or thick items weekly, a dime magnetic hoop for brother (or equivalent for your machine brand) pays for itself in saved garments.

Scenario B: The "Productivity" Bottleneck

• The Pain: You have an order for 50 shirts. Thread changes on your single-needle machine are taking longer than the stitching.
• The Fix: Multi-Needle Machine (e.g., SEWTECH).
• Criteria: When embroidery moves from "Hobby" to "Side Hustle," a multi-needle machine allows you to preset 10+ colors and use large commercial magnetic frames, increasing output by 400%.

Some users search for snap hoop monster hoping it solves all problems. It solves hooping problems. For capacity problems, look at multi-needle solutions.

Operation Checklist: Final Safety Barrier

• Correct file loaded (Short outline, not the full hour-long shell design).
• Sticker removed (if used).
• Clips are well outside the "No-Fly Zone" of the stitch path.
• Speed set to manageable level (600 SPM).
• Breath taken. Shoulders dropped.
• Press Start.


The Final Standard

A perfect outline looks intentional. It frames the appliqué with a consistent "reveal" of the base fabric, floating evenly around the satin stitch without touching it.

By following the Mark → Float → Scan/Align → Verify protocol, you stop hoping for a good result and start manufacturing one.

Whether you are using a standard hoop or have upgraded to a magnetic hoop for brother, the secret is in the prep. Slow down now so you can speed up later.

FAQ

• Q: On a Brother Dream Machine or similar home embroidery machine, why should fabric centers be marked with removable ink instead of folding a finished table runner to find the center?
  A: Folding can leave a permanent “memory crease” that is hard to remove without crushing embroidery, so use non-destructive marking instead.
  • Action: Measure the block, then draw vertical and horizontal center lines using a heat-erasable pen (like Frixion) or a water-soluble marker.
  • Action: Use a quilting ruler to keep the lines square to the hem.
  • Success check: Crosshair lines are clear, removable, and the fabric surface shows no fold ridge or flattened pile.
  • If it still fails: If the mark method is risky for the fabric, test the marker on a hidden corner first and follow the machine/fabric care guidance.
• Q: On a single-needle home embroidery machine without a camera (manual needle-drop method), how can embroidery outline stitching be aligned to a crosshair without nicking a satin appliqué border?
  A: Use the manual needle-drop alignment plus a scrap placement-line test before stitching the real piece.
  • Action: Move the hoop so the needle hovers directly over the marked crosshair center, then hand-wheel the needle down to within about 1 mm of the fabric to confirm true center.
  • Action: Stitch the placement line on scrap fabric first, draw a line 1/8" (3 mm) outside it to represent the satin border, then run the outline stitch and evaluate clearance.
  • Success check: The outline clears the simulated satin line evenly all the way around without “kissing” the border.
  • If it still fails: Adjust design size or on-screen position/rotation before re-testing on scrap—do not guess on the finished runner.
• Q: On a Brother Quattro, Brother Dream Machine, or other optical-sensor embroidery machine, why does the Snowman sticker key not activate during placement?
  A: The most common cause is the needle being physically down—raise the needle fully before scanning.
  • Action: Press the Needle Up/Down button to ensure the needle is UP.
  • Action: Re-check the sticker orientation (arrow pointing “UP”) and align sticker crosshairs to the drawn fabric marks.
  • Success check: The machine allows the Snowman scan, the frame moves to find the sticker, and the design centers to the target.
  • If it still fails: Confirm nothing is blocking the sensor view (needle bar area) and re-seat the sticker carefully before scanning again.
• Q: On a Brother Luminaire or any embroidery machine with camera background scan (live feed), how can outline stitching placement be checked for “visual balance” on a slightly wonky appliqué shell?
  A: Use camera scan + zoom and nudge the design to match the real appliqué, not the grid.
  • Action: Run the background scan, then overlay the outline on the live fabric image.
  • Action: Zoom in (about 200%–400%) and micro-nudge the design while checking top, bottom, left, and right gaps.
  • Success check: The outline looks evenly “revealed” around the satin edge by eye, even if the appliqué itself is not perfectly symmetrical.
  • If it still fails: Slow the machine speed for the outline pass and re-check alignment before starting the stitch-out.
• Q: On any embroidery machine, why do multiple outline designs move together on the screen, and how can one outline be moved independently?
  A: The designs are being manipulated in Sewing Mode—switch to Embroidery Edit to move a single outline object.
  • Action: Exit to the Embroidery Edit screen and select only the outline that needs adjustment.
  • Action: Move/rotate that one outline, then return to Sewing Mode only after placement is locked.
  • Success check: Dragging the selected outline changes only that outline’s position while the other outline stays fixed.
  • If it still fails: Reconfirm the correct design object is selected before moving; grouping behavior depends on mode, so use Edit for placement work.
• Q: When floating a thick or delicate table runner, how can hoop burn be reduced, and when should a magnetic embroidery hoop be considered instead of a standard screw hoop?
  A: Float the item on hooped stabilizer to avoid crushing fibers, and consider a magnetic hoop when hoop burn happens regularly on thick/delicate goods.
  • Action: Hoop stabilizer only, then place the runner on top (float) and secure it, keeping the surface flat.
  • Action: If using a magnetic hoop, lock the fabric and listen for a solid “CLACK” indicating secure engagement.
  • Success check: After stitching, the fabric surface shows minimal ring marks and the piece stays stable without shifting during the outline.
  • If it still fails: If frequent hoop burn or shifting persists, upgrade the hooping method (magnetic frame) before chasing placement with repeated re-hooping.
• Q: What are the two main safety risks when using Neodymium magnetic embroidery hoops on multi-needle machines, and what is the safest handling routine?
  A: Neodymium magnets can pinch fingers and can affect sensitive electronics/cards, so handle magnets deliberately and store them with spacers.
  • Action: Keep fingertips out of the closing path and let the magnets engage flat and controlled—do not “snap” them blindly.
  • Action: Keep magnetic hoops away from pacemakers, credit cards, and machine screens; store with the provided spacers.
  • Success check: Magnets engage without skin pinches, and the hoop can be removed without sudden jumps or slams.
  • If it still fails: If magnets feel hard to control, slow down the handling steps and use the manufacturer’s recommended grip points and storage method.
• Q: For a home embroidery business stuck on slow thread changes for 50-shirt orders, when should the workflow upgrade be “technique first” vs “magnetic hoop” vs “SEWTECH multi-needle machine”?
  A: Use a layered upgrade path: optimize technique first, add magnetic hoops for hooping/time consistency, and move to a multi-needle machine when thread-change time dominates production.
  • Action: Level 1 (technique): Slow outline speed to 400–600 SPM, verify tension feel is smooth/firm, and run a scrap placement test when clearance is tight.
  • Action: Level 2 (tool): Add magnetic hoops when re-hooping, hoop burn, or micro-alignment adjustments are costing significant time.
  • Action: Level 3 (capacity): Upgrade to a multi-needle machine (such as SEWTECH) when orders require many colors and thread changes become the main bottleneck.
  • Success check: Job time drops because fewer restarts/re-hoops are needed, and outlines finish without last-minute border hits.
  • If it still fails: If noise/thumping starts or alignment looks off, stop immediately, change the needle, and re-verify placement before resuming.
