Nail a Company Logo on a Stretchy Performance Hoodie: Magnetic Hoop + Hooping Station Placement That Won’t Drift

Stretchy performance hoodies are the kind of job that can make even experienced decorators pause. You know the feeling: the fabric feels slippery like water, it wants to ripple under the foot, the zipper seam is visibly crooked, and a two-tone color block punishes "standard" placement with ruthless visibility.

But fear is just a lack of process. As an embroiderer, you aren't just stitching; you are engineering a stable surface out of an unstable material.

In this deep-dive walkthrough, based on a session by Michelle from Sew Unique Designs, we will deconstruct the process of embroidering a company logo on a two-tone performance hoodie. We will move beyond simple observation and drill down into the tactile feedback, machine parameters, and safety checks you need to replicate this success. We will use a printed template, masking tape crosshairs, a specific stabilizer recipe, and a magnetic hooping system to turn a nightmare garment into a profitable run.

Stretchy performance hoodie seams will lie to you—so stop trusting the zipper and start trusting your crosshair

The first problem isn't the machine—it's the geometry of the garment.

In this case study, the hoodie has a horizontal seam interrupting the normal left-chest zone. If standard "8.5 inches down from the collar" placement were used blindly, the logo would crash into the color-block seam. Worse, construction seams (zipper teeth, raglan sleeves) are notoriously crooked on mass-market apparel.

The Eye Test (Sensory Check): Before measuring anything, put the hoodie on a mannequin or hang it on a hanger. Step back five feet. Look at the zipper. Does it list to the left? Does the black panel look taller on one side?

• The Reality: If you align a perfectly straight logo to a crooked seam, the logo looks crooked.
• The Fix: Michelle ignores the "standard" charts and uses the mannequin to visually find the sweet spot where the logo sits fully in the black section without feeling crowded. She trusts a measured crosshair, not the "lying" zipper.

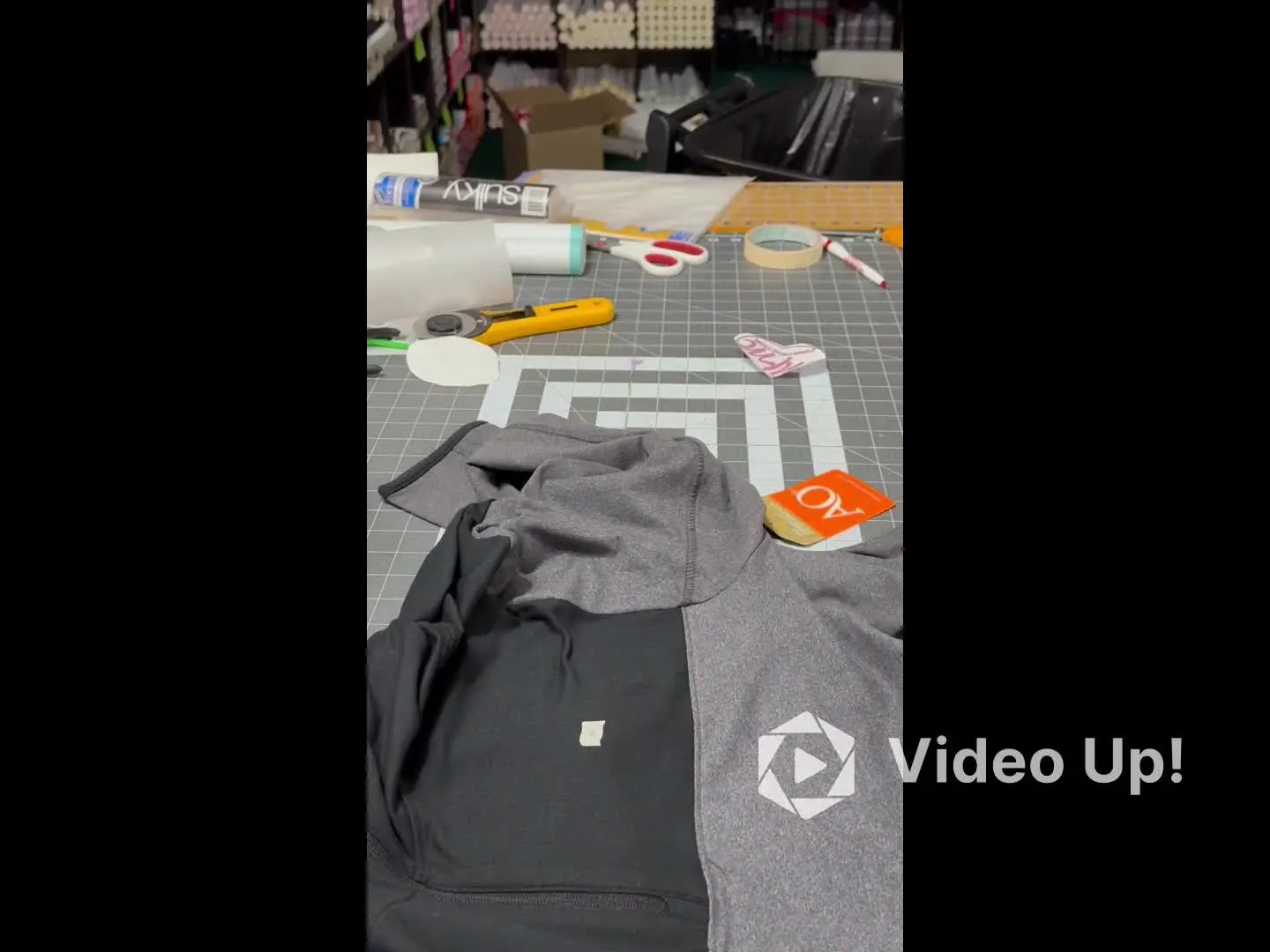

The supply stack that keeps knits from crawling: cutaway + sticky water-soluble (and why it beats sticky tear-away)

Performance wear is fluid. If you clamp it dry, it will "walk" or stretch as the needle penetrates. You need a friction-based supply stack to lock the fibers in place.

Here is the loadout used in the walkthrough, optimized for stability:

1. Garment: Two-tone performance wear hoodie (High stretch/High slip).
2. Marking: Printed paper logo template + Masking tape + Red pen + Long pin.
3. Base Stabilizer: 2.0 oz - 2.5 oz Midweight Cutaway. (Do not use Tear-away on hoodies; stitches will pull through over time).
4. Top/Adhesive Stabilizer: Sulky Sticky Fabri-Solvy (Sticky Water-Soluble).
5. Hardware: Hooping station with rulers.
6. Hoop: Blue magnetic hoop (approx. 5x5 or 6x6).
7. Machine: SmartStitch multi-needle machine.
8. Hidden Consumables: Precision tweezers, curved applique scissors.

Why Sticky Water-Soluble vs. Sticky Tear-Away? Michelle specifically prefers sticky water-soluble. Tear-away stabilizers often leave a gummy residue on the needle and inside the hoodie fleece. Water-soluble adhesive provides the temporary grip needed for hooping but dissolves completely in the wash, leaving the inside of the hoodie soft against the skin.

Business Insight: One phrase I hear from shop owners is, "It stitched fine on the first one, then the next five got wavy." That is almost always a stabilization issue. This combo—Cutaway for structure + Sticky Soluble for grip—is the industry standard for consistency.

Prep Checklist (do this before you touch the hoop)

• Garment Audit: Confirm all hoodies in the batch are the same size range (S-XL placements differ from 2XL+).
• Center Finding: Print the logo template at 100% scale. Fold it vertically and horizontally to crease a true crosshair.
• Bobbin Check: Open your bobbin case. Sensory Check: Pull the thread; it should slide with slight resistance (like flossing teeth), not loosely spooling out. Ensure the bobbin is at least 50% full to avoid a mid-run change on a complex garment.
• Tool Staging: Have markings (tape/pen), cutting (scissors), and holding (tweezers/pin) tools physically on the table. Hunting for scissors mid-alignment is how mistakes happen.


The placement numbers that saved this two-tone hoodie: 7 inches down, 4 inches out, and about 2.25 inches off the zipper

Placement is not a rule; it is a ratio. Michelle’s placement is custom because the garment constraints are unique.

The Data Points:

1. Vertical: She measures about 7 inches down from the high point of the shoulder (HPS). Standard is often 7.5"-8.5", but the color block forces this higher.
2. Horizontal: She measures 4 inches out from the zipper teeth. This is the reference anchor.
3. Result: The design ends up approximately 2.25 inches clear of the zipper.

The Logic: She is creating a "safety envelope." She needs the logo to sit in the black panel with about an inch of breathing room from the seam below it.

Client Approval Protocol: If you are doing this for a client, take a photo of the template pinned to the mannequin. A two-tone seam makes placement feel "higher" or "lower" than it measures physically. Customers judge with their eyes, not rulers. Get the "Yes" on the photo before you burn stitches.

Masking-tape crosshairs are the fastest “no-regret” marking system—if you don’t stretch the knit while you apply them

Michelle uses masking tape as a removable marking surface. It’s low-tech, but it works better than chalk on slippery synthetics.

The Method:

1. Fold the printed template to align center lines.
2. Apply masking tape to the garment where the center feels right.
3. Transfer the measurements (7" down / 4" out) onto the tape.
4. Draw the crosshair with a red pen.

The Tactile Trap: Do not press the tape down like you are sealing a box. Performance knits are elastic. If you press hard, you will stretch the fabric underneath the tape. When you un-hoop later, the fabric relaxes, and your perfectly straight line becomes a curved smear.

• Action: Lay the tape gently. Think of it as "floating" on top of the fleece.

Warning: Needle Zone Safety. When working near the machine head to check alignment or trim threads later, keep fingers, tweezers, and scissors away from the needle bar area. Never reach under the head while the machine is active. A multi-needle machine does not stop instantly.

The “inside-out pin trick” for Sticky Fabri-Solvy: lock the fibers without dragging the hoodie off-grain

This is the stabilization move that separates pros from amateurs. We need to bond the fabric to the stabilizer before the hoop touches it.

The Sequence:

1. Drive a long pin strictly through the center crosshair of your tape/garment.
2. Turn the hoodie inside out. The point of the pin is now visible.
3. Take your patch of Sticky Fabri-Solvy. Peel the backing.
4. Use the pin point to center the sticky patch directly behind the logo.
5. Critical Action: Smooth the patch down from the center out. Do not pull.

Why this works (Shop Physics): Stretchy knits deform under hoop pressure. By applying a sticky layer behind the knit while it is relaxed, you create a "composite material" that resists lateral creep. The cutaway provides long-term support; the sticky patch provides immediate grip. If you are using a magnetic embroidery hoop, this sticky patch is often the difference between razor-sharp satin columns and "micro-waves" or puckering edges.

Hooping station alignment on crooked garments: use the station marks, then verify with a ruler anyway

Michelle uses a hooping station with a fixture and clear grid markings.

The Protocol:

1. Base Layer: Place the midweight cutaway on the hooping station board.
2. Load: Slide the hoodie onto the fixture. Michelle hoops "bottom-first" (upside down relative to the viewer) so the bulk of the hoodie hangs off properly for the machine.
3. Align: Match the masking tape crosshair to the station’s grid lines.
4. Verify: Because the zipper seam is crooked, she does not blindly align the zipper to the vertical grid. She uses a ruler to verify the design is straight relative to the garment's visual drape.

This setup builds mechanical repeatability. The station holds the heavy garment so you aren't fighting gravity while trying to align a millimeter-perfect logo.

Setup Checklist (before you clamp the magnetic top ring)

• Wrinkle Check: Run your hand under the cutaway stabilizer. Is it perfectly flat against the board?
• Tension Check: Is the hoodie resting on the fixture naturally? If you had to pull it hard to get it on, take it off and reload. Stretched fabric = distorted embroidery.
• Orientation: Confirm the neck of the hoodie is facing the correct direction for your specific machine's intake.
• Zipper Clearance: Ensure the chunky zipper teeth are outside the clamping area of the magnetic hoop to prevent frame tilt.


Magnetic hoop clamping: get firm hold without hoop burn, and don’t let the magnet “snap” the knit out of position

Michelle clamps the blue magnetic top frame onto the garment.

The "Hoop Burn" Problem: Traditional friction hoops (inner and outer rings) exert shear force on the fabric, crushing the fibers and leaving a permanent "ring" on delicate performance wear. A magnetic hoop clamps vertically (top-down), drastically reducing hoop burn.

The Magnetic Risk: Magnets are powerful. If you let the top frame "snap" onto the bottom frame, the sudden force can jump the fabric or pinch a fold.

• The Technique: Hold the top frame at an angle. Engage one edge first (listen for a soft click), then slowly lower the rest of the frame like closing a book cover.

Warning: Magnetic Hazard. High-force magnetic hoops can affect pacemakers and pinch skin severely enough to cause blood blisters. Keep magnets at least 6 inches away from medical implants, electronics, and children. Always handle with fingertips on the outer rim, never underneath.

If you are running a hooping station daily, this "controlled close" habit saves you from subtle misalignment that only shows up after the stitch-out.

SmartStitch multi-needle setup: click in the hoop, clear the garment, select Needle 1, then trace like you mean it

Once hooped, Michelle moves to the SmartStitch multi-needle machine. This is where the machine's precision takes over.

Machine Parameters for Performance Wear:

• Needle: Ensure you are using a Ballpoint 75/11 needle. Sharp needles can cut the knit fibers, leading to holes that appear after the first wash.
• Speed (SPM - Stitches Per Minute): While these machines can run 1000+ SPM, slow down for knits. Set your machine to 600-700 SPM. This reduces the "push/pull" distortion on the stretchy fabric.

The Trace Protocol:

1. Click: Secure the magnetic hoop into the bracket. Ensure it seats fully.
2. Clear: Reach behind the hoop. Is a sleeve bunched up under the needle plate? Move it.
3. Needle Select: Confirm you are on Needle 1 (or whichever needle holds your color).
4. Trace: Run the trace function. Watch the laser/needle bar interact with your masking tape crosshair.

Why Trace? This is your last line of defense. It catches a 3-degree rotation or a placement that is too close to the plastic hoop edge. If you are using smartstitch 1501 or a similar prosumer platform, tracing is digital insurance.

The tweezers move that prevents knit distortion: peel the tape slowly only after alignment is locked

Michelle removes the masking tape after she has verified the trace but before hitting start.

Technique:

• Use tweezers to lift the corner of the tape.
• Peel parallel to the fabric surface, very slowly.
• Goal: Do not lift the fabric up. Lifting pulls the knit away from the stabilizer slightly.

This order matters. If you remove the tape earlier, you lose your visual target. If you remove it too fast, you introduce air pockets between fabric and stabilizer.

Stitch-out and cleanup on performance wear: rough tear-away of soluble, then trim cutaway close—without nicking the hoodie

The machine runs the design. Once finished, un-hoop and move to the trimming table.

The Cleanup:

1. Trim Threads: Snip any jump threads on the face.
2. Remove Top Stabilizer: Tear away the bulk of the sticky water-soluble patch. Tip: Don't obsess over tiny bits; a damp cloth or the first wash will dissolve them.
3. Trim Backing: Turn the hoodie inside out. Lift the cutaway stabilizer and trim firmly with curved scissors. Leave about 1/8 to 1/4 inch of stabilizer around the stitching.
   • Fear Factor: This is where beginners ruin shirts by cutting the fabric.
   • Safety Tip: Slide your fingers between the stabilizer and the hoodie fabric as you cut, creating a flesh shield for the garment.


Operation Checklist (what must be true before you call it “done”)

• Placement: The logo sits fully in the color panel without riding the seam.
• Digital Level: The logo looks straight relative to the wearer's perspective (even if the zipper is crooked).
• Surface Quality: No puckering or "tunneling" around the edges of the embroidery.
• Clean Back: Stabilizer is trimmed neatly (circle or rounded square), with no sharp corners to irritate skin.
• Hoop Marks: No visible "burn" or shine from the hoop pressure.


A stabilizer decision tree for stretchy activewear: pick the combo that matches the fabric’s behavior, not your habit

Use this decision tree to stop guessing. Always defer to your machine manual, but this is the "safe zone" for most shops.

Question 1: Is the fabric stretchy?

• YES: You MUST use Cutaway stabilizer. Tear-away will fail, and stitches will distort.
• NO (Canvas/Denim): You can use Tear-away.

Question 2: Is the fabric slippery or "creeping" in the hoop?

• YES (Performance Hoodies/Dri-Fit): Add Sticky Water-Soluble behind the hooping area to lock fibers. (Michelle's Method).
• NO (Cotton T-Shirt): Standard spray adhesive or magnetic hoop clamping may be sufficient.

Question 3: Is there complex color blocking or stripes?

• YES: Use a defined crosshair/template system. Do not eyeball it.
• NO: Standard placement charts apply.

For shops trying to scale, this is where a magnetic hooping station workflow pays off: consistent stabilization means consistent results, reducing the "reject pile."

Troubleshooting the three failures that ruin logo jobs: seam collisions, fabric crawl, and crooked construction

If things go wrong, don't panic. Use this diagnostic table to identify the root cause.

If you are using hooping station for embroidery and still seeing crooked results, the station isn’t the problem—your reference point is. Crosshair first, seam second.

The upgrade path when you’re tired of fighting hoodies: faster hooping, fewer rejects, and a cleaner “shop standard”

Michelle’s workflow points to a bigger lesson for beginners: difficult garments don’t become profitable by "being careful"—they become profitable by being repeatable.

When you are ready to move from "struggling with one" to "producing fifty," here is your upgrade path:

Level 1: The Pain of Wrist Strain & Hoop Burn

• The Symptom: You dread hooping thick hoodies because snapping the rings together hurts your hands, or you are getting "shiny ring" returns.
• The Upgrade: Magnetic Hoops. They eliminate the physical force required to hoop and float the fabric gently, preventing burn.

Level 2: The Pain of Crooked Placements

• The Symptom: You have to redo shirts because they look "off," costing you margin.
• The Upgrade: A Comprehensive Hooping Station. Systems like a hoop master embroidery hooping station or similar fixtures allow you to set the measurement once and hoop every subsequent shirt in exactly the same spot without measuring again.

Level 3: The Pain of Slow Throughput

• The Symptom: You are spending more time changing thread colors than stitching.
• The Upgrade: Multi-Needle Machines. Moving to a machine like the SEWTECH or SmartStitch 1501 allows you to preset 15 colors. You hit "Go" and walk away to hoop the next garment.

From our side of the industry, this is exactly where high-value consumables and tooling earn their keep. Quality embroidery thread that runs clean, the right stabilizer/backing for knits, and magnetic hoops are investments in your sanity.

Final reality check: your best placement tool is still your eye—use the mannequin, then let the measurements do the heavy lifting

Michelle ends by showing the finished logo. It is straight, crisp, and clean—despite the "silly seam" and slippery fabric. That is the win: the garment’s construction didn’t get to decide where the logo went. You did.

If you take only one habit from this tutorial, make it this: approve placement visually, then lock it in with a measured crosshair and a stable hooping stack. That is how you get clean logos on stretchy performance wear without the fear of the unknown.

FAQ

• Q: How do I keep a two-tone performance hoodie logo placement straight when the zipper seam is crooked?
  A: Ignore the zipper seam and lock placement to a measured crosshair that looks level on a mannequin.
  • Hang the hoodie on a mannequin/hanger and step back about five feet to choose the “looks right” zone in the color panel.
  • Apply masking tape lightly where the center should be, then draw a true crosshair on the tape using your measurements.
  • Align the hooping station grid to the crosshair (not the zipper), then verify level with a ruler before clamping.
  • Success check: the paper template/crosshair looks visually level on the drape, even if the zipper line looks off.
  • If it still fails: take a photo of the pinned template for approval and adjust rotation to match the wearer’s perspective, not the garment construction.
• Q: What stabilizer combo should be used for embroidering a stretchy, slippery performance hoodie to prevent wavy edges?
  A: Use midweight cutaway for structure plus a sticky water-soluble layer for grip, then hoop without stretching the knit.
  • Place 2.0–2.5 oz midweight cutaway as the base backing for long-term support.
  • Add a sticky water-soluble patch behind the logo area to lock the fibers before hooping.
  • Smooth from the center outward and avoid pulling the fabric while bonding the sticky layer.
  • Success check: the hooped area feels flat and “composite-like” (supported), not springy or ripple-prone when you lightly tap it.
  • If it still fails: re-hoop with the fabric fully relaxed; stretched hooping is a common cause of micro-waves and puckering.
• Q: How do I apply Sulky Sticky Fabri-Solvy to a performance hoodie without dragging the knit off-grain?
  A: Use the inside-out pin method to center the sticky patch and smooth it down without pulling.
  • Push a long pin through the exact crosshair center on the masking tape.
  • Turn the hoodie inside out so the pin tip becomes the reference point.
  • Peel the Sticky Fabri-Solvy backing and “dock” the patch onto the pin tip to center it.
  • Smooth the patch from the center outward and do not stretch the fabric during smoothing.
  • Success check: the sticky patch sits centered behind the target area with no skew or tension lines radiating outward.
  • If it still fails: remove and re-apply with the garment fully relaxed; any tension during sticking can translate into distortion during stitching.
• Q: How do I prevent hoop burn on stretchy performance hoodies when using a magnetic embroidery hoop?
  A: Use magnetic clamping (top-down pressure) and close the top frame in a controlled way so the fabric does not shift.
  • Keep bulky zipper teeth and thick seams outside the magnetic clamping area to prevent frame tilt.
  • Hold the magnetic top frame at an angle, engage one edge first, then lower it slowly like closing a book.
  • Avoid letting the magnet “snap” down, which can jump the fabric or pinch a fold into the sew field.
  • Success check: after clamping, the fabric surface looks smooth with no new diagonal wrinkles and the crosshair remains centered.
  • If it still fails: unclamp and re-clamp with slower control; shifting usually happens at the moment of snap-down.
• Q: What safety rules should be followed when trimming threads and checking alignment near a multi-needle embroidery machine needle bar?
  A: Keep hands and tools out of the needle zone at all times and never reach under the head while the machine is active.
  • Stop the machine before reaching in to trim, adjust fabric, or clear a sleeve from the needle plate area.
  • Use tweezers for tape lifting and thread handling so fingers stay farther from the needle path.
  • Keep scissors and tweezers away from the needle bar area when the head is moving or tracing.
  • Success check: every adjustment is made with the machine stationary, and hands never pass under the head/needle path.
  • If it still fails: slow down the workflow and stage tools on the table first; rushed reaching is when most injuries happen.
• Q: What magnetic hoop safety precautions should be followed to avoid pinches and medical-device interference?
  A: Treat high-force magnetic hoops as a pinch hazard and keep them away from pacemakers, electronics, and children.
  • Handle magnetic frames by the outer rim with fingertips and keep skin out of the closing gap.
  • Close the frame slowly and deliberately; do not allow a snap-together closure.
  • Maintain at least 6 inches of distance from medical implants and sensitive electronics.
  • Success check: the hoop closes with controlled contact (no slam), and hands never feel “trapped” between frames.
  • If it still fails: switch to a two-step close (edge-first, then lower) and reposition the garment so you are not fighting bulk near the clamp.
• Q: How do I choose a level-by-level upgrade path when stretchy performance hoodies keep causing rejects and slow hooping?
  A: Fix the process first, then upgrade tools for repeatability, then upgrade the machine for throughput as volume grows.
  • Level 1 (technique): stabilize with cutaway + sticky water-soluble, use a mannequin + crosshair, and run trace before stitching.
  • Level 2 (tooling): use magnetic hoops to reduce hoop burn and wrist strain, and add a hooping station to repeat the same placement without re-measuring.
  • Level 3 (capacity): move to a multi-needle platform when thread/color changes are the bottleneck and you need walk-away runs.
  • Success check: placements become consistent across a batch and the “reject pile” drops because hooping and alignment are repeatable.
  • If it still fails: document which failure is happening (seam collision, fabric crawl, crooked look) and correct the reference point—crosshair first, seams second.
