Mylar Embroidery on Garments Without the Headache: Placement Templates, Hydro-Stick Stabilizer, and the “Tunnel” Hooping Trick

If you have ever held your breath while pressing the "Start" button on a denim jacket or a delicate onesie, you understand the unique anxiety of garment embroidery. Unlike flat fabric swatches, garments have seams, layers, and varying stretch factors that fight against the needle. A mistake here isn't just a wasted scrap of stabilizer; it’s a ruined piece of clothing.

As an embroidery educator, I treat garment work not as a creative free-for-all, but as an engineering challenge. The goal is to neutralize variables. We must stop the fabric from shifting, the layers from fighting, and the hoop from crushing the fibers.

This comprehensive guide is built on the philosophy of "Control First, Stitch Second." We will walk through professional protocols for placement, stabilization, and safe execution, ensuring your results look like they came from a high-end boutique, not a home experiment.

Skip Metallic Thread Drama: How Mylar Embroidery Designs Create Sparkle With Regular Thread

Standard metallic thread is notorious for breaking, twisting, and requiring constant tension adjustments. Mylar embroidery offers a brilliant alternative: it places an iridescent, semi-transparent film under your stitches to create a "liquid jewel" effect using standard rayon or polyester thread.

The Principle: Physics Over Friction

Metallic thread relies on a rough, foil-wrapped texture that creates friction in the needle eye. Mylar designs, however, use standard 40wt thread. The sparkle comes from the film underneath, meaning your machine runs smoothly without the friction penalties.

The "Sweet Spot" Execution Protocol

While Mylar is easier than metallic thread, it requires specific handling to avoid perforation issues.

1. Needle Selection: Stick to a standard 75/11 Sharp or Ballpoint (depending on fabric). Do not use a heavy-duty needle (90/14 or higher) as the large holes will perforate the Mylar film, causing it to tear away prematurely.
2. Speed Regulation: Even though we aren't using metallic thread, slow your machine down to the 600-700 SPM (Stitches Per Minute) range. This "sweet spot" ensures the film lays flat and doesn't flutter under the presser foot.
3. Sensory Check: Listen for a soft, consistent rhythm. If you hear a loud "crinkle" or see the film puffing up between stitches, your speed is too high or your hooping is too loose.

Hidden Consumable Alert: Keep a pair of precision tweezers handy. After the tack-down stitch, you will need to tear away the excess Mylar. Tweezers allow you to grab the film close to the stitch line without distorting the thread.

The “Paper Template Ritual” That Saves Your Placement (And Your Sanity) on Denim Jackets and Shirts

In a production environment, we never guess. Guessing leads to crooked logos and off-center monograms. We use a Template Ritual—a repeatable, physical method to guarantee placement before the garment ever touches the machine.

Phase 1: Template Engineering (Do this once per design)

Don't just print a sheet of paper; create a tool.

1. Print at 100%: Ensure your print settings are actual size.
2. Annotate: Write the Design ID and an "UP" arrow. If the design is mirrored, write "MIRROR" in red ink.
3. The "Bullseye" Cut: Fold the paper vertically and horizontally along the center lines. Clip the very center corner with scissors to create a small diamond hole.
4. Perimeter Relief: Trim the paper close to the design shape. Paper corners can deceive your eye regarding the visual center of the garment.

Phase 2: The Physical Map

Pinning a template allows you to step back and assess the visual balance.

The 5-Foot Rule: Pin the template to the jacket, put the jacket on a hanger (or a body), and walk five feet away. Design placement looks different on a hanging garment than on a flat table. Adjust until it looks balanced to the eye, not just the ruler.

The “Hidden” Prep That Prevents a Denim Jacket From Hanging Weird: Grid-Basting Facings and Linings

Denim jackets are engineered with multiple independent layers: the outer denim, the facing, and potentially a lining. If you hoop them together without preparation, the needle will push the top layer while the bottom layer stays put, creating tension bubbles that ruin the jacket's drape.

The industry solution is Grid Basting—temporarily locking the layers together before hooping.

The Grid Basting Protocol

1. Machine Setup: Use your standard sewing machine (not the embroidery unit).
2. Thread selection: Load Water Soluble Thread in the bobbin and a contrasting standard thread on top.
3. Action: Stitch a large "X" or a loose grid across the entire area where the embroidery will go.
4. Sensory Check: Smooth the fabric with your hand. It should feel like a single, solid piece of material, not two layers sliding against each other.

Why Water Soluble? After embroidery, a simple spritz of water dissolves the bobbin thread, and the top thread simply lifts off, leaving no trace. This is the secret to professional outer-wear embroidery.

Warning: Needle Safety Hazard. When sewing through thick denim seams and layers, standard needles can deflect and break. Wear safety glasses and keep fingers at least 2 inches away from the presser foot. A shattered needle fragment can fly at high velocity.

Nail Center Placement on a T-Shirt: Ruler Lines, a Template Crosshair, and One Simple Anti-Confusion Trick

T-shirts are notoriously difficult because knit fabric is fluid; it wants to distort. Achieving a level design requires establishing a "Static Grid" on this fluid surface.

Establishing the Static Grid

1. The Armpit Horizon: Place a long quilting ruler from armpit seam to armpit seam. This is your anatomical horizontal baseline. Draw a line with tailor's chalk or a water-soluble pen.
2. The Vertical Center: Measure the width of the horizontal line, divide by two, and mark the exact center point. Draw a vertical line perpendicular to the horizon.
3. Visual Confirmation: Place your template's center (the "bullseye" modification from earlier) exactly over the intersection.


The "Circle of Truth"

Once your crosshair is marked, draw a distinct circle around the center intersection.

• Why? In the heat of the moment, with stabilizer and hoops flying, it is easy to mistake a random chalk mark for your center. The circle is your "Do Not Miss" indicator.

Hydro-Stick Stabilizer and Tearaway Backing: The Garment Combo That Grips Without Gumming Needles

Stabilizer choice is the foundation of structural integrity. For garments, we face a contradiction: we need a strong grip to prevent shifting, but we hate the sticky residue of spray adhesives that gum up needles and cause thread breaks.

The professional compromise is Water-Activated Adhesive (e.g., Hydro-Stick or similar brands).

The Chemistry of Grip

Unlike sprays that remain tacky, water-activated stabilizers use a gum-based adhesive that becomes rigid when dry, locking the fabric fibers in place.

1. activation: Lightly sponge water onto the stabilizer (do not soak).
2. Bond: Press the stabilizer onto the wrong side of the garment.
3. Result: The fabric becomes stiff and manageable, similar to heavy cardstock.

The "Float" Technique Supplement: Sometimes, a single layer isn't enough for dense designs. In these cases, we employ the floating embroidery hoop concept as a supplement.

• Action: Hoop the garment with the adhesive stabilizer.
• Supplement: Slide ("float") a sheet of medium-weight tearaway under the hoop before sliding the hoop onto the machine arm.
• Benefit: This adds density without adding bulk to the hooping process itself.

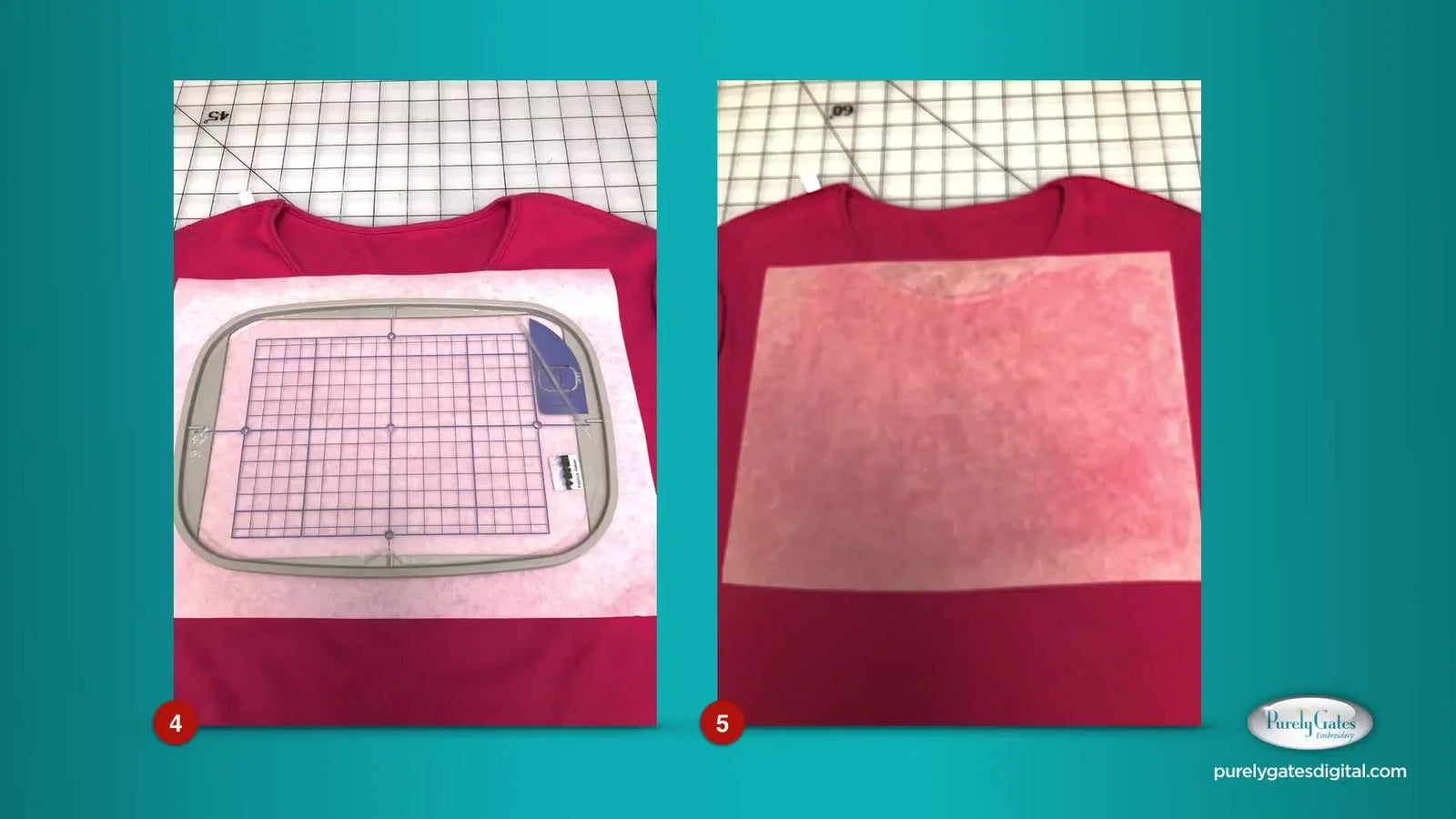

The Inside-Mark Trick: Transferring the Center Point So Your Stabilizer Lands Square (Not Crooked)

A common rookie mistake is adhering the stabilizer crookedly on the inside of the shirt. Even if the hoop is straight, the grain of the stabilizer might be fighting the grain of the shirt, leading to puckering.

The Transfer Protocol

1. Pin Penetration: From the front of the shirt, push a pin straight through your "Circle of Truth" center point.
2. Reverse Mark: Flip the shirt inside out. The pin tells you exactly where the center is on the wrong side. Mark this with chalk.
3. Grid Alignment: Use the grid on your stabilizer to align perfectly with the vertical grain of the shirt (look for the knit ribs).

Hidden Consumable: Painter's Tape. Use small pieces of painter's tape to hold the stabilizer corners down while you check alignment. It removes easily without leaving residue.

The Felt Hoop Collar Move: When Thin Fabric Won’t Grip and You Need More Bite

Standard plastic hoops work by friction. Thin, slippery knits (like rayon blends or performance wear) often lack the bulk to generate enough friction, resulting in "micro-slippage" where the design slowly distorts during stitching.

The solution is a Felt Collar—a DIY gasket for your hoop.

Engineering a Better Grip

Cut a strip of craft felt and lay it over the inner ring of your hoop before pressing the outer ring down.

• Gap Filler: The felt fills the air gap between the thin fabric and the plastic ring.
• Cushion: It softens the harsh plastic edge, preventing "Hoop Burn" (those shiny crushed rings that ruin delicate fabrics).

The Commercial Solution: If you find yourself constantly battling hoop burn or wrist fatigue from tightening screws, this is the prime indicator for a tool upgrade. Professional shops often switch to magnetic embroidery hoops.

• Why Upgrade? Unlike potential friction from manual hoops, magnetic hoops use vertical clamping force. This holds the fabric firmly without the torque and twisting action that creates distortion. They are particularly effective for delicate knits where hoop burn is a rejection criteria.

The Tunnel Method for Hooping a T-Shirt on a Standard Machine (So Sleeves Don’t Get Stitched In)

For single-needle home machines, the "Tunnel" is a survival skill. You essentially create a fabric conduit that keeps the bulk away from the needle bar.

Creating the Safety Tunnel

1. Inversion: Turn the garment inside out? No—keep it right side out, but roll the back of the shirt and the sleeves outward, away from the hoop center.
2. Securing: Use hair clips or large binder clips to hold the rolled fabric coils tight.
3. The "Sweep": Run your hand around the perimeter of the hoop. You should feel nothing but the single layer of fabric intended for embroidery.

Warning: The Pinch Hazard. When rolling fabric, ensure no clips or hard folds are near the hoop attachment arm. If the carriage moves and hits a binder clip, it can knock the machine out of alignment or strip the stepper motor gears.

Prep Checklist (The "Pre-Flight" Check)

• Template printed at 100% scale and center-clipped.
• Garment center marked with crosshairs and the "Circle of Truth."
• Layers (if denim/jacket) grid-basted to prevent shifting.
• Stabilizer applied squarely on the reverse side.
• Design orientation verified on the machine screen (Rotate 90° widely required for T-shirts on home machines).

Small Garments, Big Risk: Embroidering a Baby Onesie in a 4x4 Hoop Without a Hoop Strike

Onesies are terrifying because they are tiny. The risk of the hoop hitting the sleeve or the neck snap is high. The 4x4 hoop offers the smallest footprint, reducing collision risk, but it requires active management.

The "Hand-Walking" Technique

You cannot press "Start" and walk away on a onesie.

1. The Preview: Advance your machine one stitch at a time to trace the perimeter. Watch the clearance between the needle bar and the bunched fabric.
2. Active Guarding: As the machine stitches, keep your hands (safely outside the embroidery zone) on the rolled fabric. Gently push the bulk away from the moving needle assembly.


In professional circles, when items are too small for standard hoops, operators often look for specific tools like an embroidery sleeve hoop or specialized clamping systems. These allow for embroidery on narrow tubes (sleeves, pant legs, onesies) without the risk of sewing the garment shut.

Setup Checklist (Before Pressing Start)

• Bobbin is full (running out mid-design on a onesie is a nightmare).
• Upper thread path is clear.
• Needle is fresh (Size 75/11 Ballpoint for knits).
• "Tunnel" is clear of obstructions.
• Perimeter Trace verification completed. (Crucial!)

Troubleshooting the Three Garment Problems That Waste the Most Time (And How to Fix Them Fast)

When things go wrong, do not panic. Follow this diagnostic logic: Physical -> Mechanical -> Digital.

Symptom 1: The Design is Puckered / Distorted

• Diagnosis: The fabric moved while the stabilizer stayed still, or hoop pressure was uneven.
• Quick Fix: Increase the stabilizer grip (use water-activated).
• Preventative: Add a Felt Collar to the hoop for thin fabrics or switch to a magnetic hoop for even vertical pressure.

Symptom 2: "Birdnesting" (Tangled thread under the plate)

• Diagnosis: Almost always an upper threading error or the garment was pulled during stitching.
• Quick Fix: Cut the nest carefully. Re-thread the machine entirely (top and bobbin). Ensure the presser foot is UP when threading.
• Preventative: Ensure the thread tail is held for the first 3 stitches.

Symptom 3: Hoop Burn (Shiny ring marks)

• Diagnosis: Plastic hoop screwed too tight, crushing the fabric pile.
• Quick Fix: Steam the area (do not iron directly) and brush with a soft toothbrush to lift fibers.
• Tool Upgrade: This is the primary trigger for adopting magnetic embroidery hoops, which eliminate this issue by using magnetic force rather than friction clamps.

Decision Tree: Pick the Right Stabilizer Strategy for Garments

Do not guess. Follow the path.

START HERE:

1. Is the fabric stretchy (Knit/T-shirt)?
   • YES: Cutaway Stabilizer is mandatory. (Tearaway will eventually break stitches as the shirt stretches). Use Water-Activated Cutaway for best results.
   • NO (Denim/Woven): Proceed to Step 2.
2. Is the design dense ( >15,000 stitches)?
   • YES: Use Medium Tearaway + Floating Layer of extra stabilizer underneath.
   • NO: Standard Adhesive Tearaway is sufficient.
3. Is the fabric slippery/delicate?
   • YES: Add a Felt Collar to the hoop or use a Magnetic Hoop.
   • NO: Standard hooping is fine.

The Upgrade Path I Recommend After You Master This Once (Faster Hooping, Cleaner Results, Less Fatigue)

Mastering these manual techniques works perfectly for the hobbyist making 1-5 items. However, once you start taking orders for 20 jackets or 50 caps, the physical fatigue and time constraints will hit you.

Here is the logical path for scaling your efficiency without sacrificing quality:

1. The "Safety" Upgrade (Magnetic Hoops):
   If you are tired of wrestling with screws, hand pain, or hoop burn marks on expensive garments, magnetic hoops for embroidery machines are the industry standard solution. They snap on instantly, hold thick layers (like Carhartt jackets) without popping, and protect delicate fabrics.

Warning: Magnetic Field Safety. Magnetic hoops use powerful Neodymium magnets. Do not use them if you have a pacemaker. Keep fingers clear of the snapping zone to avoid painful pinches.

1. The "Consistency" Upgrade (Hooping Stations):
   If your placement varies from shirt to shirt, a hoopmaster hooping station or similar fixture removes the guesswork. It guarantees that the logo is in the exact same spot on Shirt #1 and Shirt #100.
2. The "Capacity" Upgrade (Multi-Needle Machines):
   When you are losing hours of your life changing threads on a single-needle machine, it is time to look at SEWTECH class multi-needle solutions. These machines allow you to set up 10-15 colors at once and embroider tubular items (like bags and sleeves) without the "Tunnel Method" struggle.


Operation Checklist (The "Live Fire" Check)

• Sound Check: Machine is humming rhythmically (no clanking).
• Sight Check: Bobbin thread is not visible on top (adjust tension if needed).
• Safety Check: Fingers are clear of the needle bar.
• Emergency Stop: You know exactly where the STOP button is.
• Post-Op: Trim jump stitches and steam (do not iron) to remove hoop marks.

FAQ

• Q: On a Brother single-needle embroidery machine, how can a Mylar embroidery design sparkle with regular 40wt thread without the Mylar tearing?
  A: Use a 75/11 needle and slow the Brother machine to about 600–700 SPM to avoid perforating the Mylar film.
  • Switch: Install a 75/11 Sharp or 75/11 Ballpoint (match the fabric) and avoid 90/14+ needles that punch holes too large.
  • Reduce: Run at 600–700 stitches per minute so the film doesn’t flutter under the presser foot.
  • Tear away: Remove excess Mylar after the tack-down stitch using precision tweezers close to the stitch line.
  • Success check: Hear a soft, consistent stitch rhythm and see the film lying flat (no loud “crinkle,” no puffing between stitches).
  • If it still fails… Re-check hoop tightness and slow down further within the machine’s safe operating range per the manual.
• Q: On a denim jacket, how do I prevent the embroidered area from bubbling and making the jacket hang weird when the jacket has facings or a lining?
  A: Grid-baste the jacket layers together before hooping so the needle cannot push one layer while the other stays put.
  • Sew: Use a regular sewing machine to stitch a large “X” or loose grid over the entire embroidery zone.
  • Load: Put water-soluble thread in the bobbin and a contrasting standard thread on top.
  • Smooth: Flatten the area with your hand before hooping to lock the layers into one unit.
  • Success check: The jacket panel feels like one solid piece, not two layers sliding independently.
  • If it still fails… Re-baste a wider area and confirm the hoop is capturing all intended layers evenly.
• Q: On a knit T-shirt, how do I mark perfect center placement for an embroidery design so the logo does not stitch crooked?
  A: Build a “static grid” using an armpit-to-armpit horizon line plus a vertical center line, then mark the center with a circle so it can’t be confused later.
  • Draw: Use a long ruler from armpit seam to armpit seam and mark the horizontal baseline.
  • Measure: Find the exact midpoint and draw a vertical line perpendicular to the baseline.
  • Mark: Circle the crosshair intersection so the true center stays obvious during hooping and stabilizing.
  • Success check: The template center hole lands exactly on the crosshair intersection when visually aligned.
  • If it still fails… Step back and re-check placement on the body/hanger view before committing to hooping.
• Q: When using Hydro-Stick (water-activated adhesive) stabilizer on a T-shirt, how do I keep the stabilizer from landing crooked and causing puckering?
  A: Transfer the front-center mark to the inside using a pin, then align the stabilizer grid to the garment grain before bonding.
  • Pierce: Push a pin through the circled center point from the front of the shirt.
  • Flip: Turn the shirt inside out and mark the pin location on the wrong side.
  • Align: Match the stabilizer grid to the shirt’s vertical grain (often visible as knit ribs) and use small pieces of painter’s tape to hold corners while checking.
  • Success check: The stabilizer sits square to the shirt grain and the center mark stays centered after pressing.
  • If it still fails… Peel and re-position before it fully sets; if the design is dense, add a floated tearaway layer under the hooped area.
• Q: On a home single-needle embroidery machine, how do I hoop a T-shirt using the tunnel method so sleeves and the back do not get stitched into the design?
  A: Roll and clip all excess fabric away from the hoop opening, then do a full perimeter “sweep” before mounting the hoop.
  • Roll: Keep the shirt right-side out and roll the back and sleeves outward, away from the hoop center.
  • Clip: Secure the rolled fabric with hair clips or large binder clips so nothing can fall back under the needle path.
  • Sweep: Run your hand around the hoop perimeter to confirm only the intended single layer is inside.
  • Success check: You can feel nothing but one fabric layer around the hoop edge and no clip is near the hoop attachment arm.
  • If it still fails… Re-roll tighter and re-clip; remove any clip that could be struck by the moving carriage.
• Q: On a baby onesie in a 4x4 hoop, how do I avoid a hoop strike with the sleeve or neck snap when starting the embroidery?
  A: Do a one-stitch-at-a-time perimeter preview first, then “hand-walk” the bulk away while the machine runs.
  • Preview: Advance stitch-by-stitch to trace the design boundary and watch clearance between needle assembly and bunched fabric.
  • Guard: Keep hands safely outside the embroidery zone and gently push rolled fabric away from the moving parts during stitching.
  • Prepare: Confirm a full bobbin, clear upper thread path, and a fresh 75/11 ballpoint needle for knits before pressing start.
  • Success check: The entire perimeter trace completes with no contact risk and the fabric stays clear throughout the first stitching minutes.
  • If it still fails… Stop immediately and re-roll/re-clip the garment bulk; consider a specialized sleeve-style hooping approach if the tube is too narrow.
• Q: On a Brother embroidery machine, how do I fix birdnesting (thread tangles under the needle plate) when embroidering garments?
  A: Stop, cut the nest carefully, then completely re-thread the Brother machine with the presser foot UP and control the thread tail for the first stitches.
  • Cut: Remove the tangled thread without yanking the garment to avoid bending the needle or shifting the hoop.
  • Re-thread: Re-thread upper path and bobbin from scratch with the presser foot raised (so tension discs open properly).
  • Hold: Hold the thread tail for the first 3 stitches to prevent the initial snarl.
  • Success check: The machine forms clean stitches immediately with no thread wad building under the plate.
  • If it still fails… Verify the garment is not being pulled by excess fabric (use the tunnel method) and re-check that the upper thread path is fully clear.
