Mylar Appliqué After the Laundry Gauntlet: What Actually Survives Warm Wash + High-Heat Dry (and What Fails First)

If you’ve ever stared at a finished Mylar sketch design and thought, “This is adorable… but will it survive a real family laundry day?”—you’re not alone. The fear is visceral: you imagine the film disintegrating into glittery dust, the design peeling off like a bad sticker, or the garment turning into a stiff, crunchy mess.

Ashley ran the kind of test most customers accidentally run for us: a normal warm wash, a high spin, and then a deliberately high-heat dry.

The news from this specific battlefield (the laundry room) is good: the Mylar stayed intact, flexible, and visually crisp across all three shirts. The “problems” that showed up were the ones seasoned shop owners expect—blank shrinkage and a few leftover Mylar bits in open areas—not the Mylar disintegrating.

However, "surviving" isn't the same as "selling quality." As an embroidery educator, I’m taking Ashley’s raw data and rebuilding it into a Standard Operating Procedure (SOP). Below is a repeatable shop workflow, with specific parameters and safety checks, so you can decide when Mylar is a smart product option (and when it’s a headache).

Don’t Panic About Mylar in the Washer—Panic About the Blank and the Pick-Out

Ashley’s objective was to answer the viewer's burning question: how does Mylar hold up in the laundry? She stitched three children’s shirts using sketch-style designs with Mylar appliqué, then washed and dried them in a “worst-case” fashion compared to typical "gentle cycle" instructions.

What she found is exactly what I see in production environments: The Mylar sheet itself is rarely the first point of failure. The System of Failure usually follows this hierarchy:

1. Design Selection: Designs with high stitch counts or tiny enclosed spaces make Mylar removal a nightmare.
2. Blank Behavior: Cheap cotton blanks shrink significantly, while the polyester thread and Mylar do not, causing the "bacon neck" ripple effect.
3. Hooping/Stabilizing Choices: If the fabric moves 1mm during stitching, that distortion is magnified 10x after the first wash.

If you are operating a commercial embroidery machine for client work, this is the mindset shift that saves you refunds: You aren't testing a material; you are testing a system.

The “Hidden” Prep Before You Wash: Document Like a Pro (So You Can Diagnose Later)

Ashley did something smart that many hobbyists skip: she documented the shirts before washing, including close-ups in a lightbox. In professional embroidery, if you didn't document it, you can't diagnose it.

She used:

• Consumable: Pink iridescent Mylar (sourced from Hobby Lobby).
• Design: Sketch designs from Alphalicious Designs.
• Substrates: Three different children’s shirt blanks (AJ Blanks, Blanks Boutique, ARB Blanks).

She noted a critical user-experience friction point: Mylar is significantly harder to remove cleanly from intricate areas like small lettering than from open, airy sketch fills.

Prep Checklist (Do this before the first wash)

• Visual Audit: Photograph the design dry, flat, and well-lit. Take a macro shot of the densest area.
• Tactile Baseline: Rub the stitched area with your thumb. Does it feel like a potato chip (bad) or a flexible patch (good)? Record this sensation.
• Islands Check: Look closely at letters like 'A', 'B', or 'O'. Are there tiny islands of unpicked Mylar trapped inside? Remove them now; the washer won't do it for you.
• Blank Registration: Write down the brand and material blend (e.g., 100% Cotton vs. 60/40 Poly-Blend). This matters for shrinkage rates.
• Heat History: If you used a heat press to bond the Mylar or fuse a backing, note the temperature (e.g., 320°F for 15 seconds).


Warning: Sharp Tool Safety. When picking out Mylar from tiny lettering, keep your non-dominant hand away from the pick path. A slip with sharp tweezers or a dental pick can puncture the shirt or your finger. Never pick towards your body.

Design Choice Is the Real Make-or-Break: Mylar Loves Open Sketch Areas, Hates Tiny Lettering

Ashley stated it plainly: the first time she used Mylar, she was selective and chose designs without lots of tiny parts. This time she chose designs she loved—and removal around lettering was much harder.

Here is the "Physics of Embroidery" explanation: Mylar is perforated by the needle. In open areas (sketch fill), the needle creates a "tear line" like a postage stamp, making removal easy. In tiny text (satin columns under 2mm wide), the needle creates a chaotic mesh that traps the Mylar rather than perforating it cleanly.

The Golden Rule of Mylar: If the design has text smaller than 0.5 inches (12mm) or heavy satin overlays, charge extra for labor, or switch to metallic thread instead of Mylar.

A viewer asked about fonts used on the shirts, and Ashley replied that the designs were from Alphaliciousdesigns.com, specifically “Sweetie Pie Sketch” and “Smock-A-Lot.” These are excellent examples of Mylar-Optimized Digitizing: low density, long stitch lengths, and open architecture.

Pro tip (Stabilizer & Shrinkage)

People often worry that "no-show mesh shrinks." Ashley noted that some polymesh can shrink, but not all. She prefers a polymesh from Allstitch paired with a light tearaway, reporting very little shrinking with that combination.

My expert recommendation for knits:

1. Bottom Layer: No-Show Mesh (Cutaway). This provides the permanent structure.
2. Middle Layer: The Shirt.
3. Top Layer: Water Soluble Topping (Solvy). This prevents the sketches from sinking into the knit and keeps the Mylar flat during stitching.

The Setup Ashley Used: Normal Warm Wash + High Spin (On Purpose)

Ashley ignored standard "delicate" care instructions to simulate reality: tired parents wash kids' clothes on normal cycles.

Her Stress-Test Settings:

• Wash Cycle: Normal (Agitation: Moderate to High)
• Wash Temp: Warm (Likely 105°F / 40°C)
• Spin Speed: High (Likely 1000+ RPM)


Setup Checklist (Before you press Start)

• Zip and Clip: Close the zippers of any other garments in the same load to prevent abrasion against the Mylar.
• Inversion Decision:
  • For Customer Care Testing: Turn the shirt inside out (protects the embroidery).
  • For Stress Testing: Leave right-side out (maximum abrasion exposure).
• Load Balancing: Wash with similar weight items. Do not wash delicate Mylar tees with heavy denim jeans.
• Chemical Check: Ensure no chlorine bleach is used, as it can degrade the polyester structure of the Mylar film over time.


The Wet Checkpoint: What to Look for Right Out of the Washer

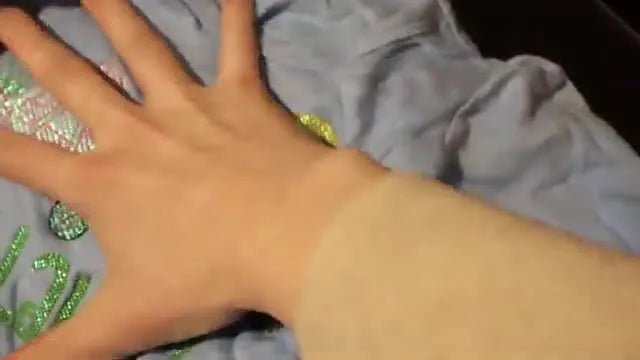

Ashley pulled the shirts out wet, smoothed them by hand, and checked for peeling or damage immediately after the spin cycle.

Her observation: they looked fine—wrinkled from the wash, but no obvious Mylar failure.

Why check it wet? This isolates Adhesion vs. Shrinkage.

• If the design is distorted while wet, your stabilizer failed or you hooped the fabric too loosely (drum-tight hooping is essential).
• If the design looks good wet but bad dry, the issue is heat/shrinkage.




The High-Heat Dryer Test: The “Crunchy Mylar” Fear vs. What Actually Happened

Ashley then dried the shirts on high heat to push the test into "worst-case territory."

After drying, she performed the Sensory Crumple Test: she crumpled and rubbed the embroidered area to check stiffness and sound.

Her Result:

• Flexibility: Mylar was flexible, moving with the fabric.
• Sound: No "crinkling paper" sound.
• Texture: It felt less crunchy after the wash/dry cycle than before.


Why it feels softer after washing (The "Relaxation" Phenomenon)

Beginners often fear the washer, but the washer is actually a finishing tool. Here is the expert context:

1. Thread Lubrication Removal: Embroidery thread has industrial lubricants. Washing removes them, softening the fiber.
2. Backing Softening: Even "soft" stabilizers can be stiff initially. Washing breaks down the binders in the non-woven material.
3. Mylar Integration: The heat of the dryer helps shape the Mylar to the contours of the thread cage holding it down.

If you are selling garments, I highly recommend a "pre-wash" if you are using Mylar, or at least advising the customer that "the design gets softer with love."

The Final Verdict: Mylar Survived—But One Shirt Shrunk More (and That’s the Trap)

Ashley’s final presentation showed all three shirts in better lighting. Her verdict was clear: no wash issues with the Mylar itself.

The only negative she pointed out: one brand of shirt shrunk more than the others, creating slight wrinkling/puckering around the embroidery.

The Physics of Puckering

This is not a failure of the Mylar; it is a failure of Differential Shrinkage.

• The Control: Polyester embroidery thread and Mylar film shrink < 1%.
• The Variable: A 100% cotton cheap tee can shrink 5-8% in length.
• The Result: The shirt tries to shrink, but the embroidery acts like a rigid shield. The fabric ripples around the edges of the shield.

Solution: Use higher quality blanks (pre-shrunk or 60/40 blends) or wash the blanks before embroidering (though this is impractical for high volume).

A Practical Decision Tree: Fabric + Blank Behavior → Stabilizer Strategy

Use this logic flow to determine your setup for Mylar sketch embroidery:

1. Analyze the Blank's Heat Stability

• Is it a 100% Cotton Tee (High Shrink Risk)? → Action: Pre-shrink if possible, or use a floating stabilizer method to allow slight movement.
• Is it a Poly-Blend or Performance Knit? → Action: Standard Cutaway stabilizer is sufficient.

2. Analyze the Design Density

• Mostly Open Sketch? → Action: Go for it. Use Mylar.
• Heavy Lettering / Tight Satin? → Action: STOP. Do not use Mylar. Use metallic thread or flat foil instead.

3. Hooping Strategy

• Standard Approach: Hoop tight.
• Premium Approach: Use double-sided embroidery tape or temporary spray adhesive to bond the stabilizer to the fabric before hooping. This prevents the "shifting" that looks like shrinkage later.

Troubleshooting the Two Real Problems Ashley Highlighted

Symptom: Mylar is hard to remove (picking takes forever)

• Likely Cause: Design digits are too small (under 3mm) or stitch density is too high (standard fill instead of sketch fill).
• Immediate Fix: Use a heat press or iron (low heat) over a pressing cloth. Warm Mylar tears slightly easier than cold Mylar.
• System Fix: Choose "Sketch" or "Mylar-ready" digitized files only.

Symptom: Puckering/wrinkling around the embroidery after drying

• Likely Cause: Blank shrinkage (Physical fabric contraction).
• Immediate Fix: Steam the garment (do not iron directly on Mylar without a cloth). Steam relaxes the fibers.
• System Fix: Switch to a 50/50 Cotton/Poly blank or a trusted brand like Rabbit Skins or ARB that is known for lower shrinkage rates.

The Upgrade Path: When Hooping Speed and Consistency Matter More Than the Mylar

Ashley used standard commercial tubular hoops in the footage. These work, but they are the source of two major pain points for beginners: Hoop Burn (shiny ring marks) and Carpal Tunnel (from repetitive screwing/unscrewing).

Here is the "Tool Upgrade" logic I apply in professional studios:

• Trigger: You plan to sell 50+ shirts a month, or you are struggling to hoop thick winter items.
• Criteria: If you spend more than 2 minutes hooping a shirt, you are losing money.
• Level 1 Upgrade (Technique): Use "floating" techniques with adhesive stabilizer to avoid hooping the shirt directly.
• Level 2 Upgrade (Tooling): Switch to magnetic embroidery hoops. These use powerful magnets to clamp fabric instantly without adjusting screws. They eliminate hoop burn and handle variable thicknesses (like Mylar + Shirt + Stabilizer) automatically.
• Level 3 Upgrade (Capacity): If you are limited by a single-needle machine, the constant thread changes for colorful Mylar designs will kill your profit margins. Moving to a multi-needle machine (like a SEWTECH setup) allows you to set 10 colors at once and just hit "Start."

For those already on the Brother platform, searching for specific hoops for brother embroidery machines that offer magnetic capabilities can be a game-changer for precise placement on children's wear.

Warning: Magnetic Hazard. Magnetic frames are industrial tools with crushing force. Keep them away from pacemakers, ICDs, and mechanical watches. Keep fingers clear of the clamping zone to avoid severe pinching.

A Shop-Ready Workflow You Can Repeat (and Teach to Staff)

If you want to validate your own products without guessing, use this repeatable SOP:

1. Fabrication: Stitch Mylar design. Ensure stabilizer is trimmed close (1/4 inch).
2. Documentation: Photograph under neutral light.
3. Wash Test: Wash 1 unit on Normal/Warm settings.
4. Wet Inspection: Check for adhesive failure or thread loops.
5. Dry Test: Tumble dry High.
6. Sensory Check: Crumple test. It should be silent and flexible.
7. Compare: Place the washed unit next to an unwashed reference unit. If the blank has shrunk more than 5%, switch blank providers.

Operation Checklist (The "Sellable" Standard)

• Adhesion: edges of the Mylar are captured by the stitch; no loose flaps.
• Hand-Feel: The design bends with the fabric; it does not stand up like a piece of cardboard.
• Cleanliness: No glittering "chads" or leftover Mylar bits in the negative spaces.
• Flatness: The fabric around the design lies flat (no bacon-necking).

The Bottom Line

Ashley’s test proves that Mylar sketch embroidery is not fragile china; it can handle a normal warm wash and a high-heat dry. The failure points are almost always human decisions: picking the wrong design density, using a shrinking blank, or failing to hoop securely.

Treat Mylar as a system. Use open designs, stable blanks, and if you are serious about production speed, consider a hoop master embroidery hooping station or magnetic hoops to ensure every shirt is clamped with the exact same tension, every single time.

FAQ

• Q: Will Mylar appliqué embroidery survive a normal warm wash and a high-heat dryer cycle on children’s shirts?
  A: In this wash test, the Mylar stayed intact and flexible through a normal warm wash, high spin, and high-heat dry; the bigger risks were blank shrinkage and leftover Mylar bits.
  • Wash one finished sample on Normal/Warm with a high spin to stress-test real-life handling.
  • Check the garment immediately when wet to separate stabilizer/hooping failure from heat/shrinkage issues.
  • Dry on high heat only for testing, then compare the washed shirt to an unwashed reference.
  • Success check: After drying, the embroidery should bend with the fabric and pass a crumple/rub test without stiff “paper-crinkle.”
  • If it still fails: Reevaluate the shirt blank (shrinkage) and the design density (Mylar removal traps).
• Q: What pre-wash documentation checklist should an embroidery shop use to diagnose Mylar sketch embroidery quality later?
  A: Document the garment before washing so any post-wash distortion can be traced to design choice, blank behavior, or hooping/stabilizing—not guesswork.
  • Photograph the design dry, flat, and well-lit, including a close-up of the densest area.
  • Rub the stitched area and record the hand-feel baseline (stiff vs flexible) before washing.
  • Inspect and remove trapped Mylar “islands” inside letters (A/B/O-style enclosed spaces) before laundering.
  • Success check: Photos clearly show edges, dense zones, and any tiny trapped Mylar so changes after washing are obvious.
  • If it still fails: Add blank details (brand/blend) and any heat history (press/iron) to the log for shrinkage comparison.
• Q: Why is Mylar appliqué so hard to remove from small lettering in sketch embroidery designs, and what is a safe quick fix?
  A: This is common—small lettering and tight satin areas trap Mylar instead of perforating it cleanly; the quick fix is gentle warming to help it tear away.
  • Choose open, airy sketch-style designs when Mylar removal speed matters; avoid tiny, tight lettering for Mylar jobs.
  • Warm the Mylar slightly using low heat with a pressing cloth to make pick-out easier.
  • Pick out trapped bits methodically in enclosed letter areas before the wash so the washer doesn’t “cement” them in place.
  • Success check: Mylar separates along clean tear lines and does not leave glittery fragments in negative spaces.
  • If it still fails: Switch the effect choice—use metallic thread or another finish instead of Mylar for dense text zones.
• Q: How can an embroidery shop prevent puckering and “bacon neck” ripples around Mylar embroidery after tumble drying?
  A: Puckering after drying is usually differential shrinkage from the shirt blank, not Mylar failure—reduce shrink risk and stabilize knits correctly.
  • Compare blanks and avoid high-shrink tees when selling; consider more stable blends or higher-quality blanks for consistent results.
  • Use a knit-friendly stabilizer stack: no-show mesh cutaway underneath plus water-soluble topping on top to keep sketches from sinking.
  • Steam to relax fibers if mild rippling appears; avoid direct ironing on Mylar without a cloth.
  • Success check: The fabric around the design lies flat and the design looks clean wet and dry (no new ripples after drying).
  • If it still fails: Recheck hooping tightness and fabric shifting—small movement during stitching can amplify after the first wash.
• Q: What wet-check inspection should be done right after washing Mylar sketch embroidery to diagnose stabilizer failure vs heat shrinkage?
  A: Check the embroidery immediately while wet—distortion that appears wet points to hooping/stabilizer issues, while distortion that appears only after drying points to heat/shrinkage.
  • Smooth the shirt by hand right out of the washer and inspect edges and alignment before it dries.
  • Look for visible shifting, distortion, or looseness that suggests the fabric moved during stitching.
  • Only move to dryer testing after the wet inspection is recorded (photos help).
  • Success check: Wet embroidery looks stable and aligned, with no peeling or obvious distortion.
  • If it still fails: Tighten hooping and upgrade the bonding method (tape/temporary adhesive) to prevent shifting during stitching.
• Q: What sharp-tool safety rules should be followed when picking out Mylar from tiny lettering in embroidery?
  A: Treat pick-out like a precision cutting task—keep hands out of the tool path and never pick toward the body to avoid punctures.
  • Keep the non-dominant hand away from the pick direction before lifting any trapped Mylar bits.
  • Use controlled, short motions with tweezers or a dental pick rather than forceful pulling.
  • Stop and reposition the garment instead of angling the tool toward fingers or torso.
  • Success check: Mylar is removed cleanly without snagged stitches, holes in the knit, or slips that contact skin.
  • If it still fails: Switch to a more Mylar-friendly design (open sketch areas) so removal doesn’t require aggressive tools.
• Q: What magnetic embroidery hoop safety hazards should commercial embroidery operators control when clamping thick stacks like Mylar + shirt + stabilizer?
  A: Magnetic frames clamp with crushing force—protect hands and keep the magnets away from pacemakers/ICDs and mechanical watches.
  • Keep fingers fully clear of the clamping zone before bringing the magnetic ring/fixture together.
  • Establish a set placement routine so hands never “chase” the magnet as it snaps shut.
  • Store magnets away from sensitive medical devices and mechanical watches.
  • Success check: The hoop closes without pinched fingers and the fabric stack is held evenly without screw adjustments.
  • If it still fails: Slow down the clamp motion and use a consistent loading sequence to prevent surprise snap closures.
• Q: When should an embroidery business upgrade from standard tubular hoops to magnetic embroidery hoops or to a multi-needle embroidery machine for Mylar sketch production?
  A: Upgrade when hooping time and repeatability become the bottleneck—solve it in layers: technique first, then tooling, then capacity.
  • Level 1 (Technique): Float with adhesive stabilizer methods to reduce direct hooping strain and fabric marking.
  • Level 2 (Tool): Move to magnetic hoops when hooping takes more than ~2 minutes per shirt or hoop burn/carpal fatigue is recurring.
  • Level 3 (Capacity): Move to a multi-needle machine when frequent thread changes for colorful designs are killing throughput.
  • Success check: Hooping becomes fast and consistent, with fewer placement errors, less fabric marking, and smoother workflow per shirt.
  • If it still fails: Time each step (hoop, stitch, pick-out, wash test) to find the true bottleneck—often it is design density and pick-out labor, not the Mylar.
