Mastering Large Appliqué: The Zero-Fear Guide to Multi-Hooping and Splitting Designs

If you’ve ever stared at a gorgeous design and realized it’s just a little too big for your hoop, you recognize the specific sinking feeling: frustration, a spike of panic, and the temptation to abandon the project.

In my 20 years of embroidery production, I have seen more projects abandoned due to "hoop anxiety" than any other technical limitation. But here is the calm truth from the production floor: hoop limits are physical, but they are not the end of the road.

Becky’s method in this guide is a clean, repeatable protocol to split a large appliqué design (specifically a rooster) into multiple hoopings and land the second hooping exactly where it belongs—even without a camera system. We will break this down into a cognitive blueprint that eliminates the guesswork.

1. The Physics of the "No-Stitch Zone"

Why your 9x14 design doesn't fit a 9x14 hoop.

Before we touch the screen, we must understand the machine's safety barriers. Becky calls out a rule that catches even experienced stitchers: regardless of brand, there is a rigid safety margin inside the hoop.

• The Hard Limit: Most machines (like the Brother Luminaire or Baby Lock Solaris) enforce a ~0.5-inch buffer inside the hoop frame.
• The "Why": This exists to prevent the embroidery foot from colliding with the plastic hoop frame at 800+ stitches per minute (SPM), which would shatter the foot or bend the needle bar.

In her example, she physically "auditions" the smaller hoop over the finished rooster. The tail simply won't fit. This confirms the need for a Split Strategy.

Expert Concept: Mastering multi hooping machine embroidery is not just about making things fit; it is about strategic segmentation. You must decide what gives you the most stability in Hooping #1 (the body) and what can be safely added in Hooping #2 (the tail).

2. The Split Strategy: Layering Logic

Decision: Tail over Body vs. Body over Tail.

Before opening your digitizing software, you must make a physical layering decision. This prevents ugly, exposed edges.

• The Rule of Gravity: In appliqué, identifying which piece sits "on top" is crucial.
• Becky’s Choice: She stitches the chicken body first. The tail will be the second hooping.
• The Consequence: The tail appliqué must overlap the body slightly to look cohesive.

Pro Production Tip: If you are digitizing a large appliqué with overlapping pieces, do not simply layer them in the software and hope for the best. You will create a "bulletproof vest" effect—too much density.

• Action: Save the pieces as separate embroidery files.
• Technique: Use the "Remove Overlap" stitches function in your software if available, or manually delete the hidden stitches to prevent needle breaks and thread shredding.

3. The "Hidden Prep": Creating the Architecture of Accuracy

Templates, Friction, and Stability.

Multi-hooping fails at the prep table, not the needle. The second hooping only works when you have a mechanical zero-point. You need three tangible assets:

1. A Printed Template: Must have printed center crosshairs.
2. A Friction Surface: A DIME Hoop Mat or similar silicone/rubberized grid mat.
3. A Floating Agent: Sticky stabilizer, temporary spray, or double-sided tape.


Prep Checklist: The Pre-Flight Safety Protocol

• Hoop Margin Check: Confirm your design fits within the actual stitchable area, not just the physical hoop inner diameter.
• Segmentation: Define Hooping #1 (Body) and Hooping #2 (Tail).
• Paper Asset: Print the Hooping #2 design at 100% scale with Crosshairs ON.
• Cloth Buffer: Ensure your fabric has at least 3 inches of excess around the Hooping #2 area to allow for hooping or floating without edge struggle.
• Consumable Check: Verify you have fresh stabilization (Mesh or Tearaway depending on fabric) and adhesive spray (Sulky KK2000 or Odif 505).

Warning: Mechanical Safety. When focusing intensely on alignment, operators often lean close to the machine. Keep hands and long hair away from the needle bar and carriage. Becky’s machine displays a carriage-move warning—treat this as a "Red Light." A moving carriage exerts enough torque to pinch fingers severely.

4. Software Surgery: The "Three-Line Rule"

Isolating Appliqué Elements in Simply Applique.

Becky uses Simply Applique software, but this logic applies to Embird, Hatch, or PE-Design. You cannot simply cut the design visually. Appliqué relies on a specific sequence.

The Protocol: When separating the tail, you must grab all three structural components:

1. Placement Line: The single run stitch showing where to place fabric.
2. Tack Down Line: The zig-zag or run stitch that holds the fabric.
3. Finish Stitch: The satin or blanket stitch that covers the raw edge.

The Move: She deletes these three specific lines from the "Body" file to create "Percy No Tail."

5. The Clean File Workflow

Target: "Percy Tail.pes"

1. Isolate: Open the original, delete the Body, leaving only the Tail (and its three lines).
2. Center: Use the software's "Center to Hoop" function. Crucial: If it is not mathematically centered in the file, your template crosshairs will be a lie.
3. Orient: Flip Horizontal and Rotate 90° right.
   • Why? The design must align with the physical reality of how the fabric will enter the machine.
4. Print: Print Page 1 with Crosshairs.

Commercial Insight: Precise orientation is critical. If checking alignment feels like a constant struggle, you might be fighting your tools. Many professionals upgrade to a hooping station for embroidery to lock in this alignment mechanically, removing human jitter from the equation.

6. The "Float" Technique: Anchoring Without Hoop Burn

Using DIME Print & Stick Target Paper.

Becky prints the isolated tail on DIME Print & Stick Target Paper. This is an adhesive template.

• Action: Peel the backing and stick the template onto the fabric, positioning it exactly where the tail should sprout from the rooster’s body.

The Floating Method (Sensory Guide): Instead of hooping the bulky fabric (which risks hoop burn or distortion), Becky hoops only the stabilizer.

1. Hoop: Hoops No-Show Poly Mesh stabilizer tight.
   • Sensory Check: Tap the stabilizer. It should sound like a drum (thump-thump). It should not sag.
2. Mark: Draws crosshairs directly on the stabilizer.
3. Align: Places the hoop on the DIME Hoop Mat, aligning the stabilizer marks to the mat's grid.
4. Float: Lays the fabric (with the sticky template) on top, aligning the template crosshairs to the hoop center.

Why Float? Physics. When you force a quilt block into a standard hoop, you apply tension in 360 degrees, which distorts the weave. By hooping the stable mesh and "floating" the fabric with adhesive spray or pins, the fabric remains relaxed and geometrically true.

Warning: Magnet Pinch Hazard. If you upgrade to magnetic frames for this floating technique (highly recommended for speed), be aware: High-end magnets snap together with 5-10lbs of force. Do not place fingers between the magnets. If you have a pacemaker, maintain the safe distance recommended by your doctor, usually 6+ inches.

7. Precision Alignment: Lasers and Guidelines

The DIME Hoop Mat + Perfect Alignment Laser (PAL).

Becky demonstrates two verification paths. If you lack a camera system, these are your "eyes."

• The Analog Path: Align the hoop’s centering notches with the bold lines on the dime hoop mat. The friction of the mat prevents "micro-drift" while you arrange the fabric.

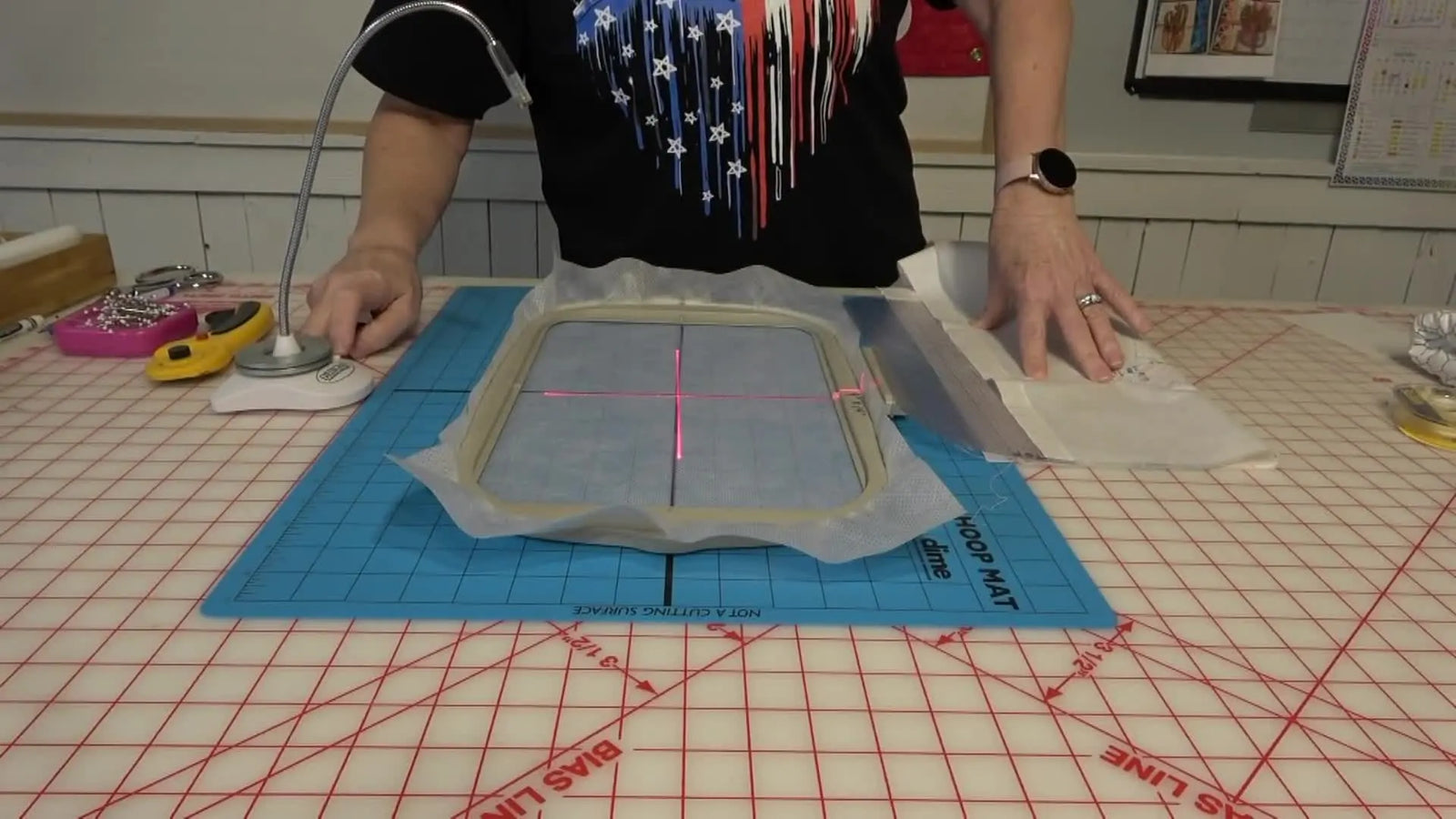

• The Digital Path: She turns on the PAL (Perfect Alignment Laser). The red crosshair beam projects down, allowing her to visually lock the fabric template’s center to the hoop’s center.

Adhesive Note:

• Sulky KK2000: Highly recommended. It is a dry mist, dissipates with heat/time, and doesn't gum up needles.
• Odif 505: A standard workhorse, slightly stickier.
• Avoid: "Basting Sprays" meant for quilting (like June Tailor) if they are too heavy or gummy—they will cause thread breaks.




8. The Needle-Drop Verification

The "Trust, but Verify" Moment.

This is the most critical step in the entire process. Do not skip it.

1. Load: Attach the hoop to the machine.
2. Drop: Manually turn the handwheel or use the "Needle Down" button to lower the needle tip until it is 1mm above the fabric.
3. Check: Does the needle point exactly into the center of the printed crosshair?
4. Jog: If it is off by even a millimeter, use the machine's on-screen arrows to jog the design until the needle creates a physical divot in the very center of the crosshair.

This effectively zeroes out any minor hooping errors. You are teaching the machine where reality is.

Setup Checklist: The "Go/No-Go" Decision

• Stabilizer Tension: Is the hooped mesh drum-tight? (Yes/No)
• Adhesion: Is the fabric securely adhered/pinned to the stabilizer? Lift a corner—it should resist.
• Clearance: Is the printed template removed? (Wait—keep it for the needle drop, remove immediately after verifying center).
• Needle Drop: Have you physically jogged the needle to the template center?
• Speed Limit: Verify machine speed.
  • Beginner Safe Zone: 400 - 600 SPM.
  • Reason: Slower speeds reduce vibration, keeping the floated fabric from shifting.

9. Stitching and "Success Signals"

Visual Confirmation.

Becky stitches the placement line.

• The Success Signal: The stitched line lands exactly on the edge of the previous embroidery, just as the template predicted. The overlap is seamless.
• The Human Element: Becky notices an unwanted color stop (a mistake in her file prep) and skips it. This is normal. Monitor your machine; don't walk away during a splice.


10. Troubleshooting: The Diagnostic Table

If it fails, it usually fails for one of these reasons. Use this logic to fix it.

11. Decision Tree: Choosing Your Toolset

Scenario: How precise do I need to be?

A) Do you have a Camera System (Solaris/Luminaire)?

• Yes: Scan the hoop. Drag the design on-screen to match the fabric. (Highest Accuracy, High Cost).
• No: Proceed to B.

B) Do you have a Laser (PAL) or Internal Laser?

• Yes: Use the laser crosshair to align the template. (High Accuracy, Medium Speed).
• No: Proceed to C.

C) Do you have a Printed Template & Grid?

• Yes: Manual needle-drop method described above. (High Accuracy, Slow Speed).
• No: Stop. Do not guess. Go back and print the template.

D) Stabilization Choice:

• Standard Hoop: Good for rugged denim/canvas. (Risk: Hoop Burn).
• Floating Method: Good for knits, quilts, towels. (Risk: Shifting if not sprayed well).
• Magnetic Hoop: Best of both worlds. Strong hold, zero burn, fast adjustments.

12. The Professional Upgrade Path

From Frustrated Hobbyist to Efficient Producer.

Becky’s method is the gold standard for technique. However, as your volume increases, physical fatigue and time become your enemies.

If you find yourself dreading the hooping process, consider this efficiency hierarchy based on your "pain points":

1. The "Hoop Burn" & Pain Solution:
   If your wrists hurt from tightening screws, or you are ruining velvet/nap with "hoop rings," Level Up to Magnetic Hoops.
   • Why: They clamp fabric instantly without the "unscrew-push-pull-screw" friction. For the floating embroidery hoop technique, they are superior because they hold the stabilizer flat with zero distortion.
2. The "Alignment" Solution:
   If you are doing production runs (e.g., 20 team shirts) and cannot afford to re-measure every single one, Level Up to a Hooping Station.
   • Why: It turns alignment into an assembly line. You set the jig once, and every shirt lands in the same "center."
3. The "Capacity" Solution:
   If you are constantly stopped to change threads (a rooster might have 12 colors), and you are limited by the 5x7 or 9x14 field of a single-needle machine, Level Up to a Multi-Needle Machine (SEWTECH).
   • Why: A 12-needle or 15-needle machine doesn't just hold more thread; it offers gigantic field sizes and tubular arms that make hooping bags, sleeves, and hats infinitely easier than on a flatbed machine.

And if you are already in the Brother ecosystem, looking specifically for magnetic hoops for brother luminaire is a smart investment to protect the machine's precision embroidery arm from the stress of heavy hoopings.

13. The Final Inspection

Don't Un-Hoop Yet.

Becky shows the final rooster. It looks like one continuous piece. This is the goal.

Post-Op Checklist

1. Continuity: Does the tail line flow into the body without a "jog"?
2. Adhesion: Did the tail appliqué cover the raw edge of the placement stitch completely?
3. Cleanup: Remove the jump stitches before removing the project from the stabilizer to avoid pulling the fabric.
4. Tear-Away: Gently tear/cut the stabilizer. If using a dime magnetic hoop, simply lift the top magnet—no unscrewing required.

Multi-hooping is a rite of passage. It separates those who stick to "safe" small designs from those who can tackle jacket backs and full quilt blocks. Trust the template, trust the needle drop, and let the physics work for you.

FAQ

• Q: Why does a Brother Luminaire or Baby Lock Solaris say a 9x14 design does not fit in a 9x14 embroidery hoop?
  A: Most machines enforce an internal safety margin (often about 0.5") inside the hoop, so the true stitchable area is smaller than the hoop’s physical size.
  • Measure: Confirm the design fits inside the machine’s actual stitch field (not the hoop’s inner plastic opening).
  • Re-split: Segment the design into two hoopings so Hooping #2 is smaller and safely inside the stitch area.
  • Test: “Audition” the hoop over the finished first section to confirm clearance before stitching.
  • Success check: The machine preview shows no edge warnings, and the needle/foot path stays safely away from the hoop frame.
  • If it still fails: Move the split line further inward and re-center the Hooping #2 file before printing the template.
• Q: How do I split a large appliqué design in Hatch, Embird, PE-Design, or Simply Applique without leaving raw edges or missing stitches?
  A: When splitting appliqué, always move/delete the placement line, tack-down line, and finish stitch together as one unit for the appliqué piece.
  • Identify: Locate the appliqué’s three structural elements (placement, tack-down, finish) for the section being split (e.g., the tail).
  • Isolate: Remove those three lines from the main file and save the split piece as a separate file.
  • De-density: Remove hidden/overlapped stitches where pieces overlap to avoid the “bulletproof vest” density problem.
  • Success check: The split piece stitches with a clean covered edge, and there is no exposed raw appliqué edge at the join.
  • If it still fails: Re-open the file and verify no finish stitches were left behind in the wrong file.
• Q: What supplies are required to multi-hoop and align a second hooping accurately without a camera system?
  A: Use a printed template with crosshairs, a friction grid surface, and a reliable floating/adhesion method—multi-hooping usually fails at prep, not at the needle.
  • Print: Output the Hooping #2 template at 100% scale with crosshairs turned on.
  • Prepare: Use a grid/friction mat (or equivalent) to prevent micro-drift while aligning.
  • Secure: Choose a floating agent (sticky stabilizer, temporary spray, or tape) and keep at least ~3" fabric excess around the hooping area.
  • Success check: The template crosshairs and hoop center marks stay aligned even when gently smoothing the fabric.
  • If it still fails: Re-check that the split file was centered to hoop in software before printing (uncentered files create “lying” crosshairs).
• Q: How do I float fabric with No-Show Poly Mesh stabilizer to prevent hoop burn during multi-hooping?
  A: Hoop only the stabilizer drum-tight, then float the fabric on top with adhesive/template alignment to avoid distortion and hoop marks.
  • Hoop: Tighten No-Show Poly Mesh stabilizer until it is firm and flat.
  • Mark: Draw center crosshairs on the hooped stabilizer for alignment.
  • Align: Place the hoop on a grid/friction mat and match the marks to the grid, then place the fabric/template on top.
  • Success check: Tap the hooped stabilizer— it should sound like a drum (“thump-thump”) with no sagging.
  • If it still fails: Increase adhesion (more controlled spray/pinning) and reduce stitch speed to limit shifting.
• Q: How do I use the needle-drop method on a Brother Luminaire or Baby Lock Solaris to verify Hooping #2 alignment before stitching?
  A: Manually lower the needle to about 1 mm above the fabric and jog the design until the needle point hits the exact center of the printed crosshair.
  • Load: Attach the hoop and bring up the alignment screen/tools.
  • Drop: Use handwheel or Needle Down to bring the needle tip close to the fabric at the template crosshair.
  • Jog: Use on-screen arrows to move the design until the needle makes a tiny divot dead-center in the crosshair.
  • Success check: The needle point lands precisely in the crosshair center before the first stitch runs.
  • If it still fails: Stop and re-check that the template was printed at 100% scale and that the design was centered-to-hoop in the file.
• Q: What is the safest machine speed for multi-hooping when fabric is floated, and how do I know if shifting is happening?
  A: A safe starting point is 400–600 SPM because slower speed reduces vibration that can drag floated fabric out of position.
  • Set: Reduce speed into the 400–600 SPM range before stitching the placement line.
  • Watch: Stay with the machine during the splice; do not “set and forget” a multi-hoop join.
  • Anchor: Increase adhesion/pinning if the fabric shows any movement during carriage changes.
  • Success check: The placement line lands exactly where the template predicted, with a seamless overlap at the join.
  • If it still fails: Pause, re-do needle-drop verification, and improve adhesion before continuing.
• Q: What safety precautions should embroidery operators follow when aligning multi-hoop designs and when using magnetic embroidery hoops?
  A: Treat alignment as a high-risk moment: keep hands/hair clear of moving parts, and keep fingers out of magnet pinch points.
  • Step back: Do not lean into the machine during carriage movement; obey any carriage-move warnings like a red light.
  • Clear: Keep fingers away from the needle bar area when jogging/needle-dropping.
  • Handle: When using magnetic hoops/frames, separate magnets carefully—never place fingertips between snapping magnets.
  • Success check: Hands remain outside the hoop/magnet closing zone, and alignment adjustments are made using controls—not by reaching under moving parts.
  • If it still fails: Stop the machine completely before repositioning anything, and follow the machine manual’s safety guidance (especially for strong magnets and medical devices like pacemakers).
