MS Paint + Sew Art 64 Key Fob: The Clean Bean Stitch Workflow (and How to Float Oilcloth Without a Mess)

The absolute Beginner’s Guide to Digitizing & Stitching Key Fobs (Without Ruining Your Machine)

If you’ve ever watched a “simple key fob” tutorial and thought, “Why did my outline get weirdly thick?” or “Why is my vinyl sliding around like it’s on ice?”—you are not alone. Machine embroidery is an “experience science.” It is easy to watch a video; it is much harder to replicate the “feel” of a properly hooped stabilizer or the “sound” of a happy machine.

This guide converts a popular MS Paint + Sew Art 64 workflow into a professional-grade Standard Operating Procedure (SOP). We will tackle the three things that trip people up fast: (1) basic digitizing logic, (2) controlling size inside a 4x4 field, and (3) stitching on stiff, non-hoop-friendly materials like oilcloth without destroying your registration.

Don’t Panic—The Key Fob is Your “Training Wheels” Project

Why start here? A key fob outline is forgiving. It is mostly one continuous line, it doesn’t require complex fill patterns, and you can see mistakes immediately. It is low risk—you waste 50 cents of vinyl, not a $20 shirt.

One common question from the original video was: “If you didn’t save the fob in Paint, why go to Paint and do all that work?”

The Expert Answer: MS Paint is your sketchbook; Sew Art is your architect. If you are just playing, you don't need to save the Paint source file. However, if you plan to build a business selling custom fobs, save your source art. You will eventually want to tweak the curve of the strap or the size of the circle without redrawing it from pixel zero.

Furthermore, if you are nervous about hooping for embroidery machine operations, this project is the safest way to practice. You will learn about "Floating"—a critical skill for materials that are too thick or stiff to clamp in a standard plastic ring.

The “No-Undo” Reality of MS Paint: Building the Silhouette

In digitizing, we think in shapes, not lines. The video demonstrates building a silhouette using two primitives:

1. The Strap: A long vertical rectangle.
2. The Tag: A circle at the bottom.

The Workflow:

1. Open MS Paint.
2. Draw the Rectangle first.
3. Draw the Circle at the bottom.
4. Visual Anchor: Manually align the circle’s center with the rectangle’s bottom edge. Look for symmetry—if it looks lopsided now, it will stitch lopsided later.
5. The Weld: Use the Fill tool with White to erase the internal overlapping lines. You want one solid, continuous outer shape.

Cognitive Friction Alert: MS Paint is raster-based (grids of pixels), not vector-based. Once you click away from a shape, it is "baked" into the canvas. You cannot move it. Do not fight this. If you mess up, Control+Z immediately. Do not stress about the exact millimeter size in Paint; we will force the size in Sew Art.

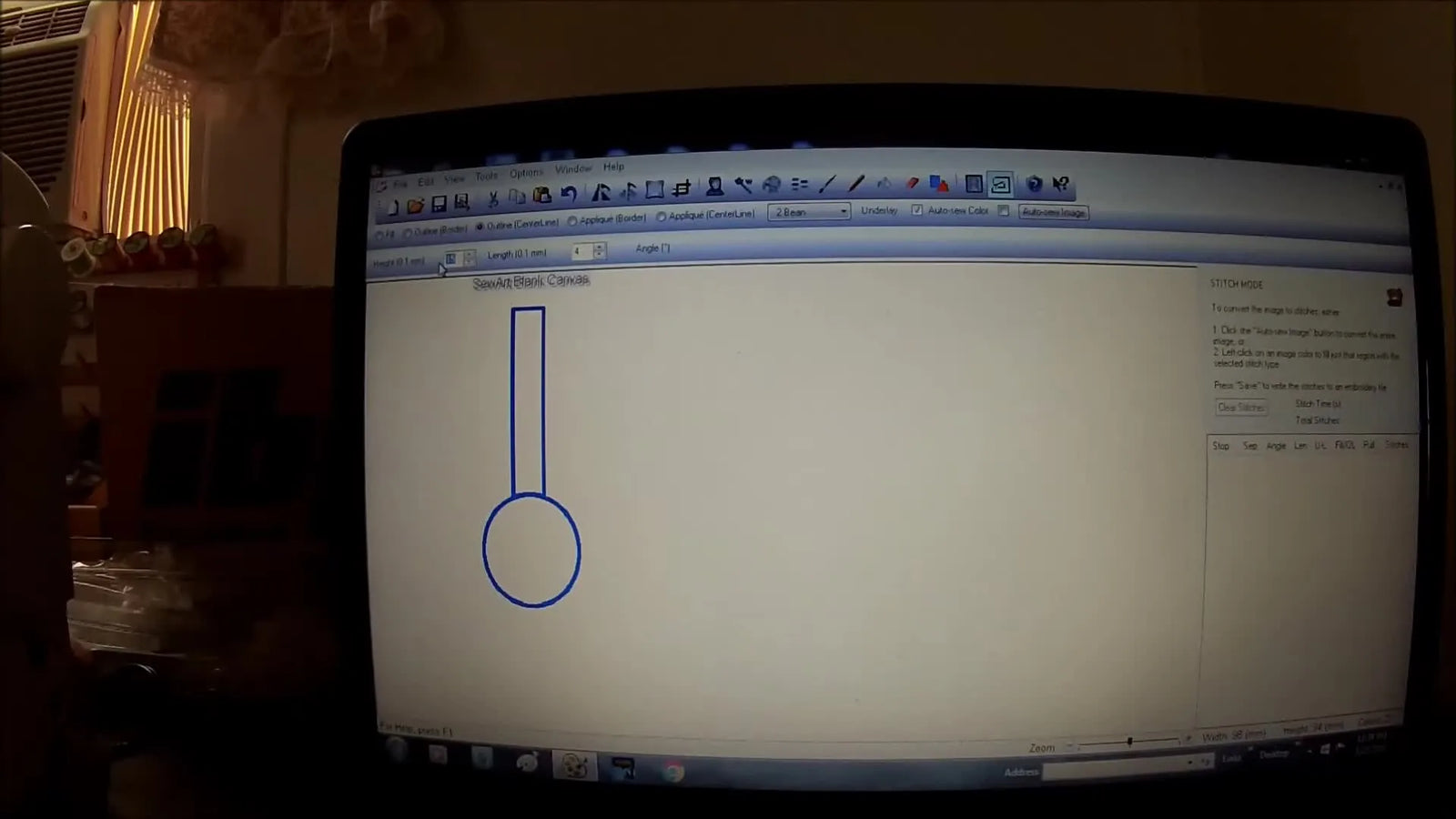

The Grid Habit: Importing to Sew Art 64 & "Safe Zone" Sizing

Once you import your silhouette into Sew Art 64, you must perform two "Pre-Flight Checks" that prevent 90% of beginner sizing errors.

1. The Grid is Your GPS

• Action: Go to View and enable the Grid.
• Why: Without a grid, your eyes will deceive you regarding center alignment. Use the zero lines to center your design.

2. The 95mm Rule

• Action: Force the design height to 95.00 mm.
• Why: A "4x4" hoop is technically 100mm x 100mm. However, machine embroidery is physical. As the pantograph (the arm moving the hoop) hits the limit switches, accuracy degrades.
• The Safety Margin: Keeping your design at 95mm gives you a 2.5mm buffer on all sides. This prevents the dreaded "Design exceeds hoop limits" error and ensures better stitch quality.

Expert Note: Cropping changes size. If you use the crop tool to remove white space after setting the size, check the numbers again. It likely shrank. Always set your final 95mm dimension last.

The "Bean Stitch" Sweet Spot: Settings That Actually Work

A standard "Running Stitch" is too thin for vinyl; it sinks into the material and disappears. You need a Bean Stitch (also called a Triple Run). This stitches forward-back-forward, creating a bold, rope-like line that sits on top of the texture.

The Magic Numbers (Sew Art 64 Specifics):

1. Reduce Colors: Click the posterize icon to reduce to 2 colors (Blue/White).
2. Stitch Tool: Click the sewing machine icon.
3. Type: Select Outline Centerline (Not Border!).
   • Why Centerline? "Border" traces the inside and outside of your line, creating two parallel rows. "Centerline" runs right down the middle for a clean, single bean path.
4. Style: Select Bean Stitch.
5. Parameters (The Recipe):
   • Height (Separation): 4
   • Length: 25

What these numbers mean physically:

• Length 25: Usually corresponds to 2.5mm. This is the standard stitch length. If you go shorter (e.g., 1.5mm), you risk perforating the vinyl like a stamp, causing it to tear.
• Height 4: In Sew Art, this often controls stitch separation or pass thickness depending on the version. For beginners, trust the 25/4 combo for 12-gauge vinyl or oilcloth.

If you are researching techniques for a floating embroidery hoop, understanding stitch density is vital. If your stitch count is too high on a floating project, the pull of the thread will curl the vinyl up like a potato chip.

File Management: The "Future You" Will Thank You

Save your file to your USB drive with a name that includes your settings.

• Bad Name: keyfob.pes
• Good Name: KeyFob_Bean_L25_H4_95mm.pes

Why? When you test this and think, "The stitches are too far apart," you won't remember what setting you used yesterday. By naming the file with data, you create a feedback loop for improvement.

The "Hidden" Consumables & Prep Checklist

Oilcloth and Marine Vinyl are "unforgiving" substrates. They do not heal. Once the needle makes a hole, that hole is permanent.

The Toolkit

• Substrate: White Oilcloth (Front).
• Backing: Black Glitter Felt (hides mistakes/bobbin thread).
• Stabilizer: Heavyweight Tear-away or "Garden Fabric" (polypropylene).
• Adhesion: Temporary Spray Adhesive (e.g., 505 Spray or similar).
• Needle: Size 75/11 Sharp or Topstitch. (Do not use a Ballpoint needle; it struggles to pierce vinyl).

Warning: Safety First. Never put your fingers inside the hoop area while the machine is armed. A needle moving at 600 stitches per minute moves faster than your reflex. Also, keep scissors away from the hoop while it is attached to the machine to avoid scratching the pantograph arm.

Prep Checklist (Do Before Touching the Machine)

• Needle Check: Is the needle fresh? A burred needle will shred vinyl.
• Bobbin Check: Do you have enough bobbin thread? Running out mid-border on vinyl creates a visible tie-off knot that looks messy.
• Cuts: Oilcloth cut larger than the hoop field (not just the design).
• Scissors: Ensure your finishing scissors are razor sharp for the final trim.


The "Float" Method: Physics of Adhesion vs. Tension

This is the most critical physical skill in this tutorial. Oilcloth is stiff. If you try to jam it into a brother 4x4 embroidery hoop or similar plastic frame, you will likely get "Hoop Burn"—permanent creases or white stress marks on the vinyl.

The Solution: Floating.

1. Hoop ONLY the stabilizer. Make it tight like a drum skin. Tap it; it should sound like a drum.
2. Spray the stabilizer. Use a light mist of adhesive. Do not soak it.
   • Sensory Check: Touch it. It should feel "tacky" like a Post-it note, not wet or slimy.
3. Place the Oilcloth. Smooth it down on top of the sticky stabilizer.

Why this works: You are relying on friction and adhesion to hold the fabric, not hoop pressure.

Decision Tree: Stabilizer Selection for Key Fobs

• Are you stitching on Marine Vinyl (Heavy)?
  • Recommendation: Medium Tear-away. The vinyl supports itself.
• Are you stitching on Thin Oilcloth/Cotton?
  • Recommendation: Cut-away. You need the stabilizer to prevent puckering.
• Did your previous attempt curl up?
  • Fix: You used a stabilizer that was too light, or your thread tension is too high.


The Stitch Order: Logistics of the "Back"

To make a professional key fob that looks good on both sides, you must understand the "Sandwich" technique.

The Procedure:

1. Run Color 1 (Lettering/Internal Design): Stitch this on the top layer (oilcloth) only.
2. PAUSE: The machine stops.
3. Remove Hoop (Carefully): Do not un-hoop the stabilizer. Just take the plastic hoop off the machine arm.
4. The "Under" Move: Flip the hoop over. Spray the back of your Glitter Felt/Vinyl backing. Stick it to the underside of the hoop, covering the area you just stitched.
   • Tip: Use painter's tape on the edges of the backing to secure it extra tight. You do not want it peeling off and getting caught in the feed dogs.
5. Run Color 2 (The Bean Stitch Outline): Re-attach the hoop. This final outline stitches through the Top Oilcloth, the Stabilizer, and the Bottom Felt, locking everything together.


Use Felt to Hide the "Ugly" Side

Why use Glitter Felt on the back? The Engineering Reason: Bobbin tension is rarely perfect on the back. It can look white and jagged. By covering the back with felt before the final outline run, you hide all the tie-offs and messy bobbin threads from the lettering step. The only thing visible on the back will be the clean bean stitch outline.

The Pre-Flight Setup

Before you press the green button, perform a "Reality Check."

Sensory Audit:

• Visual: Is the presser foot height suitable? If the foot is dragging on the sticky vinyl, raise the pressure foot height in your machine settings (if available) to avoid drag.
• Auditory: When you start, listen. A rhythmic thump-thump is good. A high-pitched squeak or grinding noise means the needle is struggling to penetrate or adhesive is gumming up the needle.

If alignment is your nightmare—if you spend 20 minutes trying to get that oilcloth straight—you might be outgrowing your toolset. Many professionals switch to a repositionable embroidery hoop system or magnetic option to speed this up, as repeatable placement is the key to profit in batch production.

Setup Checklist (Machine-Side)

• Design loaded and verified (95mm or less).
• Thread path clear (no tangles).
• Stabilizer is TIGHT (floating only works if stabilizer is tight).
• Speed lowered. Pro Tip: Drop your max speed to 400-600 SPM (Stitches Per Minute). Vinyl creates friction/heat. Slowing down reduces thread breaks and needle gumming.


Troubleshooting: When the Outline Looks Wrong

The video highlights common glitches. Here is how to diagnose them like a technician.

Symptom 1: Double Vision (Thick, messy border)

• Cause: You selected "Outline Border" in Sew Art. The software traced the left and right side of your pixel line.
• Fix: Undo. Select Outline Centerline.

Symptom 2: Shredded Vinyl / Thread Breaks

• Cause: Stitch length is too short (perforating the material) or speed is too high.
• Fix: Increase Stitch Length to 3.0mm or slow the machine down. Change to a new needle.

Symptom 3: The "Last Stitch" Knot

• Cause: Sometimes the bean stitch doesn't tie off cleanly on the exact start point.
• Fix: Pull the thread tails to the back manually and tie a square knot. Add a drop of seam sealer (Fray Check) for security.


The Cut: Where Amateurs Rush and Pros Take Time

You have stiched a perfect fob. Now you have to cut it out.

• The Grip: Hold the scissors steady and move/rotate the fob, not the clear the scissors.
• The Margin: Aim for a consistent 2mm - 3mm border of material outside the stitching. Excessive border looks sloppy; too close risks cutting the thread.


The "Upgrade Path": When to Move Beyond the 4x4 Plastic Hoop

The "Float Method" with spray adhesive is great for one-offs. But if you start making 50 fobs for a craft fair, you will encounter new pain points: Hand Fatigue, Gummed-up Needles, and Inconsistent Hoop Tension.

Here is how to analyze your need for upgraded tools:

Scenario A: The "Sticky Mess" Trigger

• Trigger: You are cleaning spray adhesive off your hoop and machine bed constantly. Your needle gets sticky and shreds thread.
• Solution: Magnetic Hoops. A embroidery magnetic hoop clamps the material firmly without needing sticky spray. You sandwich the vinyl between the magnets. This is cleaner, faster, and saves money on spray cans.

Scenario B: The "Hoop Burn" Trigger

• Trigger: You want to hoop the vinyl directly, but the plastic ring leaves permanent white marks (burn) on a dark marine vinyl.
• Solution: Magnetic frames distribute pressure differently. Many users search for brother embroidery hoops alternatives specifically to solve this marking issue on delicate or coated fabrics.

Scenario C: The "Scale" Trigger

• Trigger: You can sell 100 fobs, but your single-needle machine takes 15 minutes per changeover. You are losing profit to time.
• Solution: This is when you look at multi-needle machines (like SEWTECH or Ricoma). You set up 6-10 colors at once and use industrial-style hoops for rapid production.

Warning: Magnet Safety. Industrial-strength magnetic hoops are incredibly powerful. They can pinch skin severely and may interfere with pacemakers. Handle with care and slide them apart—do not pry.

Operation Checklist: The "Zero-Defect" Routine

• Step 1: Hoop stabilizer tight; float top vinyl with light spray.
• Step 2: Stitch internal design/lettering.
• Step 3: Remove hoop, flip, spray-tack felt backing to underside.
• Step 4: Re-attach hoop (ensure backing didn't peel).
• Step 5: Stitch final Bean Stitch outline.
• Step 6: Remove, trim jump stitches, cut perimeter with sharp scissors.
• Step 7: Install snaps/hardware.


By following this workflow, you move from "guessing" to "manufacturing." The key fob is small, but the skills—floating, density management, and layer order—are the foundation of every advanced project you will tackle next. Happy stitching!

FAQ

• Q: How do I size a key fob design in Sew Art 64 to avoid the “Design exceeds hoop limits” problem in a 4x4 embroidery hoop?
  A: Set the finished design height to 95.00 mm as the safe maximum for a 4x4 field.
  • Enable the grid in Sew Art 64 and center the silhouette on the zero lines.
  • Set the design height to 95.00 mm as the final step (do sizing last).
  • Re-check dimensions after using Crop, because cropping can change the size.
  • Success check: The design preview shows clear space from all hoop edges and the machine does not warn about hoop limits.
  • If it still fails: Reduce the design slightly below 95.00 mm and verify the correct hoop is selected on the machine.
• Q: In Sew Art 64, why does the key fob outline stitch as a thick “double vision” border on vinyl, and how do I fix it?
  A: Switch from Outline Border to Outline Centerline to prevent two parallel outline rows.
  • Undo the last stitch generation step in Sew Art 64.
  • Select the stitch tool, then choose Outline Centerline (not Border).
  • Keep Bean Stitch for the outline so the line sits on top of vinyl texture.
  • Success check: The preview shows a single clean center path (not two tracks) and the stitched border looks like one rope-like line.
  • If it still fails: Re-check that the artwork is a single silhouette (no stray interior lines) before converting to stitches.
• Q: What Sew Art 64 Bean Stitch settings are a safe starting point for key fobs on 12-gauge vinyl or oilcloth?
  A: Use Bean Stitch with Length 25 and Height (Separation) 4 as a proven beginner recipe.
  • Choose Outline Centerline so the bean stitch runs as one clean path.
  • Keep stitch length around the “Length 25” baseline to avoid perforating the vinyl.
  • Slow machine speed to reduce friction and needle gumming when stitching vinyl.
  • Success check: The outline looks bold and even on top of the vinyl, without tearing or excessive holes.
  • If it still fails: If tearing or breaks happen, increase stitch length (longer stitches) and replace the needle with a fresh sharp/topstitch needle.
• Q: How do I “float” oilcloth correctly in a Brother 4x4 embroidery hoop to prevent hoop burn and shifting?
  A: Hoop only the stabilizer drum-tight, then lightly spray and stick the oilcloth on top instead of clamping oilcloth in the plastic hoop.
  • Hoop the stabilizer only and tighten until it feels like a drum skin.
  • Mist temporary spray adhesive lightly on the stabilizer (do not soak).
  • Smooth the oilcloth onto the tacky stabilizer surface and avoid stretching it.
  • Success check: The stabilizer sounds/feels tight when tapped, and the oilcloth stays flat without visible hoop creases or drift during stitching.
  • If it still fails: Use a heavier stabilizer choice from the project decision rules and lower speed to reduce pull and curling.
• Q: What needle, stabilizer, and backing combo works for key fobs on oilcloth or marine vinyl, and what should I check before stitching?
  A: Start with a 75/11 sharp or topstitch needle, a heavyweight tear-away (or garden fabric) stabilizer, and glitter felt backing to hide the underside.
  • Replace the needle before testing if there is any doubt (a burred needle can shred vinyl).
  • Verify bobbin thread is sufficient before starting to avoid a visible mid-border issue.
  • Cut oilcloth larger than the hoop field (not just larger than the design).
  • Success check: The needle penetrates cleanly without squeaking, and the back looks tidy once covered by felt and locked by the final outline.
  • If it still fails: If puckering/curling appears, step up stabilizer support (often cut-away helps on thinner substrates) and re-check tension.
• Q: How do I attach glitter felt backing for a clean two-sided key fob using the “sandwich” method without losing registration on a home embroidery machine?
  A: Stitch the internal design first, then flip the hooped stabilizer and stick the backing to the underside before running the final bean stitch outline.
  • Run Color 1 (lettering/internal design) on the top oilcloth layer.
  • Remove the hoop from the machine arm without unhooping the stabilizer.
  • Flip the hoop, spray-tack the backing felt to the underside, and optionally tape the edges to prevent peel-up.
  • Success check: The final outline stitches through top + stabilizer + backing, and the back side shows only a clean outline with no exposed messy tie-offs.
  • If it still fails: If the backing shifts or catches, secure edges more firmly and confirm the backing fully covers the stitched area before restarting.
• Q: What are the key safety rules for stitching key fobs on vinyl at 400–600 SPM on a home embroidery machine, and what sounds indicate a problem?
  A: Keep hands and tools clear while the machine is armed, and stop immediately if the machine makes squeaking/grinding noises.
  • Keep fingers out of the hoop area once the machine is ready to run.
  • Keep scissors away from the attached hoop to avoid scratching the machine arm.
  • Listen at startup: a steady rhythmic “thump-thump” is normal; squeak/grind suggests penetration or adhesive buildup issues.
  • Success check: The machine runs smoothly at reduced speed with consistent sound and no thread shredding.
  • If it still fails: Pause, replace the needle, reduce speed further, and check for adhesive gumming on the needle/foot.
• Q: When key fob production gets messy or slow with spray adhesive and a plastic 4x4 hoop, when should I switch to an embroidery magnetic hoop or upgrade to a SEWTECH multi-needle embroidery machine?
  A: Upgrade in levels: first optimize the float workflow, then use a magnetic hoop to reduce spray mess/hoop burn, and move to a multi-needle machine when changeovers kill profit.
  • Level 1 (Technique): Float correctly with tight stabilizer, light spray, and slower speed to reduce shifting and needle gumming.
  • Level 2 (Tool): Use an embroidery magnetic hoop when constant spray cleanup, sticky needles, or hoop burn becomes the repeat pain point.
  • Level 3 (Capacity): Consider a SEWTECH multi-needle embroidery machine when volume orders make single-needle thread changes the main time loss.
  • Success check: Setup time drops and results become repeatable batch-to-batch without constant cleaning or re-hooping.
  • If it still fails: Re-check magnet safety handling (slide apart; avoid pinching) and confirm the chosen hooping method matches the substrate stiffness.
