Moved Your Ricoma 15-Needle? Here’s How to Re-Thread Fast Without Creating a Bigger Thread Disaster

Moving a multi-needle machine is stressful for one dominant reason: you can do everything “technically right” regarding transport, and still end up with a tangled “spaghetti monster” of thread behind the head upon arrival.

If you are currently staring at your Ricoma (or any comparable commercial machine) with strings hanging chaotically, take a breath. This is not a disaster; it is a standard operational resetting phase. Furthermore, you do not need to fully de-thread every single path—a process that could take hours—if you utilize the "Tie-On" pull-through method Brittany demonstrates.

Your Ricoma 15-Needle Thread Mess Isn’t a Failure—It’s a Normal Post-Move Probability

A move shakes, tugs, and loosens internal components you don't even notice until you attempt to return to production mode. The vibration of transport often triggers specific "panic" scenarios:

• The "Bird's Nest": A giant clump of thread where cones have tipped and gathered.
• The "Ghost Break": The machine stops like it’s losing focus on a color because sensors shifted.
• The "Snap-Back": Thread snapping deep inside the tension disks when you try to pull it.
• The "Tree Tangle": Loose ends finding their way into neighboring eyelets.

The good news is that the remediation method shown in the video is highly efficient. It leverages the existing thread—which is already successfully routed through the complex uptake levers and tension disks—as a "guide rope" to pull the new thread through the exact same path. This transforms a 2-hour re-threading nightmare into a 20-minute reset.

The Hidden Prep That Saves You 30 Minutes: Precision Setup Before You Touch a Single Thread

Before you start yanking on any fibers, you must shift your mindset from "cleaning a mess" to "surgical prep." Most novices fail here because they start pulling threads while standing in a cluttered environment.

What Brittany used (and the industry standard you should adopt):

• High-Contrast Lighting: You need to see the needle eye clearly. If your shop is dim, use a headlamp or a directed task light.
• Angled Tweezers: She calls them "the key to everything," and she is correct. Fingers are too clumsy for 15-needle clusters.
• Curved Snips (Double-Curved Preferred): For getting close to the needle plate without digging into the fabric or hitting the presser foot.
• Ergonomic Seating: Brittany used a cooler to avoid hunching.

Expert Insight: If you run a professional shop, this is where you protect your greatest asset: your body. Re-threading 15 needles while bent over at the waist creates significant lumbar strain. A stable stool set to eye-level with the needle bar pays for itself by preventing fatigue-induced mistakes.

Prep Checklist (The "Pre-Flight" Protocol):

• Lighting Check: Ensure light hits the needle bar from the front-side, eliminating shadows in the eyelet.
• Waste Management: Place a small trash bin or "thread scraps" cup within arm's reach. Stepping on loose thread later is a safety hazard.
• Tool Stage: Lay out tweezers and snips on the machine table side. Do not hunt for them mid-operation.
• Rack Stability: Ensure the thread rack and cones are fully seated. Transport often loosens the vertical pillars.
• Create Your Strategy: Do not do all 15 at once randomly. Plan to work in banks of 3 or 5 to prevent re-tangling.

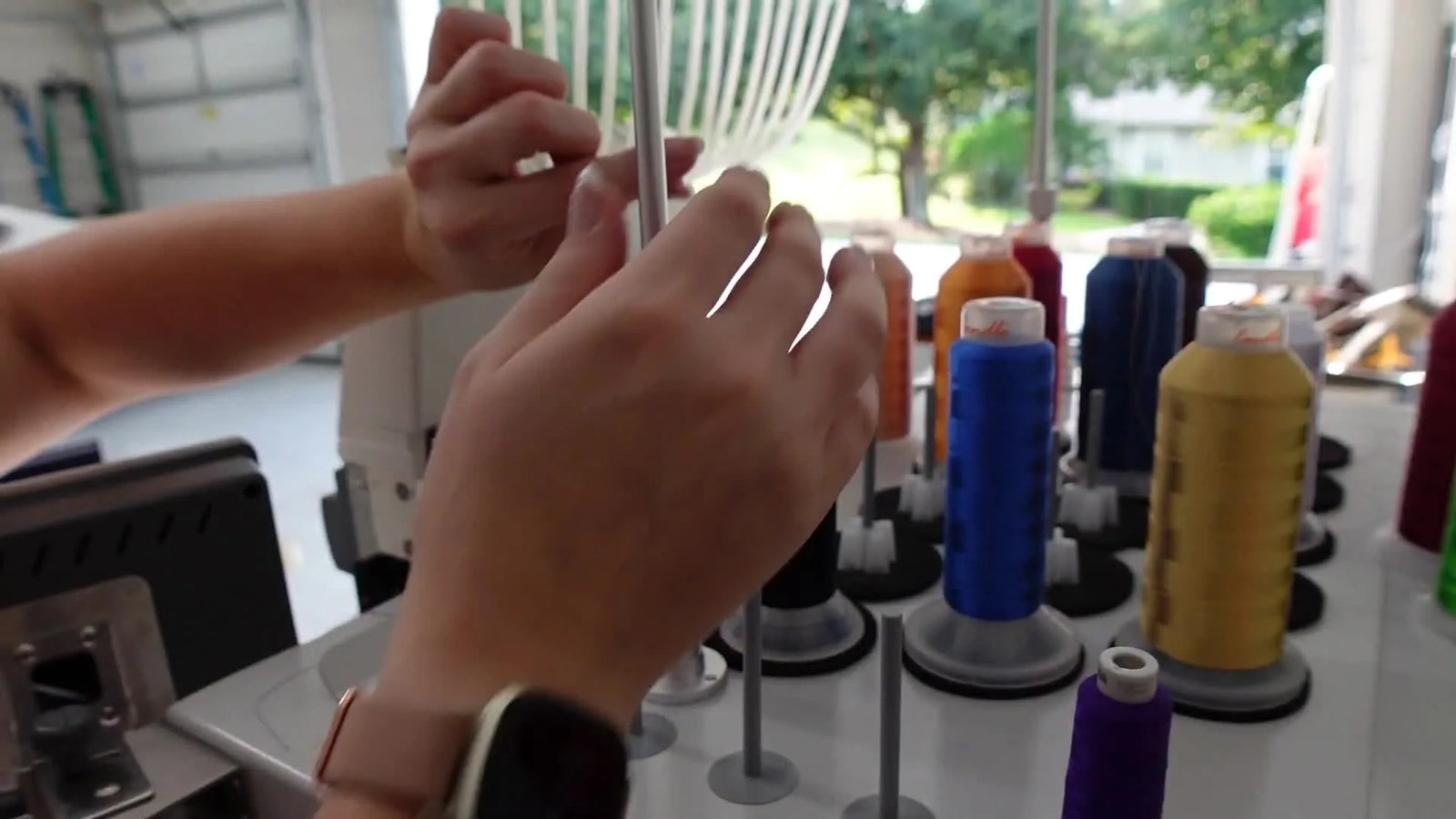

Color-Matching the Ricoma Thread Tree: The "Row-by-Row" Secret to Inventory Control

Brittany’s first move is the one most amateurs skip: assessing the loose ends hanging from the thread tree and matching them to the correct cones before attempting to thread the machine head.

The Tactical Approach:

1. Identify: Locate the loose ends dangling from the top tension area.
2. Match: Pair them color-by-color to the cones on the rack.
3. Isolate: Work in rows (Brittany suggests “three rows at a time”).

Why this matters: If you pull a thread that is snagged at the thread tree (the "pigtails"), you are not just fighting friction; you are risking snapping the thread deep inside the check spring assembly.

Sensory Check (Tactile): When you pull a thread, it should feel consistent—like pulling dental floss from a container. If you feel a sudden "jerk" or "hard stop," freeze immediately. Look up. 90% of "stuck" threads are wrapped around the metal post at the very top of the machine, not down at the needle.

If you are operating a 15 needle embroidery machine, treat this step like inventory control. Organized colors now mean fewer "wrong color stitched" surprises later—a mistake that costs money to pick out.

The "Micro-Knot" Physics: Why Only Certain Knots Survive the Tension Disks

This is the technical heart of the procedure. You cannot simply tie any knot.

Instead of removing the old thread completely, Brittany connects the old thread (already routed) to the new thread from the cone. She then pulls from the needle end to drag the new thread through. However, the success of this relies entirely on the profile of the knot.

The Knot Method (The "Loop" Technique):

1. Hold the existing machine thread end and the new cone thread end together (parallel).
2. Loop both around your index finger to form a circle.
3. Pass the tails through the loop once.
4. Crucial Step: Pull all four strands tight initially, then release the tail ends and pull the two main lines until the knot is microscopic.


The Physics of the Catch

Embroidery machine tension disks consist of two metal plates pressed together by a spring. A bulky knot acts like a rock hitting a wall—it will snap the thread. A streamlined knot acts like a wedge—it pushes the disks apart momentarily and slides through.

Expert Rule of Thumb: The knot should be no larger than the thickness of the thread itself multiplied by three. If it looks like a bead, it is too big. Cut it and retie.

The "Pull-Through" Maneuver: Navigating Tension Without Snap-Back

Brittany pulls the old thread from the needle end (down near the needle bar) to advance the new thread through the tension path. This requires a specific "feel."

The Safe Pull Protocol:

1. Release Tension: Manually lift the presser foot if your machine allows, or simply ensure the machine is in a "neutral" state (not in stitch mode), which opens the tension disks slightly on some models.
2. Grip Point: Hold the thread directly behind the needle eye. Cut the old needle thread first so you aren't pulling through the eye yet.
3. The Drag: Pull straight down toward the needle plate.
4. Velocity Control: Do not yank . Pull at a steady speed (imagine pulling a zipper).

Sensory Anchor: Listen for the knot. You will hear a tiny tick or click as the knot passes through the tension disks. If the sound is a loud snap, check the thread integrity—it may have frayed.

Warning: Keep fingers, tweezers, and snips clear of moving parts (like the uptake levers). Never pull thread while the machine is running or initializing. The needle area contains sharp components that can slice fingers or bend needles if handled roughly.

The "Save" Technique: Catching it at the Top

Brittany’s thread snapped while pulling—a common occurrence. However, she demonstrated the "Pro Save": she caught the thread at the top tension area before it fell back into the machine body.

If the knot breaks:

• Immediate Reaction: Grab the thread end at the tension assembly.
• Recovery: You only have to re-thread the lower half (the easy part), rather than the entire upper path.


Needle-Threading Precision: Clean Tip, Correct Guide, Tweezers Close

Once the new thread has passed through the tension assembly and uptake lever, you are at the final millimeter: the needle eye.

Refining Brittany's Technique:

1. The Fresh Cut: Do not try to push a fuzzy end through. Use sharp snips to cut the thread at a 45-degree angle. This creates a stiff, pointed "spear."
2. The Guide Check: Ensure the thread passes behind the lower metal guide bar (often called the "reciprocator guide"). If you miss this, the thread will flop around and break instantly upon stitching.
3. The Tweezer Grip: Grip the thread 3mm to 5mm back from the tip.
   • Too far back: The thread bends and deflects.
   • Too close: The tweezers hit the needle.
4. The Push: Push straight through, front to back.










Why "Close Grip" Matters

Thread effectively loses its structural integrity the longer it gets. By gripping close to the tip, you artificially increase its stiffness, making it behave more like a wire than a string. If the thread keeps slipping from your tweezers (as Brittany mentions), your tweezer tips may be misaligned or oily. Wipe them with alcohol or use a diamond file to sharpen the grip.

Strategic Setup: When to Deviate from the Manual

Two small decisions in the video highlight the difference between "following instructions" and "running a shop."

1. Selective Threading (Efficiency)

Brittany threaded only 14 needles, leaving one blank because it was a duplicate she didn't need.

• The Principle: In production, empty needles are fine. Unused thread sitting on the machine gathers dust and UV damage. Only thread what you plan to run.

2. Ergonomic Adaptation (Longevity)

Using the cooler as a seat wasn't lazy; it was smart. Stability equals accuracy.

• The Upgrade: If you are building a professional workflow, investigate a dedicated hooping station for embroidery machine setup and an adjustable chair. The logic is the same: standardized height reduces variance. If you are comfortable, your threading (and hooping) becomes faster and more consistent.

Setup Checklist (The "Ready-to-Stitch" Confirmation):

• Active Needles: Confirm which needles are loaded and mapped in the software.
• Ergonomics: Set seat height so eyes are level with the needle area (no hunching).
• Tools: Place tweezers in dominant hand, snips in non-dominant.
• Thread Path: Verify thread is behind the lower guide bar on all active needles.
• Tail Management: Ensure tails are trimmed to 2-3 inches; too long and they tangle; too short and they pull out at start.


The "Lost Focus" Error: Diagnosing the Thread Break Sensor Bar

Brittany encountered a specific post-move issue: The machine kept stopping, signaling a thread break when none existed. The culprit was the Thread Break Sensor Bar (the row of small wheels or tensioners above the main tension knobs) which had shifted.

The Mechanism: Modern multi-needle machines check for thread movement. If the wheel doesn't spin, the computer assumes the thread is broken. Vibration from moving can jar these sensor wheels out of alignment or disconnect the cable slightly.

The Fix:

• Inspect the row of wheels.
• Ensure they spin freely and are seated in their housing.
• Check that the spring wire (check spring) is bouncing back actively.


Warning: If you suspect sensor damage or if the bar is physically bent, do not force it. Contact a certified technician. Maligned sensors can cause the machine to stitch over the same spot repeatedly, destroying the garment.

Decision Tree: The First Post-Move Test Run

Do not run a live customer jacket as your first item. Use this logic to safely test your re-threading work.

Phase 1: Material Selection

• Scenario A: Testing Thread Path Only.
  • Material: Two layers of medium-weight Cotton Woven + Tearaway Stabilizer.
  • Why: This is the "Control Group." It is stable and predictable.
• Scenario B: Testing Registration (Alignment).
  • Material: The same setup, but use a design with outlines.

Phase 2: Speed Settings

• Standard Rule: Start slow.
• Recommended Speed: 600 SPM (Stitches Per Minute).
  • Why: 600 SPM is the "Sweet Spot." It's fast enough to maintain tension but slow enough for you to hit the "Emergency Stop" if you hear a grinding noise. Do not jump to 1000 SPM immediately.

Phase 3: The Result

• Thread Break? → Check the Sensor Bar and Knot path.
• Looping on top? → Top tension is too loose (or thread didn't seat in disks).
• White bobbin showing on top? → Top tension is too tight.

Troubleshooting Common Re-Threading Failures

Use this table to diagnose issues during the "Tie-On" process.

The Commercial Upgrade Path: Scaling Your Production Workflow

Once you have mastered the art of "fixing" the machine, your focus must shift to "optimizing" the business. Re-threading is a maintenance task; hooping and swapping frames are where you make (or lose) profit.

Level 1: Ergonomic Optimization

Brittany’s use of the cooler highlights a critical deficit in many shops: poor ergonomics. If your back hurts, your output drops. Investing in a proper chair and a hooping station allows you to hoop garments perfectly straight every time without physical strain.

Level 2: The Tool Upgrade (Magnetic Frames)

This video focuses on threading, but the biggest bottleneck in embroidery is actually hooping. Traditional screw-hoops are slow and cause "hoop burn" (shiny marks) on delicate fabrics. Many professionals eventually transition to magnetic embroidery hoops.

• The Gain: They clamp instantly (no screws). They hold thick items (Carhartt jackets, towels) without wrestling.
• The ROI: If you save 30 seconds per shirt on a 100-shirt order, you save nearly an hour of labor.

Warning: High-Power Magnet Risk. Magnetic frames (like the MaggieFrame) are incredibly strong. Keep them away from pacemakers, credit cards, and hard drives. Always keep fingers clear of the clamping zone—they can pinch severely (blood blister risk).

Level 3: The Capacity Upgrade (Multi-Needle Machines)

If you are reading this while struggling with a single-needle machine and frustrated by constant manual color changes, recognize that you have hit a hardware ceiling. The SEWTECH series of multi-needle machines are designed to solve the "throughput" problem. Moving from 1 needle to 15 needles isn't just about not changing thread; it's about walk-away reliability. You hit "Start" and go do other work.

If you are currently evaluating machine embroidery hoops or looking at upgrading your entire rig, use this simple standard: Does this tool reduce my manual handling time? If the answer is yes, it is an investment, not an expense.

Operation Checklist: The "Green Light" Protocol

Before you begin a paying job, run this final operational scan.

Operation Checklist (Post-Threading):

• Path Verification: Check that no thread is wrapped around the "thread tree" post.
• Needle Clearance: Verify threads are not tangled with the presser foot feet.
• Bobbin Check: Ensure you have a full bobbin (don't start a test with an empty one).
• First Stitch Speed: Set machine to 600 SPM for the first 500 stitches.
• Sensor Audit: Watch the sensor wheels spin during the first color.


Final Reality Check: Efficiency is a System

Brittany’s method works because it respects the machine’s existing mechanical logic. You aren't forcing the machine; you are guiding it.

Once you have performed the "Tie-On" method successfully, it becomes muscle memory. You will stop dreading thread changes and start seeing them as a quick pit-stop.

However, remember that a shop that threads fast but hoops slow is still losing money. As you stabilize your machine skills, look at your entire workflow. If you are struggling with hoop burn or wrist pain, solutions like ricoma embroidery hoops compatible magnetic frames are often the "unlock" that makes embroidery fun again.

Protect your body, respect the tension physics, and always—always—check your sensor bars after a move.

FAQ

• Q: How can a Ricoma 15-needle embroidery machine be re-threaded after moving without fully de-threading every thread path?
  A: Use the tie-on pull-through method to use the existing routed thread as a guide, so the new thread follows the same path.
  • Match each loose end on the thread tree to the correct cone before pulling anything.
  • Tie a tiny, low-profile “micro-knot” between old thread and new cone thread, then pull from the needle end to draw the new thread through.
  • Pull steadily (do not yank) and keep the machine not running/initializing while handling thread.
  • Success check: the knot passes with a small “tick/click” through the tension area and the new thread reaches the needle area without snapping.
  • If it still fails, re-tie a smaller knot and check for thread wrapped around the top thread-tree post/pigtails.
• Q: What knot works best for the Ricoma multi-needle tension disks during the tie-on pull-through method?
  A: Use a very small loop-style knot that cinches down “microscopic,” because bulky knots snap in tension disks.
  • Hold old thread and new thread parallel, loop them around a finger, pass tails through once, and cinch tight.
  • Trim tails close so nothing catches in guides or disks.
  • Retie immediately if the knot looks like a bead or feels bulky.
  • Success check: the knot slides through the tension disks instead of stopping and snapping.
  • If it still fails, slow the pulling speed and inspect for snag points at the top thread-tree posts.
• Q: How can a Ricoma 15-needle embroidery machine be pulled through safely during re-threading to avoid snap-back and thread breaks?
  A: Pull from the needle end with controlled, steady force and set up the machine so tension is not fighting you.
  • Ensure the machine is in a neutral/not-stitching state; if available, lift the presser foot to slightly open tension disks.
  • Cut the old needle thread first so the pull-through is not fighting the needle eye.
  • Pull straight down toward the needle plate at a steady “zipper-like” speed.
  • Success check: you hear a small tick/click as the knot passes the tension disks, not a loud snap.
  • If it still fails, use the “save” move: catch the thread at the top tension area so it does not fall back into the machine body, then re-thread only the lower half.
• Q: Why does a Ricoma commercial embroidery machine stop with a false thread break after moving, and how can the Thread Break Sensor Bar be checked?
  A: Post-move vibration can shift the Thread Break Sensor Bar wheels so they do not spin freely, triggering false breaks.
  • Inspect the sensor wheel row above the main tension knobs and confirm each wheel spins freely and sits correctly in the housing.
  • Check that the check spring wire is bouncing back actively.
  • Blow lint out of the sensor area with canned air if buildup is suspected.
  • Success check: during the first stitches, the sensor wheels visibly spin and the machine stops only on real breaks.
  • If it still fails, do not force a bent/misaligned bar—stop and contact a certified technician.
• Q: What are the most common Ricoma 15-needle tie-on re-threading failures (snaps, slips, instant breaks) and the quickest fixes?
  A: Most failures come from knot size, pull speed, dirty tools, or missing the lower guide bar near the needle.
  • Re-tie smaller if thread snaps while pulling, and pull slower and straighter.
  • Re-snip the thread end at a 45-degree angle and wipe oily tweezers with alcohol if thread slips from tweezers.
  • Re-thread the needle and confirm the thread passes behind the lower metal guide bar (reciprocator guide) if it breaks immediately on stitching.
  • Success check: thread pulls consistently (no hard stop), threads cleanly through the needle eye, and stitches begin without immediate break.
  • If it still fails, stop and re-check the thread-tree/pigtails area for wraps before changing tension settings.
• Q: What is a safe first test-run setup and speed after moving a Ricoma multi-needle embroidery machine and re-threading?
  A: Start with a stable “control” material stack and run slow first to confirm thread path, tension behavior, and sensor function.
  • Hoop two layers of medium-weight cotton woven with tearaway stabilizer for the first test.
  • Set speed to 600 SPM for the first run instead of jumping to high speed.
  • Watch the first color closely and be ready to stop if you hear abnormal grinding or repeated stopping.
  • Success check: no false stops, no top looping, and no bobbin thread showing on top during the first several hundred stitches.
  • If it still fails, use the symptom rule: looping on top often means top tension too loose or thread not seated in disks; white bobbin showing on top often means top tension too tight.
• Q: What safety rules should be followed when re-threading a Ricoma multi-needle embroidery machine and when considering magnetic embroidery hoops?
  A: Keep hands away from moving/sharp parts during threading, and treat magnetic hoops as high-force tools that can pinch and affect sensitive items.
  • Never pull thread while the machine is running or initializing; keep tweezers and snips clear of uptake levers and needle movement zones.
  • Use angled tweezers and curved snips deliberately to avoid stabbing the needle area or contacting presser feet.
  • Keep magnetic hoops away from pacemakers, credit cards, and hard drives, and keep fingers out of the clamping zone.
  • Success check: threading is performed with the machine stationary and tools controlled; magnetic frames close without finger pinch incidents.
  • If it still fails, pause and improve the setup (lighting, seating height, tool placement) before attempting again—rushing is when injuries and bent needles happen.
