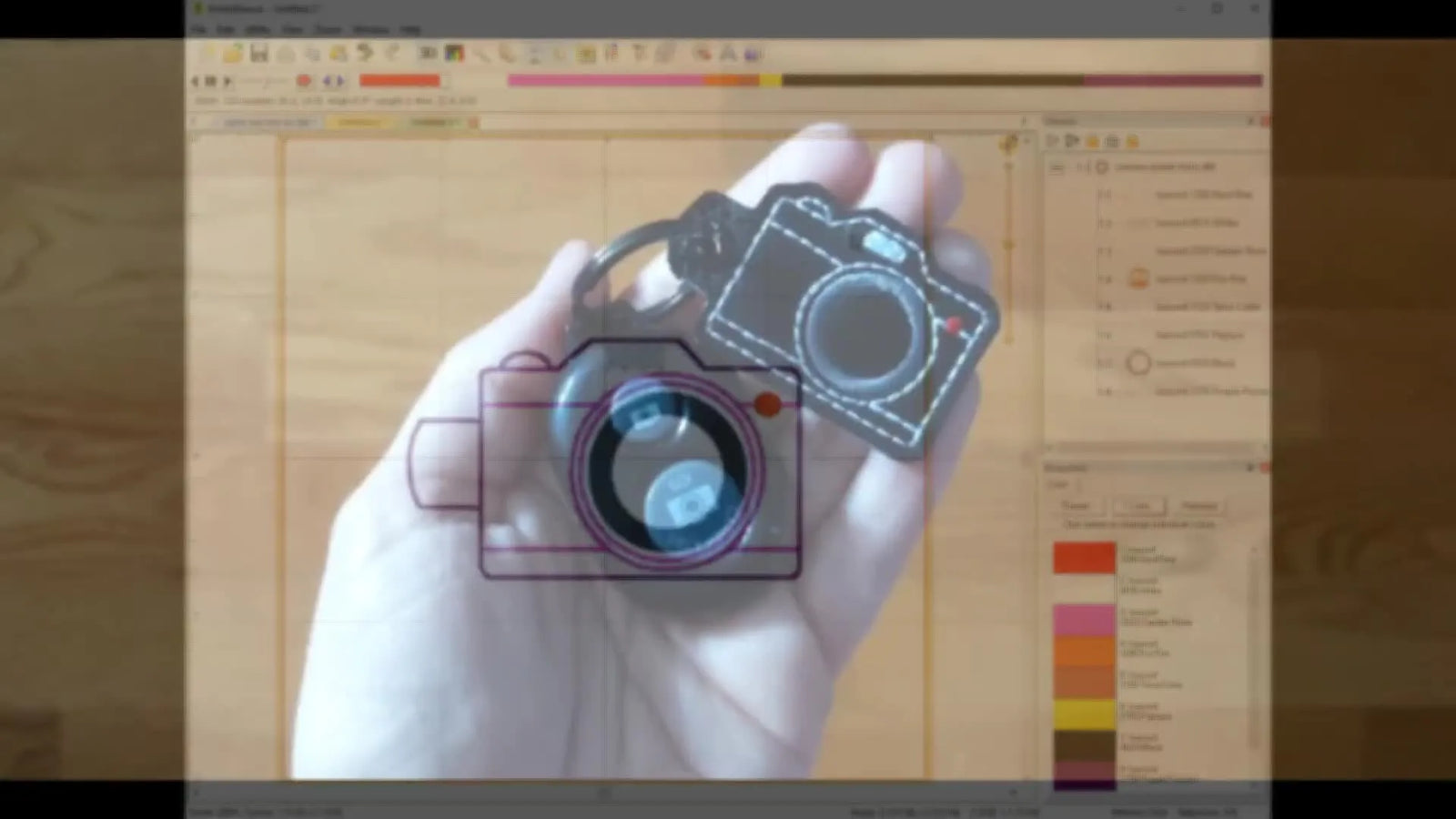

Move an ITH Key Fob Tab in Embrilliance Essentials (Without Re-Digitizing) — The Stop-Button Workflow That Actually Holds Up

Master the "Impossible" Edit: How to Customize Purchased ITH Files in Embrilliance Essentials

If you’ve ever bought a cute in-the-hoop (ITH) key fob file and immediately thought, “Perfect… except the tab is in the wrong place,” you’re not alone. The frustration is real: you bought the file to save time, but now the hardware forces the design to hang vertically when you need it horizontal.

The good news: you don’t need the original digitizer’s master file (.BE or .EMB) to make a practical edit. You can manipulate the standard machine file (.PES, .DST, etc.) directly.

In this industry-grade guide, we’ll take a pre-made camera key fob file and move the eyelet tab from the top to the side using Embrilliance Essentials. We will move beyond simple clicking and explain the physics of why files behave this way, creating a safe, repeatable workflow that protects your machine and your materials.

Don’t Panic: Editing a Purchased PES File in Embrilliance Essentials Is Possible (Even If It Feels “Flattened”)

A lot of intermediate embroiderers hit the same wall: you can see the tab, and you know where you want it, but the file behaves like one solid brick. That’s because, as the video demonstrates, machine files (like PES) are "flattened." They contain stitch coordinates, not object data.

Think of a purchased file like a PDF document—you can't easily rewrite a paragraph. A working file is like the original Word document.

However, the workaround we are using today is like taking a pair of digital scissors and cutting the PDF into pieces. By using the Stop tool, you create your own edit points at the exact stitches where the tab begins and ends. Once the tab becomes its own isolated island in the stitch stream, you can move and rotate it freely.

The “Hidden” Prep Pros Do First: File Safety, Stitch Logic, and Why ITH Designs Need Extra Respect

Before you touch a single node, treat ITH files like a baking recipe: if you change the order of ingredients carelessly, the cake won't rise. In ITH projects, layer order is critical to ensuring the back fabric covers the stitches.

Prep Checklist: The "Zero-Error" Start

• Isolate the Asset: Duplicate your original purchased file. Never edit your only copy. Save the new version as ProjectName_TabEdit_v1.
• Visual Logic Check: Expand the Objects Pane (Step list). Identify the logic: Placement Line → Tack Down → Decorative Stitch → Backing Placement → Final Satin.
• Target Acquisition: Mentally separate the tab into two parts you must keep aligned: the placement stitch (the map) and the final satin/finishing stitch (the seal).
• Hidden Consumables Check: Ensure you have appliqué scissors and embroidery tape (or temporary adhesive spray) on hand. You will need to secure materials carefully when the machine stops.

Warning: Needle Clearance Safety. When stitching edited ITH files, the machine may make unexpected jumps if your edit isn't clean. Keep fingers, hair, and loose sleeves at least 6 inches away from the needle bar. A 1000 SPM (Stitches Per Minute) needle strike happens faster than human reaction time.

Stitch Simulator in Embrilliance Essentials: The One Toolbar Icon That Makes This Edit Possible

In the tutorial, Melissa clicks the needle-and-thread icon to open the Stitch Simulator. This is your time machine. It allows you to scrub through the design stitch-by-stitch.

Use this tool to find the exact "seam" between the main design and the tab. You are looking for the moment the needle jumps from the camera body to the tab loop.

Sensory Check:

• Visual: Watch the "Playhead" on the simulator bar.
• Action: Drag the slider until the simulated stitching completes the camera body but before it starts the tab.
• Precision: Use the arrow keys on your keyboard to advance one stitch at a time. You want to stop exactly before the long jump stitch occurs.


Split the Tab Placement Stitch with the Stop Button (Color Doesn’t Matter—Separation Does)

Now we create the first cut: isolating the tab placement stitch. This is usually a simple running stitch that tells you where to place your vinyl or fabric.

The Workflow:

1. Locate the stitch count right before the tab placement starts using the Simulator.
2. Click the Stop button (often looks like a Stop sign or a "Color Change" icon).
3. Crucial Step: When the dialog box opens, pick a random color.

Why the color doesn't matter: You are not actually changing the thread color on your machine. You are inserting a COLOR CHANGE command into the digital code. This forces the software to treat the tab placement as a separate "object" or "block" in the list.

Expected Outcome: Your object list on the right side of the screen should now show an extra step. You have successful surgical separation.

Split the Tab Finishing Stitch Too (This Is Where Most People Mess Up)

This is the novice trap. If you only move the placement line, you will stitch a perfect outline for your tab in the new spot... and then your machine will stitch the heavy satin border in the old spot. This creates a "ghost tab" and ruins the piece.

You must repeat the "Stop and Split" process for the final satin stitch (usually the last step of the file).

Repeat the Move:

• Scroll the Simulator to the end of the file (often the purple or black satin border).
• Find the exact stitch where the satin border finishes the camera and jumps to the tab.
• Insert a Stop.
• Assign a random color.

Validation: You should now see the tab's satin border as a completely separate item in your object tree.

Move and Rotate the Tab Like a Locked Pair (Control-Select Both Steps or You’ll Regret It)

Here creates the "physics" of a good edit. You must treat the placement stitch and the satin stitch as a locked pair. If they are even 1mm out of alignment, your vinyl will not be caught by the thread, and the tab will rip off.

The "Locked Pair" Protocol:

1. Click the isolated tab placement step in the object tree.
2. Hold the Control Key (Command on Mac).
3. Click the isolated tab satin step.
4. Drag and Rotate: Now, move them as a single unit. Use the rotation handle (blue dot) to turn the tab 90 degrees to the side.

Visual Check: Ensure the "open" end of the tab (where it connects to the camera body) slightly overlaps the camera's satin stitch. If there is a gap, the tab will fall off. A 2-3mm overlap is the "safety zone."

The “Physics” Behind Clean ITH Results: Why Placement + Satin Must Stay Married

Even though we are working in software, we must respect the physical properties of embroidery. The heavy satin stitch of a key fob creates significant "pull"—it draws the material inward, acting like a cinematic corset.

If your placement line (the map) and your satin stitch (the edge) are misaligned, or if your stabilization is weak, the vinyl will pull away from the stitches, leaving an ugly raw edge or a hole.

The Hoop Burn & Stability Problem Stitching ITH projects on thick vinyl requires high clamp tension to prevent shifting. However, cranking a standard hoop screw too tight on vinyl leaves permanent "hoop burn" rings (crushed grain) that ruin the product.

This is a classic "Tooling Trigger." If you struggle to hoop thick vinyl without leaving marks, or if your hands hurt from tightening screws:

• The Problem: Traditional hoops require physical force to hold thick sandwiches, causing fabric damage and wrist strain.
• The Criteria: If you stitch vinyl key fobs regularly and value a flawless finish.
• The Upgrade: A magnetic embroidery hoop uses vertical magnetic force rather than horizontal friction. It clamps the stabilizer sandwich firmly without crushing the vinyl texture, allowing for faster floating techniques that are essential for batch ITH production.


Merge Placement Steps by Matching Colors (So the Machine Doesn’t Stop for No Reason)

Once the move is complete, your file now has "artificial" stops that you created to make the edit. If you run the file now, the machine will stop and trim between the camera body and the tab. This is inefficient and leaves messy thread tails.

The Efficiency Fix:

1. Select the Camera Placement object.
2. Select the Tab Placement object.
3. Right-click "Color" and assign them the exact same color code.

The Logic: Even if they are separate objects in the list, modern embroidery machines read consecutive identical colors as a continuous run. The machine will stitch the camera, jump, and stitch the tab without stopping.

Merge the Final Satin Steps the Same Way (Unless You Intentionally Want Contrast)

Apply the same logic to the final satin stitch. If you want the entire border to be white, ensure the camera satin and the tab satin are assigned the exact same white.

The Pro Production Mindset In the video, Melissa chooses to leave them as different colors to create a design feature (Black Tab, White Camera). This is a valid aesthetic choice.

However, if you are running a business order of 50 key fobs, every unnecessary stop costs you about 30 seconds of production time (stop, trim, change thread, restart).

Scaling Up: If you find yourself spending more time changing threads than stitching, you have hit the ceiling of a single-needle machine.

• Trigger: “I have an order for 100 key fobs and it will take me all weekend.”
• Solution: A SEWTECH multi-needle embroidery machine allows you to preset all colors (placement, tack down, satin). The machine handles the jumps and color changes automatically, dramatically increasing your profit-per-hour.


Verify the File the Pro Way: Save As, Re-Import, and Count the Steps

Software can sometimes play tricks on the screen. The only way to trust your edit is to simulate the machine's "brain."

The Verification Loop:

1. Save As: Save the file as Camera_Fob_EDIT_Final.PES.
2. New Page: Open a blank design page.
3. Re-Import: Drag your new PES file onto the blank page.
4. Audit: Look at the Object Pane. Does it have the correct number of color stops? (e.g., Placement -> Tackdown -> Decoration -> Backing -> Satin).

If you see extra stops you didn't plan for, go back and check your color combining steps.

Setup Checklist: Before You Stitch the Edited ITH Key Fob, Set Yourself Up for a Clean Run

The software edit is done. Now, physical execution determines success or failure.

Setup Checklist (The "Pre-Flight"):

• File Load: Confirm the machine loaded Camera_Fob_EDIT_Final, not the original.
• Needle Check: For vinyl, use a 75/11 Sharp or Embroidery needle. A ballpoint needle may struggle to pierce tough leatherette.
• Bobbin Check: Ensure you have enough bobbin thread to complete the dense satin stitch. Running out mid-satin is a nightmare to fix on ITH projects.
• Stabilizer Choice: Use Medium Weight Tearaway for stiff vinyls. If your vinyl is stretchy (like upholstery vinyl), use Cutaway to prevent the tab from distorting.
• Alignment: Use the "Trace" function on your machine to ensure the new tab location doesn't hit the hoop edge.

For shops doing repetitive ITH production, a hooping station for embroidery ensures your stabilizer is perfectly tensioned every time, reducing the "drum skin" variance that causes alignment errors.

Troubleshooting the Two Most Common “Why Is My Machine Stopping?” Problems

Even with a good edit, things can behave strangely. Use this table to diagnose issues quickly.

Decision Tree: Stabilizer + Hooping Choices for ITH Key Fobs (Vinyl/Leatherette) vs Fabric

The standard advice "use stabilizer" isn't specific enough. Your material dictates your physics.

Start: What is your Key Fob Material?

A) Stiff Marine Vinyl or Faux Leather (Non-Stretch)

• Stabilizer: Medium Tearaway (x2 layers if very thin).
• Needle: 75/11 Sharp.
• Hooping: Float the vinyl on hooped stabilizer. Use Tape or Spray.
• Optimization: A magnetic embroidery hoop is ideal here to hold the floating vinyl flat without leaving ring marks.

B) Upholstery Vinyl or Thin Leather (Stretchy)

• Stabilizer: Cutaway (Required to stop stretch).
• Needle: 75/11 or 80/12.
• Hooping: Hoop the vinyl with the stabilizer if possible, or use a sticky stabilizer.
• Warning: The satin stitch will shrink this material. Increase overlap in software to compensate.

C) Cotton / Woven Fabric

• Stabilizer: Tearaway is usually fine; add Fusible Interfacing (like SF101) to the back of the fabric for crispness.


The Upgrade Path: When This “Stop Button Hack” Turns Into a Production System

Mastering this "Stop Button" technique allows you to fix almost any purchased file that has annoying jump stitches or poor sequencing. It turns Essentials from a viewer into a production tool.

However, as your skills grow, your bottlenecks shift from software to hardware.

The Production Ladder:

1. Level 1 (Technique): Use the edits described above to fix file errors and save thread trims.
2. Level 2 (Consistency): If you battle hoop burn or slow hooping times, upgrade to an embroidery magnetic hoop. The magnets self-align, reducing the setup time from 2 minutes per hoop to 30 seconds.
3. Level 3 (Scale): When "Stop/Start" fatigue sets in consider a magnetic hooping station to standardize placement, or look into multi-needle machines to automate the thread changes entirely.

Warning: Magnet Safety Protocols. High-quality magnetic hoops use industrial-grade magnets. They are incredibly strong.
* Pinch Hazard: Never place fingers between the brackets.
* Medical Devices: Keep at least 6 inches away from pacemakers.
* Storage: Always store with the provided spacers to prevent them from snapping together permanently.

Operation Checklist: Stitching the Finished Camera Key Fob Cleanly (So the Edit Looks Intentional)

You are ready to run. Here is your final validation sequence to ensure the "hacked" file looks like a factory original.

Operation Checklist (During the Run):

• Placement Phase: Run Step 1 (Placement). Sensory Check: Does the new tab placement look "square" relative to the fabric grain?
• Adding Backing: When the machine stops for the back piece, ensure the back vinyl covers the entire new tab area. Use tape generously.
• The "Thump" Check: Listen to the machine during the final satin stitch. A rhythmic, solid thump-thump is good. A laborious, grinding sound suggests the needle is struggling with density—slow the speed down to 500-600 SPM.
• The Finish: After removing from the hoop, inspect the tab connection point. Pull on it gently. It should feel solid, like it is one piece with the camera body.

By controlling the software step-by-step and respecting the physical needs of your material, you can customize any ITH file to fit your hardware perfectly. No more vertical key fobs when you needed horizontal capability!

FAQ

• Q: How can Embrilliance Essentials move an ITH key fob tab inside a purchased PES file without the original EMB/BE working file?
  A: Use the Stitch Simulator to place Stop splits before and after the tab so the tab becomes separate stitch blocks you can move.
  • Open Stitch Simulator (needle-and-thread icon) and scrub to the jump from the main design to the tab.
  • Click Stop right before the tab placement starts, choose any random color to force a split.
  • Repeat near the end to split the tab’s final satin/finishing stitch into its own block.
  • Success check: The Objects/Step list shows separate entries for tab placement and tab satin that can be selected independently.
  • If it still fails: Re-simulate and place the Stop one stitch earlier/later using arrow keys for stitch-by-stitch precision.
• Q: In Embrilliance Essentials, how do you prevent a “ghost tab” when relocating an ITH key fob tab in a PES file?
  A: Move the tab placement stitch and the tab finishing satin stitch together as a locked pair.
  • Isolate both tab blocks first (one for placement, one for final satin) using Stop splits.
  • Control-select (Command on Mac) both tab steps in the object tree before dragging/rotating.
  • Keep a small overlap where the tab joins the body so the connection is captured.
  • Success check: After rotation/move, both the placement outline and the satin border land in the same new location with no border left behind at the old tab position.
  • If it still fails: Undo and confirm the finishing satin was split separately near the end of the design (not just the placement line).
• Q: Why does an embroidery machine stop between the camera body and tab placement after editing an ITH key fob PES file in Embrilliance Essentials?
  A: Make consecutive steps the exact same color so the machine reads them as one continuous run instead of a stop.
  • Select the Camera Placement step and the Tab Placement step in Essentials.
  • Assign the exact same color code to both steps (not “close”—identical).
  • Repeat the same color-matching method for the final satin steps if a stop there is also unwanted.
  • Success check: The Object Pane shows fewer color stops, and the machine no longer pauses to trim/change thread between those sections.
  • If it still fails: Save As, re-import the PES onto a blank page, and recount the color changes to find any extra unintended stops.
• Q: What is the safest way to verify an edited ITH key fob PES file in Embrilliance Essentials before stitching on an embroidery machine?
  A: Save the edited file, re-import it fresh, and audit the color-stop sequence like the machine will read it.
  • Save As a new name (for example, with “EDIT_Final” in the filename) so the original stays untouched.
  • Open a new blank design page and re-import the edited PES.
  • Audit the step order to confirm it matches the intended ITH logic (placement → tackdown → decoration → backing placement → final satin).
  • Success check: The step list has only the planned stops, and the simulator playback shows no surprise jumps or extra trims.
  • If it still fails: Go back and combine colors where needed, then re-run the Save As → Re-import audit loop.
• Q: What needle and stabilizer choices are a safe starting point for stitching an edited ITH vinyl key fob on a single-needle embroidery machine?
  A: Use a 75/11 Sharp (or Embroidery) needle and match stabilizer to vinyl stretch: tearaway for stiff vinyl, cutaway for stretchy vinyl.
  • Install a 75/11 Sharp/Embroidery needle for vinyl/leatherette; avoid ballpoint if piercing is inconsistent.
  • Use Medium Weight Tearaway for stiff, non-stretch vinyls; use Cutaway when the vinyl is stretchy to reduce distortion.
  • Confirm bobbin has enough thread to finish dense satin—running out mid-satin is hard to recover cleanly.
  • Success check: Satin borders look smooth without waviness, and the tab area stays aligned without creeping or distortion.
  • If it still fails: Add a water-soluble topper before the final satin if stitches are sinking into soft vinyl.
• Q: What needle safety precautions should be followed when stitching an edited ITH file that may have unexpected jumps at 1000 SPM?
  A: Keep hands, hair, and loose sleeves well away from the needle area because edited files may jump unexpectedly during stitching.
  • Stop reaching near the needle bar while the machine is running; pause/stop first before adjusting materials.
  • Secure backing pieces with tape or temporary adhesive so fingers are not needed near the needle during stops.
  • Use trace/check functions to confirm the new tab position avoids hoop edges before running at speed.
  • Success check: The run completes with no near-contact moments and no emergency stops caused by manual interference.
  • If it still fails: Reduce speed (a safe starting point is often slower, such as 500–600 SPM on dense satin) and re-check the edited stitch path in the simulator.
• Q: When hoop burn happens on vinyl ITH key fobs with a standard screw hoop, what is the step-by-step upgrade path from technique fixes to magnetic hoops to multi-needle machines?
  A: Start by floating vinyl correctly, then consider a magnetic hoop for clamp damage and speed, and consider a multi-needle machine when color-change downtime becomes the bottleneck.
  • Level 1 (Technique): Float vinyl on hooped stabilizer and secure with tape/spray so the hoop doesn’t need extreme tightening.
  • Level 2 (Tool): Switch to a magnetic embroidery hoop when hoop burn rings, crushed texture, or wrist strain from tightening becomes frequent.
  • Level 3 (Capacity): Move to a multi-needle embroidery machine when large orders make stop/start and thread changes consume more time than stitching.
  • Success check: Hooping becomes faster with fewer marks on vinyl, and production time drops because there are fewer avoidable stops.
  • If it still fails: Re-check the edited file for unnecessary color stops and confirm the backing fully covers the newly moved tab area during the run.
