Mounting Mighty Hoop Brackets Without the Headache: Flathead vs Round-Head Screws, Spacers, and the “Label-Up” Rule

The Definitive Guide to Mighty Hoop Bracket Installation: A Master Class in Setup, Safety, and Stability

If you have ever opened a Mighty Hoop bracket kit and felt a sudden spike of cortisol—Which screws go where? Do I need the spacer? Am I about to strip the threads?—you are validating a universal truth: Precision embroidery is 90% preparation and 10% stitching.

As someone who has managed production floors for two decades, I have seen perfectly digitized designs ruined not by the machine, but by a loose bracket causing a 2mm registration shift. This guide is not just about tightening screws; it is about establishing a "Shop Ritual." It is about transforming a source of anxiety into a repeatable, fail-safe workflow that protects your equipment and ensures every stitch lands exactly where you intended.

Whether you are running a single-head home unit or a fleet of commercial machines, the principles of hardware stability are the bedrock of your business. In this white paper, we will rebuild the installation process into a cognitive workflow, supported by sensory checkpoints and industrial-grade safety protocols.

Calm the Panic: The Physics of Bracket Stability

The entire bracket-mounting process—often the most intimidating part for new magnetic embroidery hoop owners—boils down to two binary decisions based on mechanical geometry. If you get these two variables right, the assembly becomes self-evident.

1. Hole Geometry (Countersunk vs. Flat):
   • The Variance: Some hoops have conical depressions (countersinks) around the screw holes; others are flat.
   • The Decision: This dictates whether you use flathead (conical) or round head (domed) screws. Using the wrong one will prevent the hoop from sitting flush on your machine arm.
2. Machine Interface (Direct vs. Spacer):
   • The Variance: Different machine arms (Tajmia, Brother, ZSK, etc.) have different clearance heights.
   • The Decision: This dictates whether you need a spacer (a plastic shim) and consequently, whether you need short or long screws.

A vast majority of "hoop problems"—such as flagging, registration loss, or the dreaded "hoop popping off"—are actually hardware stack-up errors. A screw that is 1/16" too long will bottom out before it tightens the bracket; a screw too short will strip the nut's first threads.

The "Hidden" Prep Pros Do First: Implementation of the "Mise-en-place" Protocol

In professional kitchens, chefs never start cooking without mise-en-place (everything in its place). In embroidery, we adopt the same discipline. Before you touch a single magnet, lay your specialized ecosystem out on a non-magnetic table.

You are about to handle strong magnets and small steel parts. Control is your primary safety mechanism.

The Essential Toolkit

• Phillips Head Screwdriver: Ideally with a magnetized tip to hold screws.
• 11/32" Nut Driver (or Wrench): Do not use pliers; they slip and damage the nylon locking insert of the nut.

The Hidden Consumables

Start your session by gathering these often-overlooked items to prevent workflow interruptions:

• Temporary Adhesive Spray: Keep this away from the bracket assembly area to prevent sticky buildup on screws.
• Water Soluble Pen: For marking bracket alignment if you plan to swap them often.
• Fresh Needles (75/11): If you are setting up a new hoop, change your needle now. A fresh hoop deserves a fresh needle.


Experience-Based Prep Checklist

• Tool Verification: Confirm you have the 11/32" driver. A generic adjustable wrench is a recipe for rounded nuts.
• Screw Sorting: Physically separate flathead screws from round head screws. They look similar at a glance but function differently.
• Length Verification:
  • Short: 8-32 x 3/8" (Standard)
  • Long: 8-32 x 7/16" (For Spacers)
• Spacer Identification: Check your specific machine manual. ZSK, Happy, Barudan, and some commercial Brother setups typically require spacers.
• Orientation Check: Find the label on the bracket. This text is your "North Star" for orientation.

Warning: Physical Safety Protocol
Magnetic hoops generate force capable of crushing bone and soft tissue.
The Pinch Hazard: Keep fingers strictly on the outside* frames. Never place a finger between the top and bottom ring.
* Tool Projectiles: If a screwdriver slips near the magnet, it can snap onto the ring with significant velocity. distinct from your body.
* Medical Devices: These magnets can deactivate pacemakers. Maintain a 6-inch safety buffer if you or staff have implanted devices.

Stop Guessing Screws: The Geometry of Countersunk Holes

The video source highlights a detail that eludes many amateurs: Screw Measurement Standards.

• Flathead screws are measured overall (from the flat top to the tip) because the head sits inside the material.
• Round head screws are measured from under the head (only the threaded shaft) because the head sits on top of the material.

If you mistakenly use a long screw where a short one is required, you will feel the screw tighten, but it will be tightening against the bottom of the hole, not clamping the bracket. The bracket will feel tight to your hand but will slide under the vibration of a 1000 SPM (Stitches Per Minute) run.

The Rule of Thumb:

• Look at the bottom of the top hoop.
• Make a tactile check: Run your finger over the hole. If you feel a conical dip, you are in flathead territory.
• No dip? You are in round head territory.


If you are setting up a smaller fixture like the mighty hoop 5.5, do not waste time hunting for countersinks that do not exist. This geometry is specific to larger hoops to ensure the magnetic surface remains perfectly flat against the garment.

Setup That Actually Works: Spacer vs. Direct Mount

This is the step that separates the hobbyist from the technician. The spacer is not just a piece of plastic; it is a clearance adjuster.

• Scenario A (Spacer Required): You must use the 7/16" (Long) screws. Using short screws here will result in only 1-2 threads engaging the nut. Under vibration, the nut will fly off, potentially causing a needle strike.
• Scenario B (No Spacer): You must use the 3/8" (Short) screws. Using long screws here will cause the screw to protrude through the nut and potentially scratch your machine arm or garment.

The Vibration Factor: Embroidery machines are vibration generators. A machine running at 800-1000 SPM creates a harmonic frequency that loves to loosen fasteners. This is why we rely on Nylon Insert Lock Nuts. The nylon ring inside the nut deforms around the thread, creating friction that resists vibration. You must engage the nylon fully for this to work.

Machine-Specific Context

If you are transitioning from a domestic machine to a commercial setup, understanding these tolerances is vital. High-volume shops using SEWTECH multi-needle machines often standardize their hoop brackets across all heads to ensure consistent tension and alignment, aiming to maximize the ROI of their equipment. When you scale up, hardware consistency becomes a profit metric.

Setup Checklist

• Visual Logic Check: Machine requires spacer? Yes -> Long Screws. No -> Short Screws.
• Head Style Match: Countersunk hole? Yes -> Flathead. No -> Round head.
• Dry Fit: Place the bracket on the hoop without screws first. Analyze the fit. Does it rock? It should sit dead flat.

Warning: Magnetic Field Safety
Ensure your workspace is clear of credit cards, smartphones, and USB drives. The neodymium magnets in these hoops are strong enough to scramble magnetic storage media instantly. Treat your hoop assembly station as a "No Electronics Zone."

The Flathead (Countersunk) Method: Large Frame Assembly

This method applies to larger surface area hoops (e.g., 8x13, 10x10, 11x13). These hoops require a flush bottom surface to maintain maximum magnetic grip on thick garments like Carhartt jackets.

If you are configuring a large setup like the mighty hoop 8x13, precision here is non-negotiable. A screw head protruding even 0.5mm can reduce the magnetic clamping force significantly, leading to material slippage (hoop burn or registration loss).

Step-by-Step Execution

1. Isolation: Separate the top hoop from the bottom ring. Place the bottom ring far away (safe zone).
2. Inversion: Flip the top hoop upside down. You are looking at the "garment side."
3. Insertion: Drop the flathead screws into the countersunk holes.
4. Sensory Check (Tactile): Run your fingernail across the screw head.
   • Success: Your nail glides over it smoothy.
   • Failure: Your nail catches on the edge. (Check for debris or wrong screw type).


5. The Flip: Hold the screws in place with your fingers and flip the hoop right-side up.
6. Stacking:
   • If using a spacer, place it now over the exposed threads.
   • [FIG-07]
   • Place the bracket on top.
7. Orientation Protocol: Look for the label. The text must face the ceiling.


8. Locking: Thread the nuts by hand first to prevent cross-threading.


9. Torque: Use the Phillips driver to hold the screw stationary while turning the nut with the 11/32" driver.


Success Metrics

• Visual: The bracket label is legible and facing up.
• Tactile: The screws on the underside are perfectly flush.
• Auditory: There should be no rattling sound when you shake the hoop gently.

If you are building a kit for a mighty hoop 11x13, consider dedicating this hoop to your bulkiest items. The flush mount is specifically engineered to handle the drag of heavy canvas or fleece without snagging.

The Round-Head (Top-Down) Method: Small Hoop Assembly

Small hoops, like the 5.5", lack the material thickness for countersinking. Therefore, we use a top-down approach.

Step-by-Step Execution

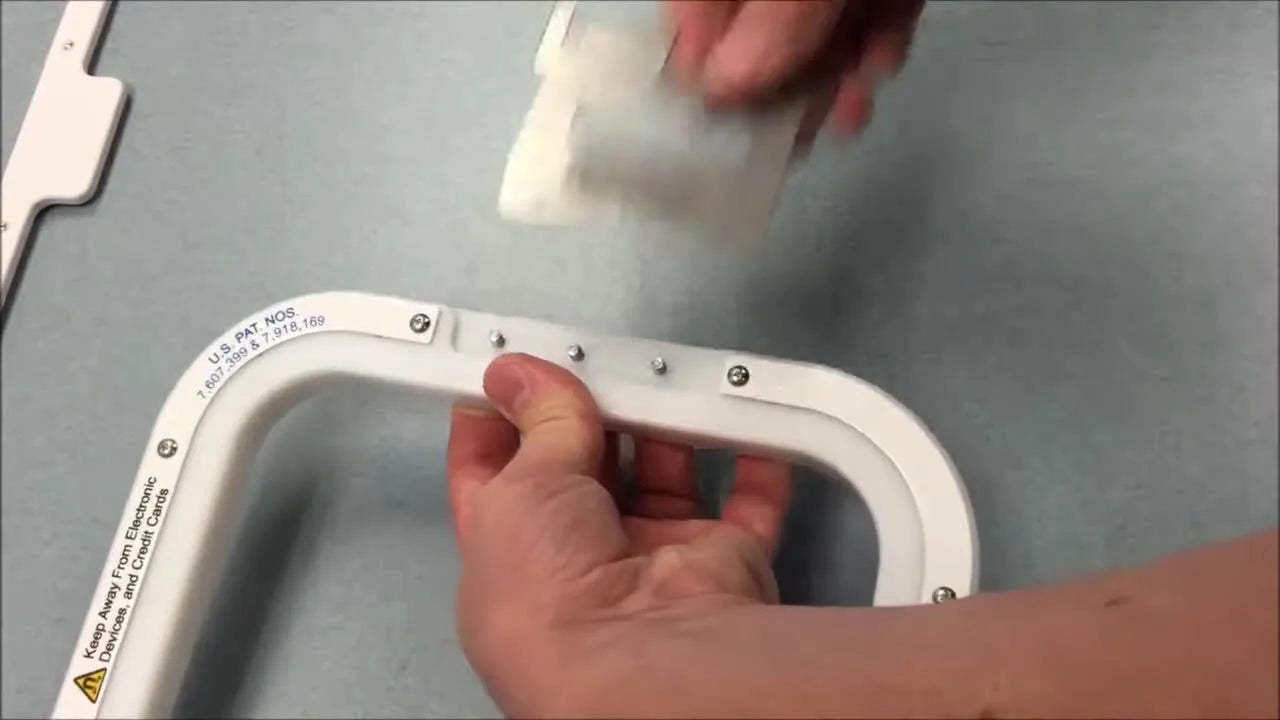

1. Stacking: Place the bracket (and spacer, if needed) onto the top of the hoop.
2. Insertion: Insert round head screws from the top, going down through the bracket and into the hoop.




3. Inversion & Locking: Hold the screw heads, flip the hoop, and attach nuts from the bottom.


4. Torque Strategy: Tighten with the 11/32" driver.


The "Snug" Sensation (Sensory Anchor)

How tight is tight enough? Novices often "gorilla torque" these screws, cracking the plastic frame.

• The Goal: "Snug."
• The Feeling: Turn until you feel resistance (the nylon engaging), then turn until the movement stops. Give it 1/8th of a turn more.
• The Check: Try to wiggle the bracket with your thumb. It should be immovable. If the plastic starts to turn white (stress marks), you have gone too far. Back off immediately.

The Label-Up Rule: Solving the Orientation Puzzle

A frequent point of confusion involves the "Top vs. Bottom" of the hoop.

• Fact: Brackets attach to the top hoop only.
• Rule: The Bracket Label must face UP.

If you mount the bracket upside down (label facing the hoop), the geometry will be inverted. You might force it onto the machine, but it will stress your machine's pantograph arms. Over time, this stress damages the machine's X/Y stepper motors—a costly repair caused by a simple bracket error.

For users managing multiple machines, such as those searching for mighty hoops for brother multi-needle systems, this rule remains constant. Standardizing your orientation across all hoops prevents the "Monday Morning Crash" where a misaligned hoop hits the presser foot.

Troubleshooting: The "Vibration Check" Routine

Troubleshooting is best done before a failure occurs. In aviation, this is called Pre-Flight; in embroidery, it is Pre-Stitch.

The Symptom: You hear a buzzing noise during stitching, or your outline is slightly off-center from the fill. The Root Cause: Vibration has backed a nut off by a fraction of a millimeter.

Structured Troubleshooting Guide

If you own a mixed fleet, perhaps integrating mighty hoops for ricoma or similar clones, treat spacer usage as a strict compatibility check. Never assume a Ricoma setup is identical to a Tajima setup without measuring.

The Strategic Decision Tree: Your Installation Navigator

Do not guess. Follow this logic path to 100% accuracy.

1. Look at the Hoop Underside:
   • Countersunk Hole?
     • YES -> Fetch Flathead Screws -> Go to Step 2.
     • NO -> Fetch Round Head Screws -> Go to Step 2.
2. Consult Machine Manual:
   • Spacer Required? (e.g., ZSK, Happy, Barudan)
     • YES -> Fetch 7/16" (Long) Screws -> Go to Step 3.
     • NO -> Fetch 3/8" (Short) Screws -> Go to Step 3.
3. Final Approach:
   • Verify: Bracket Label shows text facing UP.
   • Action: Assemble and Torque to "Snug."

This systematic approach is essential. However, if you find yourself constantly battling "hoop burn" (the ring marks left on fabric) despite perfect bracket installation, the issue may not be the bracket—it may be the clamping mechanism itself. This is often the Trigger Point where professionals upgrade to magnetic hoops/frames specifically to eliminate the friction and mechanical lock that causes fabric damage.

Compatibility & The "Commercial Upgrade" Path

In the comments of the source material, users frequently ask about cross-compatibility.

• "I upgraded my machine. Can I keep my hoops?"
  • Verdict: Often, yes. The hoop body is universal; the bracket is the interface. You can buy replacement brackets for your new machine (e.g., swapping from Brother to Barudan) without buying new magnets.
• "Can I use generic brackets?"
  • Verdict: Proceed with caution. Genuine Mighty Hoop brackets are calibrated for specific arm widths.

Is hoop alignment taking up too much of your day? If you are spending 5 minutes hooping for a 2-minute stitch run, your ratio is broken.

• Level 1 Fix: Master the bracket install (this guide).
• Level 2 Fix: Upgrade to Magnetic Hoops for faster, burn-free hooping.
• Level 3 Fix (The Profit Scaler): If you are hitting a production ceiling with a single-needle machine, consider the transition to a SEWTECH Multi-Needle Machine. These platforms allow you to leave hoops preset on specific heads and use larger industrial magnetic frames, effectively decoupling your "prep time" from your "stitch time."

Owners of high-end consumer machines often search for magnetic hoops for tajima embroidery machines or similar industrial standards because they want that commercial efficiency.

Even for specific niche machines, ensuring you have the correct interface is key. If you are sourcing magnetic hoops for happy embroidery machine or mighty hoops for barudan, the spacer requirement mentioned earlier is the difference between a secure hoop and a broken needle.

Operation Checklist (The Final "Go/No-Go")

Before you mount this hoop to your $10,000+ machine, verify these three points:

• The Shake Test: Shake the hoop. Silence is golden. Rattles mean danger.
• The Visual Scan: Label is UP. Spacer (if needed) is PRESENT.
• The Interface: Slide it onto the machine arm. It should click into place with a satisfying, definite tactility—not loose, not forced.

By treating these brackets with the respect they deserve, you are not just assembling plastic and metal; you are calibrating your business for precision, safety, and scale.

FAQ

• Q: How do I choose flathead screws vs round head screws for a Mighty Hoop bracket installation on a multi-needle embroidery machine?
  A: Choose the screw head style by checking whether the hoop’s screw holes are countersunk (flathead) or flat (round head).
  • Feel the underside of the top hoop screw hole: conical dip = flathead; no dip = round head.
  • Sort screws before starting so flathead and round head screws never get mixed.
  • Install and tighten to “snug,” not maximum force, to avoid stressing the hoop.
  • Success check: run a fingernail across the underside screw heads—flathead screws should be perfectly flush on countersunk holes.
  • If it still fails… disassemble and re-check for debris in the countersink or the wrong screw type preventing the hoop from sitting flat.
• Q: When should I use a spacer and long screws (8-32 x 7/16") vs no spacer and short screws (8-32 x 3/8") for Mighty Hoop bracket mounting on ZSK, Happy, Barudan, or Brother commercial setups?
  A: Use a spacer only when the machine arm clearance requires it—then use long 7/16" screws; otherwise skip the spacer and use short 3/8" screws.
  • Confirm spacer requirement in the specific machine manual before tightening anything.
  • Match screw length to the stack: spacer present = long screws; spacer absent = short screws.
  • Hand-thread nuts first to avoid cross-threading, then tighten while holding the screw steady.
  • Success check: the nylon insert lock nut is fully engaged (not just 1–2 threads), and the bracket cannot be wiggled by thumb.
  • If it still fails… if a “clicking” sound appears during stitching, stop and re-check spacer presence and screw length (missing spacer is a common cause).
• Q: What is the correct Mighty Hoop bracket orientation on Tajima, Brother, ZSK, Happy, or Barudan embroidery machine arms to prevent hard mounting and alignment stress?
  A: Install the bracket on the top hoop only, with the bracket label text facing UP.
  • Locate the bracket label and treat it as the orientation reference before tightening.
  • Dry-fit the bracket on the hoop (no screws) and confirm it sits dead flat without rocking.
  • Mount to the machine arm only after confirming label-up orientation.
  • Success check: the label is readable from above and the hoop slides onto the arm with a definite, natural “click” (not forced, not loose).
  • If it still fails… if the hoop is hard to mount, remove the bracket and flip it—an inverted bracket is the most common cause.
• Q: How tight should nylon insert lock nuts be on a Mighty Hoop bracket to prevent vibration loosening without cracking the hoop?
  A: Tighten to “snug”: tighten until nylon resistance engages, then until movement stops, then add about 1/8 turn.
  • Hold the screw still with a Phillips screwdriver while turning the nut with an 11/32" nut driver (avoid pliers).
  • Tighten evenly across fasteners so the bracket clamps flat and doesn’t twist.
  • Stop immediately if the plastic shows whitening/stress marks from over-torque.
  • Success check: the bracket is immovable when pushed with your thumb, and the hoop makes no rattling sound when gently shaken.
  • If it still fails… if the bracket still wiggles after tightening, check for wrong screw length (bottoming out) or stripped threads and replace the screw/nut.
• Q: What “mise-en-place” prep items should be on the table before assembling a Mighty Hoop bracket kit to avoid mid-install mistakes?
  A: Set up a controlled, non-magnetic work area with the correct drivers, sorted screws, and a few workflow consumables before touching the magnets.
  • Verify tools: Phillips screwdriver (ideally magnetized tip) and an 11/32" nut driver (do not use pliers).
  • Separate hardware: flathead vs round head screws; short (3/8") vs long (7/16") screws.
  • Stage consumables away from hardware: temporary adhesive spray (keep off screws), water-soluble pen for alignment marks, and a fresh 75/11 needle if starting a new hoop setup.
  • Success check: every part needed is within reach and screws are pre-sorted so no “guessing” happens during assembly.
  • If it still fails… if you keep stopping to identify parts, pause and re-sort screws by head type and length before continuing.
• Q: How do I troubleshoot a Mighty Hoop buzzing noise, slight outline-to-fill misregistration, or a hoop that wiggles on the machine arm during high-speed stitching?
  A: Treat buzzing, off-center outlines, or hoop wiggle as a fastener-vibration problem first—nuts often back off by a fraction under 800–1000 SPM vibration.
  • Stop the machine and wiggle the bracket by hand to confirm any movement.
  • Tighten nuts and ensure nylon insert lock nuts are fully engaged on the threads.
  • Inspect for stripped threads if a screw “spins endlessly,” and replace the screw/nut immediately if damaged.
  • Success check: after re-tightening, the hoop/bracket is silent in a gentle shake test and the bracket cannot be moved by thumb.
  • If it still fails… if vibration loosening is chronic, consider a small drop of blue thread locker (only if appropriate for your workflow) and re-check screw length/spacer stack-up.
• Q: What are the key safety rules for handling Mighty Hoop magnetic frames during bracket installation to prevent finger pinch injuries and magnet-related damage?
  A: Treat Mighty Hoop magnets as pinch-hazard equipment and keep electronics and medical devices away from the assembly zone.
  • Keep fingers on the outside frames only—never place fingers between the top hoop and bottom ring.
  • Control tools near magnets: a slipped screwdriver can snap to the ring like a projectile.
  • Clear the area of credit cards, phones, and USB drives; treat the station as a no-electronics zone.
  • Maintain a safety buffer for implanted medical devices (pacemakers) as strong magnets can interfere.
  • Success check: the bottom ring is kept in a separate “safe zone,” and you can assemble without any uncontrolled snapping or tool pull-in.
  • If it still fails… if the workspace feels chaotic, stop and reset: move the bottom ring away and re-establish a controlled layout before continuing.
