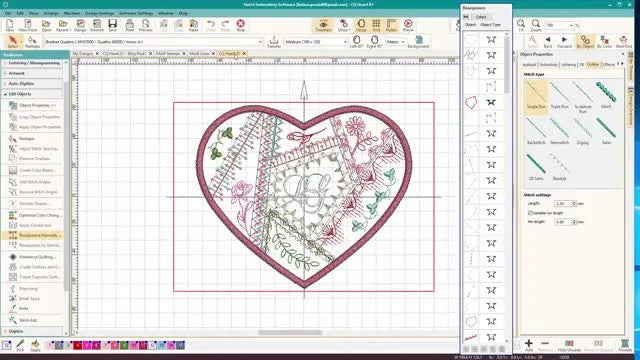

Motifs in Hatch Embroidery Software: Turn Plain Run Stitches into “Crazy Quilt” Texture (Without Creating Tiny-Stitch Nightmares)

If you’ve ever opened Hatch, applied a motif that looked pristine on your 4K monitor, and then watched in horror as your machine chewed a hole in your fabric, you are not alone. This is the "Screen-to-Fabric Gap."

Motifs are seductive. They are the fastest way to add hand-crafted texture to a design. But they are also stress tests for your entire workflow. They expose every weakness: loose hooping, incorrect stitch density, poor pathing, and the dreaded "missing tie-off" that makes a design unravel in the wash.

In this "Whitepaper" level tutorial, we are not just rebuilding a “Crazy Patch Heart” style design; we are rebuilding your process. We will follow the workflow demonstrated by Lindee Goodall—converting run lines, applying motif stamps, and resequencing—but we will add the shop-floor realities that software tutorials often skip.

The goal isn't just a pretty preview. The goal is a finished product that feels professional to the touch, with no thread loops and no puckering.

The Calm-Down Moment: Why Motifs Feel "Broken" (And How to Fix Your Mindset)

Motifs often feel "mysterious" to beginners because they defy the logic of a standard run stitch. A standard run stitch is just a path. A motif run is a path plus a repeating decorative unit that has a fixed, baked-in orientation.

The Golden Rule of Hatch Motifs: Motif runs follow the direction of the line you digitized, but the motif pattern itself has a "North" that cannot be easily flipped.

• The Reality: You cannot simply "reverse in/out points" to flip a motif pattern upside down the way you might expect.
• The Fix: Lindee builds motifs Left to Right. This makes the library preview "honest." If you build Left-to-Right, the motif will stitch out exactly as it looks in the library menu.

Psychological Anchor: Think of the motif pattern like a train car. You can drive the train forward or backward along the track (the line you drew), but you can't flip the train car upside down without derailing it.

The "Hidden" Prep Pros Do First: Clean Architecture Before Decoration

Before you click a single decorative icon, you must stabilize your digital environment. Professional digitizers do not design inside their "Master File." They work in a "Working File."

Step 1: Isolate the Skeleton

Lindee begins by stripping the design back. She resets existing motif runs to Single Runs and deletes old motif stamps.

• Why: You need to see the underlying architecture. If the foundation lines are messy, the decoration will be messy.

Step 2: Hide Construction Objects

Hide the "tack-down" or "basting" layers. You only want to interact with the decorative surface layers.

Step 3: Define Your Physical Constraints (The 5x7 Reality)

This design is intended for a 5x7 hoop field. This constraint is non-negotiable.

• The Risk: If you design freely and then shrink it later to fit a 5x7 hoop, your density will spike, and your needles will break.
• The Solution: Set your specific hoop background in Hatch immediately.

For home users, the 5x7 field is the most common workspace. However, standard plastic hoops often struggle to hold fabric tension evenly at the corners of this rectangle. This is why many intermediate users eventually upgrade to third-party brother 5x7 hoop compatible magnetic solutions to ensure the fabric stays drum-tight without the "hoop burn" marks caused by friction.

Prep Checklist: The "Pre-Flight" Safety Protocol

• Foundation Check: Ensure all lines are Single Runs (not existing motifs).
• Layer Hygiene: Hide/Lock construction layers to prevent accidental selection.
• Constraint Check: Is the background hoop set to 5x7 (or your target size)?
• Library Prep: Open "Single Motifs," "Crazy Quilt," and "Blackwork" libraries.
• Consumable Check: Do you have a fresh 75/11 needle? (Motifs often require sharp penetration power).

Convert a Plain Run Line into a Motif Run (Zigzag 21)

This is the core action that transforms a vector line into embroidery.

1. Select the existing single run line.
2. Open Object Properties.
3. Change Object Type from "Run" to Motif.
4. Select Single Motifs Category -> "Zigzag 21".


Sensory Check: Look at the screen. The line should instantly change from a thin thread line to a textured zigzag pattern.

Make Crazy Quilt Motifs Behave: Respecting "Digital Gravity"

Lindee moves to the Crazy Quilt library. She applies flower and feather motifs line by line.

The "Backwards" Problem: You apply a flower chain, but the flowers are pointing down when you want them pointing up.

• Since you cannot easily flip the motif "upside down" via properties, you must choose a different motif.
• Pro Tip: Don't fight the software. If a directional motif (like a fern) leans the wrong way, look for a symmetrical alternative in the library or a variant designed for the opposite direction.

The Tiny-Stitch Trap: Why You Must Resize Leaf 3

This is perhaps the most critical technical lesson in the tutorial. Lindee selects Leaf 3. At the default 4.00mm size, she rejects it and resizes it to 8.00mm.

The Physics of Failure:

• 4.00mm Motif: This might generate stitches that are 0.8mm long.
• The Consequence: Your machine will make a grinding sound. The needle will strike the same spot repeatedly, shredding the thread (birdnesting) or cutting the fabric.
• The Rule: If the motif looks like a "blob" on screen, it will be a knot on fabric.

The Solution: Always scale up motifs until the individual needle penetrations are visible. If you are producing files for sale or repeated use, understanding proper hooping for embroidery machine technique is vital here. Even a properly resized motif will pucker if the fabric is not stabilized correctly—tiny stitches exert massive pull force on the fabric.

Warning: Physical Safety
Extremely small motif stitches (<1mm) can cause needle deflection. If a needle hits the throat plate, it can shatter. Always wear protective eyewear when testing new motif densities, and keep your hands away from the danger zone.

Mirror Blackwork BW 10: Symmetry Without Stress

Lindee applies BW 10 from the Blackwork library. To make it look like a custom border, she mirrors it perfectly across the seam line.

Why this works: It creates a "spine" effect that masks the seam underneath.

• Action: Use the Mirror tool in the context toolbar rather than trying to duplicates and rotate manually. Mathematical symmetry usually looks cleaner to the human eye.

Clean Nesting: Adjust "Spacing," Don't Drag Objects

Beginners try to drag individual motif repeats to make them line up (e.g., nesting a knot into a V-shape). Do not do this.

• The Pro Way: Go to Object Properties and adjust the Spacing or Width value by 0.1mm increments.
• Why: This adjusts the mathematical calculation for the entire line, keeping the pattern consistent from start to finish.


Pivot Mode vs. Resize Mode: The Hidden Interface

To place stamps naturally, you must master the two modes of the selection tool:

1. Filled Squares (Resize Mode): Click the object once. Drag handles to stretch.
2. Open Squares (Pivot Mode): Click the object a second time.
   • The Secret: Drag the small center circle (Pivot Point) to the base of your object (e.g., the stem of a leaf).
   • Now, when you rotate, the leaf swings naturally around its stem, just like a real leaf.


Motif Stamp: The "Click-Drag-Click-Esc" Rhythm

Motif Run is for lines; Motif Stamp is for placing individual decorations (like a single rose).

The Muscle Memory Protocol:

1. Select Motif Stamp tool.
2. Select Pattern (e.g., Rose).
3. Click: Set the anchor point.
4. Move Mouse: Determine size and rotation.
5. Click: Set the object.
6. PRESS ESCAPE: This is crucial. If you don't press Esc, you are still in stamping mode and will accidentally place roses everywhere.


Production Insight: If you are designing for a project that requires placing stamps in the exact same location on 50 different shirts (e.g., a logo on a pocket), relying on "eyeballing" it in the software is risky. This is where a physical hooping station for machine embroidery impacts your results. You can design perfectly, but if the shirt isn't hooped straight, the stamp is crooked. Accurate software placement requires accurate physical placement.

Triple Stitch Pathing: Managing Density and Sound

Lindee selects a rose usage Triple Stitch.

• Visual: It looks thick, hand-embroidered, and luxurious.
• Auditory Check: Your machine will make a rhythmic thump-thump-thump sound as it lays three threads for every visible stitch.
• Risk: This triples the thread count. Be wary of using this on delicate fabrics like silk or thin jersey, as it can cut the fibers.


The Artistic Layout: Doodads, Flora, and Buds

Lindee layers in Flora 4 (Blackwork) and Rosebuds (Crazy Quilt).

• Technique: She mirrors and re-sequences these stamps so they flow with the heart shape, rather than fighting against it.
• Tip: If a stamp looks stiff, rotate it 5-10 degrees. Absolute verticals rarely occur in nature.




Bright Script Monogram "LG": The "Break Apart" Trick

To make letters look interlaced and organic:

1. Type "LG" in Bright Script font.
2. Right-Click -> Break Apart.
3. Now "L" and "G" are separate objects. You can overlap them slightly.
4. Regroup them when finished to avoid accidental shifts.




The Tie-Off Problem: The Step That Prevents Returns

This is the number one reason homemade embroidery fails in the wash. Motif Stamps often do NOT have automatic tie-offs.

• The Symptom: You trim the thread, wash the item, and the rose unspools into a loose thread.
• The Fix:
  1. Right-Click the Motif Stamp -> Ungroup.
  2. Select the first and last stitch objects of the design.
  3. Open Object Properties -> Connectors.
  4. Manually force "Always Tie-In" and "Always Tie-Off."


Resequencing: The "Cover-Up"

Finally, Lindee moves the Satin Border (and its decoration) to the very end of the stitch sequence.

• Why: The satin stitch is heavy and opaque. It hides the raw edges of the fill patterns and motif runs. It is your "clean-up" crew.


The 5x7 Hoop Reality Check: Hardware Decisions

Lindee zooms out to confirm the design fits the grid.

The "Hoop Burn" Dilemma: Working with dense motifs in a 5x7 field on standard frames often leads to "hoop burn" (crushed fabric texture) because you have to tighten the screw aggressively to prevent the fabric from pulling inward under the tension of the motifs.

The Professional Upgrade Path: If you are struggling with pain in your hands from tightening screws, or if you are ruining items with hoop marks, this is the trigger point to consider magnetic embroidery hoops. The vertical clamping force holds the fabric securely without the friction-burn of standard hoops. For specific machine models, searching for brother magnetic hoop 5x7 options can provide a seamless upgrade that preserves the quality of your motif work.

Warning: Magnet Safety
Magnetic hoops are industrial tools with strong pinch forces. Do not use them if you have a pacemaker. Keep fingers clear of the clamping zone to avoid painful pinches.

Decision Tree: Fabric, Stabilizer, & Hooping Strategy

Software is only 50% of the battle. Use this logic flow to ensure your motifs survive on the machine.

Checklist: The Final Countdown

Setup Checklist (Software):

• Direction: Do all motifs follow the intended "Left-to-Right" visual flow?
• Density: Are all motifs scaled up (avoiding <2mm stitch lengths)?
• Nesting: Did you use "Spacing" numerical values rather than manual dragging?
• Ties: Have you Ungrouped stamps and manually added Tie-Ins/Tie-Offs?
• Sequence: Is the Satin Border properly sequenced as the final object?

Operation Checklist (Machine):

• Needle: Installed a fresh 75/11 or Topstitch needle?
• Bobbin: Is the bobbin full? (Running out mid-motif creates visible splice lines).
• Speed: Reduce speed to 600 SPM for the first test. Motifs are data-heavy; give the machine time to react.
• Sound Check: Listen for rhythmic "thumping." A sharp "snapping" or "grinding" sound means stop immediately (likely density issue).

Conclusion: From "Fun" to "Factory Grade"

Motifs are the bridge between "machine" precision and "hand-stitched" artistry. But as we've seen, they require a higher level of discipline in both software and hardware.

By respecting direction, manually enforcing tie-offs, and managing stitch density, you move from "hoping it works" to "knowing it works." And when your volume increases or your hands tire, remember that upgrading your physical tools—like moving to efficient machine embroidery hoops—is just as important as upgrading your software skills.

Design with intent, hoop with precision, and watch your motifs come to life.

FAQ

• Q: In Hatch Embroidery 3, why does a motif run stitch out “upside down” or backwards compared with the on-screen preview?
  A: This is common—motif runs follow the line direction, but many motif patterns have a fixed orientation that will not “flip” the way a normal run stitch does.
  • Digitize motif runs left-to-right to make the library preview match the stitch-out more reliably.
  • Choose a different (more symmetrical or opposite-direction) motif instead of fighting in/out point reversal.
  • Rebuild the line direction rather than trying to force a flip with properties.
  • Success check: the stitched motif direction matches the library’s visual “flow” (flowers/ferns no longer point the wrong way).
  • If it still fails: convert the object back to a Single Run to verify the underlying line direction, then re-apply the motif.
• Q: In Hatch Embroidery 3, how do motif sizes like “Leaf 3” at 4.00 mm cause birdnesting, thread shredding, or fabric holes during stitch-out?
  A: Quick fix: scale the motif up—very small motifs can generate tiny stitch lengths that repeatedly strike the same spot and overload the fabric and thread.
  • Resize the motif (example shown: change Leaf 3 from 4.00 mm to 8.00 mm) until individual penetrations are clearly visible.
  • Test stitch at reduced speed (example shown: 600 SPM) when trying new motif densities.
  • Install a fresh 75/11 needle before motif-heavy tests.
  • Success check: the machine sound stays rhythmic (not grinding/snapping), and the motif does not “blob” into knots on fabric.
  • If it still fails: stop immediately and re-check motif density/scale before continuing to avoid needle deflection and fabric damage.
• Q: In Hatch Embroidery 3, how do you “nest” a motif run cleanly without dragging individual repeats out of alignment?
  A: Quick fix: adjust Spacing/Width numerically in Object Properties—do not drag repeats by hand.
  • Open Object Properties for the motif run and change Spacing (or Width) in 0.1 mm increments.
  • Re-check the entire line after each change to keep the pattern consistent end-to-end.
  • Avoid manual dragging that breaks mathematical repeat consistency.
  • Success check: repeats line up evenly across the whole seam line with no “random” gaps at the ends.
  • If it still fails: verify the base line is clean (Single Run foundation) and re-apply the motif run to that corrected line.
• Q: In Hatch Embroidery 3, why do motif stamps unravel after washing, and how do you force tie-in and tie-off on motif stamp objects?
  A: Quick fix: motif stamps may not include automatic tie-offs, so manually force Always Tie-In and Always Tie-Off on the first and last stitch objects.
  • Right-click the motif stamp and Ungroup.
  • Select the first and last stitch objects in the stamp.
  • Open Object Properties > Connectors and set Always Tie-In and Always Tie-Off.
  • Success check: after trimming, the stamp end does not loosen or “start unspooling” when handled or washed.
  • If it still fails: confirm the correct objects were selected (true first/last stitches), then re-run the tie settings and test on a sample.
• Q: For a 5x7 field on a Brother 5x7 hoop, how do you reduce hoop burn and fabric crushing when stitching dense motifs?
  A: Quick fix: reduce the need to over-tighten—dense motifs pull hard, and aggressive screw tightening is a common cause of hoop burn on standard hoops.
  • Set the design to the 5x7 hoop background early so density is not unintentionally increased by late resizing.
  • Hoop so the fabric is drum-tight without distortion (especially avoid stretching knits).
  • Consider upgrading to a magnetic embroidery hoop when standard hoops require excessive screw force to prevent pull-in.
  • Success check: after unhooping, the fabric surface is not visibly crushed or shiny-marked around the hoop ring.
  • If it still fails: change stabilizer strategy for the fabric type (cutaway for knits, topping for high pile) and retest at a slower speed.
• Q: What stabilizer and hooping method should be used for motif-heavy embroidery on jersey T-shirts to prevent puckering in a Brother embroidery hoop setup?
  A: Quick fix: use cutaway (mesh) stabilizer and avoid stretching the knit—motifs amplify pull force and will pucker unstable fabric.
  • Use cutaway (mesh) stabilizer as the baseline for knits.
  • Do not stretch jersey while hooping; clamp it flat and relaxed.
  • Use spray adhesive to float if needed, or use a magnetic hoop to clamp without distorting the knit.
  • Success check: the finished area lies flat with no ripples radiating out from dense motif sections.
  • If it still fails: scale up motifs that are producing tiny stitches and reduce machine speed for the test run.
• Q: What needle and safety precautions should be used when testing dense Hatch motif designs to avoid needle strikes and injury on an embroidery machine?
  A: Quick fix: treat tiny-stitch motif tests as a safety risk—use a fresh 75/11 needle, slow down, and protect eyes and hands.
  • Install a fresh 75/11 needle before testing motif-heavy files.
  • Reduce speed for first tests (example shown: 600 SPM) and stop immediately if grinding/snapping starts.
  • Wear protective eyewear when testing extremely small motif stitches that may deflect the needle.
  • Keep hands away from the needle area during test runs.
  • Success check: stitching sounds rhythmic without harsh impacts, and no needle-to-plate contact occurs.
  • If it still fails: increase motif scale (avoid ultra-short stitches) and re-check sequencing before restarting.
• Q: What magnet safety rules should be followed when using magnetic embroidery hoops on a Brother 5x7 hoop field project with dense motifs?
  A: Quick fix: magnetic hoops clamp with strong pinch force—keep fingers clear and do not use magnetic hoops if the operator has a pacemaker.
  • Keep fingers out of the clamping zone when closing the magnetic frame to prevent painful pinches.
  • Do not use magnetic hoops if a pacemaker is present (follow medical guidance).
  • Handle magnets deliberately—align before closing rather than “snapping” shut.
  • Success check: the hoop closes without finger contact, and the fabric is held securely without needing excessive force.
  • If it still fails: switch to a standard hoop for that operator or use alternative hooping methods that avoid magnetic exposure risks.
